Repairing AC and DC Drives

1. Repairing AC and DC Drives

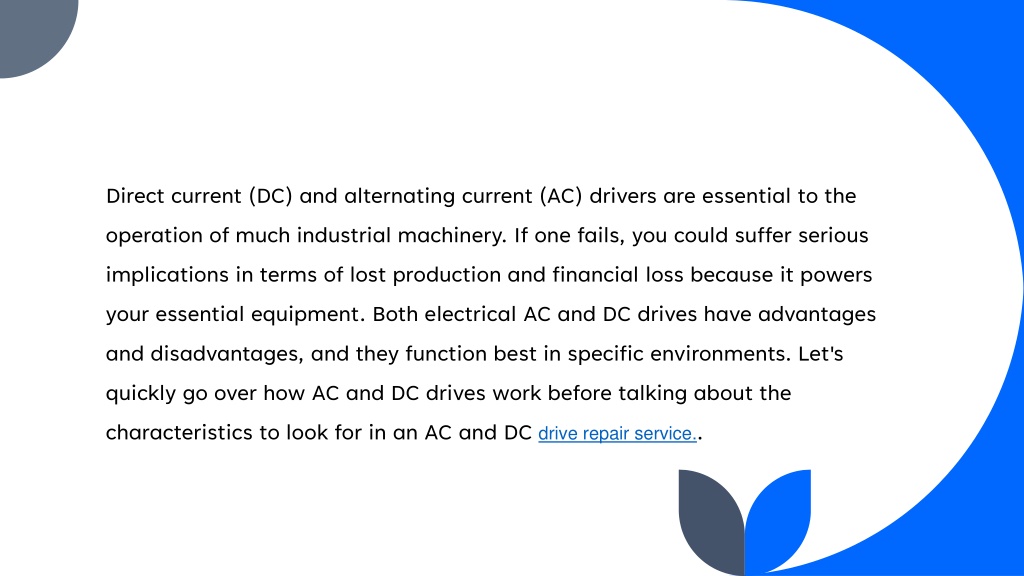

2. Direct current (DC) and alternating current (AC) drivers are essential to the operation of much industrial machinery. If one fails, you could suffer serious implications in terms of lost production and financial loss because it powers your essential equipment. Both electrical AC and DC drives have advantages and disadvantages, and they function best in specific environments. Let's quickly go over how AC and DC drives work before talking about the characteristics to look for in an AC and DC drive repair service..

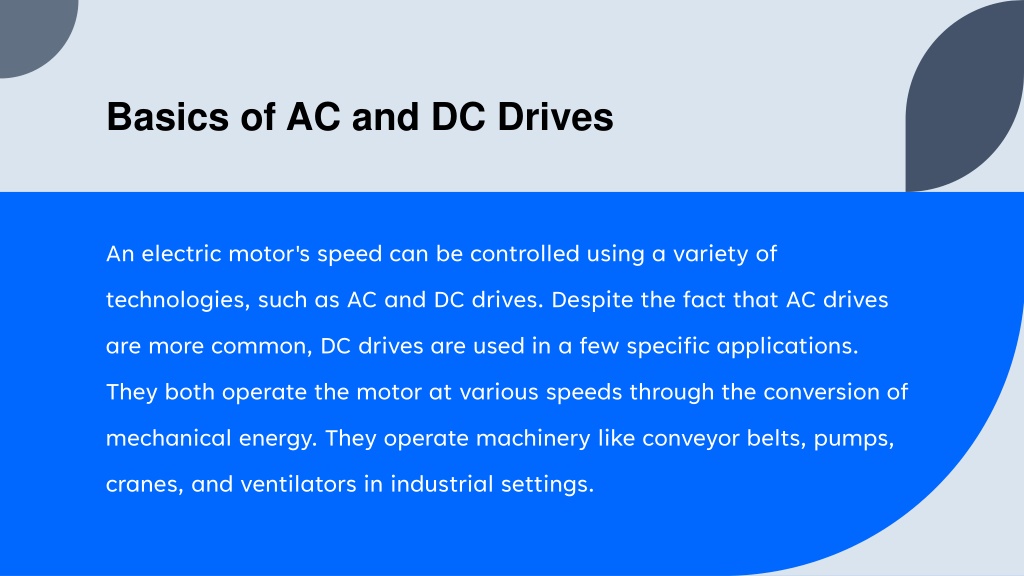

3. Basics of AC and DC Drives An electric motor's speed can be controlled using a variety of technologies, such as AC and DC drives. Despite the fact that AC drives are more common, DC drives are used in a few specific applications. They both operate the motor at various speeds through the conversion of mechanical energy. They operate machinery like conveyor belts, pumps, cranes, and ventilators in industrial settings.

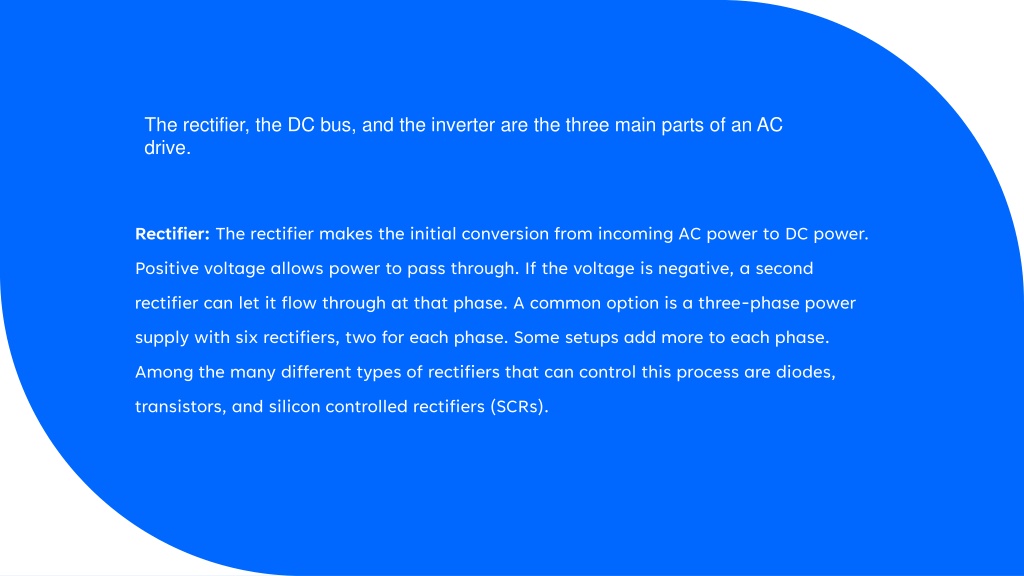

4. The rectifier, the DC bus, and the inverter are the three main parts of an AC drive. Rectifier: The rectifier makes the initial conversion from incoming AC power to DC power. Positive voltage allows power to pass through. If the voltage is negative, a second rectifier can let it flow through at that phase. A common option is a three-phase power supply with six rectifiers, two for each phase. Some setups add more to each phase. Among the many different types of rectifiers that can control this process are diodes, transistors, and silicon controlled rectifiers (SCRs).

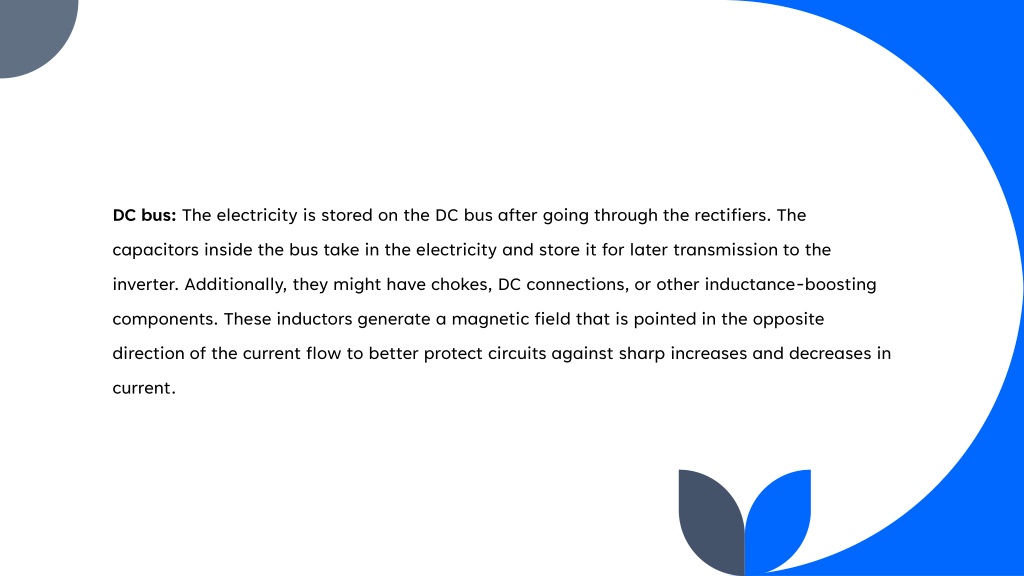

5. DC bus: The electricity is stored on the DC bus after going through the rectifiers. The capacitors inside the bus take in the electricity and store it for later transmission to the inverter. Additionally, they might have chokes, DC connections, or other inductance-boosting components. These inductors generate a magnetic field that is pointed in the opposite direction of the current flow to better protect circuits against sharp increases and decreases in current.

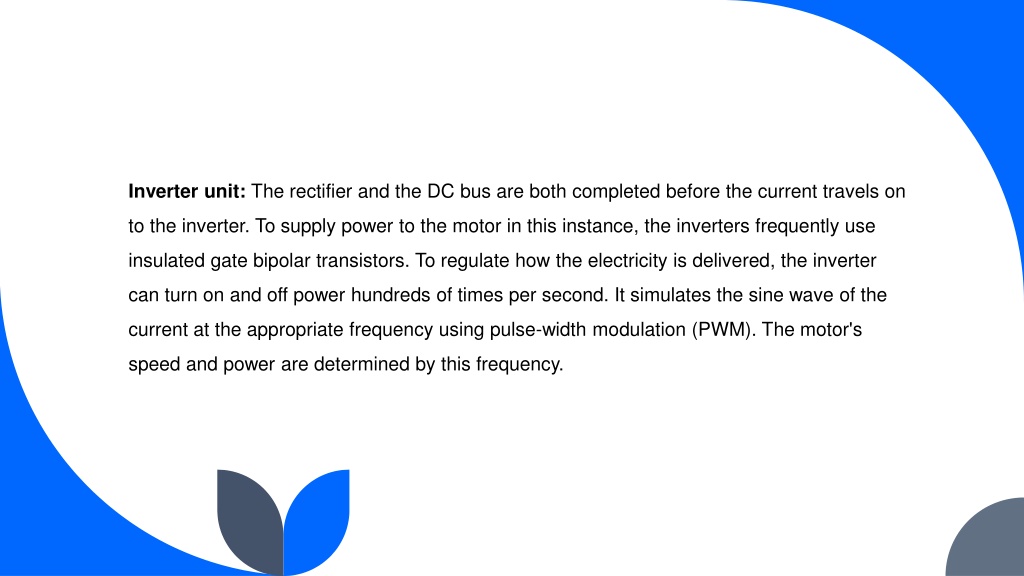

6. Inverter unit: The rectifier and the DC bus are both completed before the current travels on to the inverter. To supply power to the motor in this instance, the inverters frequently use insulated gate bipolar transistors. To regulate how the electricity is delivered, the inverter can turn on and off power hundreds of times per second. It simulates the sine wave of the current at the appropriate frequency using pulse-width modulation (PWM). The motor's speed and power are determined by this frequency.

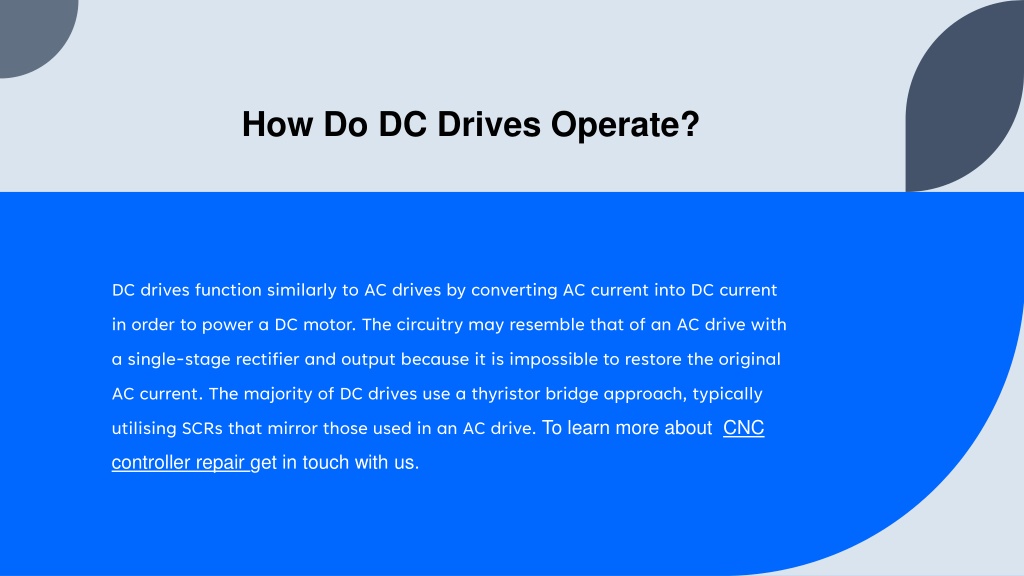

7. How Do DC Drives Operate? DC drives function similarly to AC drives by converting AC current into DC current in order to power a DC motor. The circuitry may resemble that of an AC drive with a single-stage rectifier and output because it is impossible to restore the original AC current. The majority of DC drives use a thyristor bridge approach, typically utilising SCRs that mirror those used in an AC drive. To learn more about  CNC controller repair get in touch with us.

8. Common Applications of AC and DC Drives AC drives are often used in HVAC (heating, ventilation, and air conditioning) applications, which frequently involve fans, compressors, and pumps. An AC drive, as opposed to equipment like valves and dampers, can operate a fan or pump to reduce energy consumption rather than lowering energy after it has been delivered. Along with saving energy and lowering component stress, it can also lower noise levels. The advantages of AC drives are starting to catch up to those of DC drives, but DC is still the favored drive for heavy machinery including cranes, hoists, crushers, and elevators, among many other types. It is dependable and cost-effective, and has the outputs required to drive such massive pieces of machinery. To learn more about  Debem pumps get in touch with us.
