  1. MegaGen Implant System

  2. Specification Surface Treatment – RBM(Resorbable Blast Media) Female screw Hex Dia. Platform Dia. Hex Height Feature - The most famous external fixture design. - Bevel shape in platform part especially 4.5 and 5.5 diameter of fixtures. Body length Thread Dia. Ø3.3 Ø3.75 Ø4.5 Ø5.0 Ø5.5 Ø4.0 Implant Development Dept.

  3. D1 : Hard Bone / D2,D3 : Normal Bone / D4 : Soft Bone ⑥ ② ③ ④ ⑦ ① ⑤ • Lance Drill • 2.0 Twist Drill • 2.8-3.3 Pilot Drill • 2.8 Straight Drill • 3.3 Countersink Drill • 3.3 Tap Drill Soft Bone : 1 – 2 – 3 – 7 Normal Bone : 1 – 2 – 3 – 4 – 5 – 7 Hard Bone : 1 – 2 – 3 – 4 – 5 – 6 - 7 Implant Development Dept.

  4. D1 : Hard Bone / D2,D3 : Normal Bone / D4 : Soft Bone ⑦ ② ③ ④ ① ⑤ ⑥ ⑧ • Lance Drill • 2.0 Twist Drill • 2.8-3.3 Pilot Drill • 2.8 Straight Drill • 3.0 Straight Drill • 4.0 Countersink Drill • 3.75 Tap Drill Soft Bone : 1 – 2 – 3 – 4 – 8 Normal Bone : 1 – 2 – 3 – 4 – 5 – 6 – 8 Hard Bone : 1 – 2 – 3 – 4 – 5 – 6 – 7 - 8 Implant Development Dept.

  5. D1 : Hard Bone / D2,D3 : Normal Bone / D4 : Soft Bone ③ ④ ⑥ ⑦ ⑧ ① ② ⑤ • Lance Drill • 2.0 Twist Drill • 2.8-3.3 Pilot Drill • 2.8 Straight Drill • 3.3 Straight Drill • 4.0 Countersink Drill • 4.0 Tap Drill Soft Bone : 1 – 2 – 3 – 4 – 8 Normal Bone : 1 – 2 – 3 – 4 – 5 – 6 - 8 Hard Bone : 1 – 2 – 3 – 4 – 5 – 6 – 7 – 8 Implant Development Dept.

  6. D1 : Hard Bone / D2,D3 : Normal Bone / D4 : Soft Bone ④ ① ③ ⑥ ⑨ ② ⑦ ⑤ ⑧ • Lance Drill • 2.0 Twist Drill • 2.8-3.3 Pilot Drill • 2.8 Straight Drill • 3.3 Straight Drill • 3.8-4.3 Pilot Drill • 3.8 Straight Drill • 4.5 Tap Drill Soft Bone : 1 – 2 – 3 – 4 – 5 - 9 Normal Bone : 1 – 2 – 3 – 4 – 5 – 6 – 7 - 9 Hard Bone : 1 – 2 – 3 – 4 – 5 – 6 – 7 – 8 - 9 Implant Development Dept.

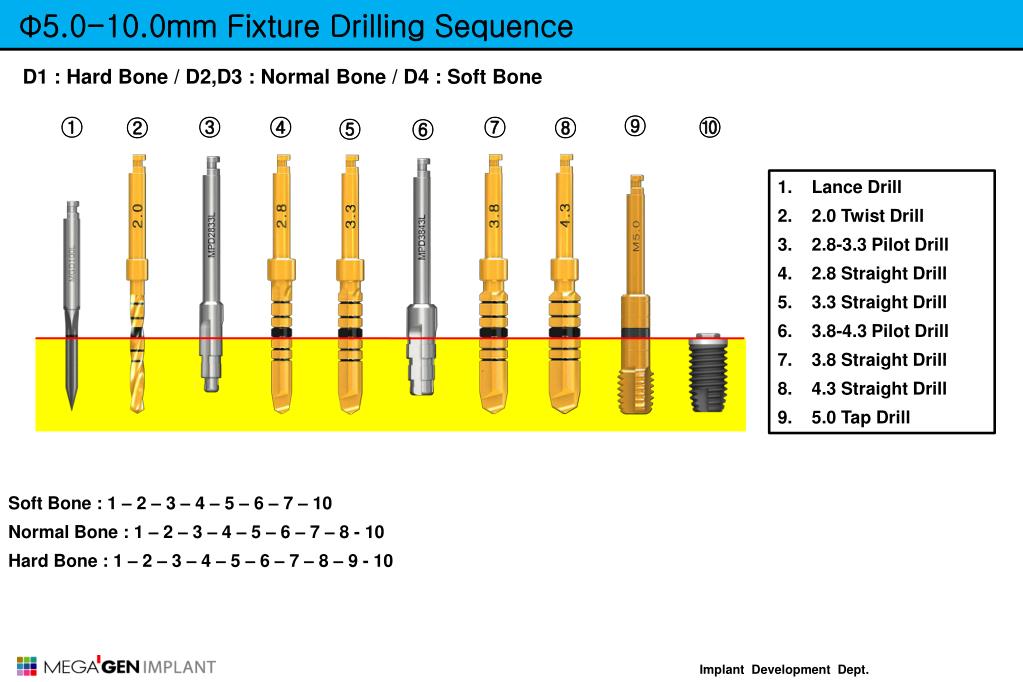

  7. D1 : Hard Bone / D2,D3 : Normal Bone / D4 : Soft Bone ⑨ ① ③ ④ ⑦ ⑩ ② ⑧ ⑤ ⑥ • Lance Drill • 2.0 Twist Drill • 2.8-3.3 Pilot Drill • 2.8 Straight Drill • 3.3 Straight Drill • 3.8-4.3 Pilot Drill • 3.8 Straight Drill • 4.3 Straight Drill • 5.0 Tap Drill Soft Bone : 1 – 2 – 3 – 4 – 5 – 6 – 7 – 10 Normal Bone : 1 – 2 – 3 – 4 – 5 – 6 – 7 – 8 - 10 Hard Bone : 1 – 2 – 3 – 4 – 5 – 6 – 7 – 8 – 9 - 10 Implant Development Dept.

  8. D1 : Hard Bone / D2,D3 : Normal Bone / D4 : Soft Bone ⑨ ⑦ ① ② ③ ④ ⑧ ⑪ ⑤ ⑥ ⑩ • Lancce Drill • 2.0 Twist Drill • 2.8-3.3 Pilot Drill • 2.8 Straight Drill • 3.3 Straight Drill • 3.8-4.3 Pilot Drill • 3.8 Straight Drill • 4.3 Straight Drill • 4.8Straight Drill • 5.5 Tap Drill Soft Bone : 1 – 2 – 3 – 4 – 5 – 6 – 7 – 8 – 11 Normal Bone : 1 – 2 – 3 – 4 – 5 – 6 – 7 – 8 – 9 - 11 Hard Bone : 1 –2 – 3 – 4 – 5 – 6 – 7 – 8 – 9 – 10 -11 Implant Development Dept.

  9. Purpose Fixture Mount - To give accurate torque force during insertion Mount Screw - To connect mount and fixture Feature - Color coding to distinguish the diameter Length 사양(Specification) Small Regular Wide Implant Development Dept.

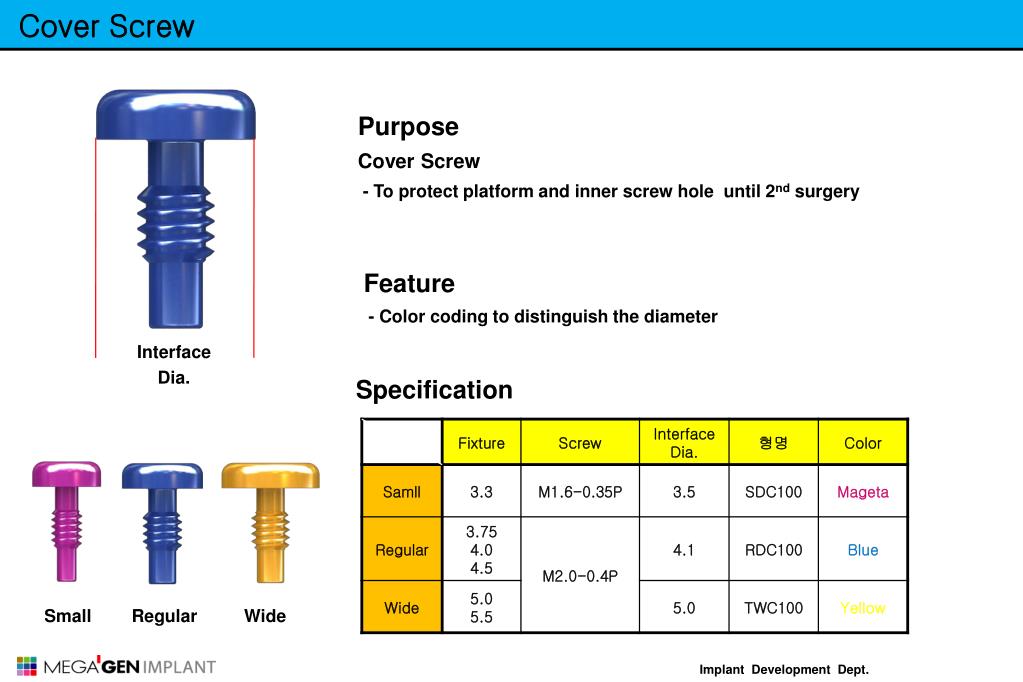

  10. Purpose Cover Screw - To protect platform and inner screw hole until 2nd surgery Feature - Color coding to distinguish the diameter Interface Dia. Specification Small Regular Wide Implant Development Dept.

  11. Purpose Healing Abutment - To heal gingival and make cuff well 453 Profile Dia. Feature Height Interface Dia. Specification Small Regular Wide Implant Development Dept.

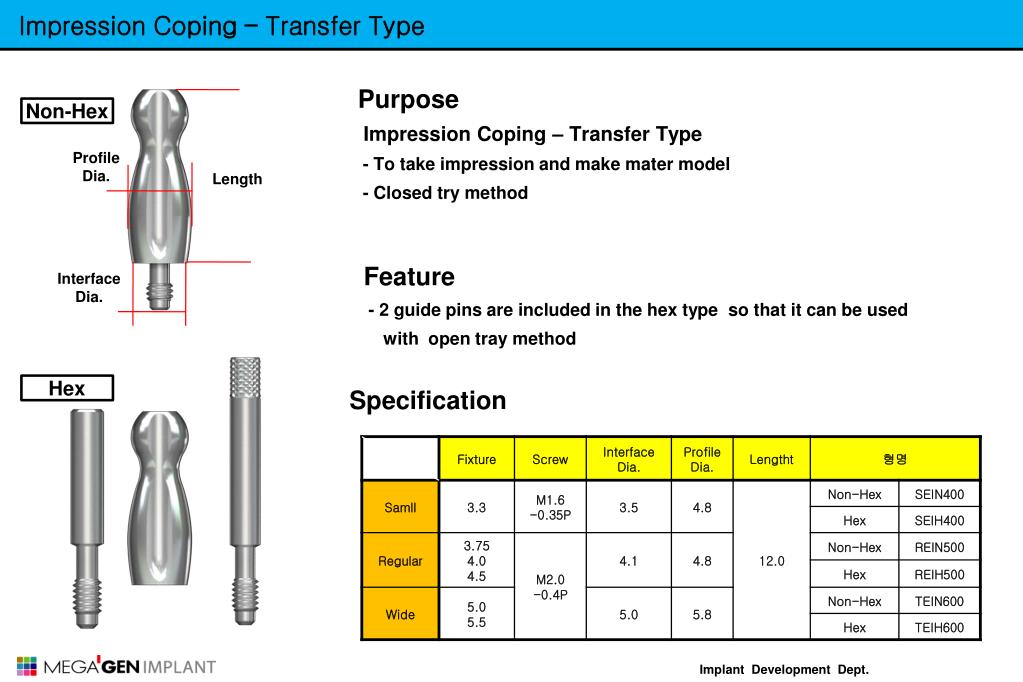

  12. Purpose Impression Coping – Transfer Type - To take impression and make mater model - Closed try method Non-Hex Profile Dia. Length Feature - 2 guide pins are included in the hex type so that it can be used with open tray method Interface Dia. Hex Specification Implant Development Dept.

  13. Purpose Impression Coping – Pick Up Type - To take impression and make mater model - Closed try method Profile Dia. Length Feature - 3mm cuff contact area to avoid gingiva interference Specification Interface Dia. Implant Development Dept.

  14. Purpose Lab Analog - Replica of fixture in the master model Female Screw Hex Dia. Platform Dia. Feature Hex Height Specification Implant Development Dept.

  15. Purpose Temporary Abutment - for making provisional restoration (Temporary teeth) Feature - Diamond shape of surface makes resin easily attached Height Specification Profile Dia. 1.3 Interface Dia. Implant Development Dept.

  16. Purpose EZ Post - for making cemented & screw combination type of prosthetic Feature - It has advantage of Cement post type and Screw type Abutment - Able to adjust path in case of inaccurate path by milling work Post Height Profile Dia. Specification Cuff Height Interface Dia. Implant Development Dept.

  17. Purpose Angle Abutment - for making cemented and combination type of final abutment in case of need to adjust path of prosthetic Angle Feature - It has two type of degree 15° and 25° - Same shape of margin area as EZ Post Post Height Profile Dia. Specification Cuff Height Interface Dia. Implant Development Dept.

  18. Purpose Milling Abutment - For making cemented and combination type of final abutment for final prosthetic Post Height Feature - In case of need to customize margin area or to adjust path and height - able to adjust the height of abutment by the grooves on the top Profile Dia. 사양(Specification) Cuff Height Interface Dia. Implant Development Dept.

  19. Purpose UCLA Gold Abutment - For making screw type of final abutment for final prosthetic Feature - Able to make final prosthetic with dental precious alloy by casting method - Using in case of lack of esthetic, path, space - Gold Melting Point: 1491.5℃ - Plastic Sleeve melting point:over 333 ℃ Height Profile Dia. Specification 1.2 Interface Dia. Implant Development Dept.

  20. Purpose Plastic Abutment - For making screw type of final abutment for final prosthetic Feature - Able to make final prosthetic with dental non-precious alloy by casting method - Using in case of lack of esthetic, path, space Height Profile Dia. Specification 1.2 Interface Dia. Implant Development Dept.

  21. Purpose Regular Abutment - Same as conical abutment Profile Dia. Feature Cuff Height 1.0 Specification Interface Dia. Implant Development Dept.
