ietf 63 paris voippeer bof a broadband service provider s perspective on voip peering

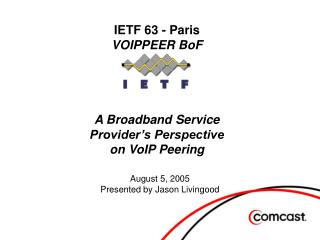

IETF 63 - ParisVOIPPEER BoFA Broadband Service Provider’s Perspectiveon VoIP Peering

August 5, 2005Presented by Jason Livingood

the context for voip peering
The Context for VoIP Peering
  • If it originates on IP and terminates on IP, why convert it to something else in the middle?
    • Adds cost and complexity (operational & network).
    • Decreases control over:
      • User Experience
      • Services & Quality
      • Network / Troubleshooting
  • So… Keep communications IP-based, end-to-end.
  • IP networks are generally private & free of traditional telecom regulation.
  • Helps make possible new, broadband IP-based services, not possible via PSTN.
  • Many big economic and strategic motivations…
the context for enum in voip peering
The Context for ENUM in VoIP Peering
  • Without ENUM:
    • Each switch (CMS) is largely an island unto itself.
    • Linking many CMSs is difficult to scale.
    • Vendor-specific methods to share TN / IP data.
    • Legacy / PSTN-centric solutions (inefficient via IP).
  • ENUM can tell me, for a dialed TN, what IP network element (CMS, Proxy, SBC, etc.) to send a call to.
  • Can help to enable easily scalable:
    • CMS-to-CMS calling (all PacketCable).
    • PacketCable-to-SIP calling.
    • Fixed-to-wireless calling.
    • MSO-to-MSO calling.
    • MSO-to-any IP-based carrier calling.
  • BUT, ENUM is just one part of the solution (lest we forget SIP).
  • Laying the foundation now: (1) Working to use ENUM as part of a solution to simplify call routing; peering work is incremental. (2) Working on backbone for peering and other uses (takes time).
preparing a backbone for intra inter network peering

Comcast territory

Preparing a Backbone for Intra/Inter-Network Peering

National Backbone Network

  • Over 19,000 route miles of national fiber
  • Covers 95+% of Homes Passed
  • All major peering points
  • Transport capability of >2500+ Gbps in 2005
  • 40Gbps IP links in 2005
  • QoS based voice, video and data over IP
private enum voip peering
Private ENUM & VoIP Peering
  • Development work underway with CableLabs (more later).
  • Could prioritize peering priorities based on economics (similar to peering analysis used in HSI peering) and/or business strategy.
  • Comcast and other parties could begin using private ENUM to peer without waiting for public “1.e164.arpa” being up and running. (Short-term hedge.)
  • Communications peering over IP could enable the federation of multimedia services not feasible over the PSTN due to bandwidth constraints.
    • Leverages unique capabilities of broadband networks.
    • Could include both TN-addressed and URI-addressed communications.
public enum voip peering
Public ENUM & VoIP Peering
  • Bi-Lateral / multi-lateral, private trees will only scale so far before operational and management challenges present themselves.
  • Thus, Public ENUM is a long-term goal.
    • What form will this take? (Carrier or User ENUM)
      • Without carriers in e164.arpa is the business model for “User” sustainable?
    • Will there be a mix of different peering types?
      • Private POPs, with committed capacity.
      • Public peering points.
      • Over the Internet generally, best effort (no QoS).
  • Bottom line: Working towards public ENUM in the future (very important), while hedging our bets with work on private ENUM in the shorter term.
specific near term voip peering challenges
Specific Near-Term VoIP Peering Challenges
  • Provisioning into / security for ENUM tree.
  • Normalization of different SIP profiles between providers.
  • Trust at network edge.
  • Security / encryption at network edge.
  • QoS at network edge / passing QoS between parties.
  • Lawful intercept.
  • Selection of best IP routes & advertising routes as # POPs increases.
  • Failover to PSTN routes in the event of IP route failure.
  • Explore the role of SBCs.
  • Some PacketCable™-related work on interfaces needed.
    • Evolves into part of PacketCable 2.0.
packetcable 2 0 standards development
PacketCable™ 2.0 Standards Development
  • Driven to support:
    • Backward-Compatible (PacketCable Multimedia & PC 1.X)
    • Enhanced Telephony
    • Video Telephony
    • Cross-Platform (voice/video/data convergence) Features
    • Cellular Integration
    • Presence and Availability
    • ENUM / Peering
    • Commercial Service Extensions
in summary
In Summary
  • What VoIP Peering Is About for Us:
    • It is about a lot more than saving money.
    • It is more than just “voice” communications.
    • It is about enabling new services not possible on the PSTN.
    • It is about creating / increasing network effects; supercharging adoption.
    • It is about end-to-end control over communications and staying all-IP.
    • It is about reducing complexity & increasing efficiency vs. “PSTN-imitation” models. (“Keeping IP in VoIP”)
  • VoIP Peering is important to companies like Comcast.
  • Building network and systems infrastructure now.
  • Both ENUM and SIP are important to this effort; basic standards / protocol groundwork is there.
  • Some incremental standards work is necessary and vital to success.
thank you
Thank You!

Questions?

Jason Livingood

jason_livingood@cable.comcast.com

+1-215-981-7813
