Explore the historical background and technological advancements in automotive engineering, from Henry Ford's Quadricycle to modern vehicles designs. Discover the evolution of chassis, body construction, engines, emissions control, and vehicle control systems.
E N D
chapter1 AutomotiveBackgroundand Overview
FIGURE 1.2 The vehicle emissions control information (VECI) sticker is placed under the hood.
FIGURE 1.3 A chassis of a 1950s era vehicle showing the engine, drivetrain, frame, and suspension.
FIGURE 1.5 Note the ribbing and the many different pieces of sheet metal used in the construction of this body.

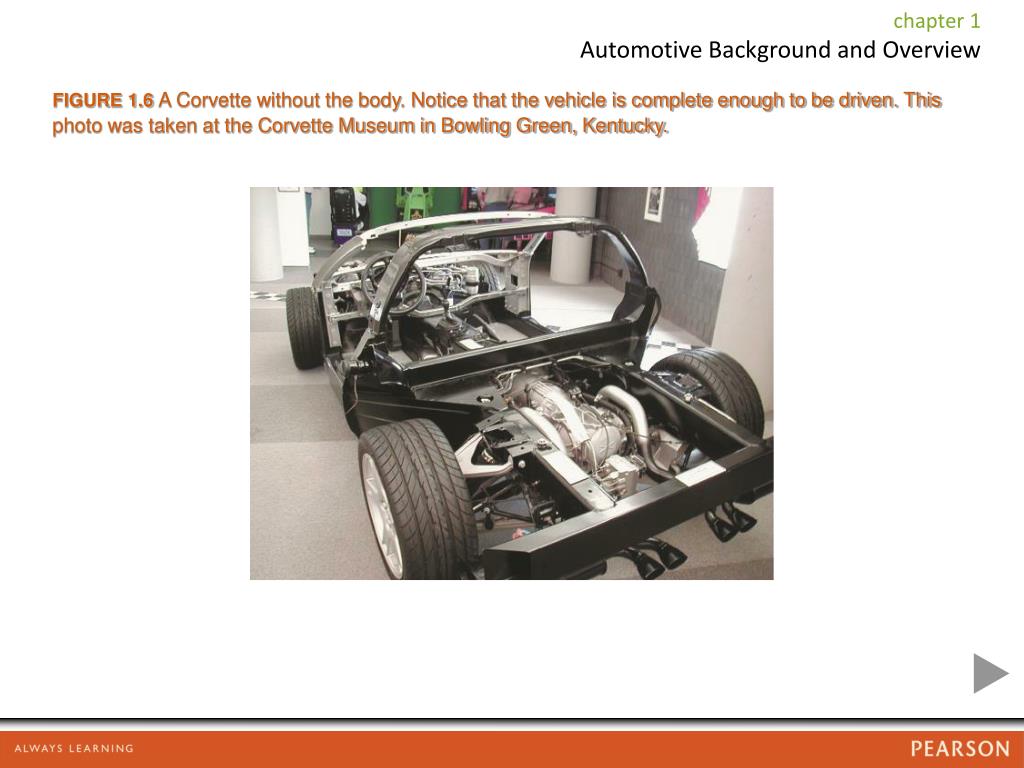

FIGURE 1.6 A Corvette without the body. Notice that the vehicle is complete enough to be driven. This photo was taken at the Corvette Museum in Bowling Green, Kentucky.

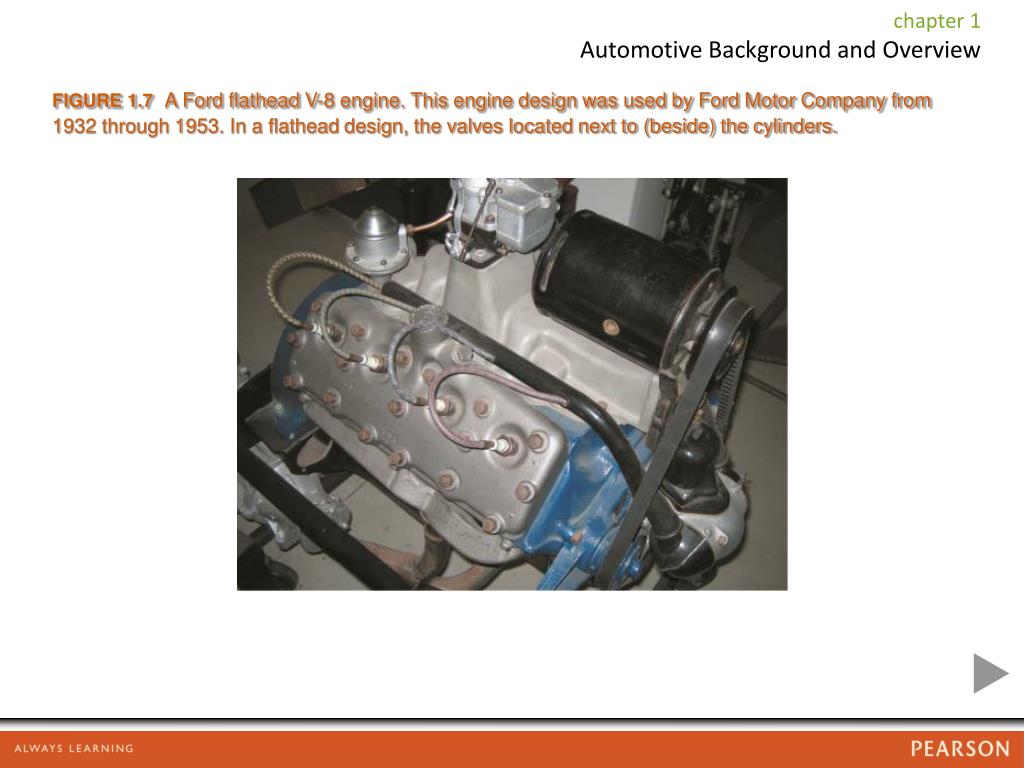

FIGURE 1.7A Ford flathead V-8 engine. This engine design was used by Ford Motor Company from 1932 through 1953. In a flathead design, the valves located next to (beside) the cylinders.
FIGURE 1.8 A Monroney label as shown on the side window of a new vehicle.
FIGURE 1.9 A dash control panel used by the driver to control the four-wheel-drive system.
FIGURE 1.10 The alternator is in the heart of the electrical system.
FIGURE 1.11 Test registration booklet that includes details on all vehicle-related certification tests given by ASE.
