Chapter 7 Advanced Part Modeling Techniques

Chapter 7 Advanced Part Modeling Techniques. Chapter 7 - Objectives. After completing this chapter, you will be able to perform the following: Extrude an open profile Create ribs, webs, and rib networks Emboss text and profiles Create sweep features Create coil features

audi
Download Presentation

Chapter 7 Advanced Part Modeling Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 7Advanced Part Modeling Techniques

  2. Chapter 7 - Objectives • After completing this chapter, you will be able to perform the following: • Extrude an open profile • Create ribs, webs, and rib networks • Emboss text and profiles • Create sweep features • Create coil features • Create loft features • Split a part or split faces of a part • Bend a part

  3. Chapter 7 - Objectives • After completing this chapter, you will be able to perform the following: • Copy features within a part • Reorder part features • Mirror model features • Suppress features of a part • Create a derived part based on another part or an assembly • Shrinkwrap an assembly • Create plastic and cast features

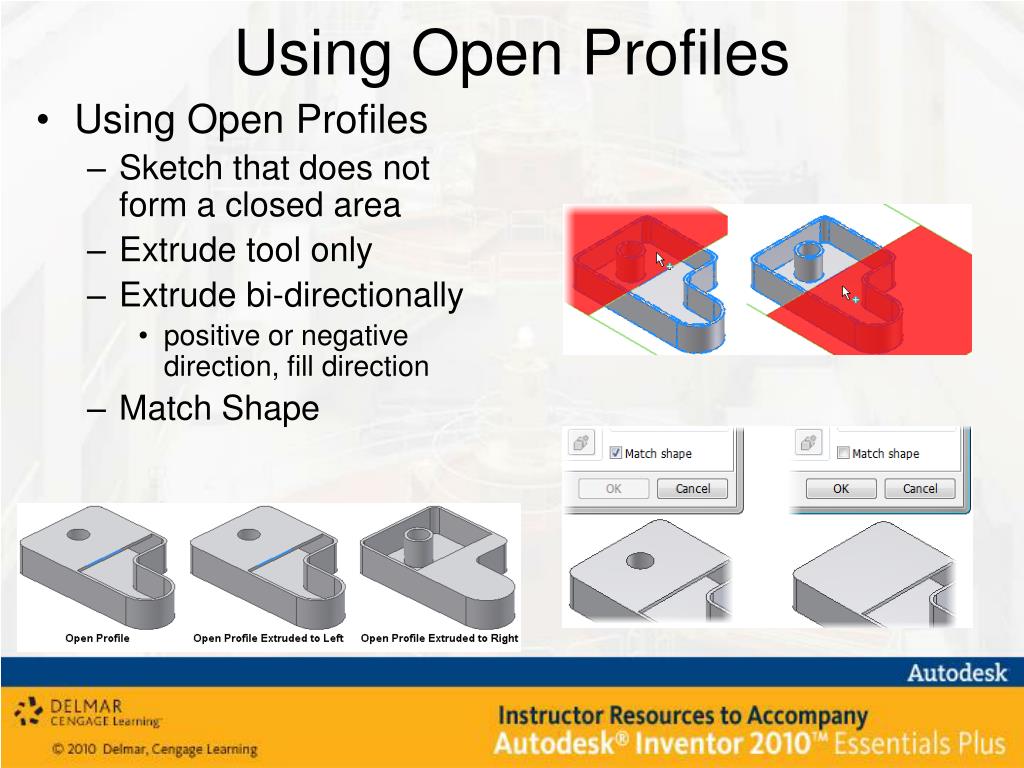

  4. Using Open Profiles • Using Open Profiles • Sketch that does not form a closed area • Extrude tool only • Extrude bi-directionally • positive or negative direction, fill direction • Match Shape

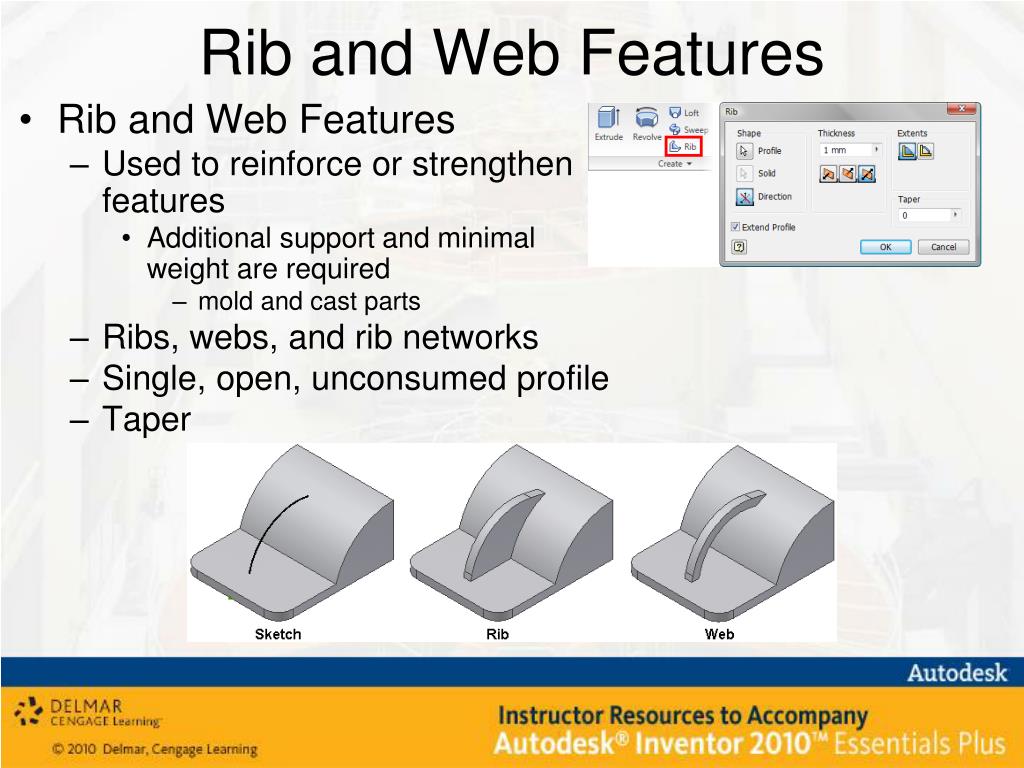

  5. Rib and Web Features • Rib and Web Features • Used to reinforce or strengthen features • Additional support and minimal weight are required • mold and cast parts • Ribs, webs, and rib networks • Single, open, unconsumed profile • Taper

  6. Rib and Web Features • Rib and Web Features • Rib dialog box • Shape • Profile • Direction • Thickness • Edit Box • Flip Buttons • Extents • To Next • Finite • Extend Profile • Extend Profile • Taper

  7. Rib and Web Features • Creating Rib and Web • Rib Networks • Use multiple intersecting or nonintersecting sketch objects • Thickness is applied to all objects • Rib Network as a • Profile • Ribs • Webs

  8. Exercise 7-1 • Creating Ribs and Webs

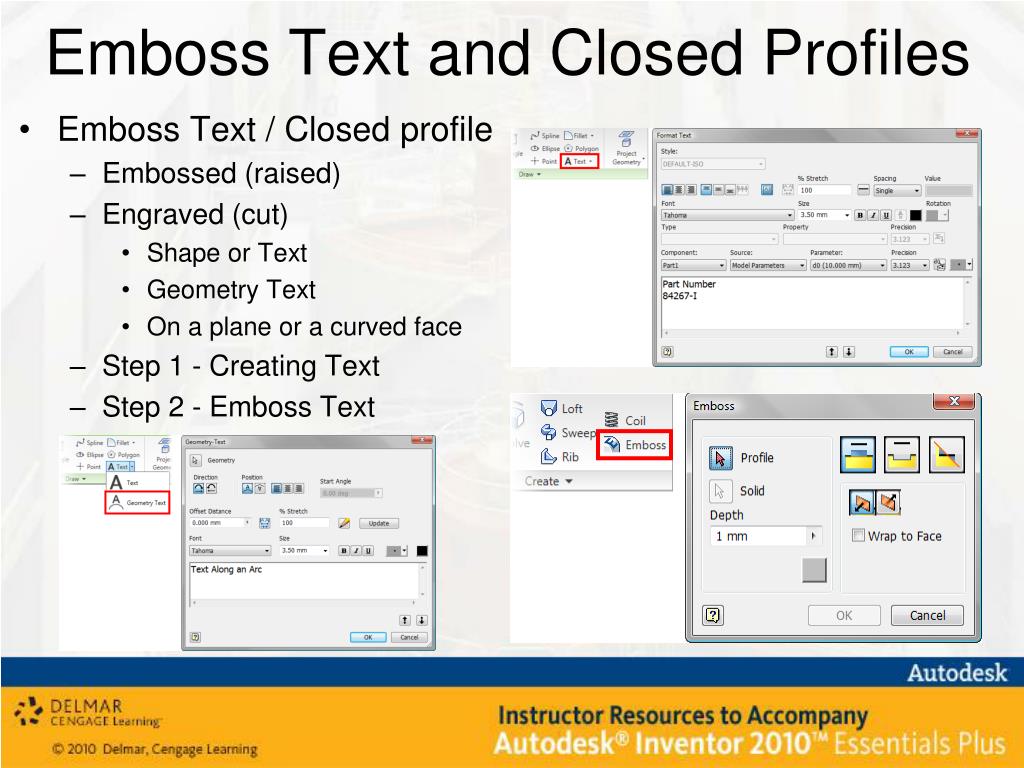

  9. Emboss Text and Closed Profiles • Emboss Text / Closed profile • Embossed (raised) • Engraved (cut) • Shape or Text • Geometry Text • On a plane or a curved face • Step 1 - Creating Text • Step 2 - Emboss Text

  10. Exercise 7-2 • Creating Text and Emboss Features

  11. Sweep Features • Sweep Features • Requires two unconsumed sketches • Sweep dialog box • Profile • Path • Operation buttons • Solid / Surface • Taper • Type • Orientation

  12. Sweep Features • Profile • Path • Orientation • Path • Profile

  13. Sweep Features • Type - Path & Guide Rail • Profile Scaling • X & Y • X • None

  14. Sweep Features • Type - Path & Guide Surface • Path • Profile • Guide Surface

  15. Exercise 7-3 • Creating Sweep Features

  16. 3D Sketching • Defining a 3D path • Lip or routing • Work points • Model edges/vertices • 3D Sketch Environment • 2D & 3D curves

  17. Sweep Features • 3D Sketching • 3D Path From Existing Geometry • Define path • Use existing edges • Include Existing Geometry • Projecting part edges, vertices, and geometry

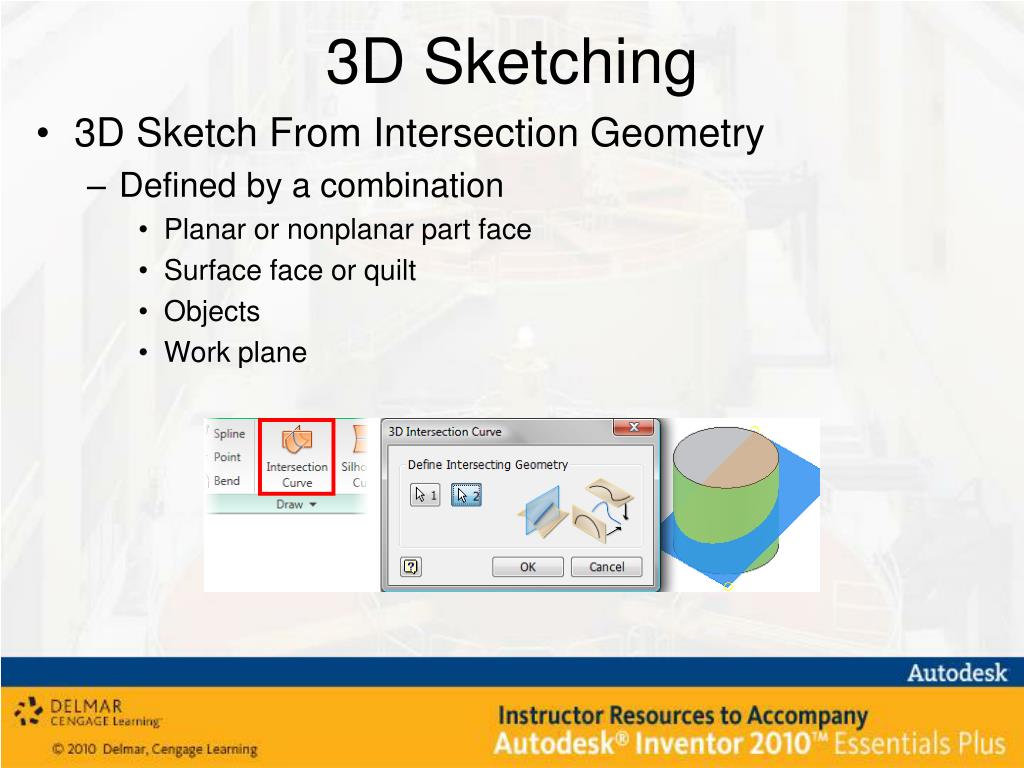

  18. 3D Sketching • 3D Sketch From Intersection Geometry • Defined by a combination • Planar or nonplanar part face • Surface face or quilt • Objects • Work plane

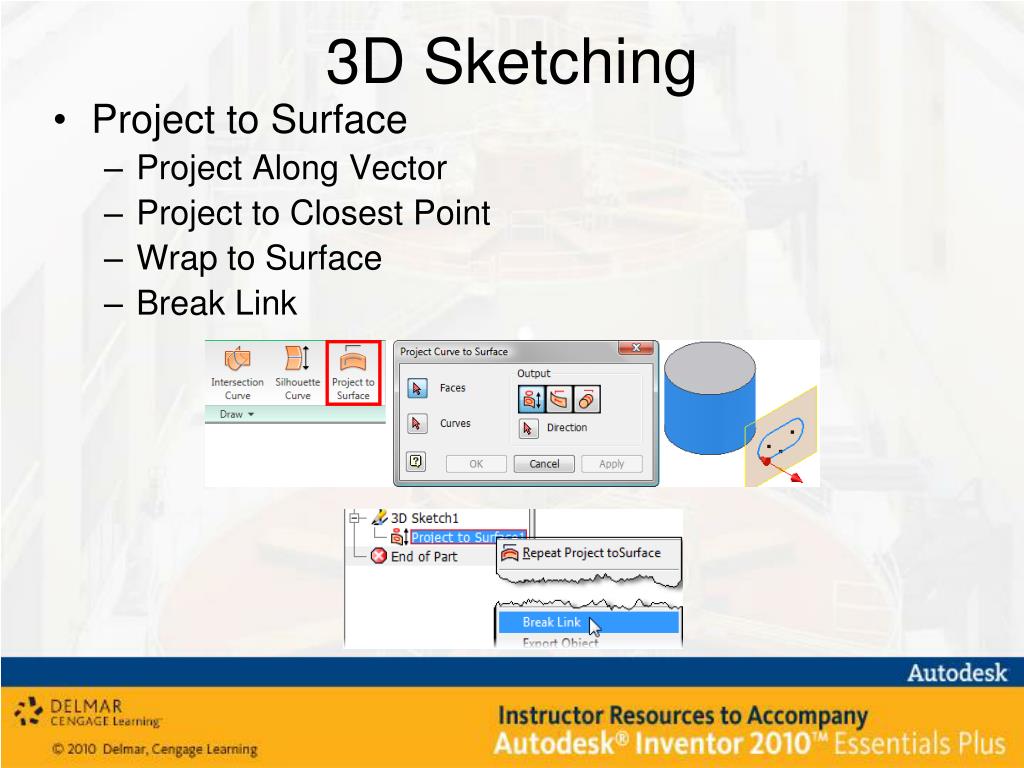

  19. 3D Sketching • Project to Surface • Project Along Vector • Project to Closest Point • Wrap to Surface • Break Link

  20. 3D Sketching • Constructed Paths • Connecting • Work points • 3D line • Auto-Bend • Radius

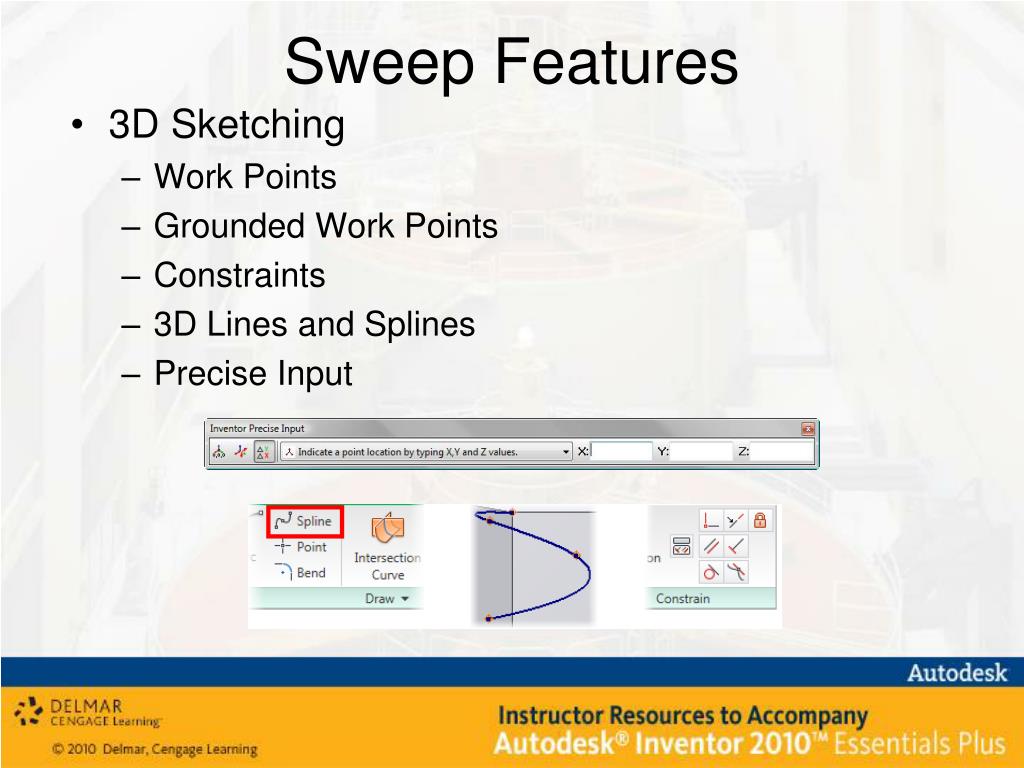

  21. Sweep Features • 3D Sketching • Work Points • Grounded Work Points • Constraints • 3D Lines and Splines • Precise Input

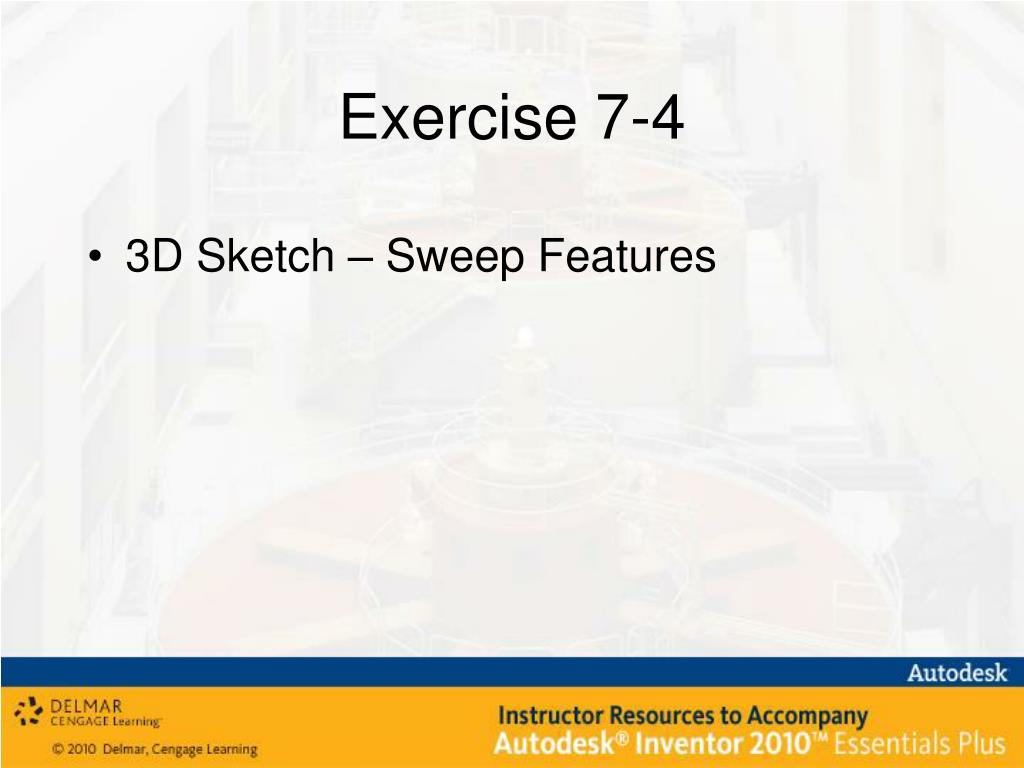

  22. Exercise 7-4 • 3D Sketch – Sweep Features

  23. Coil Features • Coil Features • Helical, springs or coil shapes • Coil Shape • Profile • Axis • Flip • Rotation • Operation • Coil Size • Type • Pitch • Revolution • Height • Taper

  24. Coil Features • Coil Features • Coil Ends • Start • End • Transition Angle • Flat Angle • Using base & secondary feature

  25. Loft Features • Loft Features • Blends a shape between two or more sections • Area Loft • Complex shapes • Plastic or molded parts • Sections • Rails • Center Line • Points • Curves

  26. Loft Features • Curves • Sections • Rails • Center Line • Output • Operation • Closed Loop • Merge tangent Faces • Area

  27. Loft Features • Conditions • Condition Boundaries Sketches • Free Condition • Direction Condition • Condition Boundaries Face Loop • Smooth (G2) Condition • Angle • Weight

  28. Loft Features • Loft Features • Transition • Point Set • Map Point • Position

  29. Exercise 7-5 • Creating Loft Features

  30. Multi-Body Parts • Create a solid body in a part file • Derive a solid body into a part file • Split Part into solid bodies

  31. Multi-Body Parts • Edit solid bodies • Move bodies • Combine

  32. Multi-Body Parts • Export solid body • Make Part • Make Components

  33. Split a Solid, Part or Face • Part Split and Face Split • Method • Split Face • Trim Part • Remove Material • Split Solid • Split dialog box • Split Tool • Faces • All • Select

  34. Exercise 7-6 • Splitting a Part

  35. Bend Part • Bend a part • A bend line • Radius + Angle • Radius + Arc Length • Arc Length = Angle

  36. Copying Features • Browser or Feature Priority • Dependent • Independent • Paste Features • Parameters • Pick Sketch Plane

  37. Mirroring Features • Mirroring Features • Features • Dependent on the parent feature • Mirror Plane • Creation Method • Change or update • Mirror Entire Solid

  38. Suppressing Features • Suppressing Features • Temporarily turn off display • Simplify parts • Increases system performance • Unsuppress • Parent – child relationships

  39. Conditionally Suppress Features • Feature Properties • Parameter Value – If statement

  40. Reordering Features • Reordering Features • Browser • Drag horizontal line

  41. Feature Rollback • Feature Rollback • Roll back the design to an earlier state • Then place new features • Reorder • Delete all features below EOP

  42. Derived Parts • In a Part (IPT) file • Options • Body • Work Surface • Sketches • 3D Sketches • Work geometry • Surfaces • Exported Parameters • iMates • Options • Operations • Mixed • Plus • Exclude • Scales Factor • Mirror Part

  43. Derived Assemblies • In a Part (IPT) file • Operations • Combination • Plus • Exclude • Minus • Bounding Box • Keeps seems between planar faces • Reduced Memory Mode • Update • Break Link

  44. Exercise 7-7 • Creating a Derived Part

  45. Shrinkwrap • Reduce detail • Protect intellectual property • Reduce file size • Create a substitute part for use with alternative representations • Create simplified data for complex purchased assemblies

  46. Shrinkwrap • Remove detail by setting • Visibility • By Size • Holes patching • Object type

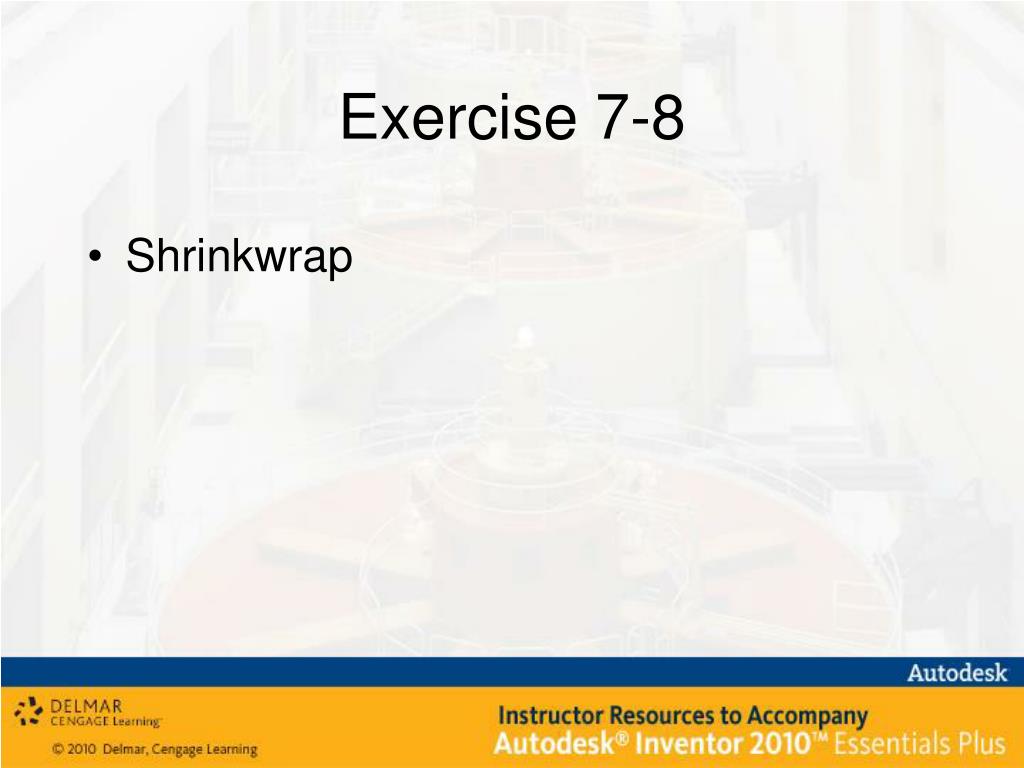

  47. Exercise 7-8 • Shrinkwrap

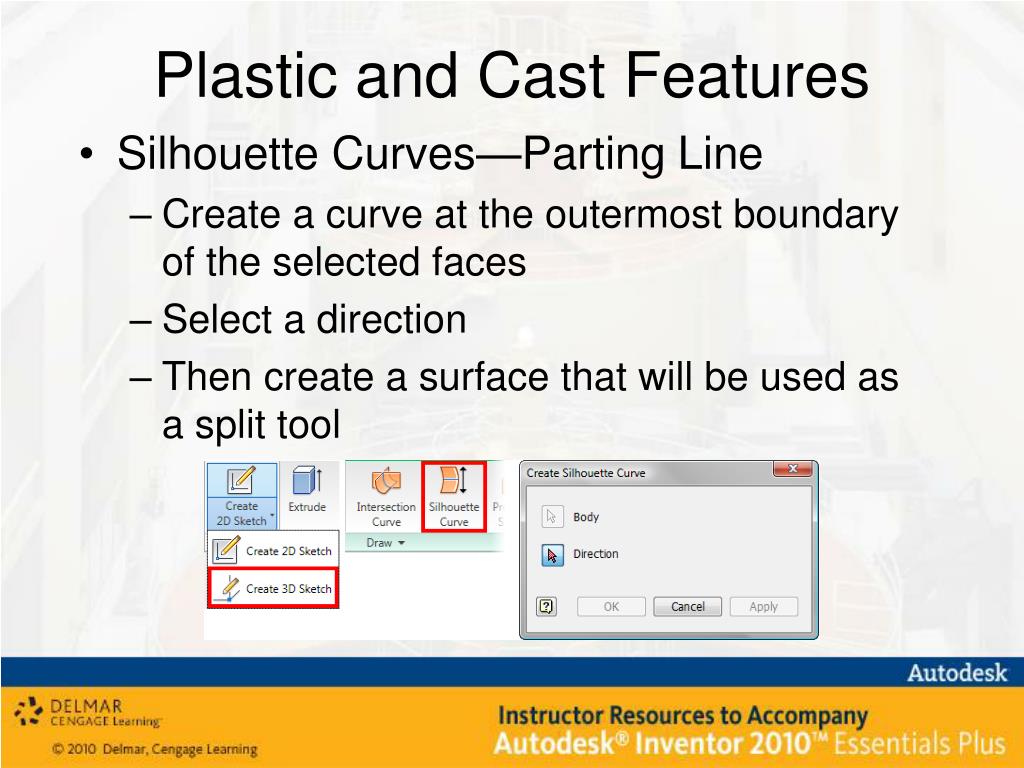

  48. Plastic and Cast Features • Silhouette Curves—Parting Line • Create a curve at the outermost boundary of the selected faces • Select a direction • Then create a surface that will be used as a split tool

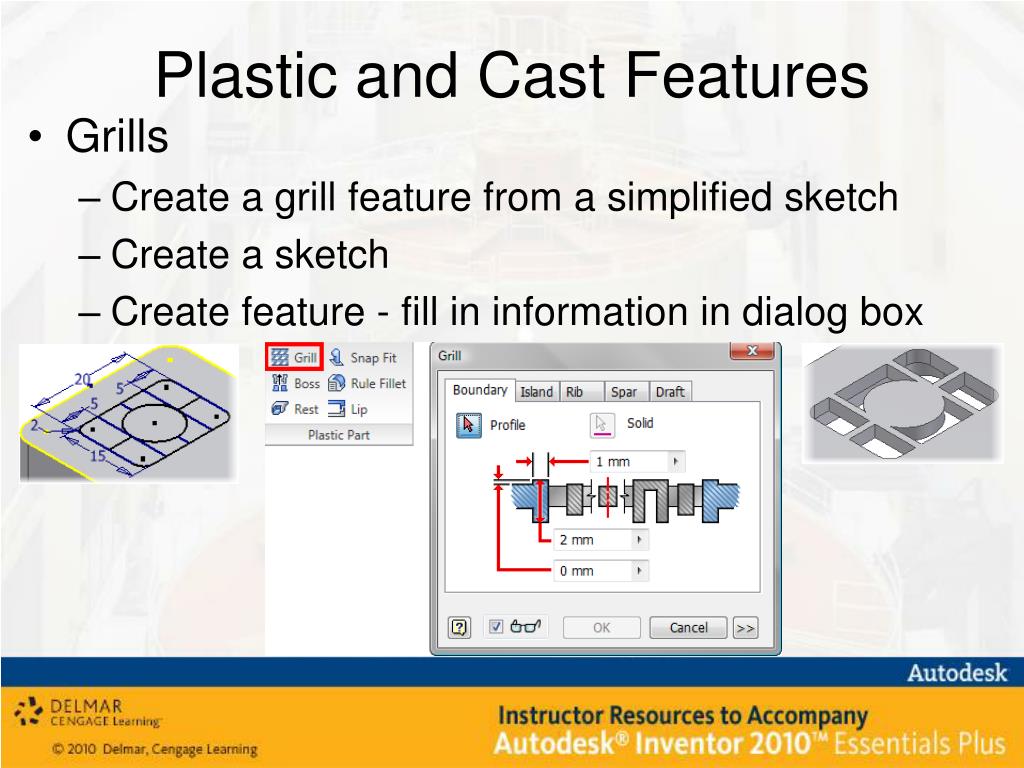

  49. Plastic and Cast Features • Grills • Create a grill feature from a simplified sketch • Create a sketch • Create feature - fill in information in dialog box

  50. Plastic and Cast Features • Bosses • Creates a boss feature to hold a fastener • Place sketch point(s) or work point(s) • Create feature - fill in information in dialog box
