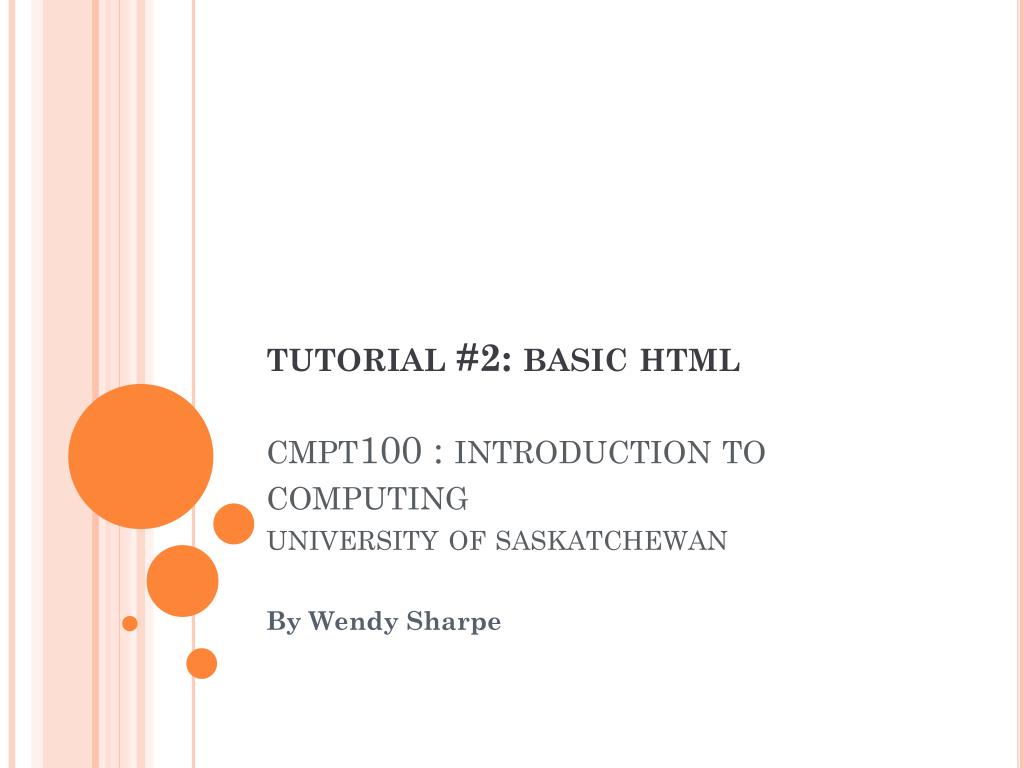

  1. tutorial #2: basic htmlcmpt100 : introduction to computinguniversity of saskatchewan By Wendy Sharpe

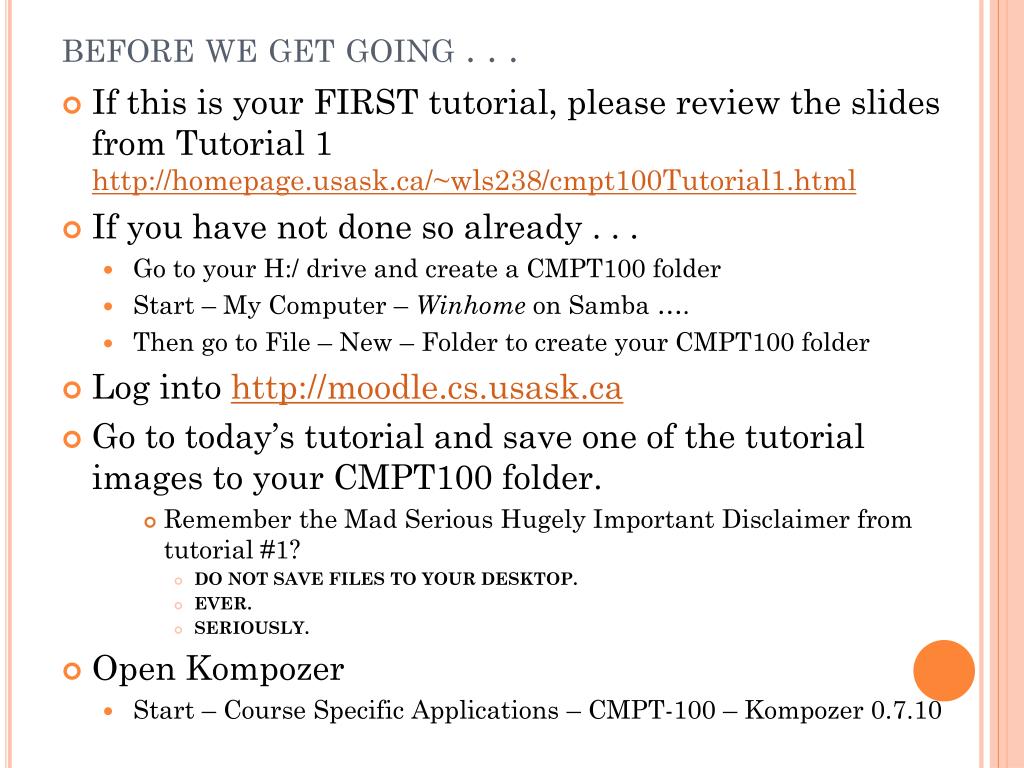

  2. before we get going . . . • If this is your FIRST tutorial, please review the slides from Tutorial 1 http://homepage.usask.ca/~wls238/cmpt100Tutorial1.html • If you have not done so already . . . • Go to your H:/ drive and create a CMPT100 folder • Start – My Computer – Winhome on Samba …. • Then go to File – New – Folder to create your CMPT100 folder • Log into http://moodle.cs.usask.ca • Go to today’s tutorial and save one of the tutorial images to your CMPT100 folder. • Remember the Mad Serious Hugely Important Disclaimer from tutorial #1? • DO NOT SAVE FILES TO YOUR DESKTOP. • EVER. • SERIOUSLY. • Open Kompozer • Start – Course Specific Applications – CMPT-100 – Kompozer 0.7.10

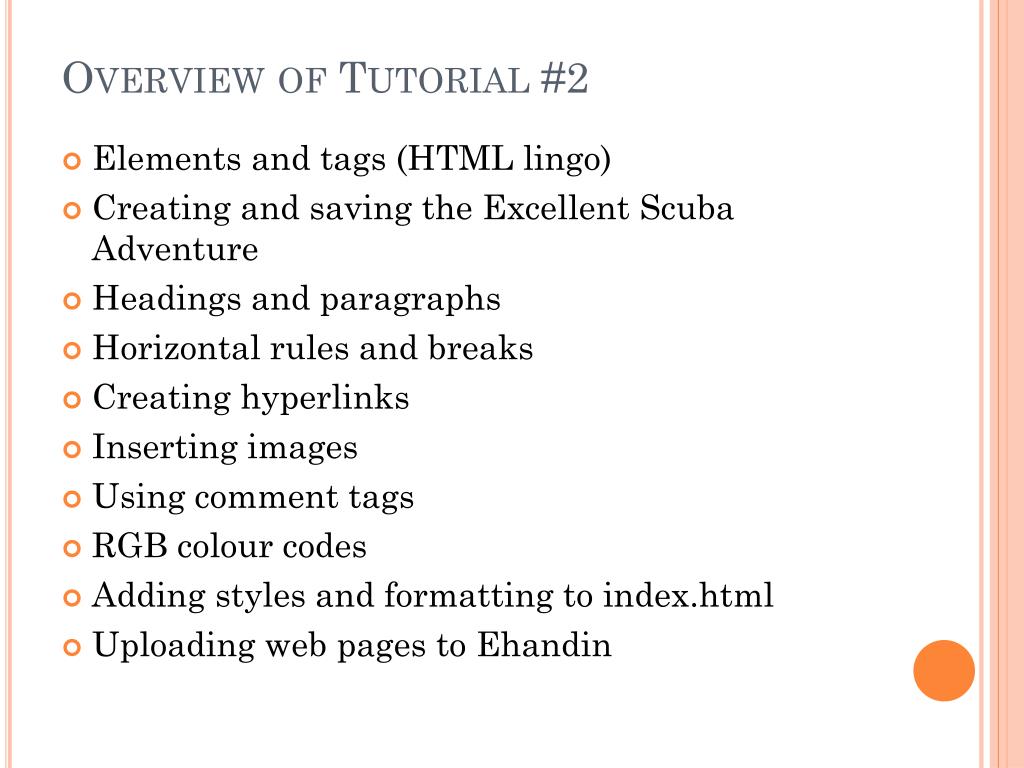

  3. Overview of Tutorial #2 • Elements and tags (HTML lingo) • Creating and saving the Excellent Scuba Adventure • Headings and paragraphs • Horizontal rules and breaks • Creating hyperlinks • Inserting images • Using comment tags • RGB colour codes • Adding styles and formatting to index.html • Uploading web pages to Ehandin

  4. html lingo: tags vs. elements

  5. html terminology: tags vs. elements • Tags • the commands that give HTML documents their functionality • basic Tag structure: <tagName> • E.g., <p> indicates a new paragraph • Opening and Closing Tags • some tags need to be closed otherwise they won’t work • such as: text formatting tags, document formatting tags, graphics formatting tags, linking tags • Basic opening/closing tag structure: <openingTag> element </closingTag> • E.g., <i>My italic text</i>

  6. html terminology: tags vs. elements • Elements • an element is everything from the opening tag to the closing tag E.g., opening and closing tag (with element) for a link <a href=http://homepage.usask.ca/~wls238>Wendy’s Site</a>

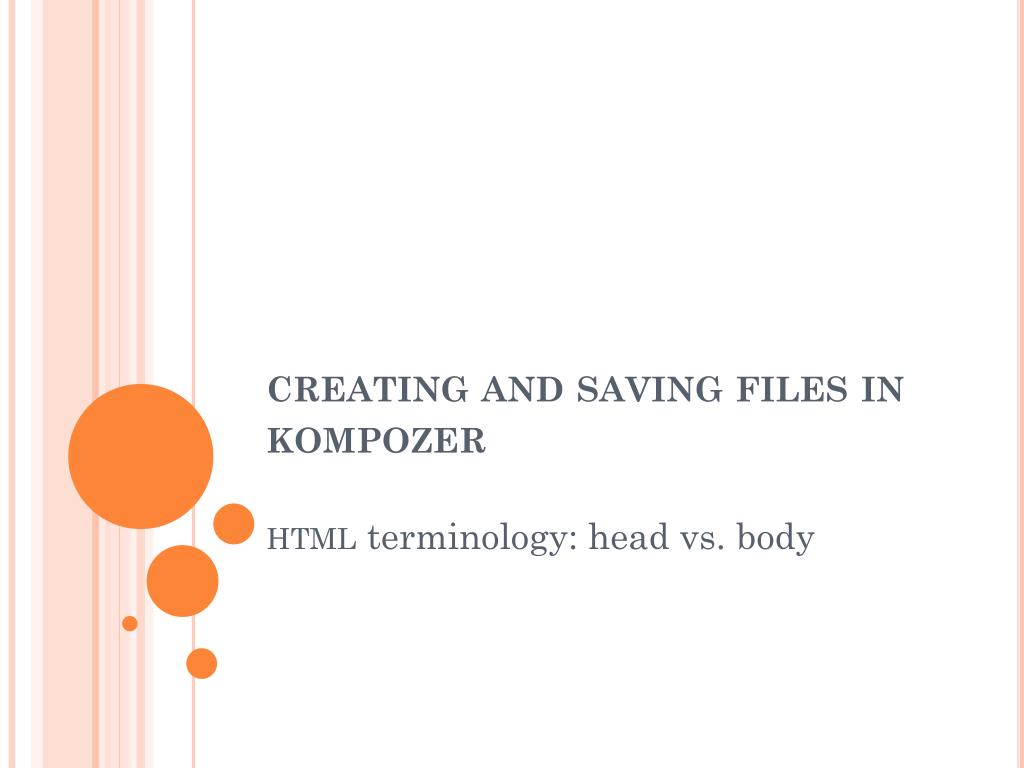

  7. creating and saving files in kompozerhtml terminology: head vs. body

  8. creating & saving the scuba diving page in kompozer • Create a new page in Kompozer • File – New – Blank Doc • Save your new page • Name your page ‘index’ • Save the file to your CMPT100 folder • Save any files related to your webpage in the same folder • Remember the rule about naming files: NO SPACES

  9. html terminology: head vs. body • Head • if you click on the Source tab in Kompozer you can look at the source code for the scuba site • Kompozer automatically creates your website’s head section • indicated with an opening/closing tag • E.g., <head> head element </head> • a head element can be, for example, your webpage title • Body • defines the documents body • includes all the contents of an HTML document such as text, hyperlinks, images, tables, lists, etc. • indicated with opening and closing tags: • E.g., <body> HTML document content </body>

  10. headings & paragraphshtml terminology: headings vs. title

  11. headings in kompozer • Add a heading 1 to your index.html file • H1, h2, h3, h4, h5, h6 • smaller the number = the bigger/more important the heading

  12. html terminology: headings vs. title • Headings • search engines use headings to index the structure and content of web pages • show the structure of the document, allows users to skim content • don’t use headings to make text BIG or bold • syntax: open tag – element content – close tag • E.g., <h1>This is my most important header</h1>

  13. html terminology: headings vs. title • Title tag • defines the title of the document • title element is required in all HTML and XHTML documents • syntax: <title>Sep and Jerry’s Excellent Scuba Adventure</title> • Title attribute • completely unrelated to title tag • gives more information about an element • syntax: <element title=“value”> • I coded a title attribute into the index of my homepage, see if you can find it in the source code • go to http://homepage.usask.ca/~wls238 • in your web browser: View – Source • HINT: read the green comments!

  14. creating page2 of our scuba adventure webpage

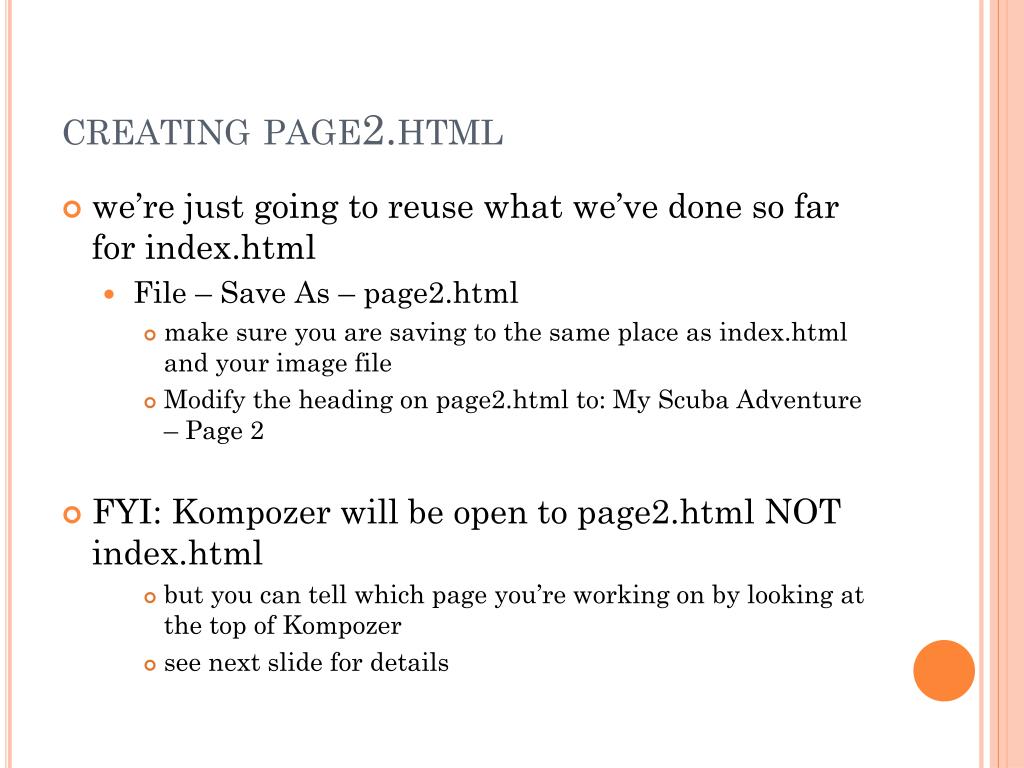

  15. creating page2.html • we’re just going to reuse what we’ve done so far for index.html • File – Save As – page2.html • make sure you are saving to the same place as index.html and your image file • Modify the heading on page2.html to: My Scuba Adventure – Page 2 • FYI: Kompozer will be open to page2.html NOT index.html • but you can tell which page you’re working on by looking at the top of Kompozer • see next slide for details

  16. keeping track of which page you’re editing: index or page2

  17. and moving on . . . • close page2.html • open index.html • we’re going to add a paragraph of info to index.html • change Body Text to Paragraph • add some information about your unwavering love for scuba diving. • it can be anything

  18. two mad serious hugely important disclaimers • Always, always save your page after you are satisfied with a change • Small changes are easier to fix if you make a mistake • Always view new changes in a refreshed web browser to make sure they look okay • Force refresh of your web browser • Control+F5 is the keyboard shortcut • Forces a complete refresh of each and every file associated with your website. • A simple refresh on your browser WILL NOT force a refresh of every file associated with your website

  19. viewing your kompozer page in a browser • go to where you have your index.html file saved • right mouse click on the file, and select Open from the list of options • the file should now be opened in a browser • Note: nobody else can see your page, it is local

  20. inserting images

  21. inserting an image • pretty simple with Kompozer • click the Image icon, or • Insert – image – find the image on your file directory • NOTE: the image MUST be in the same folder as your index.html file • pretty easy to do by modifying source code too • just make sure the file names match exactly • images are defined with the <img> tag • to display an image on a page, you need the src tag (src = Source) • src lets a browser know the URL of where the image • The URL points to the location where the image is stored • for more info: http://www.w3schools.com/html/html_images.asp

  22. image alternate text • A note on the alternate text option • alt=“My image’s info” • always add alternate text to your images • provides additional information for people who have slow connections or who use a screen reader • Some information on screen readers if you’re interested: http://en.wikipedia.org/wiki/Screen_reader

  23. troubleshooting images • Troubleshooting image issues • make sure that your image file is in the same folder as the rest of your webpage • ALWAYS hand in your image files with your assignments into Ehandin • img style="width: 400px; height: 265px;“ alt="Fishes and corals" src="tutorial1_underwater2.jpg”>

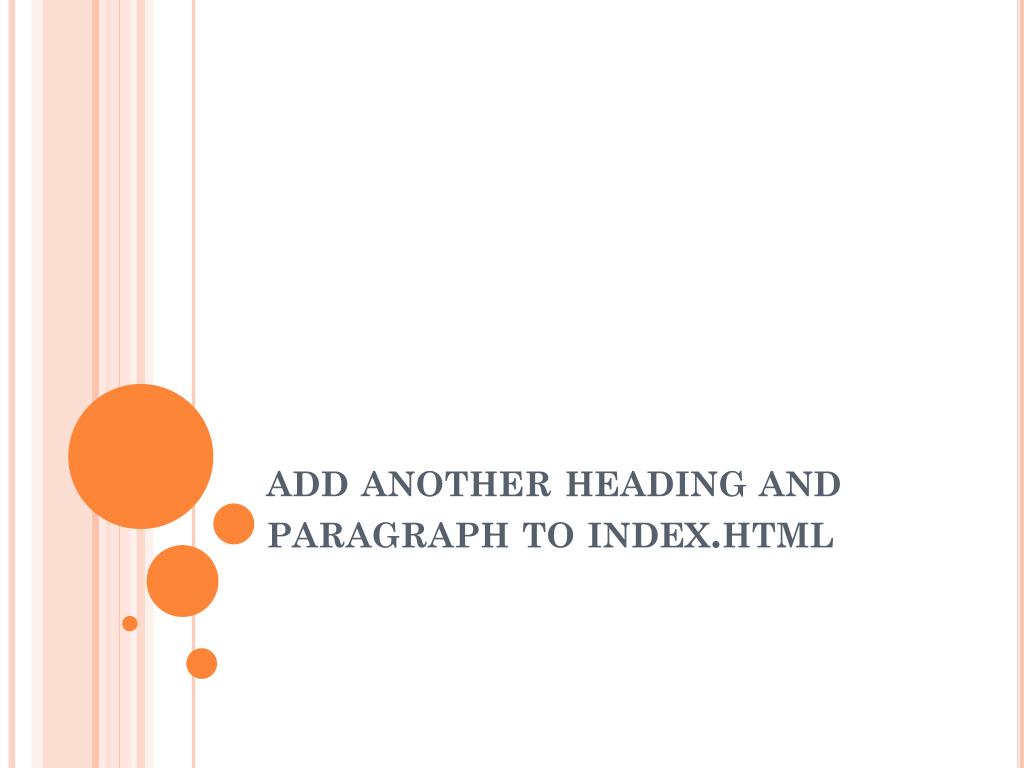

  24. add another heading and paragraph to index.html

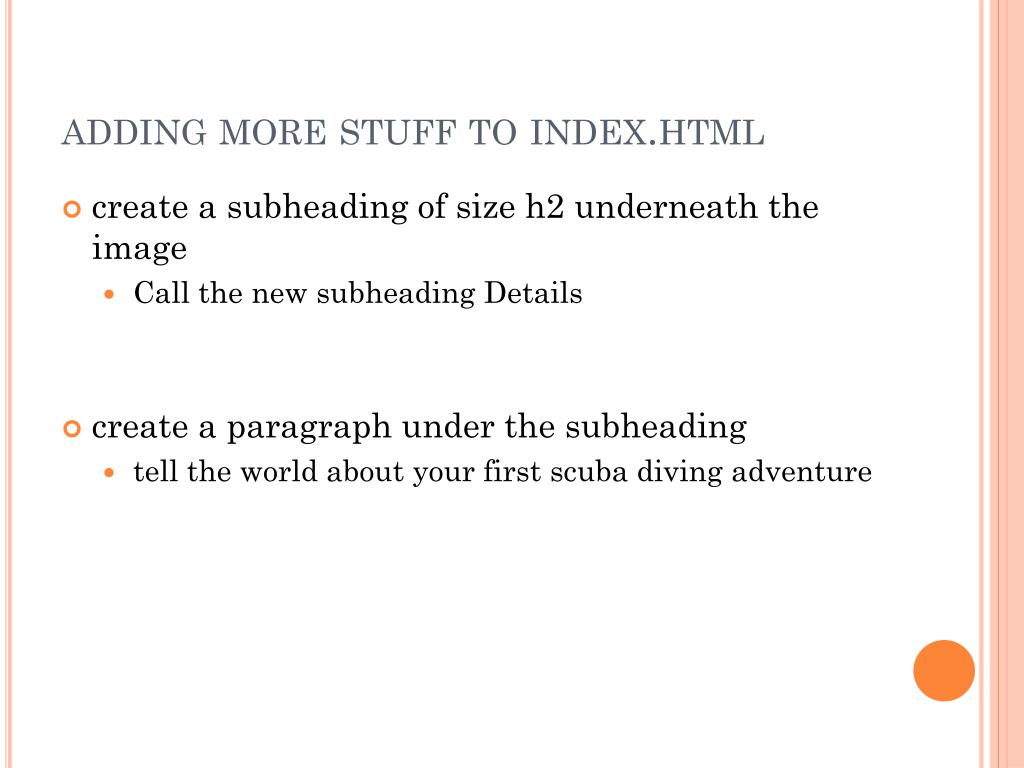

  25. adding more stuff to index.html • create a subheading of size h2 underneath the image • Call the new subheading Details • create a paragraph under the subheading • tell the world about your first scuba diving adventure

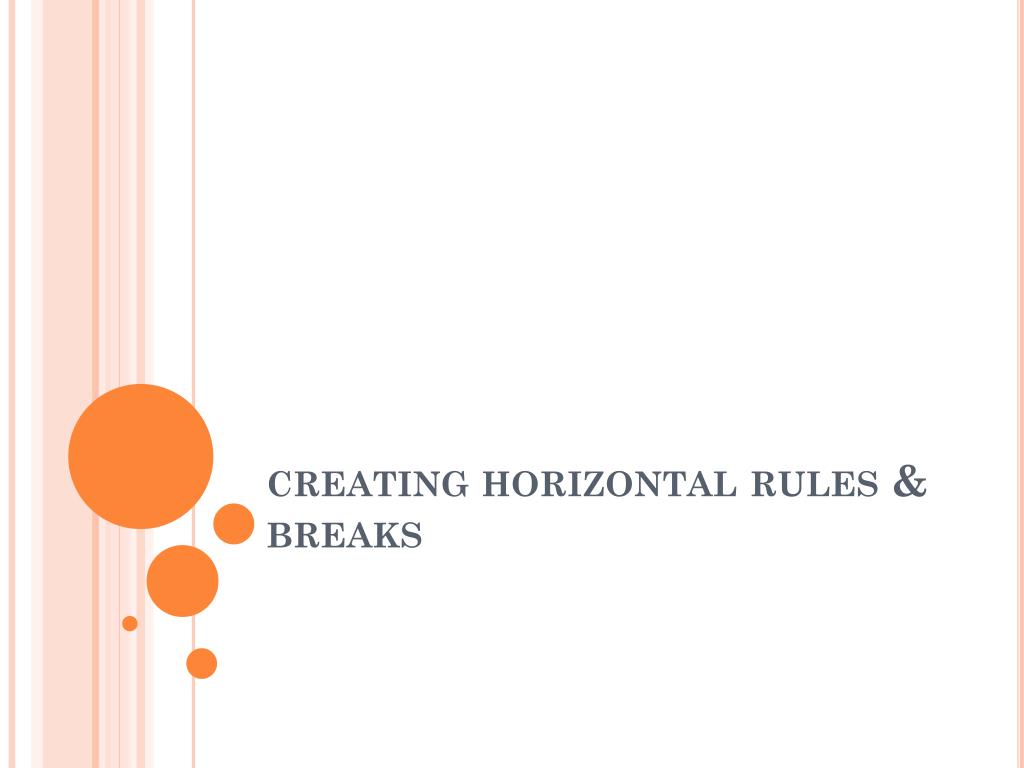

  26. creating horizontal rules & breaks

  27. horizontal rule a.k.a. horizontal line • Pretty straight forward in Kompozer • put the cursor where you want your line to go • Insert – Horizontal Line

  28. inserting a break • In Kompozer • just press the Enter key • HTML tag: <br> • inserts a single line break • <br> is an empty tag, meaning that it doesn’t have a closing tag • go to the Source tab in Kompozer and you can see the corresponding breaks

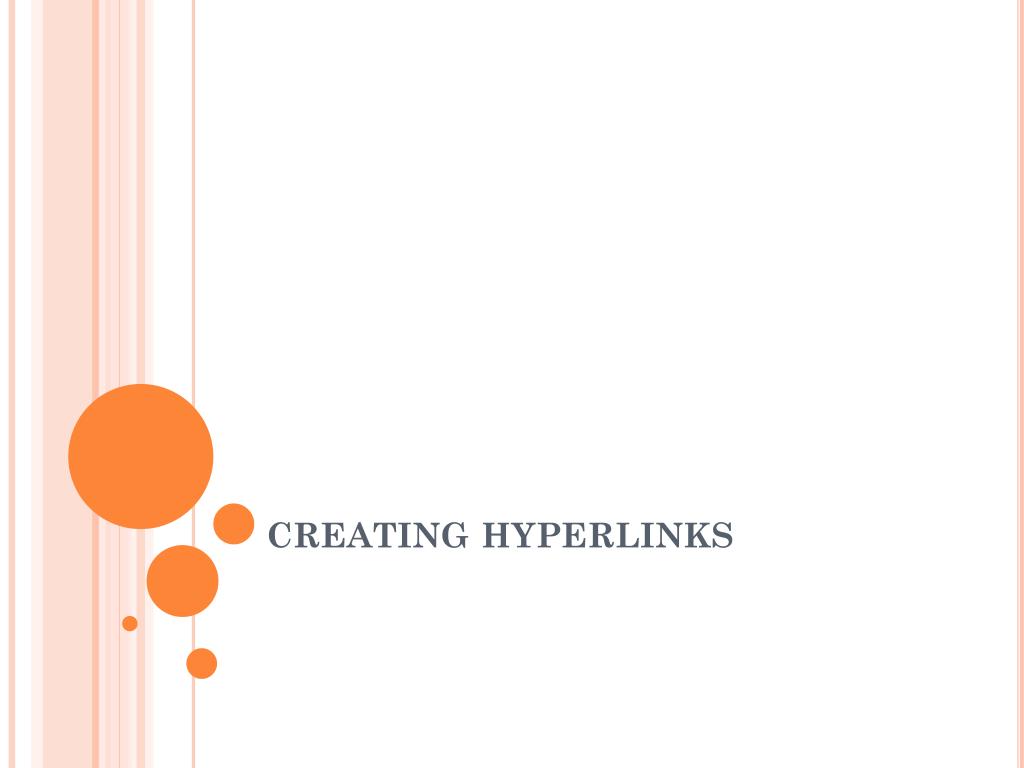

  29. creating hyperlinks

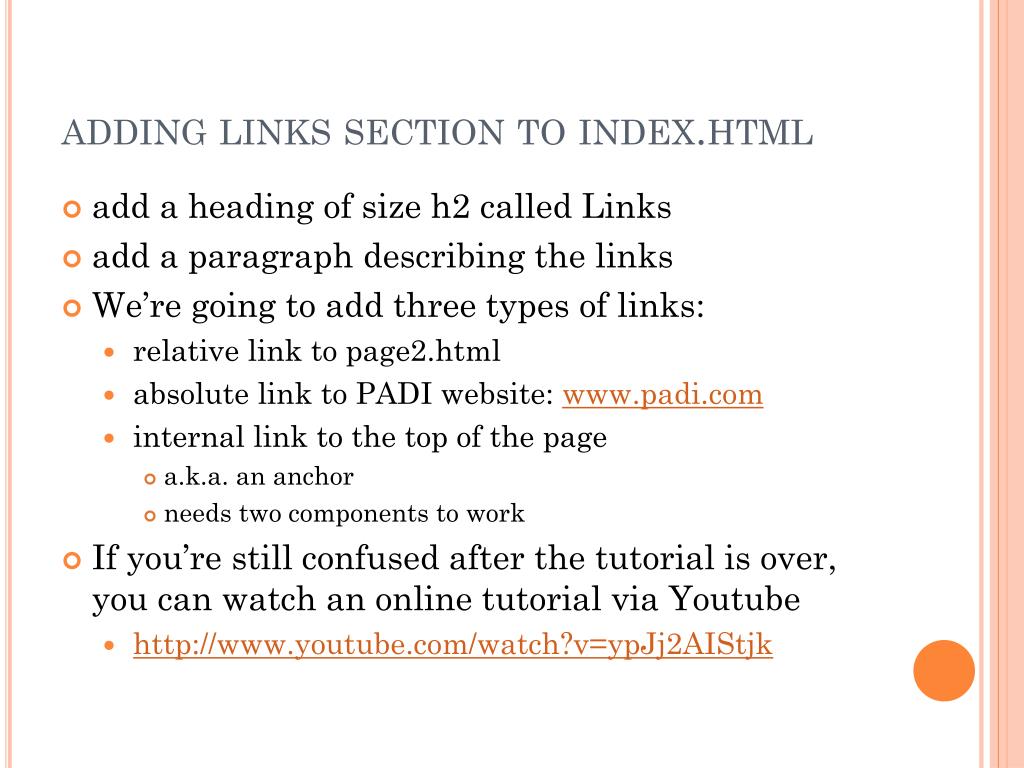

  30. adding links section to index.html • add a heading of size h2 called Links • add a paragraph describing the links • We’re going to add three types of links: • relative link to page2.html • absolute link to PADI website: www.padi.com • internal link to the top of the page • a.k.a. an anchor • needs two components to work • If you’re still confused after the tutorial is over, you can watch an online tutorial via Youtube • http://www.youtube.com/watch?v=ypJj2AIStjk

  31. using comment tags

  32. commenting your code • Why? • Indicate who created the HTML document, get easy marks, organize your source code • you won’t be able to see comments in the Kompozer Design tab • the browser will ignore any comments enclosed in the comments tag: <!-- this is my comment --> Commenting as explained by xkcd. The actual format with // is used in the C++ language, but all languages, including HTML have some form of commenting

  33. commenting in kompozer • Insert – Comment • type what you want your comment in the dialog box • click OK • your comment will appear as a question mark icon in Kompozer • you can view the details of your comment in the Source tab

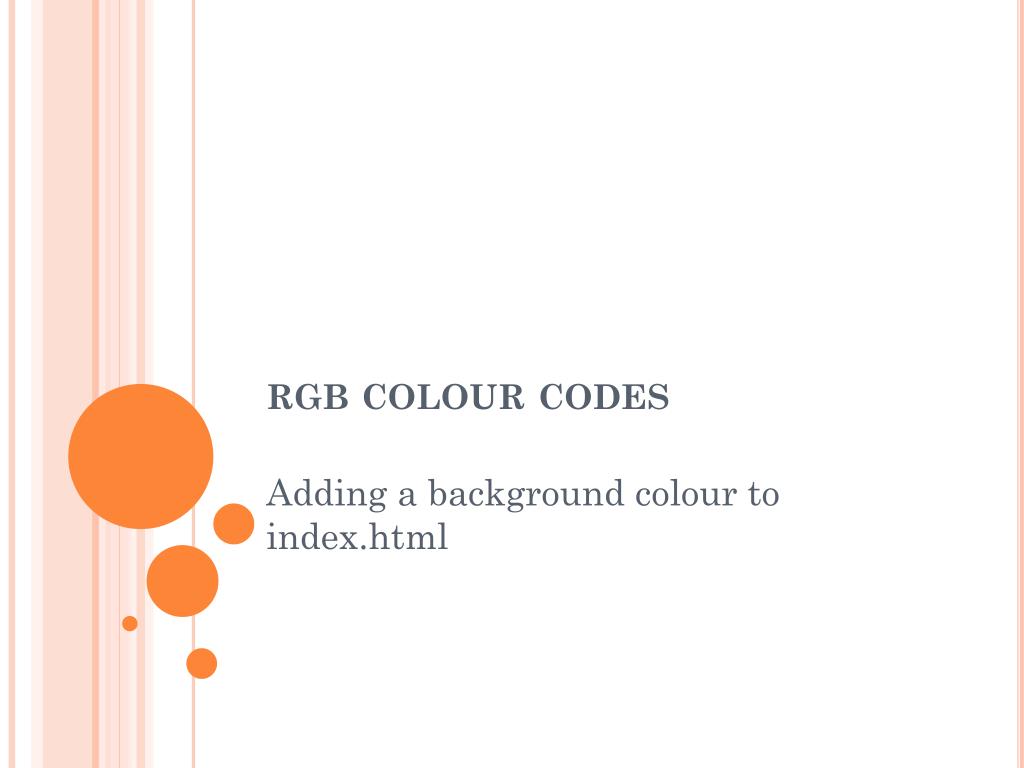

  34. rgb colour codesAdding a background colour to index.html

  35. html colours • HTML colours are defined using a hexidecimal (HEX) notation • www.w3schools.com/Html/html_colors.asp • Colours are displayed by combining Red, Green, and Blue (RGB) colour values • The lowest value a colour can have is 0 (HEX: 00) • The highest value a colour can have is 255 (HEX: FF) • E.g., #99CCCC • Ever heard of web safe colours? • Not as big of an issue anymore because not very many computer users view the web in 256 colors anymore • But this is still an issue in some circles • http://www.lynda.com/resources/webpalette.aspx

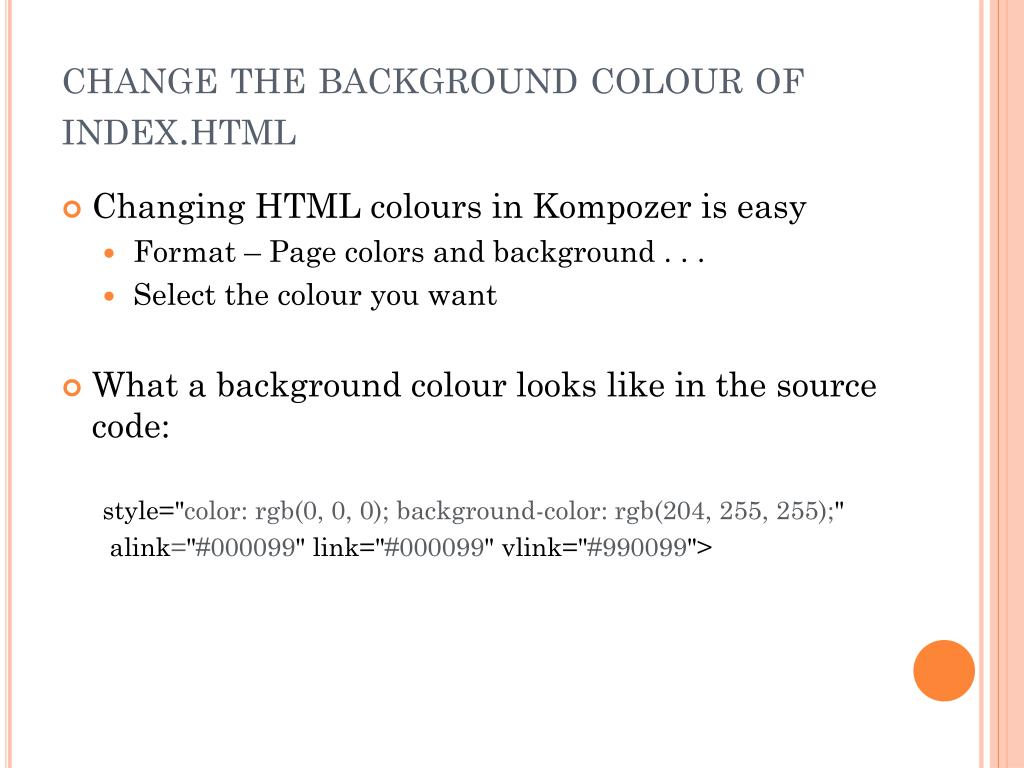

  36. change the background colour of index.html • Changing HTML colours in Kompozer is easy • Format – Page colors and background . . . • Select the colour you want • What a background colour looks like in the source code: style="color: rgb(0, 0, 0); background-color: rgb(204, 255, 255);" alink="#000099" link="#000099" vlink="#990099">

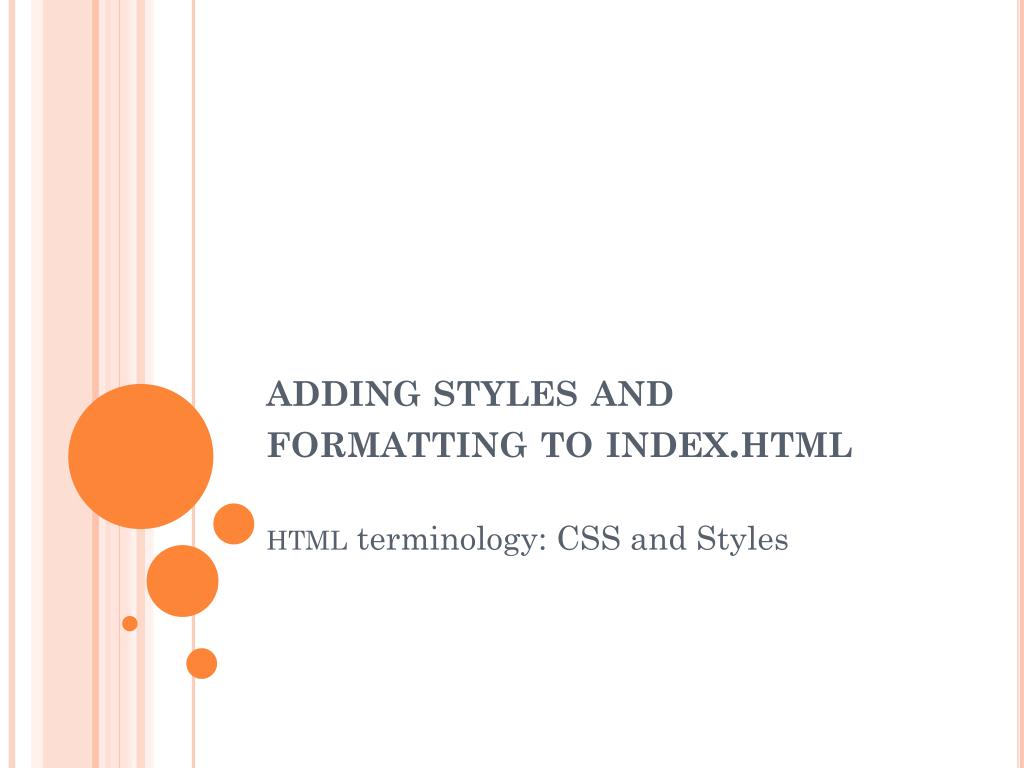

  37. adding styles and formatting to index.htmlhtml terminology: CSS and Styles

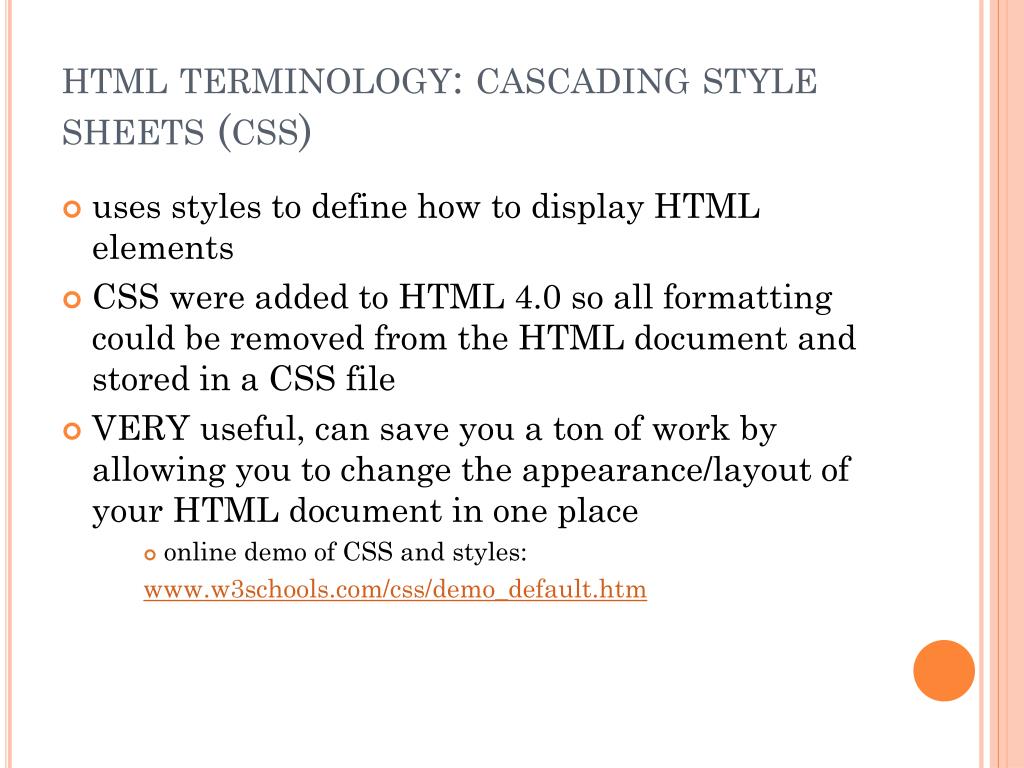

  38. html terminology: cascading style sheets (css) • uses styles to define how to display HTML elements • CSS were added to HTML 4.0 so all formatting could be removed from the HTML document and stored in a CSS file • VERY useful, can save you a ton of work by allowing you to change the appearance/layout of your HTML document in one place • online demo of CSS and styles: www.w3schools.com/css/demo_default.htm

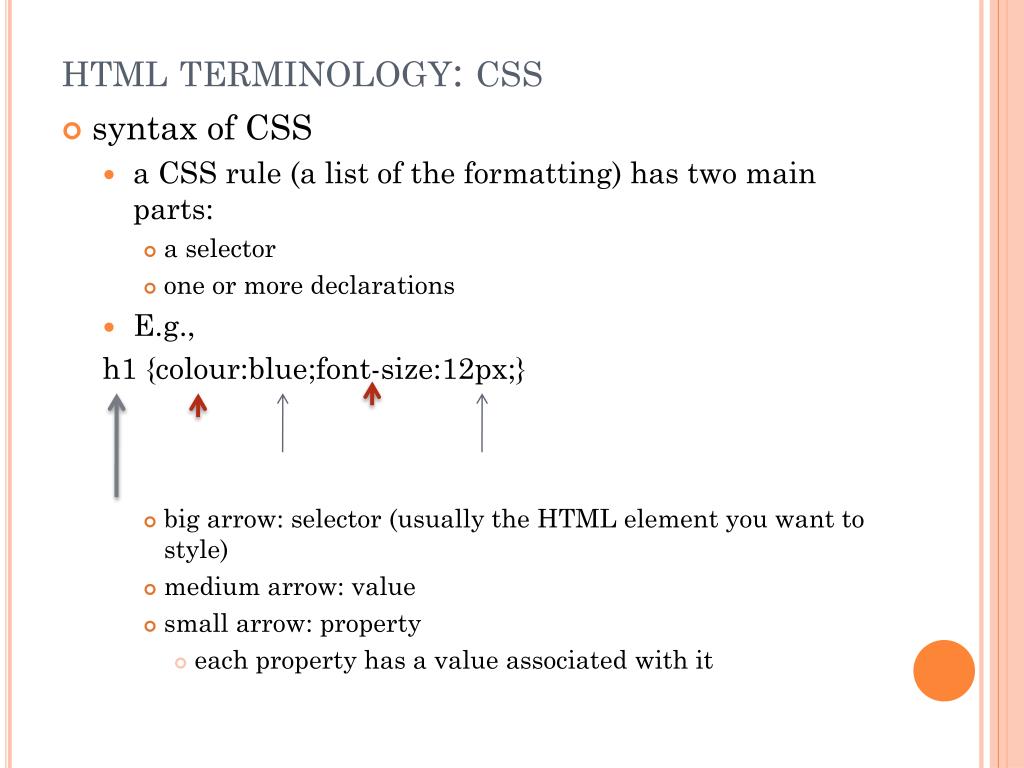

  39. html terminology: css • syntax of CSS • a CSS rule (a list of the formatting) has two main parts: • a selector • one or more declarations • E.g., h1 {colour:blue;font-size:12px;} • big arrow: selector (usually the HTML element you want to style) • medium arrow: value • small arrow: property • each property has a value associated with it

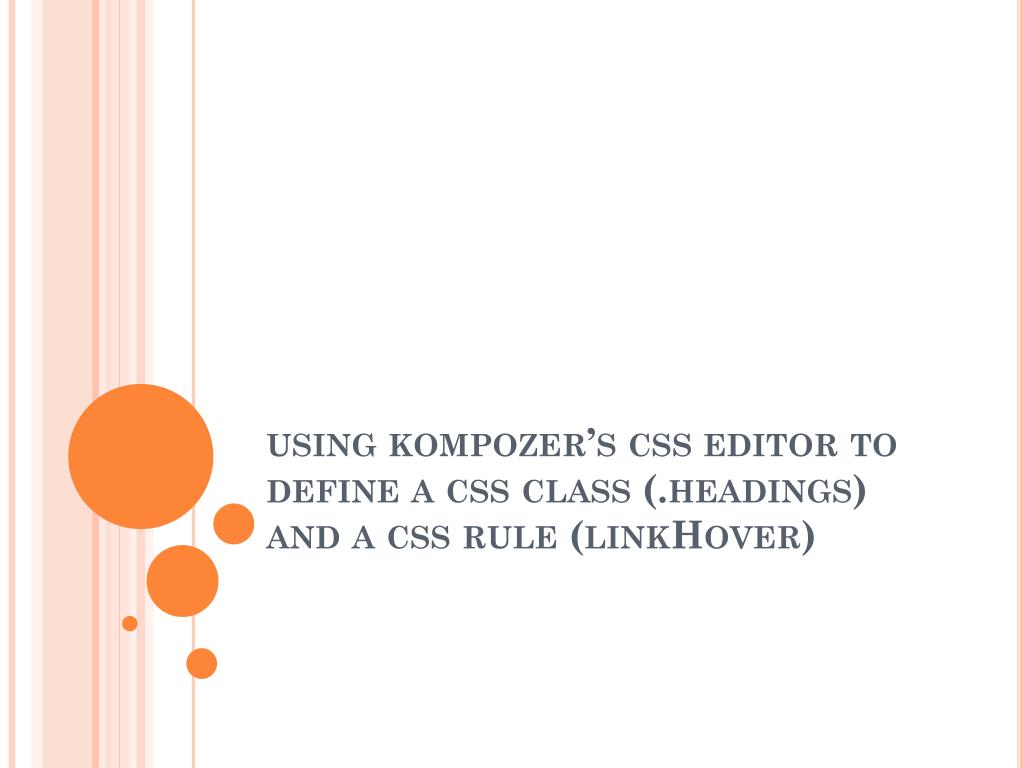

  40. using kompozer’s css editor to define a css class (.headings) and a css rule (linkHover)

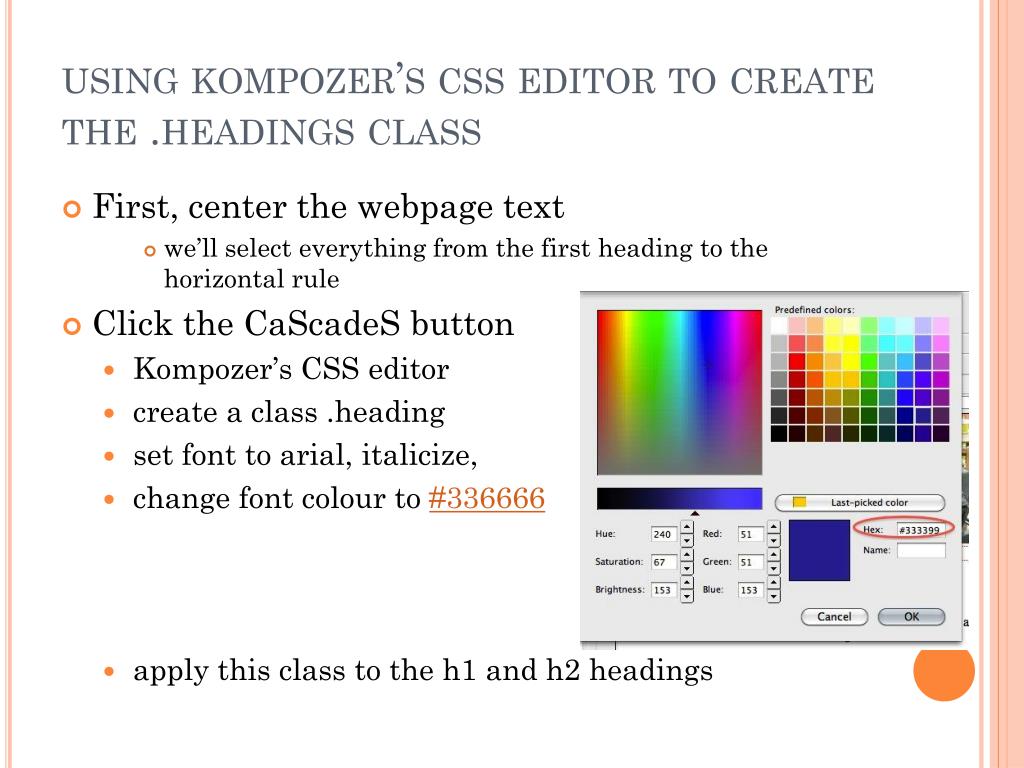

  41. using kompozer’s css editor to create the .headings class • First, center the webpage text • we’ll select everything from the first heading to the horizontal rule • Click the CaScadeS button • Kompozer’s CSS editor • create a class .heading • set font to arial, italicize, • change font colour to #336666 • apply this class to the h1 and h2 headings

  42. creating the .headings class Click ‘Create Style Rule’

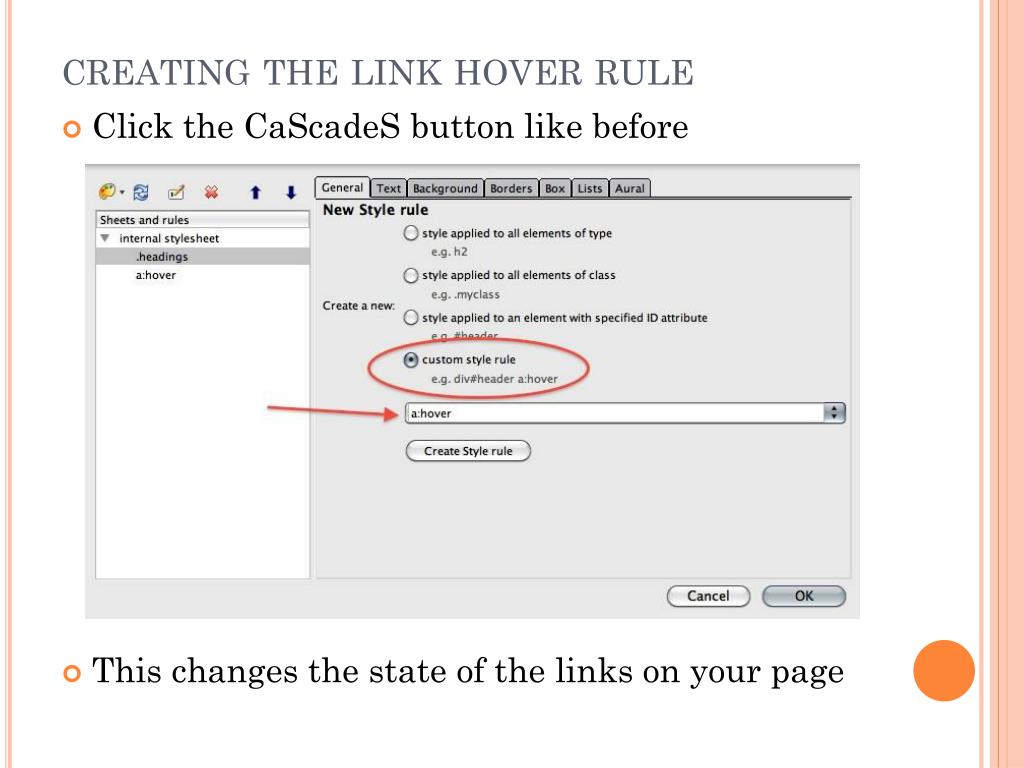

  43. creating the link hover rule • Click the CaScadeS button like before • This changes the state of the links on your page

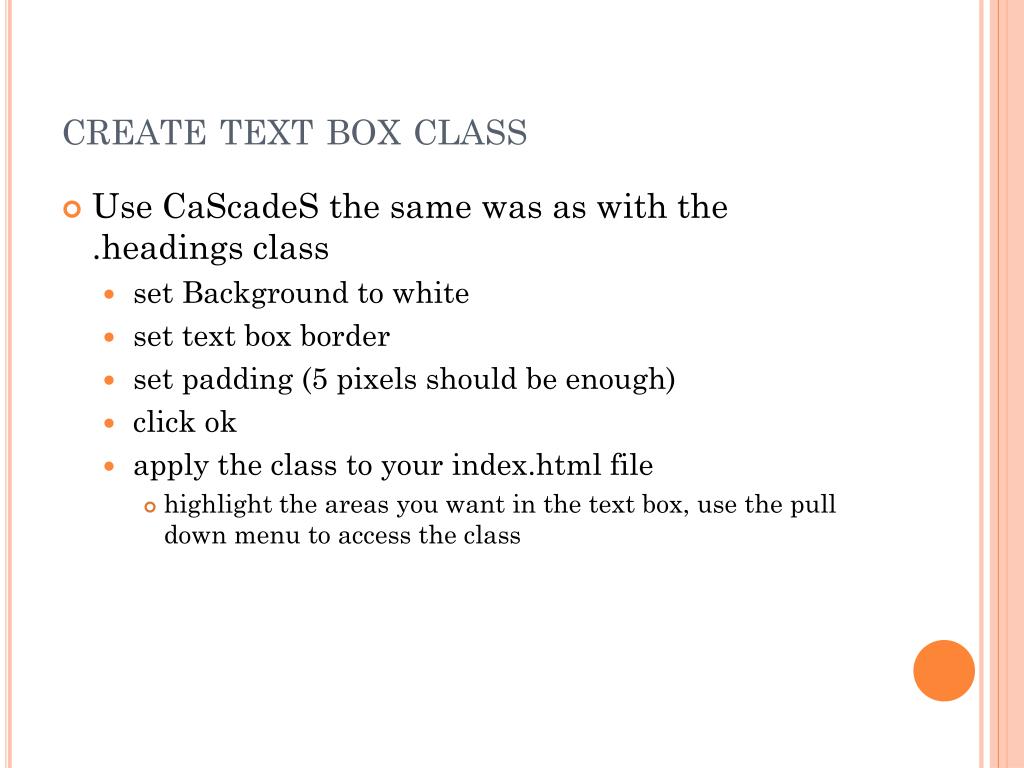

  44. create text box class • Use CaScadeS the same was as with the .headings class • set Background to white • set text box border • set padding (5 pixels should be enough) • click ok • apply the class to your index.html file • highlight the areas you want in the text box, use the pull down menu to access the class

  45. uploading webpages to ehandin

  46. submitting assignments to ehandin • add each file one at a time • don’t forget to upload image files • make sure your file names don’t have spaces • double check that your webpage displays properly in a browser

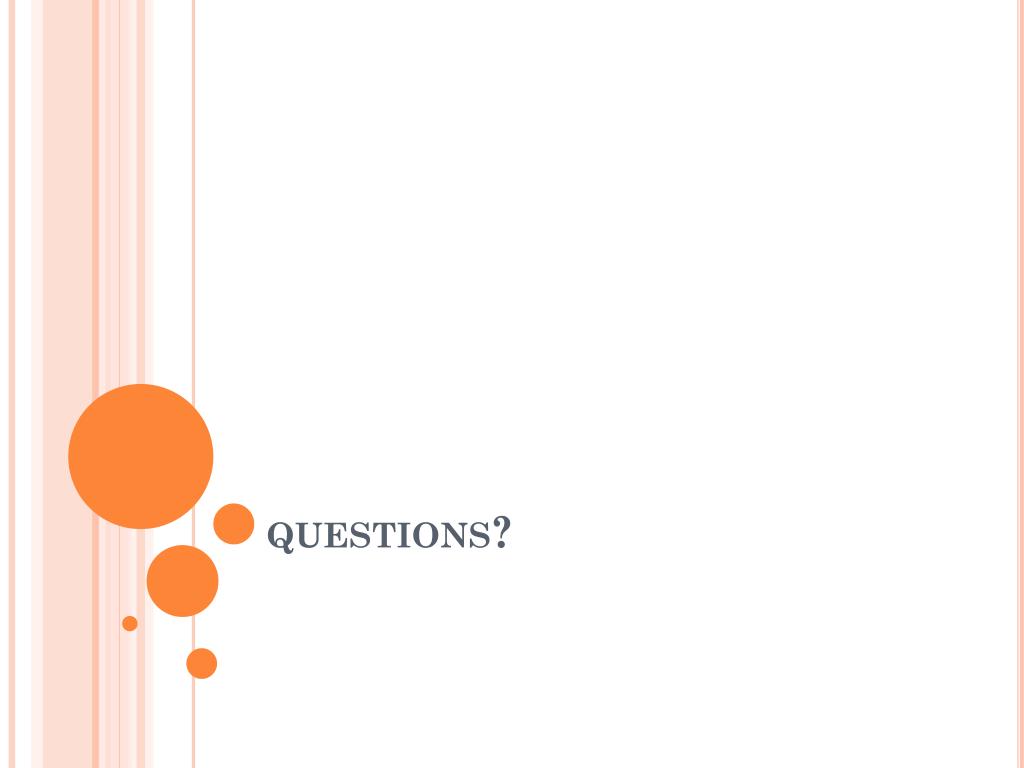

  47. questions?
