clairvoyant a comprehensive source level debugger for wireless sensor networks

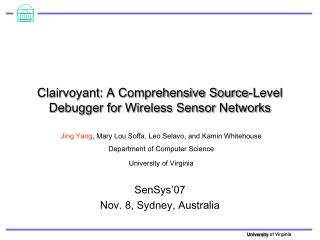

Clairvoyant: A Comprehensive Source-Level Debugger for Wireless Sensor Networks

Jing Yang, Mary Lou Soffa, Leo Selavo, and Kamin Whitehouse

Department of Computer Science

University of Virginia

SenSys’07

Nov. 8, Sydney, Australia

our offer
Our offer

$25 million for 100,000 node volcano monitoring network

You will probably:

  • Write code
  • Test in simulation
  • Test a single node
  • Build testbeds
  • Test small deployments

Finally, you deploy the production system and …

it malfunctions
… it malfunctions
  • It always reports an eruption
  • What do you want to do (ideally) ?
    • Stop the execution
    • Step through each statement
    • Insert breakpoints
    • Print variables
    • Call functions

A source-level debugger

debugging in the wsn domain
Debugging in the WSN domain
  • EnviroLog
  • DiagMsg
  • Sympathy
  • SNMS
  • Marionette

Simulation

Deployment

Not source-level

debugging tools

Scale

EmStar

ICE

Realism

Source-level

debugging tools

clairvoyant goals
Clairvoyant goals
  • Source-level debugging after deployment
    • Application runs on nodes
    • Operate over multi-hop networks
  • Minimize “Heisenbugs”
    • Network interference
    • Changes to execution timing
    • RAM (stack overflow)

Simulation

Deployment

Scale

EmStar

ICE

Realism

clairvoyant overview

Interpreter

Executor

Executor

User

Debugging

Unit

GDB

CDB

UI

Wrapper

Clairvoyant overview

>> break BlinkM.nc:18

breakpoint 1 is inserted

>> continue

breakpoint 1 is reached

>> print state

0

>> next

BlinkM.nc:19 is reached

>> interrupts

SPI (vector_17)

>> call vector_17()

function is called

>> logRadio BlinkM.nc:20 state

logpoint 2 is inserted

>> gcontinue

Deployed

multi-hop WSN

Terminal 4

Classic GDB cmds

Terminal 1

Terminal 5

Terminal 2

Source-level

debugging

environment

New cmds

Terminal 6

Terminal 3

GDB-like text-based terminal

outline
Outline
  • Classical GDB remote debugging
  • Minimize program size
  • Reduce network traffic
  • Preserve execution timing
classical gdb remote debugging
Classical GDB remote debugging

Example: conditional breakpoint

Send values back

Breakpoint

reached

Trap

Value

Debugger

PC

  • GDB remote protocol

Dynamic binary instrumentation

    • Insert “trap” into program
    • Switch context
    • Transfer control to debugger
    • Execute any debugging commands
    • Switch context again
    • Execute replaced instructions
    • Return control to program

+

Read

condition variables

Print

Continue

Continue

execution

Trampoline

App

Context switch

Jmp

To debugger

Context switch

Execute original

instructions

apply classical gdb rd to wsns
Apply classical GDB RD to WSNs

Debugger

PC

No appropriate

for WSNs

  • Example: conditional breakpoint
  • Check condition on PC
    • 4 radio messages
  • Save full context
    • Time-consuming
  • Save clock registers
    • Timing-sensitive
    • Timer-dependent

Trampoline

App

Context switch

Jmp

To debugger

Context switch

Execute original

instructions

preserve clock consistency
Preserve clock consistency

0

10

12

18

20

Timer

fired

Timer

fired

Breakpoint

reached

Continue

execution

0

10

12

18

26

Timer

fired

Timer

fired

Breakpoint

Reached

Continue

execution

Save clock registers

Restore clock registers

apply classical gdb rd to wsns11
Apply classical GDB RD to WSNs

Debugger

PC

No appropriate

for WSNs

  • Example: conditional breakpoint
  • Check condition on PC
    • 4 radio messages
  • Save full context
    • Time-consuming
  • Save clock registers
    • Timing-sensitive
    • Timer-dependent
  • Use a separate trampoline
    • 256 bytes of program memory

Trampoline 1

App

Context switch

Trampoline 2

Jmp

Context switch

To debugger

Context switch

Trampoline 3

Jmp

To debugger

Context switch

Context switch

Execute original

instructions

Jmp

To debugger

Execute original

instructions

Context switch

Execute original

instructions

cond breakpoint evaluation
Cond. breakpoint evaluation

962 ms

Classical GDB Remote Debugging

256

8

4

0

0

Execution

Overhead

# Radio

Messages

# Flash

Writes

Data

Memory

Program

Memory

Skewed

Clock Cycles

outline13
Outline
  • Classical GDB remote debugging
  • Minimize program size
  • Reduce network traffic
  • Preserve execution timing
shared trampoline
Shared trampoline

Application

Shared

trampoline

Clairvoyant

Stack

Inst 1

1

Context

switch

2

Interpret

commands

Application

stack

Inst 2

Call

Inst 3

4

Jump to

Clairvoyant

Return

address

Inst 4

Inst 5

Context

switch

Clairvoyant

stack

Call

Inst 6

Ret

……

3

Stack

layout

Inst m

Inst n

Call

  • Trade-offs:
    • Reduce program memory
    • Increase flash writes

……

Process

cond breakpoint evaluation15
Cond. breakpoint evaluation

962 ms

Classical GDB Remote Debugging

962 ms

Shared Trampoline + GDB Remote Protocol

256

8

8

4

4

4

0

0

0

0

Execution

Overhead

# Radio

Messages

# Flash

Writes

Data

Memory

Program

Memory

Skewed

Clock Cycles

outline16
Outline
  • Classical GDB remote debugging
  • Minimize program size
  • Reduce network traffic
  • Preserve execution timing
gdb remote protocol
GDB remote protocol

Application

Shared

trampoline

Clairvoyant

Send values back

Breakpoint

reached

Inst 1

Context

Switch

Interpret

commands

PC

Inst 2

Read condition

variables

Continue

execution

Call

Inst 3

Inst 4

Inst 5

Inst 6

  • Example: conditional breakpoint
  • Shared trampoline + GDB remote protocol
  • All functionality is on PC
    • Excess network traffic

……

Inst m

Inst n

……

moving functionality to nodes
Moving functionality to nodes

Application

Shared

trampoline

Clairvoyant

Inst 1

Context

Switch

Interpret

commands

PC

Inst 2

Inst 3

Call

Read condition

variables

Inst 4

Inst 5

Check values

Inst 6

……

  • Example: conditional breakpoint
  • Move condition checking to nodes
  • Trade-offs:
    • Reduce network traffic
    • Increase data memory
    • Reduce conformity with GDB

Inst m

Inst n

……

cond breakpoint evaluation19
Cond. breakpoint evaluation

962 ms

Classical GDB Remote Debugging

962 ms

Shared Trampoline + GDB Remote Protocol

Shared Trampoline + Functionality Moving

256

26

186 ms

8

8

4

4

4

4

0

0

0

0

0

0

0

Execution

Overhead

# Radio

Messages

# Flash

Writes

Data

Memory

Program

Memory

Skewed

Clock Cycles

outline20
Outline
  • Classical GDB remote debugging
  • Minimize program size
  • Reduce network traffic
  • Preserve execution timing
absolute vs relative timing
Absolute vs. relative timing

Create “Heidenbugs”

0

10

12

18

26

Timer

fired

Timer

fired

Node 1

Breakpoint

Reached

Continue

execution

Save clock registers

Restore clock registers

0

10

20

Timer

fired

Timer

fired

Node 2

faster context switch
Faster context switch

Application

Separate

trampoline

Shared

trampoline

Clairvoyant

Inst 1

Context

Switch

Context

Switch

Interpret

commands

PC

Inst 2

Inst 3

Jmp

Read condition

variables

Inst 4

Inst 5

Check values

Inst 3 + Inst 4

Inst 6

  • Example: conditional breakpoint
  • Use a separate trampoline
  • Save only necessarily registers (no clock registers)
  • Trade-offs:
    • Reduce execution overhead
    • Reduce flash writes
    • Increase program memory
    • Increase skewed clock cycles

……

Inst m

Inst n

……

cond breakpoint evaluation23
Cond. breakpoint evaluation

962 ms

Classical GDB Remote Debugging

962 ms

Shared Trampoline + GDB Remote Protocol

Shared Trampoline + Functionality Moving

Faster context switch + Functionality Moving

256

256

26

27

21

186 ms

8

8

4

4

4

4

27 cc

0

0

0

0

0

0

0

0

0

Execution

Overhead

# Radio

Messages

# Flash

Writes

Data

Memory

Program

Memory

Skewed

Clock Cycles

conclusions
Conclusions
  • WSNs are notoriously difficult to debug
    • Embedded systems
    • Distributed systems
    • Event-driven, I/O-oriented computing
    • Multi-hop, wireless networking
  • Not the final solution, but an important step
    • 1st post-deployment source-level debugger
    • Identified and solved several important challenges
      • Timing preservation
      • Function placement
      • Flash writes
      • Network interference
    • Made different trade-offs for different requirements
future work
Future work
  • Re-implementation on MSP430
    • Instructions can be executed from RAM
    • Possibly reduce number of flash writes
  • More commands to find distributed bugs
  • Better integration between logging and interactive debugging
  • Better support for eavesdropping-based debugging
questions
Questions
  • Demo this afternoon
    • 14:00 - 17:15
  • Code release
    • www.cs.virginia.edu/~jy8y/projects/clairvoyant.htm
