How to Configure Asus Routers for AiMesh in Minutes.docx

Asus AiMesh setup allows you to create a powerful whole-home Wi-Fi system using multiple Asus routers. This guide walks you through the easy steps of configuring AiMesh, from connecting your primary router to adding compatible nodes for seamless coverage. Learn how to optimize network performance, fix common setup issues, and enjoy uninterrupted internet throughout your home with Asus AiMesh technology.

asusmartlogin
Download Presentation

How to Configure Asus Routers for AiMesh in Minutes.docx

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. How to Configure Asus Routers for AiMesh in Minutes If you're tired of Wi-Fi dead zones and inconsistent internet speeds throughout your home or office, then setting up an Asus AiMesh network may be the solution you've been waiting for. Asus AiMesh Setup allows you to link multiple Asus routers to create a powerful, seamless Wi-Fi network that covers your entire space. With just a few steps, you can configure AiMesh in minutes, and this guide will walk you through the entire process. What is Asus AiMesh? Asus AiMesh is a unique mesh networking feature developed by Asus. Unlike traditional mesh systems that require identical hardware, AiMesh lets you combine different Asus router models to form a unified Wi-Fi network. This litheness makes it a cost-effective solution, especially if you already own one or more compatible Asus routers.

  2. AiMesh provides you with: ▪ traveling between routers without interruption ▪ centralized management with the web interface or Asus Router app ▪ Increased performance and better coverage ▪ preservation of cutting-edge router functions including QoS and parental controls Things You'll Need Make sure you have the following before starting the Asus AiMesh Configuration: ▪ At least two Asus routers that are compatible (if in doubt, consult the official AiMesh compatibility list) ▪ A link to the internet ▪ A mobile device or computer ▪ Asus Router app or web portal access ▪ Every router's firmware has been upgraded to the most recent version. Asus AiMesh Setup Guide: A Comprehensive Guide In just a few minutes, let's go over how to set up your Asus AiMesh network. 1, Choose A Primary Router. Select the AiMesh router that will serve as your primary router. This is the gadget that manages your network and connects straight to your modem. ▪ Use an Ethernet wire to connect your modem to the main router. ▪ Turn on router subsequently beavering it in.

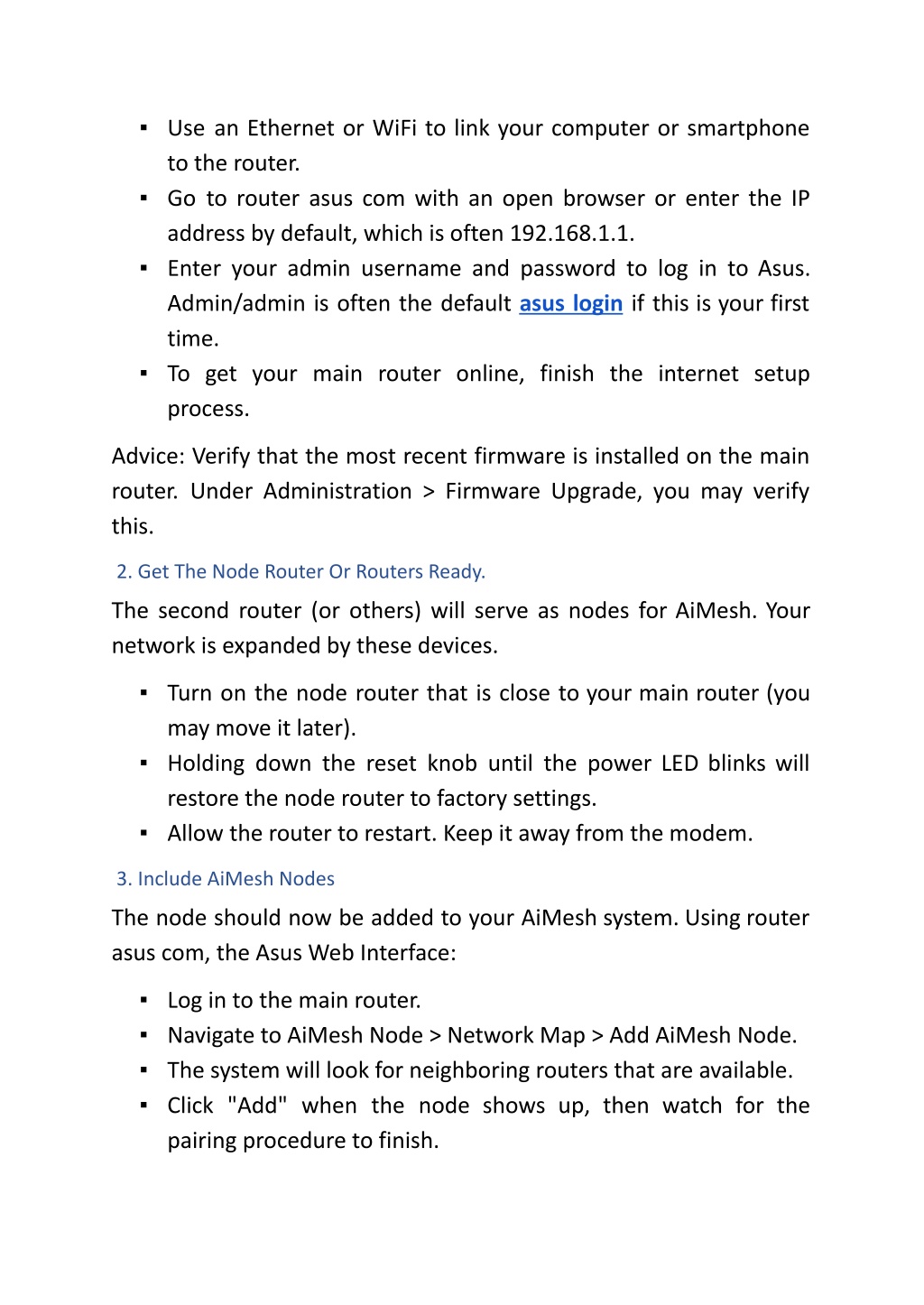

  3. ▪ Use an Ethernet or WiFi to link your computer or smartphone to the router. ▪ Go to router asus com with an open browser or enter the IP address by default, which is often 192.168.1.1. ▪ Enter your admin username and password to log in to Asus. Admin/admin is often the default asus login if this is your first time. ▪ To get your main router online, finish the internet setup process. Advice: Verify that the most recent firmware is installed on the main router. Under Administration > Firmware Upgrade, you may verify this. 2. Get The Node Router Or Routers Ready. The second router (or others) will serve as nodes for AiMesh. Your network is expanded by these devices. ▪ Turn on the node router that is close to your main router (you may move it later). ▪ Holding down the reset knob until the power LED blinks will restore the node router to factory settings. ▪ Allow the router to restart. Keep it away from the modem. 3. Include AiMesh Nodes The node should now be added to your AiMesh system. Using router asus com, the Asus Web Interface: ▪ Log in to the main router. ▪ Navigate to AiMesh Node > Network Map > Add AiMesh Node. ▪ The system will look for neighboring routers that are available. ▪ Click "Add" when the node shows up, then watch for the pairing procedure to finish.

  4. ▪ The node will be listed under the AiMesh topology once it has been successfully inserted. Asus Router App Usage: ▪ Launch the Asus Router app, which is well-suited with iOS and Android. ▪ After tapping the "AiMesh" icon, choose "Add AiMesh Node." ▪ The commands on the screen will help you find and add your node or nodes. Advice: To prevent pairing problems, make sure both routers are close to one another during the initial setup. After pairing, you can move the node to a more advantageous location. 4. Complete and Optimize Your Network After setting up your AiMesh system: ▪ For easier identification, rename your network's SSID and password (Settings > Wireless). ▪ For optimal performance, use the "Smart Connect" feature to automatically guide devices between 2.4GHz and 5GHz. ▪ Turn on "Roaming Assistant" to enable smooth node switching. ▪ Nodes should be positioned carefully to optimize coverage and prevent signal interference. Tips for Troubleshooting ▪ Verify that the nodes are running the same firmware version if none are discovered. ▪ Try pairing again after restarting both routers. ▪ If at all possible, use a wired Ethernet backhaul for more reliable node connections. ▪ Pay attention to the AiMesh panel's node signal strength; if it is too strong, performance will suffer.

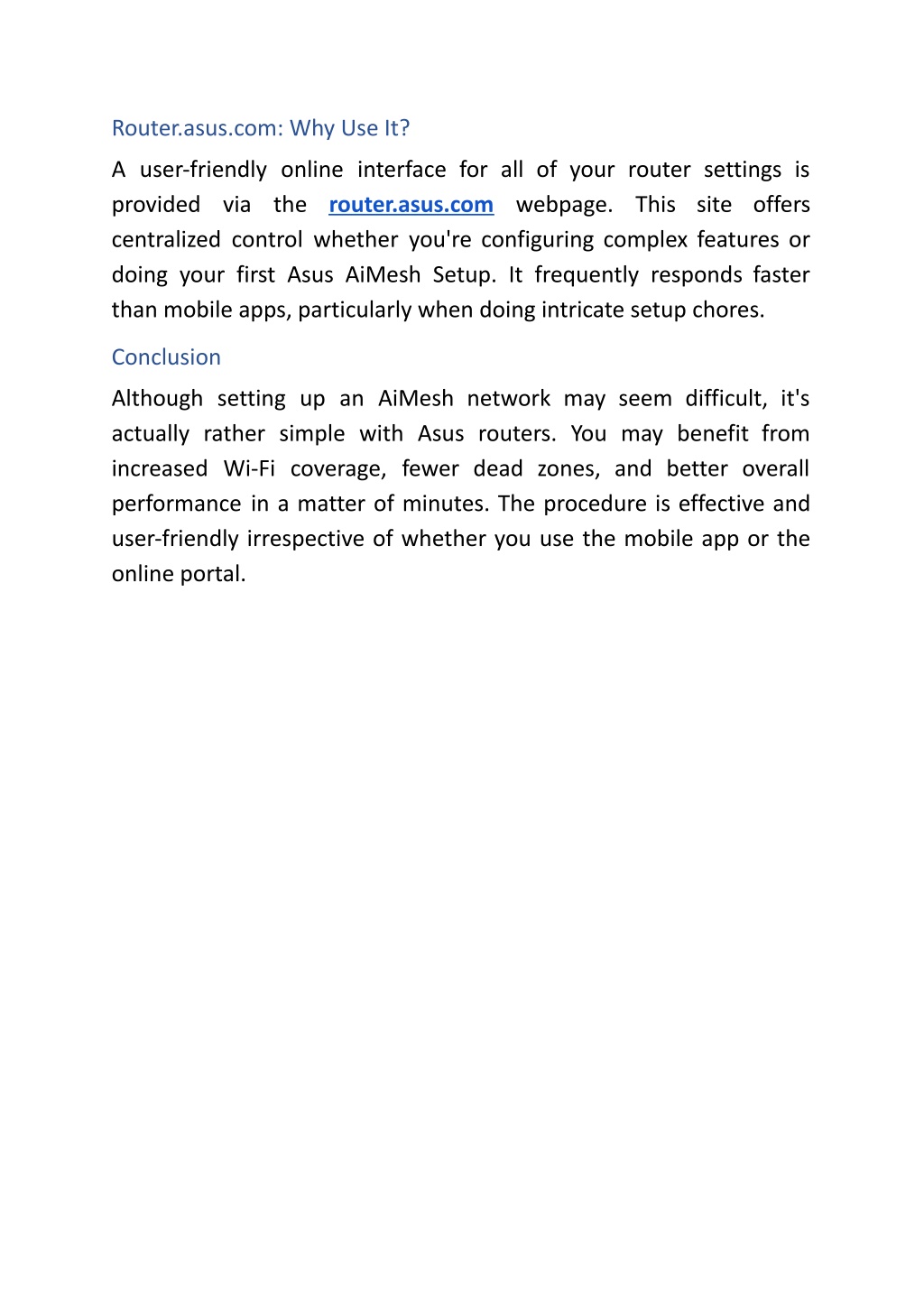

  5. Router.asus.com: Why Use It? A user-friendly online interface for all of your router settings is provided via the router.asus.com webpage. This site offers centralized control whether you're configuring complex features or doing your first Asus AiMesh Setup. It frequently responds faster than mobile apps, particularly when doing intricate setup chores. Conclusion Although setting up an AiMesh network may seem difficult, it's actually rather simple with Asus routers. You may benefit from increased Wi-Fi coverage, fewer dead zones, and better overall performance in a matter of minutes. The procedure is effective and user-friendly irrespective of whether you use the mobile app or the online portal.
