  1. Pattern Bridge Par Jean-Marc Boulerice 2559396 Seg3510

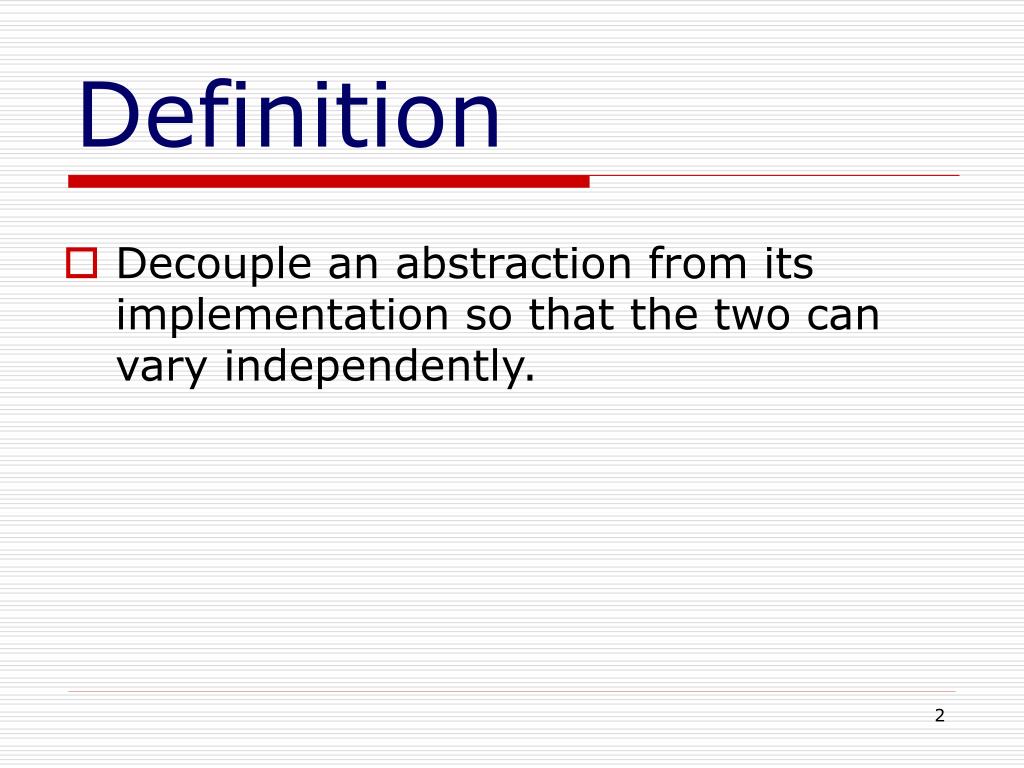

  2. Definition • Decouple an abstraction from its implementation so that the two can vary independently.

  3. Diagrame Uml

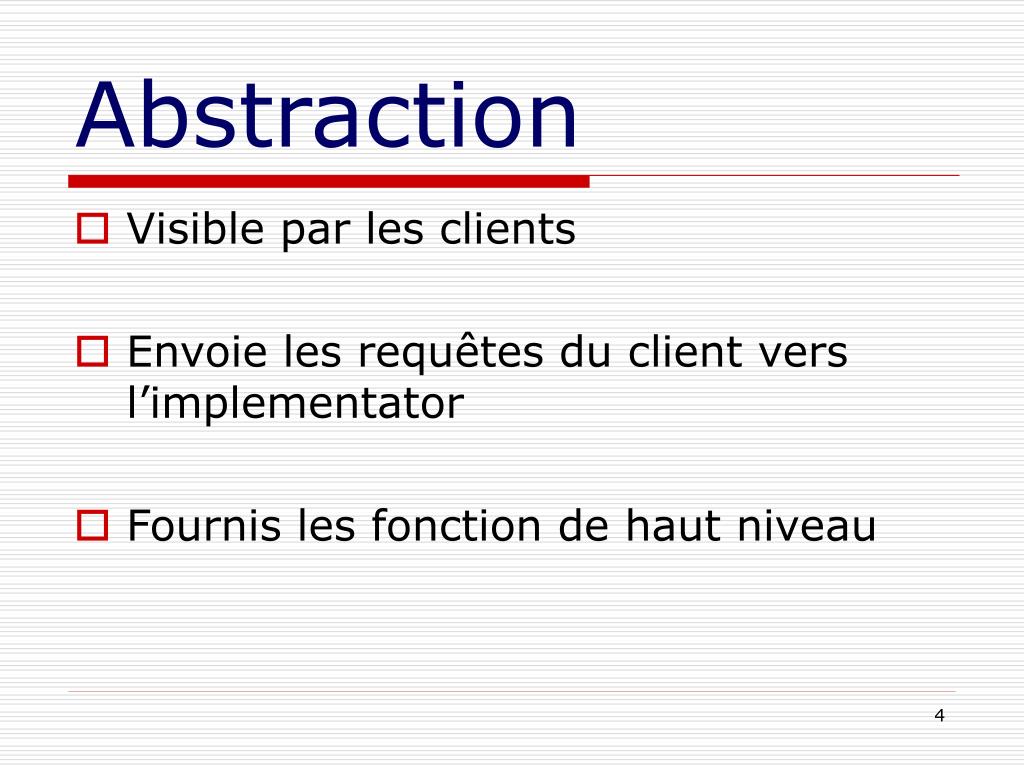

  4. Abstraction • Visible par les clients • Envoie les requêtes du client vers l’implementator • Fournis les fonction de haut niveau

  5. RefineAbstraction • Implémente les différentes abstraction

  6. Implementor • Interface entre plusieurs implémentation • Ne dois pas corresponde a l’interface Abstraction, peu être très différent. • Offre les opérations de bas niveau

  7. ConcreteImplementor • Implémentation de l’interface Implementor • Défini des implémentation concret

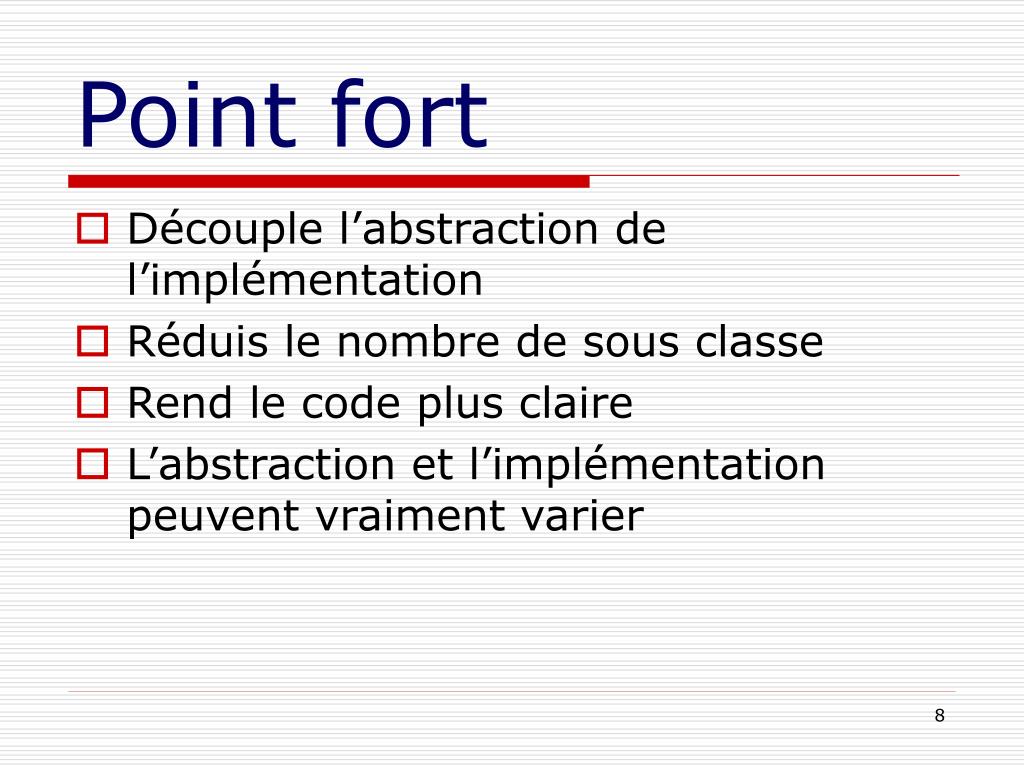

  8. Point fort • Découple l’abstraction de l’implémentation • Réduis le nombre de sous classe • Rend le code plus claire • L’abstraction et l’implémentation peuvent vraiment varier

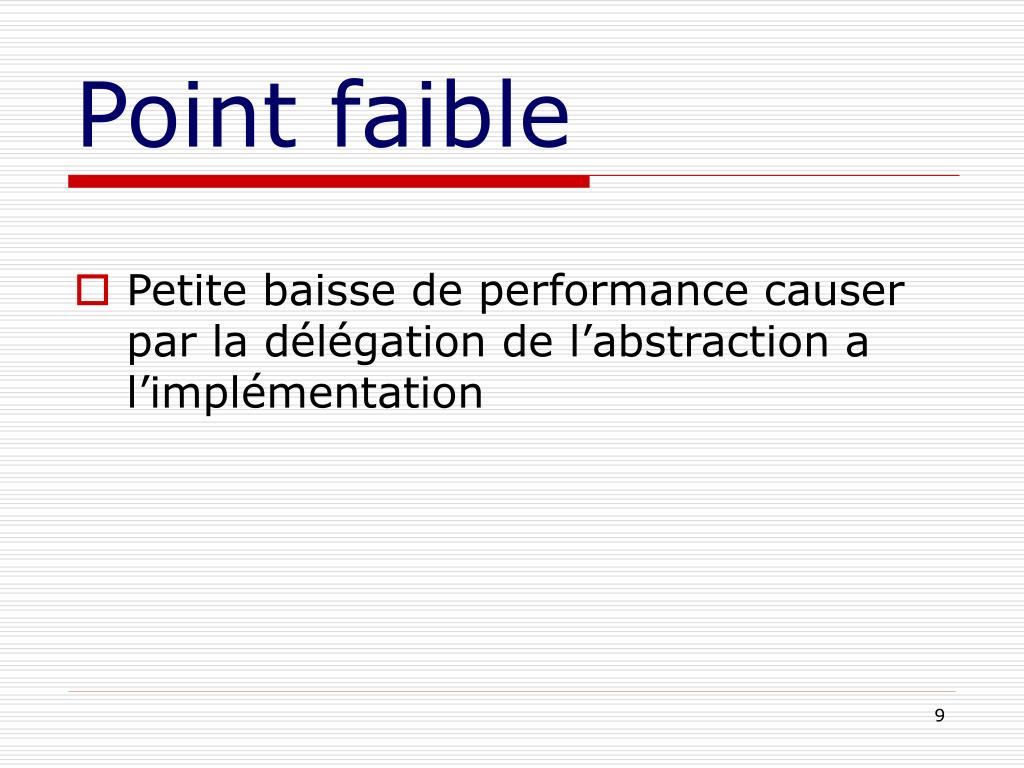

  9. Point faible • Petite baisse de performance causer par la délégation de l’abstraction a l’implémentation

  10. Repas DealRepas DemiLivreBurger PouletBurger QuardLivreBurguer PasDeal MediumDeal Mon exemple du pattern Bridge

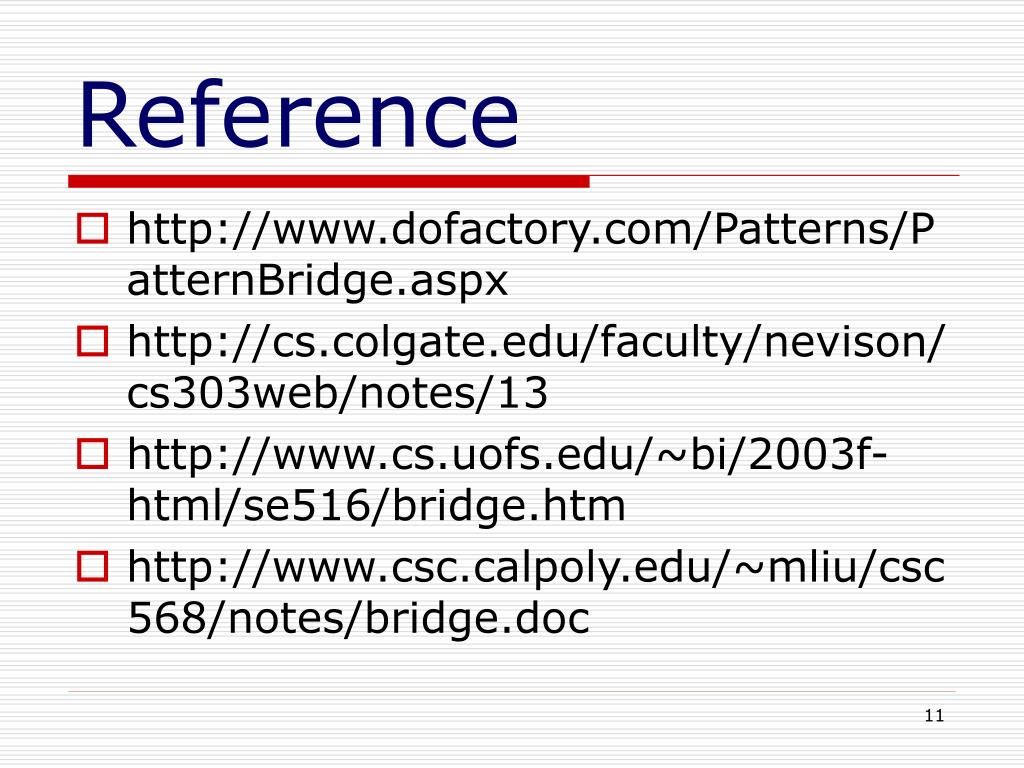

  11. Reference • http://www.dofactory.com/Patterns/PatternBridge.aspx • http://cs.colgate.edu/faculty/nevison/cs303web/notes/13 • http://www.cs.uofs.edu/~bi/2003f-html/se516/bridge.htm • http://www.csc.calpoly.edu/~mliu/csc568/notes/bridge.doc

  12. Reference(2) • http://www.codeproject.com/gen/design/bridge.asp?df=100&forumid=1820&exp=0&select=745209 • http://www.netobjectives.com/dpexplained/download/ch09.pdf • http://www.fluffycat.com/java/JavaNotes-GoFBridge.html
