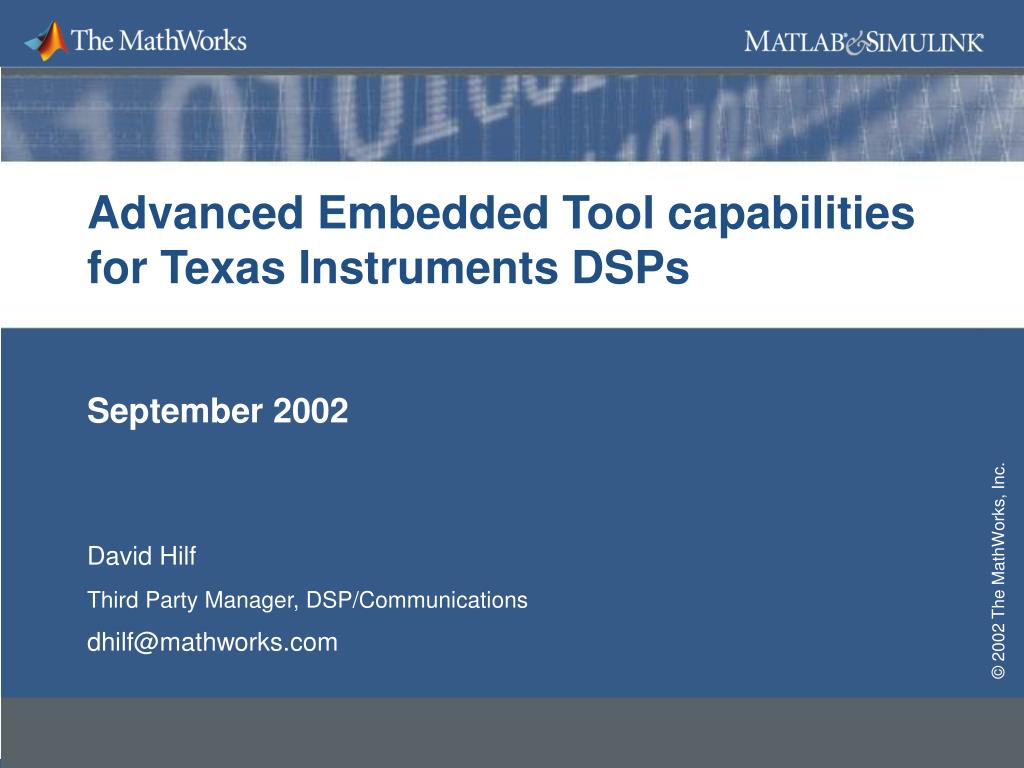

  1. Advanced Embedded Tool capabilities for Texas Instruments DSPs September 2002 © 2002 The MathWorks, Inc. David Hilf Third Party Manager, DSP/Communications dhilf@mathworks.com

  2. Research & development isolated from product development Concept-to-specification tools disconnected from specification-to-code tools Traditional DSP Design FlowIsolated Design and Development Domains Product Development R&D Algorithm Develop. System Design Design Transfer System Design Program and Test Paper Specification C or Assembly Code Specification- To-code cycle Concept-to- specification cycle • MATLAB • C or Assembly • Manual design transfer • Code Composer Studio™ • C or Assembly • Manual design verification 6

  3. MathWorks TI Embedded Software design flow DSP AlgorithmDevelopment DSP System Level Design Domain MATLAB® Linkfor Code Composer Studio Development Tools Stateflow® Simulink® MATLAB® ML Link for CCS RTW & Embedded Coder DSP Hardware User C/ASM Code Compile & Link C28xx DSP Down load Texas InstrumentsCode Composer Studio Environment C5000 DSP Debug C6000 DSP 23

  4. MathWorks TI Embedded Software design flow DSP AlgorithmDevelopment DSP System Level Design Domain Embedded Target for TI C6000TM DSP Stateflow® Simulink® MATLAB® RTW & Embedded Coder Embedded Target for C6000 DSP Hardware User C/ASM Code Compile & Link C28xx DSP Down load Texas InstrumentsCode Composer Studio Environment C5000 DSP Debug C6000 DSP 23

  5. MathWorks TI Embedded Software design flow DSP AlgorithmDevelopment DSP System Level Design Domain MATLAB® Linkfor Code Composer Studio Development Tools Embedded Target for TI C6000TM DSP Stateflow® Simulink® MATLAB® ML Link for CCS RTW & Embedded Coder Embedded Target for C6000 DSP Hardware User C/ASM Code Compile & Link C28xx DSP Down load Texas InstrumentsCode Composer Studio Environment C5000 DSP Debug C6000 DSP 23

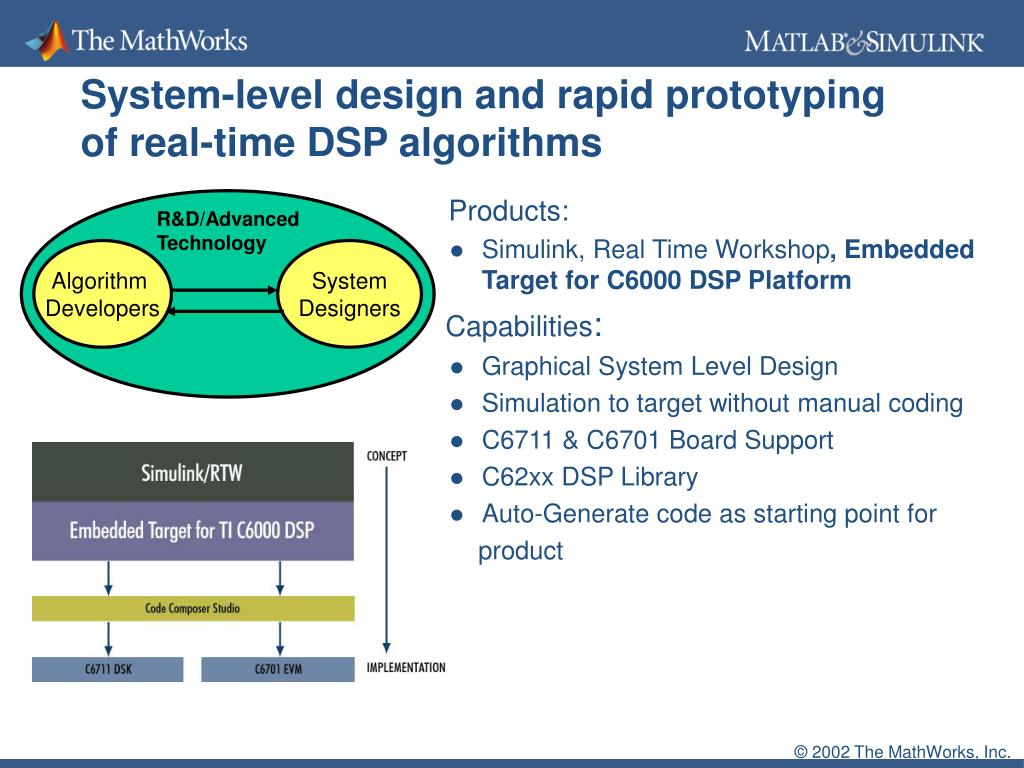

  6. R&D/Advanced Technology Algorithm Developers System Designers System-level design and rapid prototyping of real-time DSP algorithms Products: • Simulink,Real Time Workshop, Embedded Target for C6000 DSP Platform Capabilities: • Graphical System Level Design • Simulation to target without manual coding • C6711 & C6701 Board Support • C62xx DSP Library • Auto-Generate code as starting point for product

  7. Product Development System Designers Implement and test Integrated verification and debugging environment Products • MATLAB, MATLAB Link for Code Composer Studio Development Tools Capabilities: • MATLAB as a re-usable test bench • MATLAB to CCS to DSK through RTDX and XDS 510 & 560 emulator • Program control, memory access, and real-time data transfer directly from MATLAB

  8. MathWorks Products for TI DSP Embedded Target for C6000 DSP Platform $4000 MATLAB Link for Code Composer Studio Development Tools $1000 • Code generation-Rapid prototyping • Allows hardware in loop simulation • Appeals to R&D engineers and System architects • Create executable specification or hardware prototype • Links MATLAB and CCS • Enhanced debugging and analysis • Automates bottleneck in current development process • Shortens verification time

  9. Resources & Offers Free MATLAB Link for Code Composer Studio Lab Tutorial mathworks.com/ Self Paced Lab Tutorial

  10. Price and availability • MATLAB Link for Code Composer Studio Development Tools: $1000 • Embedded Target for C6000 DSP Platform: $4000 • For additional pricing information, contact The MathWorks • (508) 647-7000 • www.mathworks.com
