Presentation Transcript

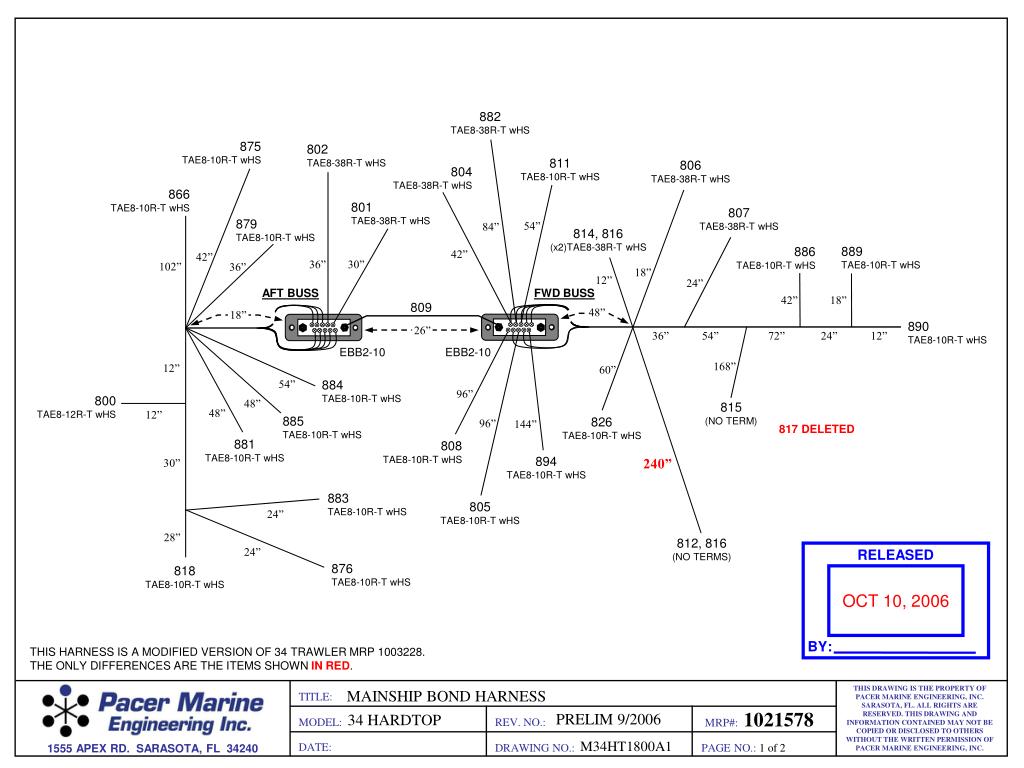

  1. RELEASED OCT 10, 2006 BY: 1555 APEX RD. SARASOTA, FL 34240 882 TAE8-38R-T wHS 875 TAE8-10R-T wHS 802 TAE8-38R-T wHS 811 TAE8-10R-T wHS 806 TAE8-38R-T wHS 804 TAE8-38R-T wHS 866 TAE8-10R-T wHS 801 TAE8-38R-T wHS 807 TAE8-38R-T wHS 879 TAE8-10R-T wHS 54” 84” 814, 816 (x2)TAE8-38R-T wHS 889 TAE8-10R-T wHS 886 TAE8-10R-T wHS 42” 42” 36” 30” 102” 36” 18” 12” 24” AFT BUSS FWD BUSS 42” 18” 809 48” 18” 890 TAE8-10R-T wHS 26” 36” 54” 72” 24” 12” EBB2-10 EBB2-10 168” 12” 60” 884 TAE8-10R-T wHS 54” 96” 800 TAE8-12R-T wHS 48” 815 (NO TERM) 48” 12” 885 TAE8-10R-T wHS 826 TAE8-10R-T wHS 96” 144” 817 DELETED 881 TAE8-10R-T wHS 808 TAE8-10R-T wHS 894 TAE8-10R-T wHS 240” 30” 883 TAE8-10R-T wHS 805 TAE8-10R-T wHS 24” 28” 812, 816 (NO TERMS) 24” 876 TAE8-10R-T wHS 818 TAE8-10R-T wHS THIS HARNESS IS A MODIFIED VERSION OF 34 TRAWLER MRP 1003228. THE ONLY DIFFERENCES ARE THE ITEMS SHOWN IN RED. MAINSHIP BOND HARNESS THIS DRAWING IS THE PROPERTY OF PACER MARINE ENGINEERING, INC. SARASOTA, FL. ALL RIGHTS ARE RESERVED. THIS DRAWING AND INFORMATION CONTAINED MAY NOT BE COPIED OR DISCLOSED TO OTHERS WITHOUT THE WRITTEN PERMISSION OF PACER MARINE ENGINEERING, INC. TITLE: MRP#: 1021578 PRELIM 9/2006 34 HARDTOP MODEL: REV. NO.: M34HT1800A1 DATE: DRAWING NO.: PAGE NO.: 1 of 2

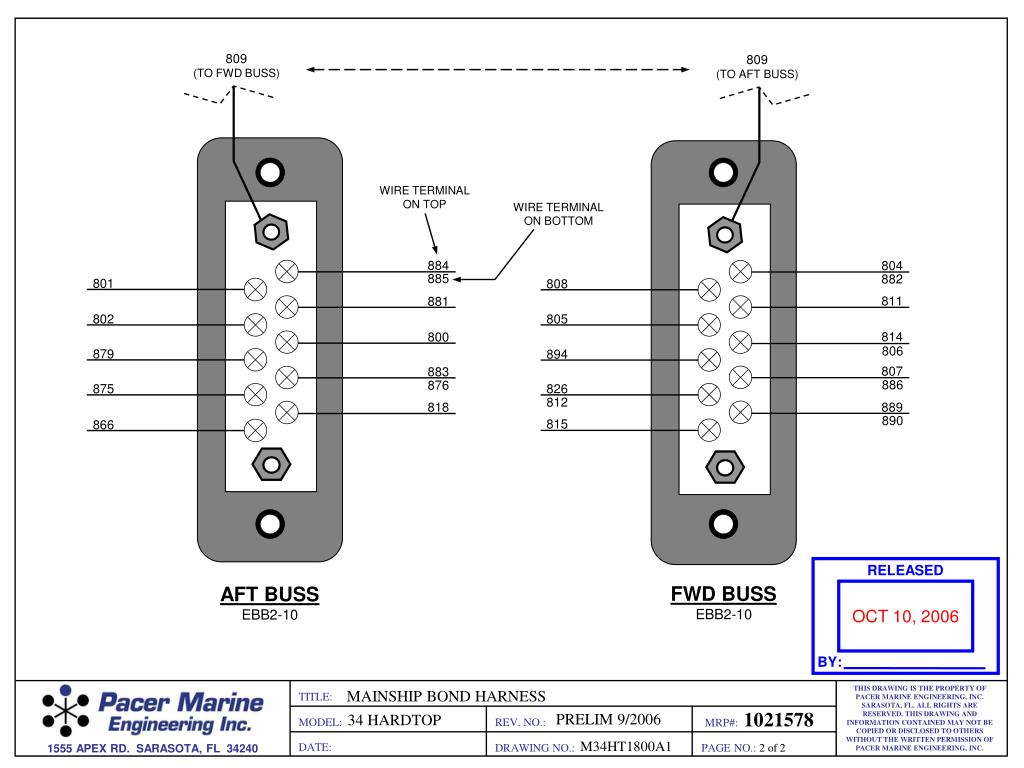

  2. RELEASED OCT 10, 2006 BY: 1555 APEX RD. SARASOTA, FL 34240 809 (TO FWD BUSS) 809 (TO AFT BUSS) WIRE TERMINAL ON TOP WIRE TERMINAL ON BOTTOM 884 804 885 882 801 808 811 881 802 805 814 800 806 879 894 807 883 886 876 875 826 812 889 818 890 815 866 FWD BUSS EBB2-10 AFT BUSS EBB2-10 MAINSHIP BOND HARNESS THIS DRAWING IS THE PROPERTY OF PACER MARINE ENGINEERING, INC. SARASOTA, FL. ALL RIGHTS ARE RESERVED. THIS DRAWING AND INFORMATION CONTAINED MAY NOT BE COPIED OR DISCLOSED TO OTHERS WITHOUT THE WRITTEN PERMISSION OF PACER MARINE ENGINEERING, INC. TITLE: MRP#: 1021578 PRELIM 9/2006 34 HARDTOP MODEL: REV. NO.: M34HT1800A1 DATE: DRAWING NO.: PAGE NO.: 2 of 2
