Presentation Transcript
  • Squared off pelvis
  • Champaign glass pelvis (caused by anterior pelvic tilt)
  • Squared scapula
  • Widest pedicle spacing at L1 tapering to smallest spacing at L5 (reverse from normal)
  • Rhizomelia: “short root”, Single long bones (humerus, femur) are short but normal diameter
  • Bullet nose vertebra: rounded front of vertebrae by defective development of growth plate
  • Scalloped posterior vertebra: caused by duralectasia
  • Canal stenosis: 3rd decade
  • DJD: 3rd decade
  • Trident hand: separation of 3rd and 4th fingers
  • Hyperlordotic lumbar spine
  • Small foramen magnum: MOST LETHAL ASPECT
  • Fetal bone (primordial) never retreats
  • “chalk bone” appearance (very dense on film)
  • Erlenmeyer flask deformity: flared metaphysis of long bones
  • Dental caries and abscess formation associated
  • Sandwich vertebra (also called rugger jersey)
  • Anemia is the most lethal aspect
    • Reduction in red marrow due to decreased medullary bone
  • Increased urine Ca levels (only slightly)
  • abnormal bone scans (increased bone production)
  • Normal Cortical bone distributed improperly
    • Strong bones
  • Bone grown inside and outside of normal bones
    • Only dysplasia that does this
  • Dripping wax appearance
  • No anemia
  • Cortical thickening and wavy appearance
  • Can cause peripheral nerve entrapment
osteogenesis imperfecta
Osteogenesis Imperfecta
  • Mucopolysaccharidoses
  • Brittle bone disease
    • NOT sclerosing
  • Arachnodactyly: Long finger/toe appearance due to thinner bones
  • Brachydactyly: short finger/toe appearance due to premature growth plate closure
  • Sheppard’s crook deformity: hook like deformity of the femure
  • Blue sclera: caused by brown choroid visualized through abnormal
  • Dental problems
    • Bluish gray to yellowish brown opalescent teeth
    • Malformed dentin leading to easy chipping and severe caries
  • Osteoporosis
  • Wormian bones: not pathognomonic of OI
  • Multiple fractures: causes excess callus formation on bones
  • Biconcave vertebral bodies
  • Undertubularization: narrow bones
  • Spotty bone disease
    • Benign
  • Asymptomatic
  • Normal cortical bone growth
  • Completely within bony margins
    • If not within bony margins look for another diagnosis
  • R/O osteoblastic mets in patients over 50yrs
    • Bone scan will be normal in osteopoikilosis; abnormal in osteoblastic mets (hot spots)
  • MRI will show a void in signal
    • Cortical bone is black on MRI therefore areas of cortical bone growth are black
spondyloepiphyseal dysplasia
Spondyloepiphyseal Dysplasia
  • “heaped up vertebra” or “humped shaped vertebra”
    • Caused by the non-ossification of the ring epiphysis
    • Thin disk spaces
  • Short vertebral bodies= short stature; Platyspondly
  • Premature DJD
    • Hip and knee invovlement
  • Subchondral chondrosis
progressive diaphyseal dysplasia
Progressive Diaphyseal Dysplasia
  • Engelmann’s Disease
  • Cortical thickening of long tubular bones
  • Poor muscular development
  • Increased osteoblastic activity
    • Bone scan will show
  • Fusiform widening of only the Diaphysis
  • Sclerosing and brittle bone disease
  • Altered craniofacial ratio
    • “elfin like features”; small face, normal sized head
  • Obtuse angle of the jaw
  • Acroosteolysis: reabsorption of the distal phalanges
  • Madelung’s deformity
    • Bowing and overgrowth of the radius contributing to abnormal radioulnar articulations
  • Dental carries with possible osteomyelitis of mandible
marfan s syndrome
Marfan’s Syndrome
  • Arachnodactyly: elongation of the fingers without an increase in width
  • Lens (eye) dislocation
  • Aortic aneurysms
  • 45% acquire scoliosis
    • Tall thin people
  • Positive thumb sign
  • Pectisexcavatum: sternum close to the spine “caved in”
  • 1/3 have congenital heart disease
    • Atrialseptal defect is the most frequent
  • Failure to produce normal collagen
    • Poor quality
  • Dental carries
cleidocranial dysostosis
Cleidocranial Dysostosis
  • Midline structure deformities
    • Clavicular hypoplasia
    • Pubic symphysis midline deformity
    • Spina bifida
    • Cleft palate
  • Wormian bones
    • Widening of coronal and saggital sutures “hot cross bun appearance”
  • Funnel shaped chest
  • Hypoplastic and tapered distal phalanges
  • Biconvex vertebral bodies
other presentations

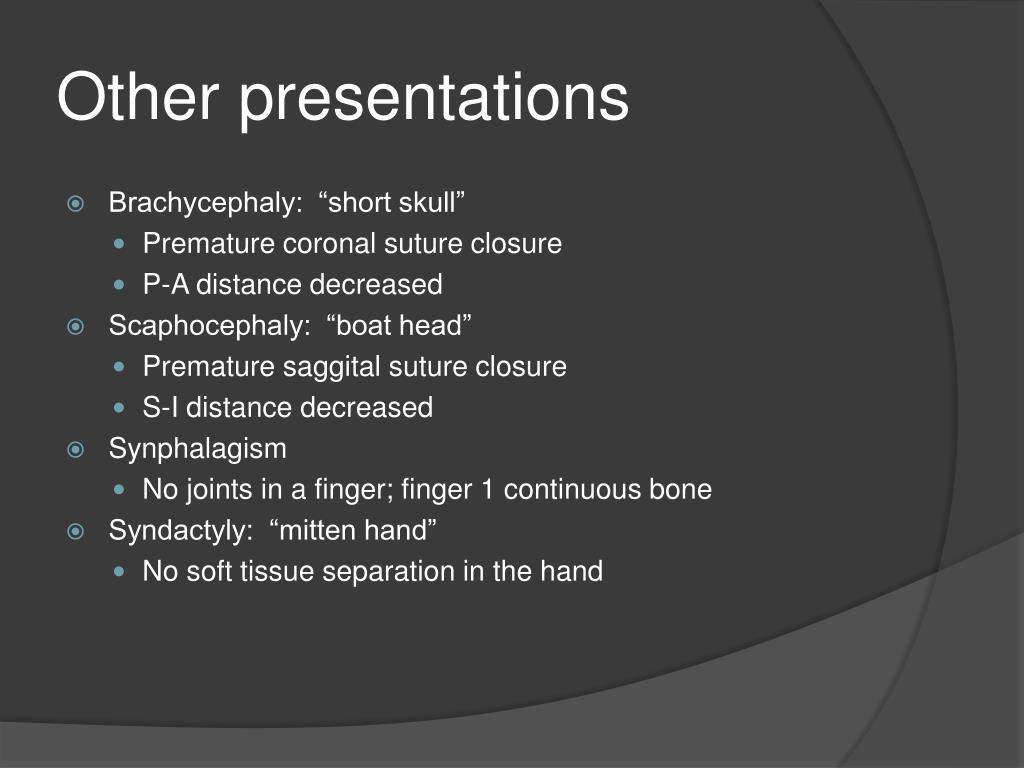

Other presentations
  • Brachycephaly: “short skull”
    • Premature coronal suture closure
    • P-A distance decreased
  • Scaphocephaly: “boat head”
    • Premature saggital suture closure
    • S-I distance decreased
  • Synphalagism
    • No joints in a finger; finger 1 continuous bone
  • Syndactyly: “mitten hand”
    • No soft tissue separation in the hand
  • Hair, nose, finger
  • Course hair
  • Long nose
  • Finger abnormalities
stippled epiphysis
Stippled epiphysis
  • Fragmented primary ossification center
  • Benign
