How to work solar inverter?

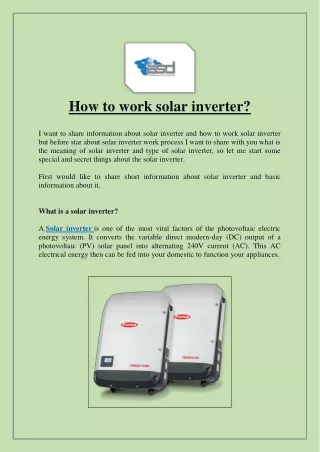

1. How to work solar inverter? I want to share information about solar inverter and how to work solar inverter but before star about solar inverter work process I want to share with you what is the meaning of solar inverter and type of solar inverter, so let me start some special and secret things about the solar inverter. First would like to share short information about solar inverter and basic information about it. What is a solar inverter? A Solar inverter is one of the most vital factors of the photovoltaic electric energy system. It converts the variable direct modern-day (DC) output of a photovoltaic (PV) solar panel into alternating 240V current (AC). This AC electrical energy then can be fed into your domestic to function your appliances.

2. The electricity that is not used in your home is then both fed into the grid (electrical energy lines) or into domestic battery storage. New hybrid inverters encompass a built-in battery administration system. Long-lasting solar electricity systems require the first-rate inverter with a strong convection cooling system. Low-quality inverters have regrettably failed in the Australian climate. We shred about some details about inverter and when we are reading about solar inverter at that time we have to know about the main type of solar inverter so let's start about the solar inverter. There are main 3 types of solar inverter available in the market and we will share with you some special information about those 3 types of inverter Micro inverters A micro inverter consists of a small box located on the lower back of or located very close to a photovoltaic panel. Its position is to convert the DC electrical energy produced by means of a single photovoltaic panel. The world’s main micro inverter brand is Enphase. String inverters A string inverter is a kind most typically used in domestic and business solar strength systems. It is a large-ish field that is regularly located some distance away from the solar array. Depending on the measurement of the installation, there can also be more than one string inverter present. Central inverters Central inverters are for functions such as massive arrays set up on buildings, industrial amenities as well as field installations – they are basically just a very massive string inverter. These 3 main types of solar inverters are available in the market and I will share a simple working process of solar inverter.

3. To provide an explanation for how solar inverters work, we must start from the basics. The solar shines down onto photovoltaic (PV) cells. These cells are made of semiconductor layers of crystalline silicon or gallium arsenide, and they are organized into panels. The semiconductor layers are a mixture of each high quality and negative layers, and they are connected through a junction. Basically, as the sun shines down, the semiconductor cloth absorbs the light, transferring the light’s electricity to the PV cell. This energy knocks electrons loose, and they go from one layer to the other, thereby producing an electric current. This is a direct modern-day (DC). The energy created is then usually both saved in a battery financial institution for later use or dispatched directly to an inverter, relying on the setup and kind of system. For everyday customer use, and alternating contemporary (AC) is wanted – a hundred and twenty-volt AC powered home equipment require AC electricity. This is the place an inverter comes in. The inverter takes the direct contemporary and, in simplified terms, runs it through a transformer. It is near as although the inverter is tricking the transformer into questioning it is getting AC by forcing the DC to act in a way comparable to AC – the inverter runs the DC through two or greater transistors that are hastily turned on and off and feeding two distinct facets of the transformer. Sine Waves The DC electricity produced in the PV cells does now not have a waveform but is instead a direct line (hence its name, direct current.) Basically, to come to be AC, it ought to come to be a sine wave (on an x-y graph, the sine wave rises from zero to a fantastic point, then lower back down through zero to a poor point and returned up to 0 This regarded as one cycle or a hertz – an ordinary sine wave has 60 hertz per second [the sine wave continues to repeat itself 60 cycles per second.]) The alternating contemporary used through a metropolis electric powered grid is an actual sine wave. It runs smoothly up and down in an arced, wave-like motion.

4. Of course, an inverter that produces a pure sine wave frequently charges extra than other inverters – solely higher fantastic solar inverters produce actual sine waves. A modified sine wave, on the different hand, rises up to the high-quality point and down to the terrible point in steps – it looks like a stepped rectangular wave. While many home equipment will run on this type of sine wave, they can also now not run as well (e.g. whilst computer systems and TVs will run, certain bread makers, microwaves, washer, and dryers, etc. might also have problems with the modified sine wave.) Also, gadgets with motors will end up using greater electricity when using a modified sine wave versus a proper sine wave. Note that the effectiveness of modified sine wave inverters (also recognized as quasi-sine wave inverters and modified square wave inverters) can differ between distinctive inverters and can differ relying on the load. The least high-quality modified sine wave inverters are only beneficial for very basic appliances like toasters and appliances that use only a heating element.
