Why is surface modeling important?
  • Many products, although they look prismatic, are not.
curvature
Curvature
  • Visual difference between curvature vs. tangent connection of surfaces

Regular Fillet

Curve Continuous Fillet

explanation of c0 thru c3
Explanation of C0 thru C3
  • Surface matching conditions explained

C2 Condition – Surface boundaries share

Common edge with curvature matching

C0 Condition – Surface boundaries share

Common edge but no tangency

C3 Condition – Surface boundaries share

Common edge with curvature matching to greater degree than C2

C1 Condition – Surface boundaries share

Common edge with tangency but rate of curvature does not match at boundary

advanced modeling 101
Advanced Modeling 101
  • Importance of visible connection

No “Radii” used; all C2 connection of surfaces

C0 CONDITION

(Contact)

C1 CONDITION

(Tangency)

C2 CONDITION

(Continuity)

advanced modeling 1015
Advanced Modeling 101
  • Importance of C2: automotive does not use C1 (Fillets) because of visible result on high-gloss surfaces.

No “Radii” used; all C2 connection of surfaces

advanced modeling 1016
Advanced Modeling 101
  • Bad Curves make bad surfaces

Visible surface change

Profile made up of arc segments

advanced modeling 1017
Advanced Modeling 101
  • Good Curves make good surfaces

No visible surface change

Single spline element

advanced modeling 1018
Advanced Modeling 101

Fit Spline Function Tolerance

Fit Spline = C2

Low Tolerance

Manually Placed Spline = C2

Fit Spline = C2

Hi Tolerance

5 arcs = C1

advanced modeling 1019
Advanced Modeling 101

Curvature Comb – analysis tool to graphically emphasize rate of curvature

Rate of Curvature Changes

Point of Inflection

Curvature approaches zero

advanced modeling 10110
Advanced Modeling 101
  • Display analysis visualization tools

No “Radii” used; all C2 connection of surfaces

OpenGL

Curvature

RealView

PhotoWorks

Zebra

Face Curves

Section w/ Combs

Deviation Analysis

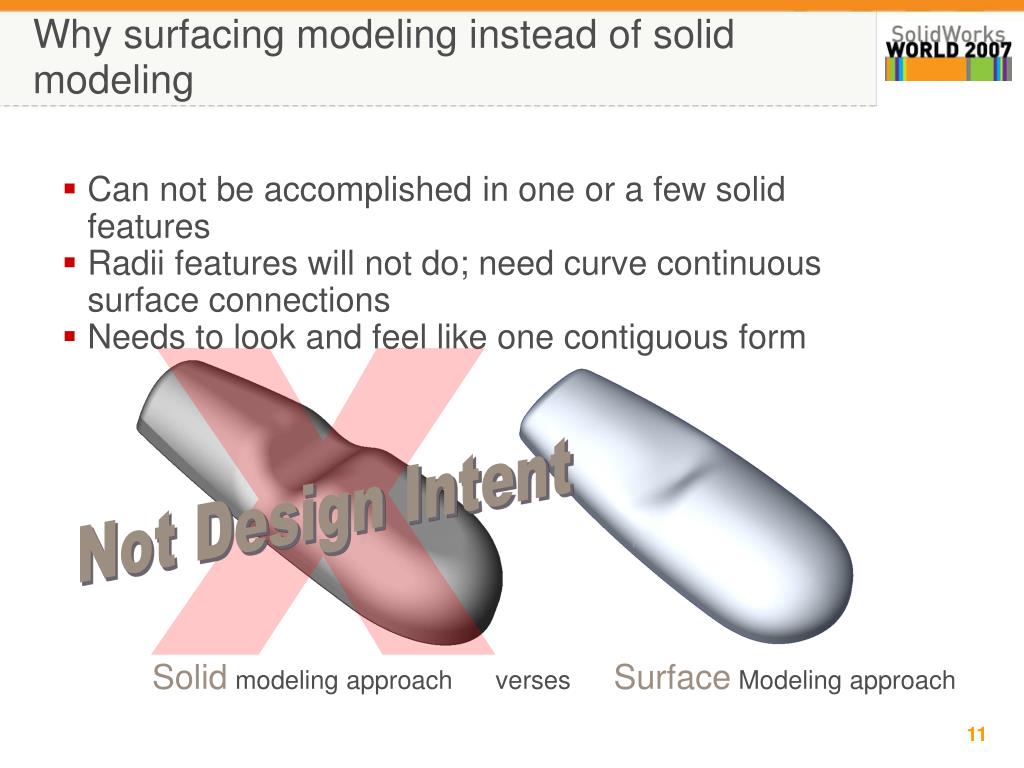

why surfacing modeling instead of solid modeling
Why surfacing modeling instead of solid modeling

Solid modeling approach verses Surface Modeling approach

  • Can not be accomplished in one or a few solid features
  • Radii features will not do; need curve continuous surface connections
  • Needs to look and feel like one contiguous form

Not Design Intent
