ArcMap Basics

ESRM 250/CFR 520

Winter, 2010

Phil Hurvitz

(with thanks to J. Lawler & P. Schiess)

1 of 49


Arcmap basics l.jpg
ArcMap Basics

  • Overview

    • Getting data into ArcMap

    • Displaying layers

    • Layer display properties

2 of 49


Arcmap basics3 l.jpg
ArcMap Basics

  • Overview

    • Getting data into ArcMap

    • Displaying layers

    • Layer display properties

3 of 49


Getting data into arcmap l.jpg
Getting data into ArcMap

  • Layer feature types

  • Spatial data sources for layers

  • Data frames

  • Adding a feature layer to a data frame

  • Adding a layer from x,y coordinates

  • Layer tables

  • Map document

4 of 49


Getting data into arcmap layer feature types l.jpg
Getting data into ArcMap: Layer feature types

  • Vector Data

    • points (e.g., wells, utility poles, bird nests),

    • lines (e.g., roads, streams, utility lines),

    • polygons (e.g., cities, forest stands, PLSS sections, counties)

  • Raster Data

    • photographic, satellite, grids

5 of 49


Getting data into arcmap layers l.jpg
Getting data into ArcMap: Layers

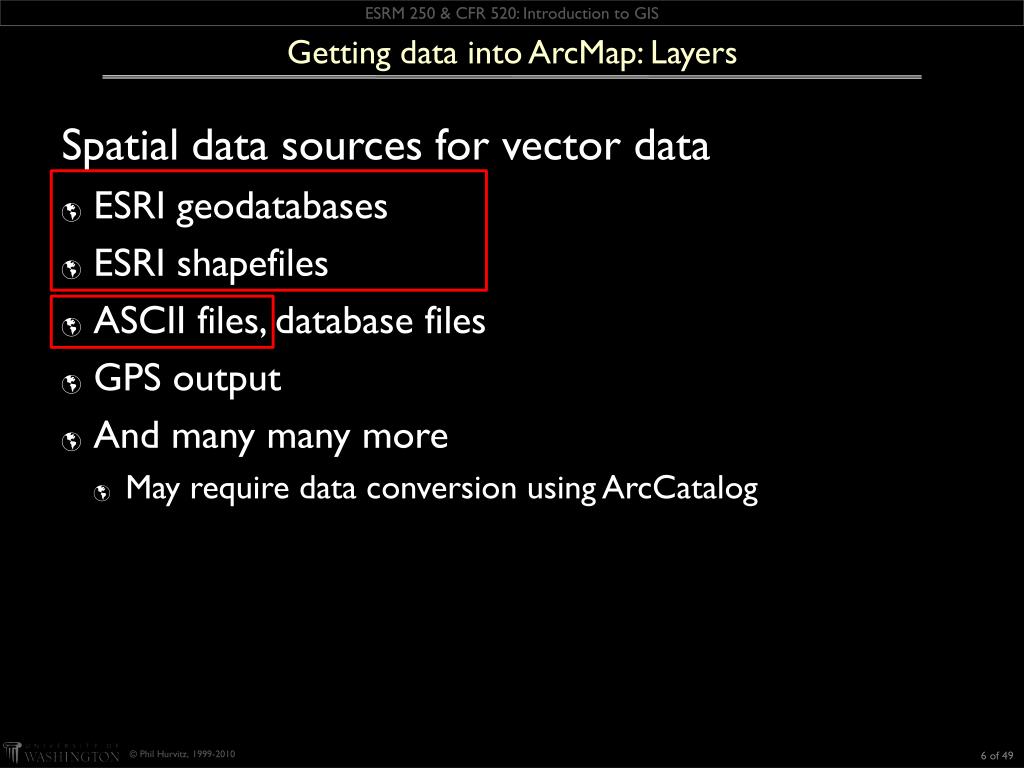

  • Spatial data sources for vector data

    • ESRI geodatabases

    • ESRI shapefiles

    • ASCII files, database files

    • GPS output

    • And many many more

      • May require data conversion using ArcCatalog

6 of 49


Getting data into arcmap layers7 l.jpg
Getting data into ArcMap: Layers

  • Additional raster data sources for layers

    • ERDAS Imagine

    • Generic image formats

      • BSQ (band sequential),

      • BIL (band interleave by line), and

      • BIP (band interleave by pixel)

    • Sun raster files

    • BMP

    • Run-length compressed (RLC) files

    • JPEG compressed images

    • ArcInfo's image catalog

    • ArcInfo grid

    • Generic raster (ASCII, binary)

    • and more….

7 of 49


Getting data into arcmap tables l.jpg
Getting data into ArcMap: Tables

  • Tabular data

    • Can be added to your map document

    • ESRI geodatabases

    • SQL (structured query language) database queries

    • dBase format tables

    • INFO tables

    • Comma or tab delimited ASCII (text) files

      • comma separated values (csv files)

      • tab-separated values or defined width (txt files)

    • OLEDB (object linking and embedding database) tables

8 of 49


Getting data into arcmap9 l.jpg
Getting data into ArcMap

  • A map document will always have at least 1 data frame (even if there are no layers present)

9 of 49


Getting data into arcmap10 l.jpg

add data

button

Getting data into ArcMap

  • Adding a data source to a data frame

10 of 49


Getting data into arcmap11 l.jpg
Getting data into ArcMap

  • All data sources are added in the same way

ArcInfo coverage data

CAD data

11 of 49


Getting data into arcmap12 l.jpg
Getting data into ArcMap

  • Adding a data source to a data frame

    • Icons indicate data type

Polygon

Line

Table

Point

Raster

12 of 49


Getting data into arcmap13 l.jpg

layer is

added

Getting data into ArcMap

  • Adding a data source to a data frame

symbology

13 of 49


Getting data into arcmap14 l.jpg
Getting data into ArcMap

  • Adding a layer from x,y coordinates

    • “event layer”

      • table must have X and Y value fields

      • Field names cannot have spaces

14 of 49


Getting data into arcmap15 l.jpg
Getting data into ArcMap

  • Adding a layer from x,y coordinates

    • points are added to the map document

15 of 49


Getting data into arcmap16 l.jpg
Getting data into ArcMap

  • Attribute tables

  • Feature ID

  • Shape

    • Geometry fields

      • Identification fields

        • User attribute fields

          • Entity fields

16 of 49


Saving your work l.jpg
Saving your work

  • Saving a map document (.mxd file)

    • Save EARLY and OFTEN

17 of 49


Arcmap basics18 l.jpg
ArcMap Basics

  • Overview

    • Getting data into ArcMap

    • Displaying layers

    • Layer display properties

18 of 49


Displaying layers l.jpg
Displaying layers

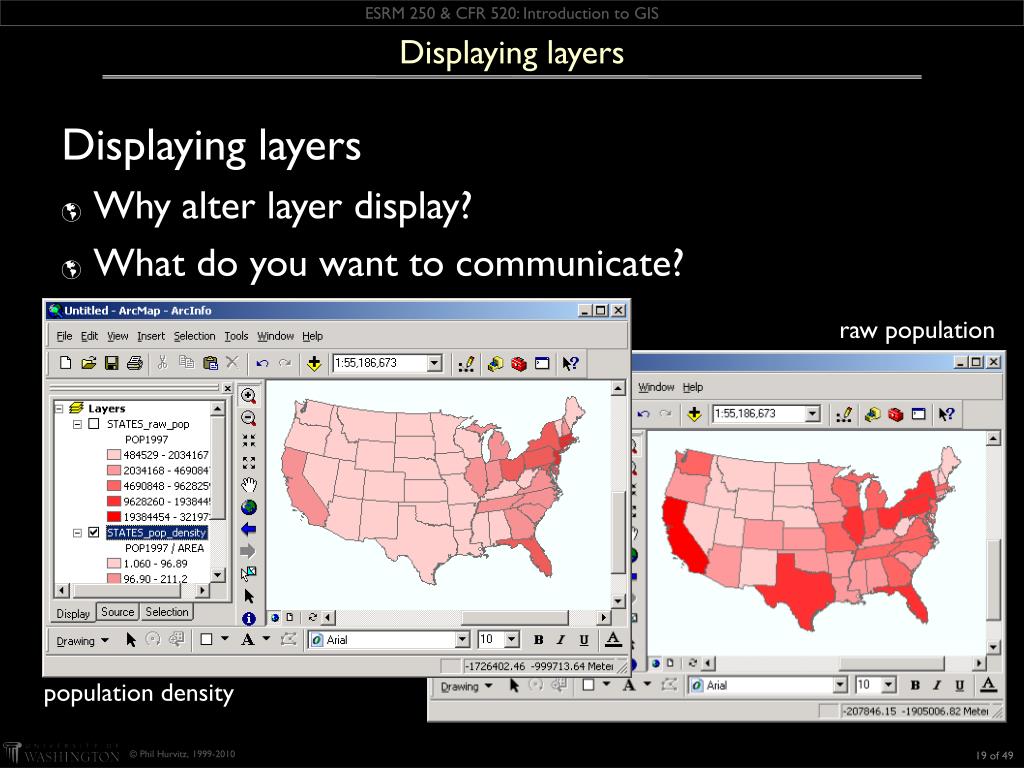

  • Displaying layers

    • Why alter layer display?

    • What do you want to communicate?

raw population

population density

19 of 49



Displaying layers thematic mapping l.jpg
Displaying layers: thematic mapping

  • Single symbol

    • A single symbol for each feature

    • Displays location/boundaries

21 of 49


Displaying layers thematic mapping22 l.jpg
Displaying layers: thematic mapping

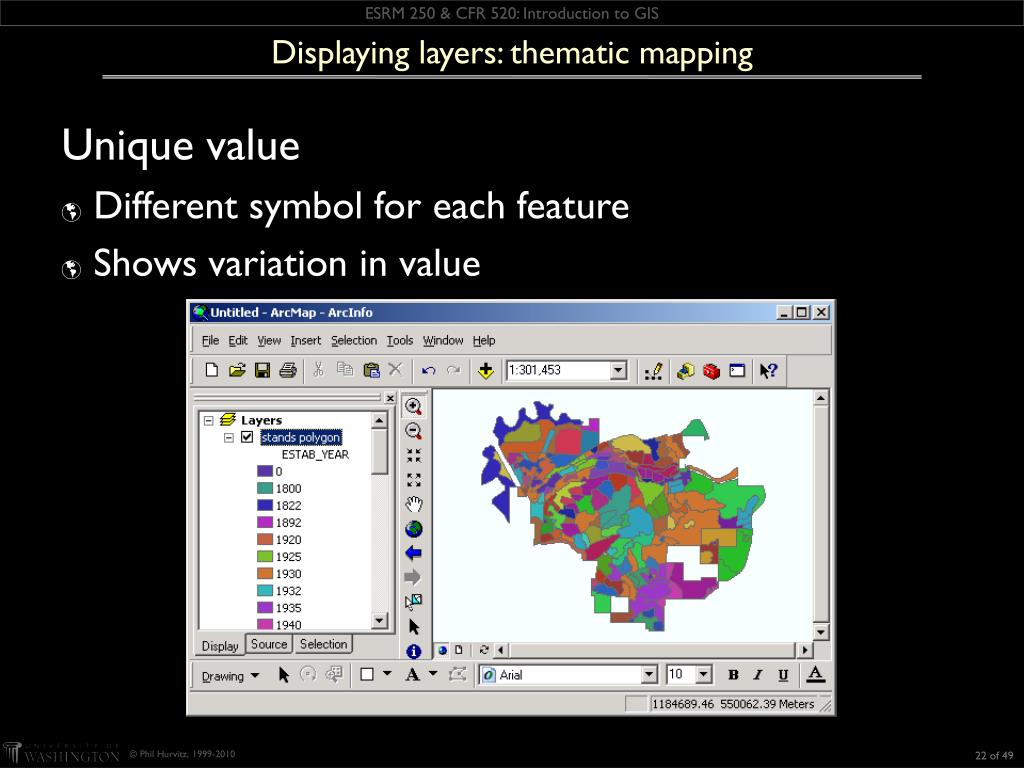

  • Unique value

    • Different symbol for each feature

    • Shows variation in value

22 of 49


Displaying layers thematic mapping23 l.jpg
Displaying layers: thematic mapping

  • Graduated color = “choropleth”

    • Different symbol for each class

    • Displays groups

23 of 49


Displaying layers thematic mapping24 l.jpg
Displaying layers: thematic mapping

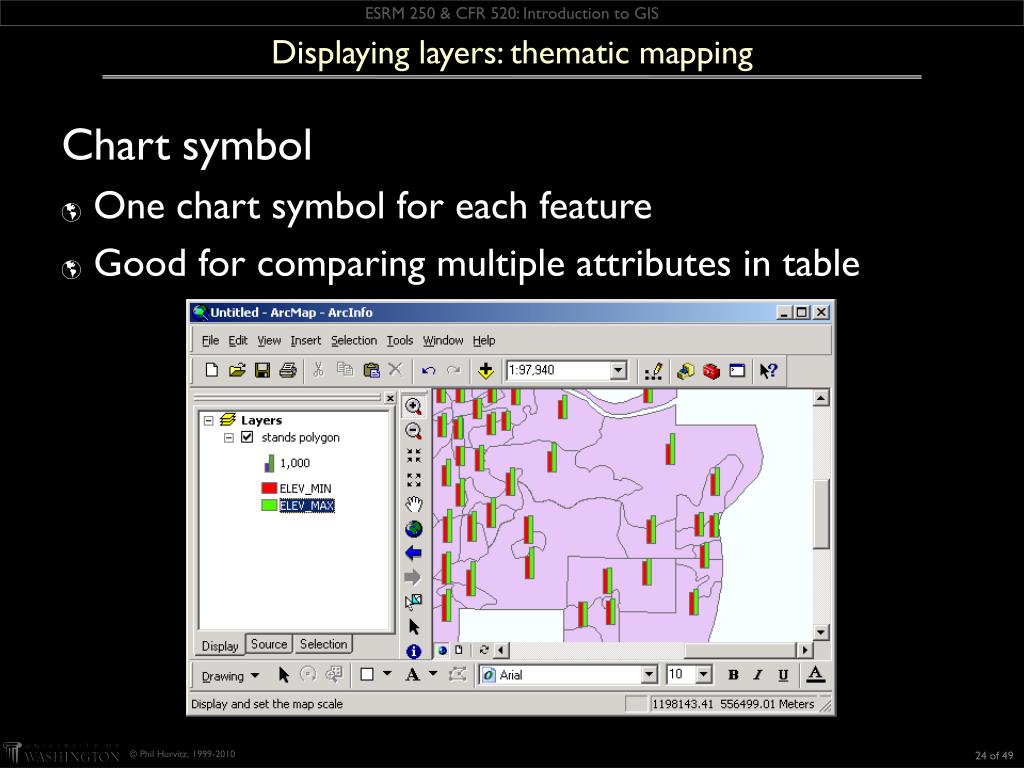

  • Chart symbol

    • One chart symbol for each feature

    • Good for comparing multiple attributes in table

24 of 49


Displaying layers thematic mapping25 l.jpg
Displaying layers: thematic mapping

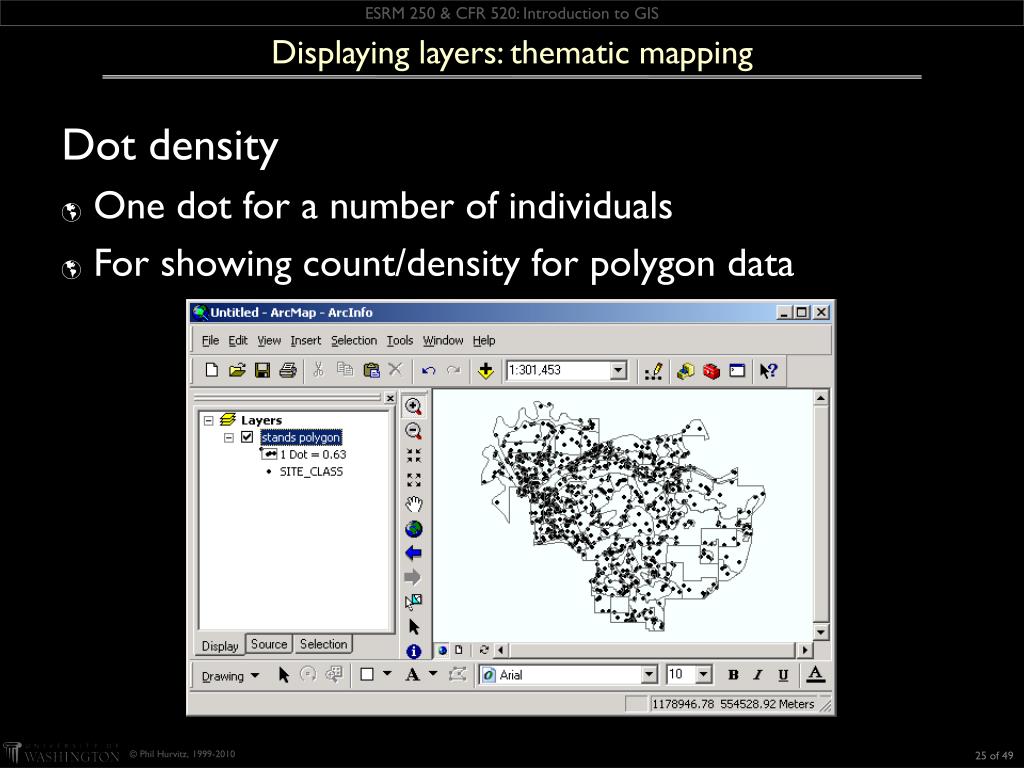

  • Dot density

    • One dot for a number of individuals

    • For showing count/density for polygon data

25 of 49


Displaying layers thematic mapping26 l.jpg
Displaying layers: thematic mapping

  • Graduated symbol

    • Graduated symbol size

    • Displays difference in magnitude

26 of 49


Displaying layers27 l.jpg
Displaying layers

  • Classification methods

27 of 49


Displaying layers classification methods l.jpg
Displaying layers: Classification methods

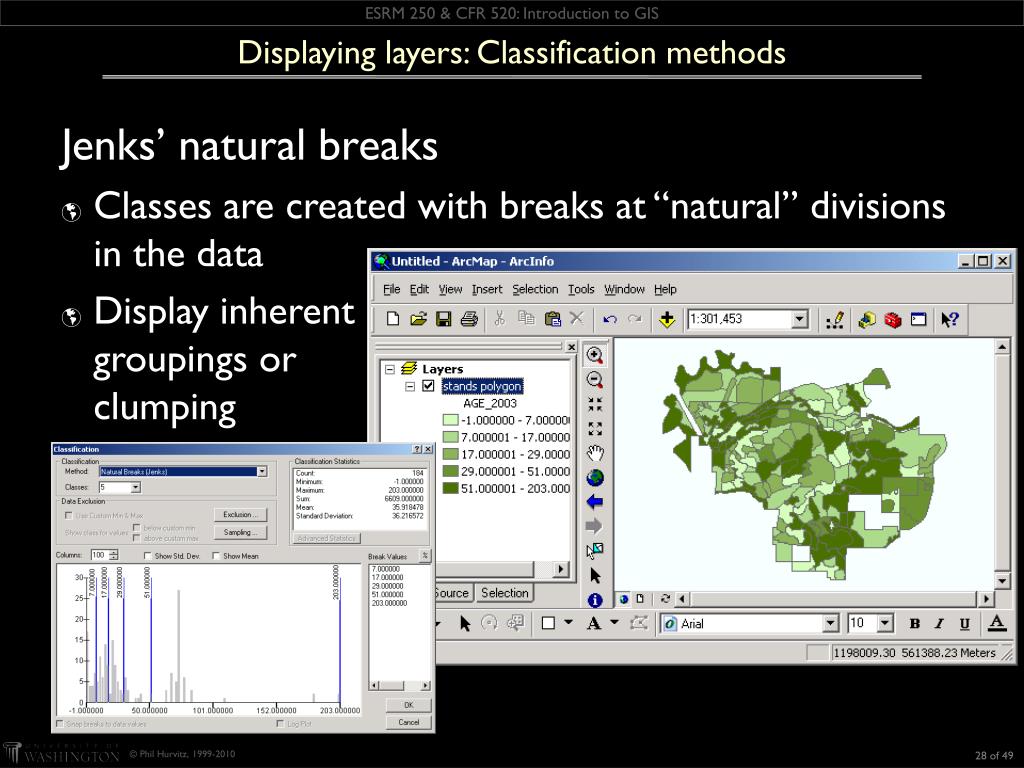

  • Jenks’ natural breaks

    • Classes are created with breaks at “natural” divisions in the data

    • Display inherent groupings orclumping

28 of 49


Displaying layers classification methods29 l.jpg
Displaying layers: Classification methods

  • Histogram and statistics available

29 of 49


Displaying layers classification methods30 l.jpg
Displaying layers: Classification methods

  • Quantile

    • Each class has about the same number of members

    • Good for uniformly distributed values

30 of 49


Displaying layers classification methods31 l.jpg
Displaying layers: Classification methods

  • Equal interval

    • Divides data values into equal-sized subranges

31 of 49


Displaying layers classification methods32 l.jpg
Displaying layers: Classification methods

  • Standard deviation

    • Classes show spread around the mean value

    • Displays variation in data

mean

32 of 49


Displaying layers classification methods33 l.jpg

raw population

Displaying layers: Classification methods

  • Normalization of data

    • divides one field by another

    • shows percentage, proportion, or density

population density

33 of 49



Displaying layers manipulating classes35 l.jpg
Displaying layers: Manipulating classes

  • 3 classes with custom labels

35 of 49


Displaying layers altering legends l.jpg
Displaying layers: Altering legends

  • Legends & symbology are controlled with layer properties

36 of 49


Displaying layers changing symbology l.jpg
Displaying layers: Changing symbology

  • Symbol selector

    • solid fill polygons;

    • single symbol for all polygons

37 of 49


Displaying layers changing symbology38 l.jpg
Displaying layers: Changing symbology

  • Changing symbology: polygons

    • different colors for:

      • fill

      • outline

38 of 49


Displaying layers changing symbology39 l.jpg
Displaying layers: Changing symbology

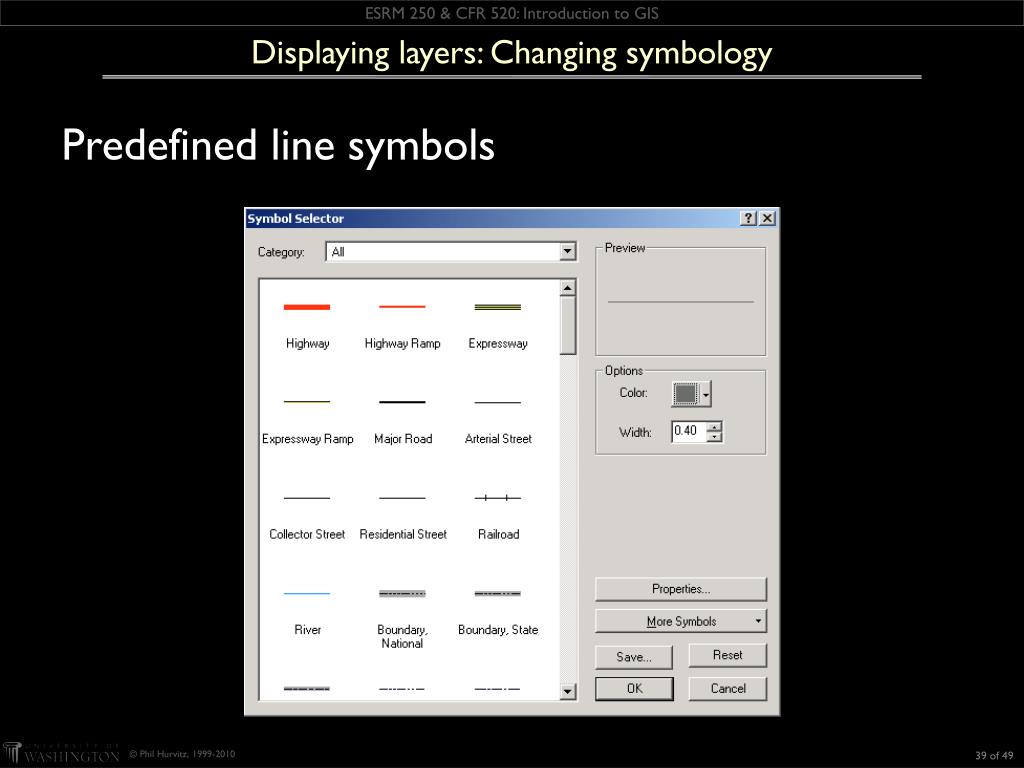

  • Predefined line symbols

39 of 49


Displaying layers changing symbology40 l.jpg
Displaying layers: Changing symbology

  • Predefined point marker symbols

40 of 49


Displaying layers changing symbology41 l.jpg
Displaying layers: Changing symbology

  • Fonts:

    • All installed TrueTypefonts are available

41 of 49


Arcmap basics42 l.jpg
ArcMap Basics

  • Overview

    • Getting data into ArcMap

    • Displaying layers

    • Layer display properties

42 of 49


Defining layer properties l.jpg
Defining layer properties

  • Defining layer subsets (definition query)

  • Setting scale thresholds

  • Labeling layer features

43 of 49


Defining layer properties44 l.jpg

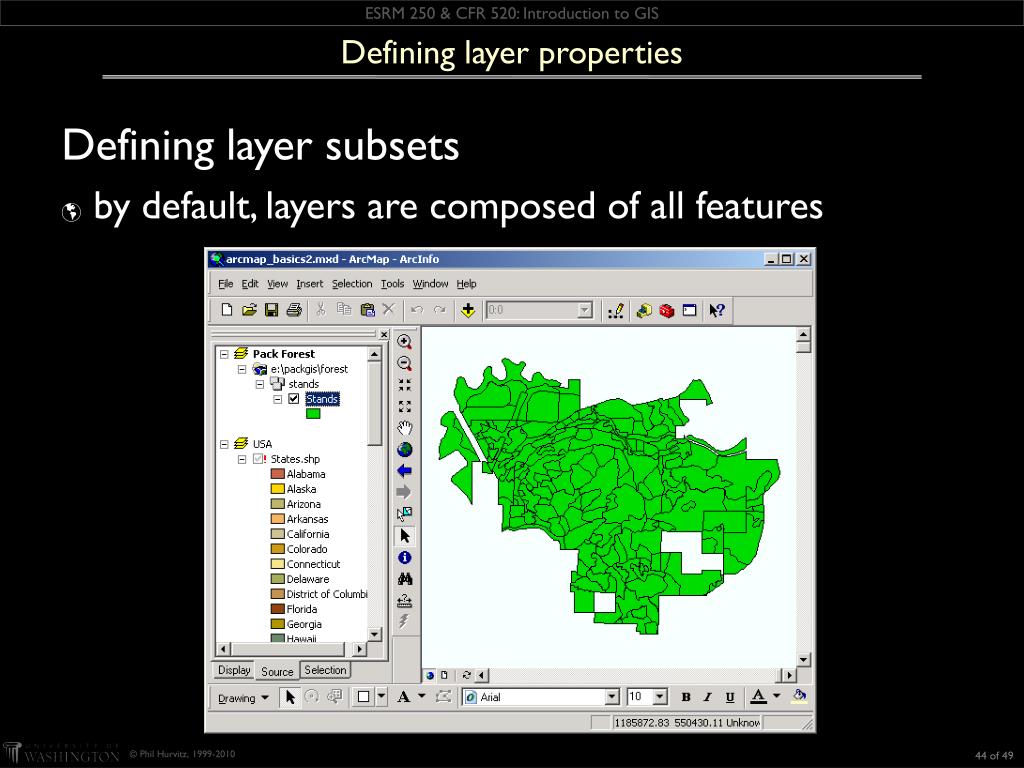

Defining layer properties

  • Defining layer subsets

    • by default, layers are composed of all features

44 of 49


Defining layer properties subsets l.jpg
Defining layer properties: Subsets

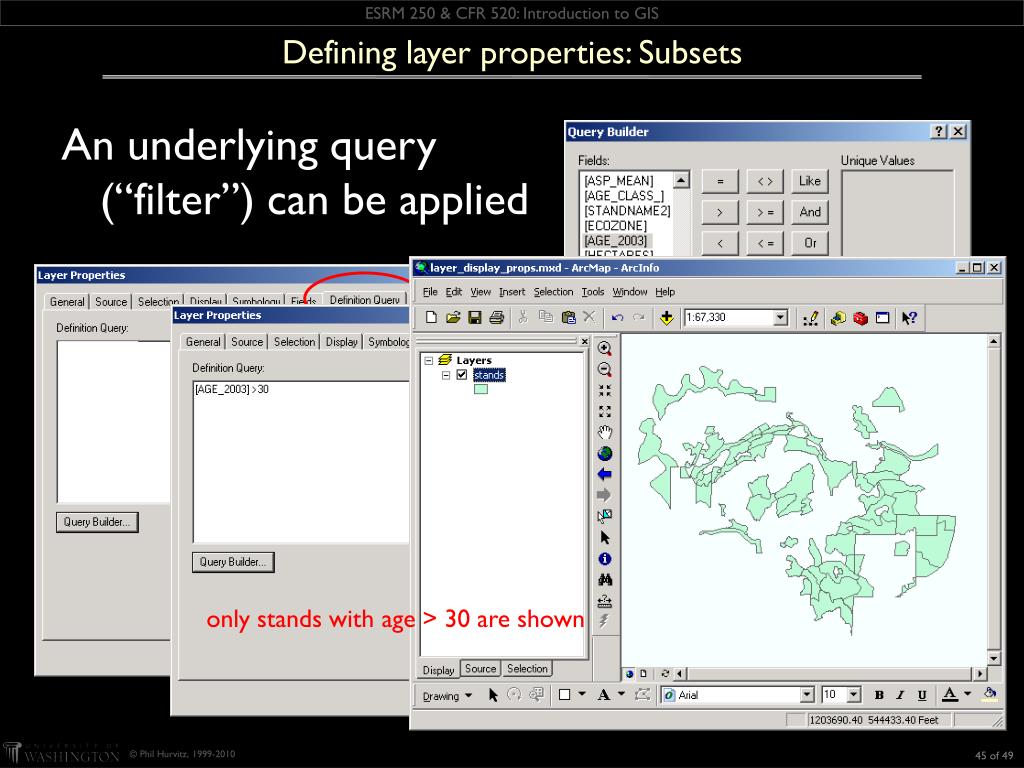

  • An underlying query(“filter”) can be applied

only stands with age > 30 are shown

45 of 49


Defining layer properties46 l.jpg
Defining layer properties

  • Setting scale thresholds

    • allows layers to be displayed at specific scale ranges

46 of 49


Defining layer properties47 l.jpg
Defining layer properties

  • Setting scale thresholds

    • zooming willcause featuresto (dis)appear

47 of 49


Defining layer properties48 l.jpg
Defining layer properties

  • Labeling features

48 of 49


Assignment l.jpg
Assignment

Readings:

  • WWW: Getting Data Into ArcGIS Maps

  • WWW: Displaying Layers

  • WWW: Changing Layer Display Properties

  • WWW: Sample Data

  • Help: Help topics

  • Assignment #2 due 12:00 noon January 19, submit with Collect It

49 of 49
