3 3 projectile motion
3.3 projectile motion

Objectives

1. Recognize examples of projectile motion.

2. Describe the path of a projectile as a parabola.

3. Resolve vectors into their components and apply the kinematic equations to solve problems involving projectile motion.


Question
question

  • The long jumper builds up speed in the x-direction and jumps, so there is also a component of speed in the y direction. Does the angle of take-off matter to the jumper?


3217477

y ~ x2

  • A parabola is the set of all points in the plane equidistant from a given line (the conic section directrix) and a given point not on the line (the focus).

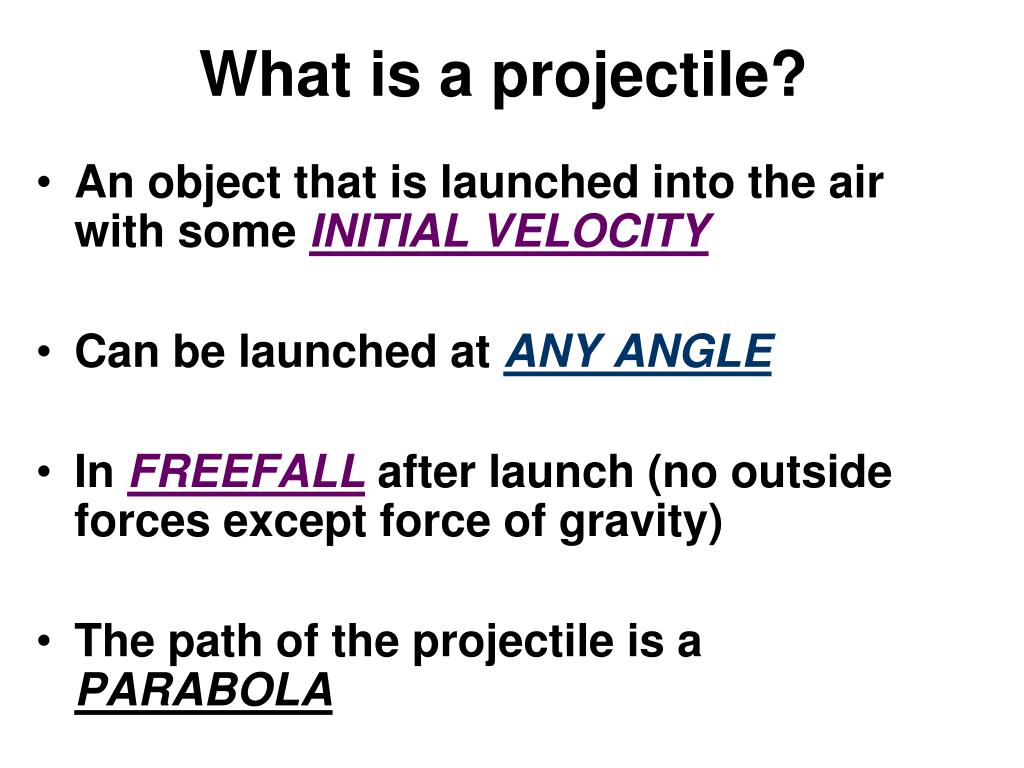

What is a projectile
What is a projectile?

An object that is launched into the air with some INITIAL VELOCITY

Can be launched at ANY ANGLE

In FREEFALL after launch (no outside forces except force of gravity)

The path of the projectile is a PARABOLA



3217477
demo

  • The vertical motion of a projectile is same as free falling object, with constant acceleration:

  • a = -9.81 m/s/s

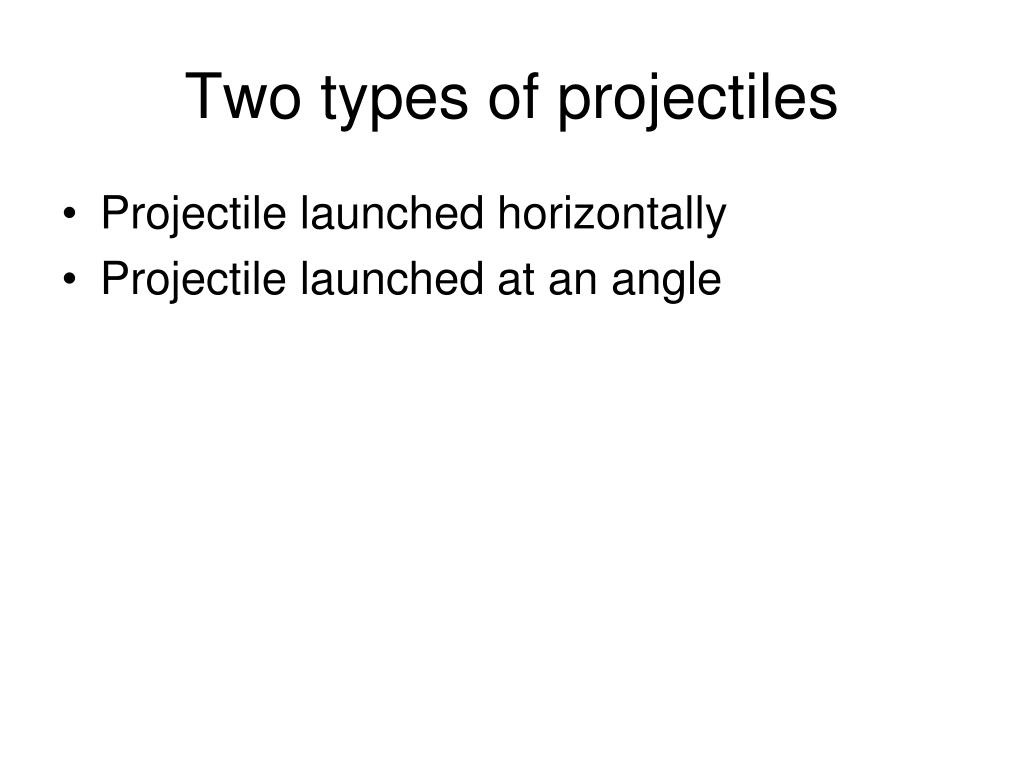

Two types of projectiles
Two types of projectiles

  • Projectile launched horizontally

  • Projectile launched at an angle




Over the edge

Over the Edge

Horizontal Projectiles


Projectiles launched horizontally
Projectiles Launched Horizontally

Vertical motion:

  • Free fall free rest:

    vy = 0

    ay = -9.81 m/s2

    Horizontal motion:

  • vx = vix = constant

  • ax = 0

  • Thus, the projectile travels with a constant horizontal velocity and a downward vertical acceleration.


Velocity of horizontal projectiles
Velocity of Horizontal Projectiles

  • Horizontal motion is constant: velocity is constant.

  • Vertical: same as drop the ball from rest: velocity is increasing by 9.81 m/s every second

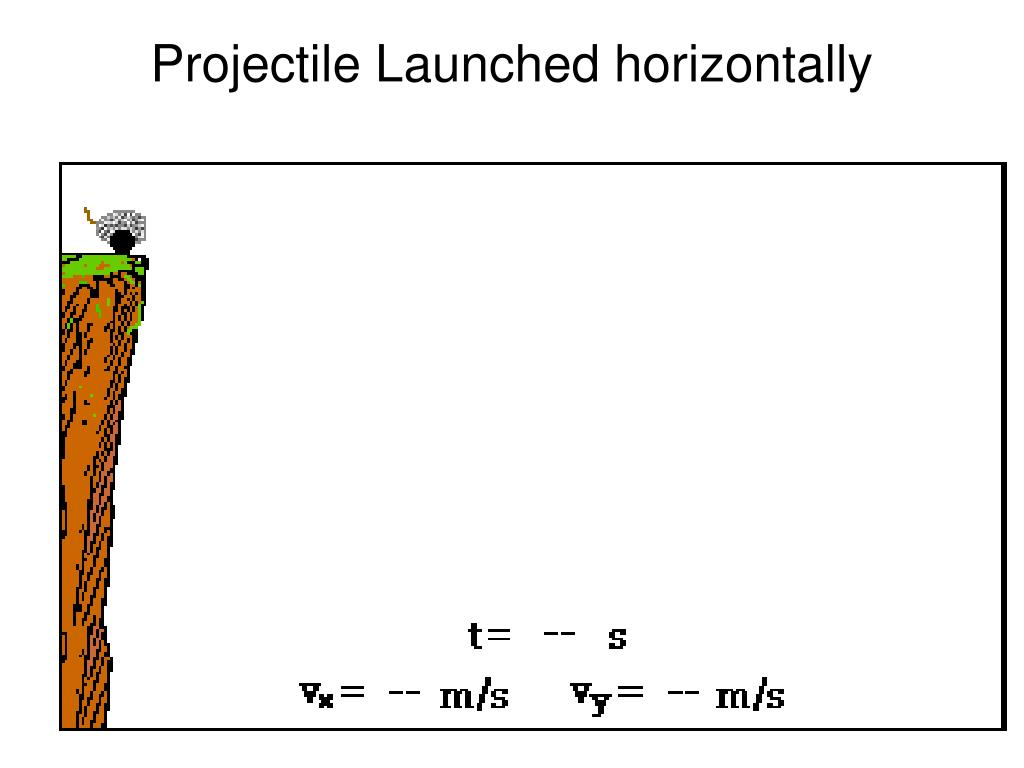

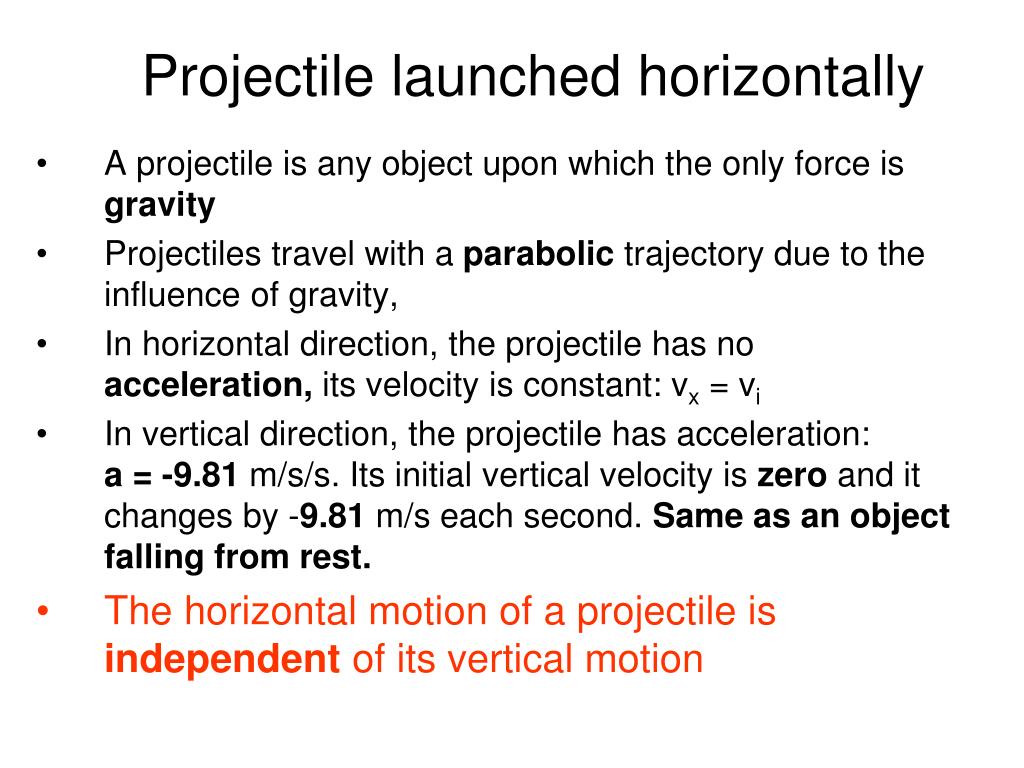

Projectile launched horizontally1
Projectile launched horizontally

  • A projectile is any object upon which the only force is gravity

  • Projectiles travel with a parabolic trajectory due to the influence of gravity,

  • In horizontal direction, the projectile has no acceleration, its velocity is constant: vx = vi

  • In vertical direction, the projectile has acceleration: a = -9.81 m/s/s. Its initial vertical velocity is zero and it changes by -9.81 m/s each second. Same as an object falling from rest.

  • The horizontal motion of a projectile is independent of its vertical motion


Example
Example

  • An object was projected horizontally from a tall cliff. The diagram represents the path of the object, neglecting friction.

  • Comparing the following at point A & B:

  • Acceleration

  • Horizontal velocity

  • Vertical velocity


3217477

As the red ball rolls off the edge, a green

ball is dropped from rest from the same

height at the same time

Which one will hit the ground first?

They will hit

at the SAME

TIME!!!


The same time how
The same time?!? How?!?

The green ball falls from rest

and has no initial

velocity IN EITHER

DIRECTION!

viy and vix = 0

The red ball has an initial

HORIZONTAL velocity (vix)

But does not have any initial

VERTICAL velocity (viy = 0)

vix


One dimension at a time
One Dimension at a Time

Both balls begin with no VERTICAL VELOCITY

Both fall the same DISTANCE VERTICALLY

Find time of flight by solving in the appropriate dimension

We can find an object’s displacement in

EITHER DIMENSION using TIME


Example 1

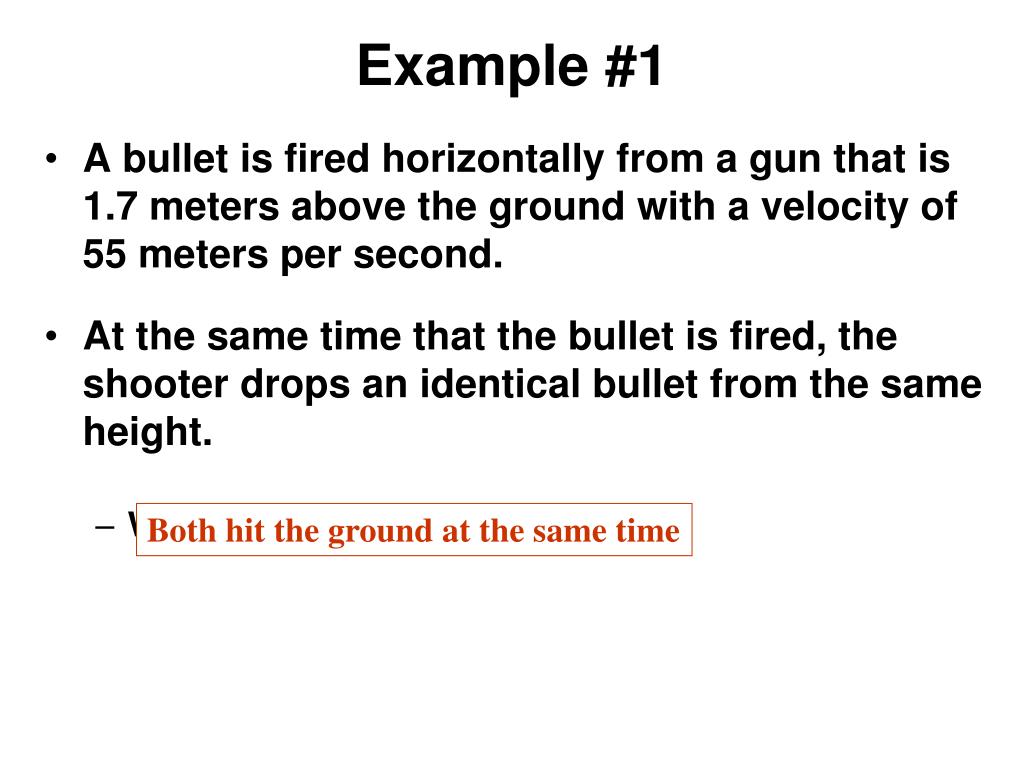

Example #1

A bullet is fired horizontally from a gun that is 1.7 meters above the ground with a velocity of 55 meters per second.

At the same time that the bullet is fired, the shooter drops an identical bullet from the same height.

Which bullet hits the ground first?

Both hit the ground at the same time

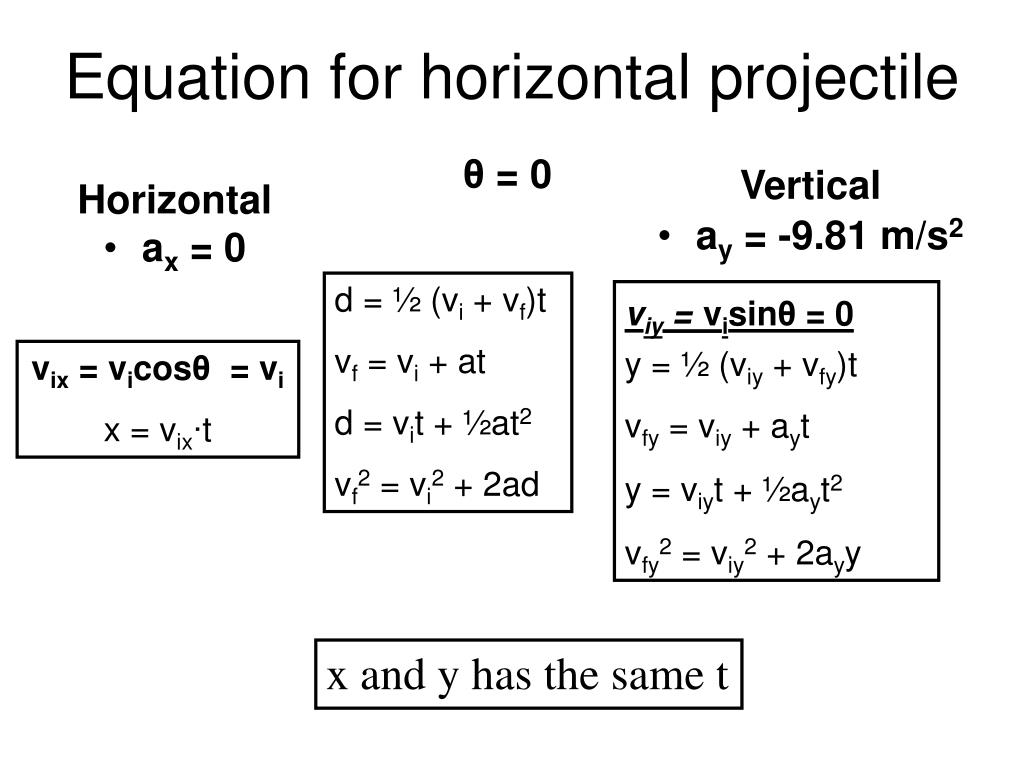

Equation for horizontal projectile
Equation for horizontal projectile

θ = 0

Vertical

  • ay = -9.81 m/s2

Horizontal

  • ax = 0

d = ½ (vi + vf)t

vf = vi + at

d = vit + ½at2

vf2 = vi2 + 2ad

viy =visinθ = 0

y = ½ (viy + vfy)t

vfy = viy + ayt

y = viyt + ½ayt2

vfy2 = viy2 + 2ayy

vix = vicosθ = vi

x = vix∙t

x and y has the same t


Example 2

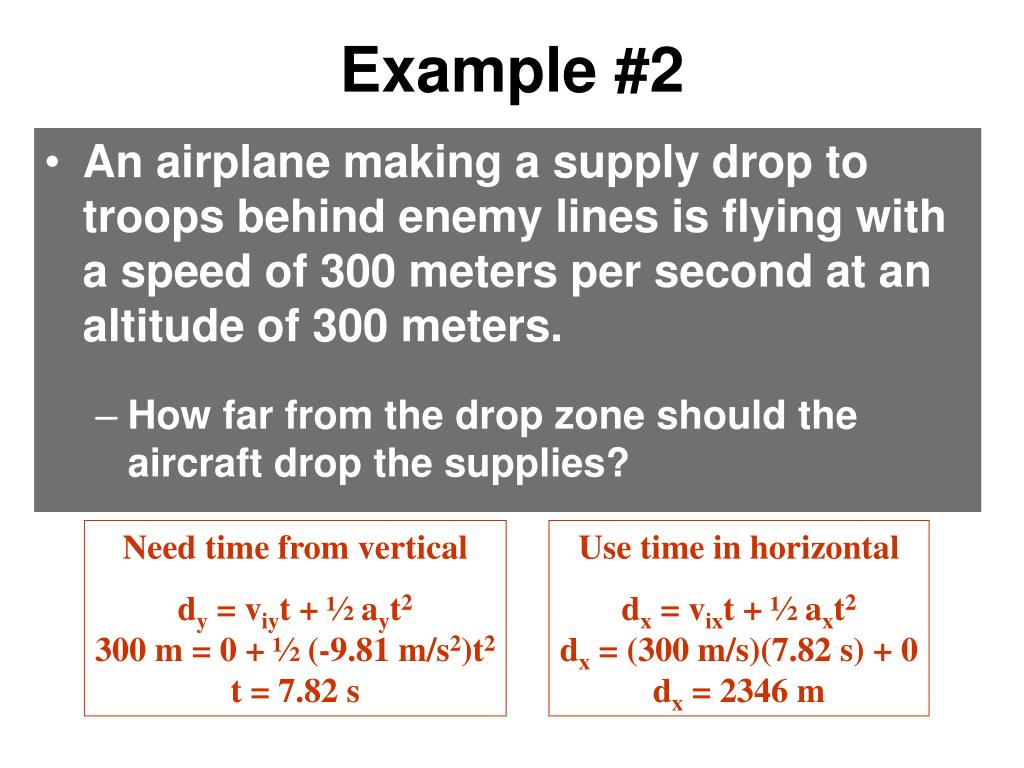

Example #2

An airplane making a supply drop to troops behind enemy lines is flying with a speed of 300 meters per second at an altitude of 300 meters.

How far from the drop zone should the aircraft drop the supplies?

Need time from vertical

dy = viyt + ½ ayt2

300 m = 0 + ½ (-9.81 m/s2)t2

t = 7.82 s

Use time in horizontal

dx = vixt + ½ axt2

dx = (300 m/s)(7.82 s) + 0

dx = 2346 m


Example 3

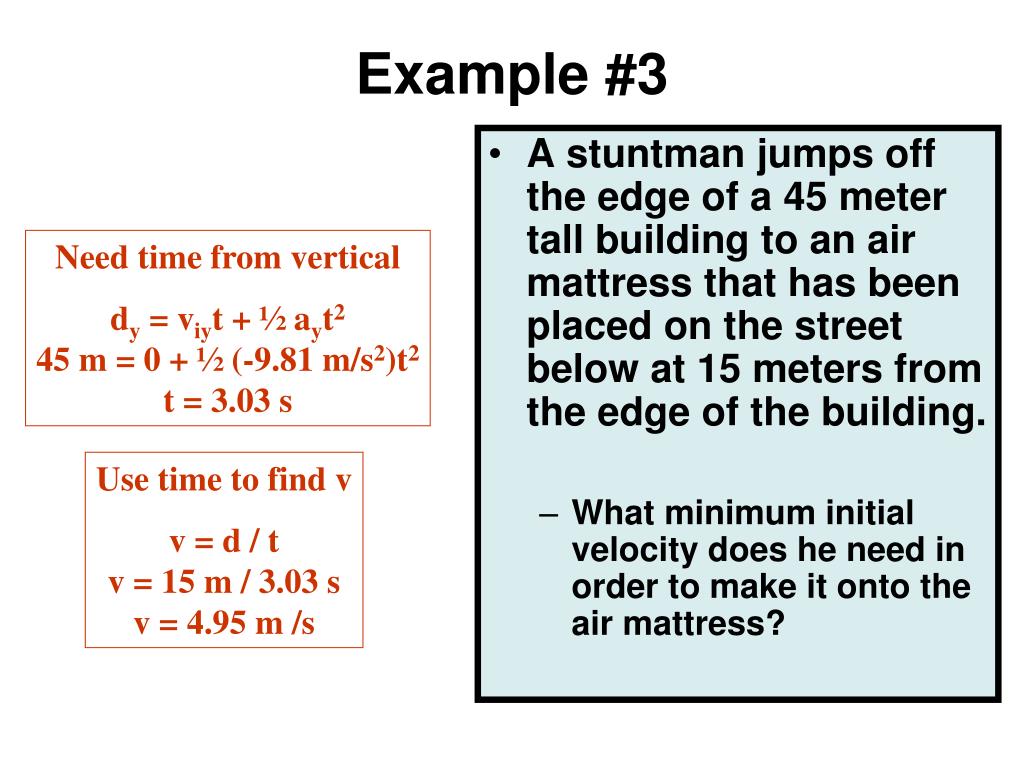

Example #3

A stuntman jumps off the edge of a 45 meter tall building to an air mattress that has been placed on the street below at 15 meters from the edge of the building.

What minimum initial velocity does he need in order to make it onto the air mattress?

Need time from vertical

dy = viyt + ½ ayt2

45 m = 0 + ½ (-9.81 m/s2)t2

t = 3.03 s

Use time to find v

v = d / t

v = 15 m / 3.03 s

v = 4.95 m /s


Example 4

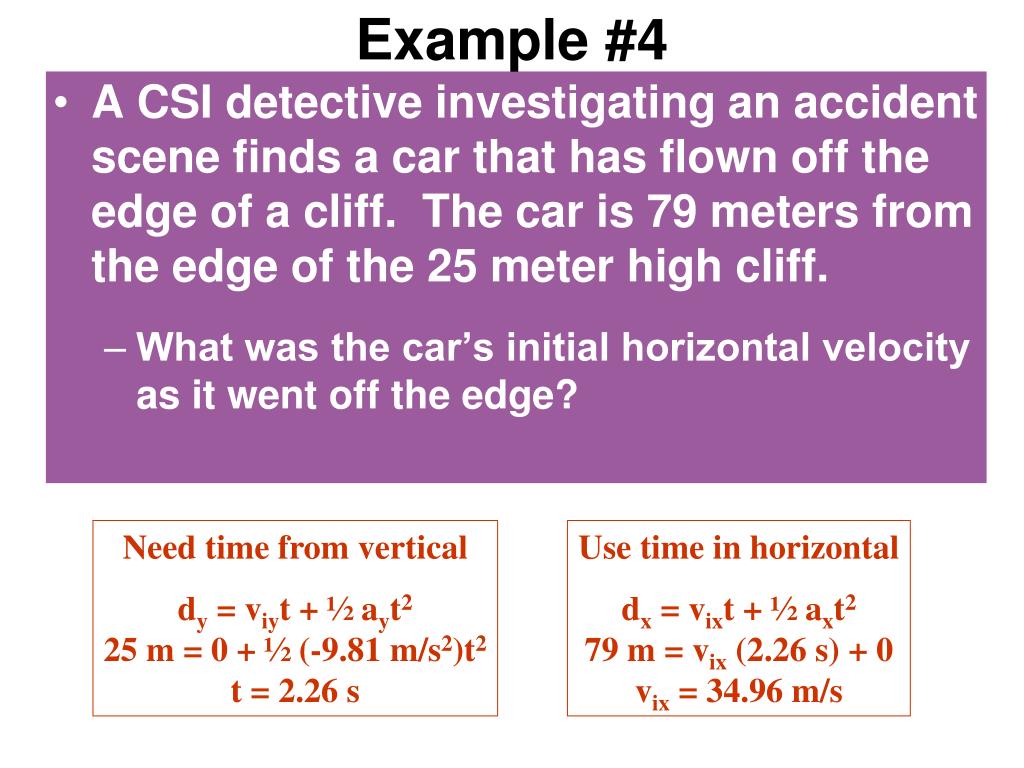

Example #4

A CSI detective investigating an accident scene finds a car that has flown off the edge of a cliff. The car is 79 meters from the edge of the 25 meter high cliff.

What was the car’s initial horizontal velocity as it went off the edge?

Example #4

Need time from vertical

dy = viyt + ½ ayt2

25 m = 0 + ½ (-9.81 m/s2)t2

t = 2.26 s

Use time in horizontal

dx = vixt + ½ axt2

79 m = vix (2.26 s) + 0

vix = 34.96 m/s


Example 5
Example #5

  • The path of a stunt car driven horizontally off a cliff is represented in the diagram below. After leaving the cliff, the car falls freely to point A in 0.50 second and to point B in 1.00 second.

  • Determine the magnitude of the horizontal component of the velocity of the car at point B. [Neglect friction.]

  • Determine the magnitude of the vertical velocity of the car at point A.

  • Calculate the magnitude of the vertical displacement, dy, of the car from point A to point B. [Neglect friction.]

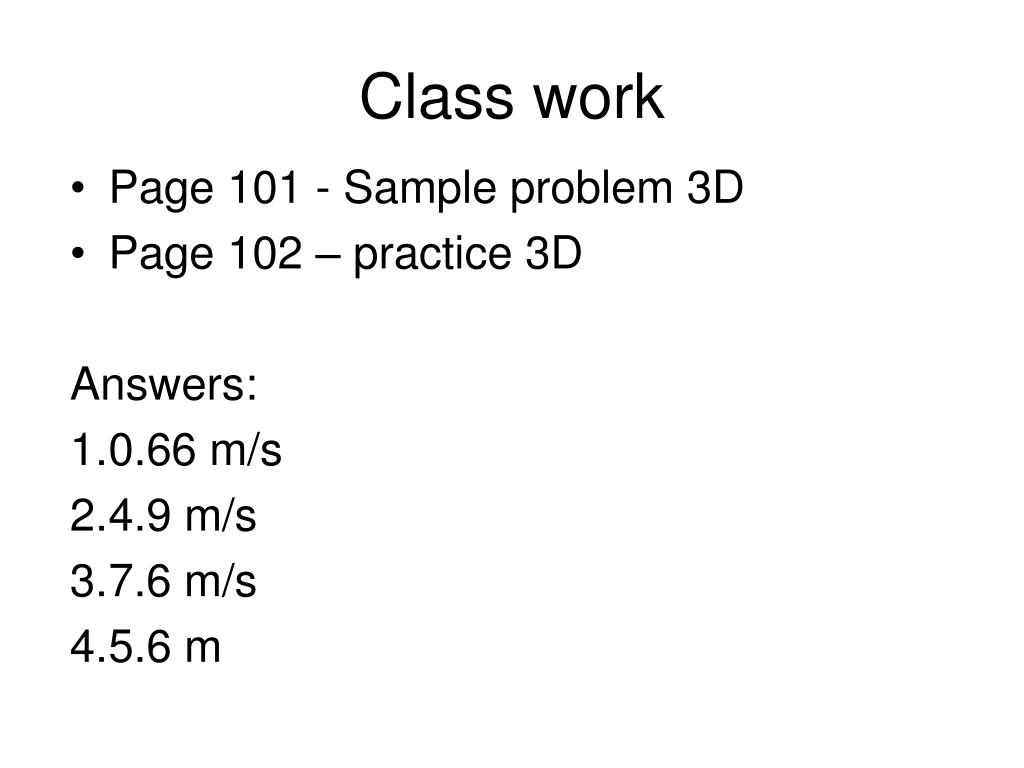

Class work
Class work

  • Page 101 - Sample problem 3D

  • Page 102 – practice 3D

    Answers:

  • 0.66 m/s

  • 4.9 m/s

  • 7.6 m/s

  • 5.6 m



Fire away

Fire Away!!!

Projectiles

Launched at an Angle

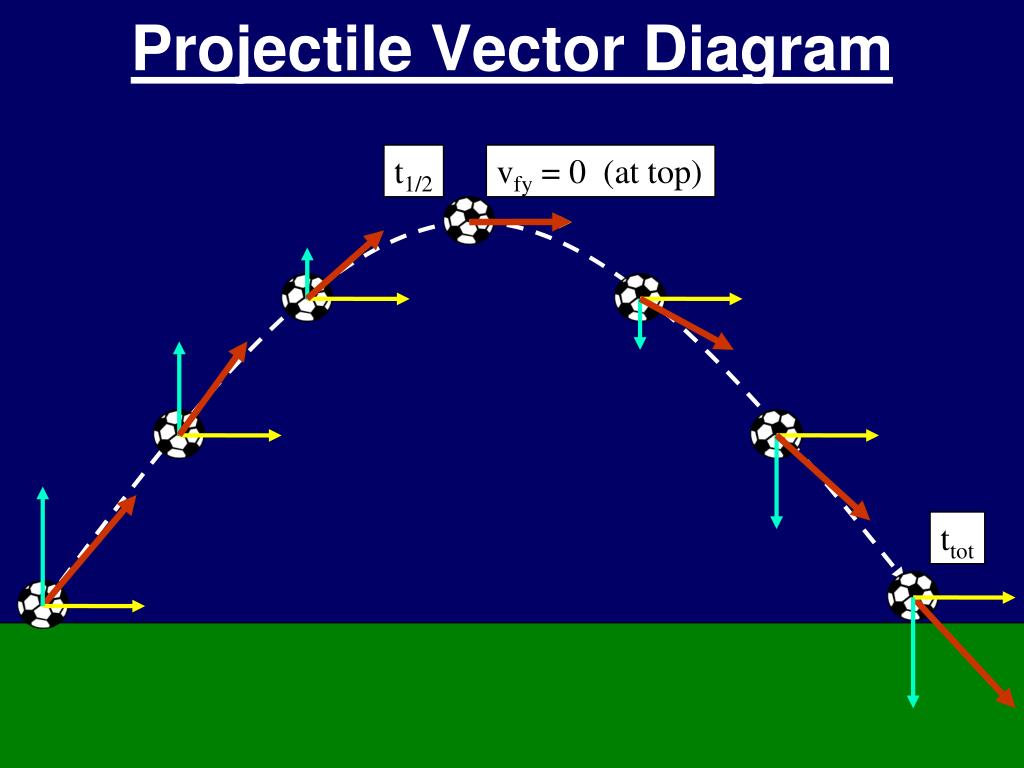

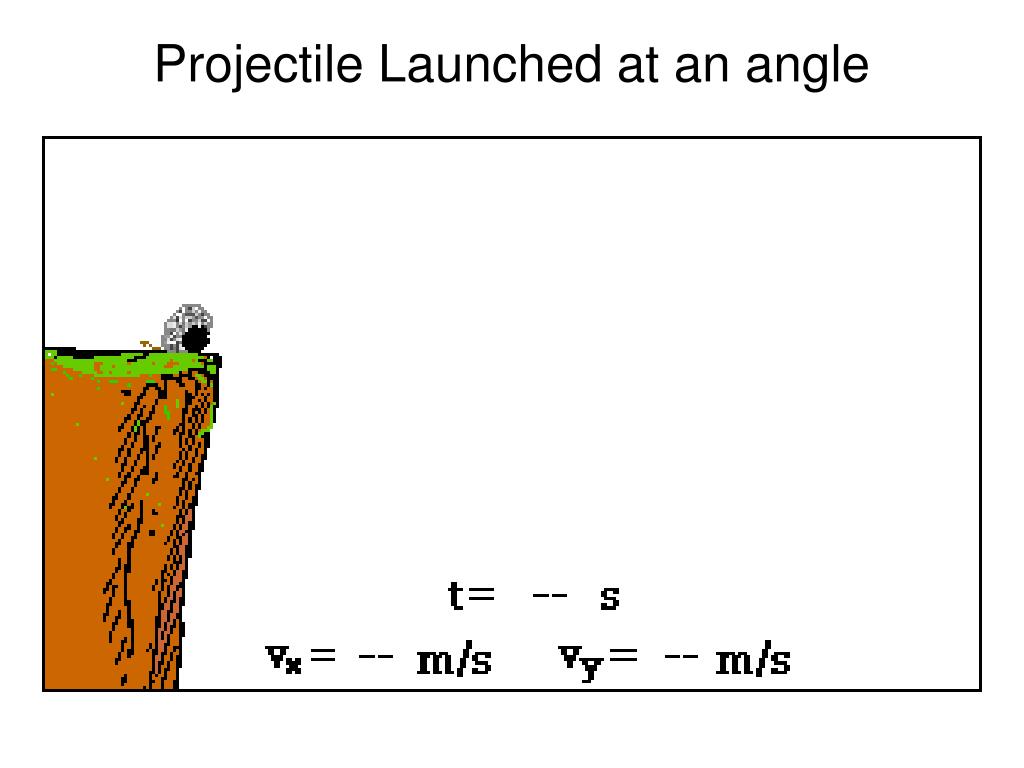

Projectile vector diagram
Projectile Vector Diagram

t1/2

vfy = 0 (at top)

ttot


Initial velocity
Initial velocity

What is the horizontal part of

the soccer ball’s initial velocity?

What is the vertical part of

the soccer ball’s initial velocity?

Pythagorean Theorem

vi2 = vix2 + viy2

vix = vi cos θ

viy = vi sin θ

12 m/s

6 m/s

30°

10.4 m/s


What do we know or assume about the vertical part of a projectile problem
What do we know or assume about the vertical part of a projectile problem?

Initial vertical velocity = vi sin θ

Acceleration = -9.81 m/s2

Vertical speed will be 0 at the maximum height

Time to top = HALFtotal time in the air

Find time to top using final velocity equation

Vertical Distance – Max height

Use time to top and solve vertical distance equation

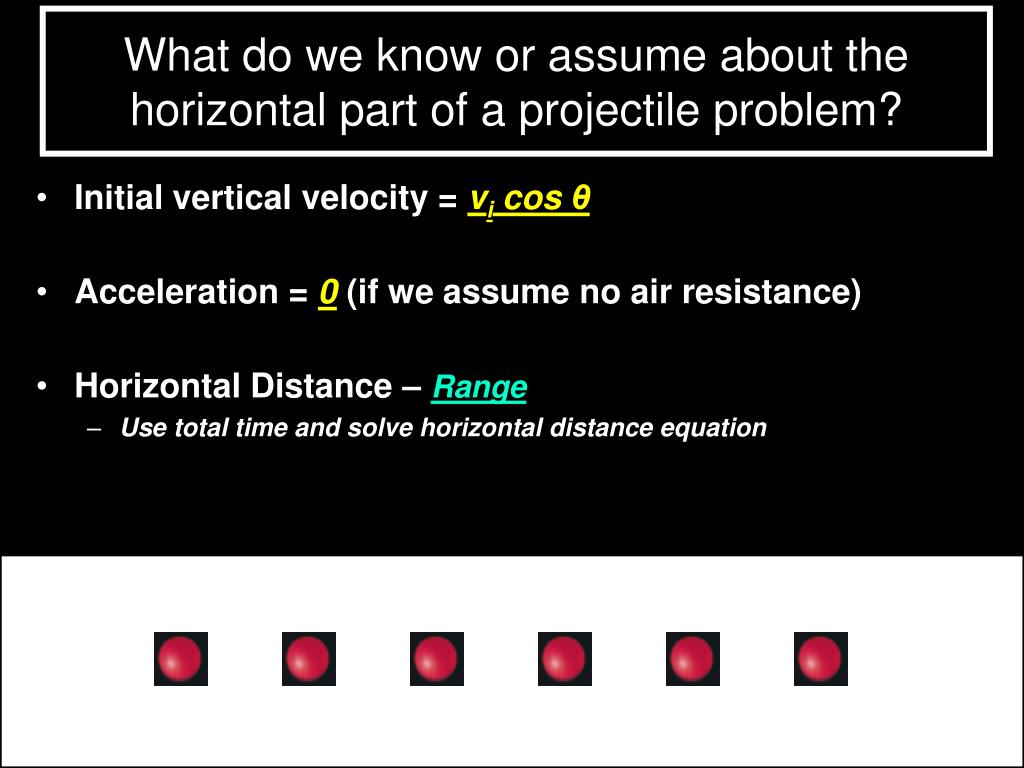

What do we know or assume about the horizontal part of a projectile problem
What do we know or assume about the horizontal part of a projectile problem?

Initial vertical velocity = vi cos θ

Acceleration = 0 (if we assume no air resistance)

Horizontal Distance – Range

Use total time and solve horizontal distance equation


The symmetrical nature of a ground launched projectile
The projectile problem?symmetrical nature of a ground launched projectile

  • What is the acceleration at the top of the path?

  • What is the vertical velocity at the top of the path?

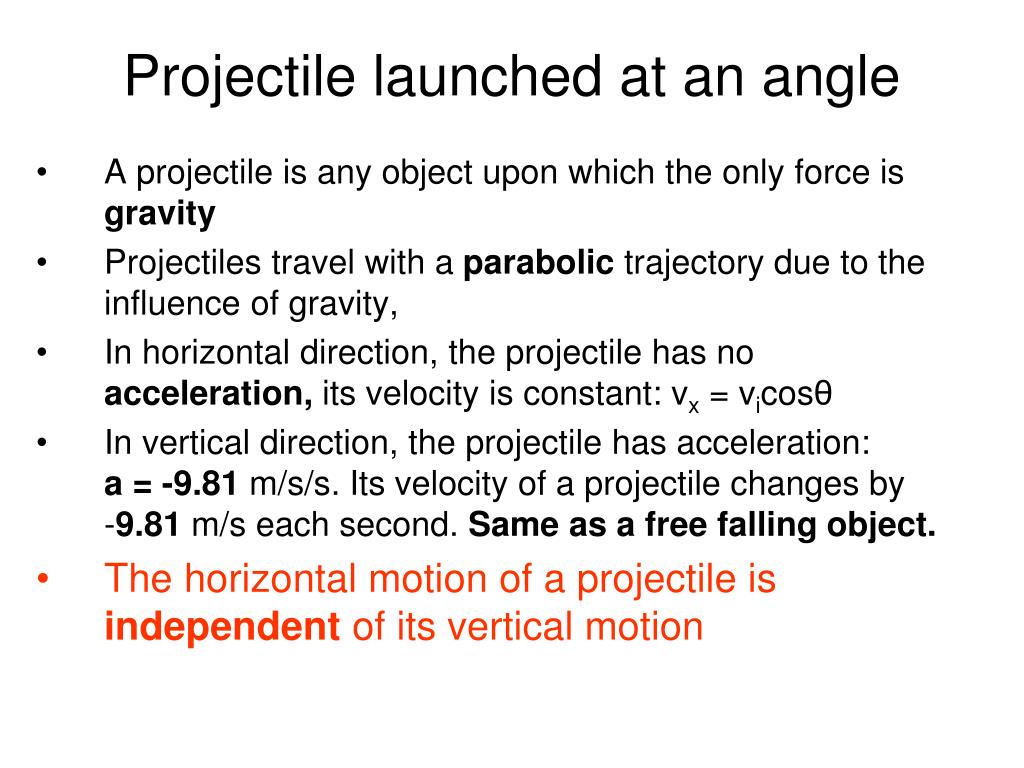

Projectile launched at an angle2
Projectile launched at an angle projectile problem?

  • A projectile is any object upon which the only force is gravity

  • Projectiles travel with a parabolic trajectory due to the influence of gravity,

  • In horizontal direction, the projectile has no acceleration, its velocity is constant: vx = vicosθ

  • In vertical direction, the projectile has acceleration: a = -9.81 m/s/s. Its velocity of a projectile changes by -9.81 m/s each second. Same as a free falling object.

  • The horizontal motion of a projectile is independent of its vertical motion


3217477

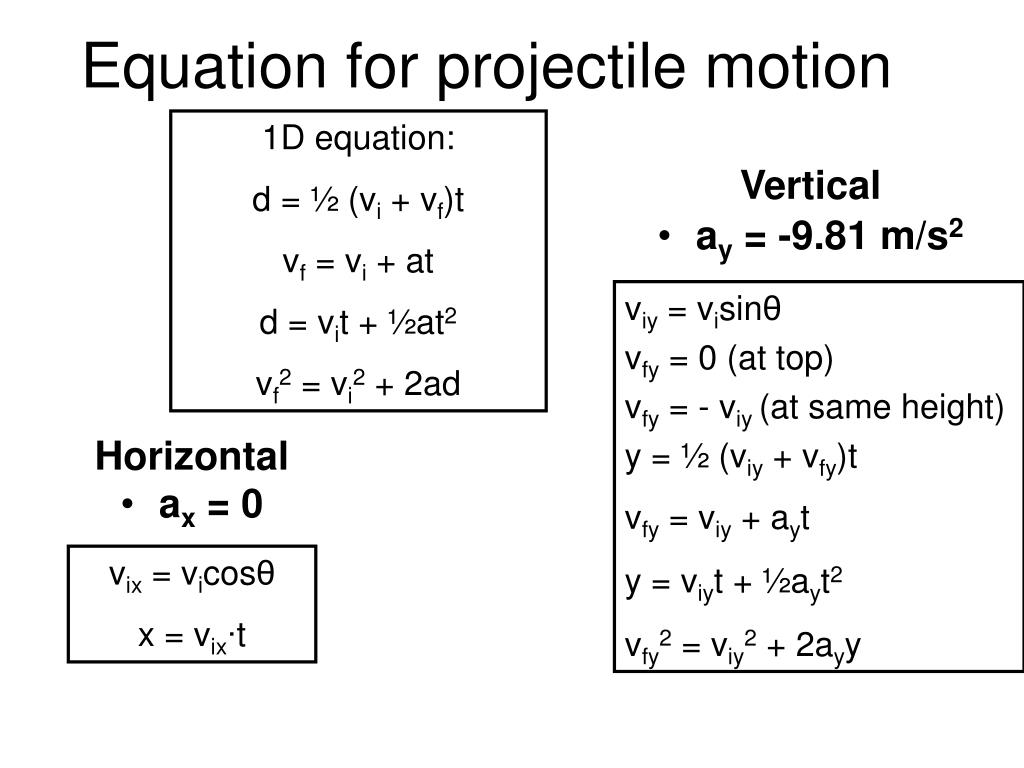

Equation for projectile motion
Equation for projectile motion 10.00 m/s, and vertical velocity at +20. m/s. Determine the horizontal and vertical velocity at 1 – 5 seconds after the projectile is fired. Use g = 10 m/s/s.

1D equation:

d = ½ (vi + vf)t

vf = vi + at

d = vit + ½at2

vf2 = vi2 + 2ad

Vertical

  • ay = -9.81 m/s2

Horizontal

  • ax = 0

viy = visinθ

vfy = 0 (at top)

vfy = - viy (at same height)

y = ½ (viy + vfy)t

vfy = viy + ayt

y = viyt + ½ayt2

vfy2 = viy2 + 2ayy

vix = vicosθ

x = vix∙t

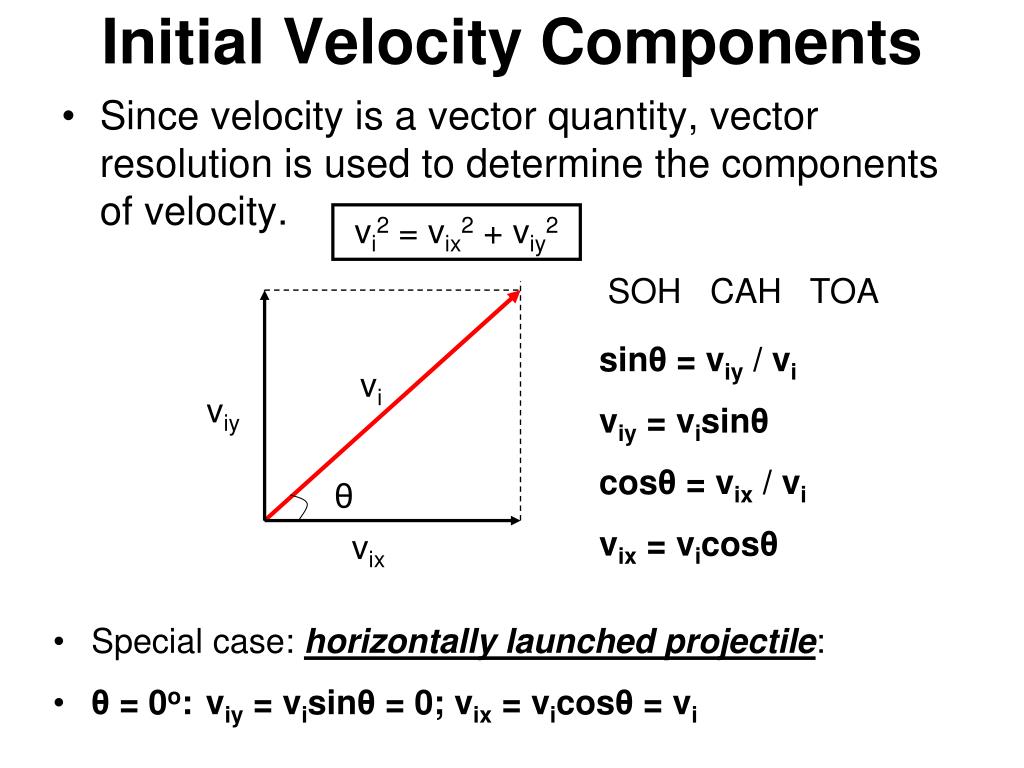

Initial velocity components
Initial Velocity Components 10.00 m/s, and vertical velocity at +20. m/s. Determine the horizontal and vertical velocity at 1 – 5 seconds after the projectile is fired. Use g = 10 m/s/s.

  • Since velocity is a vector quantity, vector resolution is used to determine the components of velocity.

vi2 = vix2 + viy2

SOH CAH TOA

sinθ = viy / vi

viy = visinθ

cosθ = vix / vi

vix = vicosθ

vi

viy

θ

vix

  • Special case: horizontally launched projectile:

  • θ = 0o:viy = visinθ = 0; vix = vicosθ = vi

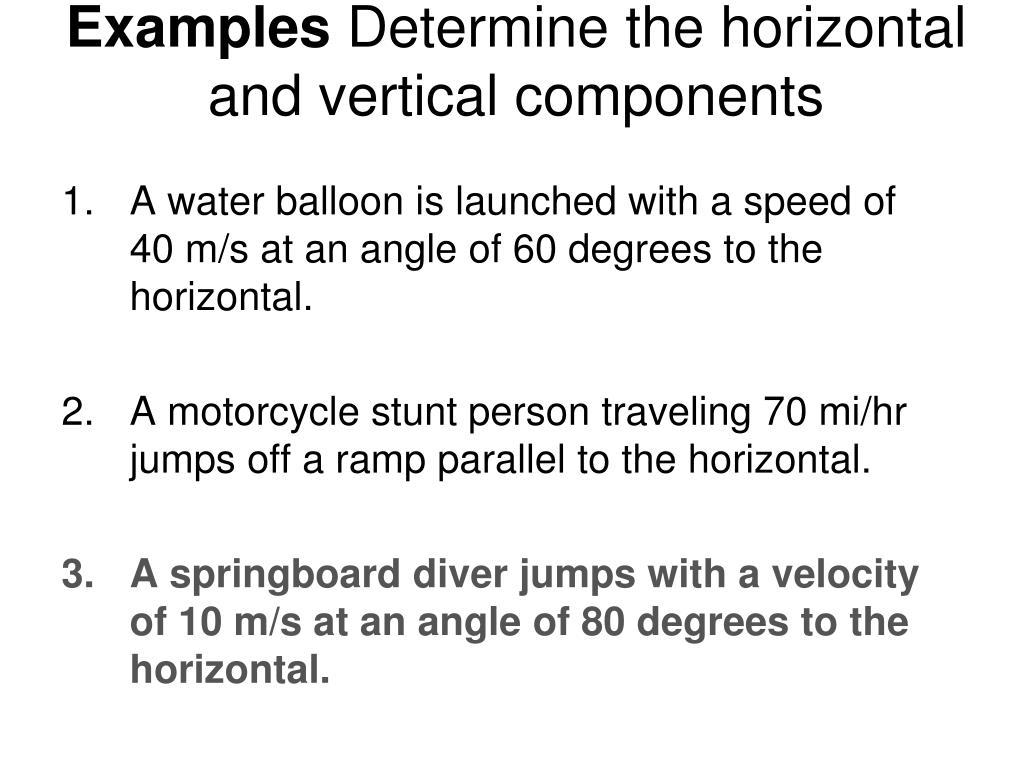

Examples determine the horizontal and vertical components
Examples 10.00 m/s, and vertical velocity at +20. m/s. Determine the horizontal and vertical velocity at 1 – 5 seconds after the projectile is fired. Use g = 10 m/s/s.Determine the horizontal and vertical components

  • A water balloon is launched with a speed of 40 m/s at an angle of 60 degrees to the horizontal.

  • A motorcycle stunt person traveling 70 mi/hr jumps off a ramp parallel to the horizontal.

  • A springboard diver jumps with a velocity of 10 m/s at an angle of 80 degrees to the horizontal.


Example1
example 10.00 m/s, and vertical velocity at +20. m/s. Determine the horizontal and vertical velocity at 1 – 5 seconds after the projectile is fired. Use g = 10 m/s/s.

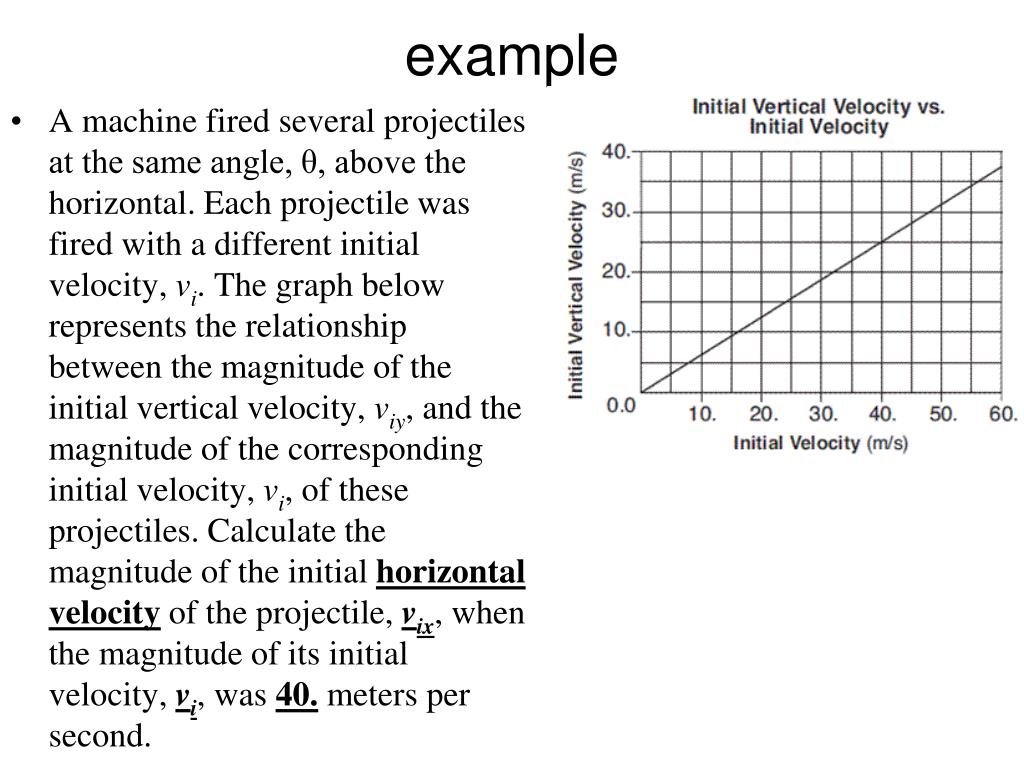

  • A machine fired several projectiles at the same angle, θ, above the horizontal. Each projectile was fired with a different initial velocity, vi. The graph below represents the relationship between the magnitude of the initial vertical velocity, viy, and the magnitude of the corresponding initial velocity, vi, of these projectiles. Calculate the magnitude of the initial horizontal velocity of the projectile, vix, when the magnitude of its initial velocity, vi, was 40. meters per second.


3217477

  • The point of resolving an initial velocity vector into its two components is to use the values of these two components to analyze a projectile's motion and determine such parameters as

    • the horizontal displacement,

    • the vertical displacement,

    • the final vertical velocity,

    • the time to reach the peak of the trajectory,

    • the time to fall to the ground, etc.


Example2
Example two components is to use the values of these two components to analyze a projectile's motion and determine such parameters as

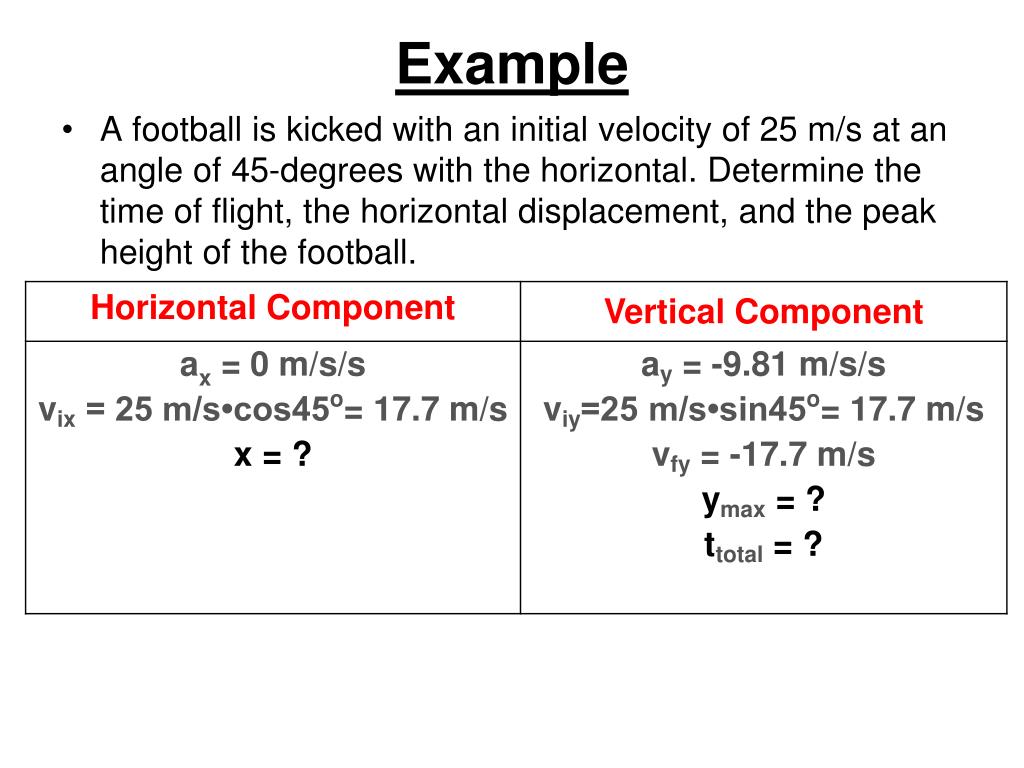

  • A football is kicked with an initial velocity of 25 m/s at an angle of 45-degrees with the horizontal. Determine the time of flight, the horizontal displacement, and the peak height of the football.


3217477

  • Solve for two components is to use the values of these two components to analyze a projectile's motion and determine such parameters as t – use vertical information:

vfy = viy + ayt

t = 3.61 s

  • Solve for x – use horizontal information:

x = vix•t + ½ •ax•t2

x = 63.8 m

  • Solve for peak height – use vertical information:

vfy2 = viy2 + 2ayypeak

At the top, vfy = 0

ypeak = 15.9 m


Example3
example two components is to use the values of these two components to analyze a projectile's motion and determine such parameters as

  • A long jumper leaves the ground with an initial velocity of 12 m/s at an angle of 28-degrees above the horizontal. Determine the time of flight, the horizontal distance, and the peak height of the long-jumper.

t = 1.1 s

x = 12.2 m

ypeak = 1.6 m

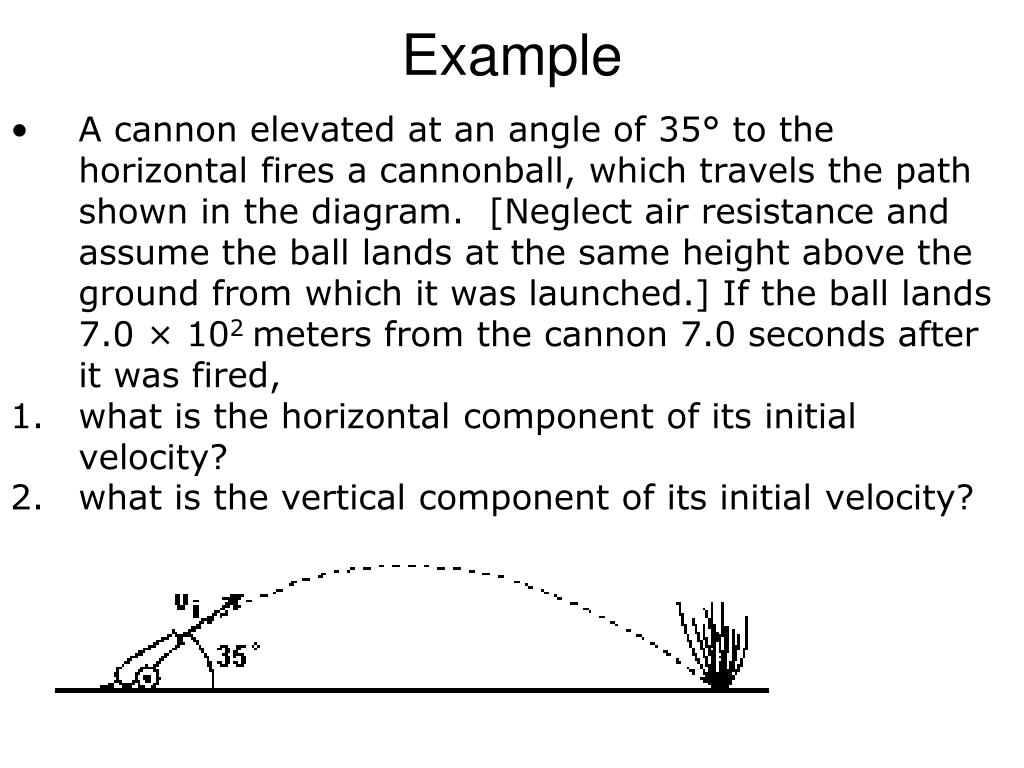

Example4
Example two components is to use the values of these two components to analyze a projectile's motion and determine such parameters as

  • A cannon elevated at an angle of 35° to the horizontal fires a cannonball, which travels the path shown in the diagram.  [Neglect air resistance and assume the ball lands at the same height above the ground from which it was launched.] If the ball lands 7.0 × 102 meters from the cannon 7.0 seconds after it was fired,

  • what is the horizontal component of its initial velocity?

  • what is the vertical component of its initial velocity?


3217477


3217477

  • In the diagram, a 10.-kilogram sphere,  velocity of 5.0 meters per second.  The object strikes the ground 3.0 seconds later.  What is the vertical speed of the object as it reaches the ground? [Neglect friction.]A, is projected horizontally with a velocity of 30. meters per second due east from a height of 20. meters above level ground. At the same instant, a 20.-kilogram sphere, B , is projected horizontally with a velocity of 10. meters per second due west from a height of 80. meters above level ground. [Neglect air friction.] Initially, the spheres are separated by a horizontal distance of 100. meters. What is the horizontal separation of the spheres at the end of 1.5 seconds?


Total flight time range max height
Total flight time, range, max height velocity of 5.0 meters per second.  The object strikes the ground 3.0 seconds later.  What is the vertical speed of the object as it reaches the ground? [Neglect friction.]

Time to go up

  • t = visinθ / g

  • As θ increases, flight time increase. Max time: θ = 90o

Range

  • Range = vi2sin2θ/g

  • Projectile has maximum range when θ= 45o

Max height

  • hmax = (visinθ)2/2g

  • As θ increases, flight height increase. Max height: θ = 90o

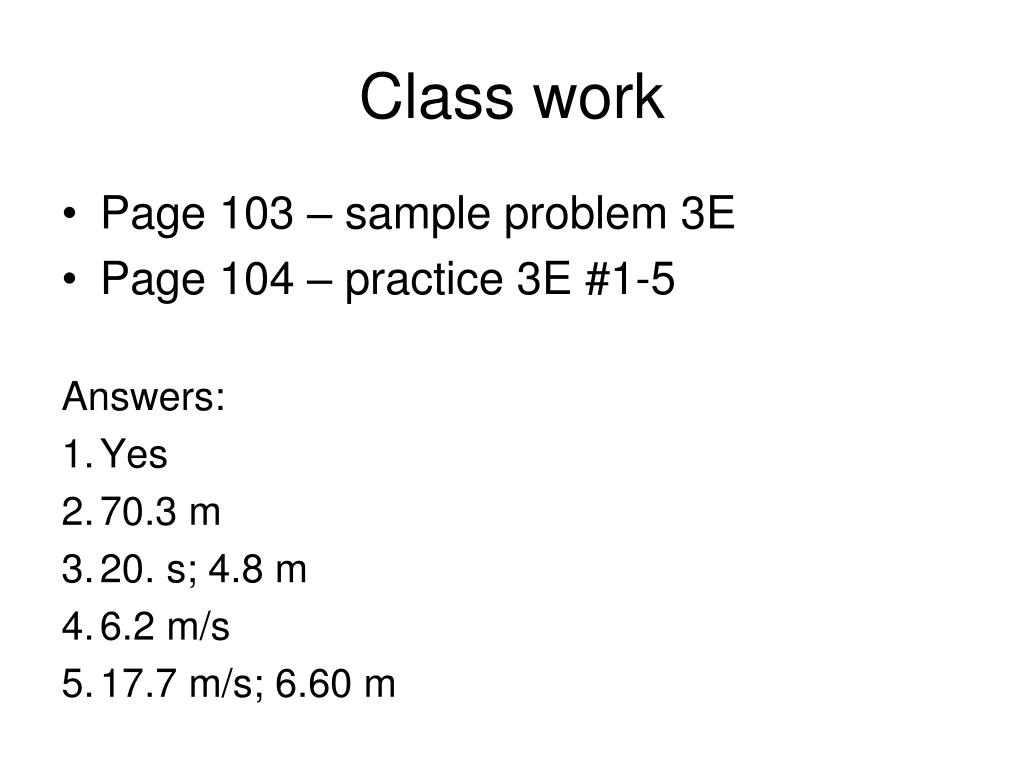

Class work1
Class work velocity of 5.0 meters per second.  The object strikes the ground 3.0 seconds later.  What is the vertical speed of the object as it reaches the ground? [Neglect friction.]

  • Page 103 – sample problem 3E

  • Page 104 – practice 3E #1-5

    Answers:

  • Yes

  • 70.3 m

  • 20. s; 4.8 m

  • 6.2 m/s

  • 17.7 m/s; 6.60 m
