  1. Stress Distributionand all of its mysteries

  2. I. The Bulb of Pressure Force

  3. I. The Bulb of Pressure Force “what are the stresses at this point?”

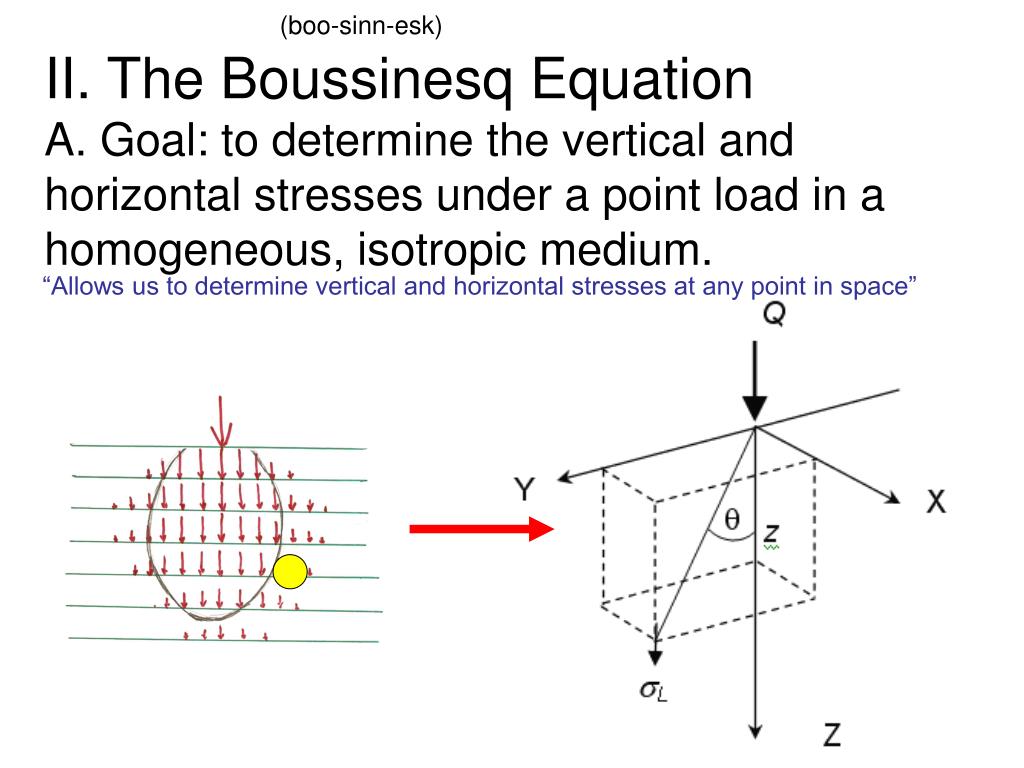

  4. (boo-sinn-esk) II. The Boussinesq EquationA. Goal: to determine the vertical and horizontal stresses under a point load in a homogeneous, isotropic medium. “Allows us to determine vertical and horizontal stresses at any point in space”

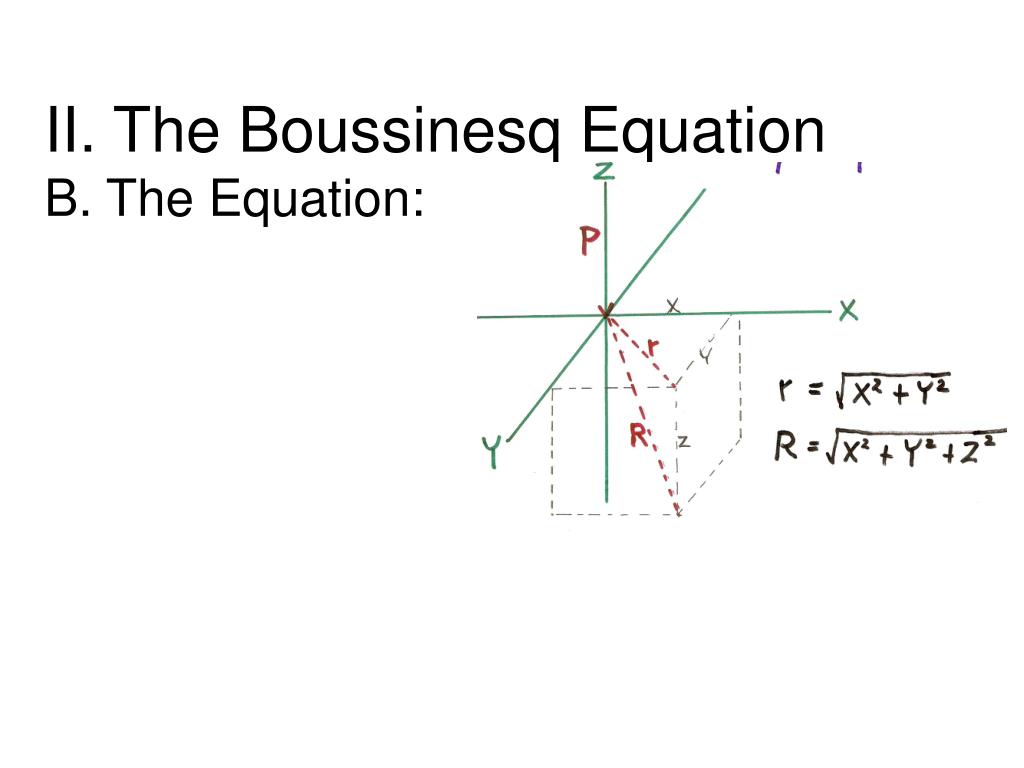

  5. II. The Boussinesq EquationB. The Equation:

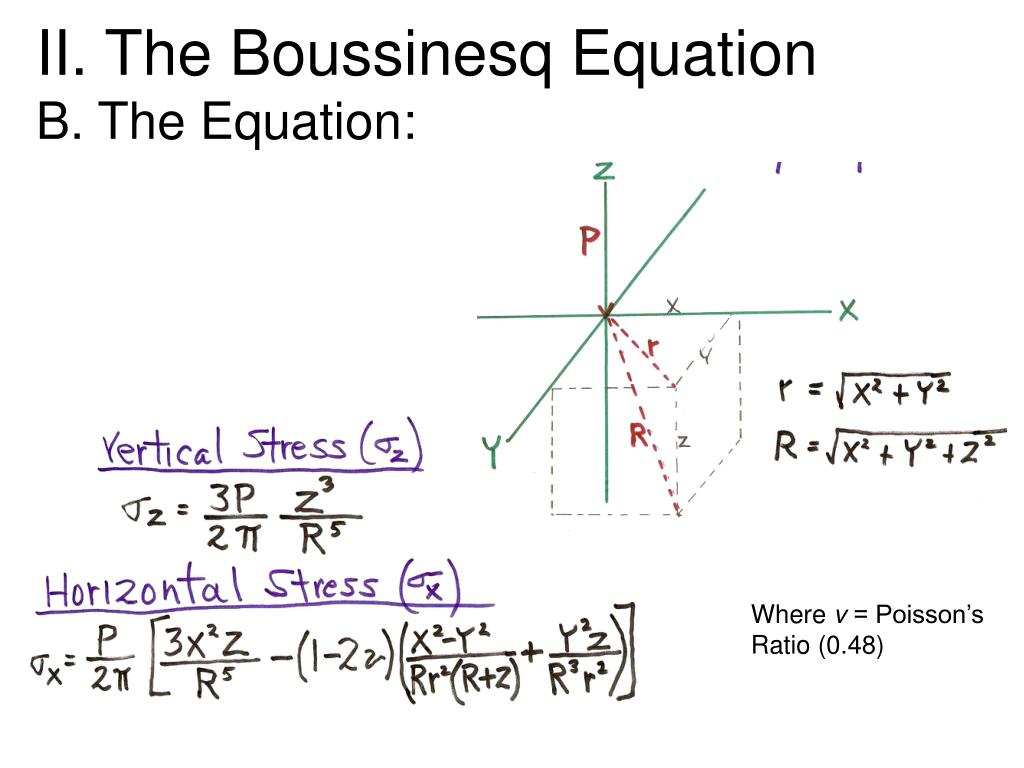

  6. II. The Boussinesq EquationB. The Equation: Where v = Poisson’s Ratio (0.48)

  7. 6.71

  8. If Poisson’s ratio is ~0.5, equations simplify to: σx = 3Px2z 2π R5 σy = 3Py2z 2π R5

  9. Your turn: Vertical load of 2500 lb/ft2 Determine horizontal and vertical stresses at X= 5, Y= 2, Z = 6

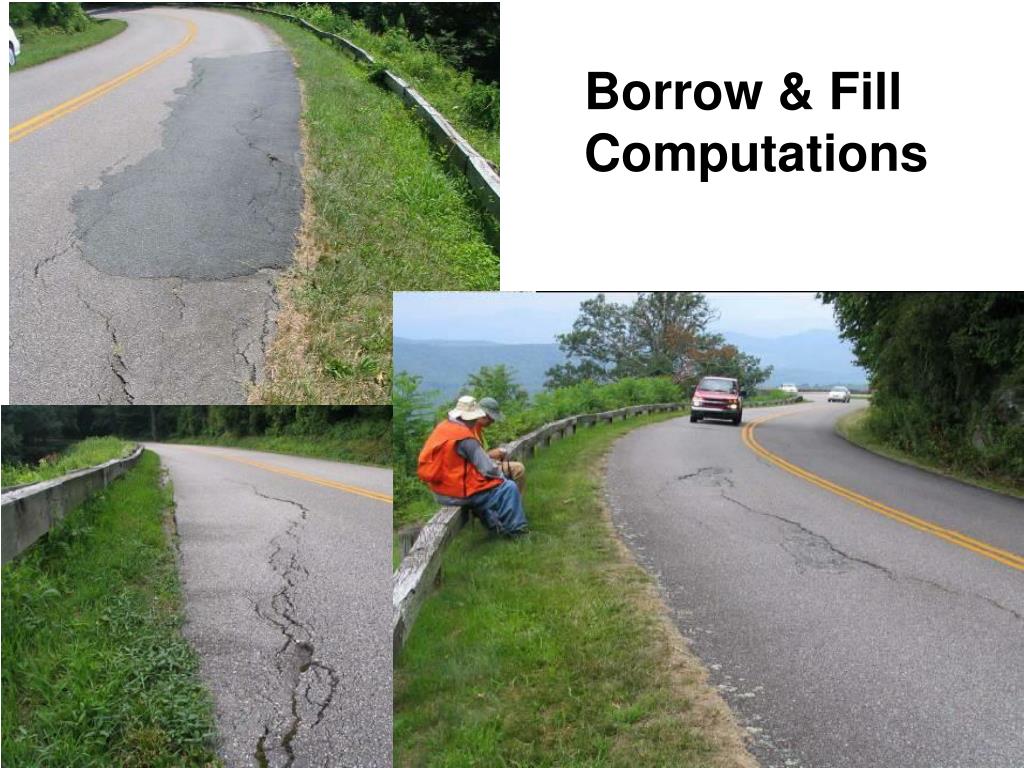

  10. Borrow & Fill Computations

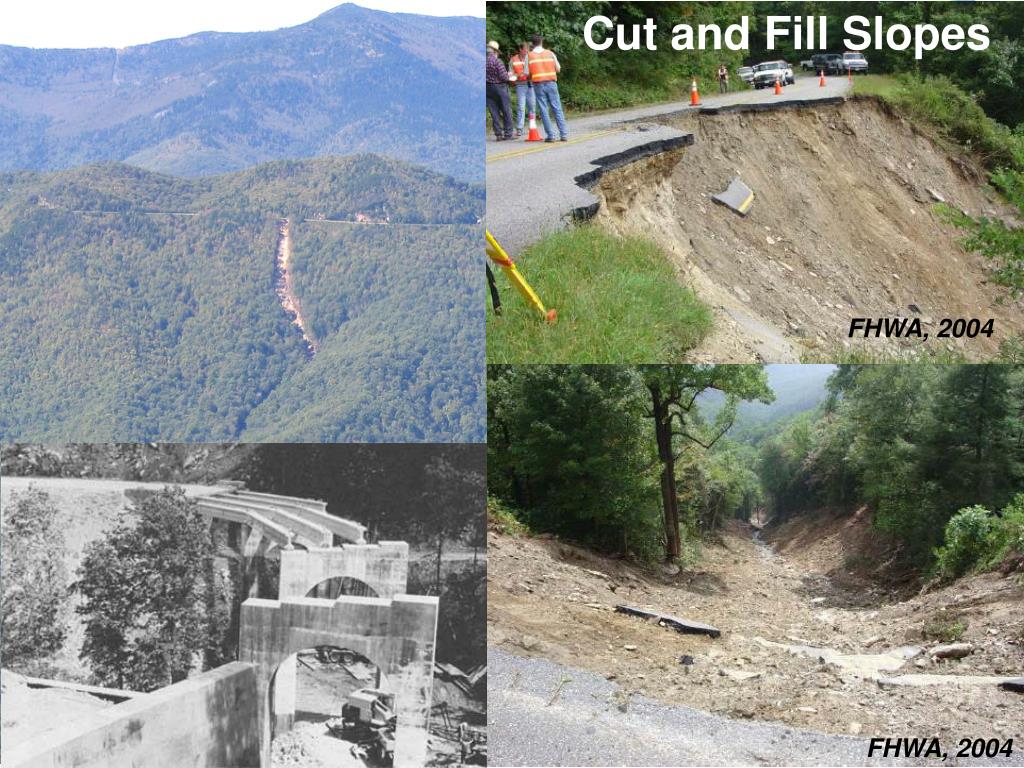

  11. Cut and Fill Slopes FHWA, 2004 FHWA, 2004

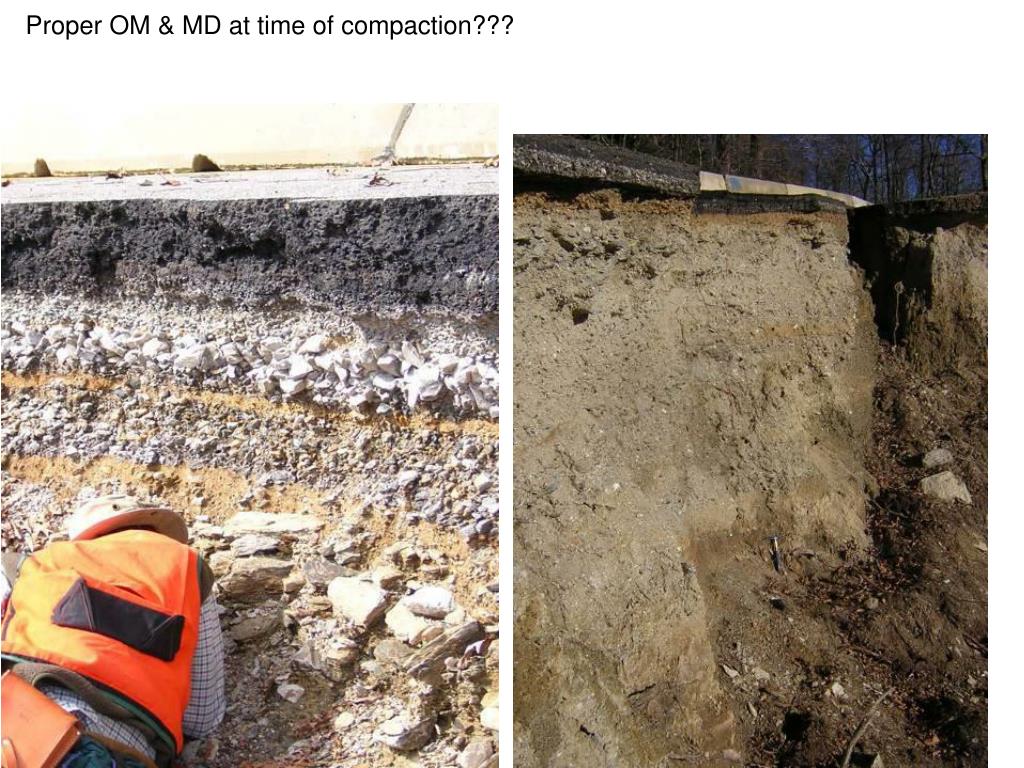

  12. Proper OM & MD at time of compaction???

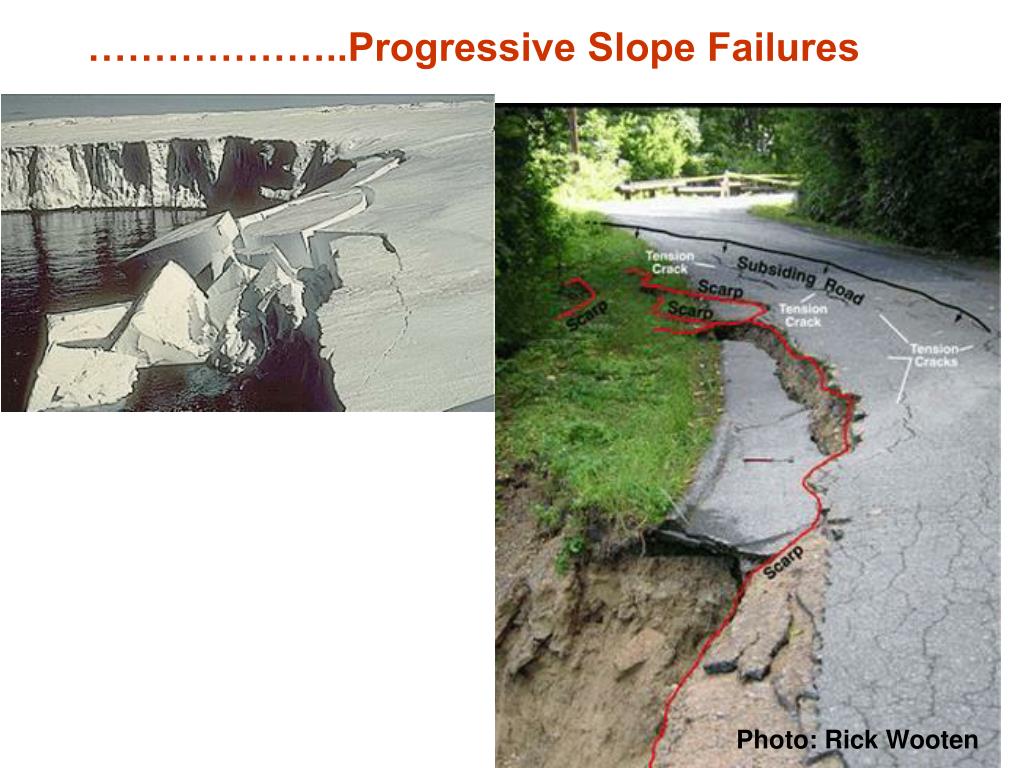

  13. ………………..Progressive Slope Failures Photo: Rick Wooten

  14. Borrow Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Vv Vt

  15. Borrow Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Ws = Dry Density (lbs/ft3) = Wet Density (lbs/ft3) 1 + moisture content (decimalform)

  16. Borrow Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Ws = Dry Density (lbs/ft3) = Wet Density (lbs/ft3) 1 + moisture content (decimalform) Ws = Dry Density (lbs/ft3) = 106 lbs/ft3 1 + 0.15

  17. Borrow Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Ws = Dry Density (lbs/ft3) = Wet Density (lbs/ft3) 1 + moisture content (decimalform) Ws = Dry Density (lbs/ft3) = 106 lbs/ft3 1 + 0.15 Ws = 92 lbs/ft3

  18. Borrow Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Ws = Dry Density (lbs/ft3) = Wet Density (lbs/ft3) 1 + moisture content (decimalform) Ws = Dry Density (lbs/ft3) = 106 lbs/ft3 1 + 0.15 Ws = 92 lbs/ft3 Moisture Content = weight of water *100 weight of soil

  19. Borrow Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Ws = Dry Density (lbs/ft3) = Wet Density (lbs/ft3) 1 + moisture content (decimalform) Ws = Dry Density (lbs/ft3) = 106 lbs/ft3 1 + 0.15 Ws = 92 lbs/ft3 Moisture Content = weight of water *100 weight of dry soil 15 = Ww *100 92 lbs/ft3

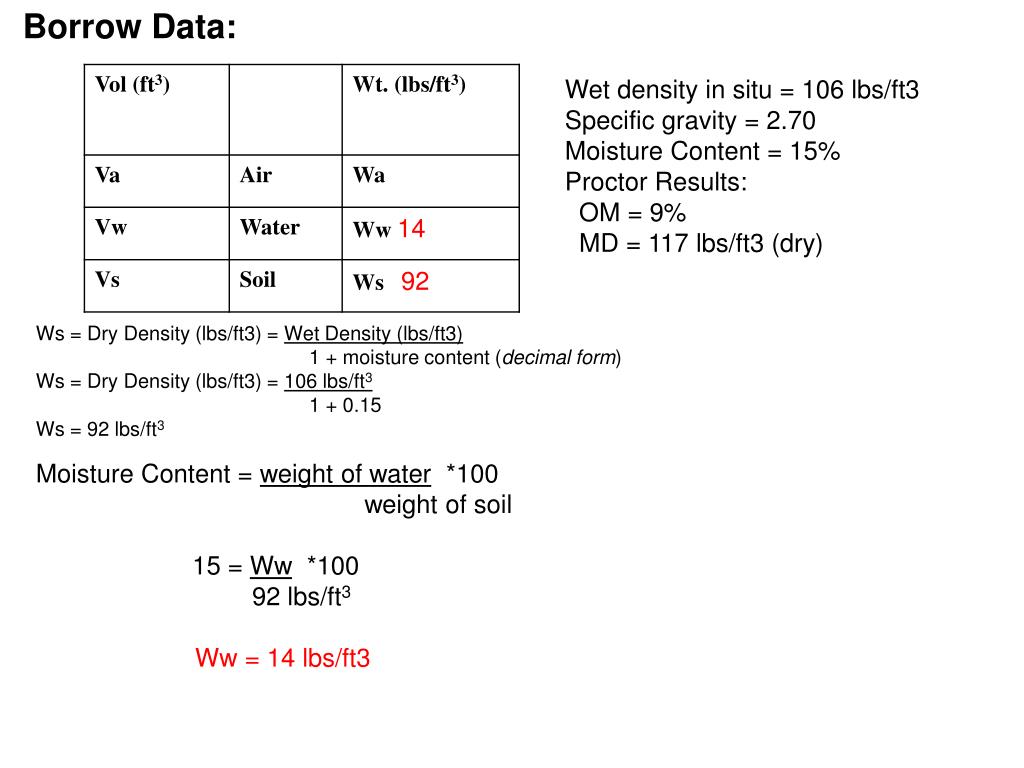

  20. Borrow Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Ws = Dry Density (lbs/ft3) = Wet Density (lbs/ft3) 1 + moisture content (decimalform) Ws = Dry Density (lbs/ft3) = 106 lbs/ft3 1 + 0.15 Ws = 92 lbs/ft3 Moisture Content = weight of water *100 weight of soil 15 = Ww *100 92 lbs/ft3 Ww = 14 lbs/ft3

  21. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3

  22. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vol Soil (Vs) = Ws Gs * γw

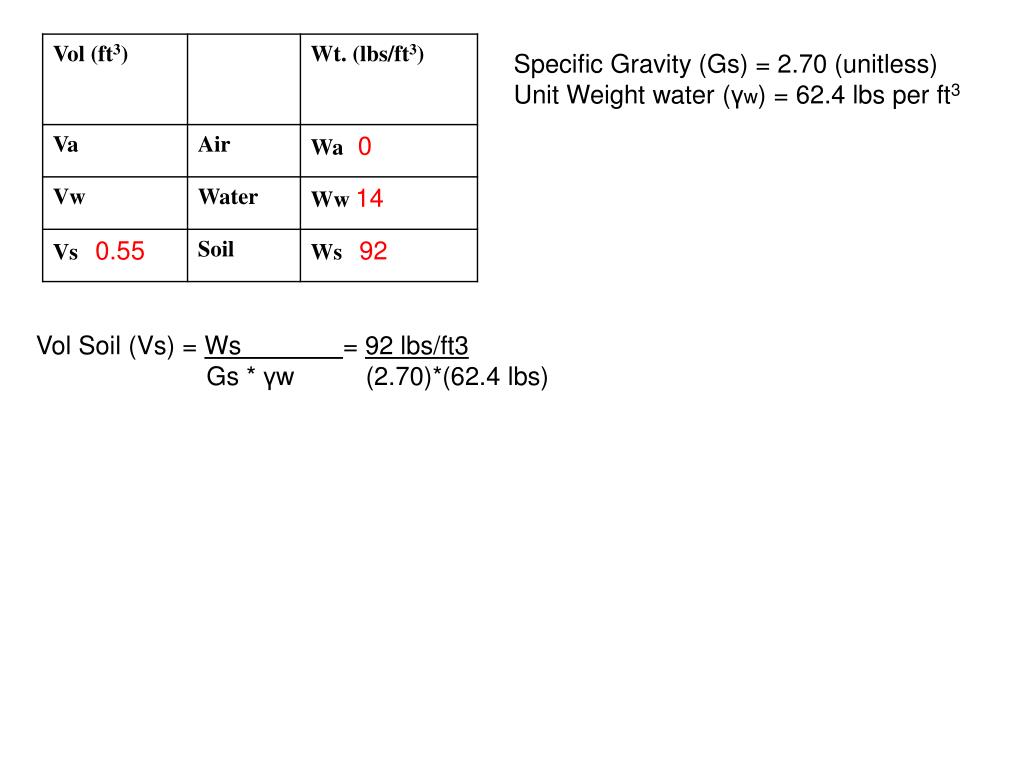

  23. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vol Soil (Vs) = Ws = 92 lbs/ft3 Gs * γw (2.70)*(62.4 lbs)

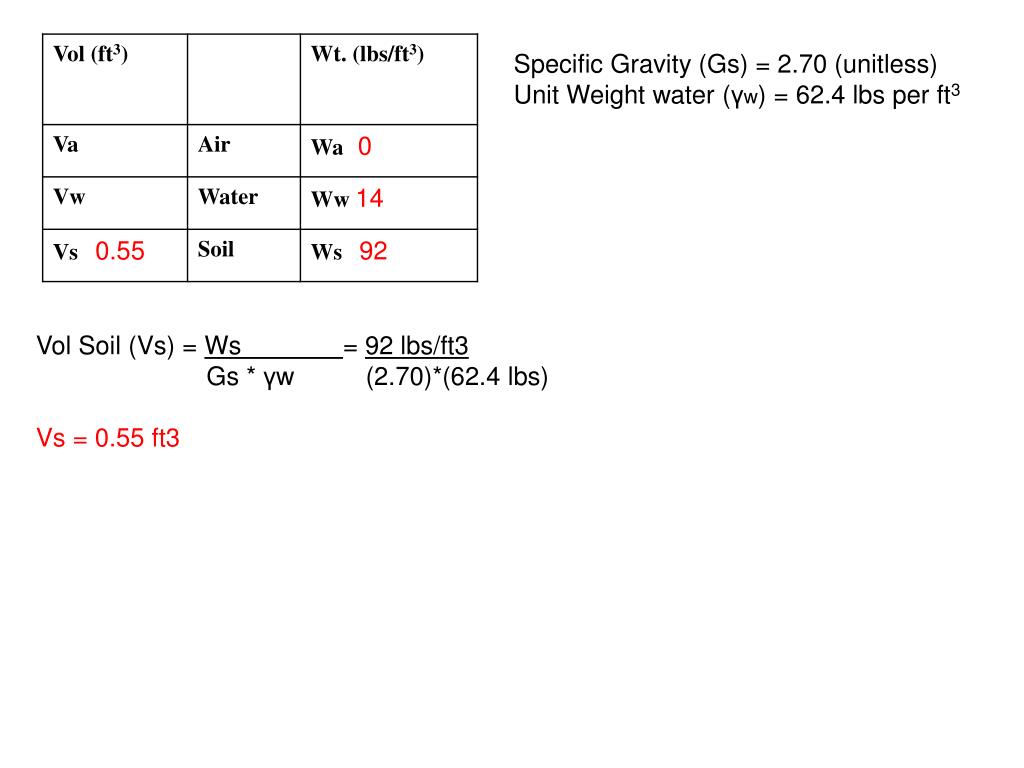

  24. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vol Soil (Vs) = Ws = 92 lbs/ft3 Gs * γw (2.70)*(62.4 lbs) Vs = 0.55 ft3

  25. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vol Soil (Vs) = Ws = 92 lbs/ft3 Gs * γw (2.70)*(62.4 lbs) Vs = 0.55 ft3 Vol Voids (Vv) = Vt - Vs

  26. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vol Soil (Vs) = Ws = 92 lbs/ft3 Gs * γw (2.70)*(62.4 lbs) Vs = 0.55 ft3 Vol Voids (Vv) = Vt - Vs Vv = 1 – 0.55 Vv = 0.45 ft3 (we will use this value later…)

  27. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vv = 0.45 ft3 Vw = Ww = 14 lbs/ft3 γw 62.4 lbs

  28. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vw = Ww = 14 lbs/ft3 γw 62.4 lbs Vw = 0.22 ft3

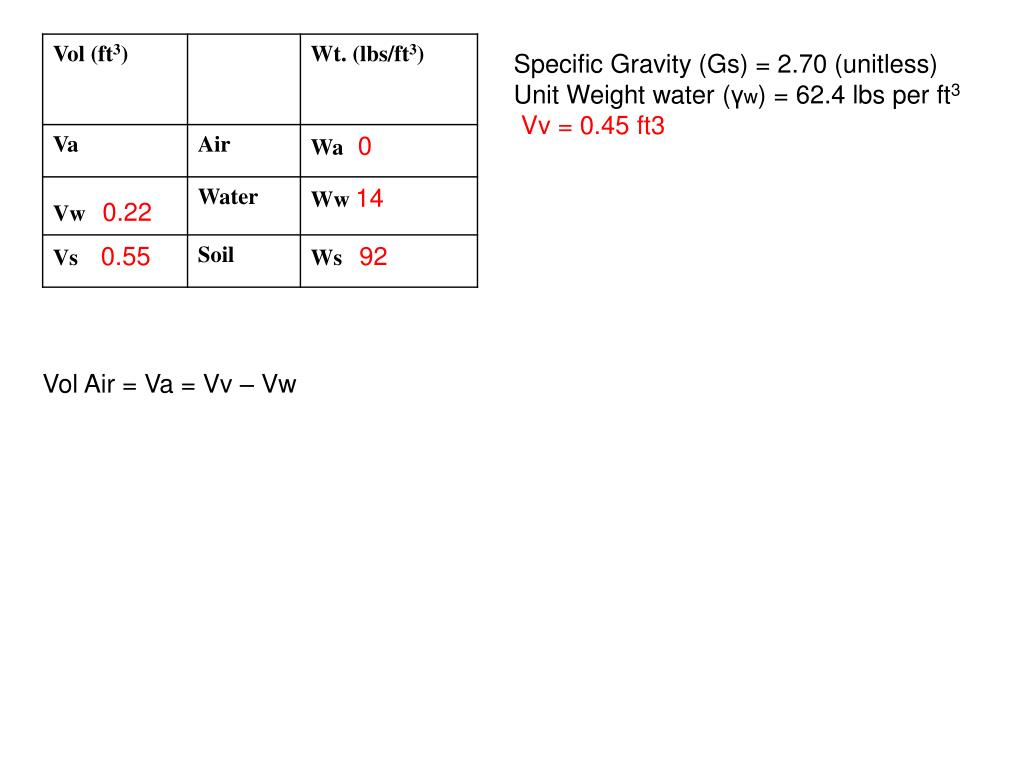

  29. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vv = 0.45 ft3 Vol Air = Va = Vv – Vw

  30. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vv = 0.45 ft3 Vol Air = Va = Vv – Vw Va = 0.45 – 0.22

  31. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vol Air = Va = Vv – Vw Va = 0.45 – 0.22 Va = 0.23 ft3

  32. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Vv = 0.45 ft3 Void Ratio (e) = Vv Vs

  33. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Void Ratio (e) = Vv Vs = 0.45 0.55

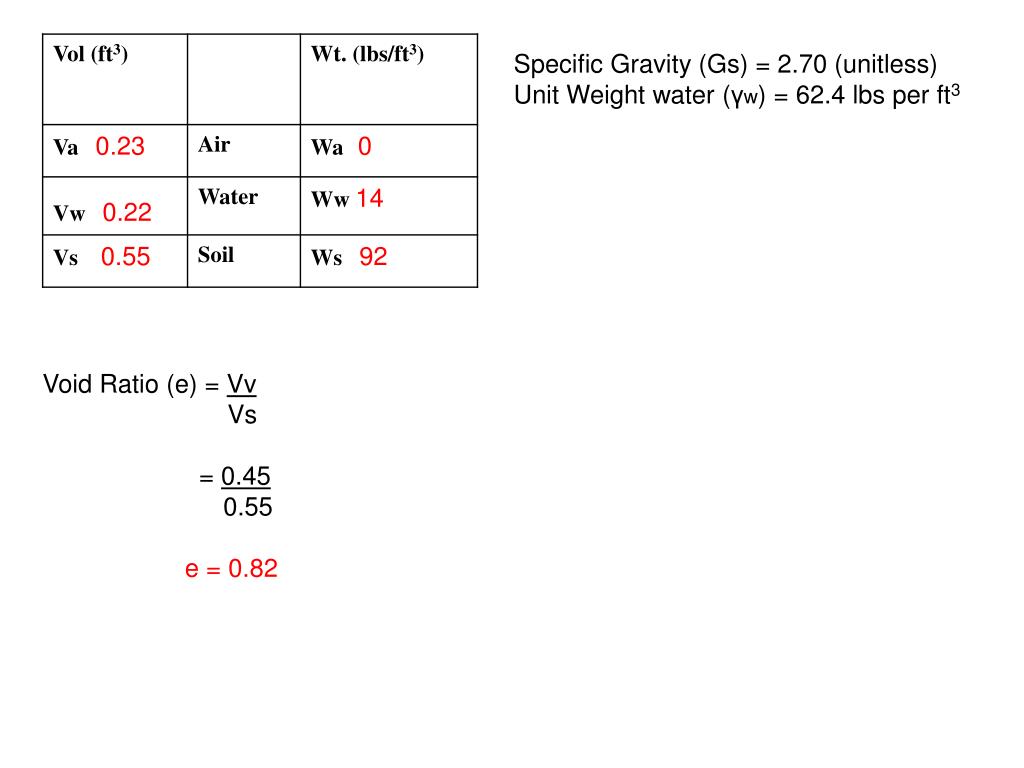

  34. Specific Gravity (Gs) = 2.70 (unitless) Unit Weight water (γw) = 62.4 lbs per ft3 Void Ratio (e) = Vv Vs = 0.45 0.55 e = 0.82

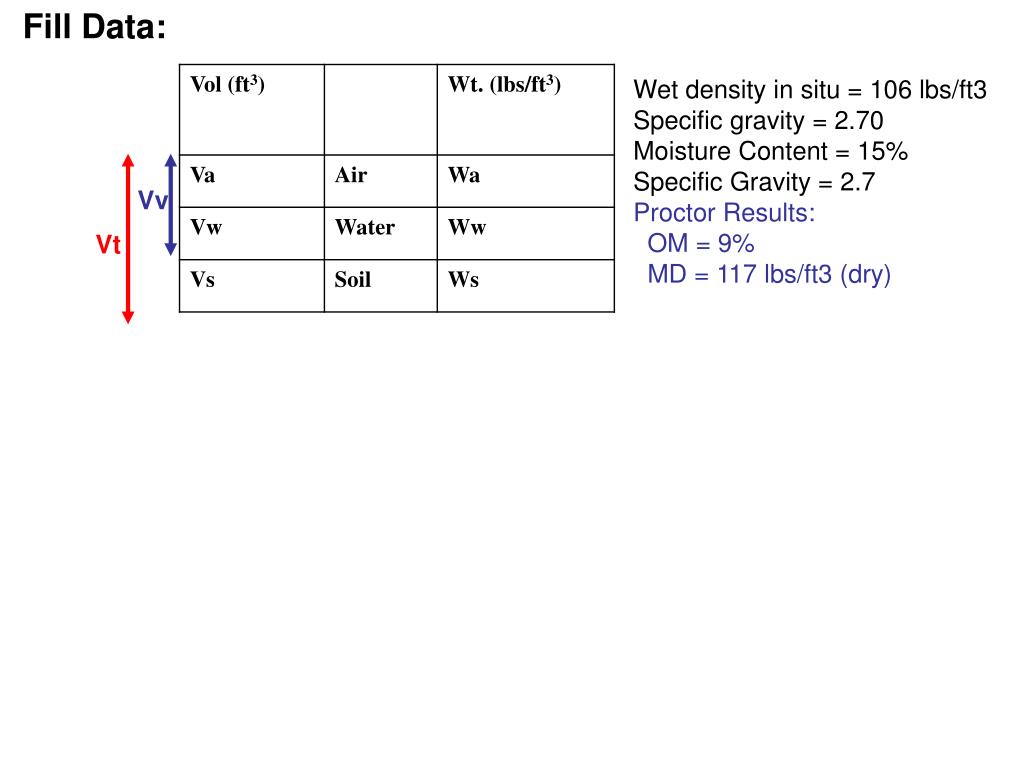

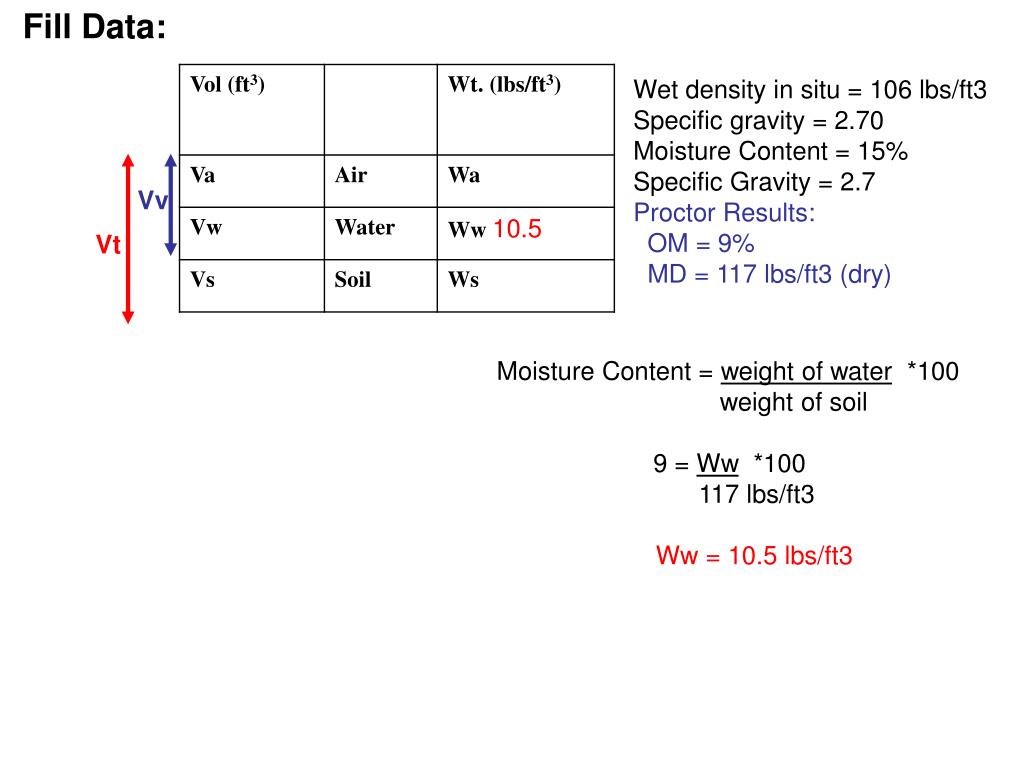

  35. Fill Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Specific Gravity = 2.7 Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Vv Vt

  36. Fill Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Specific Gravity = 2.7 Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Vv Vt Moisture Content = weight of water *100 weight of soil

  37. Fill Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Specific Gravity = 2.7 Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Vv Vt Moisture Content = weight of water *100 weight of soil 9 = Ww *100 117 lbs/ft3

  38. Fill Data: Wet density in situ = 106 lbs/ft3 Specific gravity = 2.70 Moisture Content = 15% Specific Gravity = 2.7 Proctor Results: OM = 9% MD = 117 lbs/ft3 (dry) Vv Vt Moisture Content = weight of water *100 weight of soil 9 = Ww *100 117 lbs/ft3 Ww = 10.5 lbs/ft3
