chapter 14 windows and applets

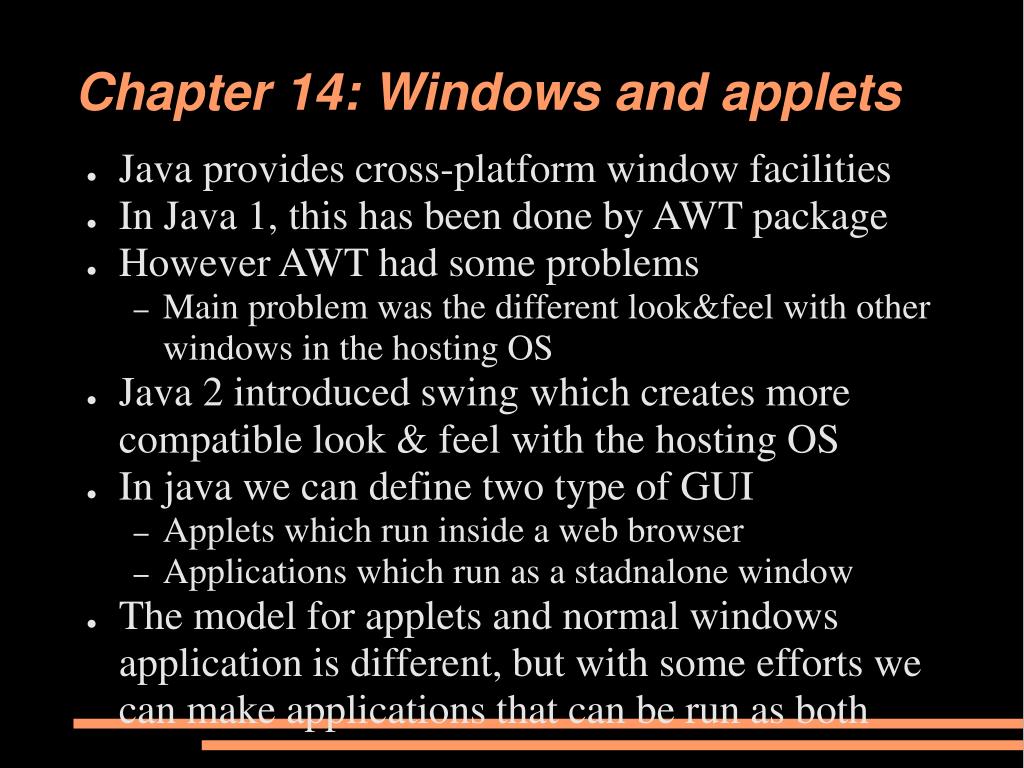

Chapter 14: Windows and applets
  • Java provides cross-platform window facilities
  • In Java 1, this has been done by AWT package
  • However AWT had some problems
    • Main problem was the different look&feel with other windows in the hosting OS
  • Java 2 introduced swing which creates more compatible look & feel with the hosting OS
  • In java we can define two type of GUI
    • Applets which run inside a web browser
    • Applications which run as a stadnalone window
  • The model for applets and normal windows application is different, but with some efforts we can make applications that can be run as both
applets

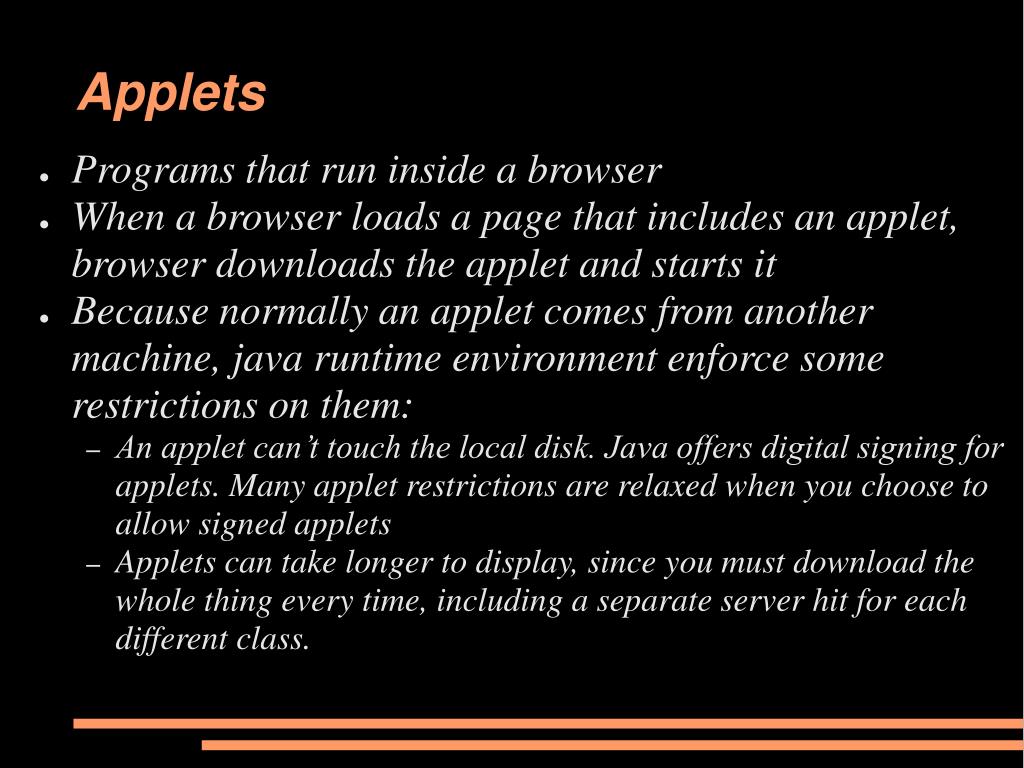

Applets
  • Programs that run inside a browser
  • When a browser loads a page that includes an applet, browser downloads the applet and starts it
  • Because normally an applet comes from another machine, java runtime environment enforce some restrictions on them:
    • An applet can’t touch the local disk. Java offers digital signing for applets. Many applet restrictions are relaxed when you choose to allow signed applets
    • Applets can take longer to display, since you must download the whole thing every time, including a separate server hit for each different class.
application framework for applets

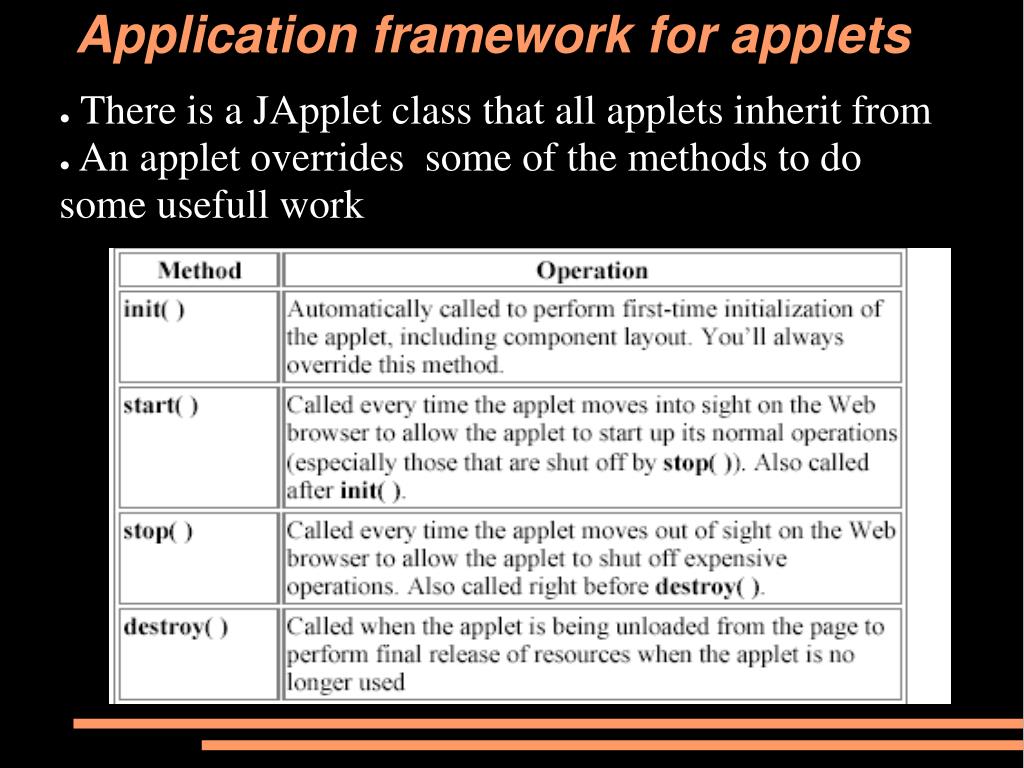

Application framework for applets
  • There is a JApplet class that all applets inherit from
  • An applet overrides some of the methods to do some usefull work
a simple applet

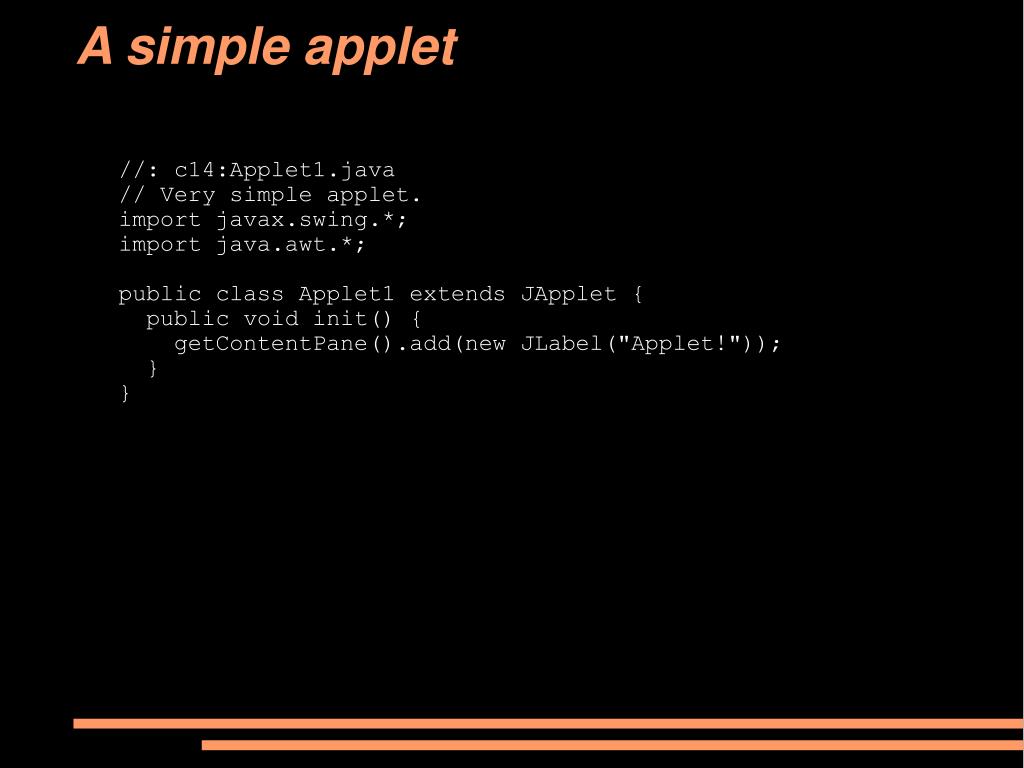

A simple applet

//: c14:Applet1.java

// Very simple applet.

import javax.swing.*;

import java.awt.*;

public class Applet1 extends JApplet {

public void init() {

getContentPane().add(new JLabel("Applet!"));

}

}

running inside a browser

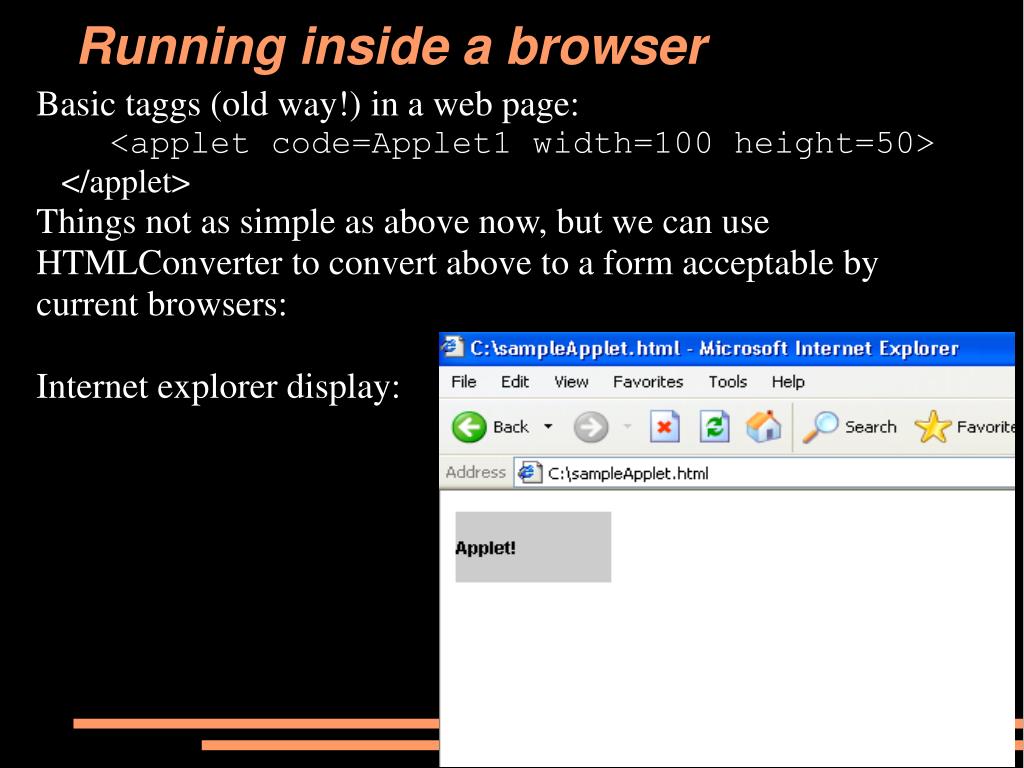

Running inside a browser

Basic taggs (old way!) in a web page:

<applet code=Applet1 width=100 height=50>

</applet>

Things not as simple as above now, but we can use HTMLConverter to convert above to a form acceptable by current browsers:

Internet explorer display:

running applet as an application

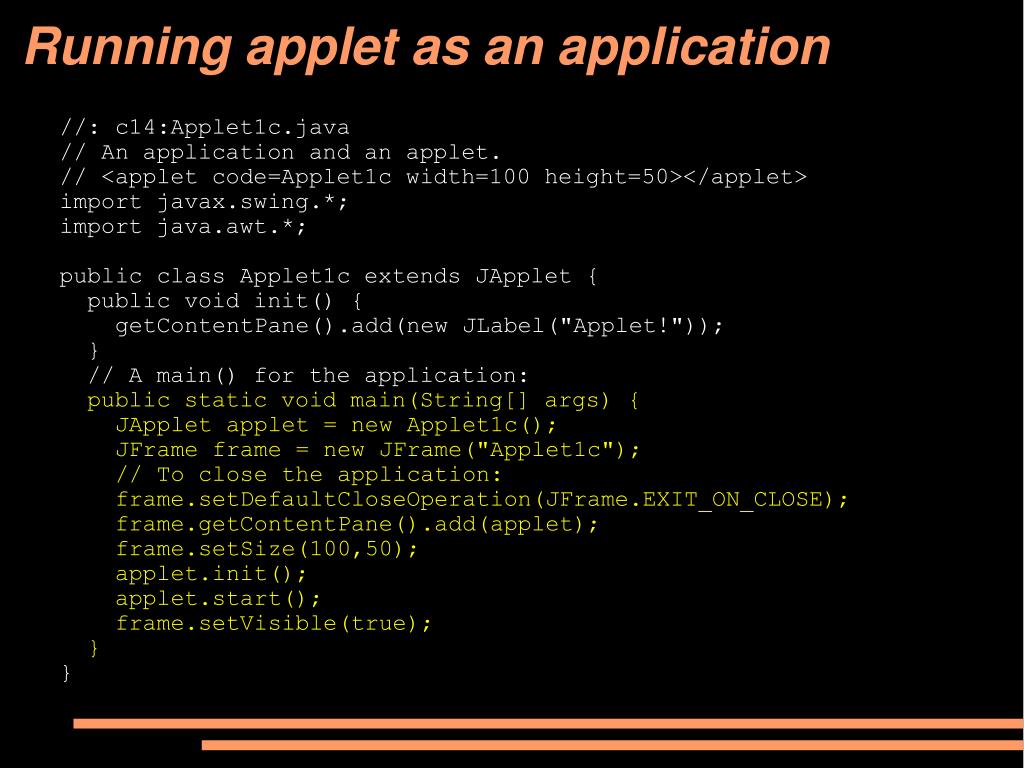

Running applet as an application

//: c14:Applet1c.java

// An application and an applet.

// <applet code=Applet1c width=100 height=50></applet>

import javax.swing.*;

import java.awt.*;

public class Applet1c extends JApplet {

public void init() {

getContentPane().add(new JLabel("Applet!"));

}

// A main() for the application:

public static void main(String[] args) {

JApplet applet = new Applet1c();

JFrame frame = new JFrame("Applet1c");

// To close the application:

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

frame.getContentPane().add(applet);

frame.setSize(100,50);

applet.init();

applet.start();

frame.setVisible(true);

}

}

a display framework

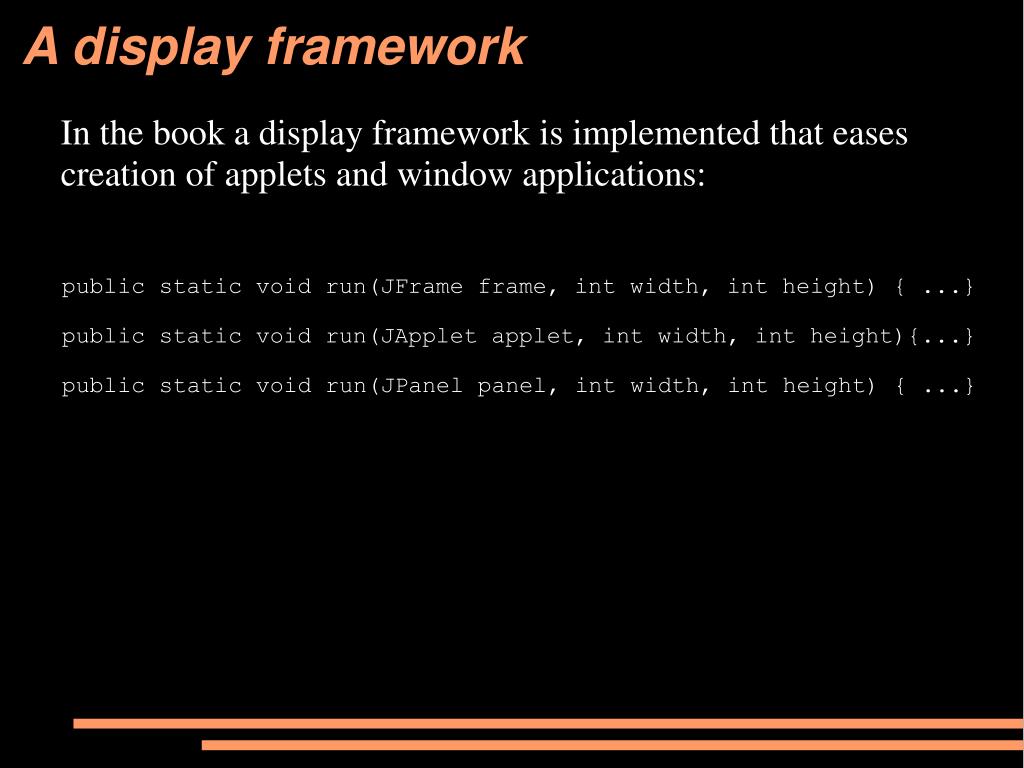

A display framework

In the book a display framework is implemented that eases creation of applets and window applications:

public static void run(JFrame frame, int width, int height) { ...}

public static void run(JApplet applet, int width, int height){...}

public static void run(JPanel panel, int width, int height) { ...}

putting buttons

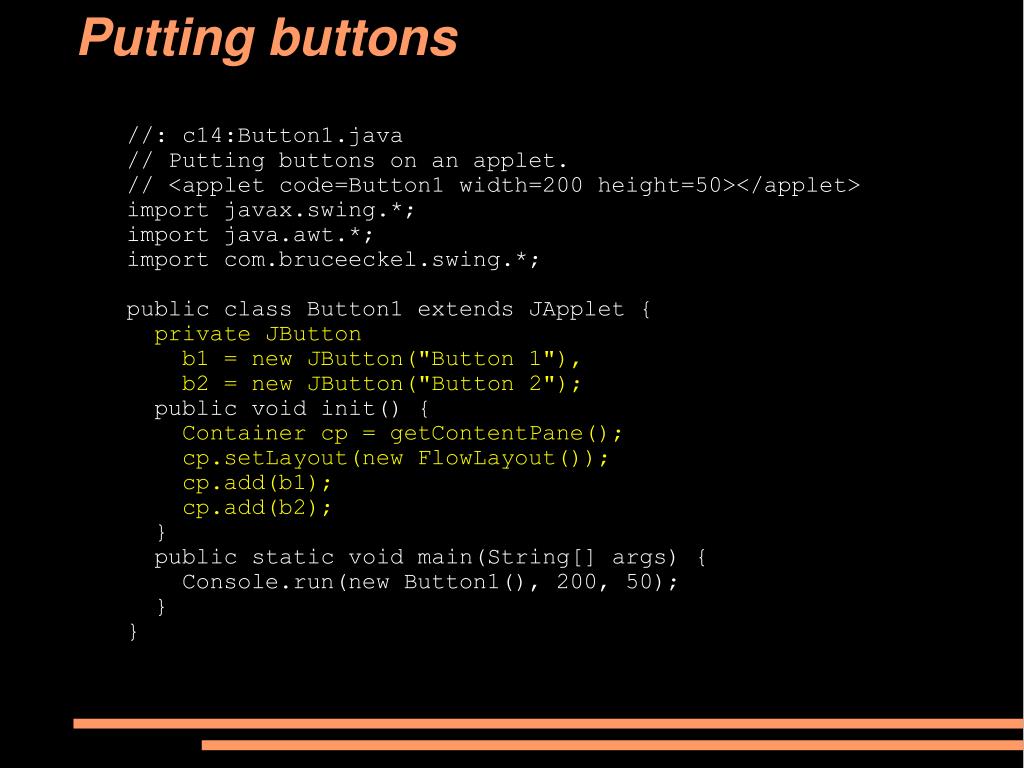

Putting buttons

//: c14:Button1.java

// Putting buttons on an applet.

// <applet code=Button1 width=200 height=50></applet>

import javax.swing.*;

import java.awt.*;

import com.bruceeckel.swing.*;

public class Button1 extends JApplet {

private JButton

b1 = new JButton("Button 1"),

b2 = new JButton("Button 2");

public void init() {

Container cp = getContentPane();

cp.setLayout(new FlowLayout());

cp.add(b1);

cp.add(b2);

}

public static void main(String[] args) {

Console.run(new Button1(), 200, 50);

}

}

capturing an event

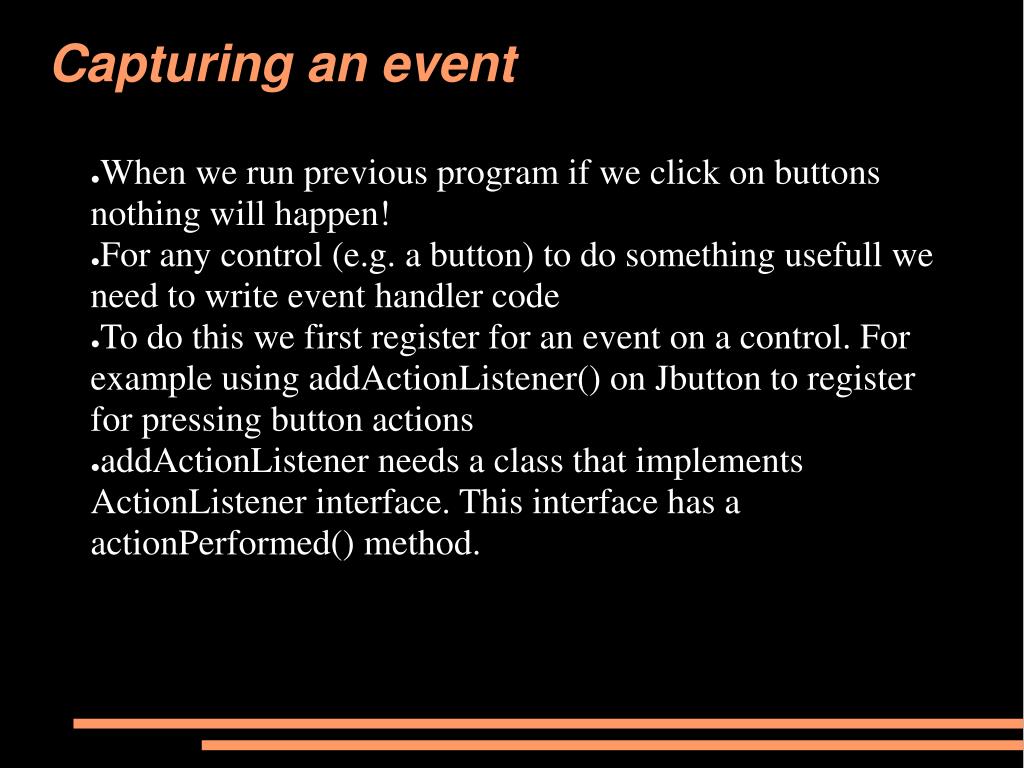

Capturing an event
  • When we run previous program if we click on buttons nothing will happen!
  • For any control (e.g. a button) to do something usefull we need to write event handler code
  • To do this we first register for an event on a control. For example using addActionListener() on Jbutton to register for pressing button actions
  • addActionListener needs a class that implements ActionListener interface. This interface has a actionPerformed() method.
example of event capturing

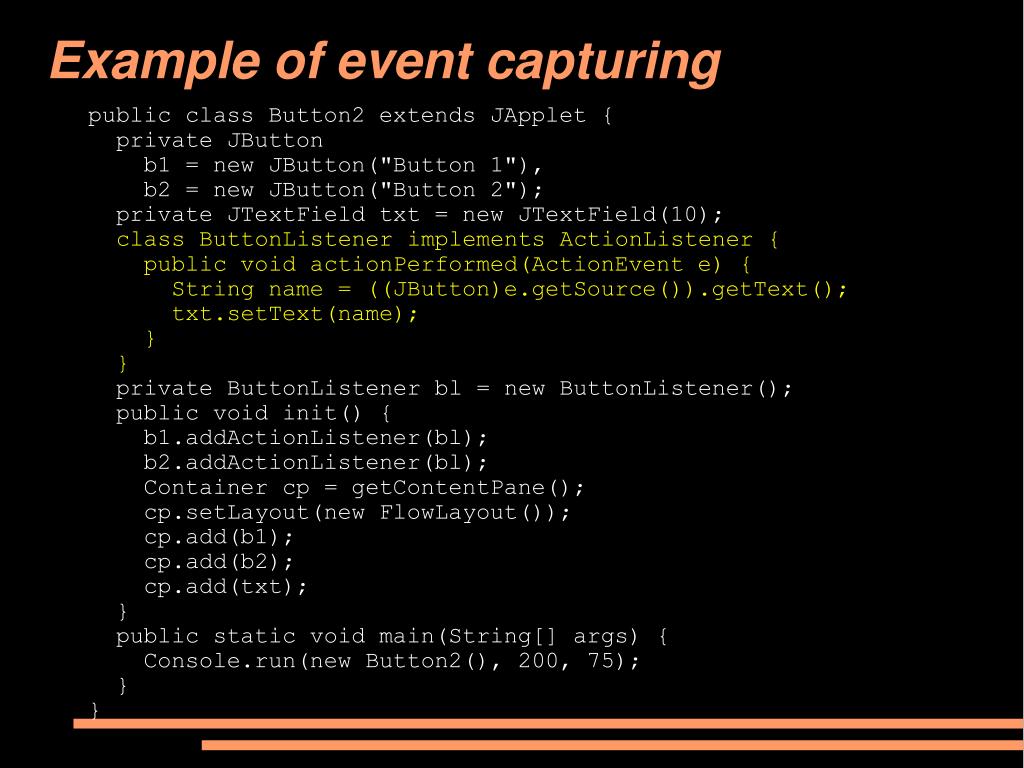

Example of event capturing

public class Button2 extends JApplet {

private JButton

b1 = new JButton("Button 1"),

b2 = new JButton("Button 2");

private JTextField txt = new JTextField(10);

class ButtonListener implements ActionListener {

public void actionPerformed(ActionEvent e) {

String name = ((JButton)e.getSource()).getText();

txt.setText(name);

}

}

private ButtonListener bl = new ButtonListener();

public void init() {

b1.addActionListener(bl);

b2.addActionListener(bl);

Container cp = getContentPane();

cp.setLayout(new FlowLayout());

cp.add(b1);

cp.add(b2);

cp.add(txt);

}

public static void main(String[] args) {

Console.run(new Button2(), 200, 75);

}

}

runnin the example

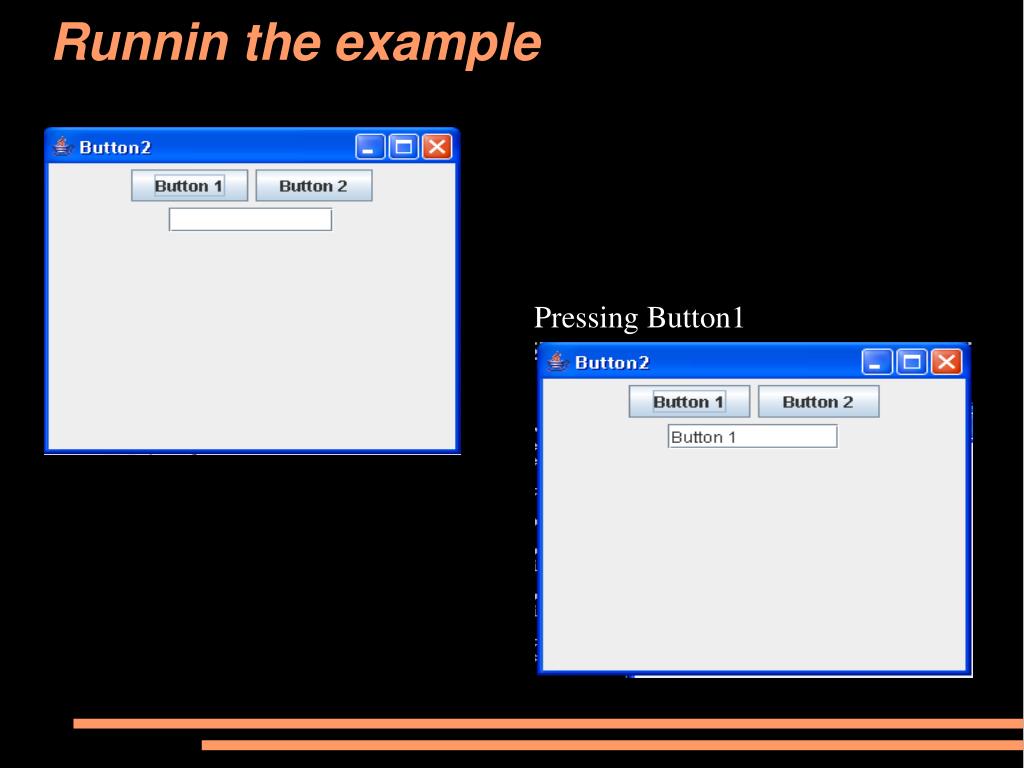

Runnin the example

Pressing Button1

controlling layout layout manager borderlayout

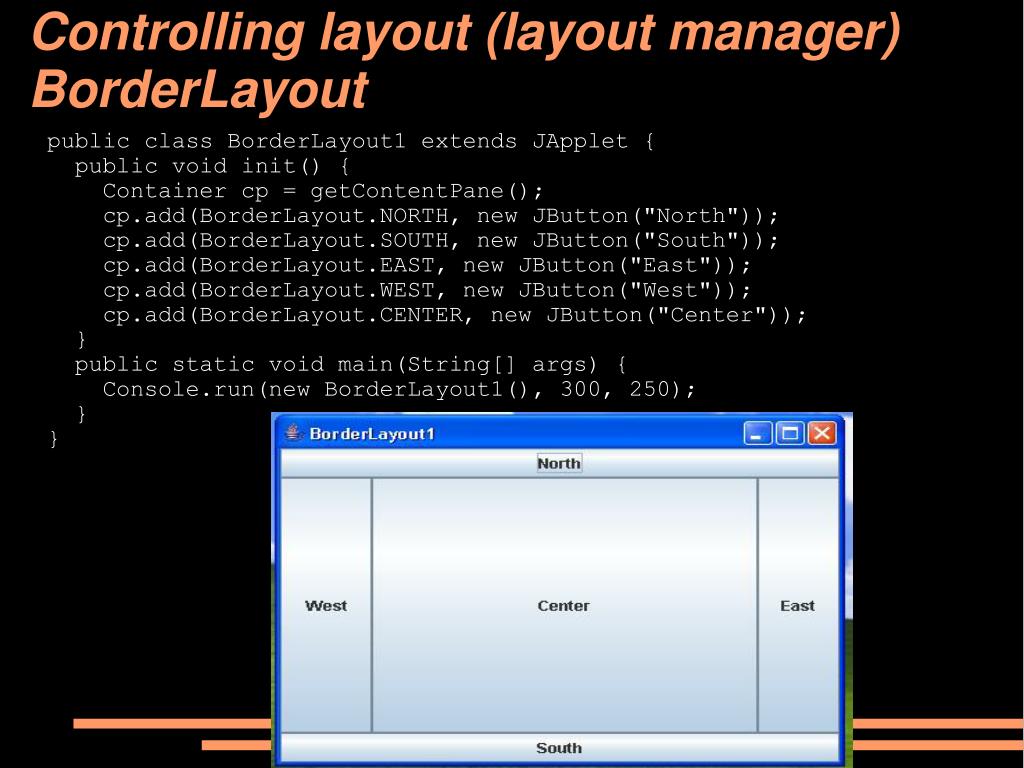

Controlling layout (layout manager) BorderLayout

public class BorderLayout1 extends JApplet {

public void init() {

Container cp = getContentPane();

cp.add(BorderLayout.NORTH, new JButton("North"));

cp.add(BorderLayout.SOUTH, new JButton("South"));

cp.add(BorderLayout.EAST, new JButton("East"));

cp.add(BorderLayout.WEST, new JButton("West"));

cp.add(BorderLayout.CENTER, new JButton("Center"));

}

public static void main(String[] args) {

Console.run(new BorderLayout1(), 300, 250);

}

}

controlling layout layout manager flowlayout

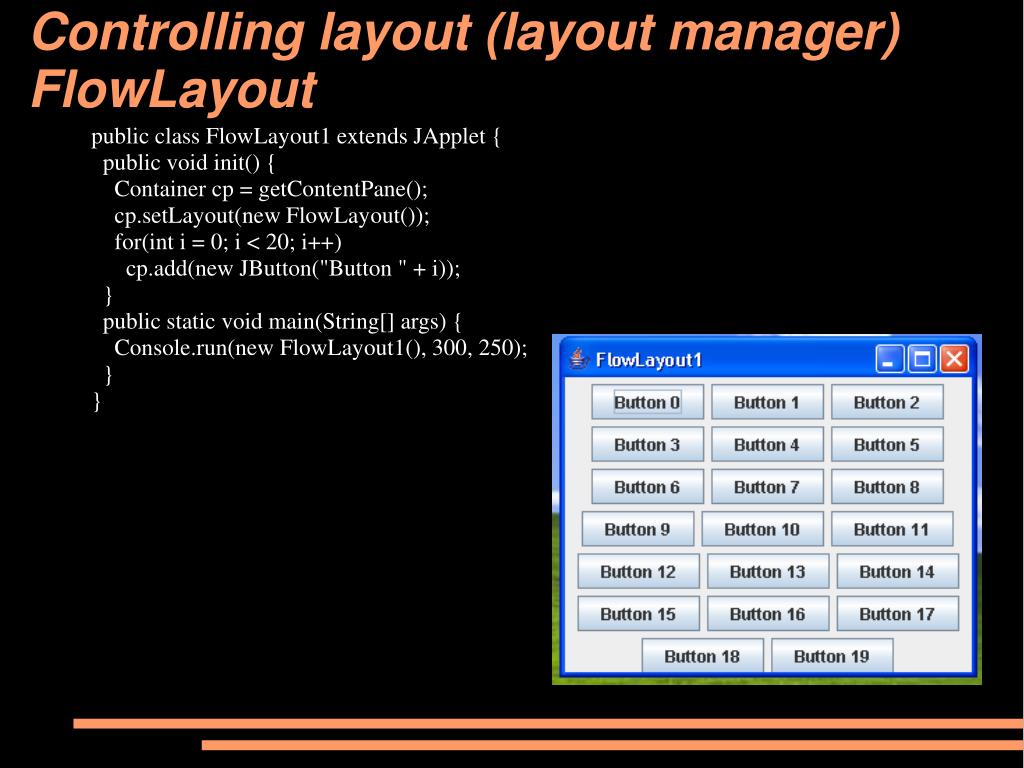

Controlling layout (layout manager) FlowLayout

public class FlowLayout1 extends JApplet {

public void init() {

Container cp = getContentPane();

cp.setLayout(new FlowLayout());

for(int i = 0; i < 20; i++)

cp.add(new JButton("Button " + i));

}

public static void main(String[] args) {

Console.run(new FlowLayout1(), 300, 250);

}

}

controlling layout layout manager gridlayout

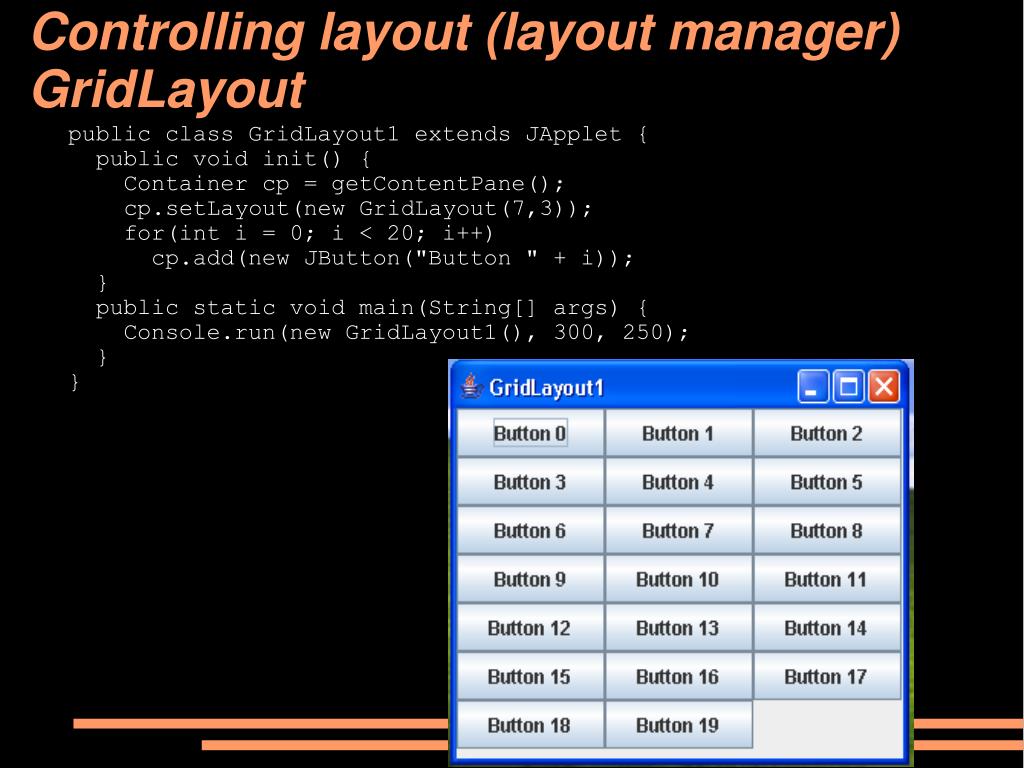

Controlling layout (layout manager) GridLayout

public class GridLayout1 extends JApplet {

public void init() {

Container cp = getContentPane();

cp.setLayout(new GridLayout(7,3));

for(int i = 0; i < 20; i++)

cp.add(new JButton("Button " + i));

}

public static void main(String[] args) {

Console.run(new GridLayout1(), 300, 250);

}

}

swing components buttons

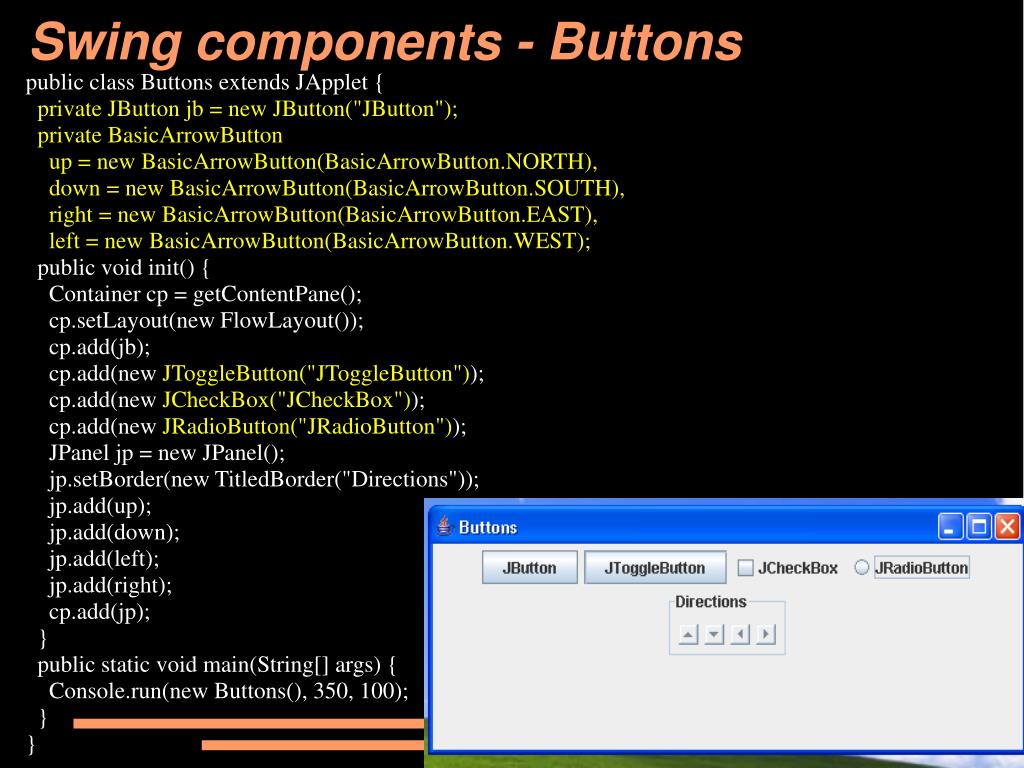

Swing components - Buttons

public class Buttons extends JApplet {

private JButton jb = new JButton("JButton");

private BasicArrowButton

up = new BasicArrowButton(BasicArrowButton.NORTH),

down = new BasicArrowButton(BasicArrowButton.SOUTH),

right = new BasicArrowButton(BasicArrowButton.EAST),

left = new BasicArrowButton(BasicArrowButton.WEST);

public void init() {

Container cp = getContentPane();

cp.setLayout(new FlowLayout());

cp.add(jb);

cp.add(new JToggleButton("JToggleButton"));

cp.add(new JCheckBox("JCheckBox"));

cp.add(new JRadioButton("JRadioButton"));

JPanel jp = new JPanel();

jp.setBorder(new TitledBorder("Directions"));

jp.add(up);

jp.add(down);

jp.add(left);

jp.add(right);

cp.add(jp);

}

public static void main(String[] args) {

Console.run(new Buttons(), 350, 100);

}

}

icons and tooltips changing jbutton and other components look and feel
Icons and tooltips-changing Jbutton and other components look and feel

faces = new Icon[] {

new ImageIcon(getClass().getResource("Face0.gif")),

new ImageIcon(getClass().getResource("Face1.gif")),

new ImageIcon(getClass().getResource("Face2.gif")),

new ImageIcon(getClass().getResource("Face3.gif")),

new ImageIcon(getClass().getResource("Face4.gif")),

};

jb = new JButton("JButton", faces[3]);

...

jb.setRolloverIcon(faces[1]);

jb.setPressedIcon(faces[2]);

jb.setDisabledIcon(faces[4]);

jb.setToolTipText("Yow!");

other components

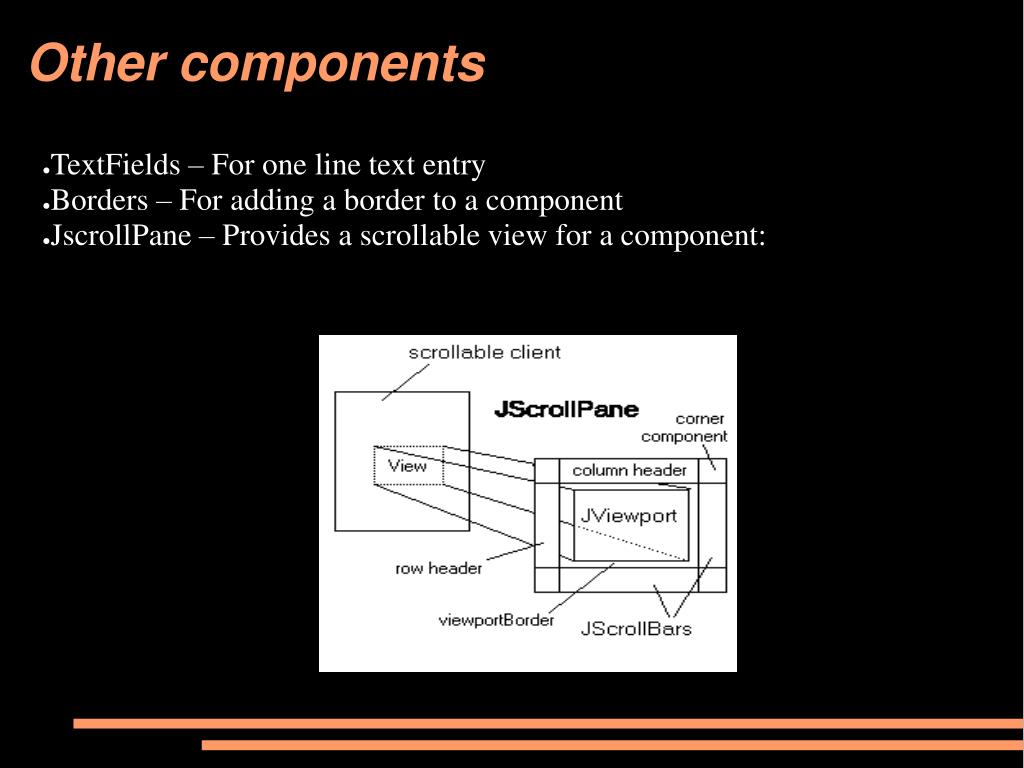

Other components
  • TextFields – For one line text entry
  • Borders – For adding a border to a component
  • JscrollPane – Provides a scrollable view for a component:
other components cont

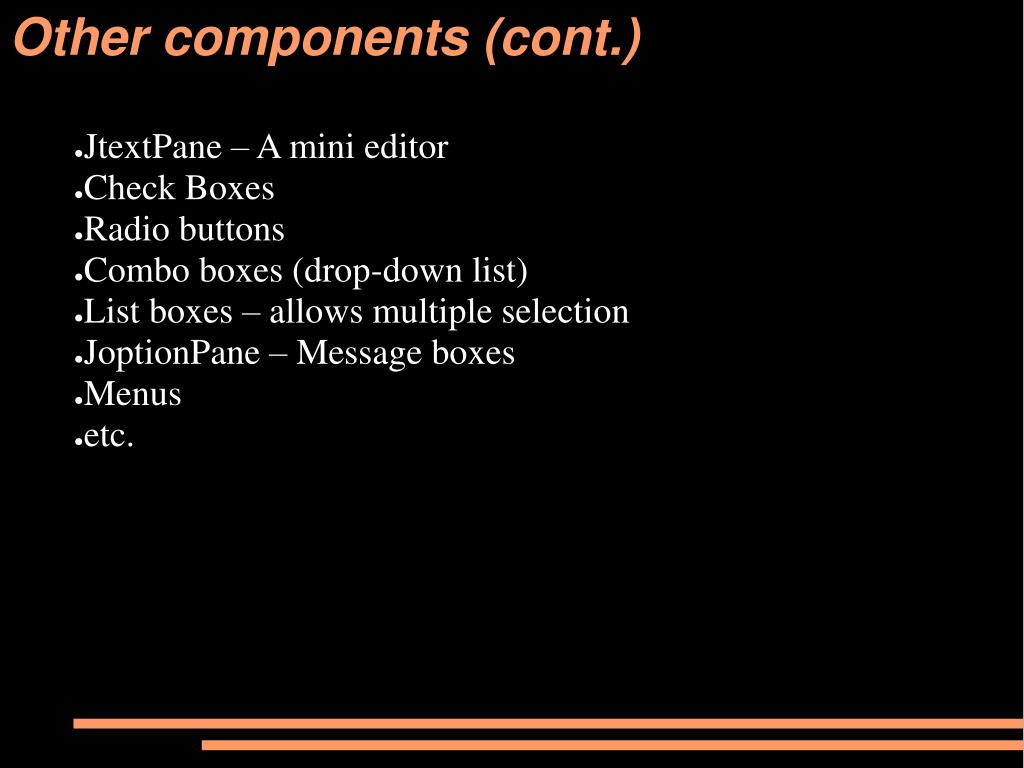

Other components (cont.)
  • JtextPane – A mini editor
  • Check Boxes
  • Radio buttons
  • Combo boxes (drop-down list)
  • List boxes – allows multiple selection
  • JoptionPane – Message boxes
  • Menus
  • etc.
drawing
Drawing

class SineDraw extends JPanel {

...

public void paintComponent(Graphics g) {

super.paintComponent(g);

int maxWidth = getWidth();

double hstep = (double)maxWidth/(double)points;

int maxHeight = getHeight(); pts = new int[points];

for(int i = 0; i < points; i++)

pts[i] = (int)(sines[i] * maxHeight/2 * .95 +

maxHeight/2);

g.setColor(Color.RED); for(int i = 1; i < points; i++) {

int x1 = (int)((i - 1) * hstep);

int x2 = (int)(i * hstep);

int y1 = pts[i-1];

int y2 = pts[i];

g.drawLine(x1, y1, x2, y2);

}

}

....

other components cont1

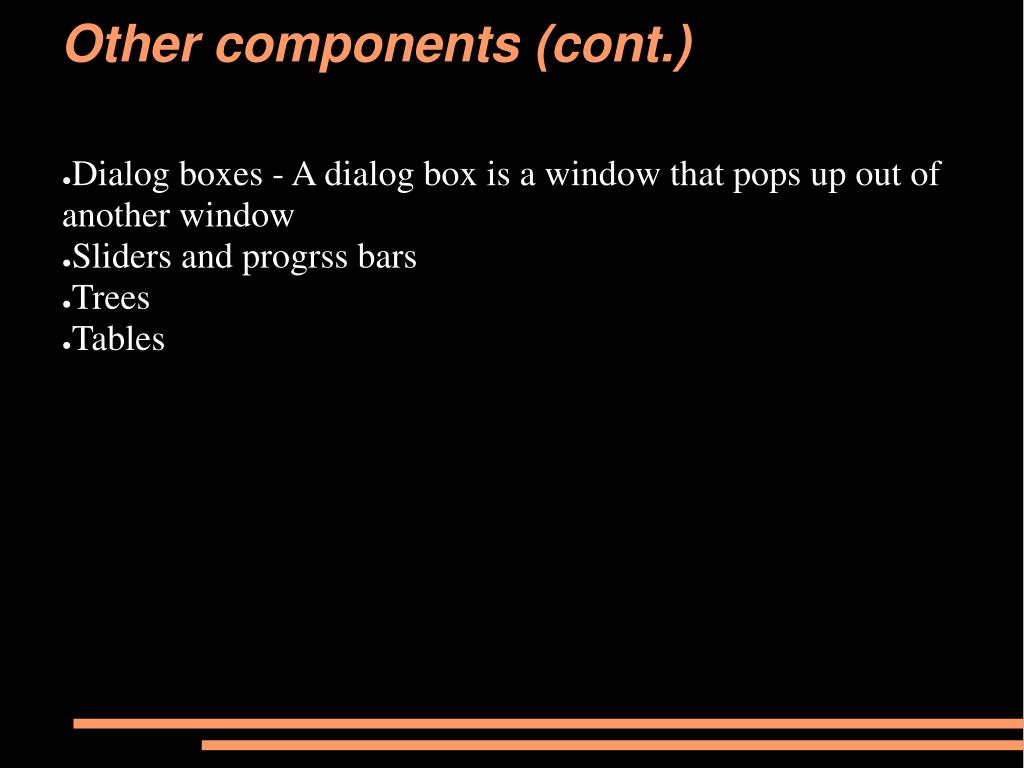

Other components (cont.)
  • Dialog boxes - A dialog box is a window that pops up out of another window
  • Sliders and progrss bars
  • Trees
  • Tables
selecting look and feel

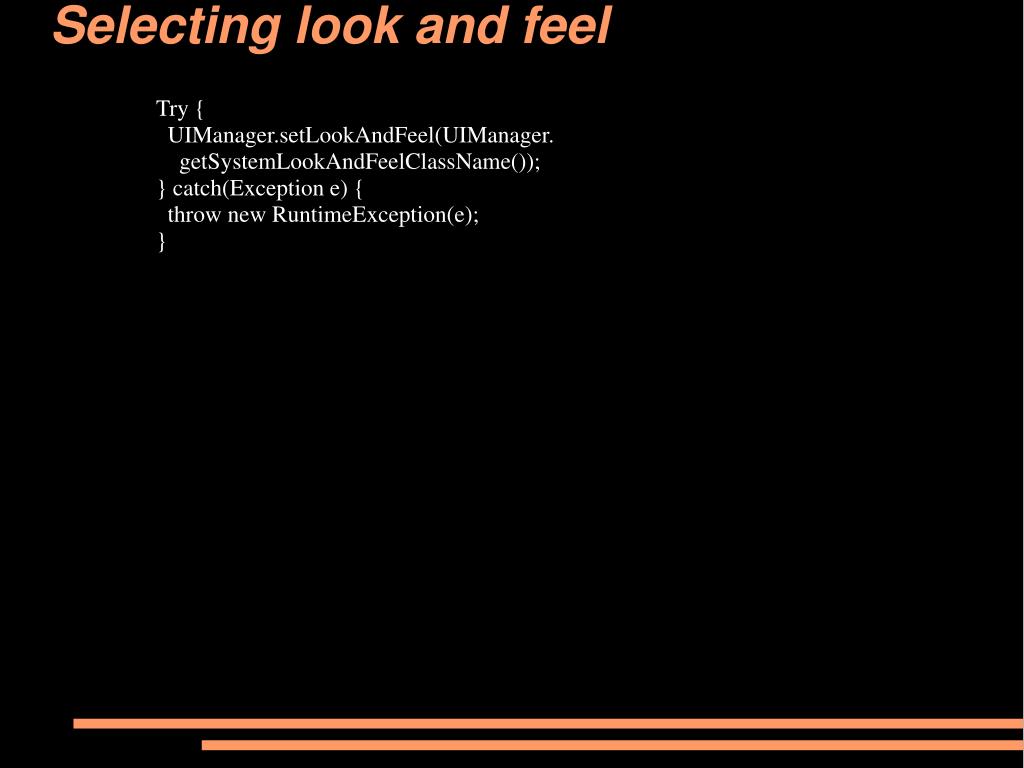

Selecting look and feel

Try {

UIManager.setLookAndFeel(UIManager.

getSystemLookAndFeelClassName());

} catch(Exception e) {

throw new RuntimeException(e);

}

binding events dynamically

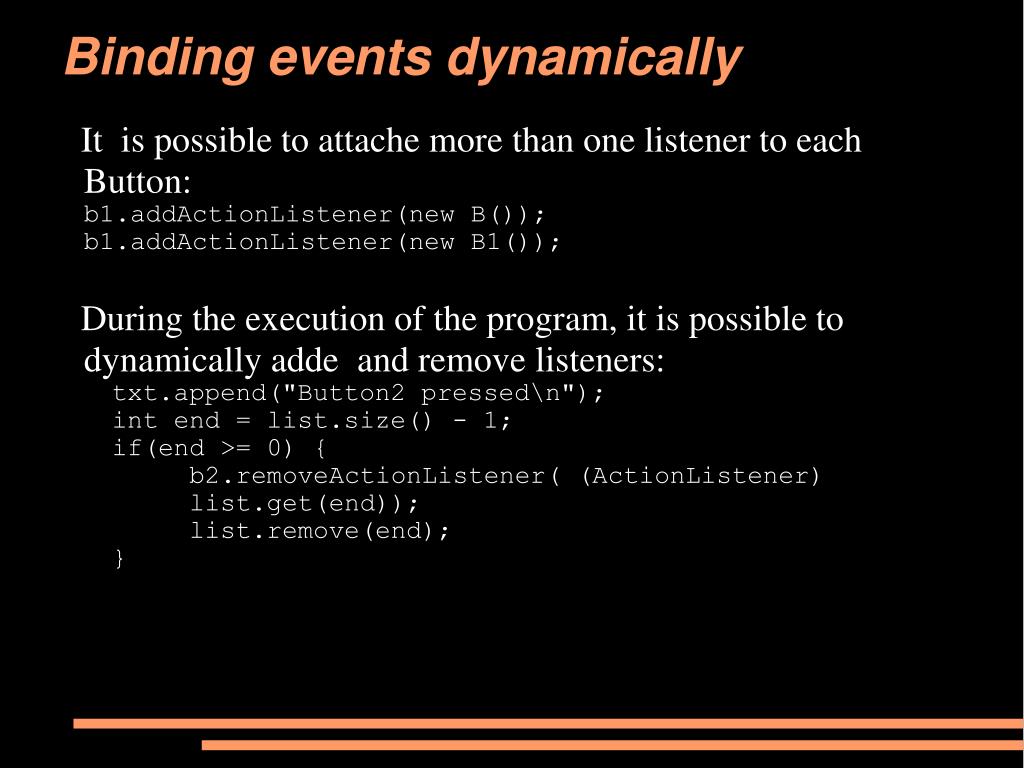

Binding events dynamically

It is possible to attache more than one listener to each Button:

b1.addActionListener(new B());

b1.addActionListener(new B1());

During the execution of the program, it is possible to dynamically adde and remove listeners:

txt.append("Button2 pressed\n");

int end = list.size() - 1;

if(end >= 0) {

b2.removeActionListener( (ActionListener)

list.get(end));

list.remove(end);

}

separating business logic from ui logic
Separating business logic from UI logic

class BusinessLogic {

private int modifier;

public BusinessLogic(int mod) { modifier = mod; }

public void setModifier(int mod) { modifier = mod; }

public int getModifier() { return modifier; }

// Some business operations:

public int calculation1(int arg){ return arg * modifier;}

}

public class Separation extends JApplet {

private JTextField

t = new JTextField(15),

mod = new JTextField(15);

private Jbutton calc1 = new JButton("Calculation 1"),

private BusinessLogic bl = new BusinessLogic(2);

public static int getValue(JTextField tf) {

try {

return Integer.parseInt(tf.getText());

} catch(NumberFormatException e) {

return 0;

}

}

class Calc1L implements ActionListener {

public void actionPerformed(ActionEvent e) {

t.setText(Integer.toString(

bl.calculation1(getValue(t))));

}

}

visual builder tools and javabeans

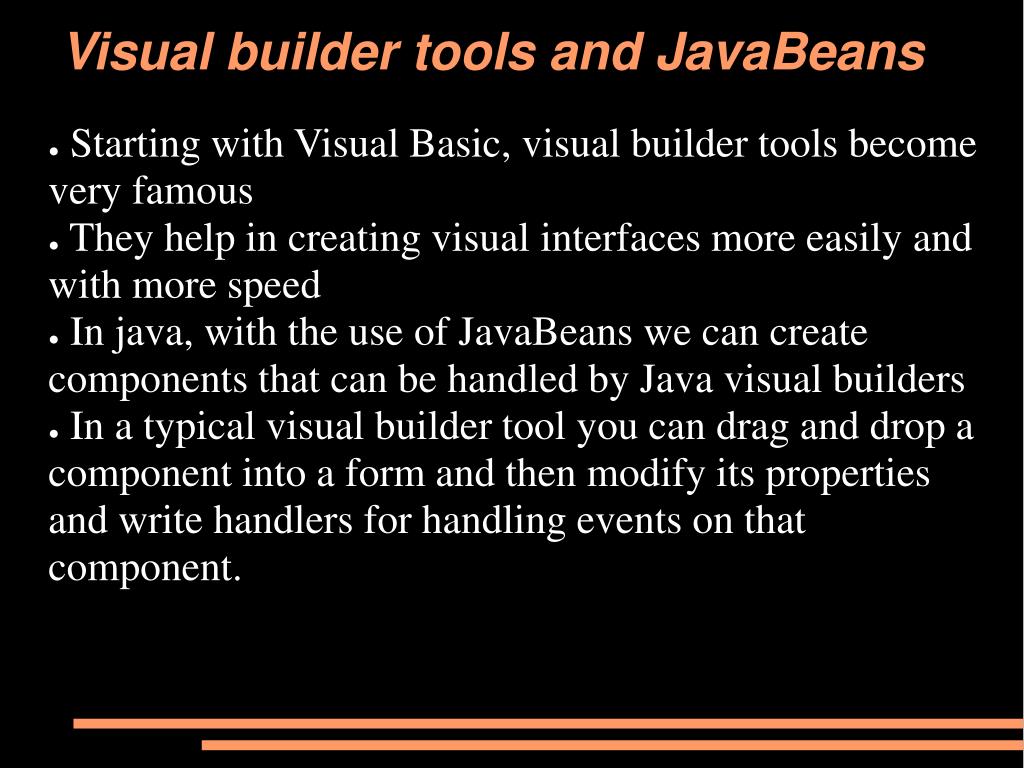

Visual builder tools and JavaBeans
  • Starting with Visual Basic, visual builder tools become very famous
  • They help in creating visual interfaces more easily and with more speed
  • In java, with the use of JavaBeans we can create components that can be handled by Java visual builders
  • In a typical visual builder tool you can drag and drop a component into a form and then modify its properties and write handlers for handling events on that component.
what is a javabean

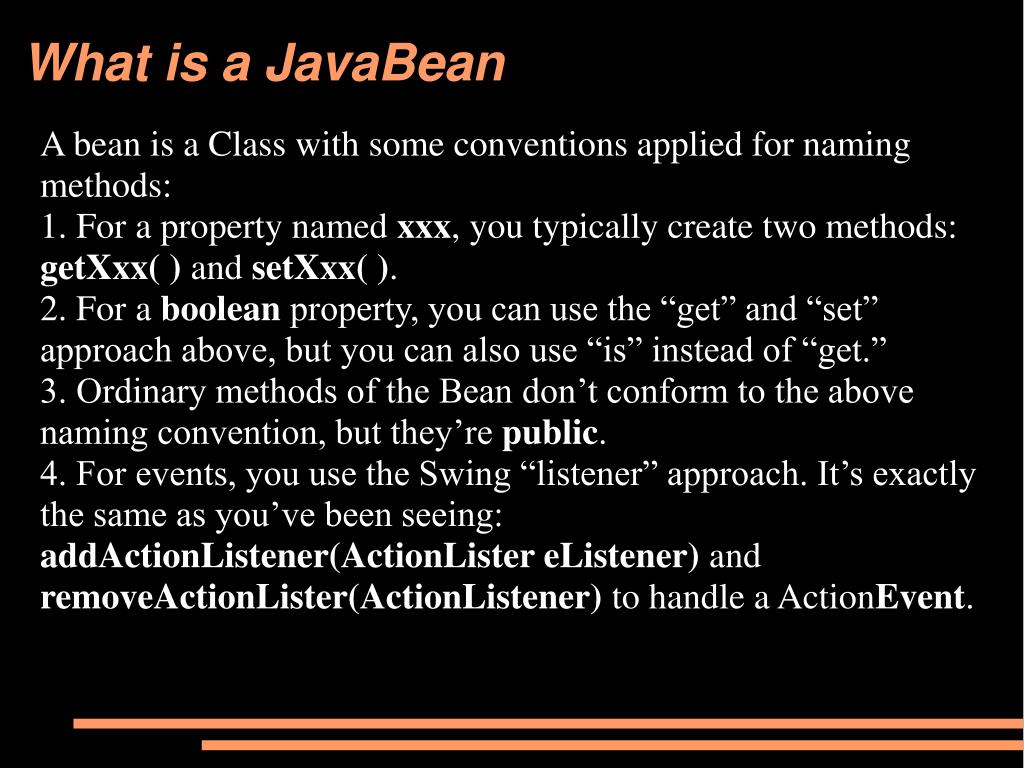

What is a JavaBean

A bean is a Class with some conventions applied for naming methods:

1. For a property named xxx, you typically create two methods: getXxx( ) and setXxx( ).

2. For a boolean property, you can use the “get” and “set” approach above, but you can also use “is” instead of “get.”

3. Ordinary methods of the Bean don’t conform to the above naming convention, but they’re public.

4. For events, you use the Swing “listener” approach. It’s exactly the same as you’ve been seeing: addActionListener(ActionLister eListener) and removeActionLister(ActionListener) to handle a ActionEvent.

javabean example
JavaBean example

public class BangBean extends JPanel implements Serializable {

private int xm, ym;

private int cSize = 20; // Circle size

private String text = "Bang!";

private int fontSize = 48;

private Color tColor = Color.RED;

private ActionListener actionListener;

public BangBean() {

addMouseListener(new ML());

addMouseMotionListener(new MML());

}

public int getCircleSize() { return cSize; }

public void setCircleSize(int newSize) {

cSize = newSize;

}

public String getBangText() { return text; }

public void setBangText(String newText) {

text = newText;

}

public int getFontSize() { return fontSize; }

public void setFontSize(int newSize) {

fontSize = newSize;

}

javabean example cont
JavaBean example (cont.)

public Color getTextColor() { return tColor; }

public void setTextColor(Color newColor) {

tColor = newColor;

}

public void paintComponent(Graphics g) {

super.paintComponent(g);

g.setColor(Color.BLACK);

g.drawOval(xm - cSize/2, ym - cSize/2, cSize, cSize);

}

// This is a unicast listener, which is

// the simplest form of listener management:

public void addActionListener(ActionListener l)

throws TooManyListenersException {

if(actionListener != null)

throw new TooManyListenersException();

actionListener = l;

}

public void removeActionListener(ActionListener l) {

actionListener = null;

}

...
