  1. CH1. BASIC CONCEPTS

  2. 1.1 System Life Cycle • Requirements • Gathering : Types of expression • Analysis • Elimination of ambiguities, Partition of requirements • Specification • Define what the system is to do • Functional specification • Performance specification

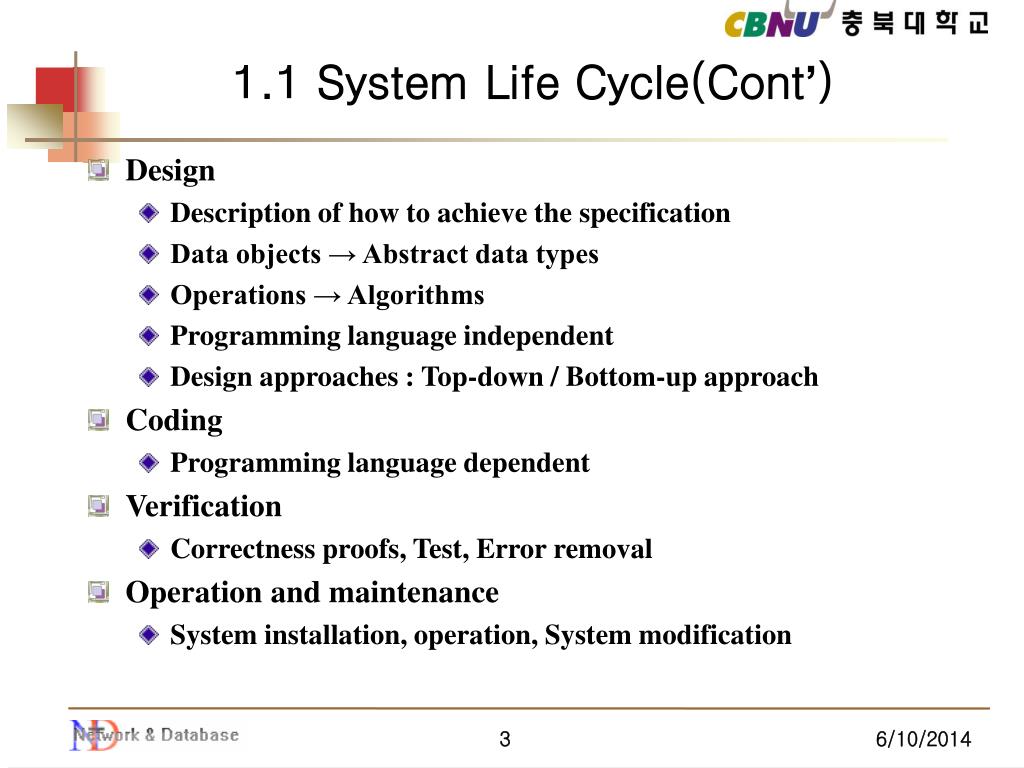

  3. 1.1 System Life Cycle(Cont’) • Design • Description of how to achieve the specification • Data objects → Abstract data types • Operations → Algorithms • Programming language independent • Design approaches : Top-down / Bottom-up approach • Coding • Programming language dependent • Verification • Correctness proofs, Test, Error removal • Operation and maintenance • System installation, operation, System modification

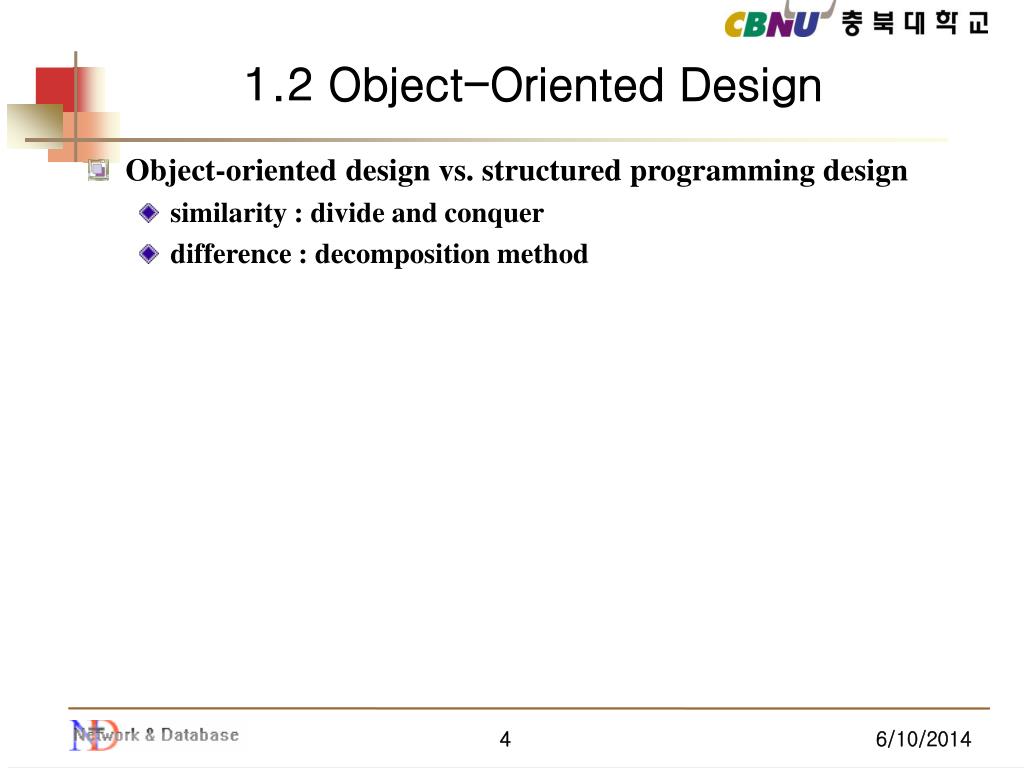

  4. 1.2 Object-Oriented Design • Object-oriented design vs. structured programming design • similarity : divide and conquer • difference : decomposition method

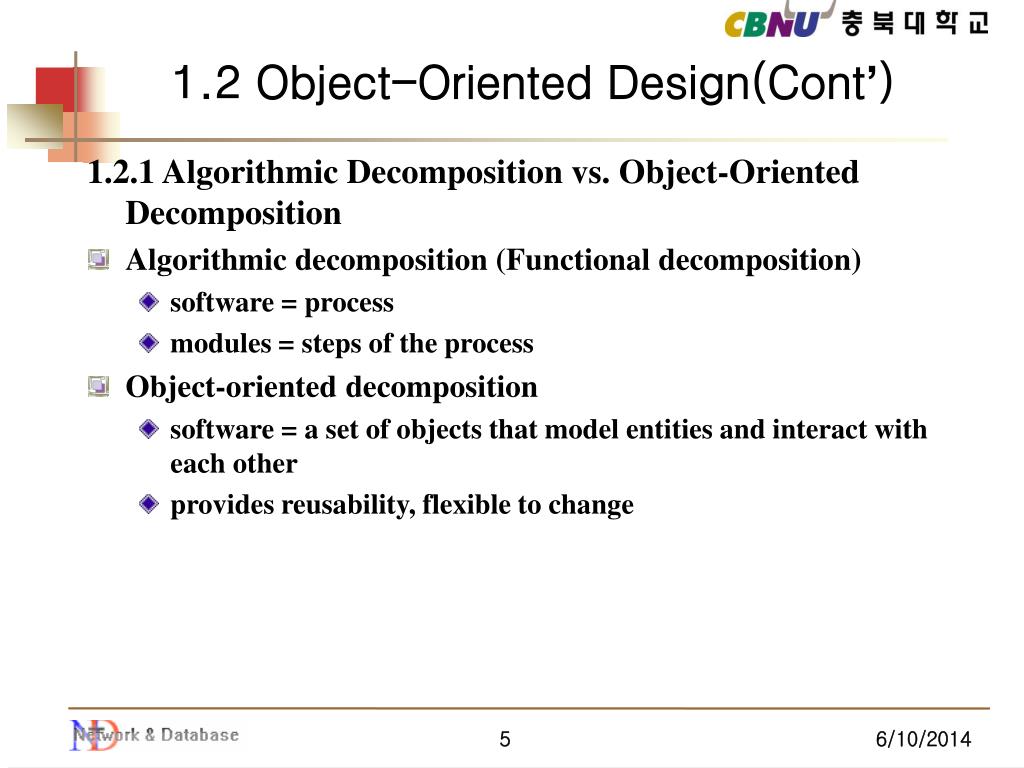

  5. 1.2 Object-Oriented Design(Cont’) 1.2.1 Algorithmic Decomposition vs. Object-Oriented Decomposition • Algorithmic decomposition (Functional decomposition) • software = process • modules = steps of the process • Object-oriented decomposition • software = a set of objects that model entities and interact with each other • provides reusability, flexible to change

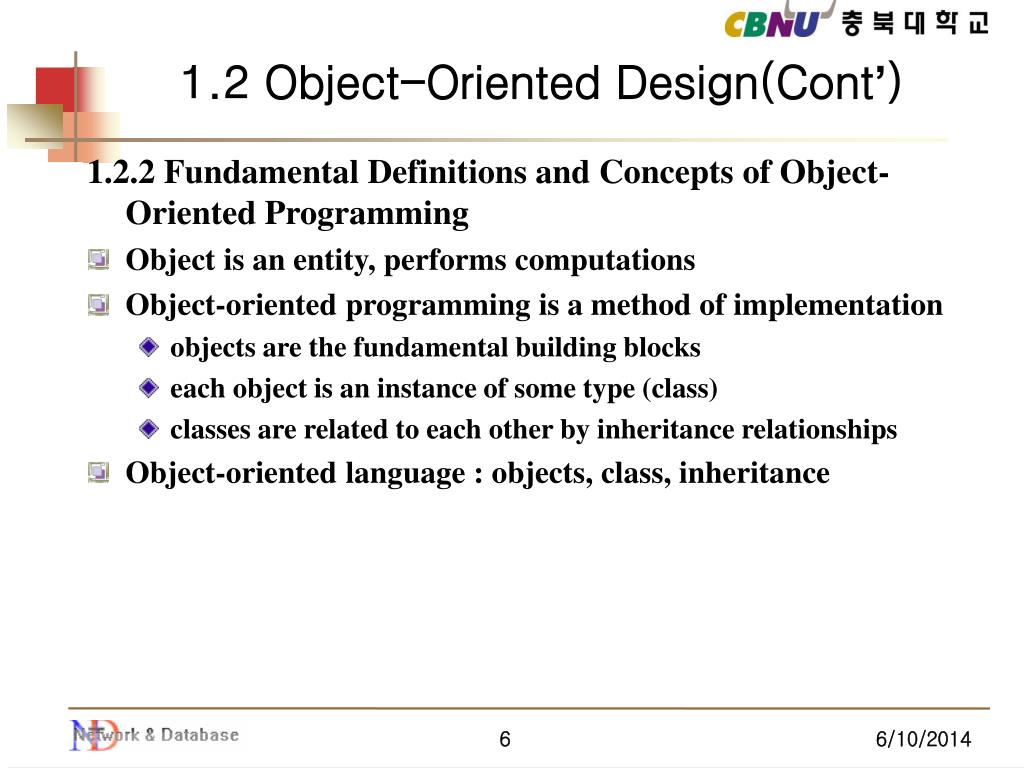

  6. 1.2 Object-Oriented Design(Cont’) 1.2.2 Fundamental Definitions and Concepts of Object-Oriented Programming • Object is an entity, performs computations • Object-oriented programming is a method of implementation • objects are the fundamental building blocks • each object is an instance of some type (class) • classes are related to each other by inheritance relationships • Object-oriented language : objects, class, inheritance

  7. 1.3 Data Abstraction and Encapsulation • Data encapsulation (Information hiding) • concealing of the implementation of a data object from the outside world • Data abstraction • separation of the specification of a data object from its implementation • C++ data types • fundamental data types • char, int, float, double • modifiers: short, long, signed, unsigned • derived data types • pointer, reference • grouping mechanisms • array, struct, class • user-defined data types

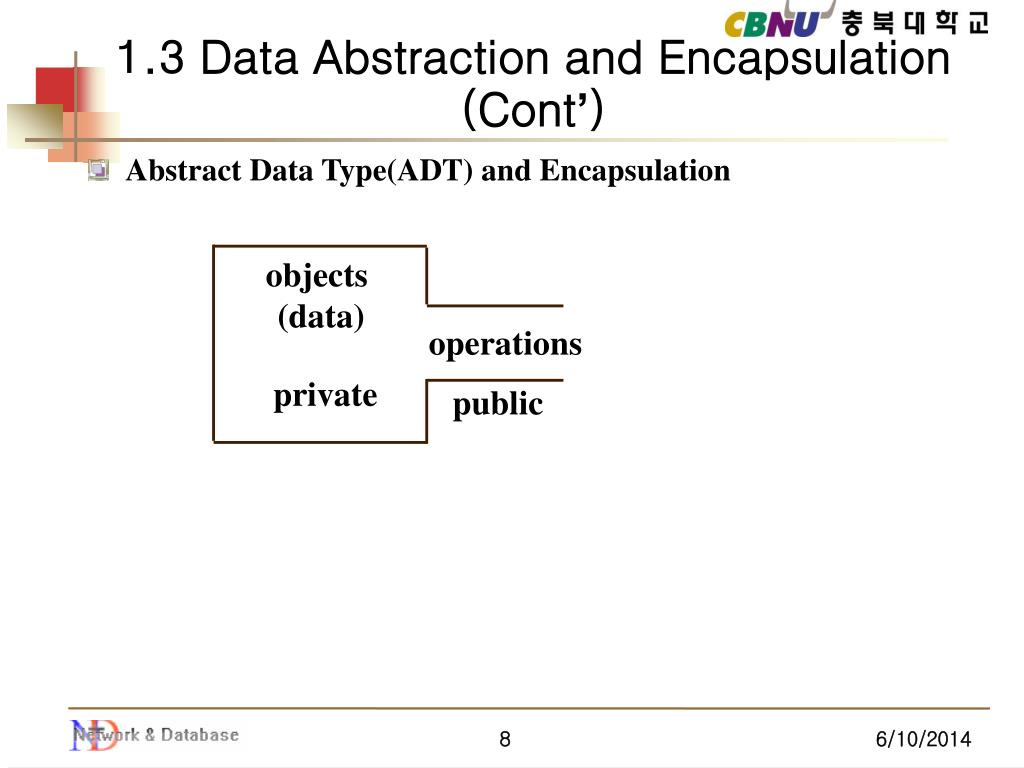

  8. 1.3 Data Abstraction and Encapsulation (Cont’) • Abstract Data Type(ADT) and Encapsulation objects (data) operations private public

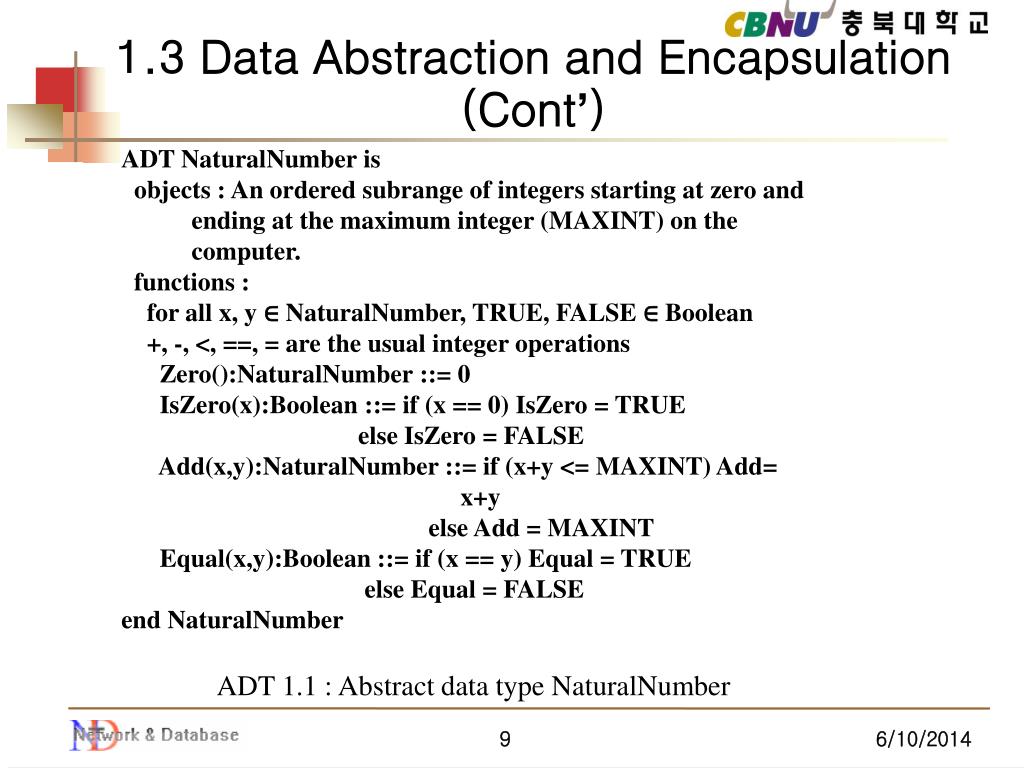

  9. 1.3 Data Abstraction and Encapsulation (Cont’) ADT NaturalNumber is   objects : An ordered subrange of integers starting at zero and             ending at the maximum integer (MAXINT) on the            computer.   functions :     for all x, y ∈ NaturalNumber, TRUE, FALSE ∈ Boolean     +, -, <, ==, = are the usual integer operations       Zero():NaturalNumber ::= 0       IsZero(x):Boolean ::= if (x == 0) IsZero = TRUE                                      else IsZero = FALSE       Add(x,y):NaturalNumber ::= if (x+y <= MAXINT) Add=                                     x+y                                               else Add = MAXINT       Equal(x,y):Boolean ::= if (x == y) Equal = TRUE                                       else Equal = FALSE end NaturalNumber ADT 1.1 : Abstract data type NaturalNumber

  10. 1.3 Data Abstraction and Encapsulation (Cont’) Figure 1.1 : Search area for bugs

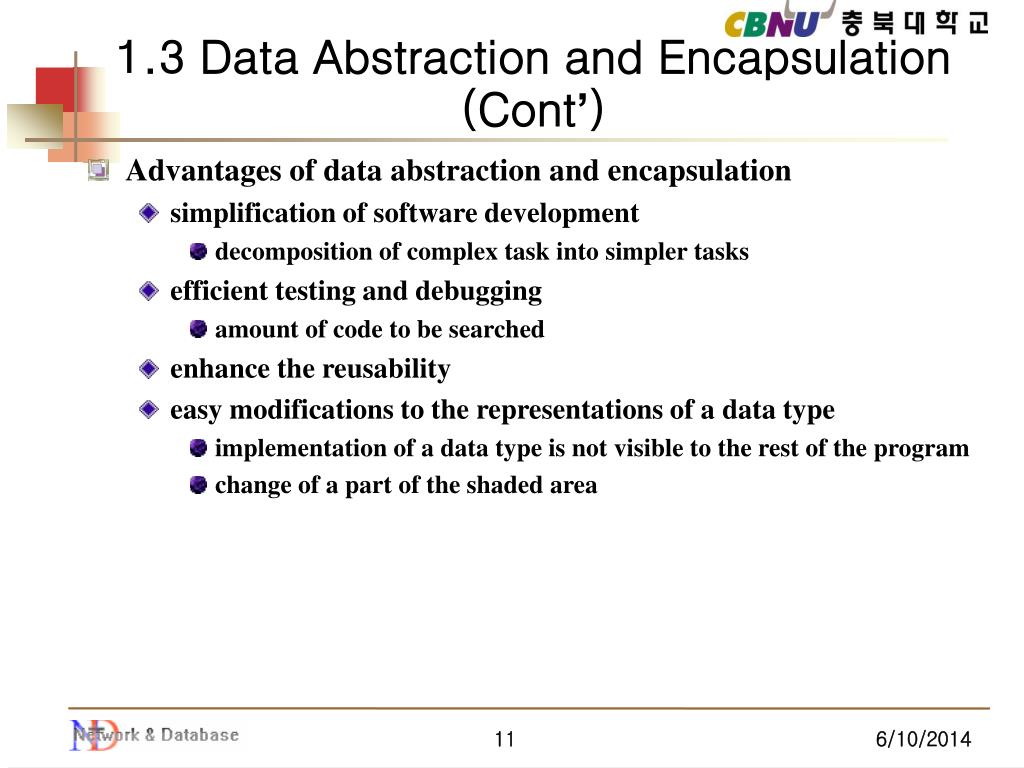

  11. 1.3 Data Abstraction and Encapsulation (Cont’) • Advantages of data abstraction and encapsulation • simplification of software development • decomposition of complex task into simpler tasks • efficient testing and debugging • amount of code to be searched • enhance the reusability • easy modifications to the representations of a data type • implementation of a data type is not visible to the rest of the program • change of a part of the shaded area

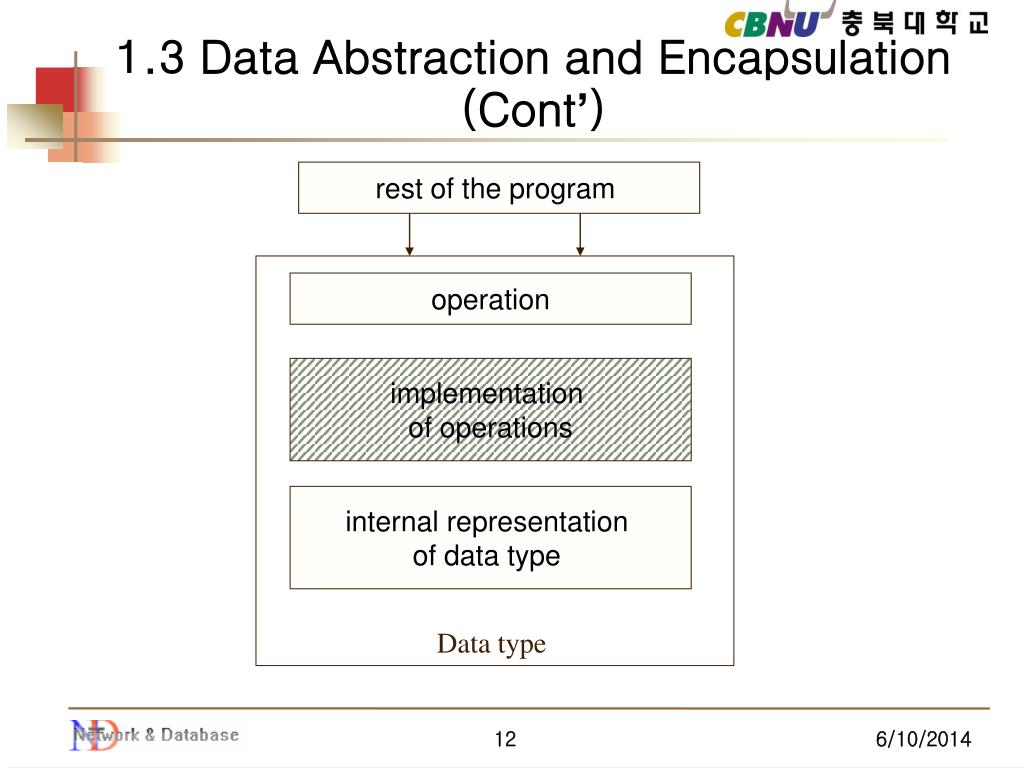

  12. 1.3 Data Abstraction and Encapsulation (Cont’) rest of the program operation implementation of operations internal representation of data type Data type

  13. 1.4 Basics of C++ 1.4.1 Program Organization in C++ • Header file • .h suffix • store declarations • system-defined (iostream.h) or user-defined • #include preprocessor directive is used • Source file • .c suffix • store C++ source code

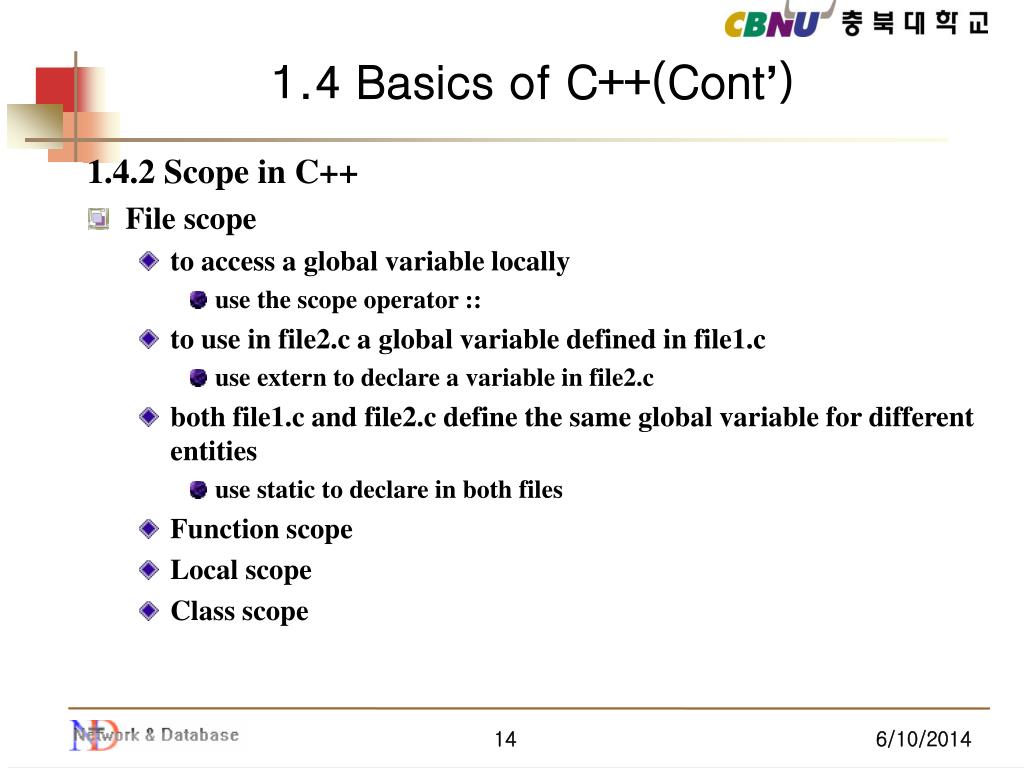

  14. 1.4 Basics of C++(Cont’) 1.4.2 Scope in C++ • File scope • to access a global variable locally • use the scope operator :: • to use in file2.c a global variable defined in file1.c • use extern to declare a variable in file2.c • both file1.c and file2.c define the same global variable for different entities • use static to declare in both files • Function scope • Local scope • Class scope

  15. 1.4 Basics of C++(Cont’) 1.4.3 C++ Statements and Operators • C++ operators : identical to C operators • Exceptions • new and delete for dynamic memory management • >> and << for input and output • operator overloading

  16. 1.4 Basics of C++(Cont’) 1.4.4 Data Declarations in C++ • same as C declarations except the reference type (1) Constant values (2) Variables (3) Constant variables (4) Enumeration types • example : enum Boolean {FALSE, TRUE}; (5) Pointers • hold memory address of objects • example : int i=25; int *np; np=&i; (6) Reference types • an alternate name for an object • example : int i=5; int& j=i; i=7; printf("i=%d, j=%d", i, j);

  17. 1.4 Basics of C++(Cont’) 1.4.6 Input/Output in C++ #include <iostream.h> main() {   int a,b;   cin>>a>>b; } #include <iostream.h> main() {   int n=50; float f=20.3;   cout<<"n:"<<n<<endl;   cout<<"f:"<<f<<endl; } Program 1.1: Output in C++ Program 1.2 : Input in C++ Input 1 5  10 <Enter> Input 2 5 <Enter> 10 <Enter> Output n : 50 f : 20.3

  18. 1.4 Basics of C++(Cont’) • Advantages of I/O in C++ • format-free : no formatting symbols • I/O operators can be overloaded • File I/O in C++ • include the header file fstream.h

  19. 1.4 Basics of C++(Cont’) 1.4.6 Input/Output in C++(Con’t) #include <iostream.h> #include <fstream.h> main() { ofstream outFile("my.out", ios::out);         if (!outFile) {           cerr<<"cannot open my.out"<<endl;//standard error device          return;         }         int n = 50; float f = 20.3;         outFile << "n: " << n << endl;         outFile << "f: " << f << endl; } Program 1.3 : File I/O in C++

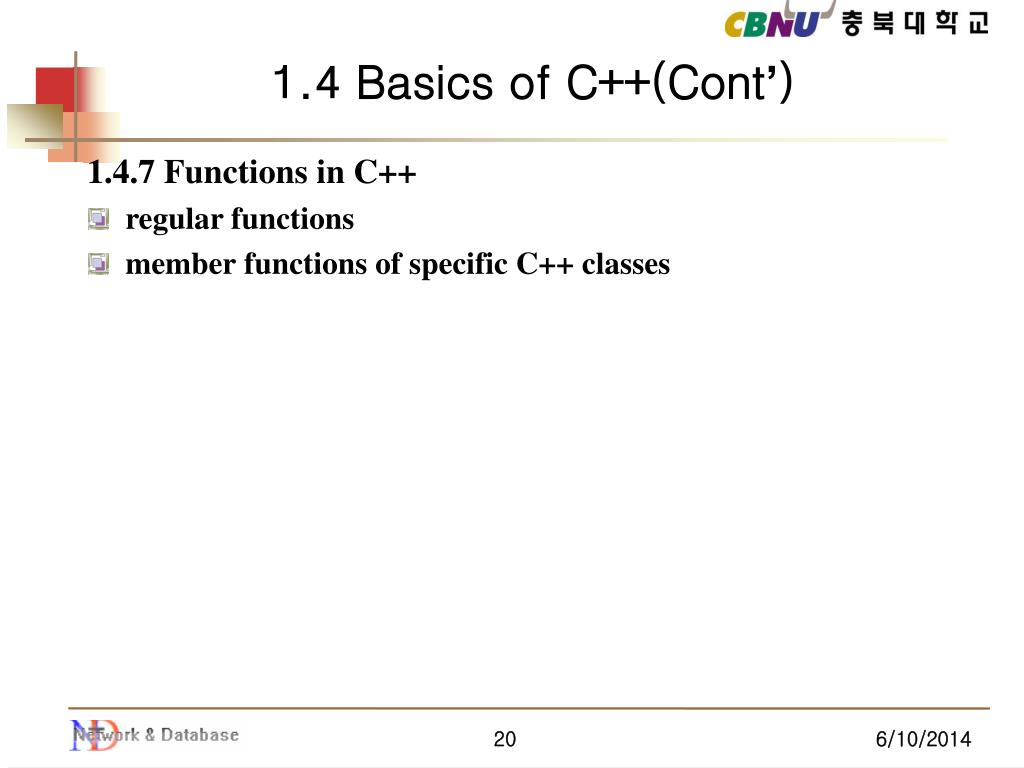

  20. 1.4 Basics of C++(Cont’) 1.4.7 Functions in C++ • regular functions • member functions of specific C++ classes

  21. 1.4 Basics of C++(Cont’) 1.4.8 Parameter Passing in C++ • Pass by value : object is copied • Pass by reference : address of object is copied • Pass by constant reference • retain the advantages of both methods • const T& a • Array types • default is pass by reference • a point to the first element of an array is passed

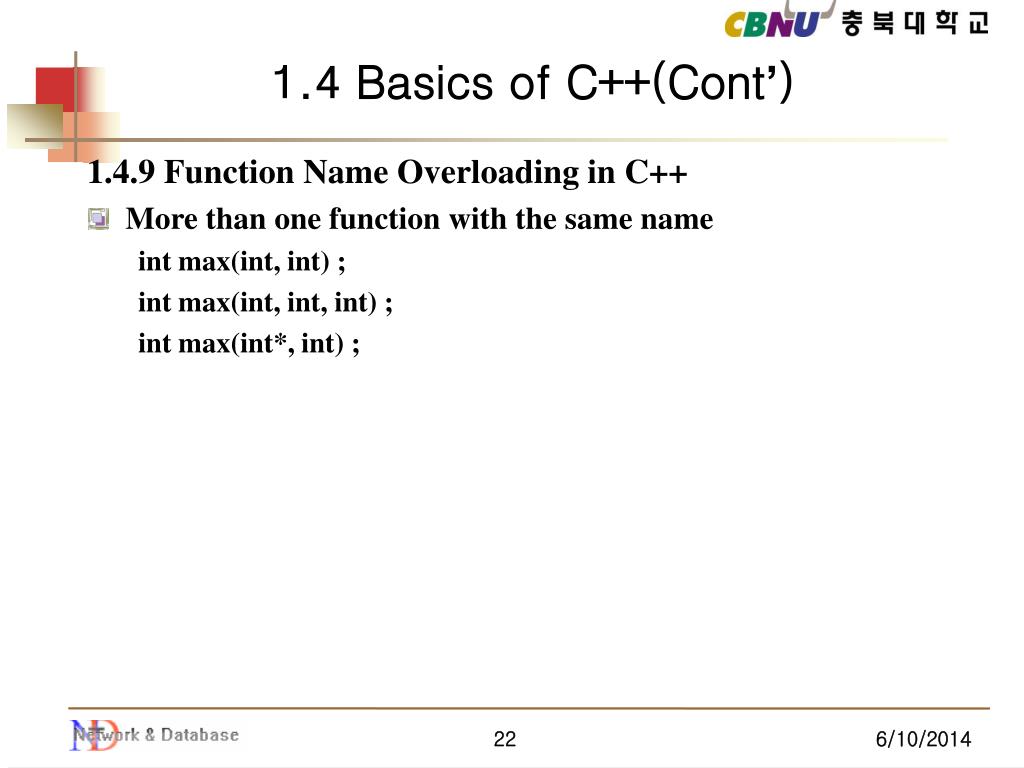

  22. 1.4 Basics of C++(Cont’) 1.4.9 Function Name Overloading in C++ • More than one function with the same name int max(int, int) ; int max(int, int, int) ; int max(int*, int) ;

  23. 1.4 Basics of C++(Cont’) 1.4.10 Inline Functions inline int sum(int a, int b) {    return a+b ; } • i=sum(x, 12) is replaced by i=x+12

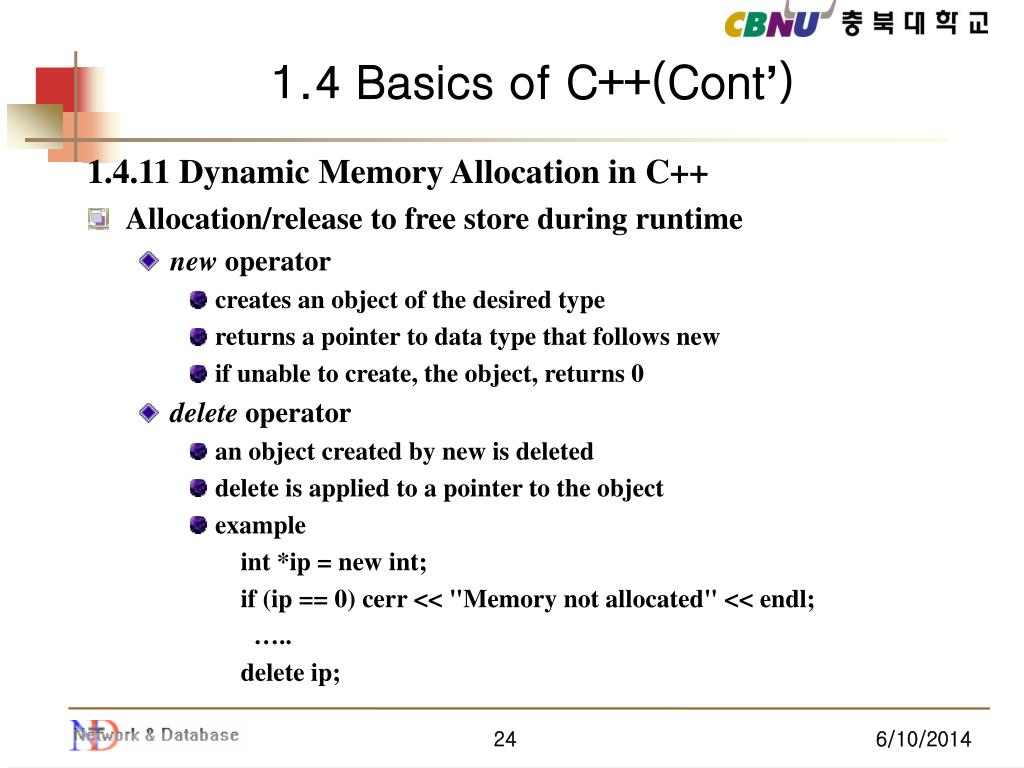

  24. 1.4 Basics of C++(Cont’) 1.4.11 Dynamic Memory Allocation in C++ • Allocation/release to free store during runtime • new operator • creates an object of the desired type • returns a pointer to data type that follows new • if unable to create, the object, returns 0 • delete operator • an object created by new is deleted • delete is applied to a pointer to the object • example int *ip = new int; if (ip == 0) cerr << "Memory not allocated" << endl; ….. delete ip;

  25. 1.5 Algorithm Specification 1.5.1 Introduction • Algorithm • a finite set of instructions, if followed, accomplishes a particular task • Criteria • input ≥ 0 • output ≥ 1 • definiteness • finiteness • effectiveness : feasible • Program • does not have to satisfy finiteness • used interchangeably

  26. 1.5 Algorithm Specification(Cont’) • Description of an algorithm • a natural language like English • pseudo code • programming language : C++ • combination

  27. 1.5 Algorithm Specification(Cont’) • Example [Selection sort] • a program that sorts a collection of n≥1 integers • from those integers that are currently unsorted, find the smallest and place it next in the sorted list for (int i = 0; i < n; i++) { examine a[i] to a[n-1] and suppose the smallest integer is at a[j];    interchange a[i] and a[j]; } Program 1.5 : Selection sort algorithm

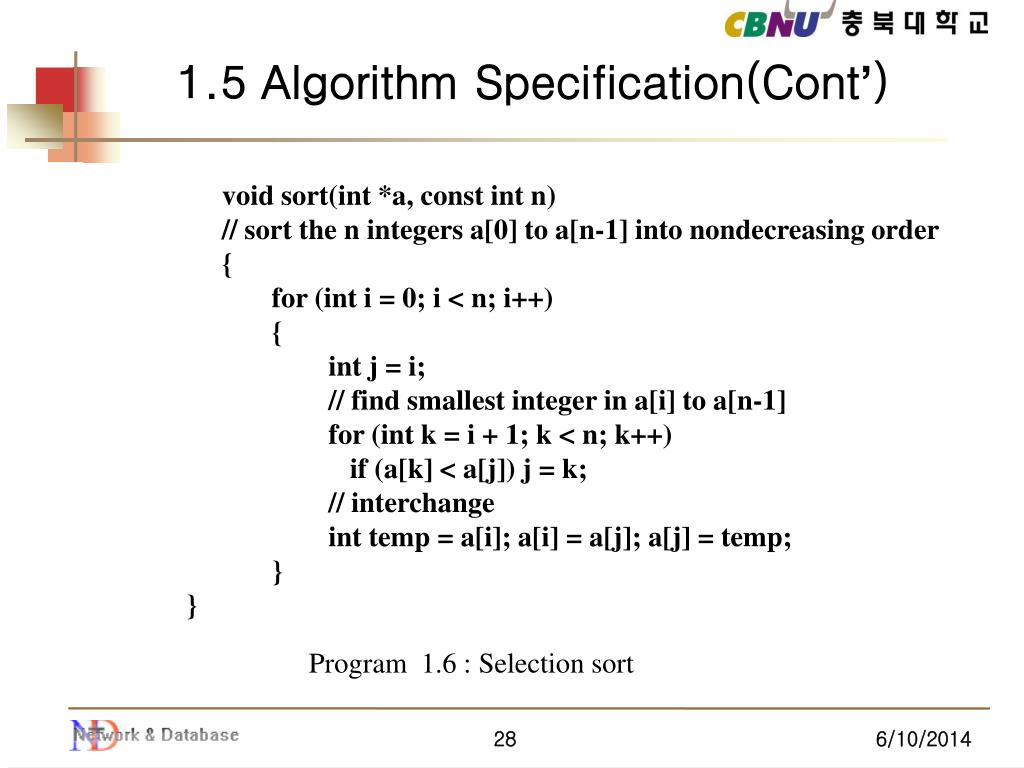

  28. 1.5 Algorithm Specification(Cont’)       void sort(int *a, const int n)       // sort the n integers a[0] to a[n-1] into nondecreasing order       {              for (int i = 0; i < n; i++)              {                      int j = i;                      // find smallest integer in a[i] to a[n-1]                      for (int k = i + 1; k < n; k++)                         if (a[k] < a[j]) j = k;                      // interchange                      int temp = a[i]; a[i] = a[j]; a[j] = temp;              } } Program  1.6 : Selection sort

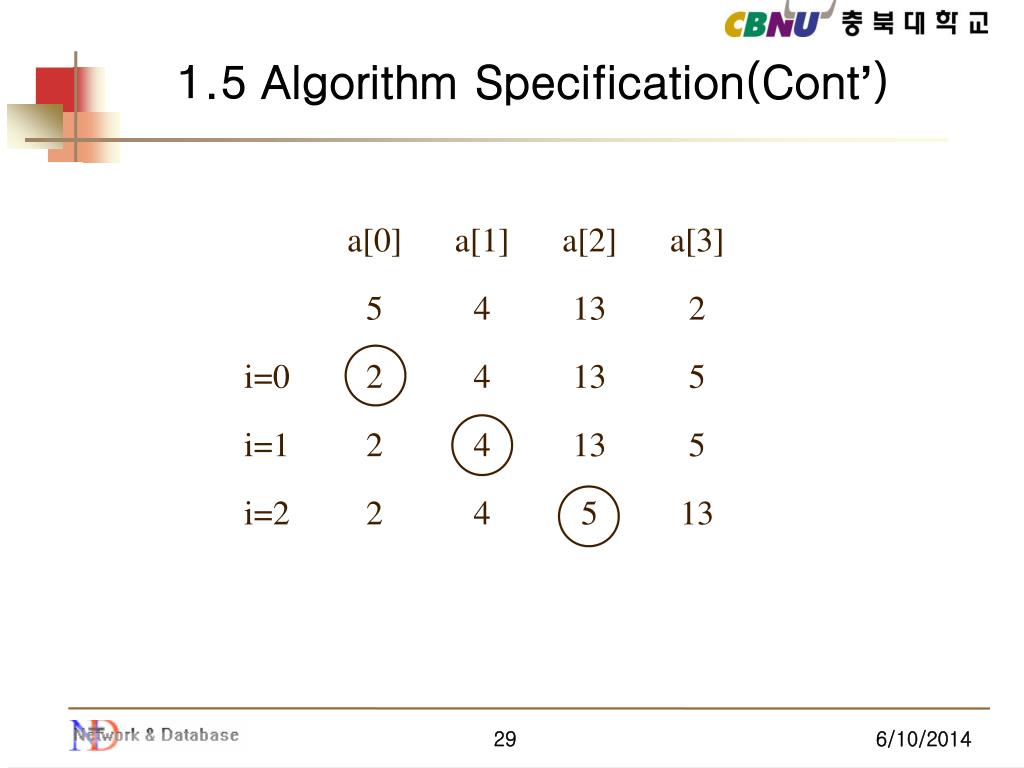

  29. 1.5 Algorithm Specification(Cont’) a[0] a[1] a[2] a[3] 5 4 13 2 i=0 2 4 13 5 i=1 2 4 13 5 i=2 2 4 5 13

  30. 1.5 Algorithm Specification(Cont’) • Theorem • sort(a, n) correctly sorts a set of n≥1 integers • Proof • for any i, say i=q, after steps 6-11, a[q]≤a[r] for q<r≤n-1 • when i>q, a[0]...a[q] is unchanged • when i=n-1, a[0]≤a[1]≤...≤a[n-1]

  31. 1.5 Algorithm Specification(Cont’) • Example [Binary search] • n≥1 distinct integers are already sorted in the array a[0]...a[n-1] • if the integer x is present, return j such that x=a[j] otherwise return • left, right : the left and right ends of the list to be searched(initially:0, n-1) • middle = (left + right)/2 • compare a[middle] with x (1) x<a[middle] : right = middle-1 (2) x=a[middle] : return middle (3) x>a[middle] : left = middle+1 • two subtasks (1) determine if there are any integers left to check (2) compare x to a[middle]

  32. 1.5 Algorithm Specification(Cont’) char compare(int x, int y) {         if (x > y) return '>';         else if (x < y) return '<';                 else return '=';         } // end of compare } Program 1.7 : Comparing two elements

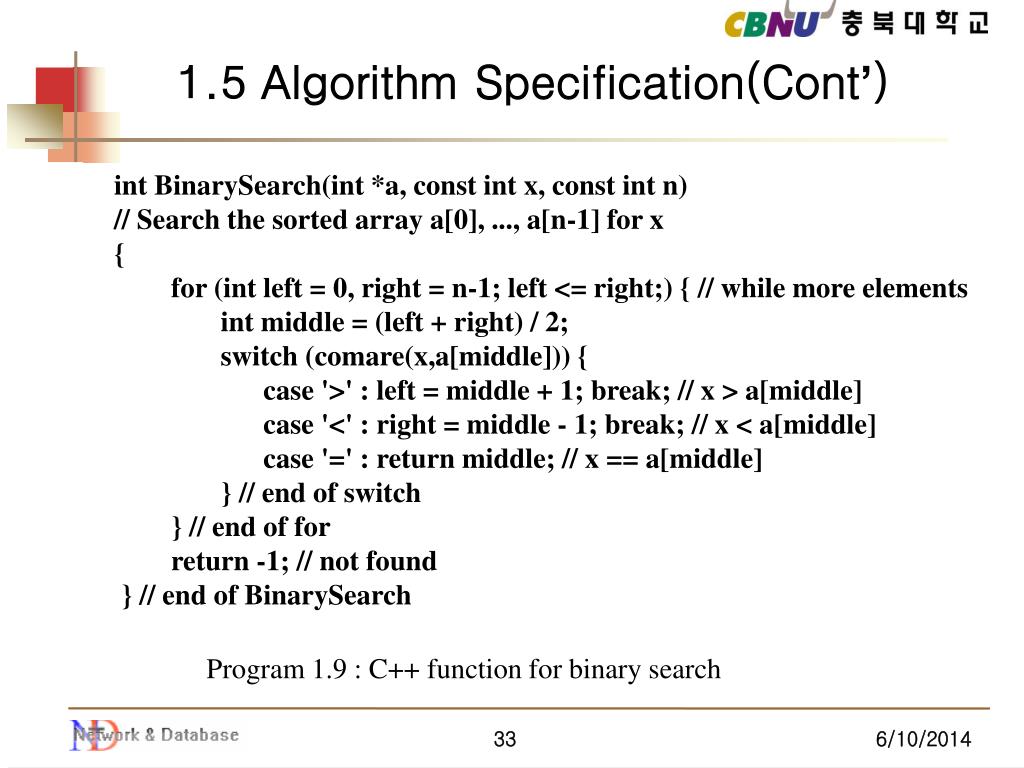

  33. 1.5 Algorithm Specification(Cont’)      int BinarySearch(int *a, const int x, const int n)      // Search the sorted array a[0], ..., a[n-1] for x      {              for (int left = 0, right = n-1; left <= right;) { // while more elements                     int middle = (left + right) / 2;                    switch (comare(x,a[middle])) {                           case '>' : left = middle + 1; break; // x > a[middle]                           case '<' : right = middle - 1; break; // x < a[middle]                           case '=' : return middle; // x == a[middle]                     } // end of switch              } // end of for              return -1; // not found      } // end of BinarySearch Program 1.9 : C++ function for binary search

  34. 1.5 Algorithm Specification(Cont’) 1.5.2 Recursive Algorithms • Example [Factorial] • N! = N*(N-1)! int Fact (int N) {   if N=0 return (1);   else return (N*Fact(N-1)); }

  35. 1.5 Algorithm Specification(Cont’) • Example [Recursive binary search] int BinarySearch(int *a, const int x, const int left, const int right) // Search the sorted array a[left], ..., a[right] for x {         if(left <= right) {                 int middle = (left + right) / 2;                 switch(compare(x, a[middle])) {                         case '>' : return BinarySearch(a, x, middle+1, right);        // x > a[middle]                         case '<' : return BinarySearch(a, x, left, middle-1);        // x < a[middle]                         case '=' : return middle; // x == a[middle]                 } // end of switch         } // end of if         return -1; // not found } // end of BinarySearch Program 1.10 : Recursive implementation of binary search

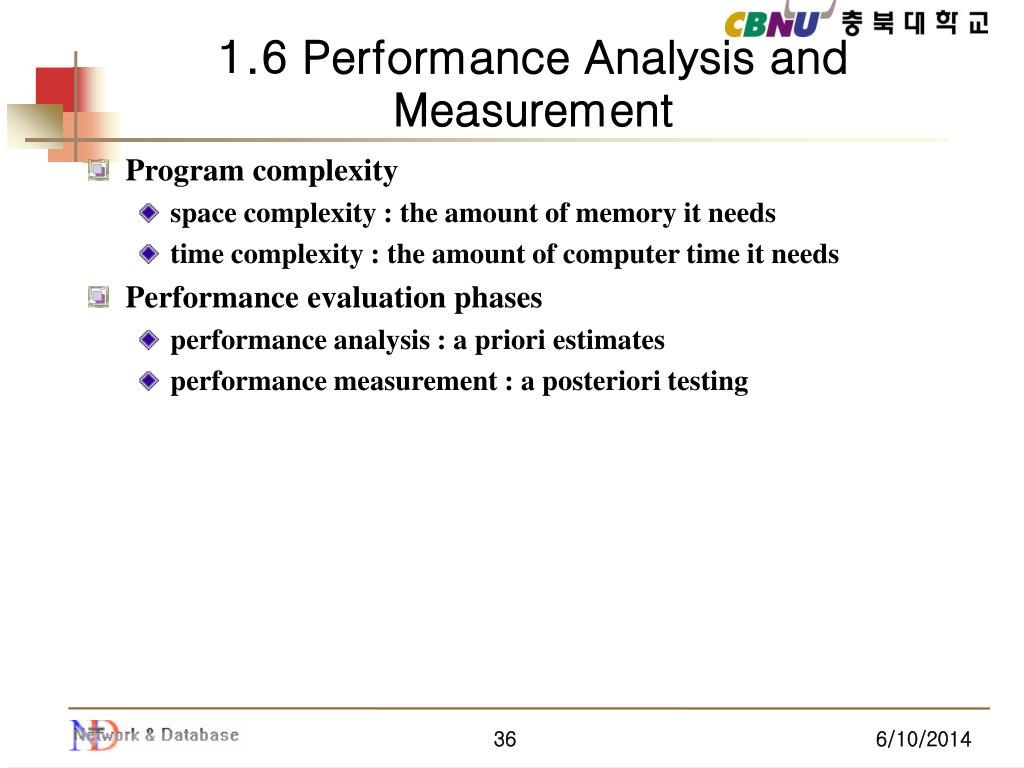

  36. 1.6 Performance Analysis and Measurement • Program complexity • space complexity : the amount of memory it needs • time complexity : the amount of computer time it needs • Performance evaluation phases • performance analysis : a priori estimates • performance measurement : a posteriori testing

  37. 1.6 Performance Analysis and Measurement(Cont’) 1.6.1 Performance Analysis • Space complexity • fixed part : independent of the characteristics of the inputs and outputs • variable part : depends on the instance characteristics • S(P) = c+Sp(instance characteristics) • S(P):space requirement of program P • c : constant • Example [Iterative sum] • the problem instances are characterized by n • n is passed by value : 1 word is allocated • a is the address of a[0], 1 word is needed • the space is independent of n: Sp(n)=0

  38. 1.6 Performance Analysis and Measurement(Cont’) line  float sum(float *a, const int n)   1   {   2           float s = 0;   3           for(int i = 0; i < n; i++)   4                   s += a[i];   5           return s;   6   } Program 1.13 : Iterative function for sum

  39. 1.6 Performance Analysis and Measurement(Cont’) • Example [Recursive sum] • the problem instances are characterized by n • the depth of recursion depends on n : it is n+1 • each call requires at least 4 words : n, a, returned value, return address • the recursion stack space is 4(n+1)

  40. 1.6 Performance Analysis and Measurement(Cont’) line float rsum(float *a, const int n)   1   {   2           if(n <= 0) return 0;   3           else return (rsum(a, n-1)+a[n-1]);   4   } Program 1.14 : Recursive function for sum

  41. 1.6 Performance Analysis and Measurement(Cont’) • Time complexity T(P) = c + Tp(n) • T(P) : time taken by program P • c : compile time • Tp : run time • n : instance characteristics • Program step • a meaningful segment of a program • execution time is independent of the instance characteristics • the number of steps of a program statement : depends on the nature of the statement • determine the number of steps of a program • introduce a new variable, count, into the program • build a table to list steps by each statement

  42. 1.6 Performance Analysis and Measurement(Cont’) • Example of count [Iterative sum] line  float sum(float *a, const int n)   1   {   2           float s = 0;   3           for(int i = 0; i < n; i++)   4                   s += a[i];   5           return s;   6   } line  float rsum(float *a, const int n)   1   {   2           if(n <= 0) return 0;   3           else return (rsum(a, n-1)+a[n-1]);   4   } Program 1.13 : Iterative function for sum Program 1.14 : Recursive function for sum

  43. 1.6 Performance Analysis and Measurement(Cont’) Example [Recursive sum] Example [Iterative sum] line s/e frequency total steps Line s/e* frequency total steps 1 0 1 0 n=0 n>0 n=0 n>0 2 1 1 1 1 0 1 1 0 0 3 1 n+1 n+1 2(a) 1 1 1 1 1 4 1 n n 2(b) 1 1 0 1 0 5 1 1 1 3 1+trsum(n-1) 0 1 0 1+trsum(n-1) 6 0 1 0 4 0 1 1 0 0 Total number of steps 2n+3 Total number of steps 2 2+trsum(n-1) Table 1.1 Step table for Program 1.13 Table 1.2 Step table for Program 1.14 (*s/e : step per execution)

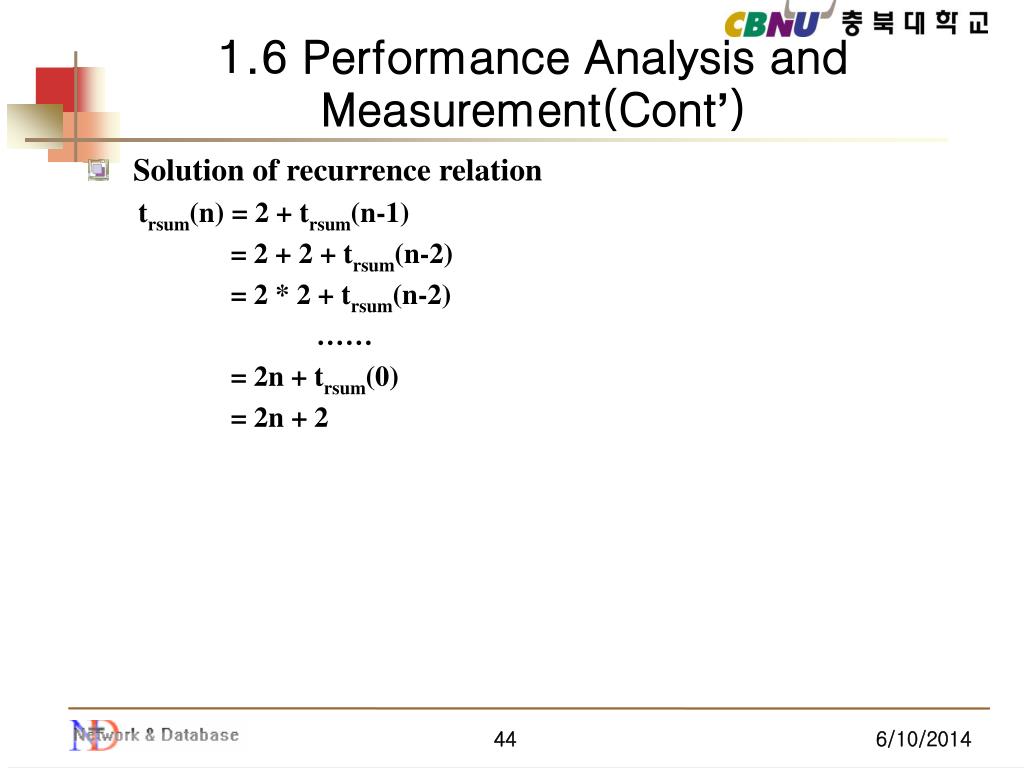

  44. 1.6 Performance Analysis and Measurement(Cont’) • Solution of recurrence relation trsum(n) = 2 + trsum(n-1) = 2 + 2 + trsum(n-2)              = 2 * 2 + trsum(n-2)                     ……              = 2n + trsum(0)              = 2n + 2

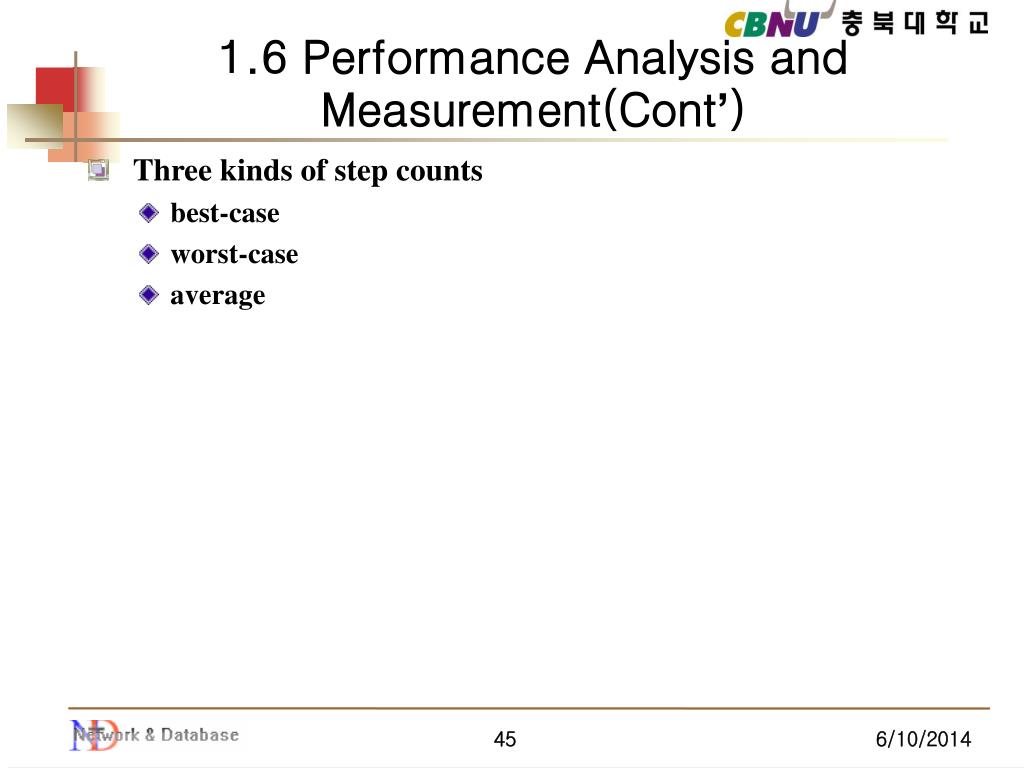

  45. 1.6 Performance Analysis and Measurement(Cont’) • Three kinds of step counts • best-case • worst-case • average

  46. 1.6 Performance Analysis and Measurement(Cont’) • Asymptotic notation (O, Ω, Θ) • determining the exact step count is very difficult • the notion of a step is inexact • Definition [Big "oh"] • f(n)=O(g(n)) iff there exist positive constants c and n0 such that f(n)≤cg(n) for all n, n≥n0 • 3n+3= O(n) as 3n+3≤4n for all n≥3 • 3n+3=O(n2) as 3n+3≤3n2 for n≥2 • g(n) is an upper bound

  47. 1.6 Performance Analysis and Measurement(Cont’) • Definition [Omega] • f(n)=Ω(g(n)) iff there exist positive constants c and n0 such that f(n)≥cg(n) for all n, n≥n0 • g(n) is a lower bound ex) 3n+2=Ω(n) •             10n2+4n+2=Ω(n2) • Definition [Theta] • f(n)=Θ(g(n)) iff there exist positive constants c1, c2 and n0 such that c1g(n)≤f(n)≤c2g(n) for all n, n≥n0 • g(n) is both an upper and lower bound ex) 3n+2=Θ(n)              10n2+4n+2=Θ(n2)                6×2n+n2=Θ(2n)

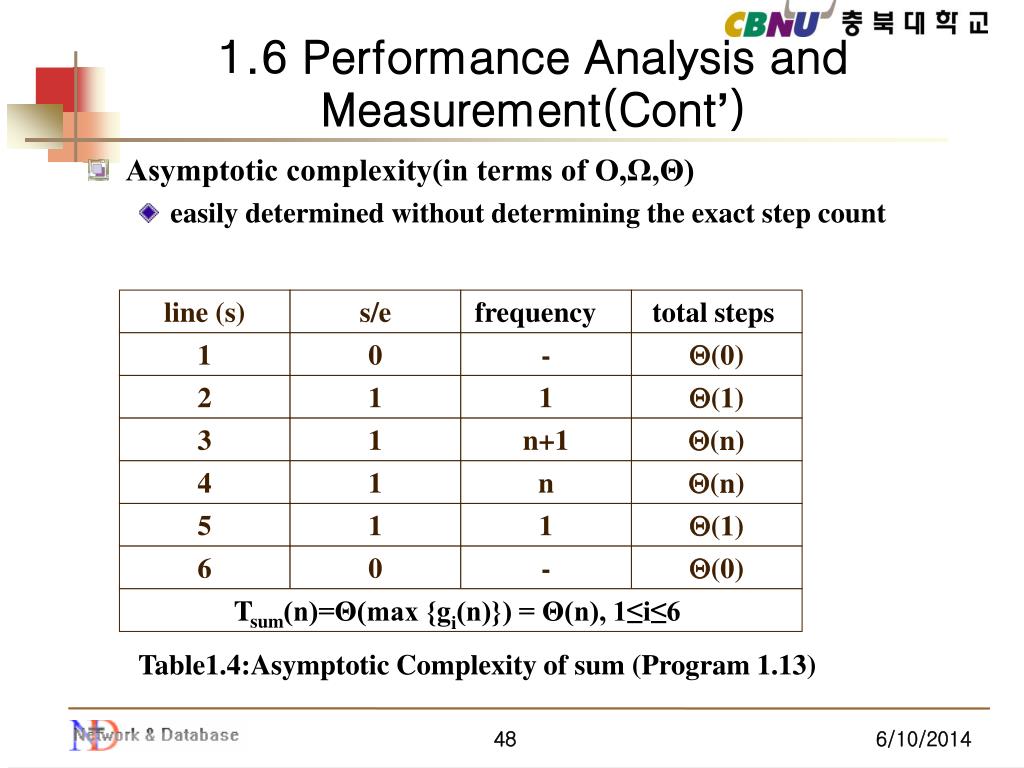

  48. 1.6 Performance Analysis and Measurement(Cont’) • Asymptotic complexity(in terms of O,Ω,Θ) • easily determined without determining the exact step count line (s) s/e frequency   total steps 1 0 - (0) 2 1 1 (1) 3 1 n+1 (n) 4 1 n (n) 5 1 1 (1) 6 0 - (0) Tsum(n)=Θ(max {gi(n)}) = Θ(n), 1≤i≤6 Table1.4:Asymptotic Complexity of sum (Program 1.13)

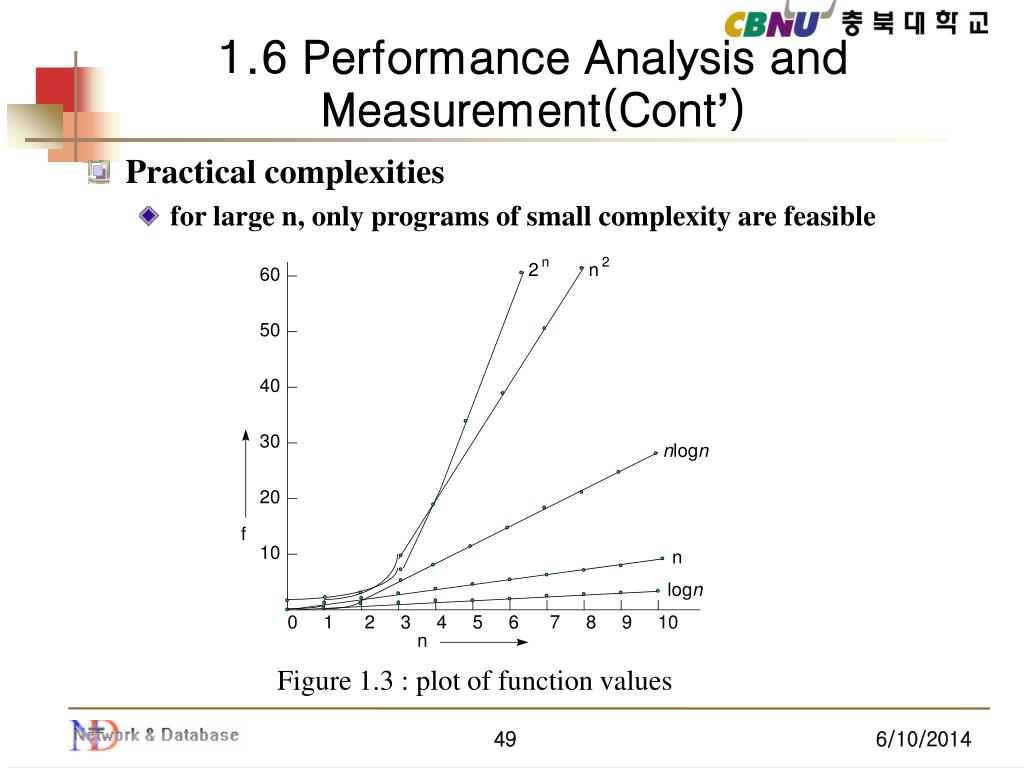

  49. 1.6 Performance Analysis and Measurement(Cont’) • Practical complexities • for large n, only programs of small complexity are feasible Figure 1.3 : plot of function values
