Presentation Transcript
Events hierarchy l.jpg

Events Hierarchy

Author: Anna Bekkerman

abekkerm@ecs.umass.edu


Events are everywhere l.jpg
Events Are Everywhere

Node

Client

LMM

Control

signals

Node

Server

Data

Target system

LMM

Events

Data

Events

Node

LMM

Client


Basic types l.jpg
Basic Types

  • Messaging events

    • Occur when data is being read from/written to communication channels used in the DCAS system

    • Can be matched to form messages

  • Application events

    • Generated by DCAS applications

  • Metrics

    • Measurements of resource utilization



Ldm events l.jpg
LDM Events

  • Each event has a number of properties

    • Type: pq_insert or pq_remove

    • Feed type: class of a data product coming from a common source

    • Sequence number associated with the data product

    • Product size: number of bytes in data section of the product

    • Product ID: usually a string describing a product

      • For example: “Reflectivity_20070603_0112.netcdf.gz”

  • Two LDM events are matched if their types are different and the rest of the properties are equal

    • Source: pq_insert

    • Destination: pq_remove


Wdss events l.jpg
WDSS Events

  • Each event has a number of properties

    • Type: lb_read or lb_write

    • Linear buffer ID: a number associated with the linear buffer

    • Message length

      • Linear buffers contain messages describing which products/meteorological features have been processed

    • Message: a string describing a product/feature

  • Two WDSS events are matched if their types are different and messages are equal

    • Source: lb_write

    • Destination: lb_read


Socket events l.jpg

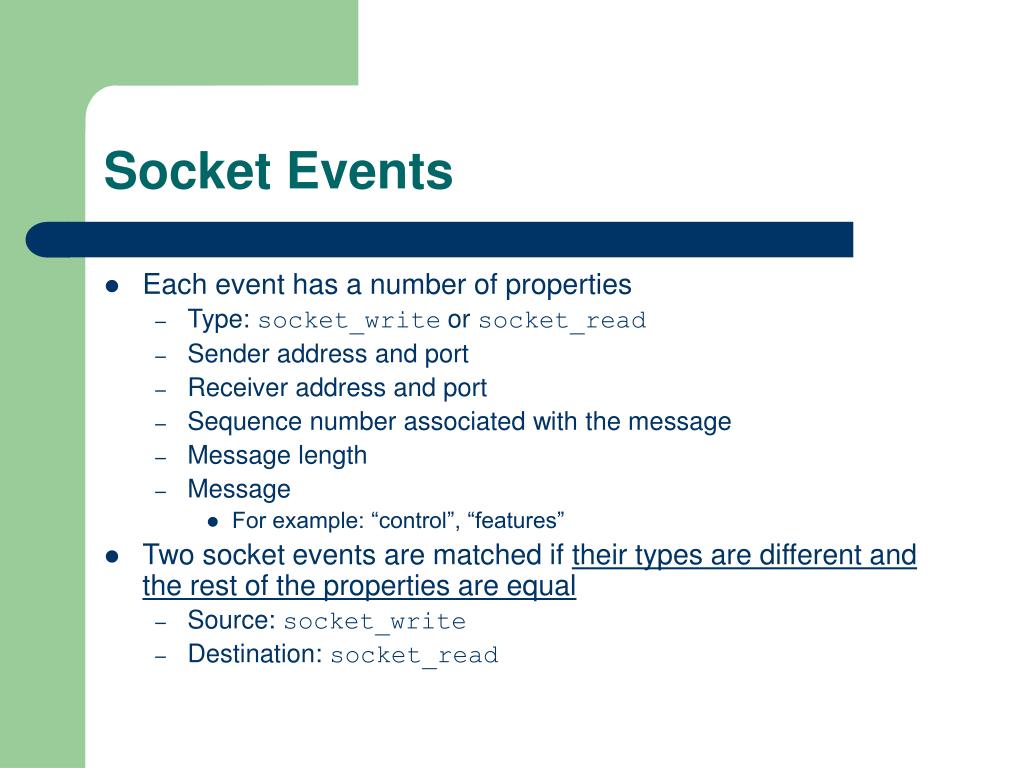

Socket Events

  • Each event has a number of properties

    • Type: socket_write or socket_read

    • Sender address and port

    • Receiver address and port

    • Sequence number associated with the message

    • Message length

    • Message

      • For example: “control”, “features”

  • Two socket events are matched if their types are different and the rest of the properties are equal

    • Source: socket_write

    • Destination: socket_read


Application events l.jpg
Application Events

  • Must be explicitly generated using RAPIDS API calls

  • Need not be matched

  • Types:

    • Error

    • Variable

    • Algorithm

    • Debug


Error events l.jpg
Error events

  • Generated when an error occurs

  • Have three significance levels

    • Warning, Severe and Fatal

  • On the message diagram are depicted with cross ( )


Variable events l.jpg
Variable events

  • Generated to report the current value of a variable

  • On the message diagram are depicted with five pointed star ( )


Algorithm events l.jpg
Algorithm events

  • Have a type associated with them: start and end

  • Generated to report beginning/ending of some action

    • Algorithm, procedure, cycle etc.

  • On the message diagram are depicted with:

    • Start: small arrow pointing up ( )

    • End: small arrow pointing down ( )


Dedug events l.jpg
Dedug events

  • Generated to report debug messages

  • On the message diagram are depicted with vertical bar ( )


Common properties l.jpg
Common Properties

  • Each messaging and application event has the following properties:

    • Timestamp

    • PID and name of the process which generated the event

    • ID of the node where the event came from

  • Detailed information about events can be obtained:

    • From log files

    • From the message diagram if RAPIDS visualization client is employed to view the events


Obtaining process name l.jpg
Obtaining Process Name

Events know names of the processes which generated them

signatures

  • The name of a process might be very long!

  • Solution: generate a signature for the process name and send it along with the events

  • When RAPIDS server receives an event it compares its process signature with signatures of monitored processes provided in the configuration file

  • Drawback: if a process has not been mentioned in the configuration file, its events will be ignored

    • Even ownerless events are logged!


Metrics l.jpg
Metrics

  • Each metric has a key and value

  • Process metrics also have a PIDs

  • Often a group of metrics must be used to calculate utilization of a resource

    • For example: to calculate utilization of the memory the following metrics are needed

      • The amount of free and used physical memory

      • The amount of free and used swap memory


Implementation of events hierarchy l.jpg

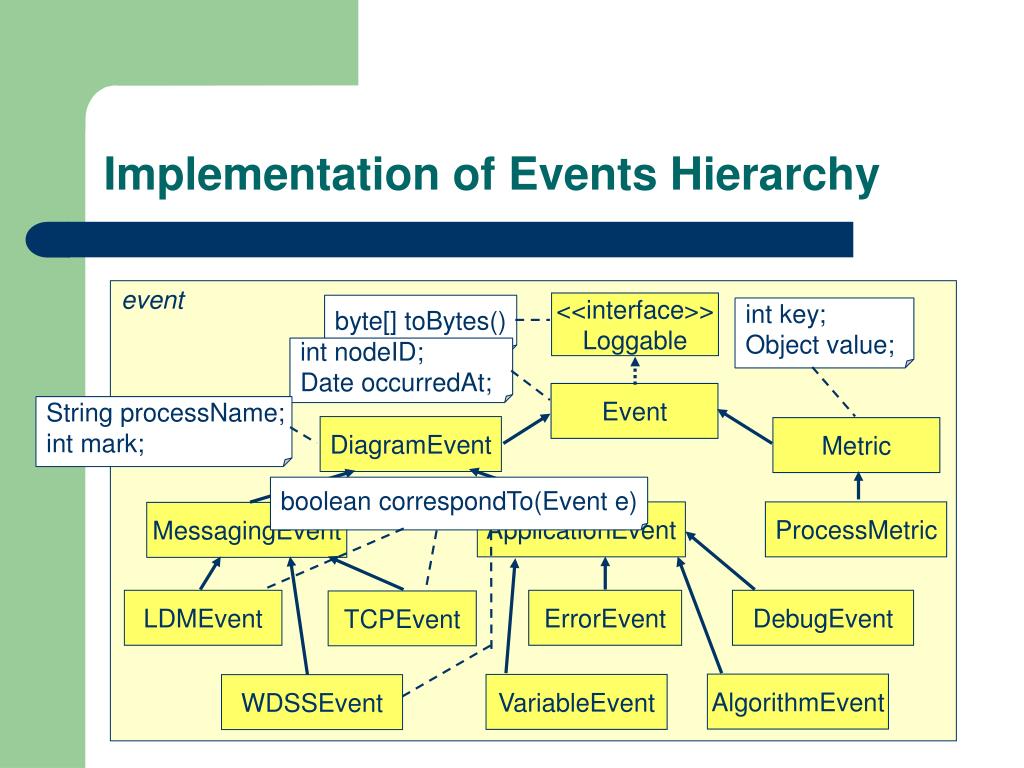

Implementation of Events Hierarchy

event

events

<<interface>>

Loggable

byte[] toBytes()

int key;

Object value;

int nodeID;

Date occurredAt;

Event

String processName;

int mark;

DiagramEvent

Metric

boolean correspondTo(Event e)

ApplicationEvent

ProcessMetric

MessagingEvent

LDMEvent

ErrorEvent

DebugEvent

TCPEvent

AlgorithmEvent

VariableEvent

WDSSEvent
