photonic interdomain negotiator pin interoperate heterogeneous control management planes

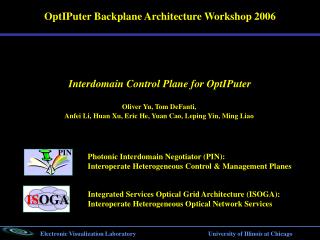

OptIPuter Backplane Architecture Workshop 2006

PIN

ISOGA

Photonic Interdomain Negotiator (PIN):Interoperate Heterogeneous Control & Management Planes

Interdomain Control Plane for OptIPuter

Oliver Yu, Tom DeFanti, Anfei Li, Huan Xu, Eric He, Yuan Cao, Leping Yin, Ming Liao

Integrated Services Optical Grid Architecture (ISOGA):Interoperate Heterogeneous Optical Network Services

optiputer control plane products
OptIPuter Control Plane Products
  • PDC
    • Single-Domain Control and Signaling
    • Static Pre-determined Routing and Wavelength Assignment
  • PIN
    • Basic PIN (B-PIN) Years 1,2
      • Single-Domain / Multi-Domain Control and Signaling
      • Dynamic Cost-optimization Routing and Wavelength Assignment
      • Fast and Robust Resource Reservation
    • Secure PIN (S-PIN) Years 2,3
      • Enable Security Management
    • Monitor PIN (M-PIN) Years 3,4
      • Monitor network topology
      • Detect Lightpath Failure
    • Recovery PIN (R-PIN) Years 4, 5
      • Enable efficient Lightpath Recovery and Restoration
    • Integrated-Services PIN (IS-PIN) Years 4, 5
      • Multiple Switching Services for multidiscipline applications (e.g., Sub-lambda grooming.)
  • PIN-based Application
    • Lambda-Grid Data Portal or Browser
interdomain routing and signaling
Interdomain Routing and Signaling
  • Routing
    • PIN: CAD-RWA (Congestion-Avoidance Dynamic Routing & Wavelength Assignment)
    • GMPLS: OSPF & BGP
  • Resource Reservation Signaling
    • PIN: RFORP (Robust Fast Optical Reservation Protocol)
    • GMPLS: RSVP
  • Control Interface
    • PIN: API for applications and web services for users
    • GMPLS: API for applications
general pin software features
General PIN Software Features
  • Interfaces
    • Application Interfaces:
      • C++ or Globus/Web-service (SOAP/XML).
    • User Interfaces:
      • Web Services
  • System Software Requirements
    • 2SDK1.4, Globus 3.2, MySQL
  • Installation
    • Download PIN package and run self-installation script.
    • Configure topology database (database.conf).
  • Software Modules Integration
    • Applications (e.g., PIN/JuxtaView, PIN/Teravision).
    • Middleware (e.g., PIN/DVC, PIN/QUANTA)
    • Other Control Planes (e.g., PIN/PDC)
    • Provides quick and convenient integration solutions.
    • Simple configuration. Only topology configuration is needed during integration.
secure pin s pin architecture
Secure PIN (S-PIN) Architecture

Interdomain Management Plane

Security

Server

Security

Server

Security

Server

Policy

Negotiation

Policy

Negotiation

Policy

Database

Policy

Database

Policy

Database

Interdomain Control Plane

Control Server

Control

Server

Control

Server

Topology

Database

Topology

Database

Topology

Database

Inter-domain

Routing

O-UNI

Inter-domain

Routing

Routing

Routing

Routing

Signaling

Signaling

Signaling

Inter-domain

Signaling

Inter-domain

Signaling

User Control

Proxy

GUI

Local

Domain

Local

Domain

Local

Domain

s pin interfaces
S-PIN Interfaces

User Control Proxy

Optical API

Application

Lambda Grid

Handler

SPIN

Control

O-UNI

Data Portal

Network

Control

Control

Control

Network

SPIN

Client

GUI

Handler

Client

Control

Control

Server

Optical

Web Service

Server

-

User

User

Monitor

O-UNI

Network

Network

Monitor

Monitor

Monitor

Monitor

Monitor

Monitor

GUI

Client

Client

GUI

Handler

Server

Server

igrid demo of s pin
iGrid Demo of S-PIN

Charybdis

PDC

StarLight

All-optical LAN

SPIN

Rembrandt

Scylla

AAA

UvA

All-optical LAN

UIC

All-optical LAN

StarLight

NetherLight

OC-192

(Chicago)

(Amsterdam)

PDC

PDC

SPIN

SPIN

UCSD

All-optical LAN

Vellum

AAA

AAA

PDC

SPIN

AAA

monitor pin m pin
Monitor PIN (M-PIN)
  • Monitor network topology and current active lightpaths
  • Detect lightpath failures
    • M-PIN server sends power-level QUERY message periodically to each optical switch within its domain. Node replies with power values of its ports.
    • M-PIN server keeps record of all ports along each existing lightpath.
    • By examining power-levels of all ports along a lightpath, M-PIN server determines the connectivity status of the lightpath.
  • Trigger lightpath recovery and restoration
    • M-PIN server trigger lightpath recovery when the power-levels of each port along a lightpath is below a predefined threshold.
recovery pin r pin
Recovery PIN (R-PIN)
  • Common Lightpath Recovery Schemes
    • Dedicated protected lightpath
      • Fast restoration, inefficient resource utilization
    • Non-dedicated protected lightpath
      • Long restoration delay, efficient resource utilization
  • R-PIN uses Dynamic Enabling Fast Efficient Restoration (DEFER)
    • Compute potential backup routes for restoration during setup of a lightpath but wavelength resources are not reserved.
    • Actual setup of backup lightpath will be “deferred” and executed only during actual fault recovery.
    • Minimize restoration delay while optimizing resource utilization.
integrated services pin is pin
Integrated Services PIN (IS-PIN)
  • Default Optical Circuit Switching (single lambda / application)
    • Support constant gigabit-rate stream traffic.
  • Emulate Sub-wavelength Switching (constant sub-lambda / application)
    • Support constant and varying sub-gigabit-rate stream traffic.
  • Emulate Waveband Switching (multi-lambda / application)
    • Support constant terabit/petabit rate stream traffic.
    • Inverse multiplexing of lightpaths at edge.
  • Emulate Optical Burst Switching (variable sub-lambda / application)
    • Support variable bit rate burst traffic.
    • Burst aggregation at edge.
is pin backplane architecture
IS-PIN Backplane Architecture

Multidiscipline Collaborative Applications

Control

Invocation

Data

Flow

Data Plane

Control Plane

Data Transport Middleware

Control Signaling Middleware

Traffic Control

ISON-aware

Transport Protocol

IS-PIN

Integrated-Services Optical Network (ISON)

Out-of-band Signaling Network

Burst Rate

Tera/Petabit Rate

Gigabit Rate

Sub-Gigabit Rate

integrated services optical network ison
Integrated Services Optical Network (ISON)

Gigabit-Rate

Unicast/Multicast

Stream

Variable

Bit-Rate

Burst

Sub-Gigabit-Rate

Stream

Tera/Petabit-Rate

Stream

ISON

Control

Plane

Edge

Burst Aggregation

Emulate

Optical Burst Switching

Edge

Inverse Multiplex

Emulate Waveband Switching

Emulate

Sub-wavelength Switching

Edge Control

Emulation Control at Edge

Optical-Switching Core Control

ISON Control Plane

Control Plane

pin based application lambda grid data portal
PIN-based Application: Lambda Grid Data Portal

Global Collaborative Grid Application

Dataset Manipulation

Dataset Retrieval

Dataset Discovery

Dataset Delivery

Dynamic

Lightpath Setup

Search Engine

Dataset Transfer

Dataset

Registry

Text based

Interdomain

Data Plane

Interdomain

Control Plane

Content based

Context based

Middleware

(Quanta)

SPIN

Transport Protocol

(RBUDP)

Multi-domain

Lambda Grid Data Portal

Wide-Area

Lambda Grid

Wavelength-Routed

Optical Network

Signaling Network
