Presentation Transcript
slide1

Modulation Transfer Function Measurement of the Alcon SN6AD3 Aspheric Apodized Diffractive Multifocal IOL

Jim Schwiegerling, PhD

Junoh Choi, MS

University of Arizona

Ophthalmology & Vision Sciences

Optical Sciences

Tucson, Arizona, USA

Financial Disclosure: The author receives research and travel support from

Alcon Research

introduction
Introduction
  • An eye model in which IOLs are mounted in a saline-filled wet cell behind the artificial cornea with clinical levels of spherical and chromatic aberrations has been developed.
  • Benchtop testing includes MTF measurement through line spread function analysis, as well as imaging targets such as letter charts and oblique pinhole sources.
  • Digital SLR with macro lens attachment is used to create a portable system to capture night scenes through the eye model.
  • Alcon ReSTOR Aspheric, AMO ReZoom and Tecnis multifocal, and Acri.Tec Acri.LISA lenses tested.
line spread testing
Line Spread Testing

Fourier Transform of the Line Spread gives the MTF of the lens

through focus mtf comparison 3 mm pupil 50 cyc mm
Through Focus MTF Comparison 3 mm Pupil; 50 cyc/mm

Aspheric terms mainly affect the lens periphery so the performance of the two lenses is nearly identical for a 3 mm

pupil.

through focus mtf comparison 6 mm pupil 50 cyc mm
Through Focus MTF Comparison 6 mm Pupil; 50 cyc/mm

For larger pupils, both lenses bias distance vision.

The effect of the aspheric term is to boost contrast in the distance. Near vision contrast is slightly improved as well.

letter chart target
Letter Chart Target

Targets can be used in place of a slit on our setup. ETDRS Letter chart shown for four different types of multifocal IOLs. Pupil size is 6.0 mm in all cases.

Note the diminishing degree of halo, especially with the ReSTOR Aspheric.

oblique point source

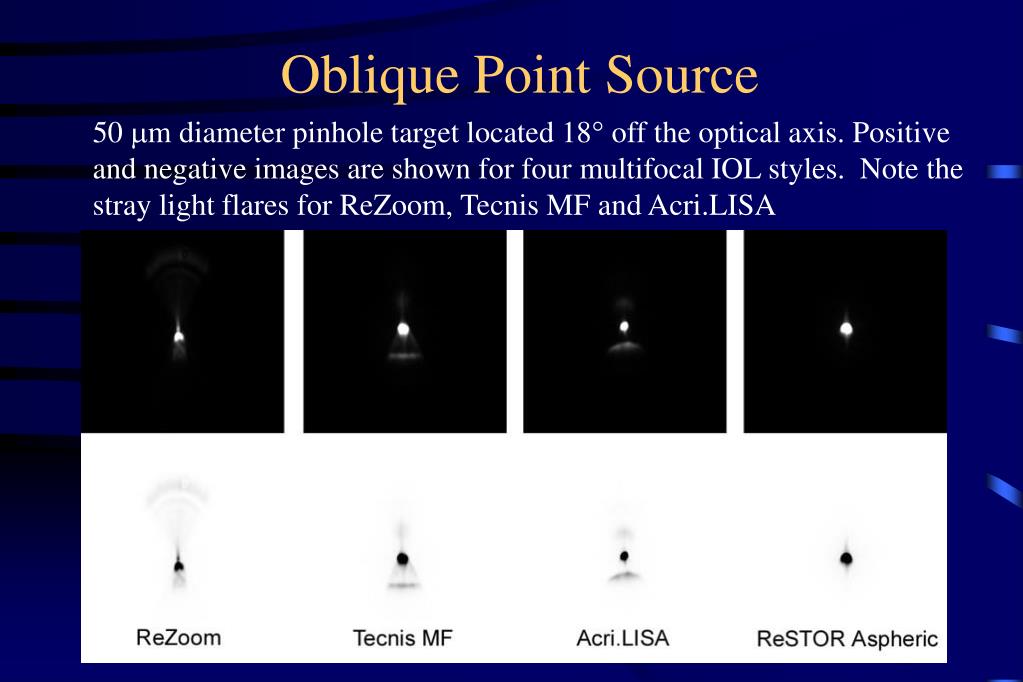

Oblique Point Source

50 mm diameter pinhole target located 18° off the optical axis. Positive and negative images are shown for four multifocal IOL styles. Note the stray light flares for ReZoom, Tecnis MF and Acri.LISA

portable digital imaging system
Portable Digital Imaging System
  • Nikon Digital SLR camera
  • Macro Lens
  • Custom Eye model attachment consisting of artificial cornea and wet cell for mounting IOLs
  • The system mimics the vergence and imaging properties of the human eye.
night scene
Night Scene

ReSTOR

Aspheric

ReZoom

Acri.Lisa

Multifocal

Tecnis

ZM900

night scene11
Night Scene

ReSTOR

Aspheric

ReZoom

Acri.Lisa

Multifocal

Tecnis

ZM900

discussion
Discussion
  • MTF Testing showed that the aspheric ReSTOR gives an increase in contrast for distant objects for large pupil sizes.
  • The diffractive elements tend to cause arcs around bright light sources in nighttime scenes, whereas the zonal refractive causes a continuous flare. Apodization suppresses many of these artifacts.
  • There are less stray light effects in Alcon’s aspheric apodized diffractive than with the other multifocal IOLs.
