guide to unix using linux third edition

Guide To UNIX Using LinuxThird Edition

Chapter 7:

Advanced Shell Programming

objectives

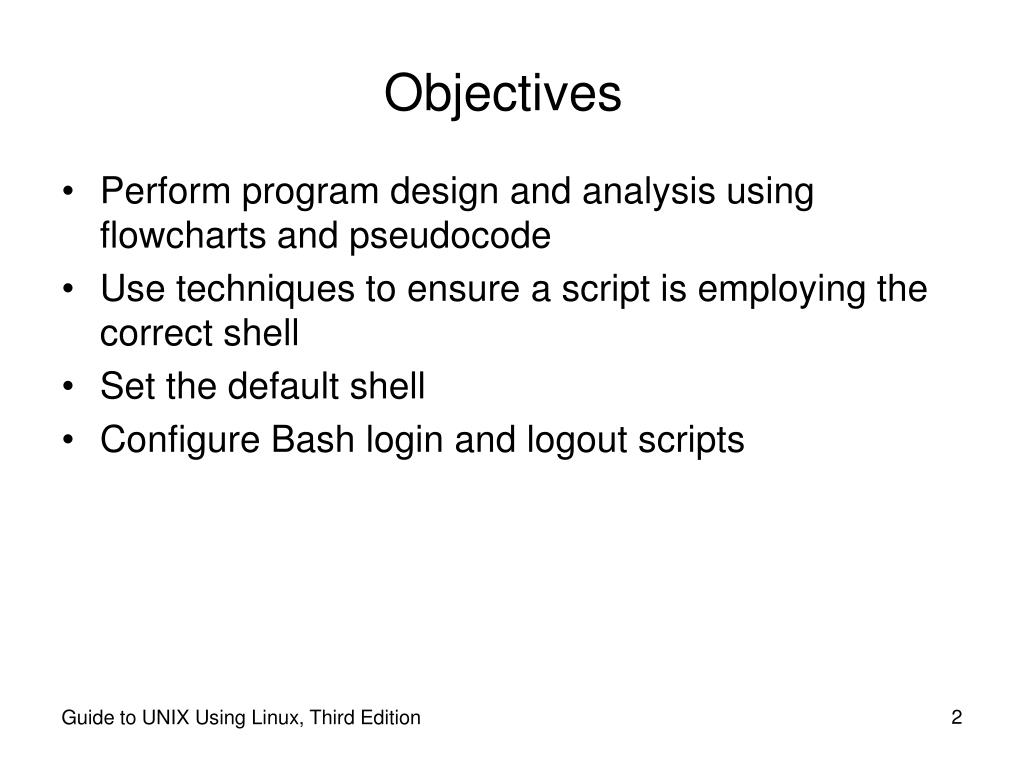

Objectives
  • Perform program design and analysis using flowcharts and pseudocode
  • Use techniques to ensure a script is employing the correct shell
  • Set the default shell
  • Configure Bash login and logout scripts

Guide to UNIX Using Linux, Third Edition

objectives continued
Objectives (continued)
  • Set defaults for the vi editor
  • Use the test command for programming functions
  • Format record output
  • Delete records using a script

Guide to UNIX Using Linux, Third Edition

objectives continued4

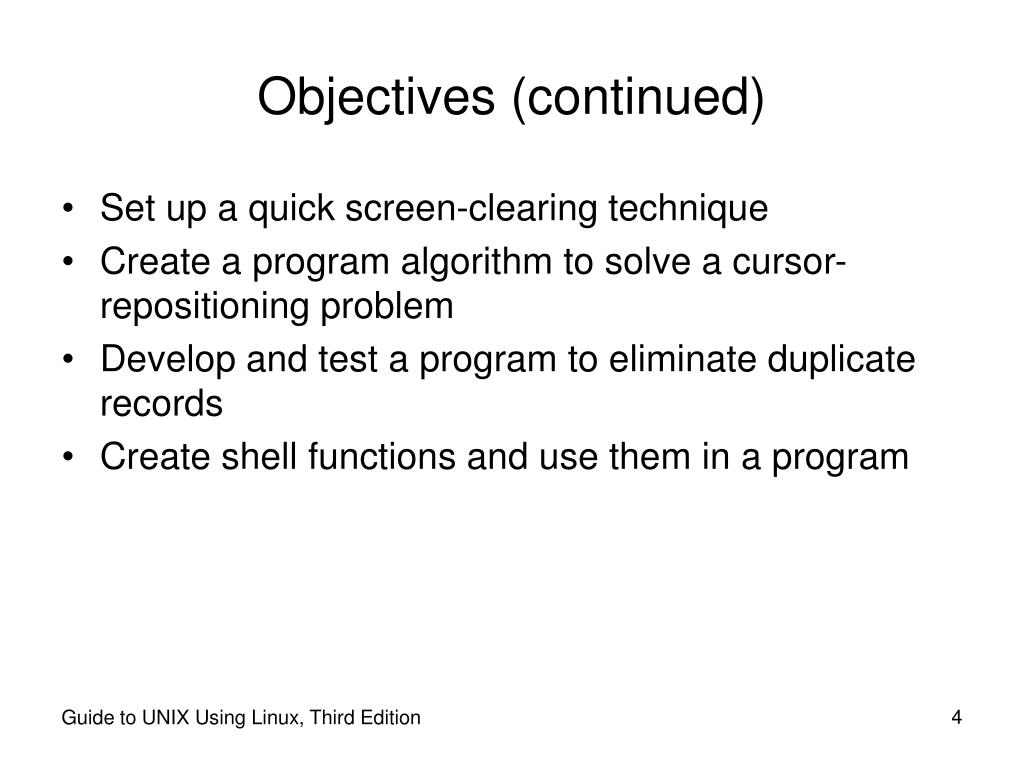

Objectives (continued)
  • Set up a quick screen-clearing technique
  • Create a program algorithm to solve a cursor-repositioning problem
  • Develop and test a program to eliminate duplicate records
  • Create shell functions and use them in a program

Guide to UNIX Using Linux, Third Edition

understanding program design and analysis
Understanding Program Design and Analysis
  • Program development cycle
    • Step 1: Program specification
    • Step 2: Design
  • Two popular and proven analysis tools:
    • Program flowchart
    • Pseudocode

Guide to UNIX Using Linux, Third Edition

flowcharting
Flowcharting
  • Each step in the program is represented by a symbol in the flowchart
  • The shape of the symbol indicates the type of operation
    • Arrows connect the symbols and indicate the direction in which the program flows
    • Input and output: represented by trapezoids
    • Decision structures: represented by diamonds

Guide to UNIX Using Linux, Third Edition

flowcharting continued
Flowcharting (continued)

Guide to UNIX Using Linux, Third Edition

slide8

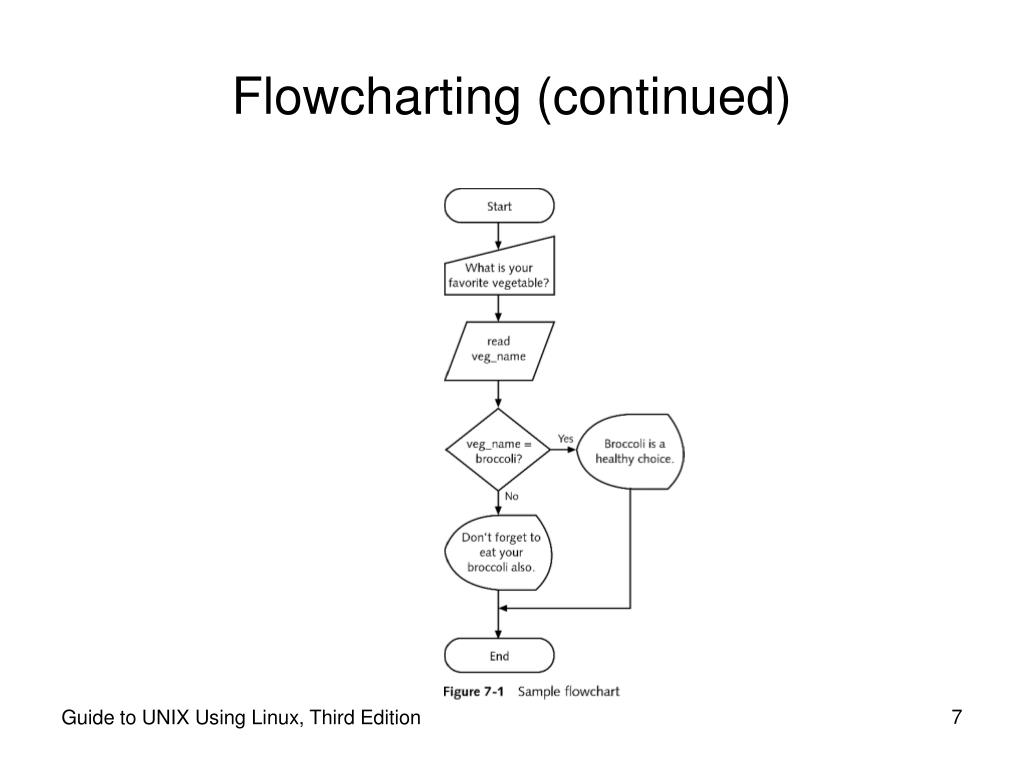

Flowcharting (continued)

Guide to UNIX Using Linux, Third Edition

writing pseudocode
Writing Pseudocode
  • After flowcharting, the next step in designing a program is to write pseudocode
  • Similar to programming statements
  • A design tool only and never processed by the computer; no syntax issues

Guide to UNIX Using Linux, Third Edition

writing pseudocode continued

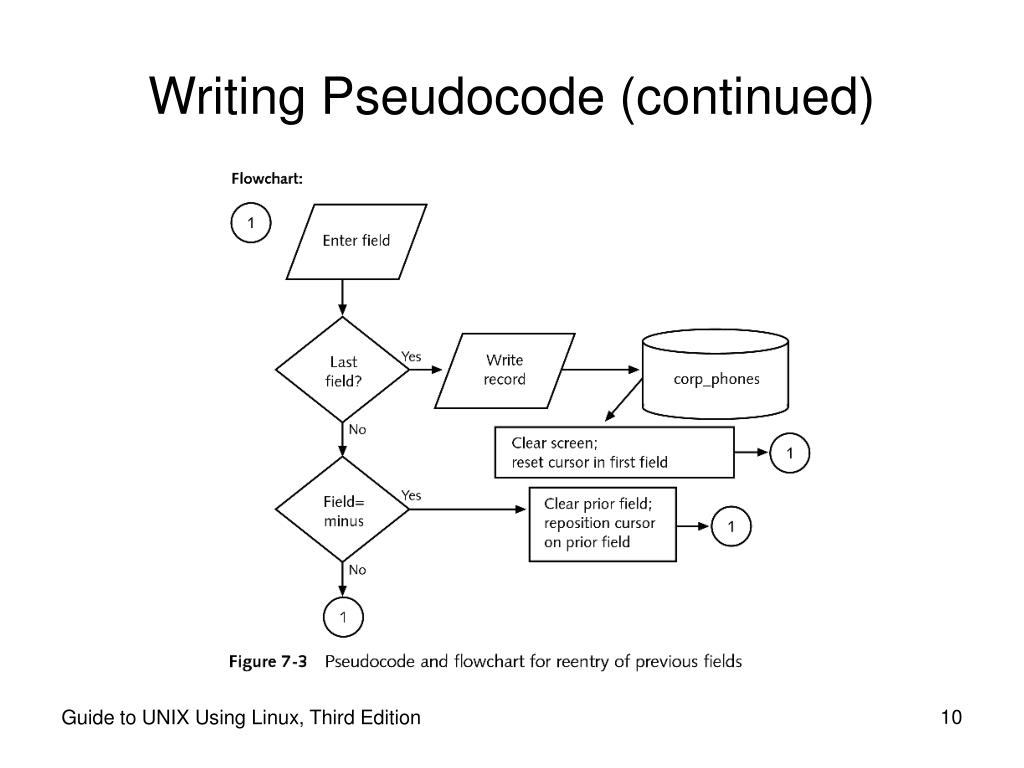

Writing Pseudocode (continued)

Guide to UNIX Using Linux, Third Edition

ensuring the correct shell runs the script

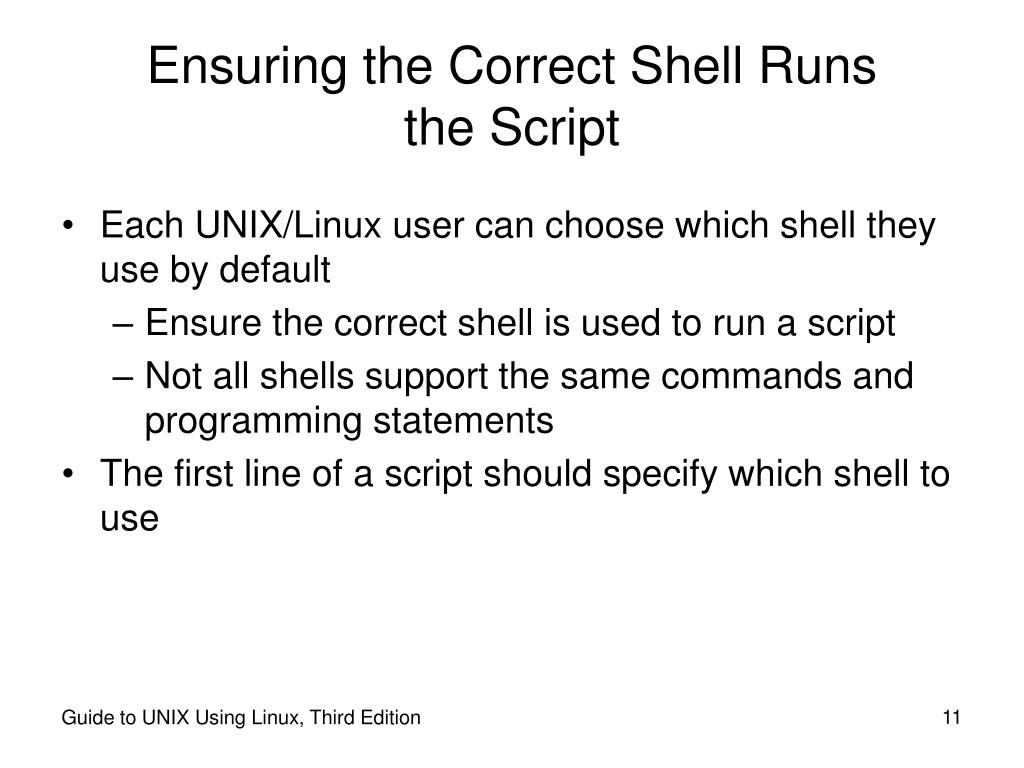

Ensuring the Correct Shell Runs the Script
  • Each UNIX/Linux user can choose which shell they use by default
    • Ensure the correct shell is used to run a script
    • Not all shells support the same commands and programming statements
  • The first line of a script should specify which shell to use

Guide to UNIX Using Linux, Third Edition

setting the default shell
Setting the Default Shell
  • System administrator establishes the default shell for a user account
    • In /etc/passwd file
  • File can only be edited (carefully!) by system administrator
  • Some systems provide management software to assist in setting default shells

Guide to UNIX Using Linux, Third Edition

using bash login and logout scripts
Using Bash Login and Logout Scripts
  • When Bash is your default shell, scripts run automatically upon login or re-entry
    • .bash_profile
    • .bashrc (also runs in a subshell)
  • Administrator controls /etc/bashrc and /etc/profile
  • .bash_logout runs when user logs out
    • Often used to clear the screen

Guide to UNIX Using Linux, Third Edition

using bash login and logout scripts continued
Using Bash Login and Logout Scripts (continued)

Guide to UNIX Using Linux, Third Edition

setting defaults for using the vi editor

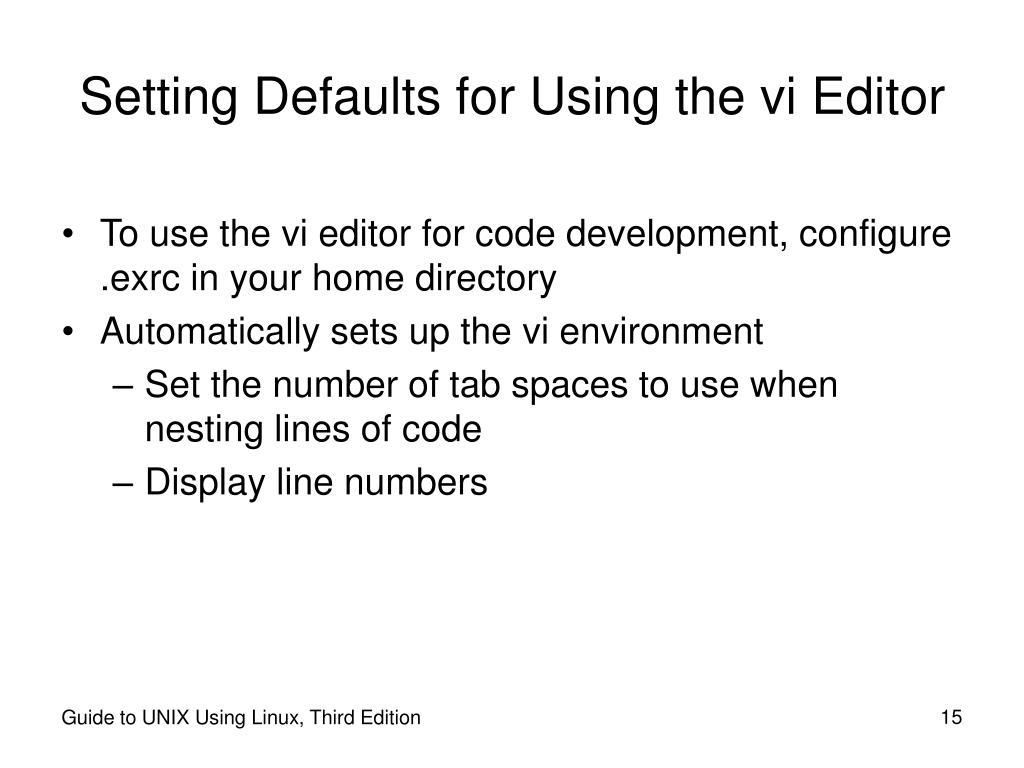

Setting Defaults for Using the vi Editor
  • To use the vi editor for code development, configure .exrc in your home directory
  • Automatically sets up the vi environment
    • Set the number of tab spaces to use when nesting lines of code
    • Display line numbers

Guide to UNIX Using Linux, Third Edition

using the test command

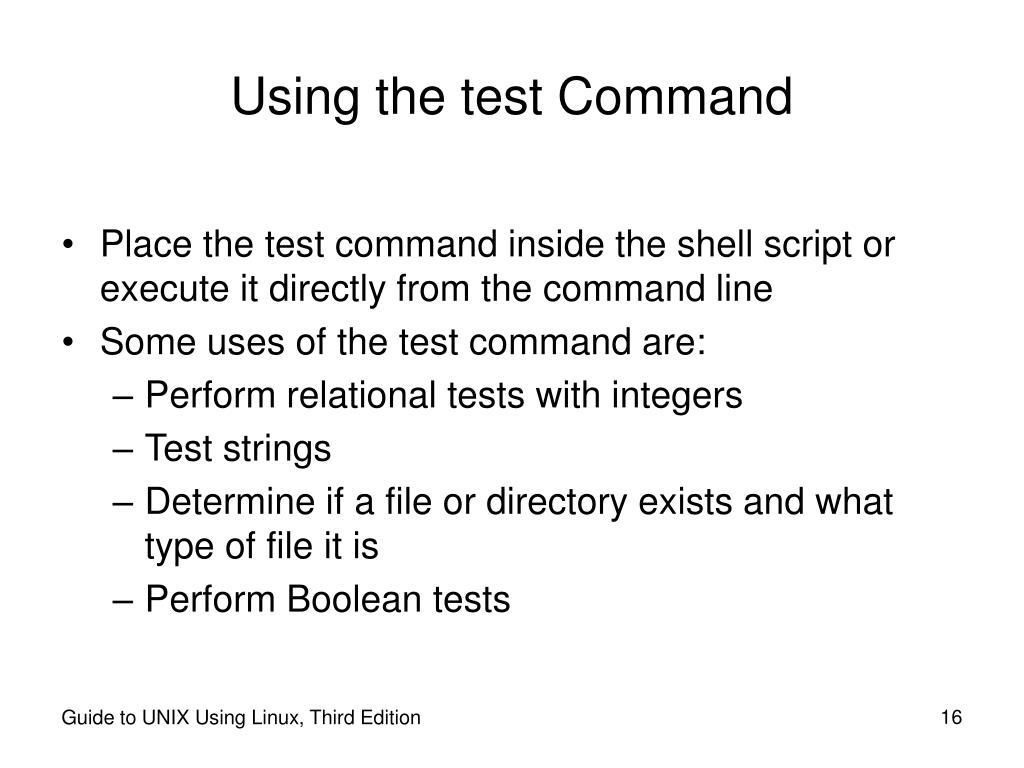

Using the test Command
  • Place the test command inside the shell script or execute it directly from the command line
  • Some uses of the test command are:
    • Perform relational tests with integers
    • Test strings
    • Determine if a file or directory exists and what type of file it is
    • Perform Boolean tests

Guide to UNIX Using Linux, Third Edition

performing relational integer tests with the test command
Performing Relational Integer Tests with the test Command

The test command returns an exit status that indicates the result of the test: 0 (zero) if true and 1 (one) if false

Guide to UNIX Using Linux, Third Edition

performing relational integer tests with the test command continued
Performing Relational Integer Tests with the test Command (continued)

Guide to UNIX Using Linux, Third Edition

performing string tests with the test command
Performing String Tests with the test Command

Guide to UNIX Using Linux, Third Edition

testing files with the test command
Testing Files with the test Command

Guide to UNIX Using Linux, Third Edition

performing boolean tests with the test command
Performing Boolean Tests with the test Command

AND – returns true (0) if both expressions are true, otherwise returns false (1)

OR – returns true if either expression is true, otherwise if neither is true, returns false

! – negates the value of the expression

Guide to UNIX Using Linux, Third Edition

using the test command22
Using the test Command

Guide to UNIX Using Linux, Third Edition

formatting record output
Formatting Record Output
  • Record output is formatted using the translateutility (tr)
  • Use tr to:
    • Change the characters typed at the keyboard, character by character
    • Work as a filter when the input comes from the output of another UNIX/Linux command
    • Redirect standard input to come from a file rather than the keyboard

Guide to UNIX Using Linux, Third Edition

formatting record output24
Formatting Record Output

tr was used to change lowercase characters to uppercase and replace colon characters with spaces

Guide to UNIX Using Linux, Third Edition

deleting phone records

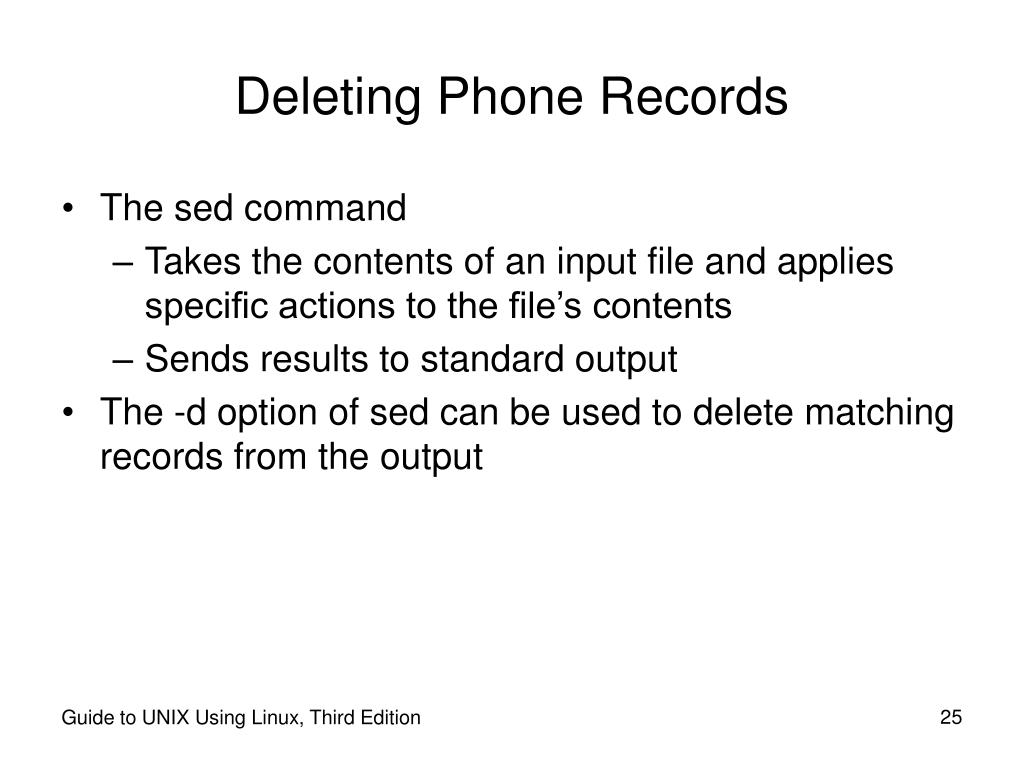

Deleting Phone Records
  • The sed command
    • Takes the contents of an input file and applies specific actions to the file’s contents
    • Sends results to standard output
  • The -d option of sed can be used to delete matching records from the output

Guide to UNIX Using Linux, Third Edition

deleting phone records26

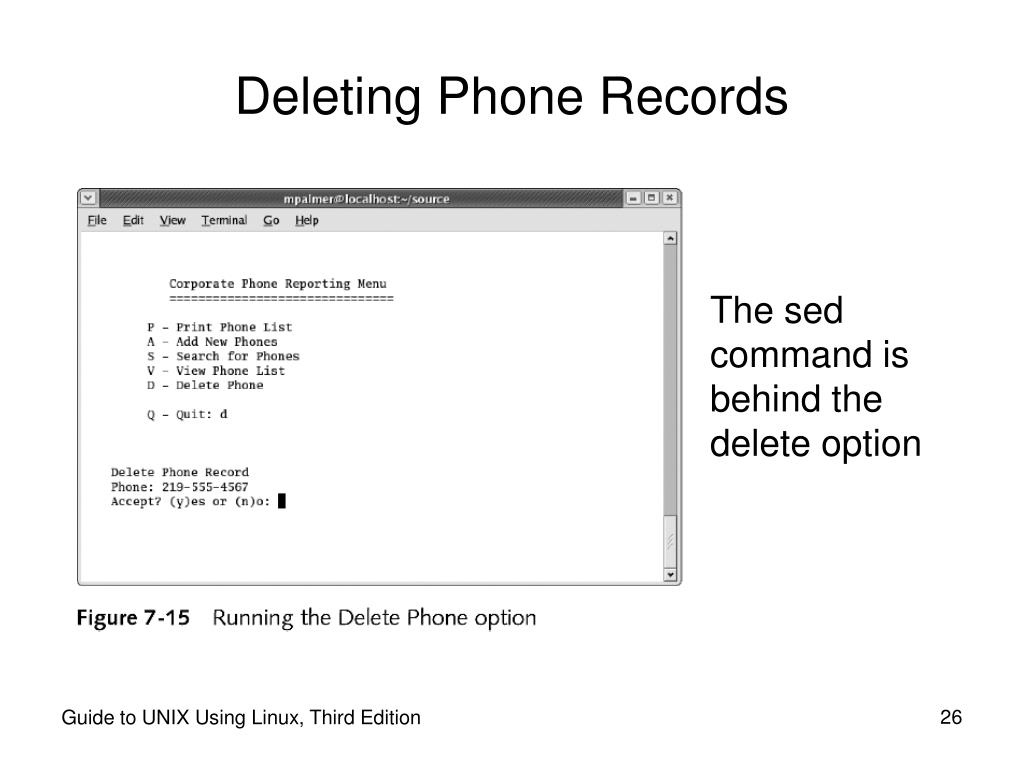

Deleting Phone Records

The sed command is behind the delete option

Guide to UNIX Using Linux, Third Edition

deleting phone records27

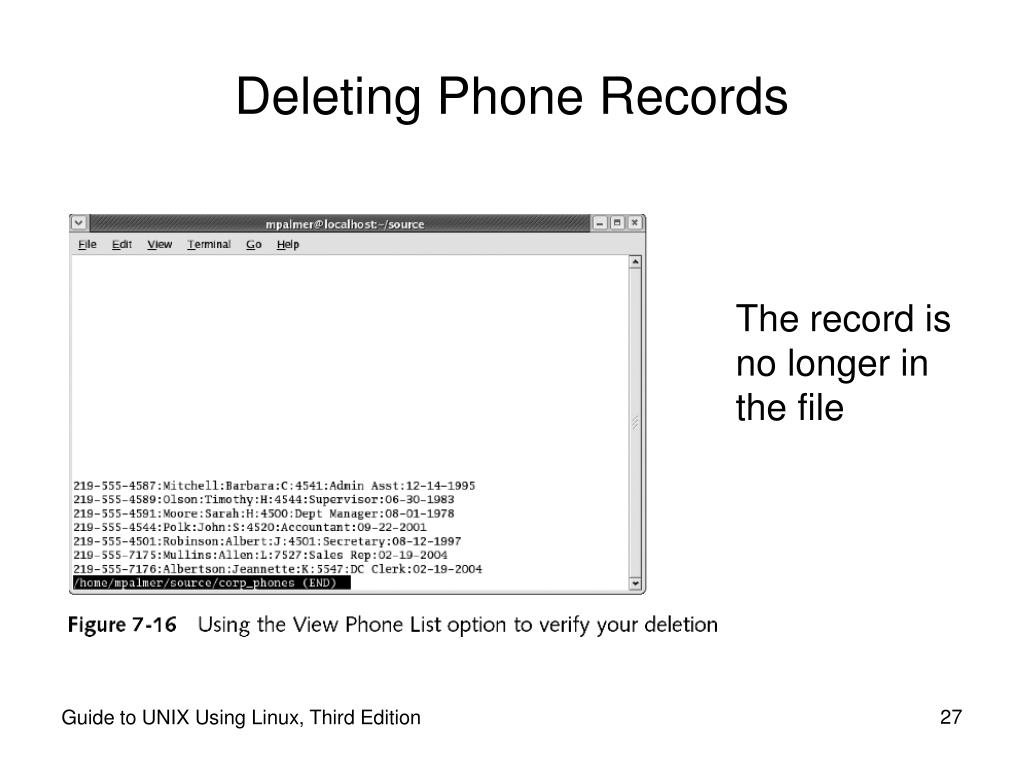

Deleting Phone Records

The record is no longer in the file

Guide to UNIX Using Linux, Third Edition

clearing the screen
Clearing the Screen
  • The clear command is useful for clearing the screen, but there is a faster way
    • Store the output of the clear command in a variable and then echo the contents of the variable on the screen
    • About ten times faster than the actual command since the system does not have to locate and execute the clear command

Guide to UNIX Using Linux, Third Edition

clearing the screen continued
Clearing the Screen (continued)

Guide to UNIX Using Linux, Third Edition

creating an algorithm to place the cursor

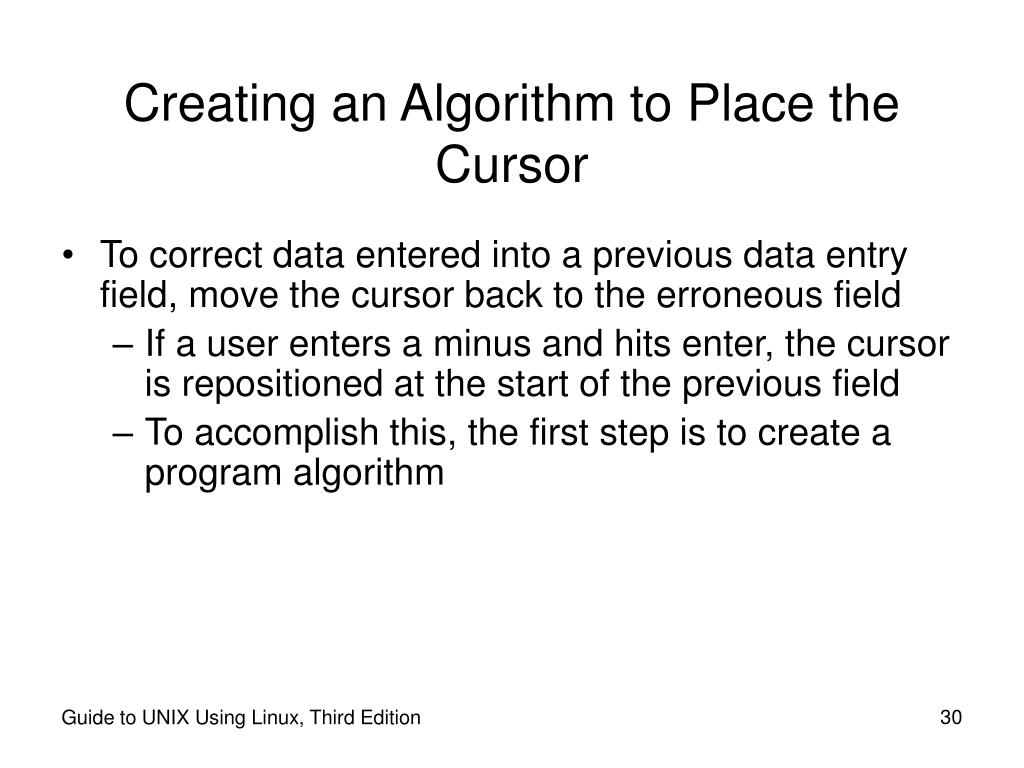

Creating an Algorithm to Place the Cursor
  • To correct data entered into a previous data entry field, move the cursor back to the erroneous field
    • If a user enters a minus and hits enter, the cursor is repositioned at the start of the previous field
    • To accomplish this, the first step is to create a program algorithm

Guide to UNIX Using Linux, Third Edition

creating an algorithm to place the cursor continued
Creating an Algorithm to Place the Cursor (continued)
  • An algorithm is a sequence of commands or instructions that produces a desired result
  • A good practice for creating an algorithm is to develop both the logic shown in a flowchart and the conditions necessary to carry out the logic described in the pseudocode

Guide to UNIX Using Linux, Third Edition

creating program algorithms
Creating Program Algorithms

Incorrect information has been entered by the user

Guide to UNIX Using Linux, Third Edition

creating program algorithms continued

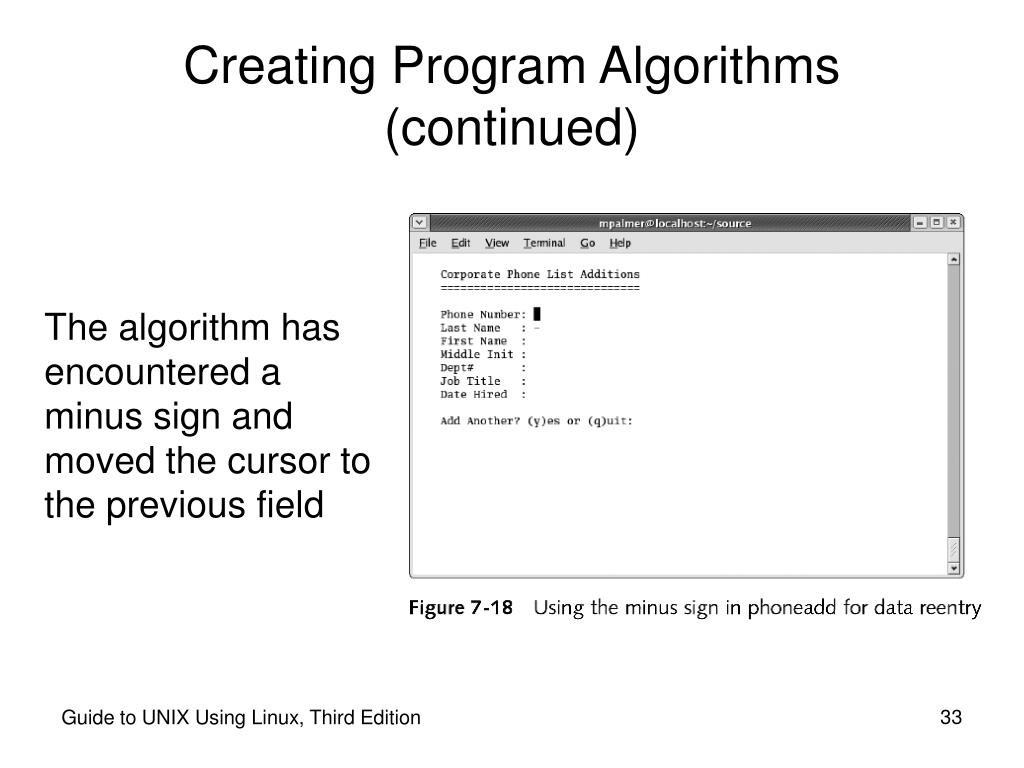

Creating Program Algorithms (continued)

The algorithm has encountered a minus sign and moved the cursor to the previous field

Guide to UNIX Using Linux, Third Edition

protecting against entering duplicate data
Protecting Against EnteringDuplicate Data
  • Input validation is necessary because users don’t always enter valid data
  • Programs should always check to ensure that users enter acceptable information

Guide to UNIX Using Linux, Third Edition

protecting against entering duplicate data continued
Protecting Against EnteringDuplicate Data (continued)

Guide to UNIX Using Linux, Third Edition

protecting against entering duplicate data continued36
Protecting Against EnteringDuplicate Data (continued)

The phoneadd program now does input validation

Guide to UNIX Using Linux, Third Edition

using shell functions
Using Shell Functions
  • A shell function is a group of commands stored in memory and assigned a name
  • Shell scripts can use function names to execute the commands
  • Shell functions isolate reusable code sections; no need to duplicate the same algorithm throughout your program

Guide to UNIX Using Linux, Third Edition

defining a function from the command line

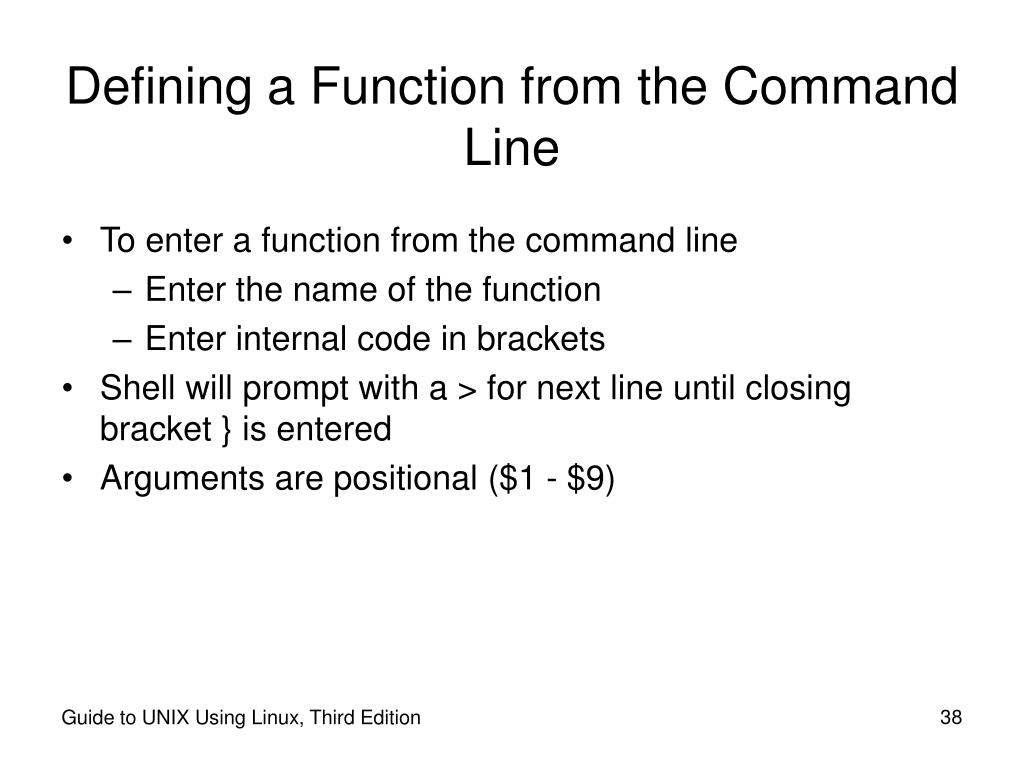

Defining a Function from the Command Line
  • To enter a function from the command line
    • Enter the name of the function
    • Enter internal code in brackets
  • Shell will prompt with a > for next line until closing bracket } is entered
  • Arguments are positional ($1 - $9)

Guide to UNIX Using Linux, Third Edition

creating functions inside shell scripts
Creating Functions Inside Shell Scripts
  • Creating a function inside a shell script supports code reuse
  • Functions can be automatically loaded or defined upon login using .bashrc or .bash_profile scripts

Guide to UNIX Using Linux, Third Edition

chapter summary
Chapter Summary
  • Two popular analysis tools are the program flowchart and pseudocode
  • Use the first line in a script to tell the OS which shell to use with the script
  • test command validates the existence of directories and files and compares numeric and string values
  • sed reads a file as its input and outputs the file’s modified content

Guide to UNIX Using Linux, Third Edition

chapter summary continued

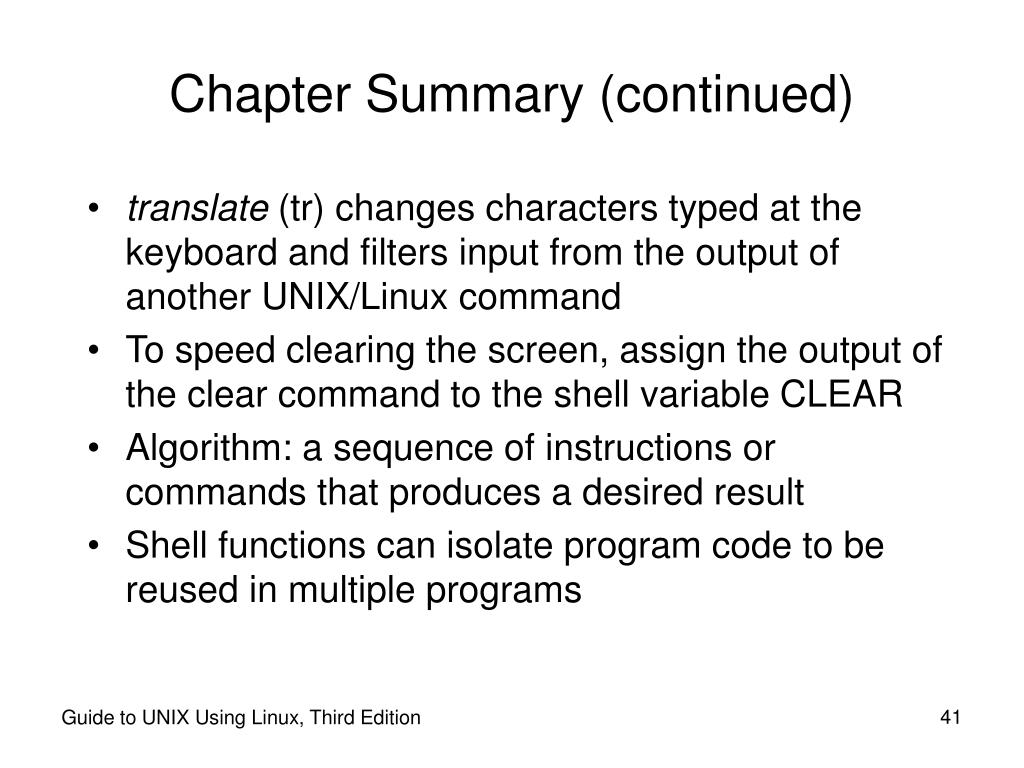

Chapter Summary (continued)
  • translate (tr) changes characters typed at the keyboard and filters input from the output of another UNIX/Linux command
  • To speed clearing the screen, assign the output of the clear command to the shell variable CLEAR
  • Algorithm: a sequence of instructions or commands that produces a desired result
  • Shell functions can isolate program code to be reused in multiple programs

Guide to UNIX Using Linux, Third Edition
