business analysis itec 630 fall 2009

Business AnalysisITEC-630 Fall 2009

Additional Database Topics

Professor J. Alberto Espinosa

agenda
Agenda
  • Client-server computing and database servers
  • Connecting databases to the web
  • Other advanced database topics:
    • Database administration
    • Transactions
    • Concurrency
    • Distributed databases
    • Data warehouses
client server computing
Client-Server Computing
  • A key technological development in the 90’s
  • A form of “distributed computing”
  • Most predominant computing architecture today
  • Software application (i.e., processing) is split into tasks
  • These tasks are distributed among computers
  • Depending where it is more efficient to do the processing
clients and servers

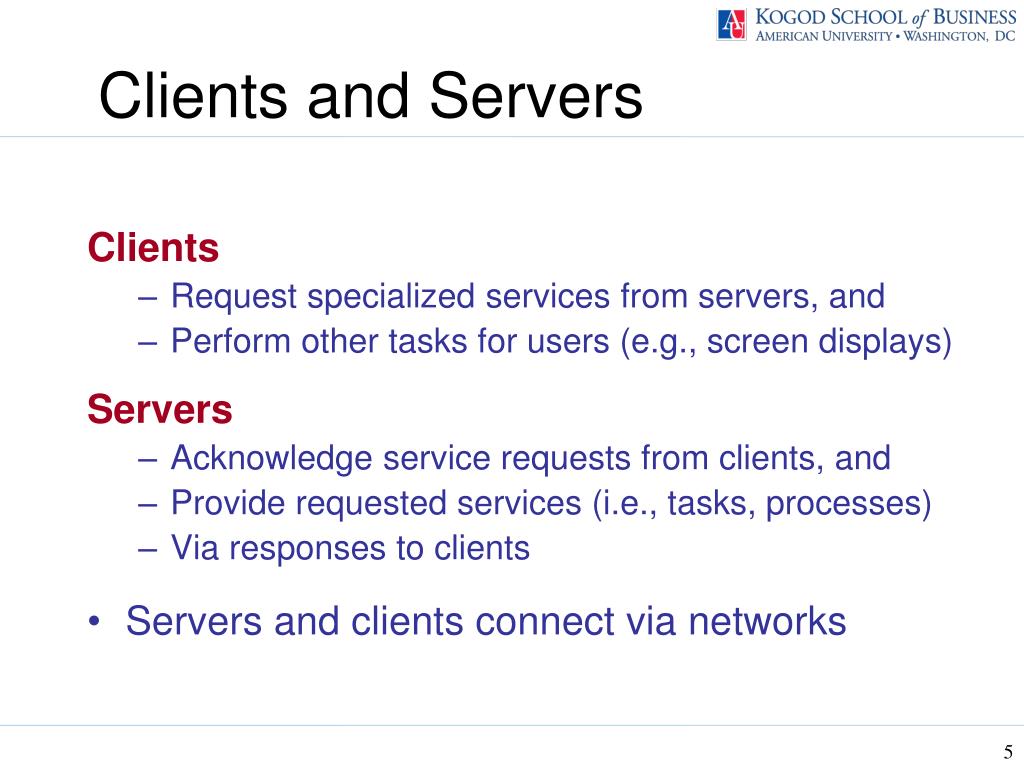

Clients and Servers

Clients

    • Request specialized services from servers, and
    • Perform other tasks for users (e.g., screen displays)

Servers

    • Acknowledge service requests from clients, and
    • Provide requested services (i.e., tasks, processes)
    • Via responses to clients
  • Servers and clients connect via networks
client server computing1

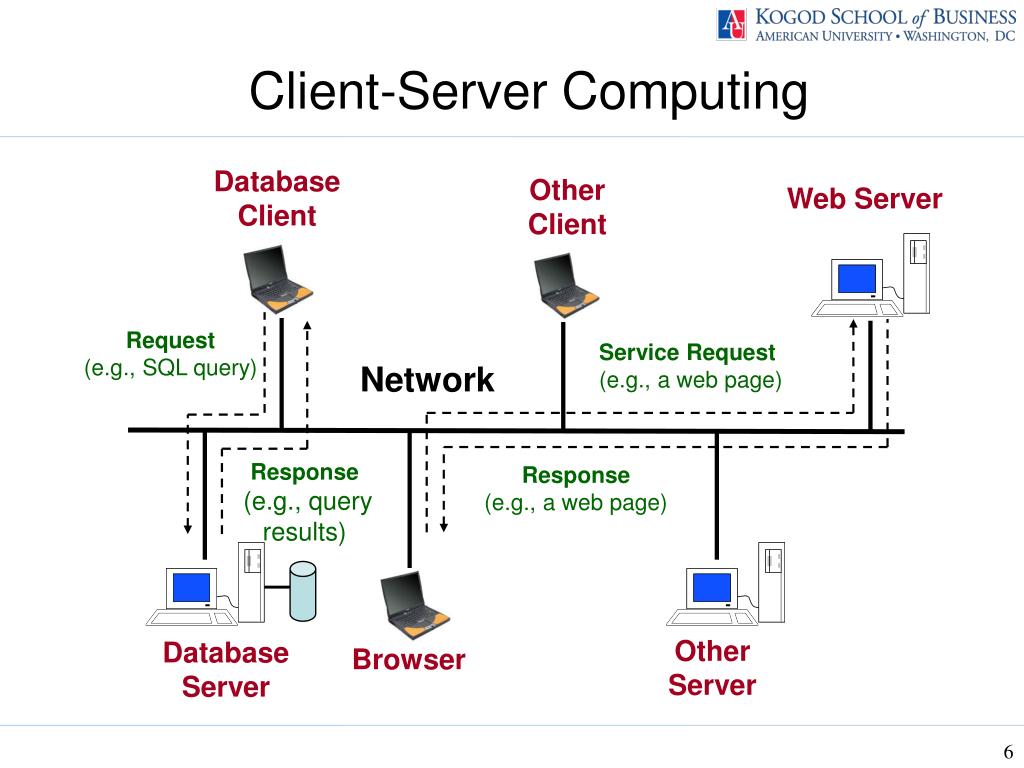

Client-Server Computing

DatabaseClient

OtherClient

Web Server

Request (e.g., SQL query)

Service Request(e.g., a web page)

Network

Response(e.g., query results)

Response(e.g., a web page)

OtherServer

DatabaseServer

Browser

examples of servers
Examples of Servers
  • A server can be hardware, software or both
  • File Server  central file storage, process file requests(ex. Novell’s NetWare, Windows NT)
  • Database Server back-end DBMS functions (ex. MS SQL Server, Oracle Server, Lotus Notes Server)
  • Web Server store and fetch web files on request(ex. Apache, Microsoft IIS)
  • Print Server print job queuing for central printers
  • Mail Server routes mail to users and other mail servers
examples of clients
Examples of Clients
  • A client can be hardware, software or both
  • Networked PCs  request files and other services from file servers (Windows 2000, XP)
  • Database Clients  request records from database server, process data locally, screen formatting, etc. (Lotus Notes client, MS Access)
  • Web Browsers request web files from web servers, translate HTML code into formatted screen displays(Internet Explorer, Netscape)
  • Mail Client Send/retrieve mail to/from mail servers, organize and display user mail(Outlook Express; Lotus Notes mail client)
generic client server architecture
Generic Client-Server Architecture

Request

Application Software (Client Portion)

Application Software (Server Portion)

Response

Client Communication Software

Server Communication Software

Communication Protocols

Client Operating System

Server Operating System

Hardware Platform

Hardware Platform

Network

Client

Server

ex thin client or fat server model most of the processing is done by the server
Ex.: “Thin Client” or “Fat Server” model Most of the processing is done by the server

Thin Client

Fat Server

  • Example:
  • Web Server-Browser Applications
  • Easy to deploy applications
  • Great for electronic commerce
  • Easy to support and upgrade applications for distributed use

Presentation Software

Application Software

DBMS

Client Communication Software

Server Communication Software

Client Operating System

Server Operating System

Hardware Platform

Hardware Platform

Network

slide11

Ex.: “Fat Client” or “Thin Server” modelMost of the processing is done by the client

Thin Server

Fat Client

  • Example:
  • File Servers (Novell’s NetWare—your G drive, Windows NT) – file servers do very little – e.g., giving you access to shared drives and folders

Presentation Software

Application Software

Server Communication Software

Client Communication Software

Server Operating System(incl. file management)

Client Operating System

Hardware Platform

Hardware Platform

Network

example client server database management systems dbms fat client
Example: Client-Server Database Management Systems (DBMS) (fat client)

Presentation Software

Database Application

Request

Front-EndDatabase Client SW

Back-EndDatabase Server SW

Response

Client Communication Software

Server Communication Software

Databases

Client Operating System

Server Operating System

Hardware Platform

Hardware Platform

Network

Client Computer

Server Computer

ex web client server

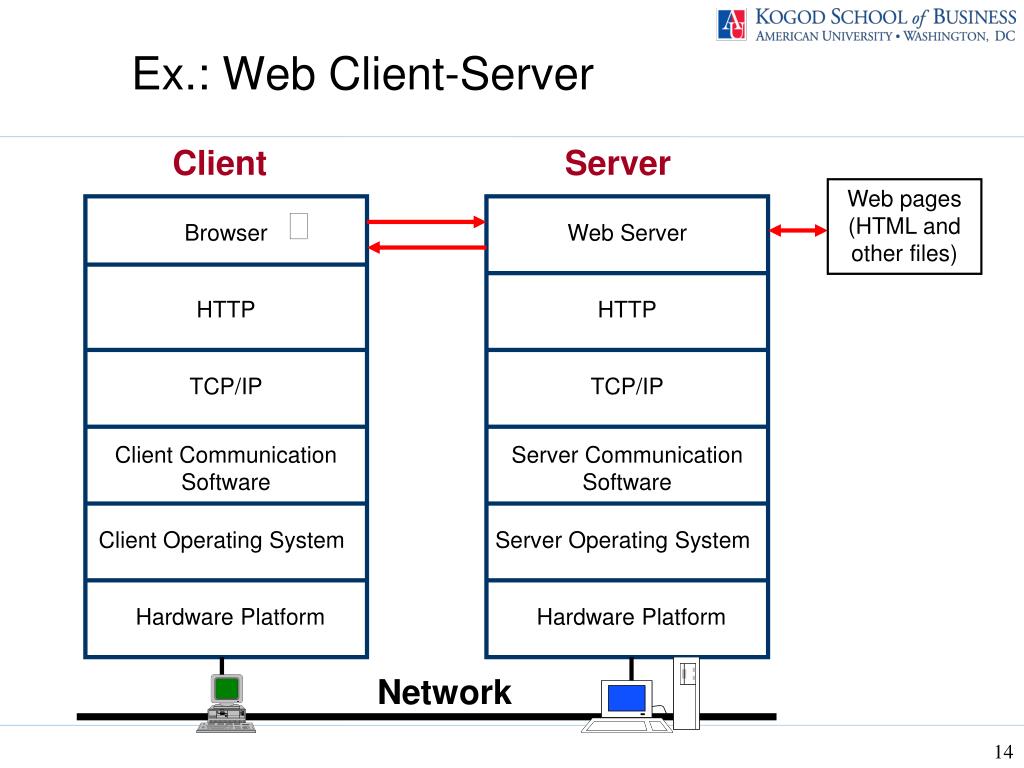

Ex.: Web Client-Server

Client

Server

Web pages (HTML and other files)

Browser

Web Server

HTTP

HTTP

TCP/IP

TCP/IP

Client Communication Software

Server Communication Software

Client Operating System

Server Operating System

Hardware Platform

Hardware Platform

Network

ex web client server database server thin client

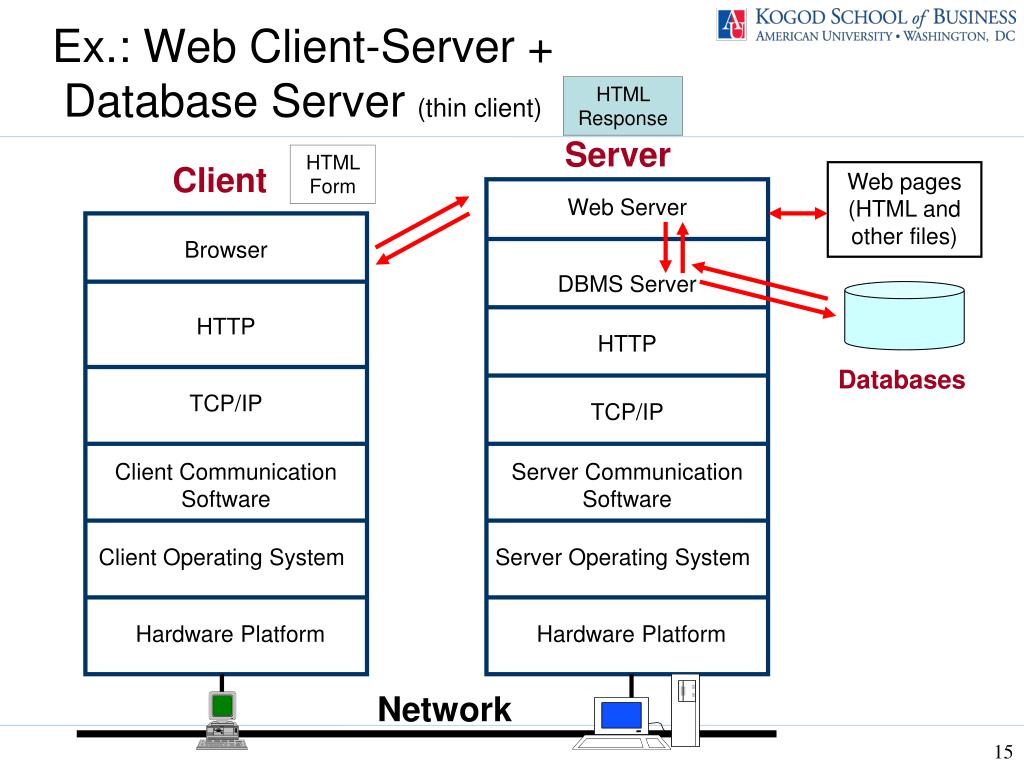

Ex.: Web Client-Server + Database Server (thin client)

HTML Response

Server

HTML Form

Client

Web pages (HTML and other files)

Web Server

SQL Queries

Browser

DBMS Server

HTTP

HTTP

Databases

TCP/IP

TCP/IP

Client Communication Software

Server Communication Software

Client Operating System

Server Operating System

Hardware Platform

Hardware Platform

Network

dynamic web pages connecting web pages to databases
Dynamic Web Pages:Connecting Web Pages to Databases

Request (ex. get a price quote, place an order)

Response (ex. query results with HTML-formatted product price or order confirmation notice)

client server computing browserclient web database servers dynamic web pages

Service Request

Response:DynamicallyFormattedHTML Pagew/Results

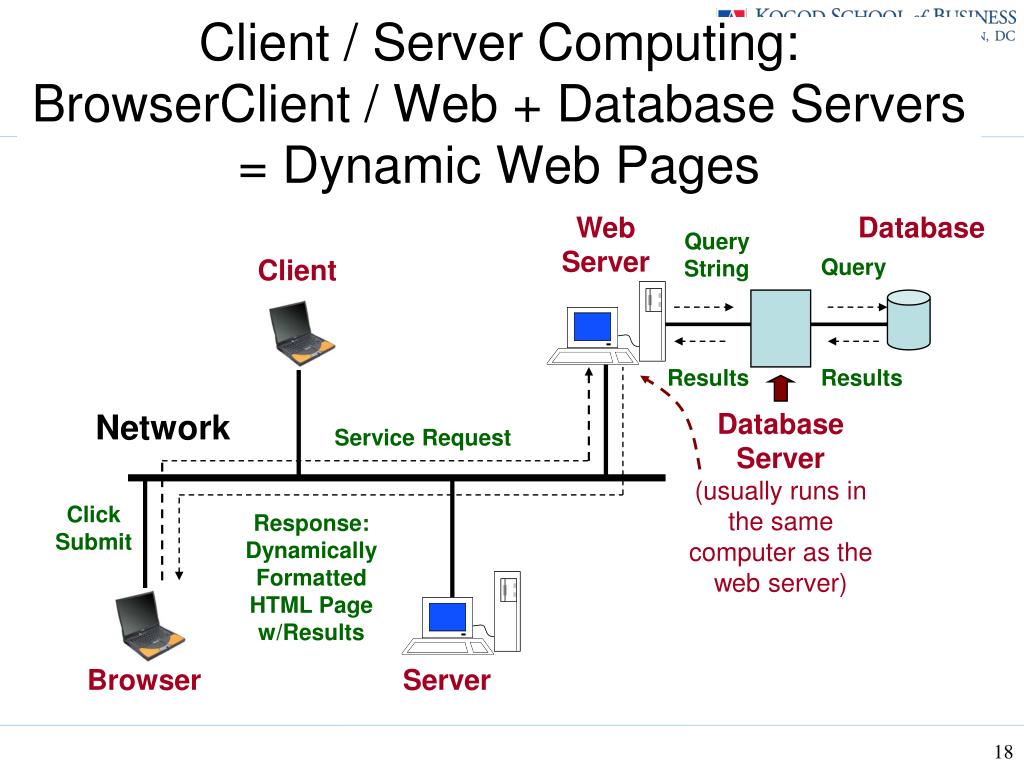

Client / Server Computing:BrowserClient / Web + Database Servers= Dynamic Web Pages

WebServer

Database

Query String

Client

Query

Results

Results

Network

Database Server(usually runs in the same computer as the web server)

ClickSubmit

Browser

Server

setting up your own site with dynamic web capabilities
Setting Up Your Own Site With Dynamic Web Capabilities

Steps:

  • Register your own domain name (e.g., my domain is www.Jibe4Fun.com) – there are hundreds of domain registration services ($20 to $40 per year to keep your domain name active) (through a service like http://DomainName.com)
  • Contract web hosting services with a company to hold your web pages – there are hundreds of web hosting services ranging from ($100 per year for a few MB of storage to highly priced commercial-strength e-commerce services (through a service like http://www.Alentus.com)
  • Map your domain name to your web hosting service (5 minutes)
  • Design, normalize and populate your database(s)
  • Design and develop your HTML files and related scripts
  • Upload your HTML files, scripts and databases to your assigned web space with your web hosting service
http and static html
HTTP and Static HTML

HTTP = a document fetching protocol:

  • User clicks on URL with HTTP protocol
  • Client requests connection to server, server connects
  • Browser requests HTML page to web site
  • Server finds/sends HTML page to client “AS IS”
  • Client’s browser interprets and displays HTML doc
  • Server disconnects from client

HTML is static: text (info) and tags (formatting), ex.:

<FONT SIZE=2><BOLD>Hello!! </BOLD><U>there</U></FONT>

Displays as:Hello!!there

static html via http

Open connection and find

HTML docfile.html

Send HTML doc and close connection

Static HTML via HTTP

Web Server

Microsoft Internet Information Server (IIS)

Apache

Requestconnectionto server and

file.html

Client Browser

Internet Explorer

Netscape Navigator

static html http shortcomings

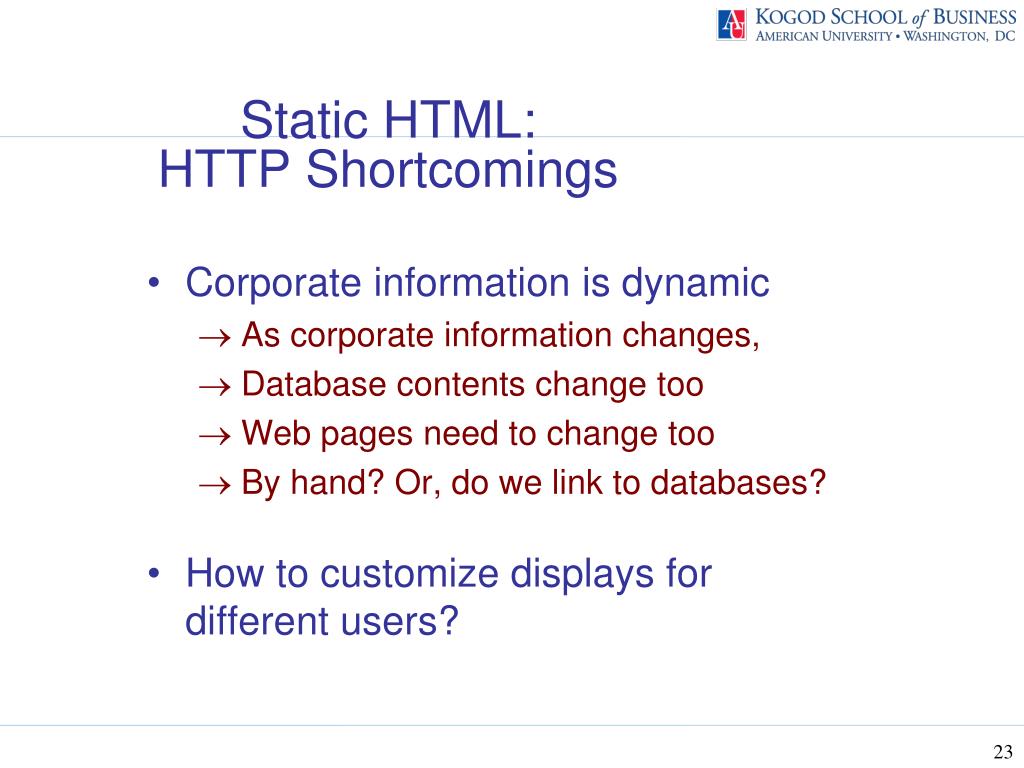

Static HTML:HTTP Shortcomings
  • Corporate information is dynamic
    • As corporate information changes,
    • Database contents change too
    • Web pages need to change too
    • By hand? Or, do we link to databases?
  • How to customize displays for different users?
how to make web pages dynamic
How to make web pages Dynamic?

2 generic solutions (workarounds) to static HTML:

  • Client-side scripting
    • Scripts that are processed by the browser in the local machine

2.Server-side scripting

    • Scripts that are processed by the web server
client side scripting
Client-Side Scripting
  • Script commands embedded in HTML file
  • Browsers need capability to process scripts
  • Processing is done by browserAFTERpage is fetched from server
  • Useful for interactive and visual effects
  • Browsermust support scripting language
  • Most popular: JavaScript, VB Script
client side scripting embedding client side scripts in html
Client-Side ScriptingEmbedding Client-Side Scripts in HTML

HTML lines

<SCRIPT LANGUAGE = “JavaScript”>

script lines

</SCRIPT>

More HTML lines

<SCRIPT LANGUAGE = “Perl”>

script lines

</SCRIPT>

More HTML lines

…………

example 2
Example 2
  • See: http://faculty.vassar.edu/lowry/kappa.html
example 3

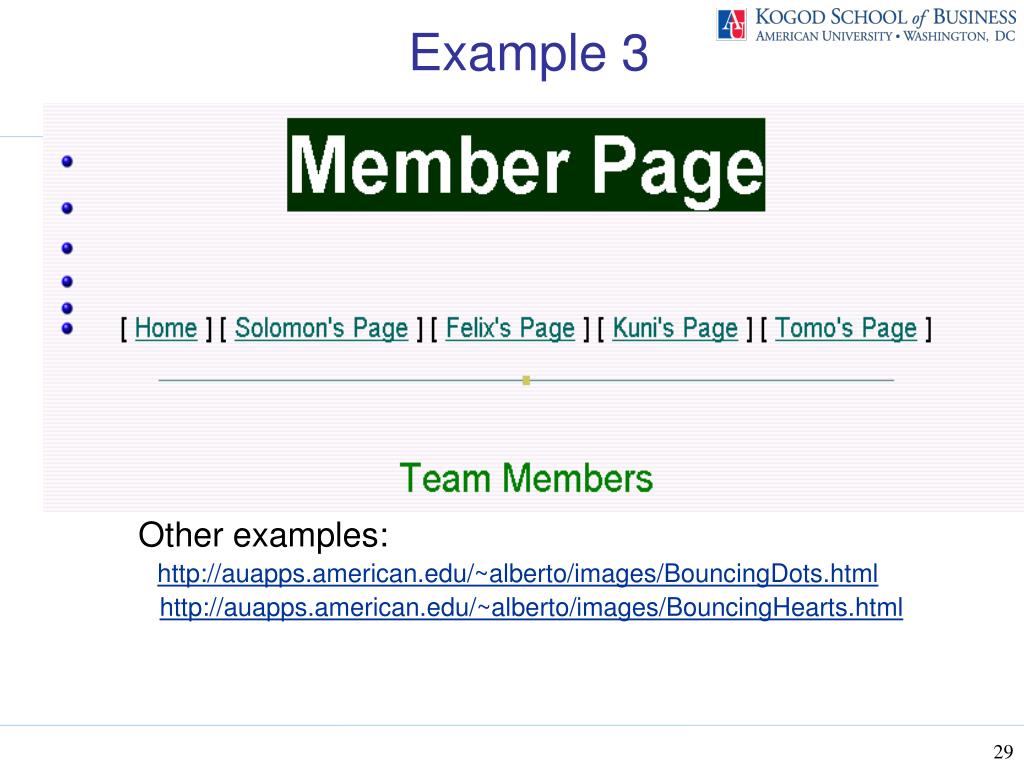

Example 3

Other examples:

http://auapps.american.edu/~alberto/images/BouncingDots.html

http://auapps.american.edu/~alberto/images/BouncingHearts.html

server side scripting
Server-Side Scripting
  • Script commands embedded in HTML file
  • The server must have capability to process scripts
  • Processing is done by web server BEFORE page is sent to browser
  • Useful to customize pages based on data stored on the server (databases, images, etc.)
  • And for centralized processing (at the server)
  • Web sever must support the scripting language
  • For example:
    • Microsoft’s Active Server Pages (ASP)
    • Which is a web scripting environment
    • It runs on Microsoft IIS (Internet Info Server) Web Servers
    • Supports VB Script or JScript (MS version of JavaScript)
  • Other scripting languages
    • PHP: Like ASP, Open Source for Apache servers
    • Perl: used with CGI scripts (Unix servers)
server side scripting with microsoft s asp
Server-Side Scripting with Microsoft’s ASP
  • Embedded scripts in HTML page

HTML code (i.e., tags and text)

<%‘ Everything after <% is an ASP script

‘ Note: use quote for comments

ASP script code

(using VB Script as default or other as declared)

………..……….

………………....

%>‘ ASP script ends with %>

More HTML code

<% more ASP %>

Etc.

how asp works

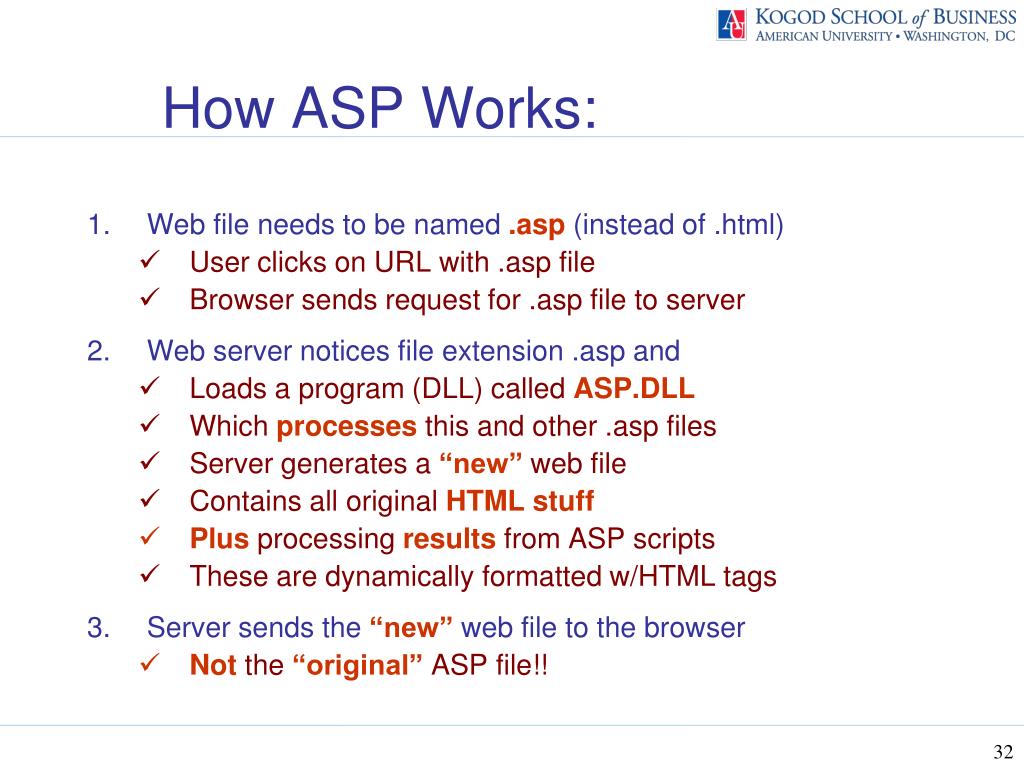

How ASP Works:
  • Web file needs to be named .asp (instead of .html)
    • User clicks on URL with .asp file
    • Browser sends request for .asp file to server
  • Web server notices file extension .asp and
    • Loads a program (DLL) called ASP.DLL
    • Which processes this and other .asp files
    • Server generates a “new” web file
    • Contains all original HTML stuff
    • Plus processing results from ASP scripts
    • These are dynamically formatted w/HTML tags
  • Server sends the “new” web file to the browser
    • Not the“original”ASP file!!
how asp works1

Process Scripts

SQL Query (if any)

file.asp

asp.dll

HTML

Databases

Query Results(recordset)

Request

file.html

Response HTML doc

Generated

On-the-Fly

HTML doc

Fetched

(+ Client-Side

scripts, if any)

Request

file.asp

file.asp file.asp

=

file.html file.html

How ASP Works

Microsoft’s Web Server(ASP + MS Access or SQL Server)

Client Browser

Internet Explorer

Netscape Navigator

dynamic html with asp

HTML

<H3>Welcome to my page</H3>

<H2>Here is my product list</H2>

<P>Thank you very much for inquiring about our products

Dynamically generated HTML lines by ASP

<P>

<B>Product Price</B>

<HR>

<P>Hammer ……... $8.50

<P>Pliers ……….… $7.79

<P>Screwdriver ..… $4.50

<P>Power Drill ….. $49.99

<P>Chainsaw …… $95.95

<P>Wrench ……….. $6.50

HTML

Dynamic HTML with ASP

ASP file on web server (file.asp)

HTML file sent to browser (file.asp)

<H3>Welcome to my page</H3>

<H2>Here is my product list</H2>

<% ‘Start ASP script

Open a database connection

SQL queries to database

Copy results to a record set

Display records one at a time

Close database connection

%> ‘End ASP script

<P>Thank you very much for inquiring about our products

common uses of asp with databases
Common Uses of ASP with Databases
  • Register a client (add record in database)
  • List products & services (query database)
  • Place orders (add records in database)[Illustrations: Database DesignShopping CartOrder Entry]
  • Track order status (query database)
  • Tech support (query a knowledge database)
  • Fill out a survey (add records in database)
example query results sent to browser html dynamically generated by previous asp script
Example: Query Results Sent to Browser(HTML dynamically generated by previous ASP script)

<IMG SRC="music22.gif"><B>Alberto's Music Instruments, Inc.<p>

<TABLE BORDER="0"><B>Customer List</B>

<TR><TH>ClientID</TH> <TH>Client Name</TH>

<TH>Shipping Address</TH> <TH>Telephone</TH> </TR>

<TR><TD>josee</TD>

<TD>Alberto Espinosa</TD>

<TD>Schenley Park, GSIA Building, #20</TD>

<TD>412-268-3681<BR></TD> </TR>

<TR><TD>sandy</TD>

<TD>Sandra Slaughter</TD>

<TD>5000 Forbes Avenue, Pittsburgh PA 15213</TD>

<TD>412-268-3681<BR></TD> </TR>

etc.

</TABLE></BODY></HTML>

slide39

See: http://www.jibe4fun.com/scripts/orders/Customer_List.asp

using forms with asp html and databases

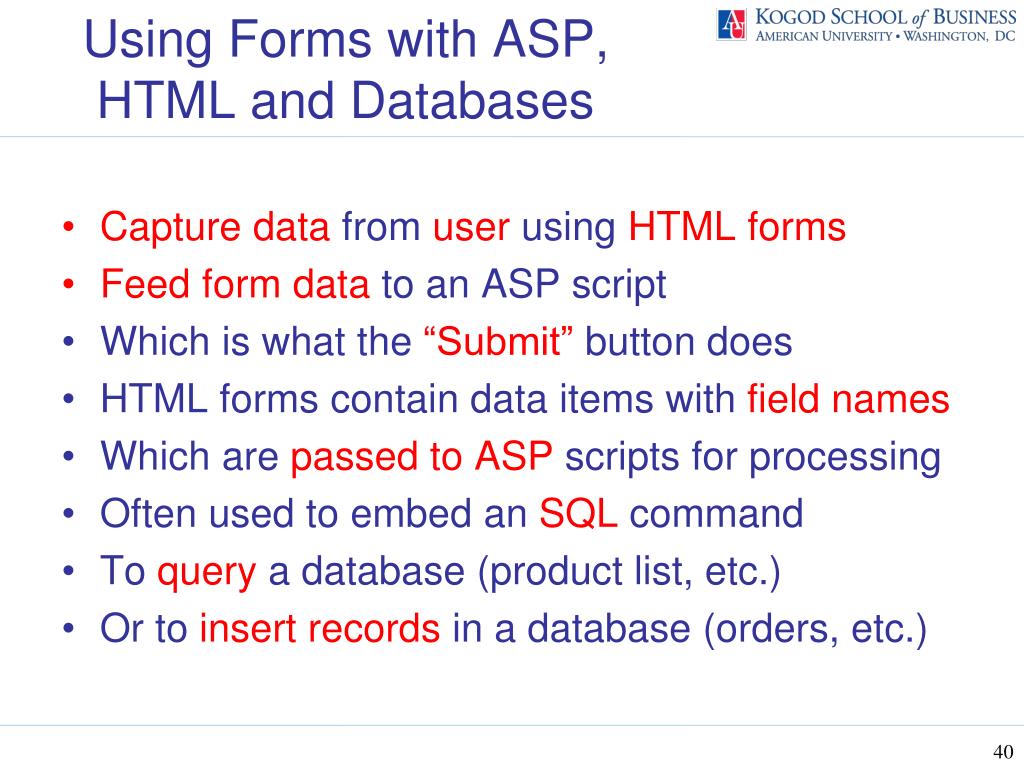

Using Forms with ASP, HTML and Databases
  • Capture data from user using HTML forms
  • Feed form data to an ASP script
  • Which is what the “Submit” button does
  • HTML forms contain data items with field names
  • Which are passed to ASP scripts for processing
  • Often used to embed an SQL command
  • To query a database (product list, etc.)
  • Or to insert records in a database (orders, etc.)
example html form data input doesn t have to be asp can be plain html

On submit,Pass on to

Form Object

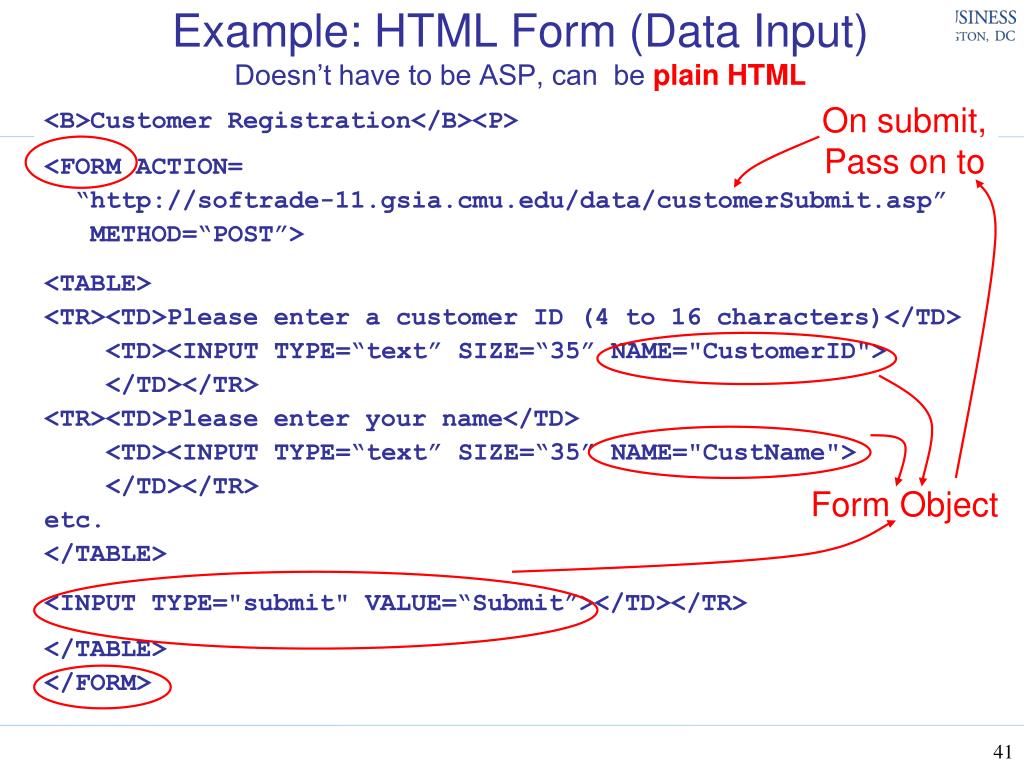

Example: HTML Form (Data Input)Doesn’t have to be ASP, can be plain HTML

<B>Customer Registration</B><P>

<FORM ACTION=

“http://softrade-11.gsia.cmu.edu/data/customerSubmit.asp”

METHOD=“POST”>

<TABLE>

<TR><TD>Please enter a customer ID (4 to 16 characters)</TD>

<TD><INPUT TYPE=“text” SIZE=“35” NAME="CustomerID">

</TD></TR>

<TR><TD>Please enter your name</TD>

<TD><INPUT TYPE=“text” SIZE=“35” NAME="CustName">

</TD></TR>

etc.

</TABLE>

<INPUT TYPE="submit" VALUE=“Submit”></TD></TR>

</TABLE>

</FORM>

slide42

See: http://www.jibe4fun.com/scripts/orders/Customer_Input.htmlhttp://www.jibe4fun.com/scripts/orders/

example asp processing data from forms

Request From Form Object

Add record in database

Example: ASP Processing Data from Forms

<!-- customerSubmit.asp -->

asp resources
ASP Resources
  • A periodic publication on ASP. It contains articles with ASP issues as well as some tips and tricks: http://www.asptoday.com
  • Nice introductory book with examples and a web site where you can download running code: Beginning Active Server Pages 3.0 http://www.wrox.com/books/0764543636.shtml
  • A more advanced book. Probably one of the most useful reference books to have for people who are doing serious ASP coding: Professional ASP.NET 1.0. http://www.wrox.com/books/0764543962.shtml
  • A useful book if you need more help with Visual Basic Script: VB Script Programmer's Reference. http://www.wrox.com/books/0764543679.shtml
  • A good and concise reference of ASP objects for those who already know ASP fairly well: ASP in a Nutshell, Weissinger and Petrusha, O'Reilly series. http://www.amazon.com/exec/obidos/ASIN/1565924908/
other related technologies
Other Related Technologies

Server-Side Processing:

  • JSP (Java Server Pages): Sun's version of ASP (*.jsp files)
  • ColdFusion (*.cfm files), Dreamweaver (Macromedia) http://www.macromedia.com/
  • (Like ASP but) Open Source – PHP (*.php files)
  • Lotus Notes & Domino IBM, http://lotus.com/home.nsf/welcome/domino
other related technologies cont d

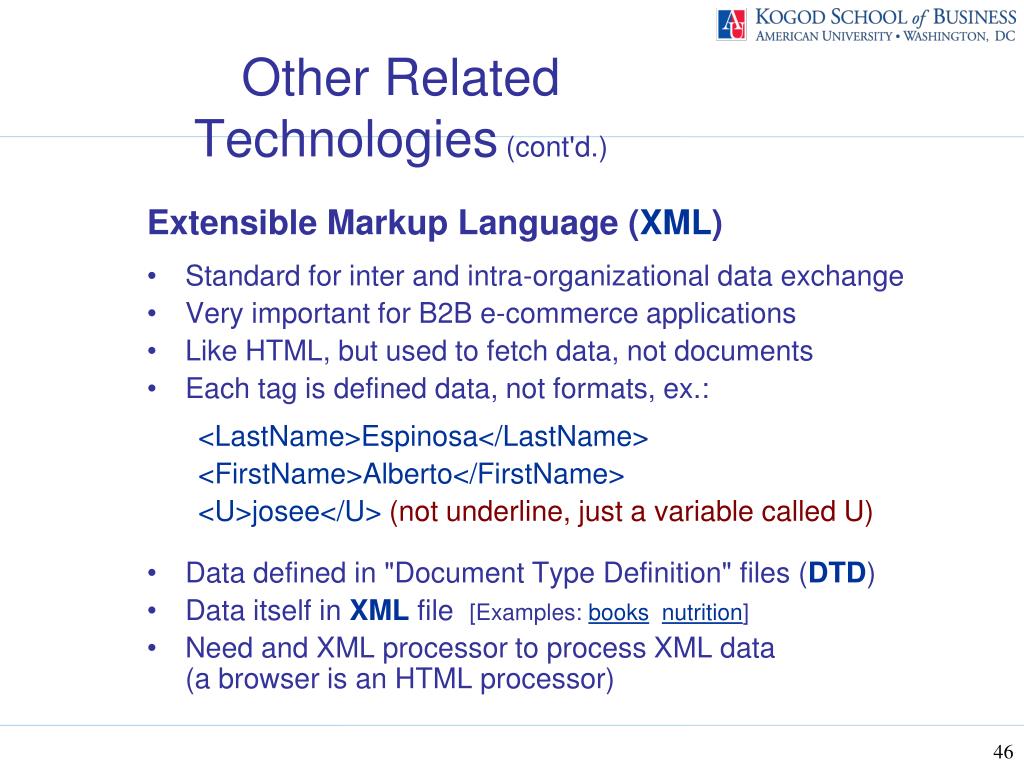

Other Related Technologies (cont'd.)

Extensible Markup Language (XML)

  • Standard for inter and intra-organizational data exchange
  • Very important for B2B e-commerce applications
  • Like HTML, but used to fetch data, not documents
  • Each tag is defined data, not formats, ex.:

<LastName>Espinosa</LastName>

<FirstName>Alberto</FirstName>

<U>josee</U> (not underline, just a variable called U)

  • Data defined in "Document Type Definition" files (DTD)
  • Data itself in XML file [Examples: booksnutrition]
  • Need and XML processor to process XML data(a browser is an HTML processor)
another xml example can you draw a table that contains the following data

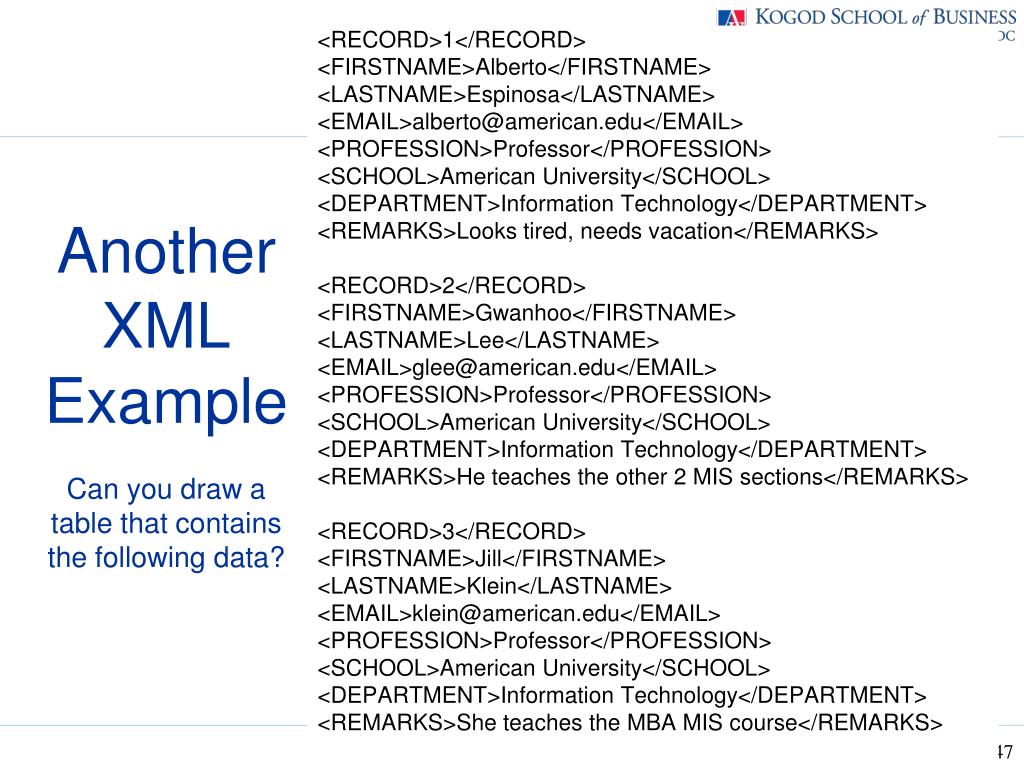

AnotherXMLExampleCan you draw a table that contains the following data?

<RECORD>1</RECORD>

<FIRSTNAME>Alberto</FIRSTNAME>

<LASTNAME>Espinosa</LASTNAME>

<EMAIL>alberto@american.edu</EMAIL>

<PROFESSION>Professor</PROFESSION>

<SCHOOL>American University</SCHOOL>

<DEPARTMENT>Information Technology</DEPARTMENT>

<REMARKS>Looks tired, needs vacation</REMARKS>

<RECORD>2</RECORD>

<FIRSTNAME>Gwanhoo</FIRSTNAME>

<LASTNAME>Lee</LASTNAME>

<EMAIL>glee@american.edu</EMAIL>

<PROFESSION>Professor</PROFESSION>

<SCHOOL>American University</SCHOOL>

<DEPARTMENT>Information Technology</DEPARTMENT>

<REMARKS>He teaches the other 2 MIS sections</REMARKS>

<RECORD>3</RECORD>

<FIRSTNAME>Jill</FIRSTNAME>

<LASTNAME>Klein</LASTNAME>

<EMAIL>klein@american.edu</EMAIL>

<PROFESSION>Professor</PROFESSION>

<SCHOOL>American University</SCHOOL>

<DEPARTMENT>Information Technology</DEPARTMENT>

<REMARKS>She teaches the MBA MIS course</REMARKS>

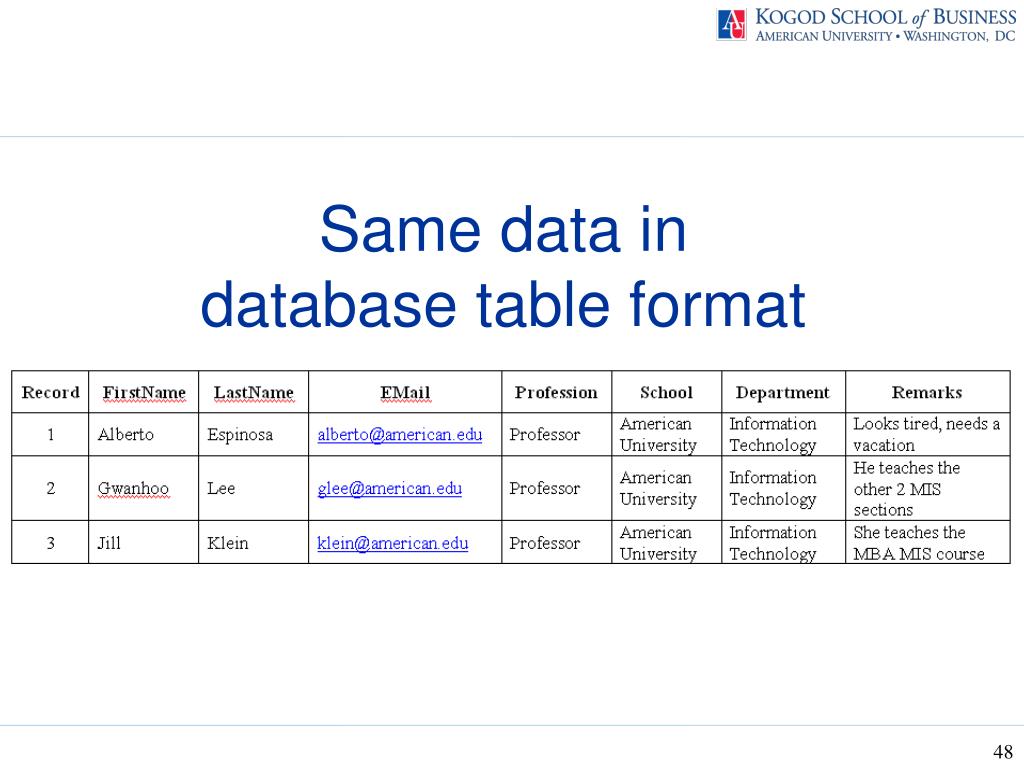

business to business e commerce example using xml
Business to Business E-Commerce Example using XML

DBMS(e.g., MS SQL Server)

INSERT query

Supplier

XML Document (e.g., Purchase Order)

XML Processor

Internet

XML Processor

XML Document (e.g., Purchase Order)

Query results

Buyer

DBMS(e.g., Oracle)

SELECT query

scale issues
Scale Issues
  • Scale Issue #1: Large databases need to be managed  Database Administration
  • Scale Issue #2: Large database applications need to update multiple tables simultaneously  Transactions
  • Scale Issue #3: Multiple users using, updating and querying the database Concurrency
  • Scale Issue #4: Large database application with wide geographic scope Distributed databases
  • Scale Issue #5: Multiple data sources needed for decision making Data warehouses
database administration1
Database Administration

“A technical function that is responsible for physical database design and for dealing with technical issues such as security enforcement, database performance, and backup and recovery.”-- Hoffer et. al.

database administration functions
Database Administration Functions
  • Data policies (e.g. every user must have a password, authorizations, access to data), procedures (e.g., data must be backed up daily) and standards
  • Develop the organization’s information architecture(i.e., understand the org’s information requirements)
  • Data ownership conflict resolution
  • Manage data repositories (metadata, data dictionary)
database administration functions cont d
Database Administration Functions (cont’d.)
  • Hardware and software selection
  • Install and upgrade the DBMS
  • Tune database and query processing performance
  • Manage data security (threats to security, user views, access/authorization rules for users and applications), privacy (encryption) and integrity
  • Data backup and recovery (audit trails, transaction logs, change logs, transaction integrity, recovery management)
metadata and data dictionaries
Metadata and Data Dictionaries
  • Metadata = data about the data
  • Data dictionary = a form of metadata
  • Relational data dictionary = tables with data about the databaseTables(TableName, TableDescription) Fields (TableName, FieldName, FieldType, Length) Forms (FormName, FormDescription) Etc.
  • Data dictionaries can be passive or active, depending on the DBMS
  • Passive data dictionary: only used to document the data
  • Active data dictionary: database design, access and update is all done through the data dictionary
data dictionary example
Data Dictionary Example

http://auapps.american.edu/~alberto/itec630/DBLab&DataDictionary.mdb [local copy]

what is a transaction
What is a Transaction?
  • A transaction is a logical unit of work
  • No portion of a transaction stands by itself
  • It represents a real-world event
  • For example, a product sale has an effect on accounting records, inventory records, customer transaction files, cash register balances, etc.
  • A transaction must take a database from one consistentstate(i.e., one in which all data integrity constraints are satisfied – e.g., entity integrity, referential integrity, etc.) toanother consistent state
  • So, all portions of the transaction must execute as a whole, or none at all
preventing an inconsistent database state
Preventing an inconsistent database state
  • Acceptance of an incomplete transaction will yield an inconsistent database state
  • To avoid such a state, the DBMS ensures that all of a transaction's database operations are completed before they are committed to the database
  • A transaction begins with a database in consistent state A
  • All table updates in a transaction are then executed
  • When/if completed, the database ends in consistent state B
  • When/if this happens, the DBMS COMMITS the transaction
  • When/if the transaction is interrupted before full completion, the transaction is aborted and DBMS ROLLS BACK the database to its previous consistent state A
transaction support
Transaction support
  • SQL in advanced DMBS’s provides transaction
  • This is supported with the COMMIT and ROLLBACK statements
  • COMMIT: Permanently saves changes to disk
  • ROLLBACK: Restores the database to its previous consistent state before the transaction started
example of a transaction
Example of a Transaction
  • For example, to process an order:
    • Add a record in the Orders table
    • Add a record in the LineItems table for each product ordered
    • Update client history file

Program (a “stored procedure”):

BEGIN TRANSACTION

ON TRANSACTION INCOMPLETE ROLLBACK(often implicit, thus omitted)

INSERT (“19944”, “alberto”, 12/12/2003, “Top Priority”) INTO Orders

INSERT (“19944”, 1, “comp”, 24) INTO LineItems

INSERT (“19944”, 2, “keybd”, 14) INTO LineItems

INSERT (“19944”, 3, “mouse”, 22) INTO LineItems

UPDATE Clients SET ClientAmt = ClientAmt + $12,340 WHERE ClientID = “alberto”

END TRANSACTION

COMMIT

the four transaction properties are
The four transaction properties are:
  • Atomicityrequires that allparts of a transaction must be completed or the transaction is aborted. This property ensures that the database will remain in a consistent state.
  • Durabilityindicates that the database will be in a permanent consistent state after the execution of a transaction. In other words, once a consistent state is reached, it cannot be lost.
  • Serializabilitymeans that a series of concurrent transactions will yield the same result as if they were executed one after another.
  • Isolationmeans that the data required by an executing transaction cannot be accessed by any other transaction until the first transaction finishes. This property ensures data consistency for concurrently executing transactions.
transaction log
Transaction Log
  • Is a special DBMS table that contains a description of all the database transactions executed by the DBMS
  • It plays a key role in maintaining database concurrency control and integrity.
  • The information stored in the transaction log is used by the DBMS to ROLLBACK the database after a transaction is aborted or after a system failure.
  • The transaction log is often stored in a different hard disk or in a different media (tape) to prevent the failure caused by a media error.
what is concurrency
What is concurrency?
  • A common problem in computer systems occurs when a shared resource (e.g., screen display, hard disk, data file, database record) need to be used simultaneously by more than one device, application or user.
  • In database, concurrency refers to the management of simultaneous access to a shared table, record or data element by more than one person, application or transaction in a multi-user environment (e.g., 100 data entry clerks entering data in the same table)
  • This is managed by “locking” tables, records or individual data elements when necessary
what is a lock
What is a lock?
  • Mechanism used in concurrency control to guarantee the exclusive use of a data element to the transaction that “owns the lock”.
  • For example, if the data element X is locked by transaction T1, transaction T2 will not have access to the data element X until T2 releases the lock.
  • Generally speaking, a data item can be in only two states: locked (being used by some transaction) or unlocked (not in use by any transaction).
  • To access a data element X, a transaction T1 must request a lock to the DBMS. If the data element is not in use, the DBMS will lock X to be used by T1 exclusively. No other transaction will have access to X while T1 is executed
  • Soft lock: locked element can be read (queried) but not modified
  • Hard lock: locked element cannot be accessed at all
definition
Definition
  • Distributed Database: “a single logical database that is spread physically across computers in multiple locations that are connected by a data communications link.” -- Hoffer et al.
why distributed databases
Why distributed databases?
  • Distributed autonomous business units
  • Data sharing across business units
  • Database recovery and redundant systems
  • Risk: eliminate single points of failure
  • Efficiency: locate data where it is needed the most
distributed database options
Distributed Database Options
  • Homogeneous:Same DBMS at each node
  • Heterogeneous:Different DBMSs at different nodes.
objectives of distributed dbms
Objectives of Distributed DBMS
  • Location Transparency:
    • The user doesn’t need to know the location of the data
    • The location of the data is stored in the data dictionary so that the DBMS can find it
  • Local Autonomy:
    • Local site can operate with its database when other sites are down
trade offs in distributed databases
Trade-offs in distributed databases
  • Synchronous Distributed Database:
    • All copies of the database data are always identical – i.e., synchronized
  • Asynchronous Distributed Database:
    • Data may be temporarily unsynchronized
    • Data is replicated and synchronized with delay
options for distributing a database
Options forDistributing a Database
  • Data replication: keeping separate copies of the same data, replicated/synchronized periodically
  • Horizontal partitioning: store some table rows (i.e., records) in one location and some in another
  • Vertical partitioning: store some table columns (i.e., fields) in one location and some in another
  • Distributed tables: store some tables in one location and some in another location
  • Combinations of the above
  • The (distributed) data dictionary contains information about the physical location of all tables, columns and rows
definition1
Definition
  • Data Warehouse: “a subject-oriented, integrated, time-variant, non-updatable, organized collection of data gathered from a variety of sources to support management decisions”

-- Hoffer et al.

slide77

Data Warehouse“A database that stores and consolidates current and historical data from various systems (internal and external) with tools for management reporting and sophisticated analysis—i.e., Datamining; Business Intelligence; Business Analytics”

eagledata environment
EagleData Environment

Today, EagleData provides a solid foundation for growth but offers opportunities for improved data integration and analytic capabilities

Data Sources

ETL and Data Warehouse

Portal and BI Reporting

End Users

  • SQL Reports
  • Parameterized Reports

Executives

Department

Heads

Analysts

Faculty and Staff

Datatel

  • Colleague
  • Benefactor

EagleData

Lotus Notes

Role Based Security

  • Incident Tracking
  • OIT Project Tracking
  • OIT Accounts
  • Course Change Request Tracking

Data Stage

Other

Students

  • Student Evaluations
  • Facilities Focus
  • WCL Faculty Evaluations
desired end state eagledata environment

Student Access

Desired End-State EagleData Environment

Technical architecture illustrates hardware and software components of the target EagleData environment

Data Sources

ETL and Data Warehouse

Portal and BI Reporting

End Users

Datatel

BI Tool

Dashboard

Ad hoc and OLAP

Parameterized Reports

Student Reports

Executives

Department

Heads

Analysts

Faculty & Staff

Lotus Notes

EagleData

DARS

Role Based Security

Resource 25

Miscellaneous Facilities Sources

Data Stage

Miscellaneous Emgcy Mgmt Sources

Miscellaneous IT Sources

Students

Other

data warehouse architectures
Data Warehouse Architectures
  • Two-level
    • Data is extracted from various internal and sources
    • Then transformed and integrated in data warehouse
  • Independent Data Mart Warehousing Environment
    • Data is extracted from various internal and sources
    • Then transformed and exported to independent data marts
    • A data mart is a smaller data warehouse of limited scope
    • Customized for decision making of different groups
  • Dependent Data Mart with EDW (three-level)
    • Combines the two methods above
    • Data is integrated into an Enterprise Data Warehouse (EDW)
    • Which are used to load the dependent data marts
slide81

Two-Level Architecture

OperationalData

Decision SupportEnvironment

DataSource

TransformandIntegrate

DataWarehouse

DataSource

DataSource

slide82

Independent Data Mart

OperationalData

Decision SupportEnvironment

DataSource

DataMart

TransformandIntegrate

DataSource

DataMart

DataSource

DataMart

slide83

Dependent Data Mart & EDW

Decision SupportEnvironment

OperationalData

DataMart

DataSource

DataSource

DataSource

DataMart

TransformandIntegrate

DataMart

EnterpriseDataWarehouse

star schema
Star Schema
  • Also called the dimensional model.
  • Fact and dimension tables.
    • Fact table: consists of factual or quantitative data about the business
    • Dimension table: hold descriptive data
  • Grain of a fact table - time period for each record (e.g. Monthly, weekly, every transaction).
size of the fact table
Size of the fact table
  • Total number of stores: 1,000
  • Total number of products: 10,000
  • Total number of periods: 24
  • Total rows: 1000 * 10,000 * 24 = 240,000,000
  • On average 50% items record sales,
    • no of rows = 120,000,000
