Presentation Transcript
ado net working in disconnected environment

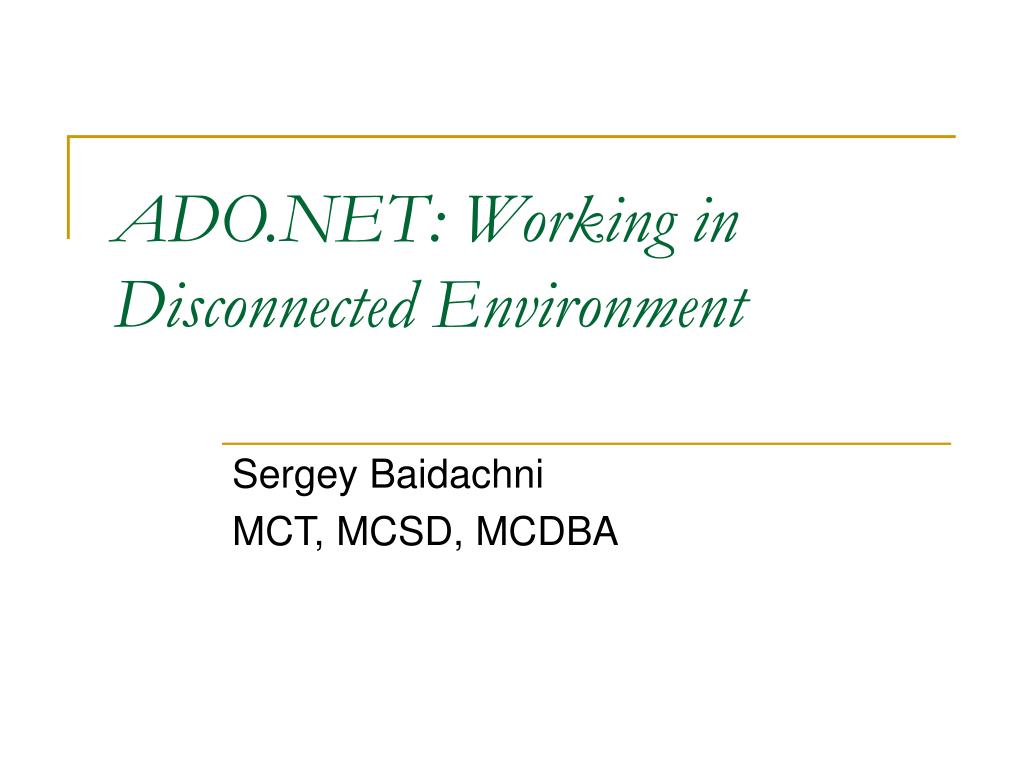

ADO.NET: Working in Disconnected Environment

Sergey Baidachni

MCT, MCSD, MCDBA

overview
Overview
  • Introduction
  • Architecture of ADO.NET
  • ObjectSpaces – New technologies
introduction
Introduction
  • Data Storage
  • Connected environment
  • Disconnected environment
  • ADO.NET vs. ADO
  • Demonstration (ADO.NET and Excel)
data storage
Data Storage

Data storage - method of storing specific items that together constitute a unitof information.

Data Storage

Unstructured

Structured

Hierarchical

Relational Database

Excel

CSV

XML

SQL Server

Oracle

Access

Active Directory

ADO.NET

connected environment scenario
Connected Environment (Scenario)

1. Open connection

2. Execute command

3. Process rows in reader

4. Close reader

5. Close connection

connected environment

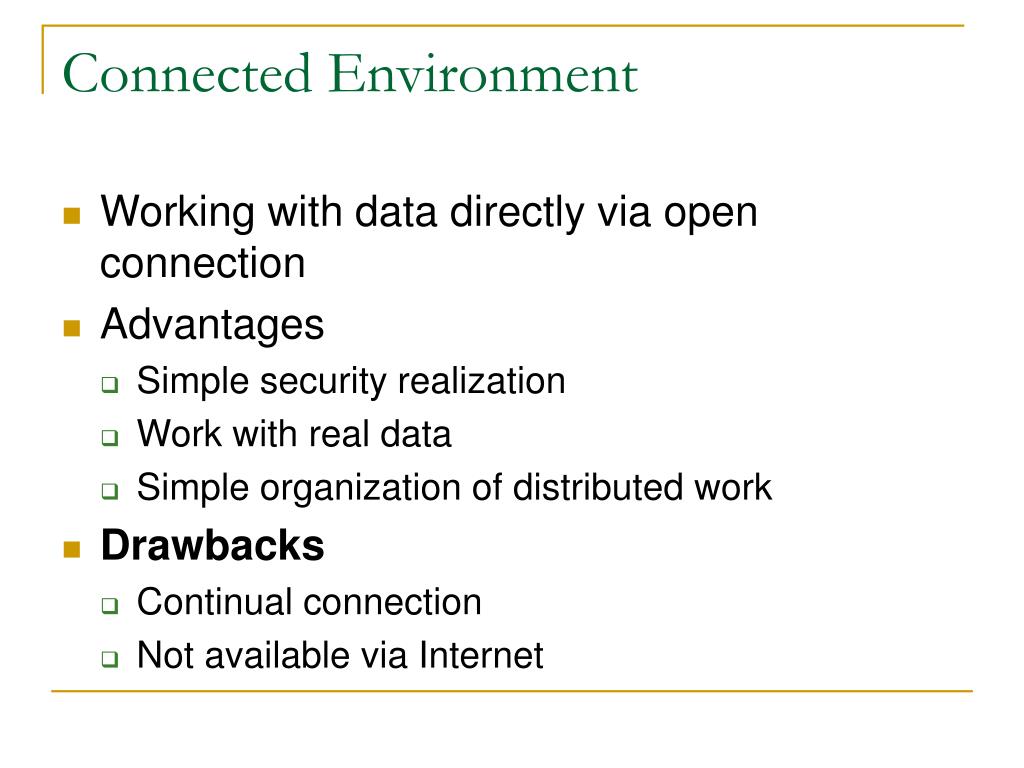

Connected Environment
  • Working with data directly via open connection
  • Advantages
    • Simple security realization
    • Work with real data
    • Simple organization of distributed work
  • Drawbacks
    • Continual connection
    • Not available via Internet
disconnected environment scenarion

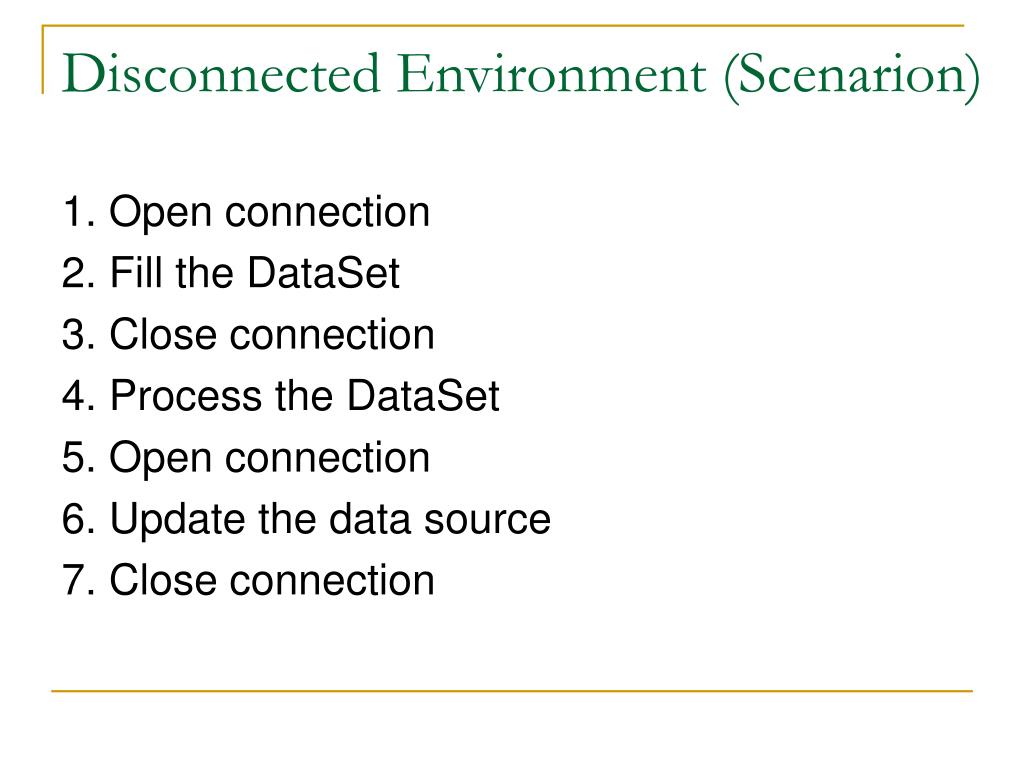

Disconnected Environment (Scenarion)

1. Open connection

2. Fill the DataSet

3. Close connection

4. Process the DataSet

5. Open connection

6. Update the data source

7. Close connection

disconnected environment
Disconnected Environment
  • Storage of data local copy from repository
  • Possibility to update the main data source
  • Advantages
    • Economy of server resources
    • Does not require continual connection
  • Drawbacks
    • Demands conflict resolution while data update
    • Data is not always up to date

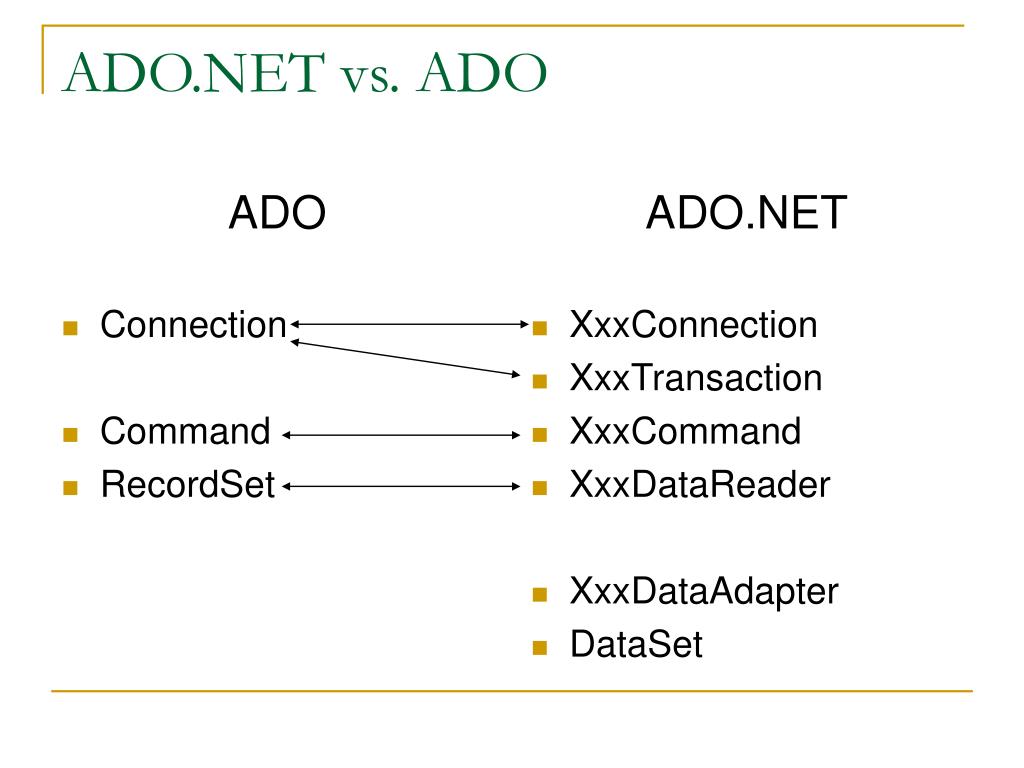

ado net vs ado
ADO

Connection

Command

RecordSet

ADO.NET

XxxConnection

XxxTransaction

XxxCommand

XxxDataReader

XxxDataAdapter

DataSet

ADO.NET vs. ADO
demonstration
Demonstration

OleDbConnection conn=new OleDbConnection();

OleDbCommand comm=new OleDbCommand();

OleDbDataAdapter adapt=new OleDbDataAdapter(comm);

DataSet data=new DataSet();

conn.ConnectionString= “Provider=Microsoft.Jet.OLEDB.4.0; c:\myexcel.xls;Extended Properties=""Excel 8.0;HDR=NO""“;

comm.Connection=conn;

comm.CommandText=“select * from [Sheet1$]”;

adapt.Fill(data);

architecture of ado net
Architecture of ADO.NET
  • Data providers
  • What does it look like?
  • Connection to the source
  • Command creation
  • Cursors
  • Data storage in memory
  • DataAdapter – automatic data upload
  • XML Integration
net data providers
.NET Data Providers
  • Concept of data provider
  • Provider types
    • SQL .NET Data Provider
    • Oracle .NET Data Provider
    • OleDB .NET Data Provider
    • Odbc .NET Data Provider
  • How to select data provider

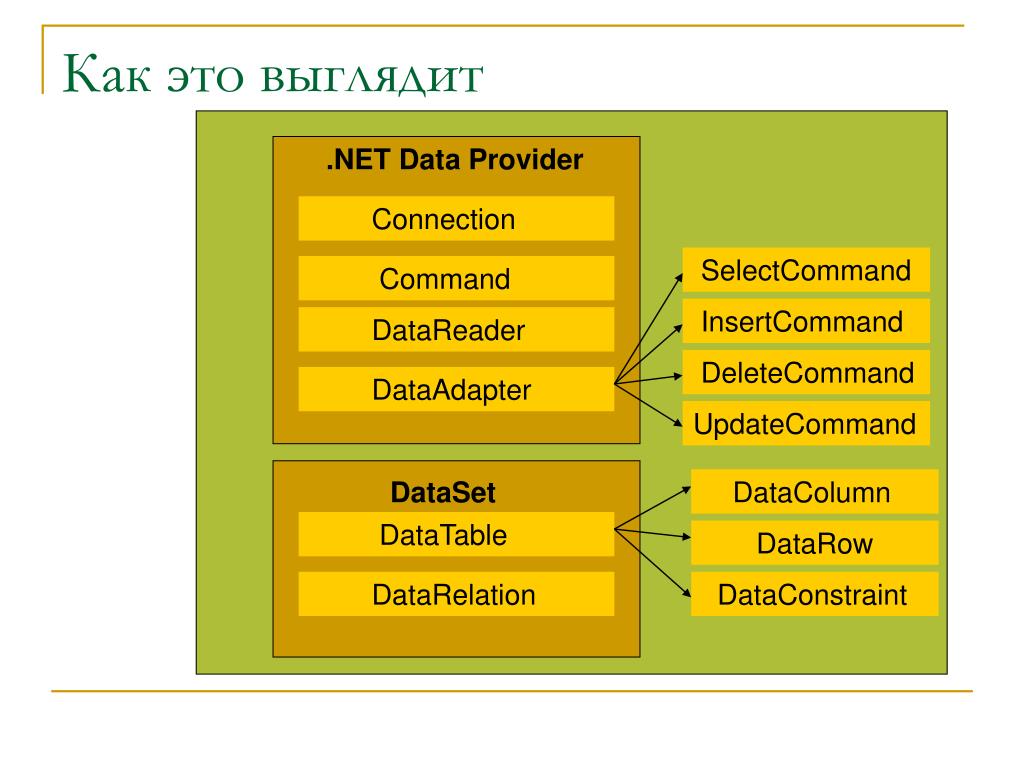

slide13
Как это выглядит

.NET Data Provider

Connection

SelectCommand

Command

InsertCommand

DataReader

DeleteCommand

DataAdapter

UpdateCommand

DataSet

DataColumn

DataTable

DataRow

DataRelation

DataConstraint

connection
Connection
  • What is Connection?
  • Define Connection
    • SqlConnection conn=new SqlConnection();
    • Conn.ConnectionString=“User ID=sa;password=; Data Source=MyServer;Initial Catalog=Northwind;”
  • ConnectionString Parameters
    • Provider
    • Data Source
    • Initial Catalog
    • Integrated Security
    • UserID/Password
connection error and pooling

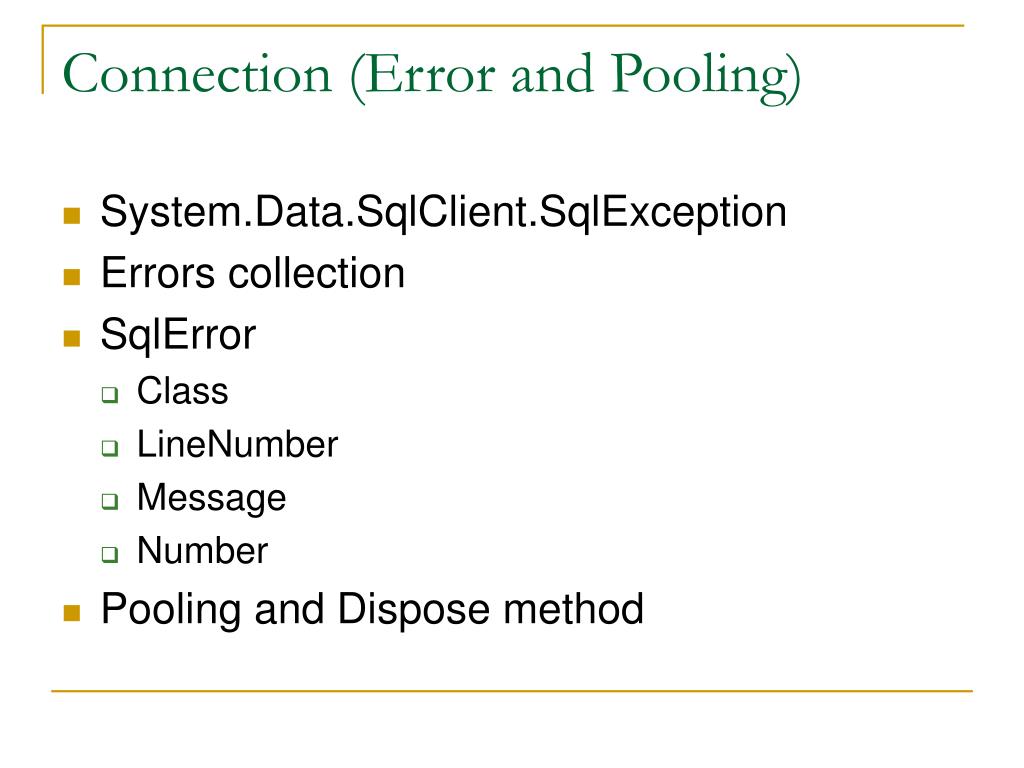

Connection (Error and Pooling)
  • System.Data.SqlClient.SqlException
  • Errors collection
  • SqlError
    • Class
    • LineNumber
    • Message
    • Number
  • Pooling and Dispose method
command object
Command Object
  • A command object is a reference to a SQL statement orstored procedure
  • Properties
    • Connection
    • CommandType
    • CommandText
    • Parameters
  • Methods
    • ExecuteNonQuery
    • ExecuteReader
    • ExecuteScalar
datareader object
DataReader Object
  • What is query?
  • Forward-only cursor
  • Read method
    • Read next record
    • Return true if record is exist
  • IsDbNull
  • Close method
  • NextResult – for multiply select statements
what are datasets and datatables

Stored Procedure

Connection

What Are DataSets and DataTables

DataSet

Server

DataTable

DataTable

Database

Data Store

the dataset object model

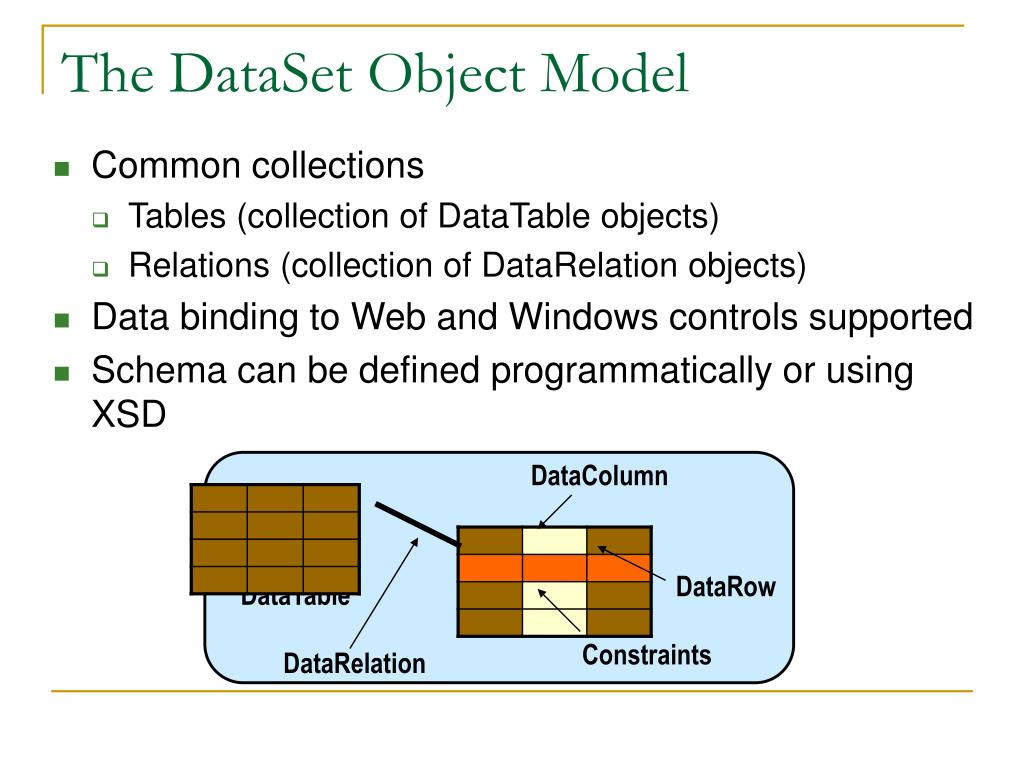

The DataSet Object Model
  • Common collections
    • Tables (collection of DataTable objects)
    • Relations (collection of DataRelation objects)
  • Data binding to Web and Windows controls supported
  • Schema can be defined programmatically or using XSD

DataColumn

DataRow

DataTable

Constraints

DataRelation

what is a dataadapter
What Is a DataAdapter?

DataSet

Data source

DataAdapter

DataTable

Fill

Update

DataAdapter

DataTable

Fill

Update

the xxxdataadapter object model
The XxxDataAdapter Object Model

XxxDataAdapter

SelectCommand

UpdateCommand

InsertCommand

DeleteCommand

XxxDataReader

XxxCommand

XxxCommand

XxxCommand

XxxCommand

XxxConnection

sp_SELECT

sp_UPDATE

sp_INSERT

sp_DELETE

xml support

XML Web Services

Client

Data Source

Request data

SQL query

1

2

Results

XML

4

3

SQL updates

Updated XML

5

6

XML Support
  • ADO.NET is tightly integrated with XML
  • Using XML in a disconnected application

DataSet

DataSet

object spaces

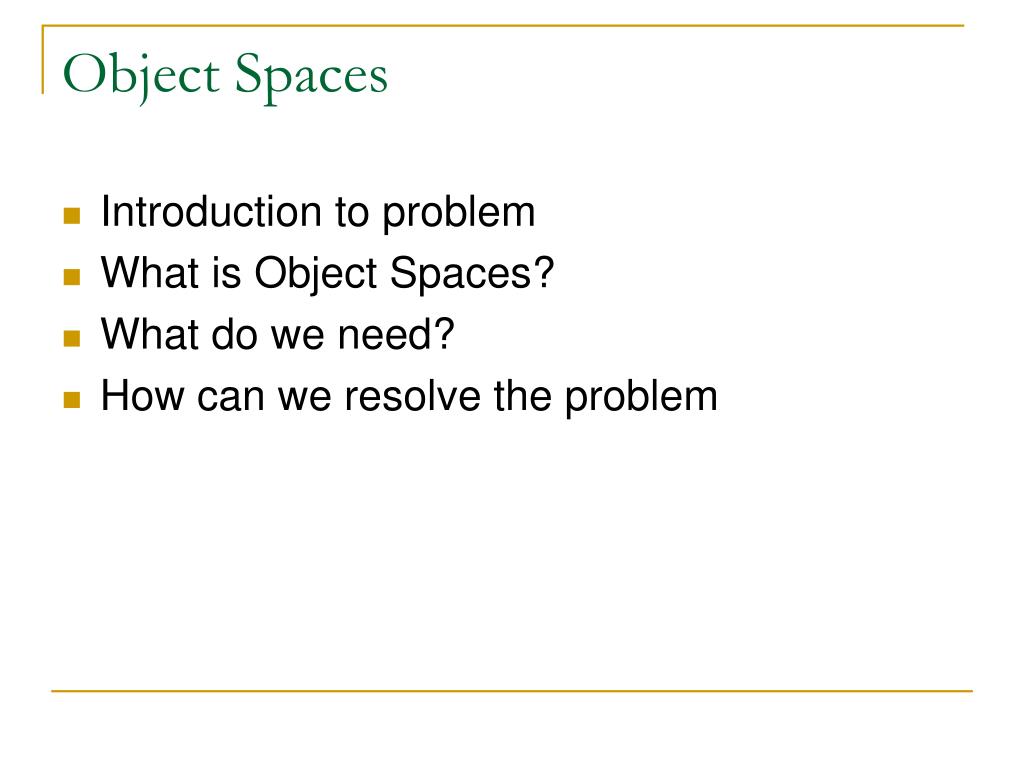

Object Spaces
  • Introduction to problem
  • What is Object Spaces?
  • What do we need?
  • How can we resolve the problem
introduction to problem
Introduction to Problem
  • There’s something apparently missing
  • Current situation

public struct Customer

{

int customerID;

string customerName;

}

…..

Customer LoadCustomer(int id){…}

void SaveCustomer(Customer obj){…}

Database

what is object spaces
What is Object Spaces?
  • Relation between object and database
  • Way to avoid long-drawn coding

ObjectSpace

Database

Map Files

what do we need

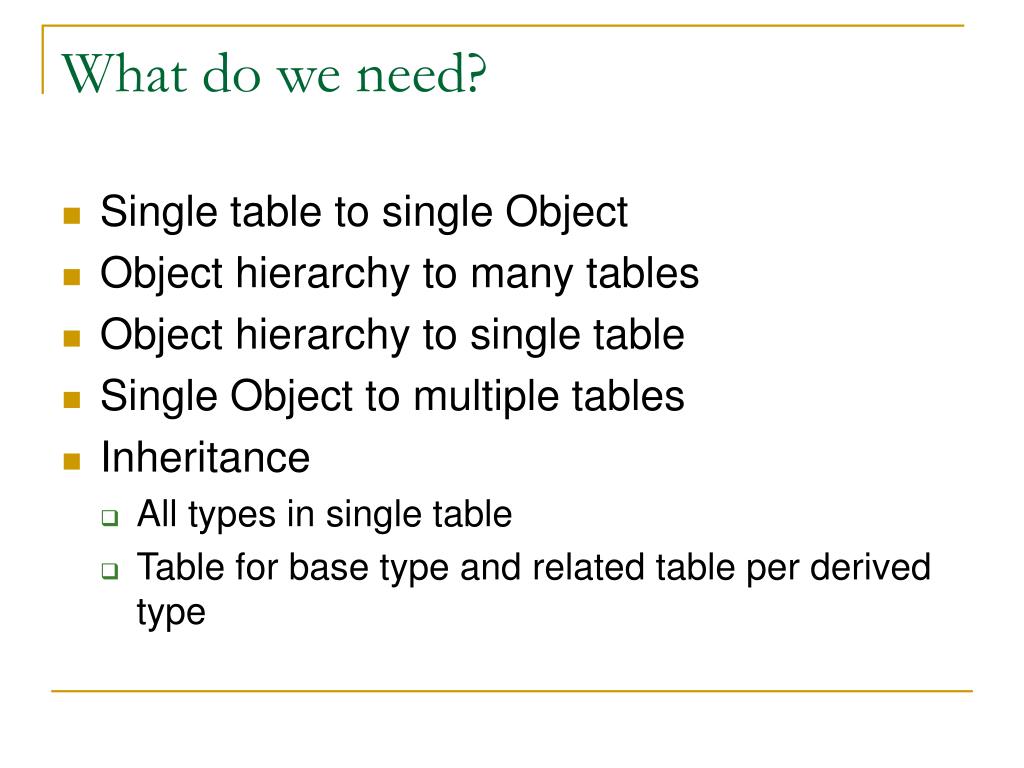

What do we need?
  • Single table to single Object
  • Object hierarchy to many tables
  • Object hierarchy to single table
  • Single Object to multiple tables
  • Inheritance
    • All types in single table
    • Table for base type and related table per derived type
how we can resolve problem

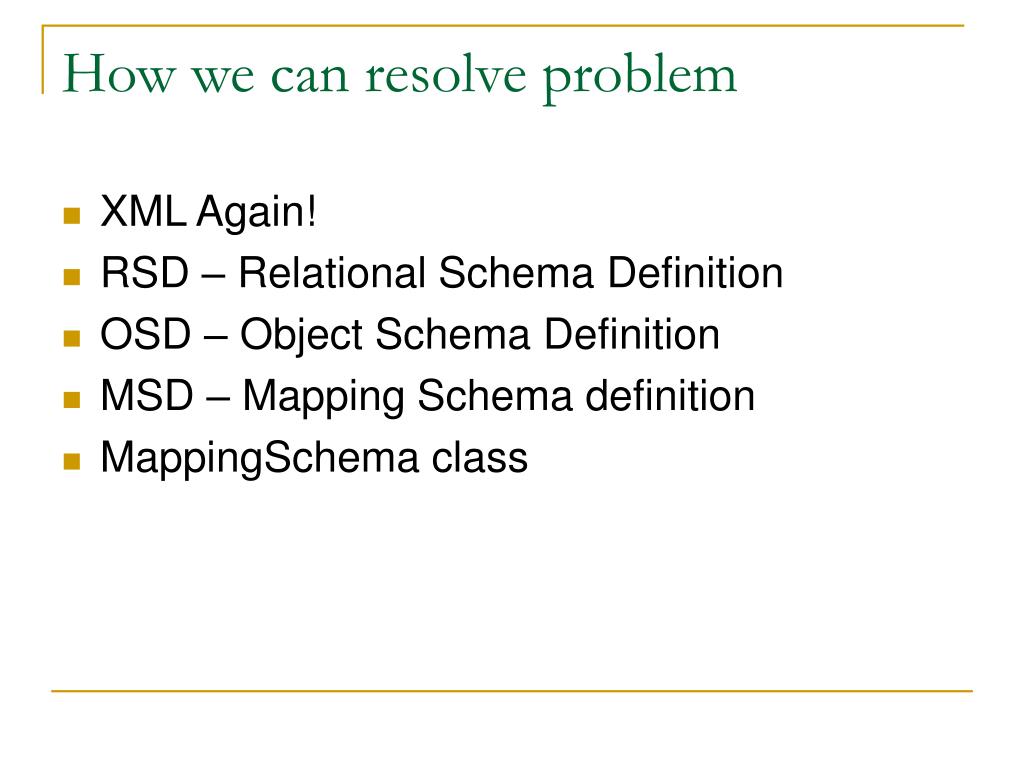

How we can resolve problem
  • XML Again!
  • RSD – Relational Schema Definition
  • OSD – Object Schema Definition
  • MSD – Mapping Schema definition
  • MappingSchema class
slide29
RSD
  • Tables, fields and relations descriptions

<rsd:Database Name="Northwind" Owner="sa" xmlns:rsd="http://schemas.microsoft.com/data/2002/09/28/rsd">

<r:Schema Name="dbo" xmlns:r="http://schemas.microsoft.com/data/2002/09/28/rsd">

<rsd:Tables>

<rsd:Table Name="Customers">

<rsd:Columns>

<rsd:Column Name="CustomerID" SqlType="nchar" Precision="5" />

<rsd:Column Name="CompanyName" SqlType="nvarchar" Precision="40" />

</rsd:Columns>

<rsd:Constraints>

<rsd:PrimaryKey Name="PK_Customers">

<rsd:ColumnRef Name="CustomerID" />

</rsd:PrimaryKey>

</rsd:Constraints>

</rsd:Table>

</rsd:Tables>

</r:Schema>

</rsd:Database>

slide30
OSD
  • Objects description

<osd:ExtendedObjectSchema Name="DataTypesOSD" xmlns:osd="http://schemas.microsoft.com/data/.../persistenceschema">

<osd:Classes>

<osd:Class Name="Samples.Customer">

<osd:Member Name="Id" Key="true" />

<osd:Member Name="Company" />

</osd:Class>

</osd:Classes>

</osd:ExtendedObjectSchema>

slide31
MSD
  • Mapping Schemes

<m:MappingSchema xmlns:m="http://schemas.microsoft.com/data/2002/09/28/mapping">

<m:DataSources>

<m:DataSource Name="NorthwindRSD" Type="SQL Server" Direction="Source">

<m:Schema Location="RSD.XML" />

<m:Variable Name="Customers" Select="Customers" />

</m:DataSource>

<m:DataSource Name="DataTypesOSD" Type="Object" Direction="Target">

<m:Schema Location="OSD.XML" />

</m:DataSource>

</m:DataSources>

<m:Mappings>

<m:Map SourceVariable="Customers" TargetSelect="Samples.Customer">

<m:FieldMap SourceField="CustomerID" TargetField="Id" />

<m:FieldMap SourceField="CompanyName" TargetField="Company" />

</m:Map>

</m:Mappings>

</m:MappingSchema>

objectspace methods

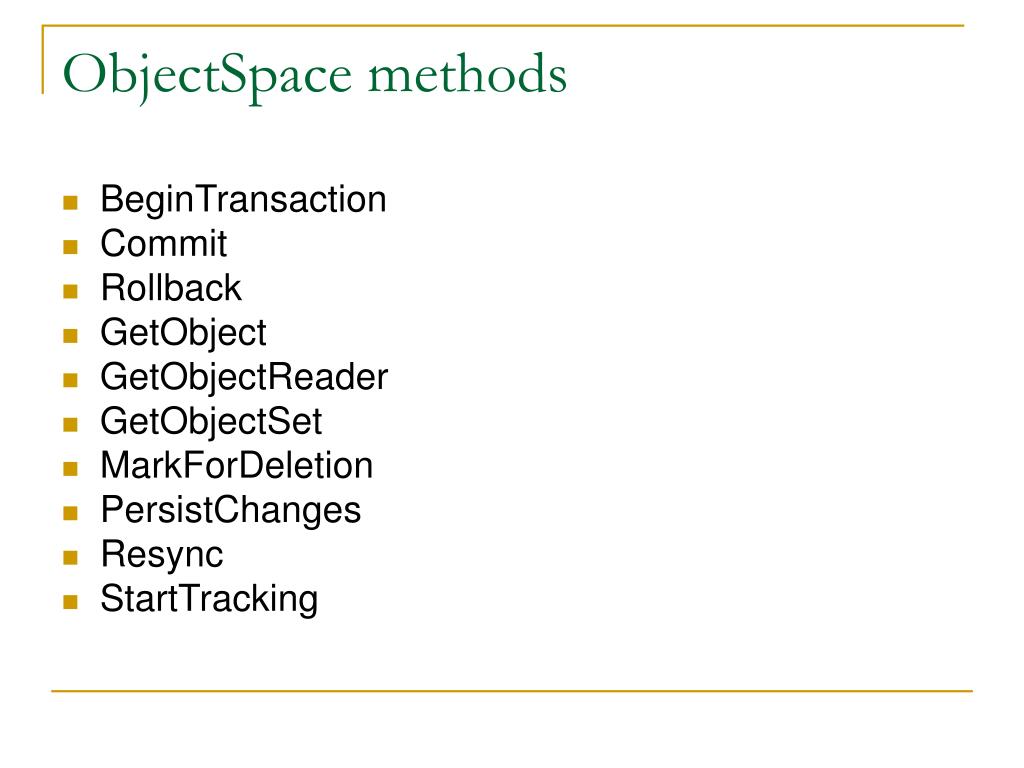

ObjectSpace methods
  • BeginTransaction
  • Commit
  • Rollback
  • GetObject
  • GetObjectReader
  • GetObjectSet
  • MarkForDeletion
  • PersistChanges
  • Resync
  • StartTracking
