Warm Up Solve each proportion. 1. 2. 3. 4.

Warm Up Solve each proportion. 1. 2. 3. 4. AB = 16. QR = 10.5. x = 21. y = 8. 7-4. Applying Properties of Similar Triangles. Holt Geometry. It is given that ST ll UV, so by the Triangle Proportionality Theorem. Example 1: Finding the Length of a Segment. Find US.

arlais
Download Presentation

Warm Up Solve each proportion. 1. 2. 3. 4.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Warm Up Solve each proportion. 1.2. 3.4. AB = 16 QR = 10.5 x = 21 y = 8

  2. 7-4 Applying Properties of Similar Triangles Holt Geometry

  3. It is given that ST ll UV, so by the Triangle Proportionality Theorem. Example 1: Finding the Length of a Segment Find US. Substitute 14 for RU, 4 for VT, and 10 for RV. Cross Products Prop. US(10) = 56 Divide both sides by 10.

  4. Check It Out! Example 1 Find PN. Use the Triangle Proportionality Theorem. Substitute in the given values. Cross Products Prop. 2PN = 15 PN = 7.5 Divide both sides by 2.

  5. Verify that . Since , by the Converse of the Triangle Proportionality Theorem. Example 2: Verifying Segments are Parallel

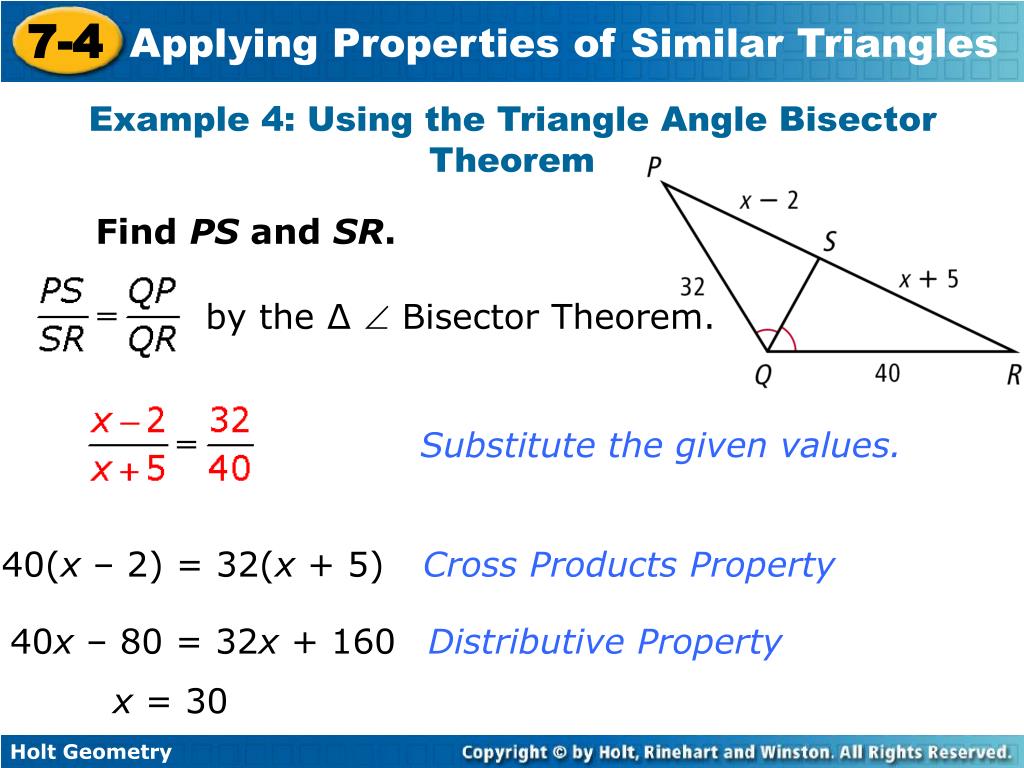

  6. by the ∆ Bisector Theorem. Example 4: Using the Triangle Angle Bisector Theorem Find PS and SR. Substitute the given values. 40(x – 2) = 32(x + 5) Cross Products Property 40x – 80 = 32x + 160 Distributive Property x = 30

  7. Lesson Quiz: Part I Find the length of each segment. 1.2. SR = 25, ST = 15

  8. 3.Verify that BE and CD are parallel. Since , by the Converse of the ∆Proportionality Thm. Lesson Quiz: Part II

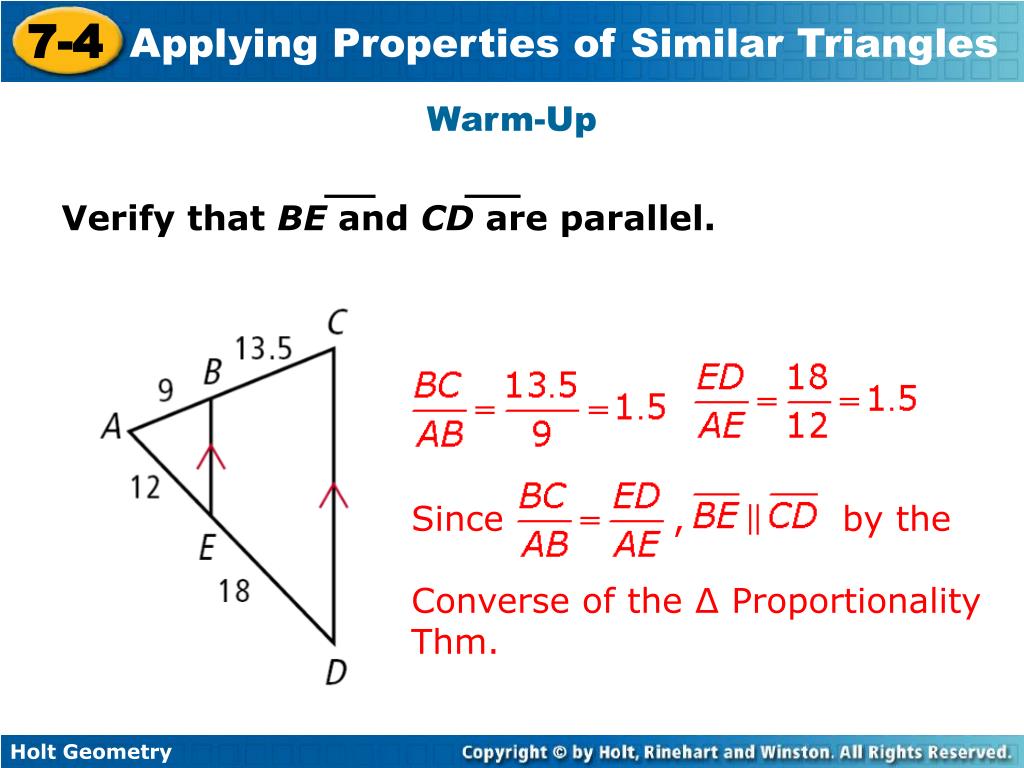

  9. Verify that BE and CD are parallel. Since , by the Converse of the ∆Proportionality Thm. Warm-Up
