Presentation Transcript
slide1

الفصل الدراسى السابع S-7

Microwave Engineering

هندسة ميكروموجية

1

slide2

Microwave Engineering

هندسة ميكروموجية

2

slide3

الهندسة الميكروموجية EE262 (2س محاضرة+2س تمرين+1س عملى) اسبوعياً

المنهج التفصيلى

  • نظرية أوساط النقل الميكروموجية.
  • تقنيات الموائمة والتوليف.
  • تحيل الشبكات الميكروموجية.
  • مقسمات القدرة و اجهزة الربط.
  • الصمامات الميكروموجية.

خطوط نقل الترددات العالية ، خريطة سميث ، تقنيات المواءمة باستخدام الخطوط المبتورة

، ادلة الموجة مستطيلة المقطع و الدائرية المقطع ، الخطوط الميكروشريطية ، المرنانات التجويفية ، فيزياء الضوء .

3

microwave engineering pharos 3 1 1 per week ee262 detailed course syllabus pre req ee261
“Microwave Engineering” pharos (3-1-1) per week EE262DETAILED COURSE SYLLABUS (Pre-req EE261)
  • Transmission Line Theory.
  • Impedance Matching & Tuning.
  • Microwave Network Analysis.
  • Power Divider and couplers.
  • Microwave Tubes.

4

slide5

Lecture/Tutorial /Lab Guidance

Class Attendance

Regular attendance is critical for good success in the course

slide6

Course Assessment

  • Evaluation methods
  • Evaluation of class work including:
  • -Drop Quizzes:10%.
  • -Home work assignment & short reports and presentation: 15%.
  • ii) Mid term written exam @ 8th week:25%.
  • v) Final examination: 50%.
  • Assessment Instruments
  • Short reports and presentation.
  • Quizzes.
course description
Course Description

1st W.

Introduction

2.1 The Lumped-Element Circuit Model for a Transmission Line 48

Wave Propagation on a Transmission Line 50

The Lossless Line 51

2nd W.

2.2 Field Analysis of Transmission Lines 51

Transmission Line Parameters 51

The Telegrapher Equations Derived from Field Analysis of a Coaxial Line 54

Propagation Constant, Impedance, and Power Flow for the Lossless

Coaxial Line 56

2.3 The Terminated Lossless Transmission Line 56

Special Cases of Lossless Terminated Lines 59

7

slide8

Course Description cont…

3rd W.

2.4 The Smith Chart 63

The Combined Impedance–Admittance Smith Chart 67

The Slotted Line 68

4th W.

2.5 The Quarter-Wave Transformer 72

The Impedance Viewpoint 72

The Multiple-Reflection Viewpoint 74

2.6 Generator and Load Mismatches 76

Load Matched to Line 77 Generator Matched to Loaded Line 77

Conjugate Matching 77

2.7 Lossy Transmission Lines 78

The Low-Loss Line 79 The Distortionless Line 80

The Terminated Lossy Line 81

The Perturbation Method for Calculating Attenuation 82

The Wheeler Incremental Inductance Rule 83

8

slide9

Course Description cont…

5th W. Impedance Matching & Tuning 228

5.1 Matching with Lumped Elements (LNetworks) 229

Analytic Solutions 230 Smith Chart Solutions 231

5.2 Single-Stub Tuning 234

Shunt Stubs 235 Series Stubs 238

5.3 Double-Stub Tuning 241

Smith Chart Solution 242 Analytic Solution 245

5.4 The Quarter-Wave Transformer 246

9

slide10

Course Description cont…

6th W. Microwave Network Analysis. 165

4.1 Impedance and Equivalent Voltages and Currents 166

Equivalent Voltages and Currents 166 The Concept of Impedance 170

Even and Odd Properties ofZ(ω)and(ω) 173

4.2 Impedance and Admittance Matrices 174

Reciprocal Networks 175 Lossless Networks 177

7th W. Microwave Network Analysis.

4.3 The Scattering Matrix 178

Reciprocal Networks and Lossless Networks 181

A Shift in Reference Planes 184

Power Waves and Generalized Scattering Parameters 185

4.4 The Transmission(ABCD)Matrix 188

Relation to Impedance Matrix 191

Equivalent Circuits for Two-Port Networks 191

10

slide11

Course Description cont…

8th W. Microwave Network Analysis.

4.5 Signal Flow Graphs 194

Decomposition of Signal Flow Graphs 195

Application to Thru-Reflect-Line Network Analyzer Calibration 197

4.6 Discontinuities and Modal Analysis 203

Modal Analysis of an H-Plane Step in Rectangular Waveguide 203

11

slide12

Course Description cont…

9th W. Microwave Network Analysis..

4.7 Excitation of Waveguides—Electric and Magnetic Currents 210

Current Sheets That Excite Only One Waveguide Mode 210

Mode Excitation from an Arbitrary Electric or Magnetic Current Source 212

4.8 Excitation of Waveguides—Aperture Coupling 215

Coupling Through an Aperture in a Transverse Waveguide Wall 218

Coupling Through an Aperture in the Broad Wall of a Waveguide 220

10th W. Power Divider and couplers..

POWER DIVIDERS AND DIRECTIONAL COUPLERS 317

7.1 Basic Properties of Dividers and Couplers 317

Three-Port Networks (T-Junctions) 318

Four-Port Networks (Directional Couplers) 320

7.2 The T-Junction Power Divider 324

Lossless Divider 324 Resistive Divider 326

12

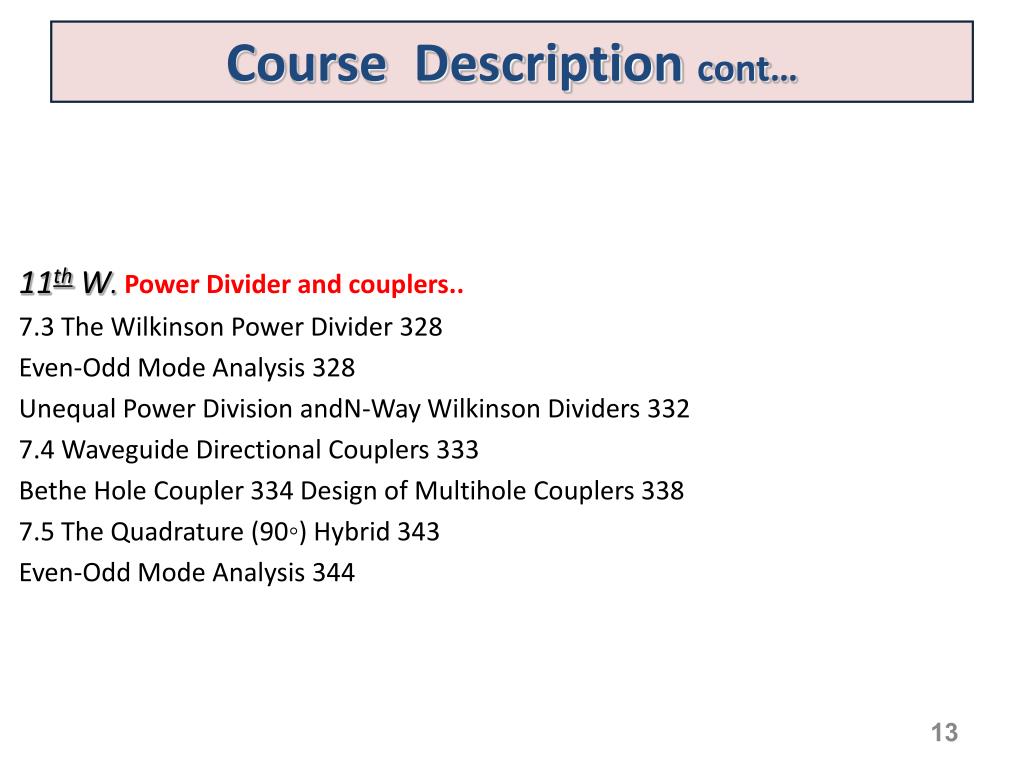

slide13

Course Description cont…

11th W. Power Divider and couplers..

7.3 The Wilkinson Power Divider 328

Even-Odd Mode Analysis 328

Unequal Power Division andN-Way Wilkinson Dividers 332

7.4 Waveguide Directional Couplers 333

Bethe Hole Coupler 334 Design of Multihole Couplers 338

7.5 The Quadrature (90◦) Hybrid 343

Even-Odd Mode Analysis 344

13

slide14

Course Description cont…

12th W.. Power Divider and couplers..

7.6 Coupled Line Directional Couplers 347

Coupled Line Theory 347 Design of Coupled Line Couplers 351

Design of Multisection Coupled Line Couplers 356

7.7 The Lange Coupler 359

13th W. Power Divider and couplers..

7.9 Other Couplers 372

14th W. ACTIVE RF AND MICROWAVE DEVICES 524.

11.5 Microwave Tubes 552

15th W.. Review

slide16

Introduction

to

Microwave Engineering

slide17

The electromagnetic phenomena can be divided into two categories:

Low frequency with high power (electrical machining, power generation, distribution electrical energy…) .

High frequency but low power (communications, radar, satellites, optical fiber…)

What happened if the frequency increase?

What is the relation between frequency of electro magnetic waves and dimension of electric elements?

slide18

What are Microwaves?

1  360 

1 cm

Electrical length = Physical length/Wavelength (expressed in )

Phase delay = (2 or 360) * Physical length/Wavelength

RF

f =10 kHz,  = c/f = 3 x 108/ 10 x 103 = 30000 m

Electrical length =1 cm/30000 m = 0.33 x 10-6 , Phase delay = 0.00012

Microwave

f =10 GHz,  = 3 x 108/ 10 x 109 = 3 cm

!!!

Electrical length = 0.33 , Phase delay = 118.8

Electrically long - The phase of a voltage or current changes significantly over the physical extent of the device

slide19

EMI (electromagnetic interference

EMC (electromagnetic comparable)

Electromagnetic field behave when the frequency of operation is large.

The phenomenon of electromagnetism is performed by the 4 Maxwell equations

slide20

Applications of Microwave Engineering

  • Microwave oven, Radar, Satellite communication, direct broadcast satellite (DBS) television, personal communication systems (PCSs) etc.
  • The majority of today’s applications of RF and microwave technology are to wire-less networking and communications systems, wireless security systems, radar systems, environmental remote sensing, and medical systems.
  • Wireless connectivity promises to provide voice and data access to “anyone, anywhere, at any time.
  • Modern wireless telephony is based on the concept of cellular frequency reuse, a technique first proposed by Bell Labs in 1947-1988
  • These early systems are usually referred to now as first generation cellular systems, or 1G.
slide21

Applications of Microwave Engineering

  • Second-generation (2G) cellular systems achieved improved performance by using various digital modulation schemes, with systems such as GSM, CDMA, DAMPS, PCS, and PHS being some of the major standards introduced in the 1990s in the United States, Europe, and Japan.
  • These systems can handle digitized voice, as well as some limited data, with data rates typically in the 8 to 14 kbps range.
  • In recent years there has been a wide variety of new and modified standards to transition to handheld services that include voice, texting, data networking, positioning, and Internet access.
  • These standards are variously known as 2.5G, 3G, 3.5G, 3.75G, and 4G, with current plans to provide data rates up to at least 100 Mbps.
slide22

Applications of Microwave Engineering

  • Satellite systems also depend on RF and microwave technology, and satellites have been developed to provide cellular (voice), video, and data connections worldwide.
  • Two large satellite constellations, Iridium and Global star, were deployed in the late 1990s to provide worldwide telephony service.(suffered from both technical drawbacks and weak business models and have led to multibillion dollar financial failures).
  • Smaller satellite systems, such as the Global Positioning Satellite (GPS) system and the Direct Broadcast Satellite (DBS) system, have been extremely successful.
  • Wireless local area networks (WLANs) provide high-speed networking between computers over short distances.
  • One of the newer examples of wireless communications technology is ultra wide band (UWB) radio, where the broadcast signal occupies a very wide frequency band but with a very low power level (typically below the ambient radio noise level) to avoid interference with other systems.
  • In the commercial sector, radar technology is used for air traffic control, motion detectors (door openers and security alarms), vehicle collision avoidance, and distance measurement.
  • Scientific applications of radar include weather prediction, re-mote sensing of the atmosphere, the oceans, and the ground, as well as medical diagnostics and therapy.
slide24

Microwave frequency range between 3 and 300 GHz. With a corresponding electrical wavelength between ( λ=10 cm and λ=1 mm ) respectively.

  • Signals with wave-lengths on the order of millimeters are often referred to as millimeter waves

(1 MHz = 106 Hz) & (1 GHz = 109 Hz)

slide25

 = 30 cm:

f = 3 * 108/ 30 * 10-2 = 1 GHz

 = 1 cm:

f = 3 * 108/ 1* 10-2 = 30 GHz

f= 30 GHz

= 3 * 108/ 30 * 109 = 10 mm

f= 300 GHz

= 3 * 108/ 300 * 109 = 1 mm

types of transmission lines
Types of Transmission Lines
  • Two wire line
  • Coaxial cable
  • Waveguide
    • Rectangular
    • Circular
  • Planar Transmission Lines
    • Strip line
    • Micro strip line
    • Slot line
    • Fin line
    • Coplanar Waveguide
    • Coplanar slot line
slide29

Signal propagation: multipath and co-channel interference

Complex reflecting and refracting environment

slide30

Signal propagation: multipath and co-channel interference

  • The signal travel as a function of time (time varying electromagnetic fields) with multi path {fading phenomena}.
  • Then interference was don which cause destructive (- - -) or constructive (+++) of the signal.
  • So a good design of antenna systems will reduce the mobile communication interference.
slide40

The first application of electromagnetic waves is the transmission line (TL).

  • (Time varying voltage and current) It is a medium which can transfer power from point to another.
slide42

A

B

Vp

VQ

V

A’

B’

l

Transit time effect cause a time delay

IfT>>tr

Then: Ignore transit time effect

slide43

How to account for the phase delay?

Low Frequency

Printed Circuit Trace

Propagation delay negligible

B

A

A

B

B

Transmission line section!

A

Microwave

Propagation delay considered

l

B

B

A

A

Zo, 

Zo: characteristic impedance

 (=+j): Propagation constant

slide44

At much lower frequencies the wavelength is large enough that there is insignificant phase variation across the dimensions of a component.

  • Because of the high frequencies (and short wavelengths), standard circuit theory often cannot be used directly to solve microwave network problems.
  • Standard circuit theory is an approximation, or special case, of the broader theory of electromagnetic as described by Maxwell’s equations.
slide45

The lumped circuit element approximations of circuit theory may not be valid at high RF and microwave frequencies, where one must work with Maxwell’s equations and their solutions.

  • Microwave components often act as distributed elements, where the phase of the voltage or current changes significantly related to device dimensions.
  • The solution interested in terminal quantities such as power, impedance, voltage, and current, which can be expressed in terms of circuit theory concepts.
slide46
الأسبوع الثانى

Transmission Line Theory

46

slide48

Introduction

Transmission line theory bridges the gap between field analysis and basic circuit theory, which is important in the analysis of microwave circuits and devices.

Any physical structure that guide the electromagnetic wave from place to place is called a Transmission Line (TL).

slide49

Differences between Low and High Frequency

Basic circuit theory & Transmission line theory

  • The key difference between circuit theory and transmission line theory is electrical size.
  • The circuit analysis assumes that the physical dimensions of the network are much smaller than the electrical wavelength.
  • TL may be a considerable fraction of a wavelength, in size.
  • The ordinary circuit analysis deals with lumped elements, where voltage and current do not vary appreciably over the physical dimension of the elements.
  • Thus a TL is a distributed parameter network, where voltages and currents can vary in magnitude and phase over its length.
slide50
At low frequencies, the circuit elements are lumped since voltage and current waves affect the entire circuit at the same time.
  • At microwave frequencies, voltage and current waves do not affect the entire circuit at the same time.
  • The next relations are essential.

Electrical length = Physical length/Wavelength (expressed in )

Phase delay = (2 or 360) x Physical length/Wavelength

slide51

The Lumped-element Circuit Model for Transmission Line

  • TL is schematically represented as a two-wire line (a).
  • The piece of line of infinitesimal length Δz can be modeled as a lumped-element circuit (b) , Where R, L, G, and C are per-unit-length quantities.
  • TLs always have at least two conductors.
slide52

R=series resistance per unit length, for both conductors, in/m.

L=series inductance per unit length, for both conductors, in H/m.

G=shunt conductance per unit length, in S/m.

C=shunt capacitance per unit length, in F/m.

  • The series inductance L represents the total self-inductance of the two conductors, and the shunt capacitance C is due to the close proximity of the two conductors.
  • The series resistance R represents the resistance due to the finite conductivity of the individual conductors, and the shunt conductance G is due to dielectric loss in the material between the conductors.
  • R and G, therefore, represent loss.
  • A finite length of transmission line can be viewed as a cascade of sections of the form shown in fig.(b).
  • From the circuit of fig.(b), Kirchhoff’s voltage law can be applied as:
slide53

R,L,C and G are called the primary constants of the line.

To define these parameters we can divide the T L into small segment and use Kirchhoff's lows as follows:

slide55

Each part of TL can be represented by lumped circuit.

When V Is applied, some current I will flow in the circuit.

ΔV

ΔI

slide56

The impedance of this circuit is RΔx+jωlΔx.

The changes in voltage and current can be written as:

All quantities have harmonic time variation

low freq. rang deals with the algebraic equations.

At high freq. rang, the differential equations are used

slide66

And Kirchhoff’s current law leads to:

Dividing by Δz and taking the limits asΔz----0 gives the following differential equations

Theseare the time domain form of the transmission line equations, also known as the telegrapher equations.

Forsinusoidal steady-state condition, with cosine-based phasors, these Eqns can be simplified to:

slide67

Wave Propagation on a Transmission Line

The two equations can be solved simultaneously to give wave equations for V(z) and I(z) :

Traveling wave solutions can be found as

where

Is the complex propagation constant, which is a function of frequency.

and

The e−γz term represents wave propagation in the +z direction, and the eγz term represents wave propagation in the−z direction.

slide68

Applying

to the voltage of

gives the current on the line:

Comparison with

shows that a characteristic impedance, Z0, can be defined as

slide69

to relate the voltage and current on the line as follows:

Then

can be rewritten in the following form:

Converting back to the time domain, we can express the voltage waveform as

Where φ± is the phase angle of the complex voltageV0±

Using arguments similar to those in basic plane equation, we find that the wavelength on the line is:

And the phase velocity is:
