  1. Electromagnetic waves Bringing It All Together

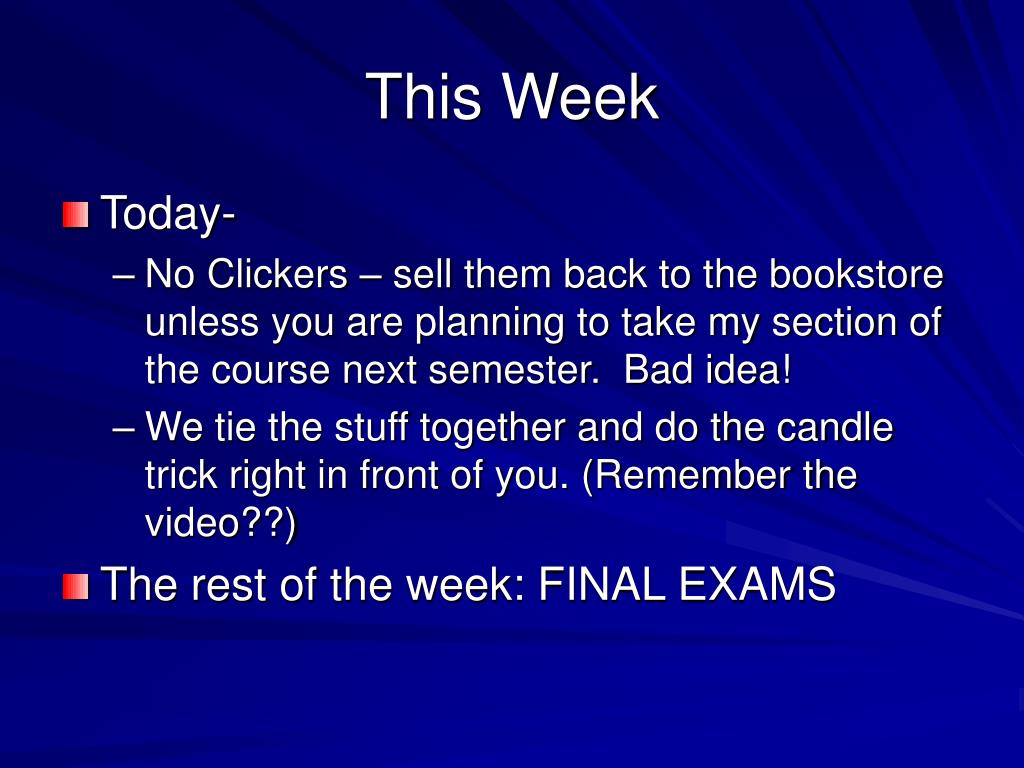

  2. This Week • Today- • No Clickers – sell them back to the bookstore unless you are planning to take my section of the course next semester. Bad idea! • We tie the stuff together and do the candle trick right in front of you. (Remember the video??) • The rest of the week: FINAL EXAMS

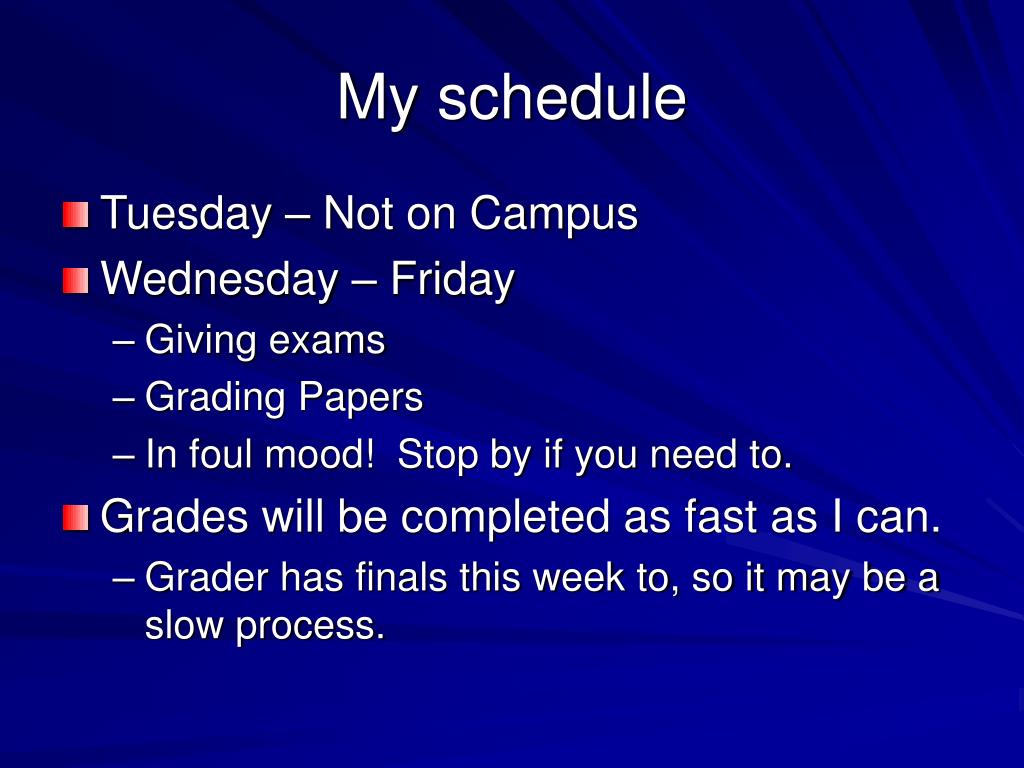

  3. My schedule • Tuesday – Not on Campus • Wednesday – Friday • Giving exams • Grading Papers • In foul mood! Stop by if you need to. • Grades will be completed as fast as I can. • Grader has finals this week to, so it may be a slow process.

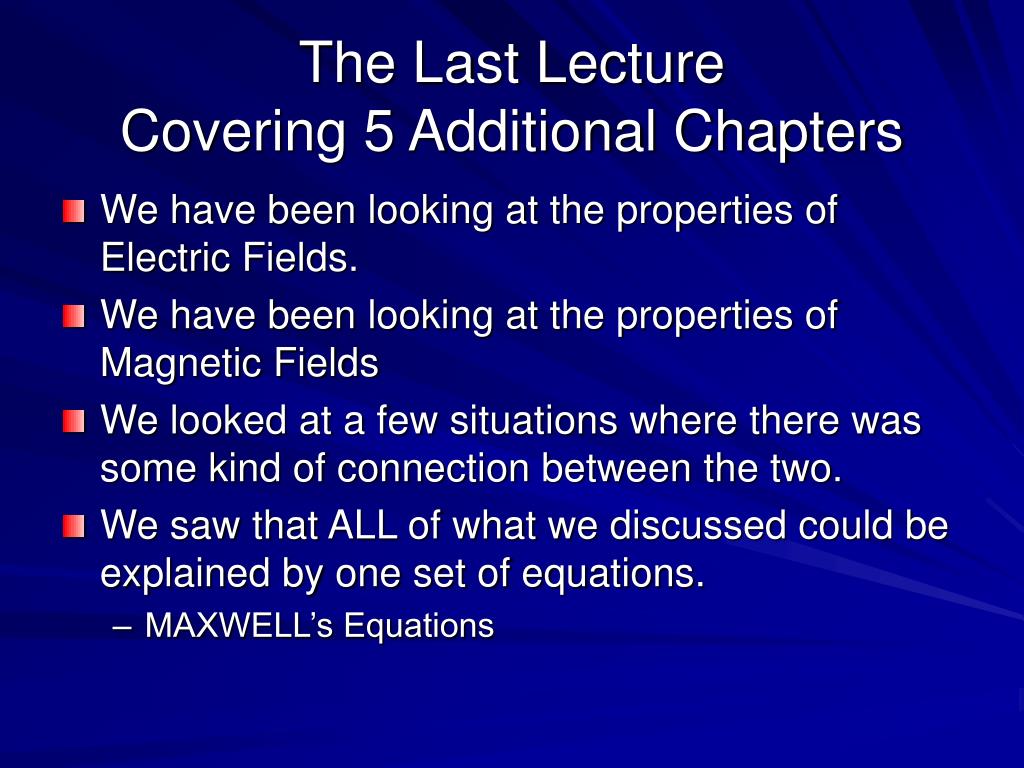

  4. The Last LectureCovering 5 Additional Chapters • We have been looking at the properties of Electric Fields. • We have been looking at the properties of Magnetic Fields • We looked at a few situations where there was some kind of connection between the two. • We saw that ALL of what we discussed could be explained by one set of equations. • MAXWELL’s Equations

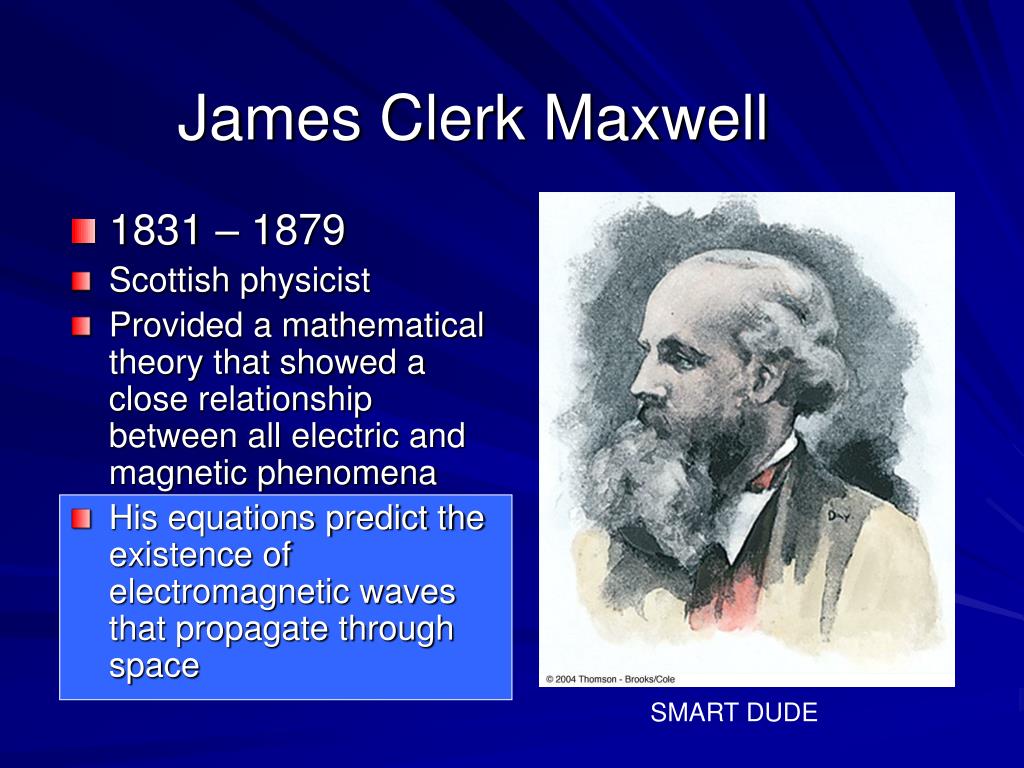

  5. James Clerk Maxwell • 1831 – 1879 • Scottish physicist • Provided a mathematical theory that showed a close relationship between all electric and magnetic phenomena • His equations predict the existence of electromagnetic waves that propagate through space SMART DUDE

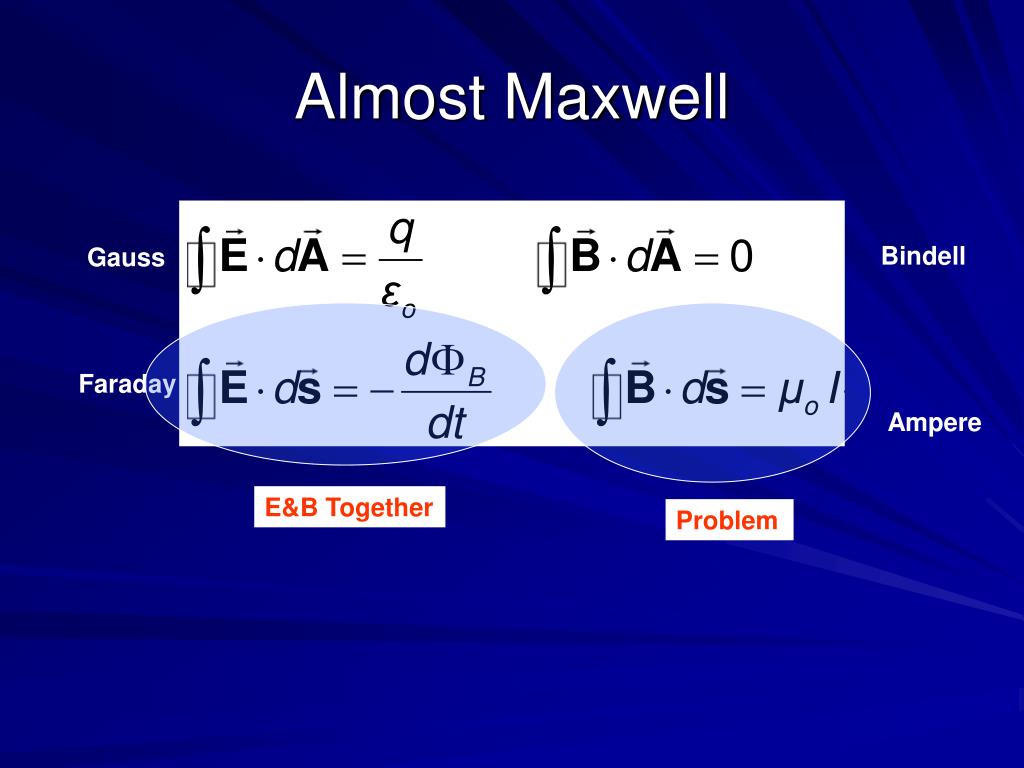

  6. Almost Maxwell Bindell Gauss Faraday Ampere E&B Together Problem

  7. Remember the Lowly Capacitor? AC Current=I But there MUST be a magnetic field present around the gap - even if it is small!

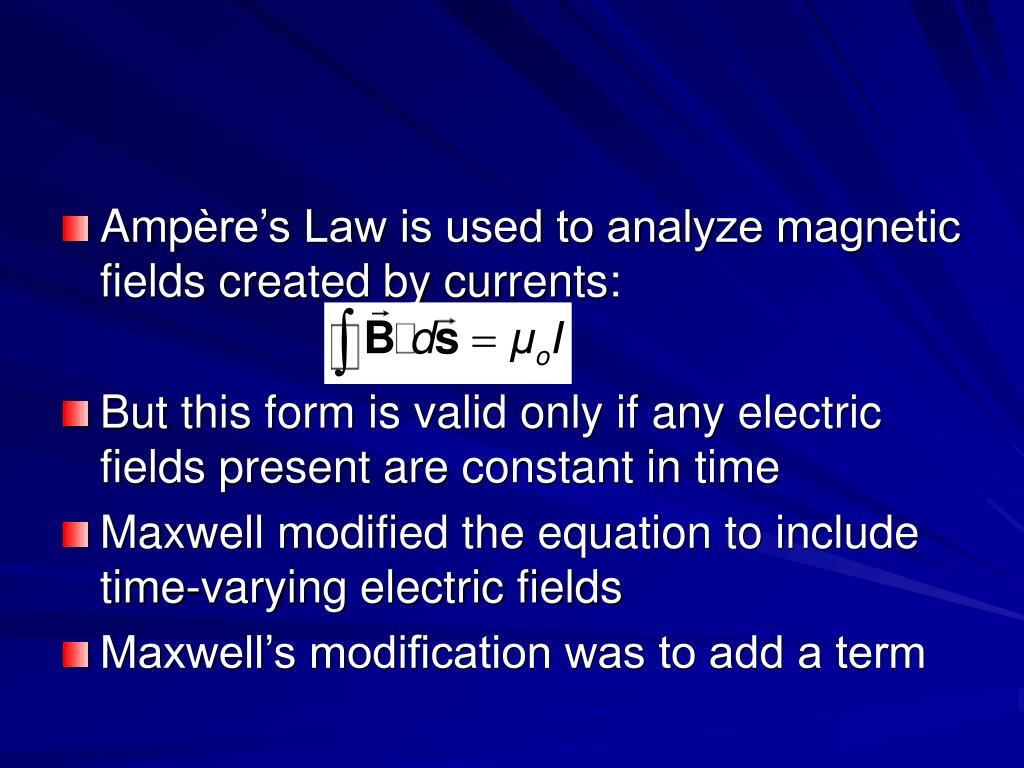

  8. Ampère’s Law is used to analyze magnetic fields created by currents: • But this form is valid only if any electric fields present are constant in time • Maxwell modified the equation to include time-varying electric fields • Maxwell’s modification was to add a term

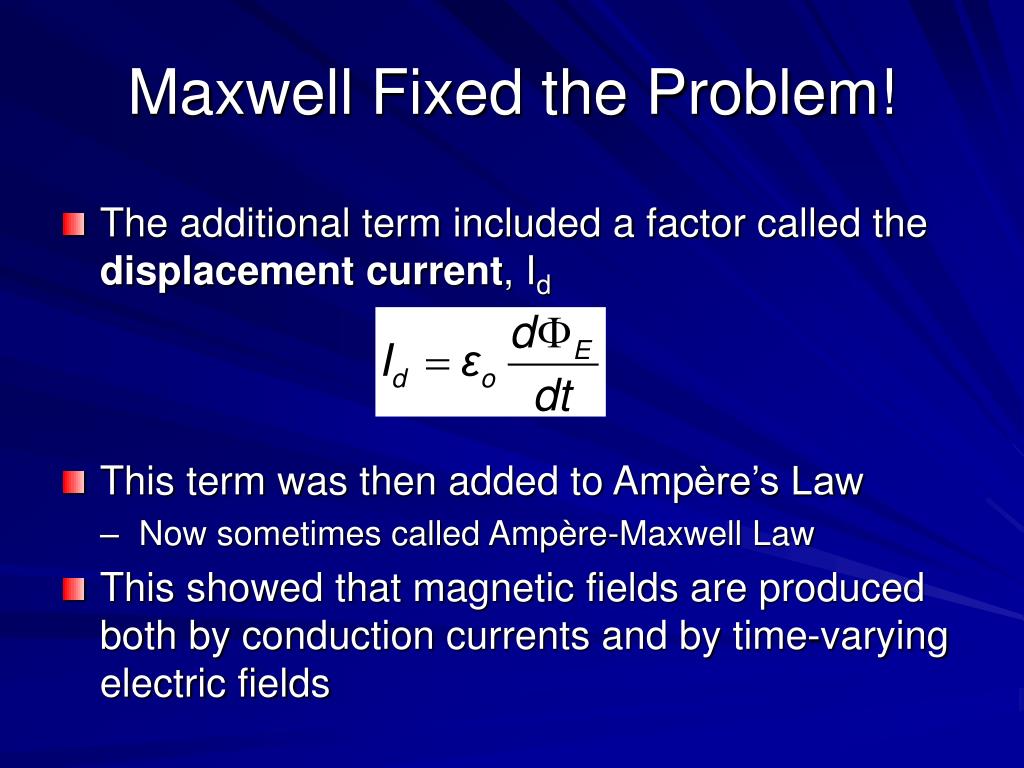

  9. Maxwell Fixed the Problem! • The additional term included a factor called the displacement current, Id • This term was then added to Ampère’s Law • Now sometimes called Ampère-Maxwell Law • This showed that magnetic fields are produced both by conduction currents and by time-varying electric fields

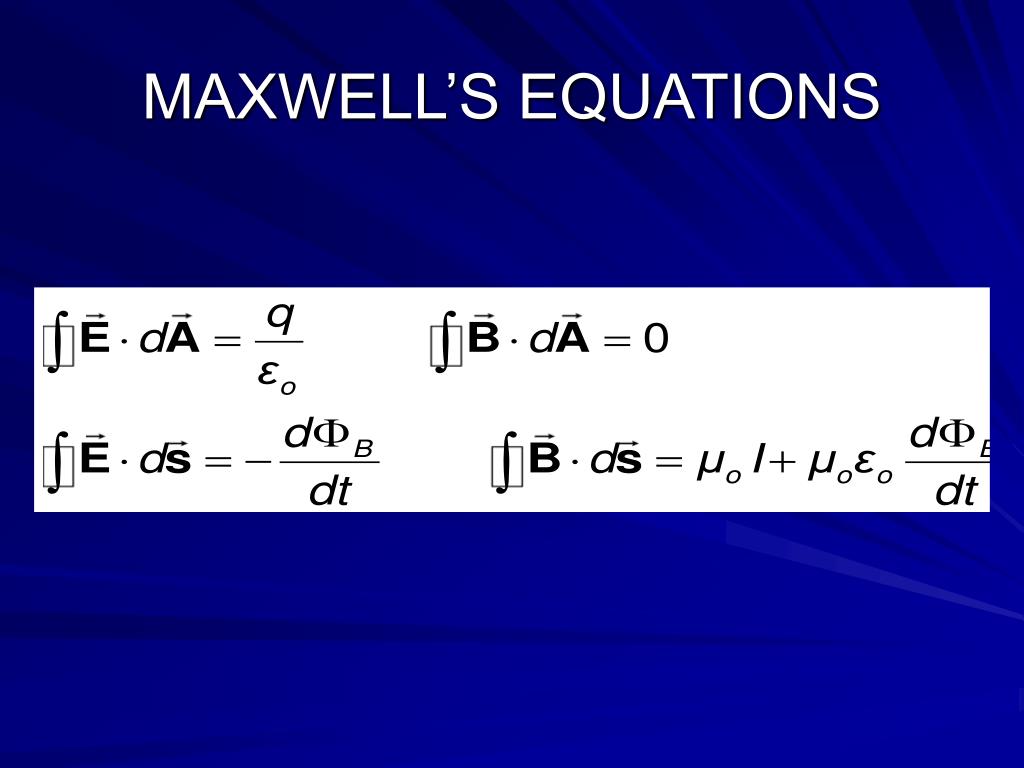

  10. MAXWELL’S EQUATIONS

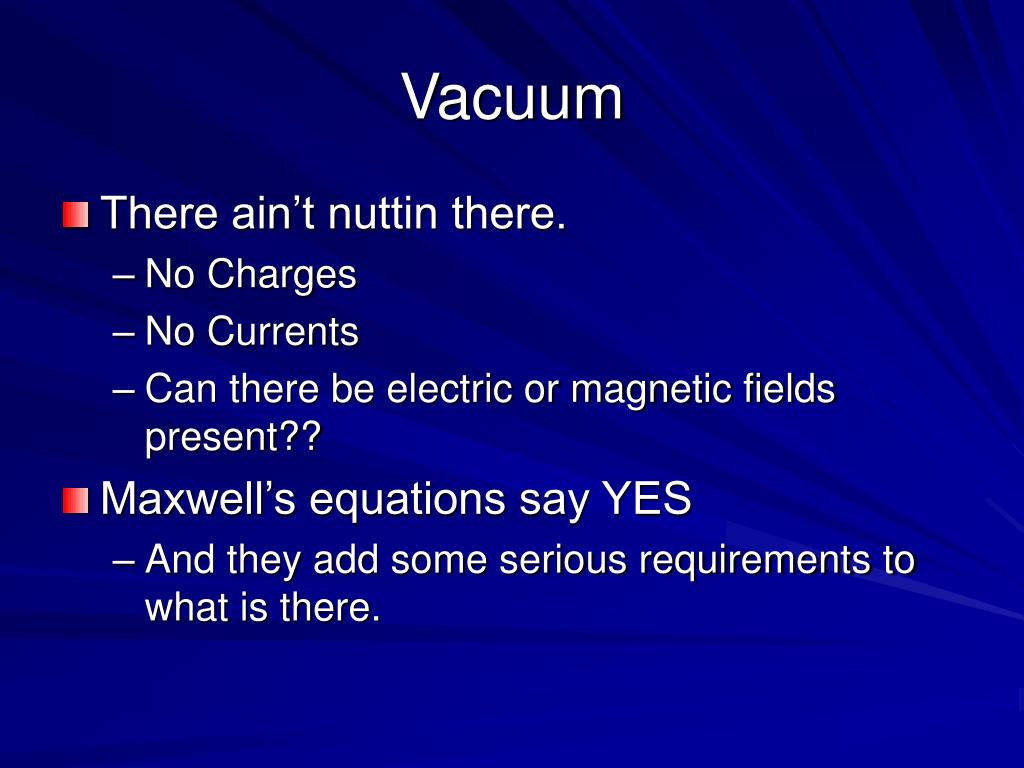

  11. Vacuum • There ain’t nuttin there. • No Charges • No Currents • Can there be electric or magnetic fields present?? • Maxwell’s equations say YES • And they add some serious requirements to what is there.

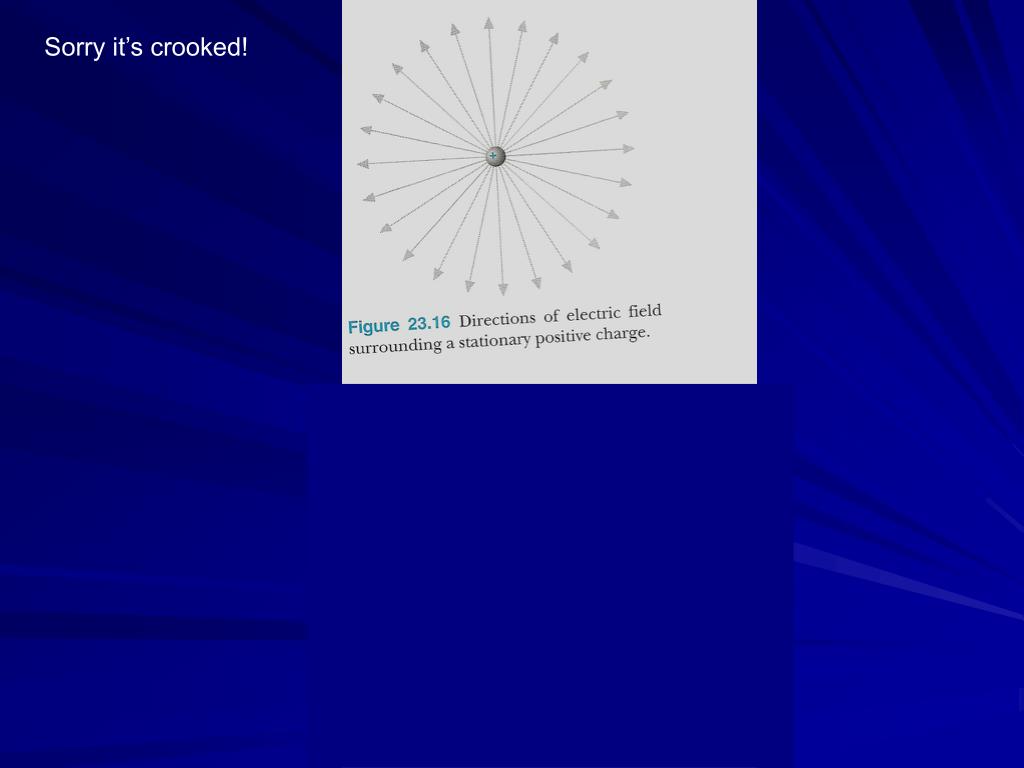

  12. Sorry it’s crooked!

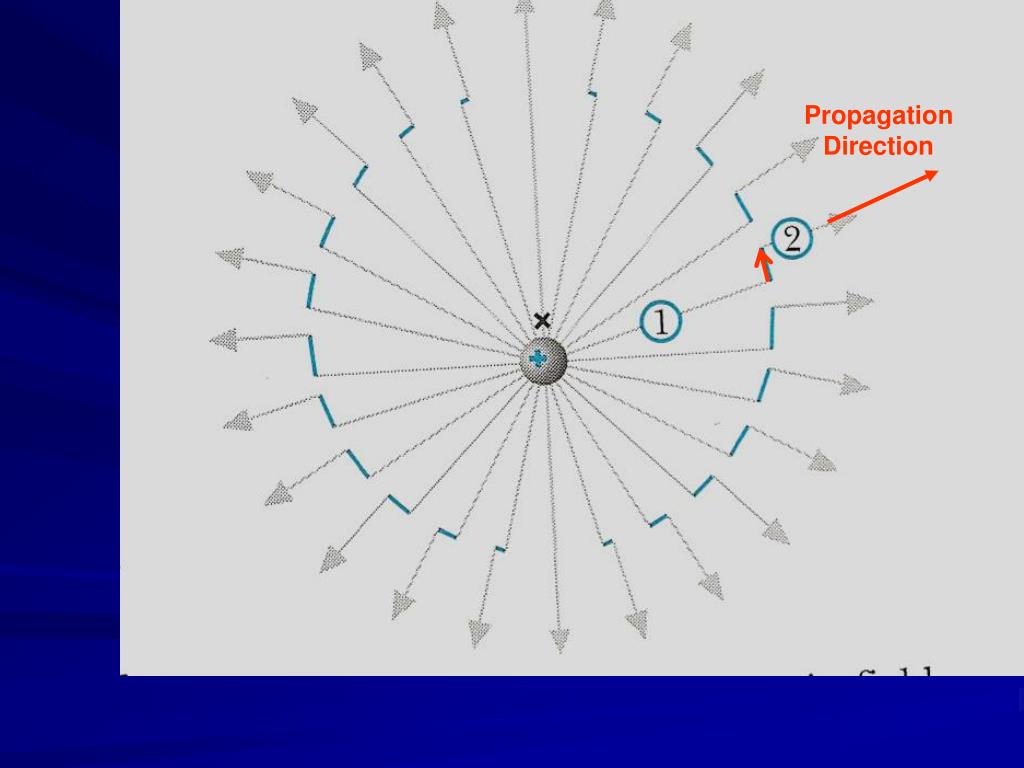

  13. Propagation Direction

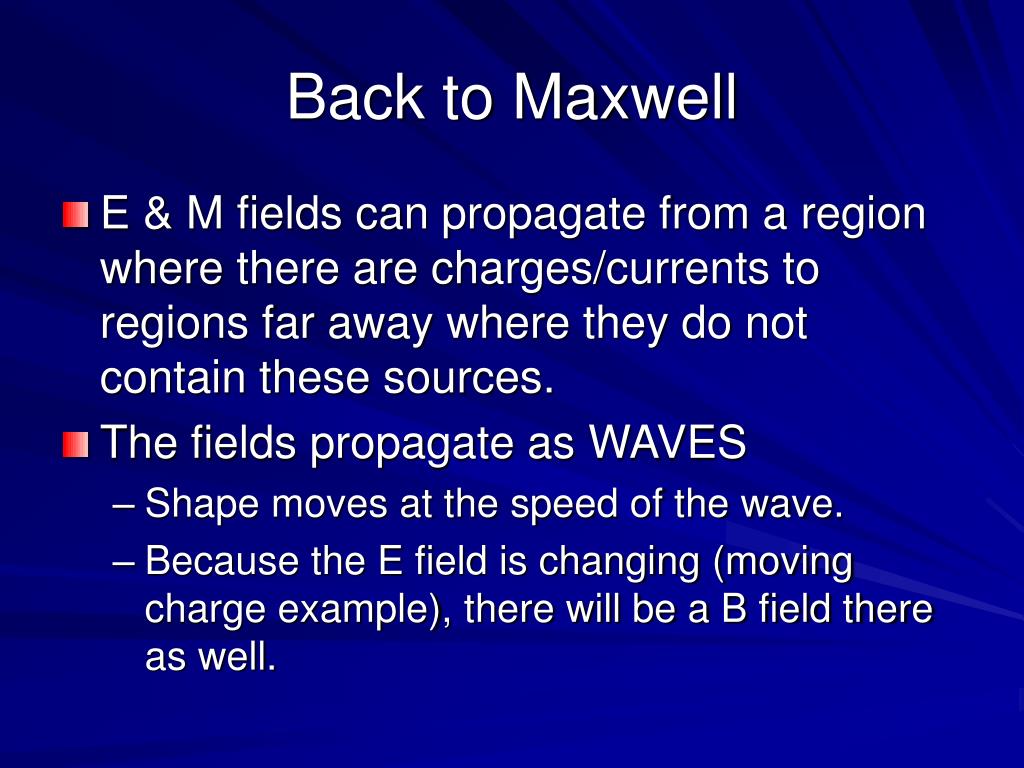

  14. Back to Maxwell • E & M fields can propagate from a region where there are charges/currents to regions far away where they do not contain these sources. • The fields propagate as WAVES • Shape moves at the speed of the wave. • Because the E field is changing (moving charge example), there will be a B field there as well.

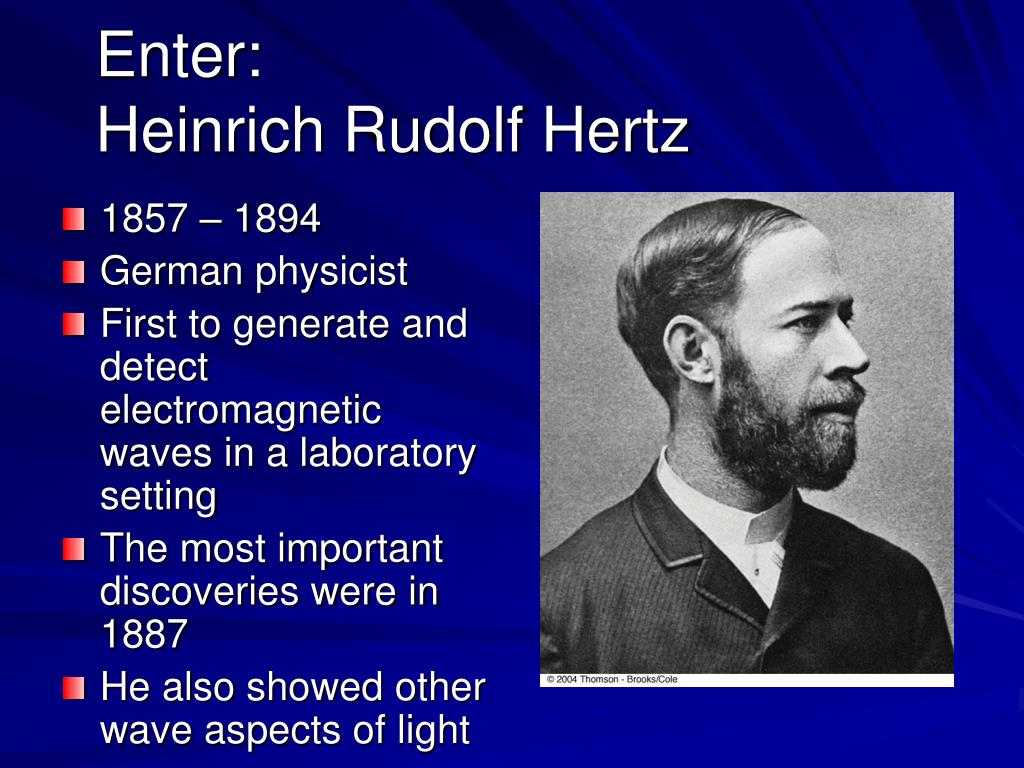

  15. Enter:Heinrich Rudolf Hertz • 1857 – 1894 • German physicist • First to generate and detect electromagnetic waves in a laboratory setting • The most important discoveries were in 1887 • He also showed other wave aspects of light

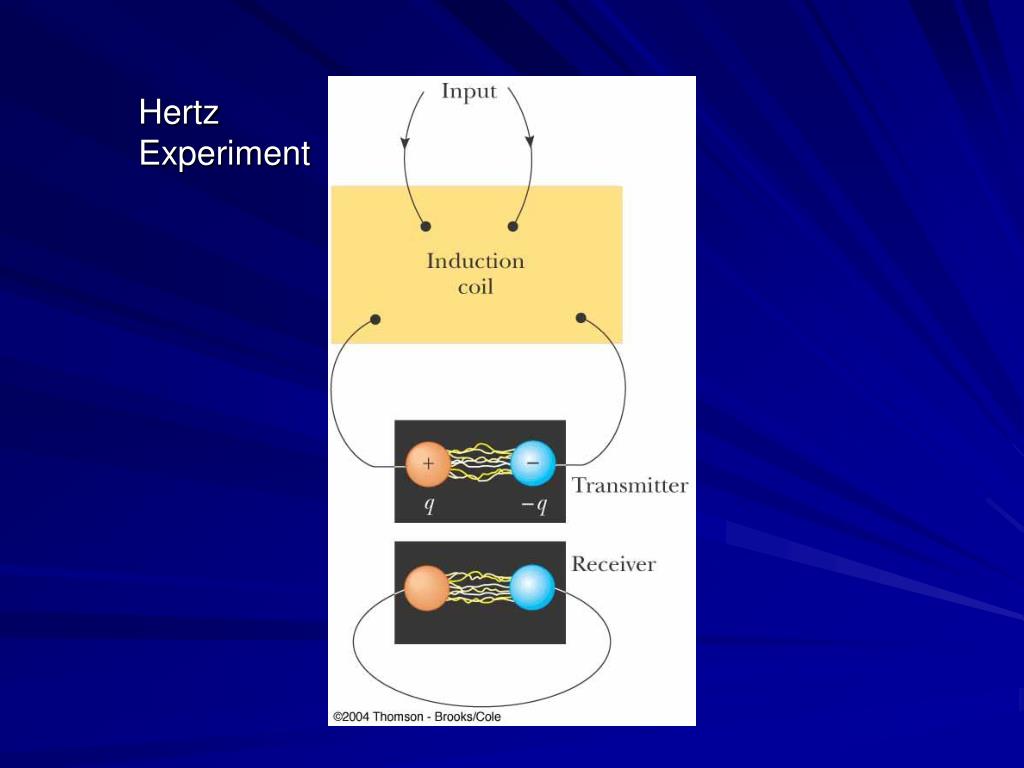

  16. Hertz Experiment

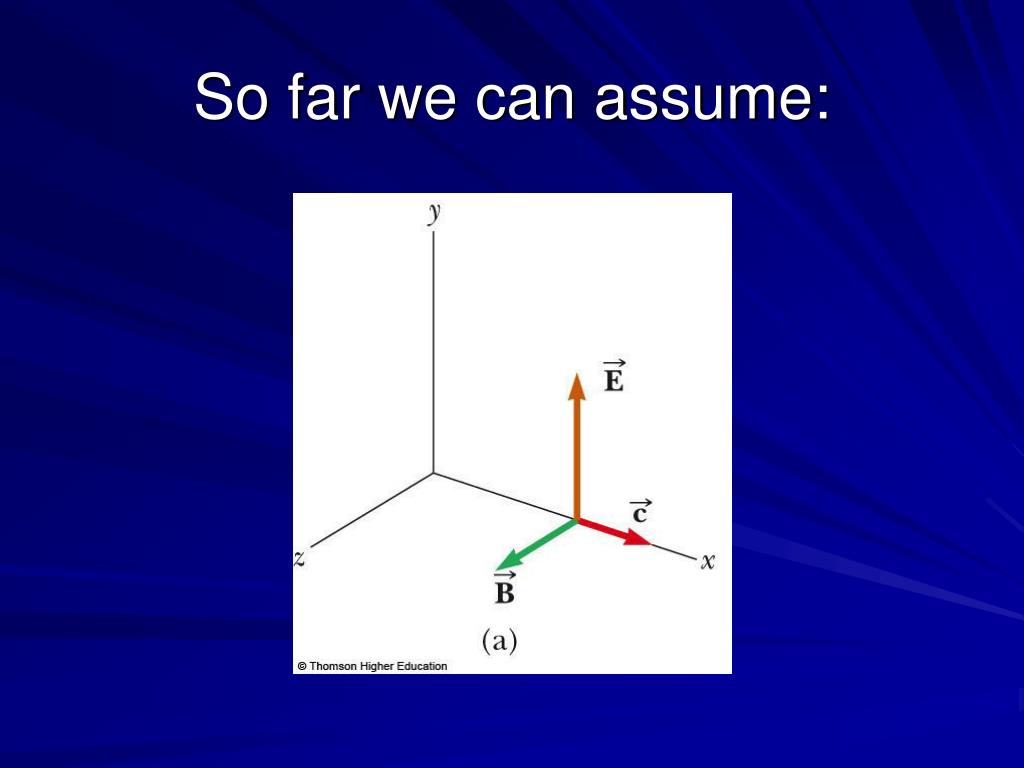

  17. So far we can assume:

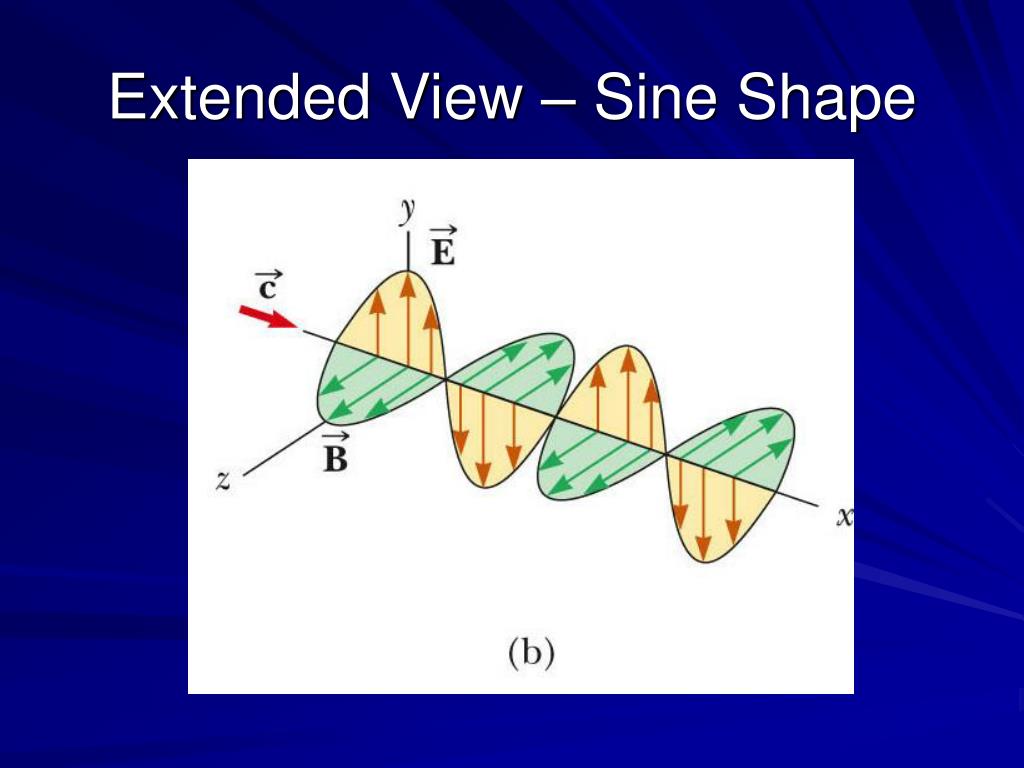

  18. Extended View – Sine Shape

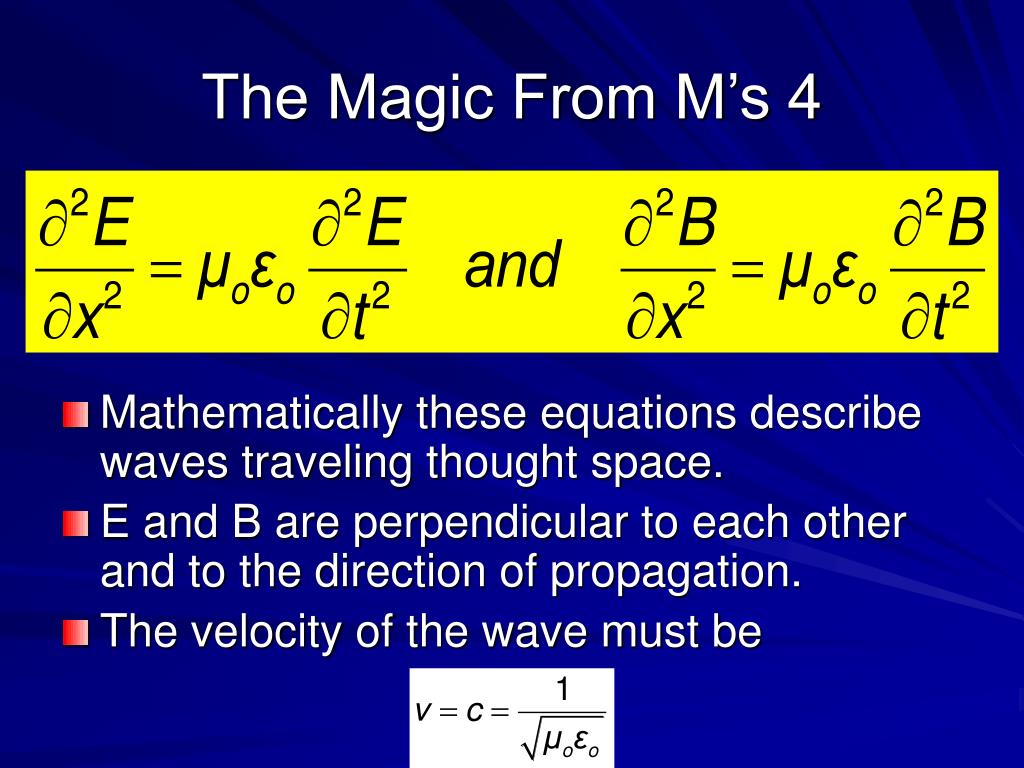

  19. The Magic From M’s 4 • Mathematically these equations describe waves traveling thought space. • E and B are perpendicular to each other and to the direction of propagation. • The velocity of the wave must be

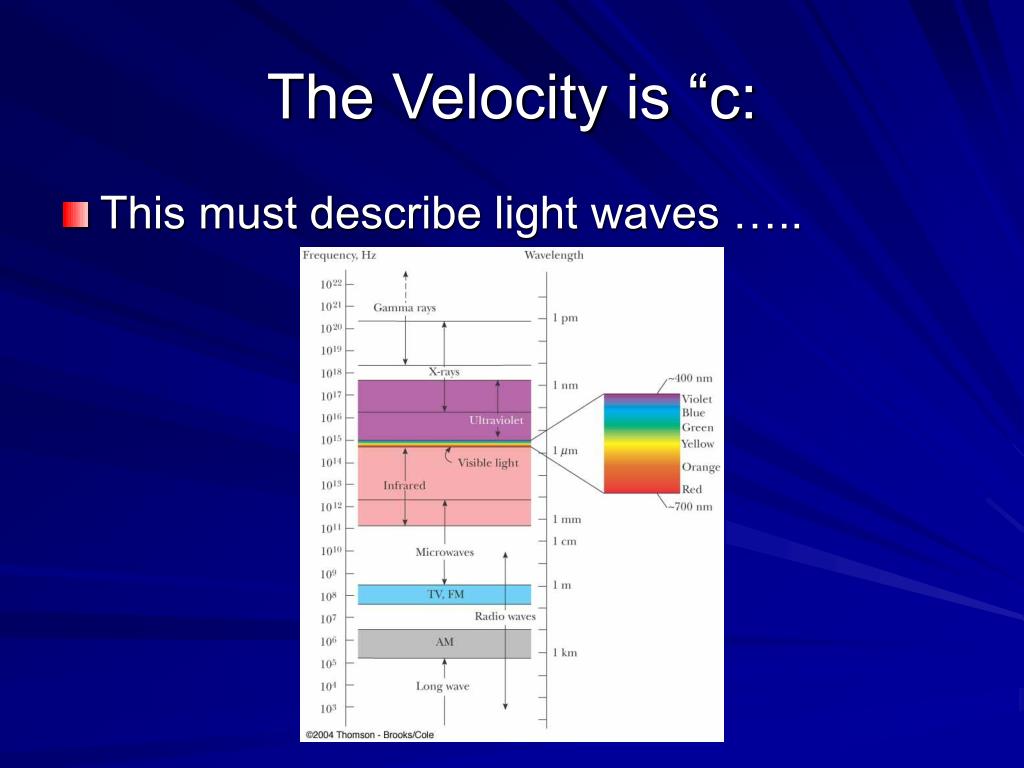

  20. The Velocity is “c: • This must describe light waves …..

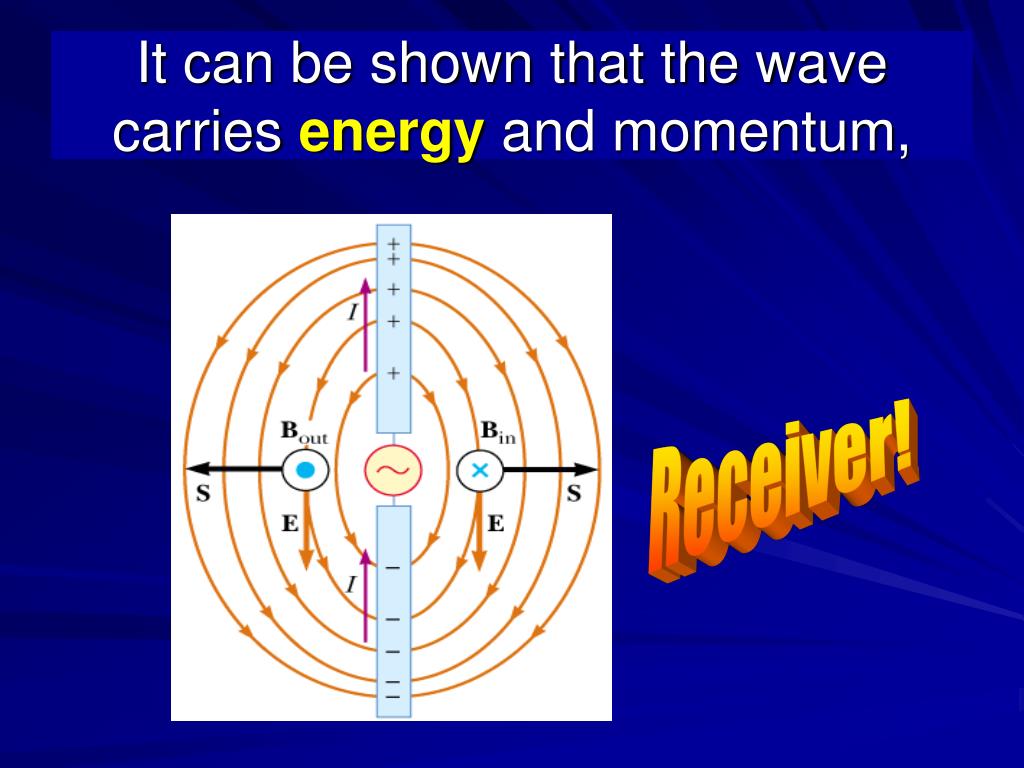

  21. It can be shown that the wave carries energy and momentum, Receiver!

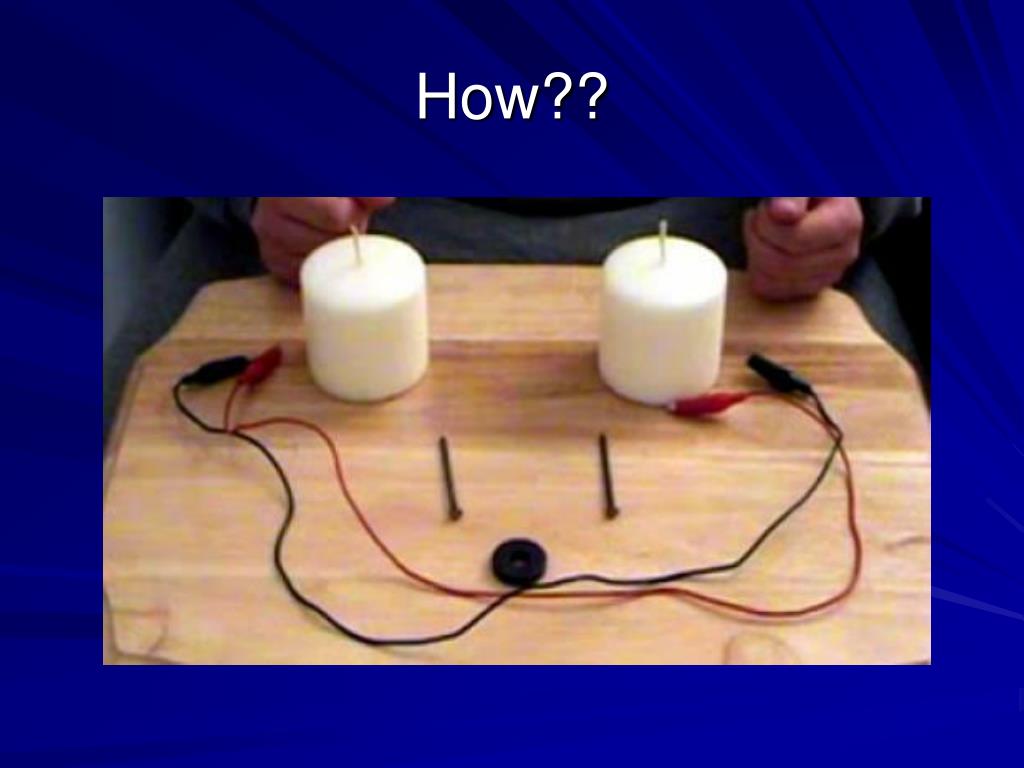

  22. How??

  23. FINAL DEMO!
