Presentation Transcript

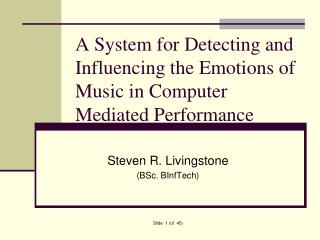

a system for detecting and influencing the emotions of music in computer mediated performance

A System for Detecting and Influencing the Emotions of Music in Computer Mediated Performance

Steven R. Livingstone

(BSc. BInfTech)

Slide 1 (of 45)

problem statement
Problem Statement
  • There exists no automated method to detect and influence the emotions of music
  • An audience’s response to computer music has previously been inaccessible to computers and thus lost

Slide 2 (of 45)

hypothesis
Hypothesis
  • Perceived emotional content of music can be influenced by controlling both the structural and performative aspects
  • Audience feedback can be captured by computers to tailor the musical experience

Slide 3 (of 45)

methodology
Methodology
  • Score – Manipulate the structure and mark up with emotional performance metadata
  • Audience – Determine emotional state and attitudes using affective computing tech.
  • Architecture – Bring together for an awareness of score and audience

Slide 4 (of 45)

talk overview
Talk Overview
  • Introduction - In
  • Research and Contribution - Re
  • System & Testing - Sy
  • Future Work - Fu
  • Summary - Su

Slide 5 (of 45)

why emotions

In 1

Why Emotions?
  • Principal target is the computer game
  • Emotional Narrative is the key to game enjoyment

Slide 6 (of 45)

why music

In 2

Why Music?
  • Music is a universal human trait and found everywhere [a]:
    • cinema, television, radio, commercials, ballet, shopping centres, transport, waiting rooms, restaurants …
  • Within any waking 2 hour period, a person has a 44% chance of experiencing a musical event [b]

Slide 7 (of 45)

why gaming music

In 3

Why Gaming Music?
  • Gaming music is important for: emotion, interest and information
  • Game music static within scenes, unlike cinema music

Slide 8 (of 45)

how are we going to do it

In 4

How are we going to do it?
  • Cross-disciplinary approach to research
    • Study of emotion
    • Music psychology
    • Empirical Analysis
  • Bring this knowledge together into a computing framework

Slide 9 (of 45)

emotion history

R 1

Emotion - History
  • 1600s – Primary Emotions (Descartes)
  • 1800s - Biological reaction mechanisms (Darwin)
  • 1800/1900s – Perception  Physiological Response  Emotion (James-Lange)
  • 1960s – Cognition and Appraisal Theory (Arnold and Lazarus)
  • 1990s – Somatic Markers (Damásio)

Slide 10 (of 45)

emotion perceived vs induced

R 2

Emotion – Perceived VS Induced
  • Perceived Emotion – The emotion observer believes the source or stimuli is experiencing or expressing
  • Induced Emotion – The emotion felt by the observer as a result of the stimuli (very hard to capture/use)

Fearful Speech

Slide 11 (of 45)

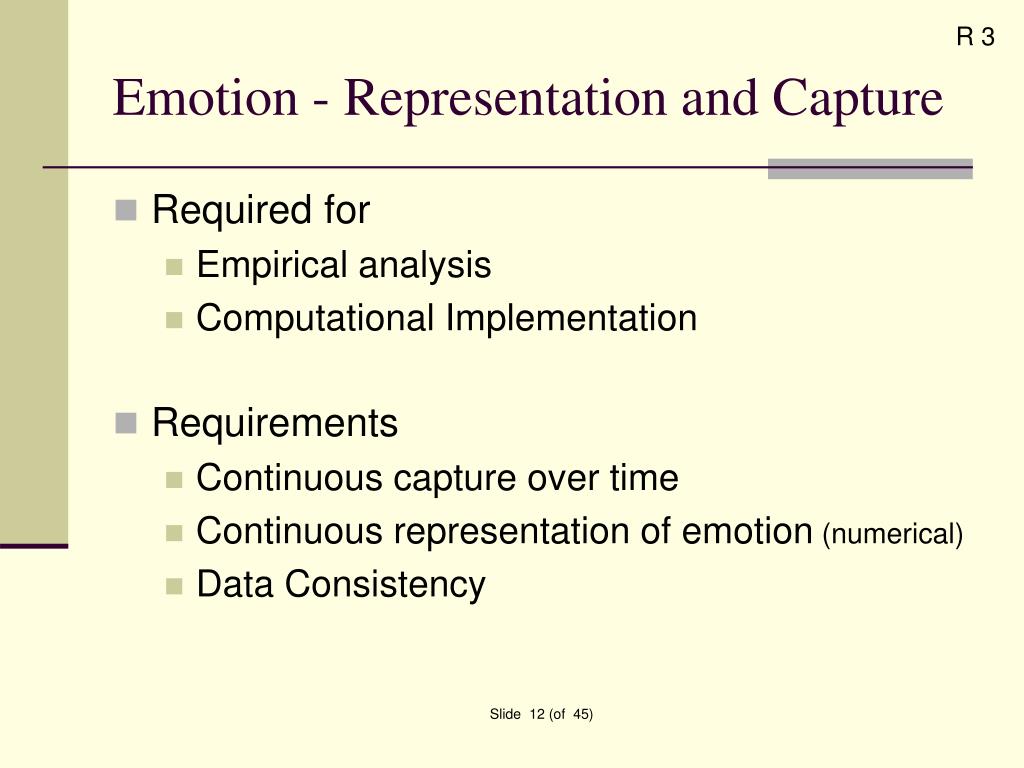

emotion representation and capture

R 3

Emotion - Representation and Capture
  • Required for
    • Empirical analysis
    • Computational Implementation
  • Requirements
    • Continuous capture over time
    • Continuous representation of emotion (numerical)
    • Data Consistency

Slide 12 (of 45)

emotion representation and capture1

R 4

Emotion - Representation and Capture
  • Existing Methods

Slide 13 (of 45)

emotion dimensional approach

R 5

Emotion – Dimensional Approach
  • Originally proposed by Wilhelm Wundt in the 1800s
  • We choose 2D with Arousal & Valence
    • Arousal: Active  Passive
    • Valence: Positive  Negative
  • 2 dimensions offer a balance between ease of reporting and data richness [c]

Slide 14 (of 45)

emotion representation and capture2

R 6

Emotion - Representation and Capture
  • 2 Dimensional Emotion Space [d]

Slide 15 (of 45)

music emotion rules

R 7

Music Emotion Rules
  • Need to influence the emotions somehow …
  • Over a century of empirical music psychology has investigated the link between music  emotion [e]
  • Two types
    • Structural – Modifying the score
    • Performative – Those applied by the performer when converting the score to audio

Slide 16 (of 45)

music emotion rules structural

R 8

Music Emotion Rules – Structural
  • Structural Music Rules
  • An understanding of the musical structure
  • Simplified emotional grouping (octants) and testing
  • Varying degrees of musical theory required
  • A New Approach [1]

Slide 17 (of 45)

music emotion rules structural1

R 10

Music Emotion Rules – Structural
  • Primary Music Emotion Structural Rules [2]
  • Can you hear them?

Quad 1 (happy)

Quad 2 (angry)

Quad 3 (sad)

Quad 4 (dreamy->bliss)

Slide 19 (of 45)

music emotion rules performative

R 11

Music Emotion Rules – Performative
  • Performative Music Rules
  • Requires fine-grained, continuous capture of emotion for testing
  • Waveform modification (very complex stuff)
  • Already been done (partially)

Slide 20 (of 45)

music emotion rules performative1

R 12

Music Emotion Rules – Performative
  • Performance rules to accentuate emotion …
    • Chord asynchrony (melody lead or lag)
    • Rubato (especially at phrase boundaries)
    • Melody notes louder
    • Increase dynamic range (gradient)
    • Increase vibrato amplitude

Structural

Structural + Performative

Slide 21 (of 45)

music emotion rules vocal

R 13

Music Emotion Rules – Vocal
  • What does this table mean?

Slide 22 (of 45)

music tension and induced emotion

R 14

Music Tension and Induced Emotion
  • Is musical emotion really just 2 dimensional?
    • Perceived maybe, induced definitely not
  • Meyer believed that musical emotion is the inhibition or completion of musical expectations [f]

“Tense Sad”, breaks the rules … important!

Slide 23 (of 45)

audience consideration

R 15

Audience Consideration
  • Awareness of Audience
  • Plays an important role in performances
  • Affective Computing
  • Attitudes
  • User state

Slide 24 (of 45)

audience consideration1

R 16

Audience Consideration
  • Attitudes are a cognitive powerful tool:
    • Quickly categorise data
    • Influence decision making
    • Relatively static

Slide 25 (of 45)

audience consideration2

R 17

Audience Consideration
  • User State
    • A listeners response to the stimulus
    • Guides the performer
    • Continuous feedback
  • Affective Computing
    • Research from MIT
    • Various mechanisms to detect AND affect

Slide 26 (of 45)

research something real

R 18

Research  Something Real
  • Phew! A lot of research
  • Many topics not examined today
  • … What were we trying to do again?

Slide 27 (of 45)

hypothesis1
Hypothesis
  • Perceived emotional content of music can be influenced by controlling both the structural and performative aspects
  • Audience feedback can be captured by computers to tailor the musical experience

Slide 28 (of 45)

the rule system influence

Sy 1

The Rule System – Influence
  • Influencing perceived emotions
    • E.g. make “happier”
  • How?
  • Apply octant-grouped structural rules
  • E.g. “Influence to be upbeat and positive”
    • Apply octant 2 rules (tempo [fast], loudness [loud] …) to music structure

Slide 29 (of 45)

the rule system detection

Sy 2

The Rule System – Detection
  • Why?
  • Good influencing needs emotional context
  • Requires
    • Model of Music Tension
    • Advanced pattern matching
    • Advanced knowledge of music theory and composition
  • Very tricky … Not attempted before

Slide 30 (of 45)

the architecture

Sy 3

The Architecture

Slide 31 (of 45)

the architecture application intent

Sy 4

The Architecture – Application Intent
  • Emotive Information
    • The [Arousal, Valence] vector [3]

Slide 32 (of 45)

the architecture audience sensing

Sy 5

The Architecture – Audience Sensing
  • Audience response provides a wealth of feedback data to performer
  • Attitudes and audience response [A, V] incorporated
    • E.g. Cap the fearfulness of a room’s music
  • Affective computing
    • Keystroke/mouse movement: Arousal and Tension
    • Gaze tracking/Skin conductivity: Arousal and Interest
    • Same problems as measuring induced emotion though

Slide 33 (of 45)

the architecture emotive algorithm

Sy 6

The Architecture – Emotive Algorithm
  • Equalising unit for [A, V] coming from game and audience
  • Player Cap:
  • Room Value:
  • Game Event:
  • Resulting [A, V]:

Slide 34 (of 45)

testing progress 2

Sy 7

Testing Progress [2]
  • Aims
    • Influence the perceived emotions of music with primary music emotion structural rules
    • Rules can apply to both Western classical and standard computer game music
  • Testing
    • Listener played original work, followed by altered work (e.g. apply octant 2 rules)
    • How did emotion baseline change?
    • 11 participants, played 6 altered versions

Slide 35 (of 45)

testing progress

Sy 8

Testing Progress
  • Overall Results
  • Looks OK but why the A, V discrepancy?

Slide 36 (of 45)

testing progress1

Sy 9

Testing Progress
  • Quadrant Breakdown

Slide 37 (of 45)

testing progress2

Sy 10

Testing Progress
  • Not Angrier, why?
    • Music selection (something deeper going on ..?)
    • Incomplete rule implementation for quadrant 2

Slide 38 (of 45)

methodology recap
Methodology Recap
  • Score – Manipulate the structure and mark up with emotional performance metadata
  • How are we going?
    • Structure: Implemented and progressing
    • Performative: Identified, future implementation

Slide 39 (of 45)

methodology recap1
Methodology Recap
  • Audience – Determine emotional state and attitudes using affective computing tech.
  • How are we going?
    • Identified and developed a theoretical implementation

Slide 40 (of 45)

methodology recap2
Methodology Recap
  • Architecture – Bring together for an awareness of score and audience
  • How are we going?
    • Theoretical Implementation at present

Slide 41 (of 45)

future work

Fu

Future Work
  • Implement more structural music rules
  • Expanded testing regime
  • Implement performative rules
  • Begin testing of performative rules
  • Detection component
  • Incorporate Affective Computing elements

Slide 42 (of 45)

summary

Su 1

Summary
  • There exists no automated method to detect and influence the emotions of music
    • We’re getting there
  • An audience’s response to computer music has previously been inaccessible to computers and thus lost
    • Theoretical, still Future work

Slide 43 (of 45)

questions

Su 2

Questions?
  • Contact
    • srl@itee.uq.edu.au
    • http://itee.uq.edu.au/~srl
  • Papers
    • [1] "Playing with Affect: Music Performance with Awareness of Score and Audience", 2005, Australasian Computer Music Conference
    • [2] "Dynamic Response: Real-Time Adaptation for Music Emotion", 2005, Australasian Conference on Interactive Entertainment
    • [3] “Influencing the Perceived Emotions of Music with Intent”, 2005, Third International Conference on Generative Systems (in review)

Slide 44 (of 45)

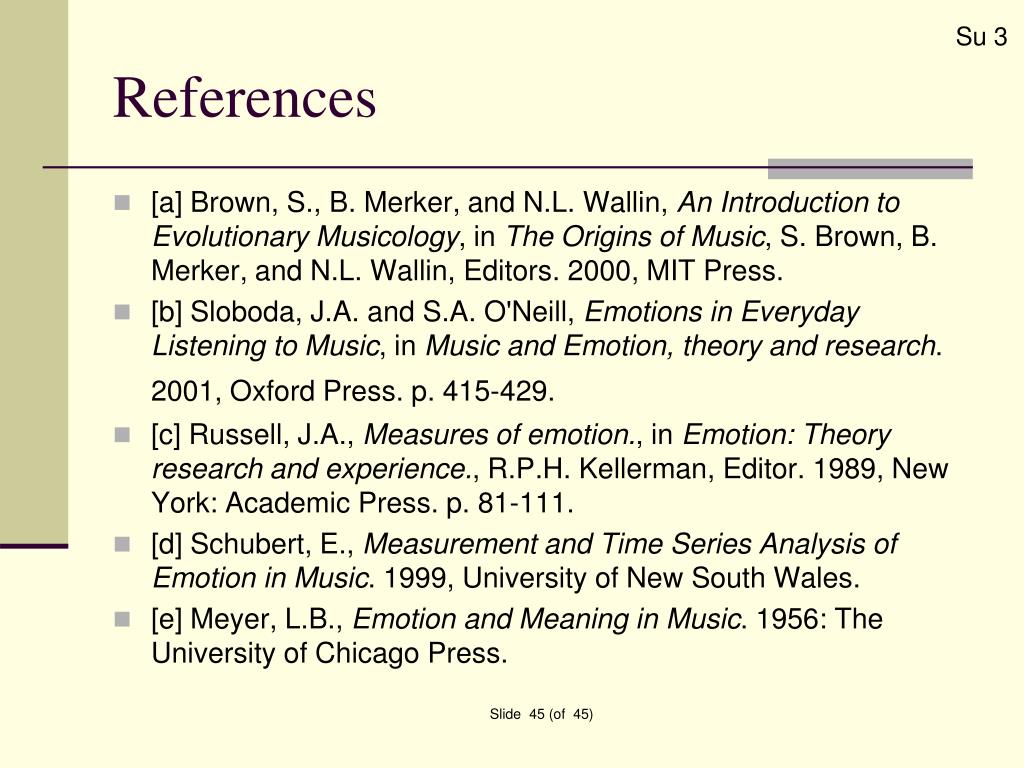

references

Su 3

References
  • [a] Brown, S., B. Merker, and N.L. Wallin, An Introduction to Evolutionary Musicology, in The Origins of Music, S. Brown, B. Merker, and N.L. Wallin, Editors. 2000, MIT Press.
  • [b] Sloboda, J.A. and S.A. O'Neill, Emotions in Everyday Listening to Music, in Music and Emotion, theory and research. 2001, Oxford Press. p. 415-429.
  • [c] Russell, J.A., Measures of emotion., in Emotion: Theory research and experience., R.P.H. Kellerman, Editor. 1989, New York: Academic Press. p. 81-111.
  • [d] Schubert, E., Measurement and Time Series Analysis of Emotion in Music. 1999, University of New South Wales.
  • [e] Meyer, L.B., Emotion and Meaning in Music. 1956: The University of Chicago Press.

Slide 45 (of 45)
