stellaris robotic evaluation board and micri m c os iii

Stellaris® Robotic Evaluation Board and Micriµm µC/OS-III

Dexter Travis, Stellaris ARM® Cortex™-M3 Applications Engineering

Jean J. Labrosse, Founder, President and CEO of Micriµm

introductions
Introductions
  • Jean J. Labrosse
    • Founder, President and CEO of Micriµm
  • Dexter Travis
    • Stellaris® ARM® Cortex™-M3 Applications Engineering
slide3

Find the right ARM® Solution for you

Comprehensive developer ecosystem

DSP

DSP+ARM

32-bit ARM MCU for Safety-Critical Applications

32-bit ARMCortex™-M3

MCUs

ARM

Cortex-A8 &ARM9™ MPUs

C6000™

Sitara™

ARMCortex-A8

& ARM9

Stellaris®

ARMCortex-M3

TMS570

ARM Cortex-R4™

Integra™

DaVinci™

Digital Media processors

375MHz to >1GHz

Cache, RAM, ROM

USB, CAN, SATA,SPI, PCIe, EMAC

Industrial automation, POS & portable data terminals

$5.00 to $25.00

Upto250DMIPS/ 160 MHz

2 MB Flash, 160 KB RAM

FPU, ECC, Timer/PWM Co-Proc,12bitADCs,CAN, EMIF, LIN, SPI, Flexray

Transportation, Motor Control, Certified for use in safety critical (SIL3) systems

$7.00 to $18.00

Up to 80 MHz

Flash8 KB to 256 KB

USB, ENET MAC+PHY CAN, ADC, PWM, SPI

Connectivity,Security,Motion Control, HMI,Industrial Automation

$1.00 to $8.00

300MHz to >1Ghz +Accelerator

Cache

RAM, ROM

USB, ENET, PCIe, SATA, SPI

Floating/Fixed Point

Video, Audio, Voice,

Security, Conferencing

$5.00 to $200.00

Development tools

Software support

Responsive design support

agenda
Agenda
  • RTOSs and Real-Time Kernels
    • A brief introduction
  • Micriµm - µC/OS-III
    • Summary of features
    • Scheduling and Context Switching
    • Synchronization
    • Message Passing
    • Other Services
  • Texas Instruments - EVALBOT
    • Features
    • Examples
    • Demo
rtos vs real time kernels
RTOS vs Real-Time Kernels

Application

Keyboard

Keyboard

Controller

Graphical

User

Interface

Display

Controller

Display

with optional

Touch Interface

Touch Screen

Controller

Interrupt

Controller

Real-Time

Kernel

File

System

Media

(SD)

(MMC)

(NAND Flash)

(NOR Flash)

(CF)

(RAM Disk)

Other

RTOS

Timer

Media

Controller

CPU

I2S

Controller

Ethernet

Controller

(MAC/PHY)

TCP/IP

Stack

TCP/IP

Apps

Audio

CAN

CAN

Controller

USB

(Host)

(Device)

USB

Stacks

Other

(Shell)

(Clk)

(CRC)

(etc.)

Modbus

RS-232C

RS-485

www.Micrium.com

what is a real time kernel
What is a Real-Time Kernel?
  • Software that manages the time of a CPU
  • Performs multitasking
    • ‘Switches’ the CPU between tasks
    • Highest priority task runs on the CPU
    • Round-robins tasks of equal priority
  • Provides valuable services to an application:
    • Task management
    • Synchronization
    • Mutual exclusion management
    • Message passing
    • Memory management
    • Time management
    • Soft-timer management
    • Other

www.Micrium.com

what is a real time kernel7
What is a Real-Time Kernel?

High Priority Task

Task

Task

Each Task

Importance

Event

Event

Task

Task

Task

Task

Task

Task

Infinite Loop

Low Priority Task

Task

www.Micrium.com

preemptive kernels

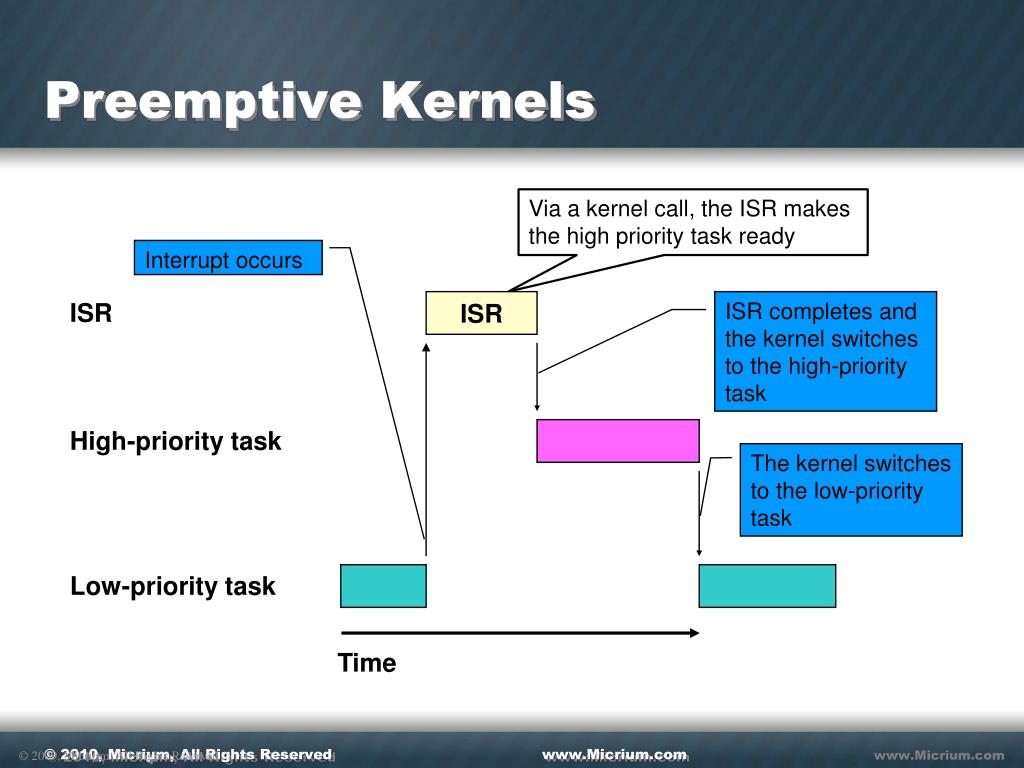

Preemptive Kernels

Via a kernel call, the ISR makes

the high priority task ready

Interrupt occurs

ISR

ISR

ISR completes and the kernel switches to the high-priority task

High-priority task

The kernel switches to the low-priority task

Low-priority task

Time

www.Micrium.com

© 2009, Micriµm, All Rights Reserved

www.Micrium.com

what is c os iii
What is µC/OS-III?
  • A third generation Real-Time Kernel
    • Has roots in µC/OS-II, the world’s most popular Real-Time Kernel
      • µC/OS-II’s internals were described in the book: “MicroC/OS-II, The Real-Time Kernel” (1998)
  • A new 850+ page book:
    • “µC/OS-III, The Real-Time Kernel”
    • Describes µC/OS-III’s internals
    • The book comes with:
      • A Cortex-M3 based evaluation board
        • Featuring TI’s LM3S9B92
      • Links to download:
        • Sample code to run µC/OS-III
        • IAR’s 32K KickStart tools
        • A trial version of µC/Probe
    • Companion EVALBOT
      • 5 Example projects

www.Micrium.com

c os iii summary of key features
µC/OS-IIISummary of Key Features
  • Preemptive Multitasking
    • Round-robin scheduling of equal-priority tasks
  • ROMable
  • Scalable
    • Adjustable footprint
    • Compile-time and run-time configurable
  • Portable
    • All µC/OS-II ports can be adapted to µC/OS-III
  • Rich set of services
    • Task Management, Time Management, Semaphores, Mutexes, Message Queues, Soft Timers, Memory Management, Event Flags and more

www.Micrium.com

c os iii summary of key features11
µC/OS-IIISummary of Key Features
  • Real-Time, Deterministic
    • Reduced interrupt and task latency
  • Built-in Performance Measurement
    • Measures interrupt disable time on a per-task basis
    • Measures stack usage for each task
    • Keeps track of the number of context switches for each task
    • Measures the ISR-to-Task and Task-to-Task response time
    • And more
  • Cleanest source code in the industry
  • Consistent API
  • Run-Time argument checking

www.Micrium.com

typical c os iii tasks

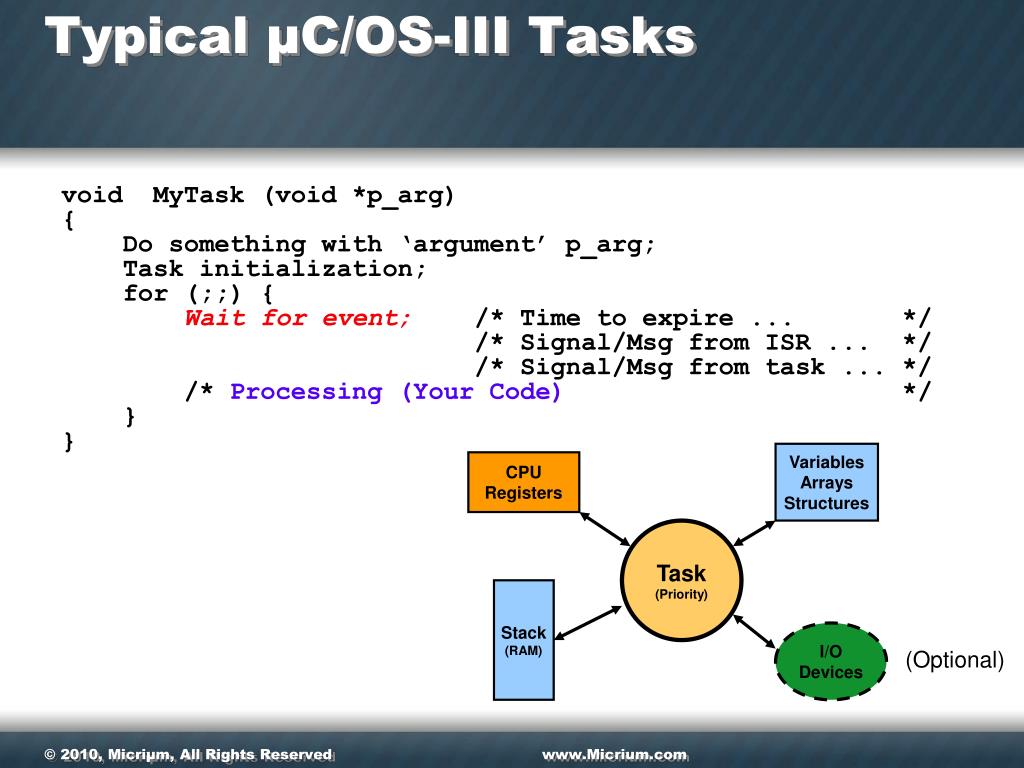

Typical µC/OS-III Tasks

Variables

Arrays

Structures

CPU

Registers

Stack

(RAM)

I/O

Devices

(Optional)

void MyTask (void *p_arg)

{

Do something with ‘argument’ p_arg;

Task initialization;

for (;;) {

Wait for event; /* Time to expire ... */

/* Signal/Msg from ISR ... */

/* Signal/Msg from task ... */

/* Processing (Your Code) */

}

}

Task

(Priority)

www.Micrium.com

creating a task

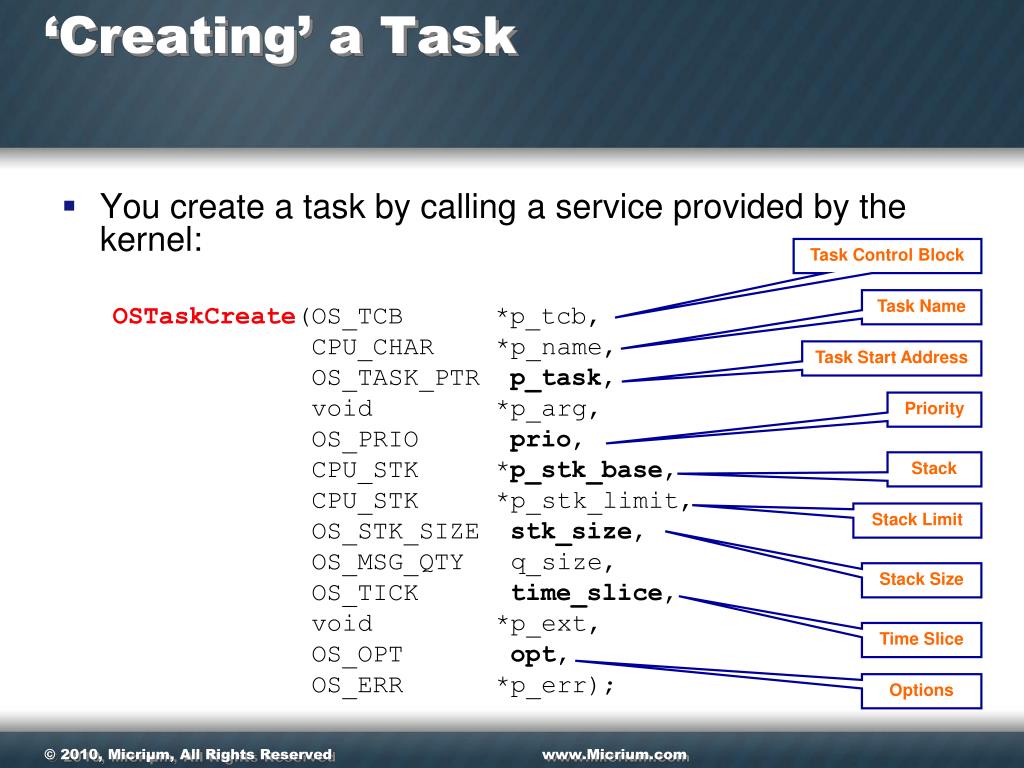

‘Creating’ a Task
  • You create a task by calling a service provided by the kernel:

OSTaskCreate(OS_TCB *p_tcb,

CPU_CHAR *p_name,

OS_TASK_PTR p_task,

void *p_arg,

OS_PRIO prio,

CPU_STK *p_stk_base,

CPU_STK *p_stk_limit,

OS_STK_SIZE stk_size,

OS_MSG_QTY q_size,

OS_TICK time_slice,

void *p_ext,

OS_OPT opt,

OS_ERR *p_err);

Task Control Block

Task Name

Task Start Address

Priority

Stack

Stack Limit

Stack Size

Time Slice

Options

www.Micrium.com

the c os iii scheduler using count leading zeros clz
The µC/OS-III Scheduler Using Count Leading Zeros (CLZ)

0

1

0

0

0

1

0

0

1

0

0

0

0

0

1

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

1

  • The Cortex-M3 has a CLZ instruction
    • Makes scheduling much faster … ex. with 64 priorities

ReadyTbl[]

0

31

32

[0]

5

[1]

32

63

Ready Priority = 37

#Zeros

if (ReadyTbl[0] == 0)

Prio = CLZ(ReadyTbl[1]) + 32;

else

Prio = CLZ(ReadyTbl[0]);

www.Micrium.com

the c os iii ready list

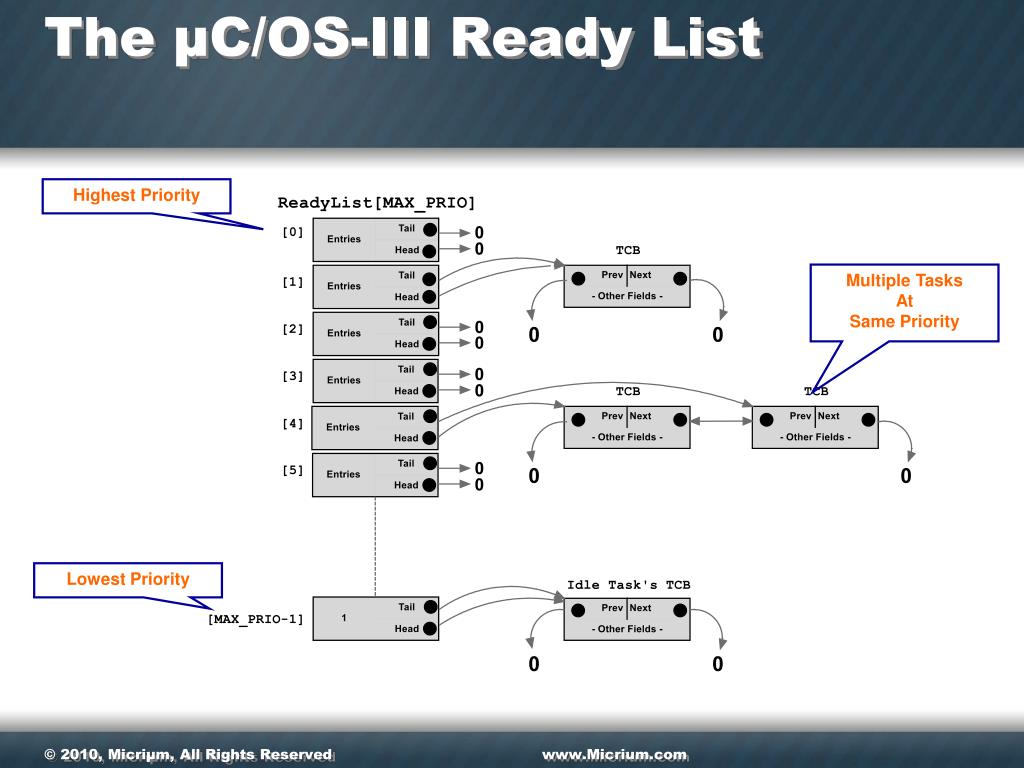

The µC/OS-III Ready List

Highest Priority

Multiple Tasks

At

Same Priority

Lowest Priority

www.Micrium.com

context switch arm cortex m3 for c os iii

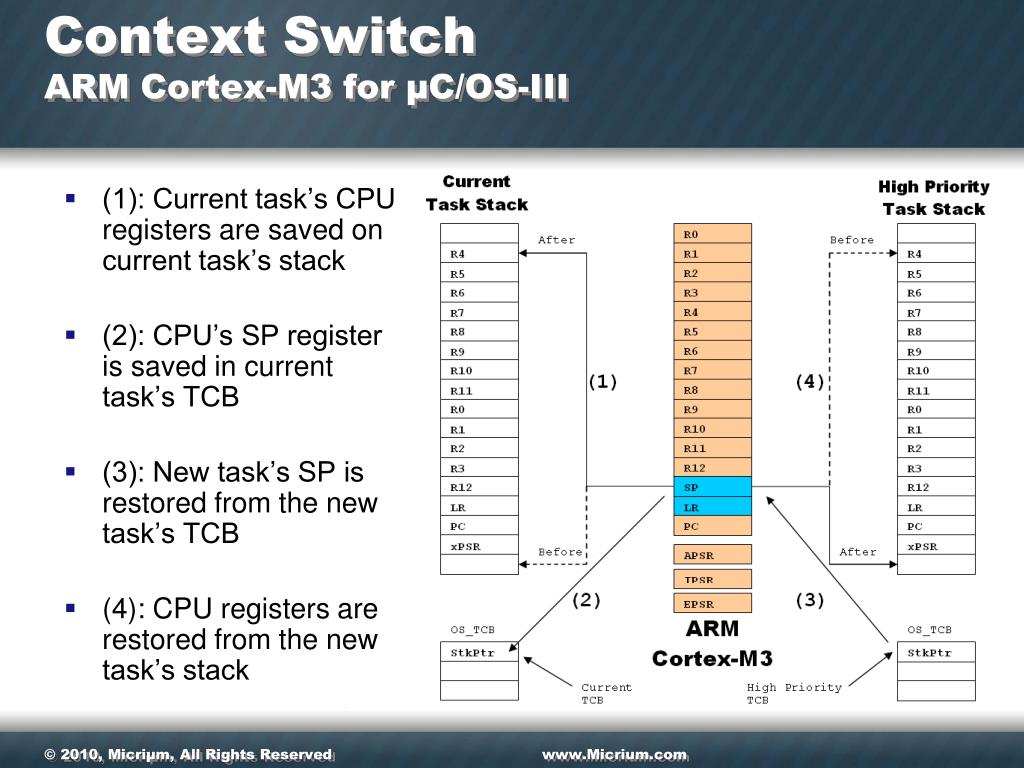

Context SwitchARM Cortex-M3 for µC/OS-III
  • (1): Current task’s CPU registers are saved on current task’s stack
  • (2): CPU’s SP register is saved in current task’s TCB
  • (3): New task’s SP is restored from the new task’s TCB
  • (4): CPU registers are restored from the new task’s stack

www.Micrium.com

synchronization semaphores
Synchronization(Semaphores)

Delta TS

www.Micrium.com

synchronization event flags
Synchronization(Event Flags)

Delta TS

www.Micrium.com

message passing message queues
Message Passing(Message Queues)

Delta TS

www.Micrium.com

other c os iii features
Other µC/OS-III Features
  • Task Management
    • Suspend/Resume a task
    • Delete a task
  • Time Management
  • Software Timers
  • Fixed-Size Memory Partitions
  • Pending on Multiple Objects
  • And more.

www.Micrium.com

slide22
µC/Probe

www.Micrium.com

what is c probe

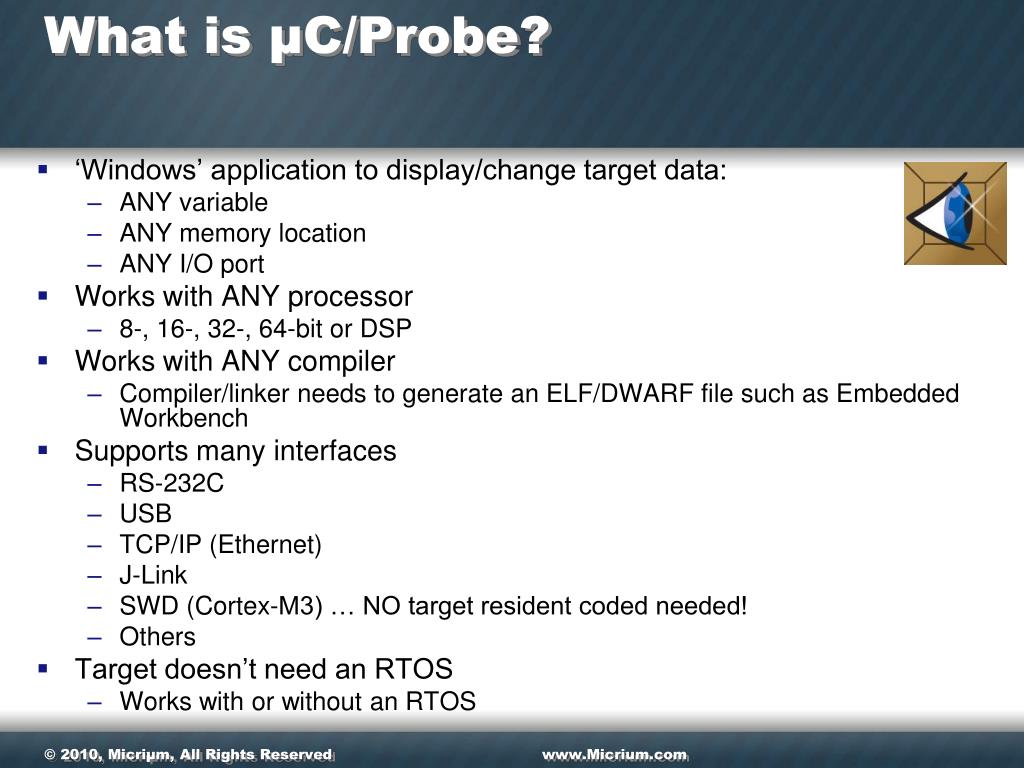

What is µC/Probe?
  • ‘Windows’ application to display/change target data:
    • ANY variable
    • ANY memory location
    • ANY I/O port
  • Works with ANY processor
    • 8-, 16-, 32-, 64-bit or DSP
  • Works with ANY compiler
    • Compiler/linker needs to generate an ELF/DWARF file such as Embedded Workbench
  • Supports many interfaces
    • RS-232C
    • USB
    • TCP/IP (Ethernet)
    • J-Link
    • SWD (Cortex-M3) … NO target resident coded needed!
    • Others
  • Target doesn’t need an RTOS
    • Works with or without an RTOS

www.Micrium.com

c probe c os iii task awareness
µC/ProbeµC/OS-III Task Awareness

Task Name

Task Priority

% CPU

Usage

#Context

Switches

Max Interrupt

Disable Time

Stack

Usage

ISR to Task

Response

ISR to Task

Response

www.Micrium.com

to run the book examples you will need
To run the book examples… you will need:
  • The µC/OS-III book
  • The TI EVALBOT
    • http://www.ti.com/evalbot
  • Download and install the IAR 32K edition of Embedded Workbench for the ARM (V5.5)
    • http://supp.iar.com/Download/SW/?item=EWARM-KS32
    • You will need to install the J-Link driver
  • Download and unzip the µC/OS-III book examples:
    • http://www.Micrium.com/Books/Micrium-uCOS-III
  • Download and install the non-time limited TRIAL version of µC/Probe:
    • http://www.Micrium.com/Books/Micrium-uCOS-III
texas instruments evalbot

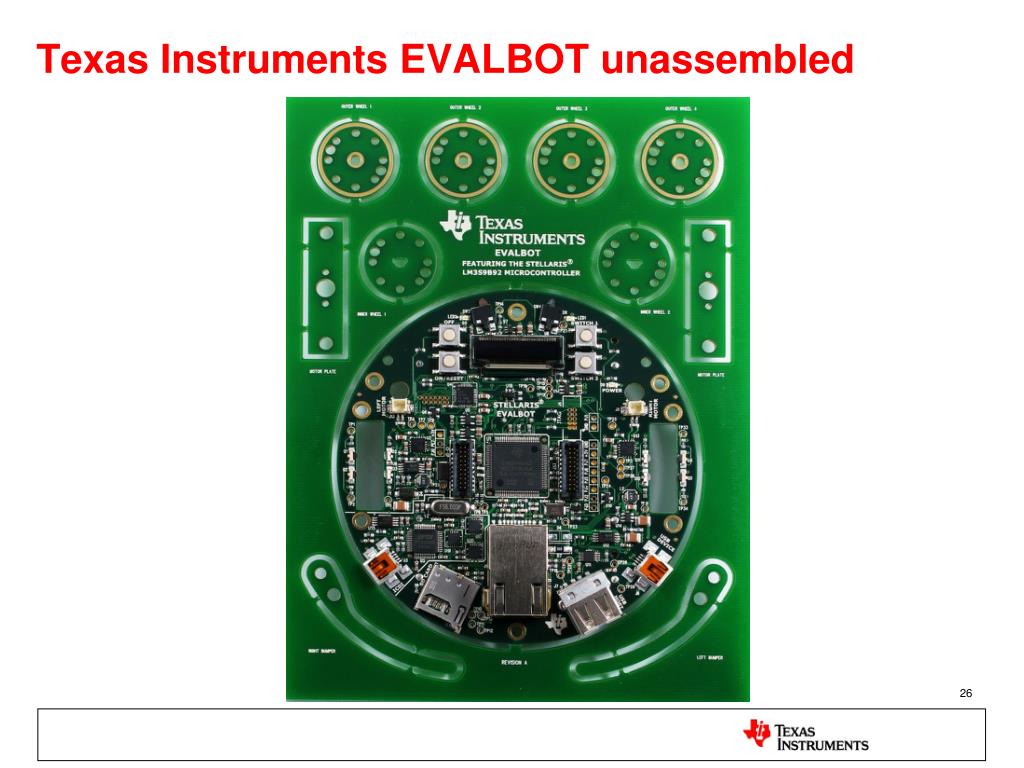

Texas Instruments EVALBOT

User Switches

(2)

Speaker

Stellaris

LM3S9B92

Bumpers

(2)

USB-Device

Connector

USB-Host

Connector

96x6 OLED

Display

RJ45 10/100

Ethernet

ON/OFF

Switch

MicroSD

Socket

Motor/Wheel

(2)

Batteries

(3 AA)

In-Circuit

Debug Interface

examples
Examples
  • Example 1: Simple Display
    • Rotates a series of messages on the Display
    • Blinks LEDS on the board
  • Example 2: Using Audio
    • Bump sensors select next or previous wav track
    • SWITCH2 begins audio playback, SWITCH1 stops playback
  • Example 3: Simple Control
    • Manual start/stop of the motor via SWITCH1, SWITCH2 and bump sensors
  • Example 4: Autonomous Control
    • EVALBOT moves randomly and reacts to sensor inputs.
autonomous evalbot control
Autonomous EVALBOT Control

Motor Tasks receives command, interprets and posts to PID Task

Control Task queues commands to motor tasks

If Timer expires a random turn is initiated

PID Task closes motor control loop based on feedback from speed sensor interrupt handlers

Input Monitor Task posts flags to Control Task

speed sensor interrupts relay data back to PID Task

buttons and Bump Sensor trigger Input monitor task
