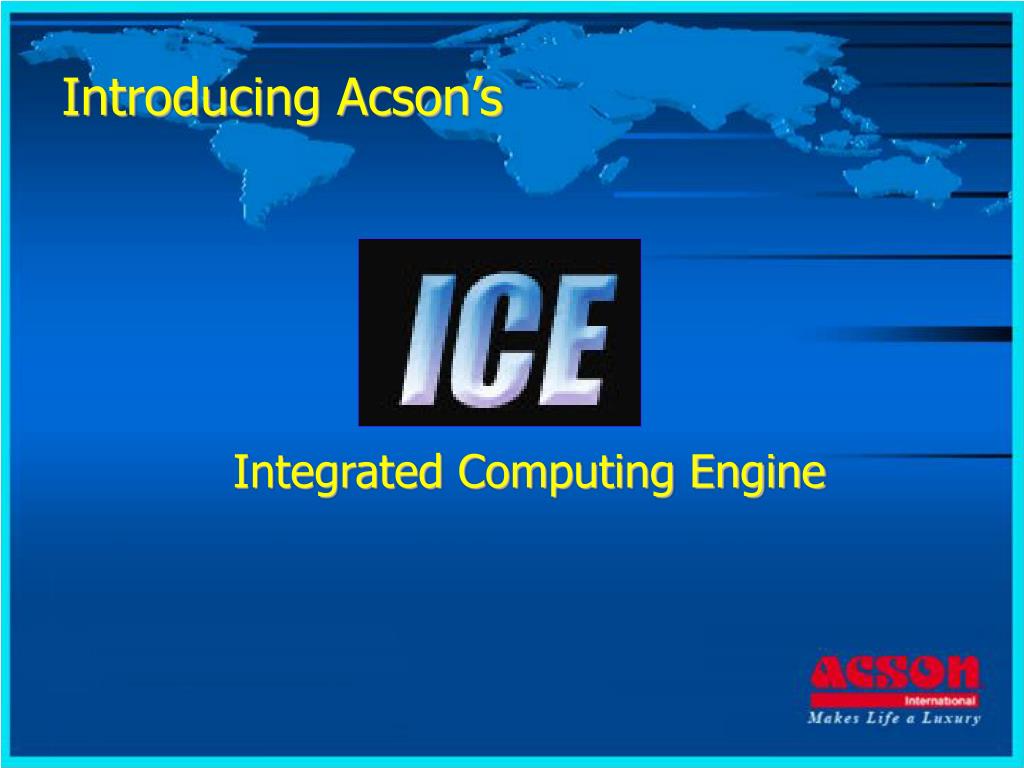

  1. Introducing Acson’s Integrated Computing Engine

  2. ICE • Technical Suite of Software Tools • For Systems Design & Diagnostics • Standardized User Interface

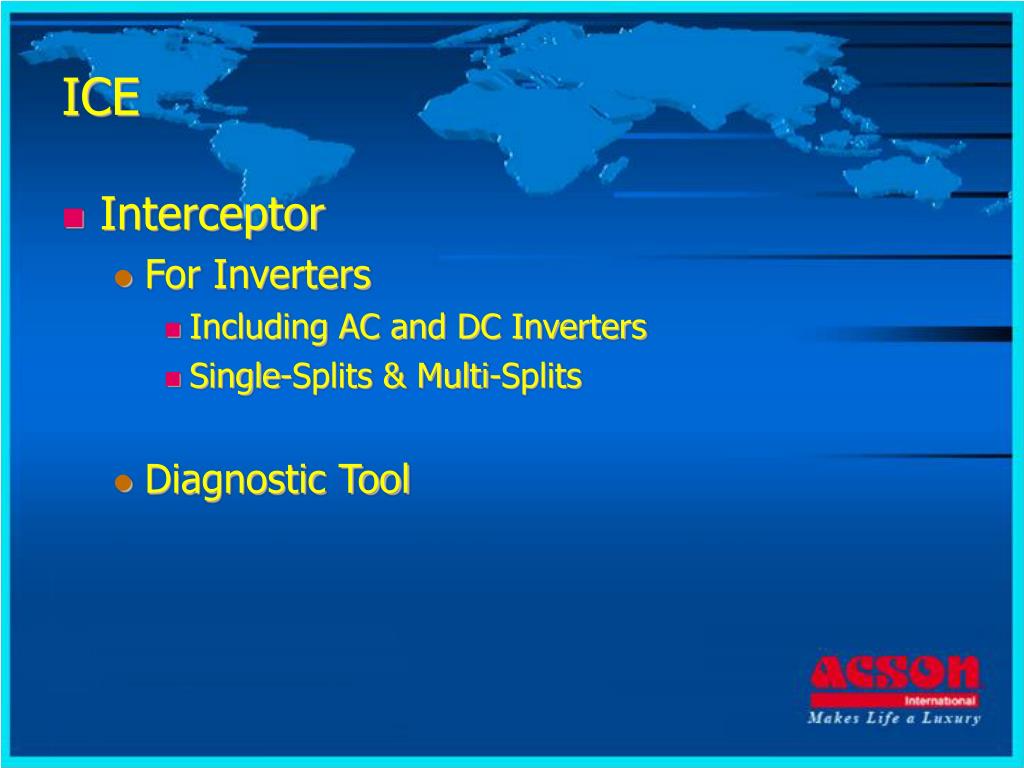

  3. ICE • Interceptor • For Inverters • Including AC and DC Inverters • Single-Splits & Multi-Splits • Diagnostic Tool

  4. Interceptor • Capability • Intercepts or captures communication signals within the inverter electronics nervous system.

  5. Features 1 • Displays Operating Parameters • Temperature Readings for ALL sensors • Outdoor Air Temperature • Outdoor Coil Temperature • Indoor Air Temperature • Indoor Coil Temperature • Indoor Set Temperature • Compressor Discharge Temperature

  6. Features 2 • Compressor • Running Frequency • EXV • Number of Pulses • Status • Operating Mode for both Indoor and Outdoor • Indoor Fan Speed

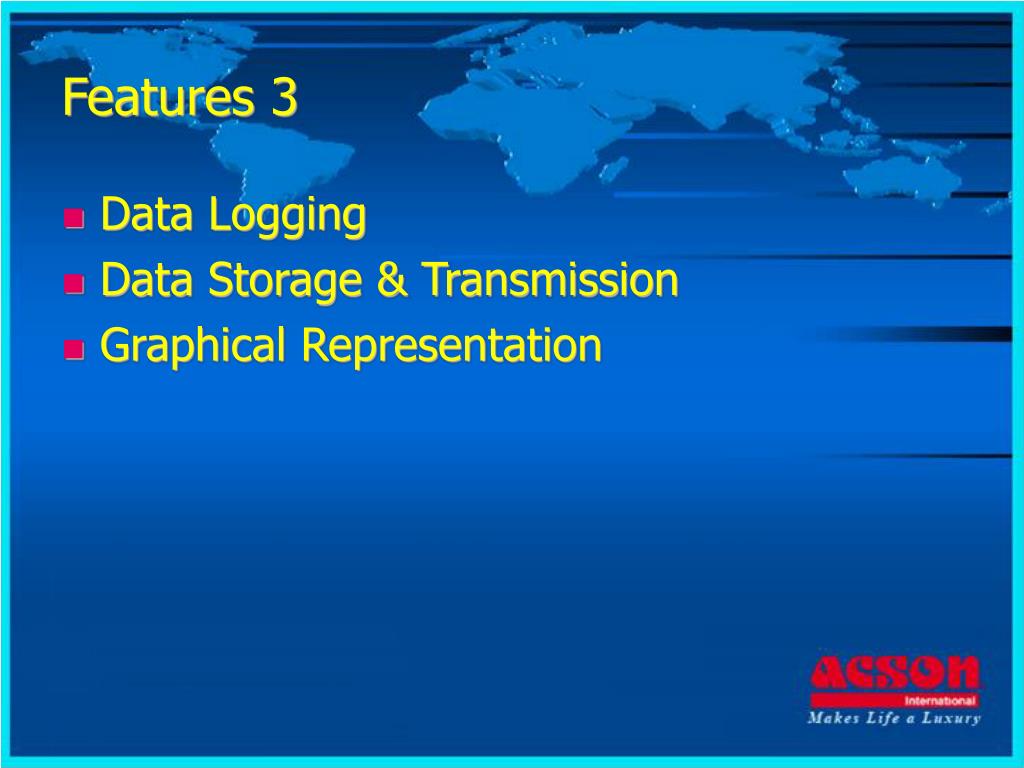

  7. Features 3 • Data Logging • Data Storage & Transmission • Graphical Representation

  8. Data Logging • “Set-and-Forget” • Once program is started properly, data is collected automatically. • There is no need for constant human monitoring. • Monitoring period is limited only by free hard disk space. • BUT ensure constant power supply during the entire monitoring period. • Power-Saving Features must be Disabled.

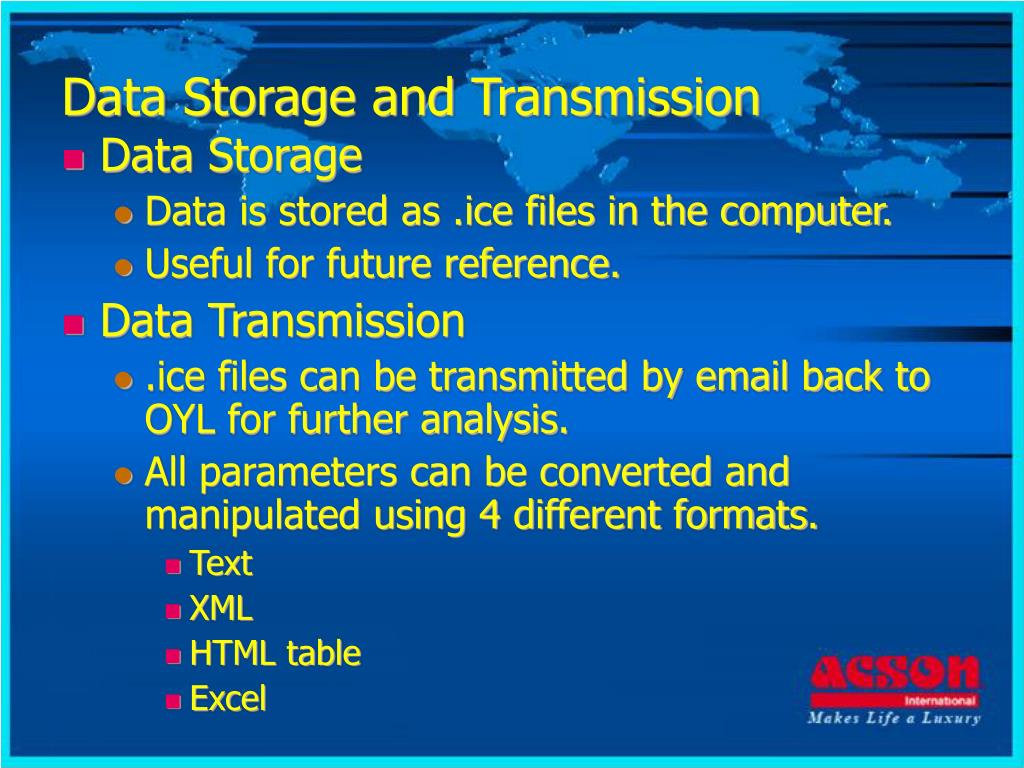

  9. Data Storage and Transmission • Data Storage • Data is stored as .ice files in the computer. • Useful for future reference. • Data Transmission • .ice files can be transmitted by email back to OYL for further analysis. • All parameters can be converted and manipulated using 4 different formats. • Text • XML • HTML table • Excel

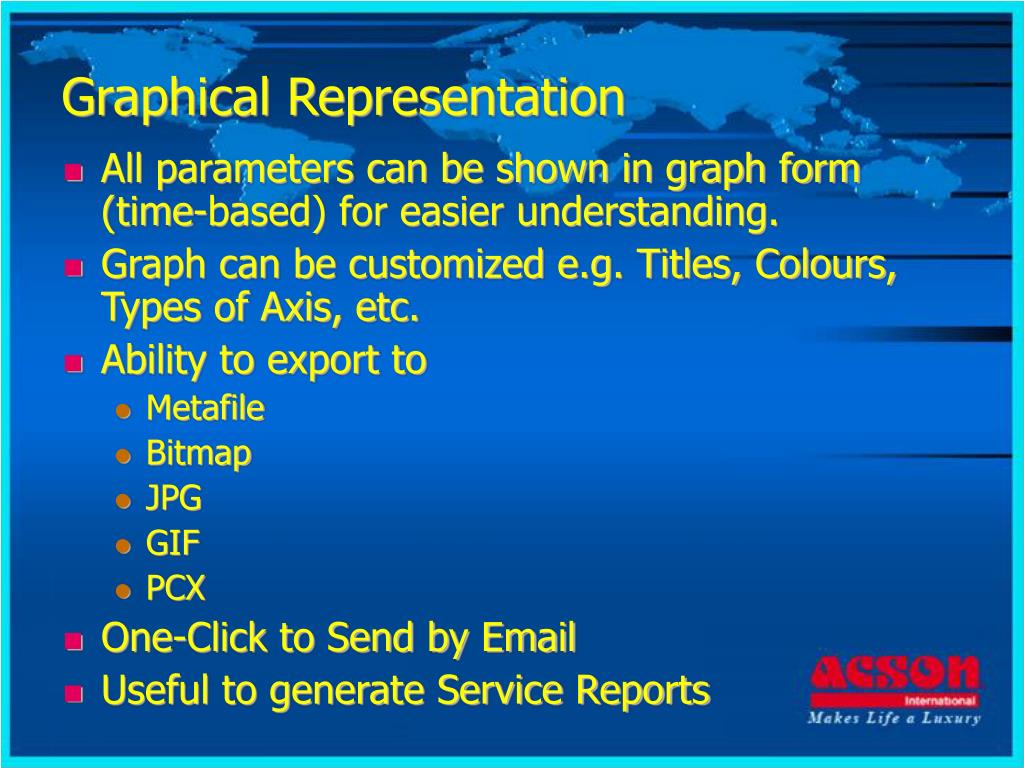

  10. Graphical Representation • All parameters can be shown in graph form (time-based) for easier understanding. • Graph can be customized e.g. Titles, Colours, Types of Axis, etc. • Ability to export to • Metafile • Bitmap • JPG • GIF • PCX • One-Click to Send by Email • Useful to generate Service Reports

  11. Graphical Representation

  12. Graphical Representation

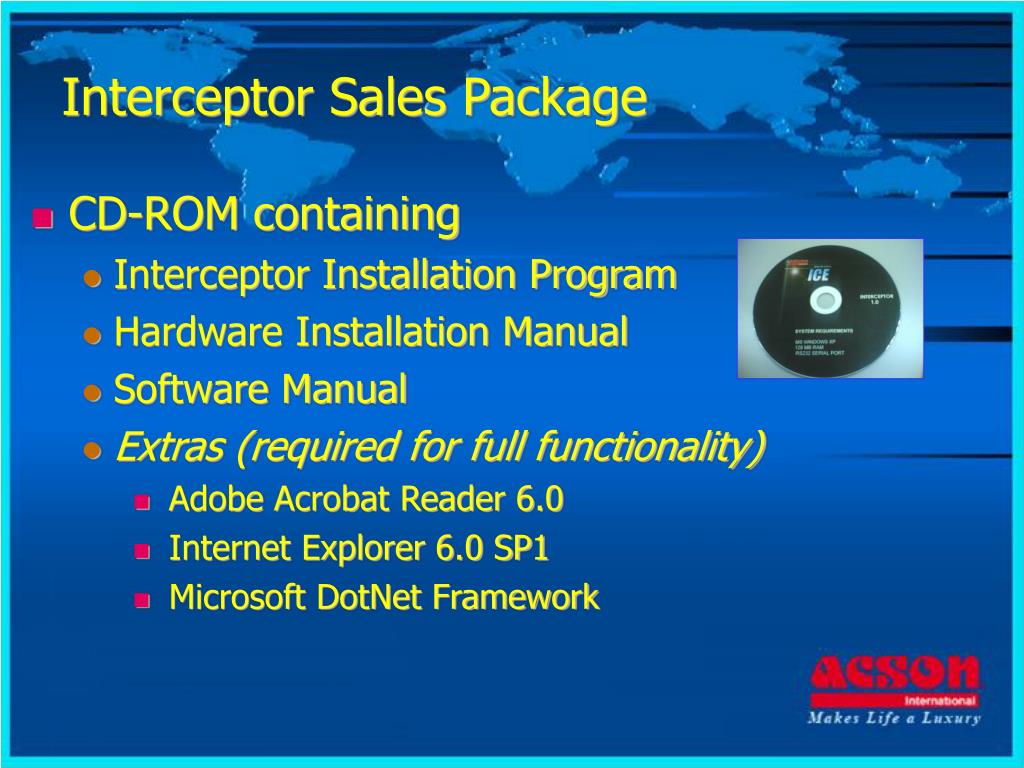

  13. Interceptor Sales Package • CD-ROM containing • Interceptor Installation Program • Hardware Installation Manual • Software Manual • Extras (required for full functionality) • Adobe Acrobat Reader 6.0 • Internet Explorer 6.0 SP1 • Microsoft DotNet Framework

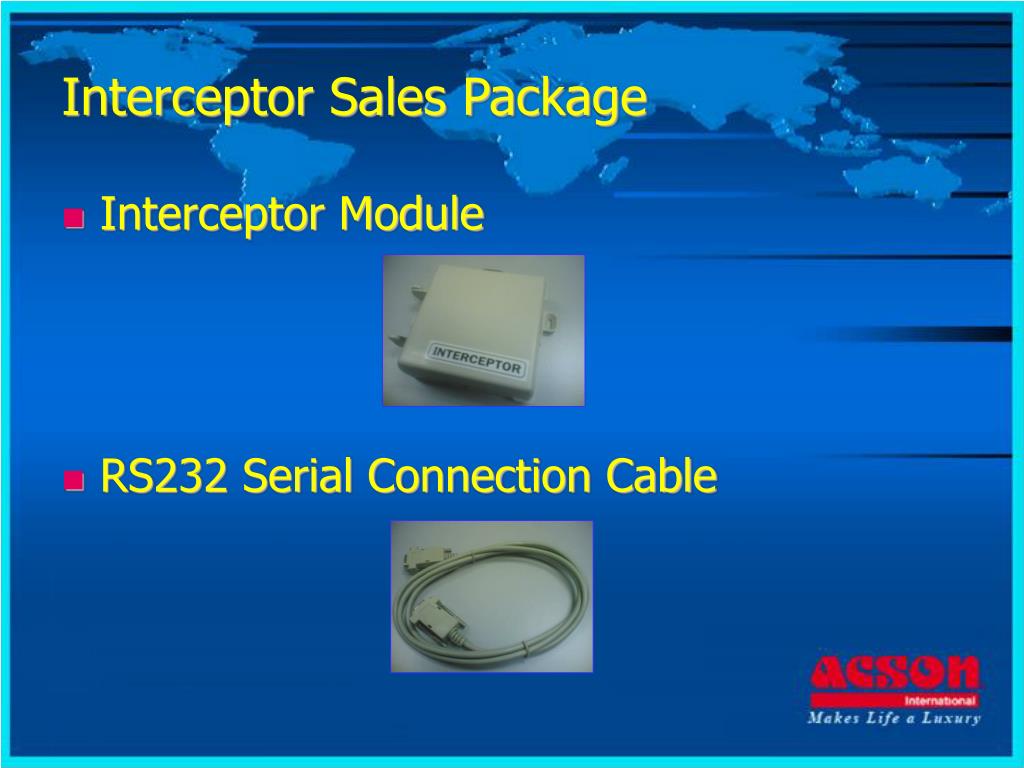

  14. Interceptor Sales Package • Interceptor Module • RS232 Serial Connection Cable

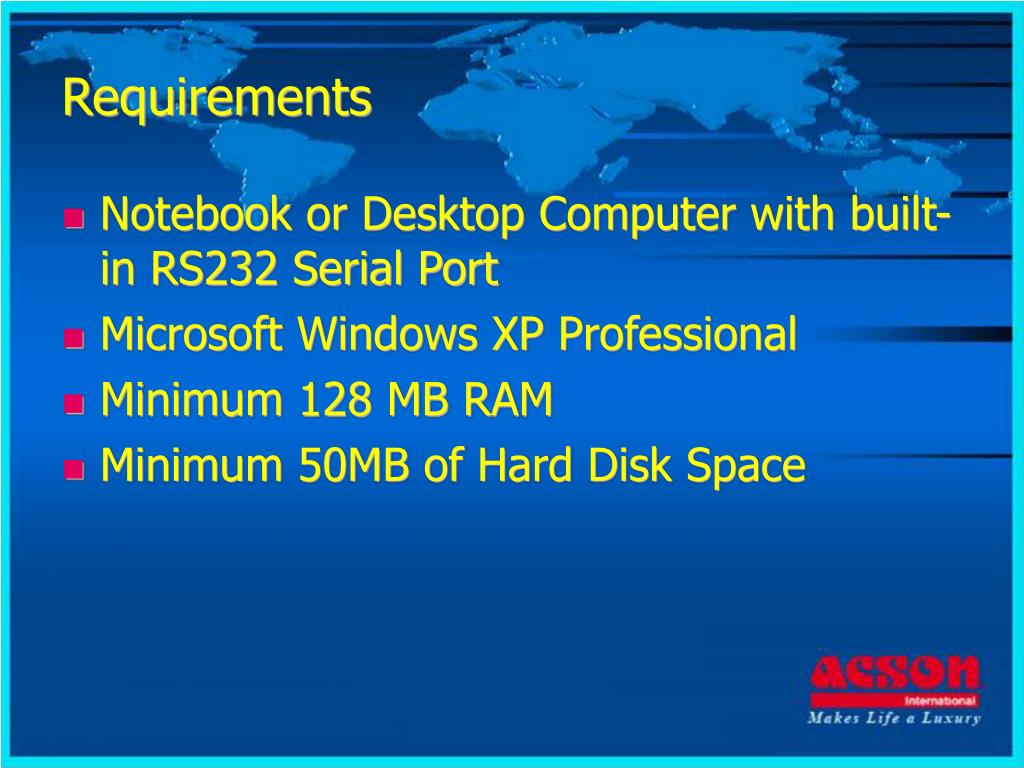

  15. Requirements • Notebook or Desktop Computer with built-in RS232 Serial Port • Microsoft Windows XP Professional • Minimum 128 MB RAM • Minimum 50MB of Hard Disk Space

  16. Interceptor Summary QUICK AND EFFECTIVE TROUBLE-SHOOTING TOOL HIGH MOBILITY FOR EASIER ON-SITE SERVICE. * With Notebook PIN-POINTS SPECIFIC PROBLEMATIC AREA OR COMPONENT USEFUL FOR ANALYSIS AND FURTHER STUDY ABLE TO GENERATE ATTRACTIVE & EASY TO UNDERSTAND SERVICE REPORTS
