Electron Configuration

1. Electron Configuration

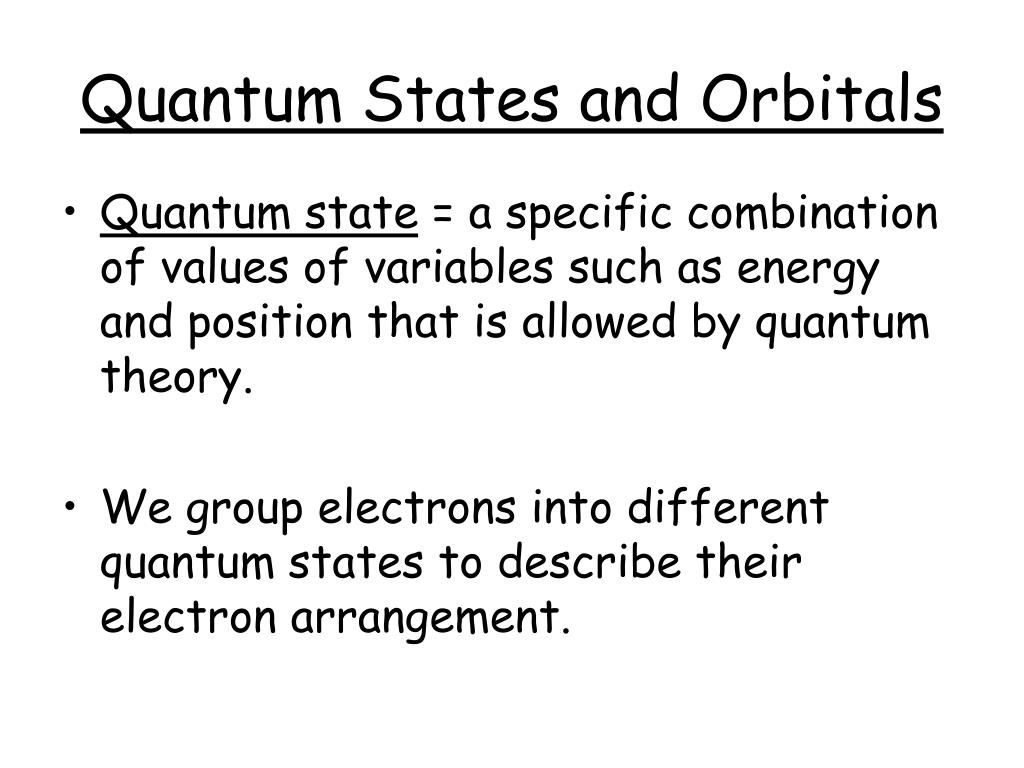

2. Quantum States and Orbitals • Quantum state = a specific combination of values of variables such as energy and position that is allowed by quantum theory. • We group electrons into different quantum states to describe their electron arrangement.

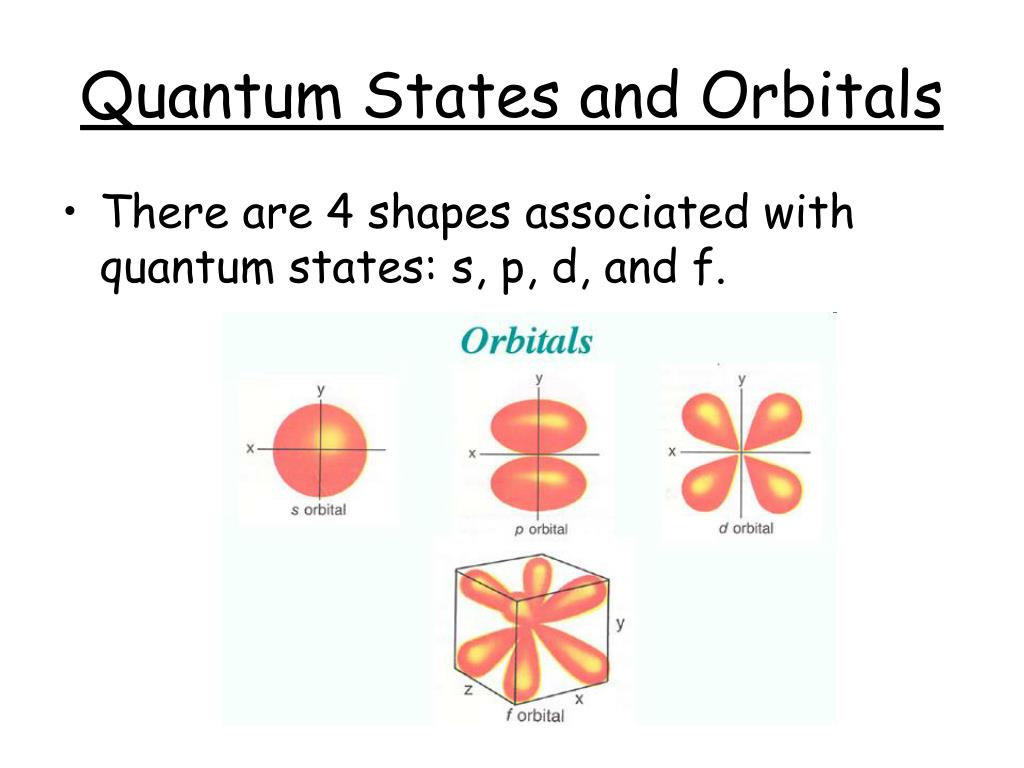

3. Quantum States and Orbitals • There are 4 shapes associated with quantum states: s, p, d, and f.

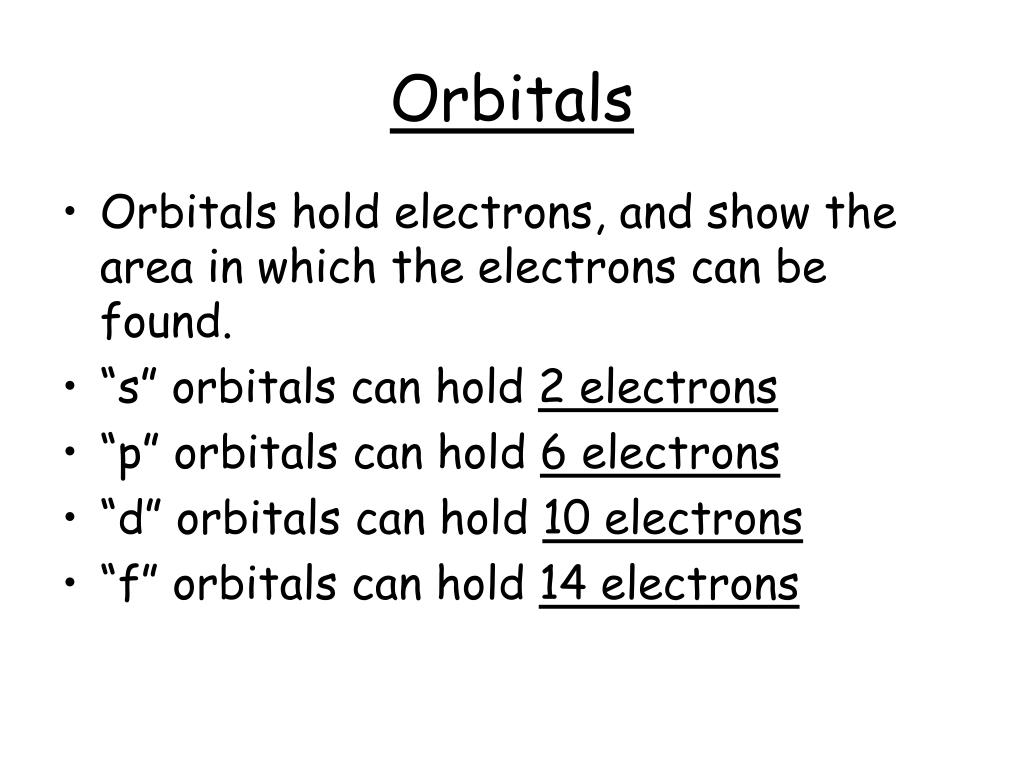

4. Orbitals • Orbitals hold electrons, and show the area in which the electrons can be found. • “s” orbitals can hold 2 electrons • “p” orbitals can hold 6 electrons • “d” orbitals can hold 10 electrons • “f” orbitals can hold 14 electrons

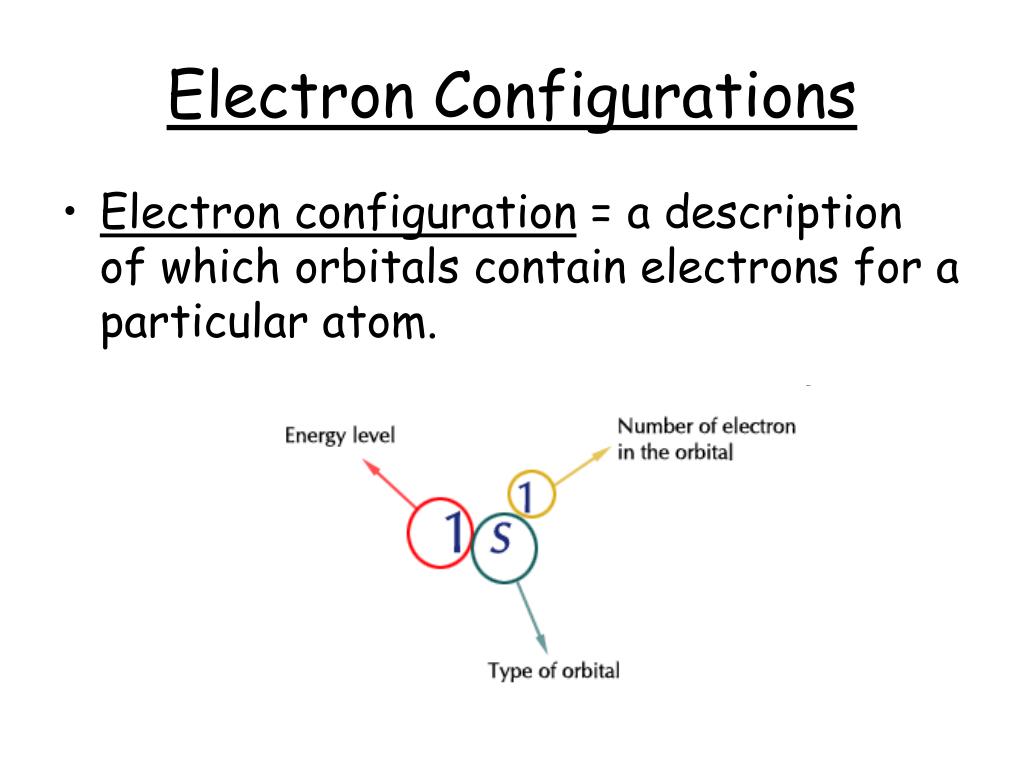

5. Electron Configurations • Electron configuration = a description of which orbitals contain electrons for a particular atom.

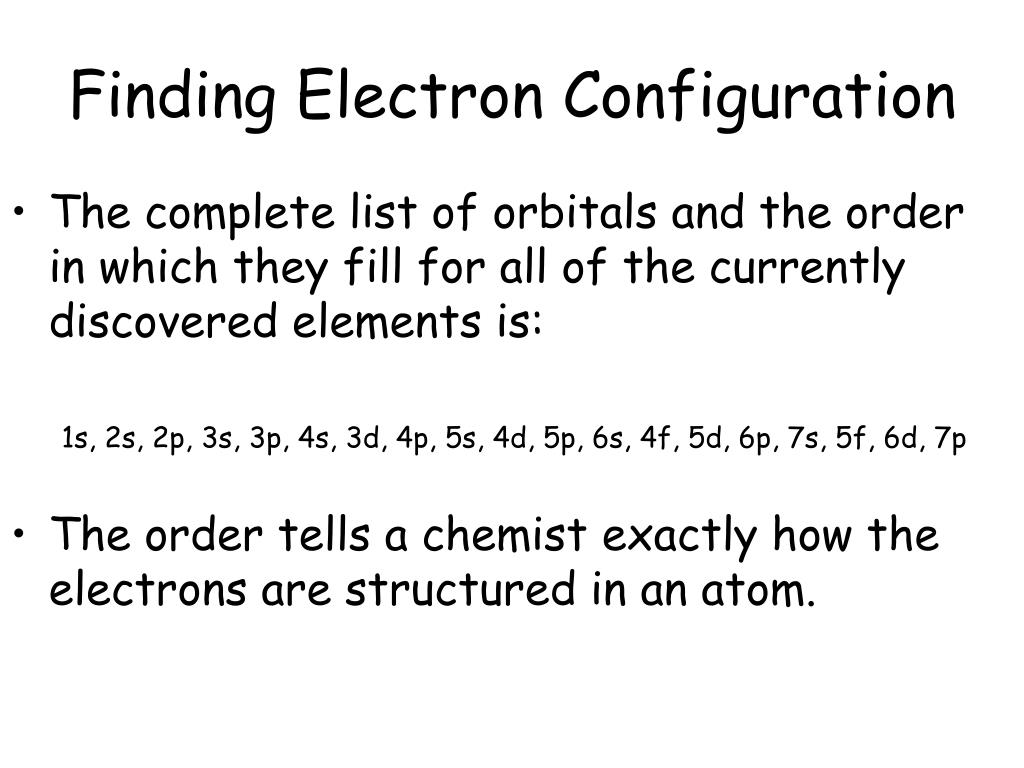

6. Finding Electron Configuration • The complete list of orbitals and the order in which they fill for all of the currently discovered elements is: 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 5s, 4d, 5p, 6s, 4f, 5d, 6p, 7s, 5f, 6d, 7p • The order tells a chemist exactly how the electrons are structured in an atom.

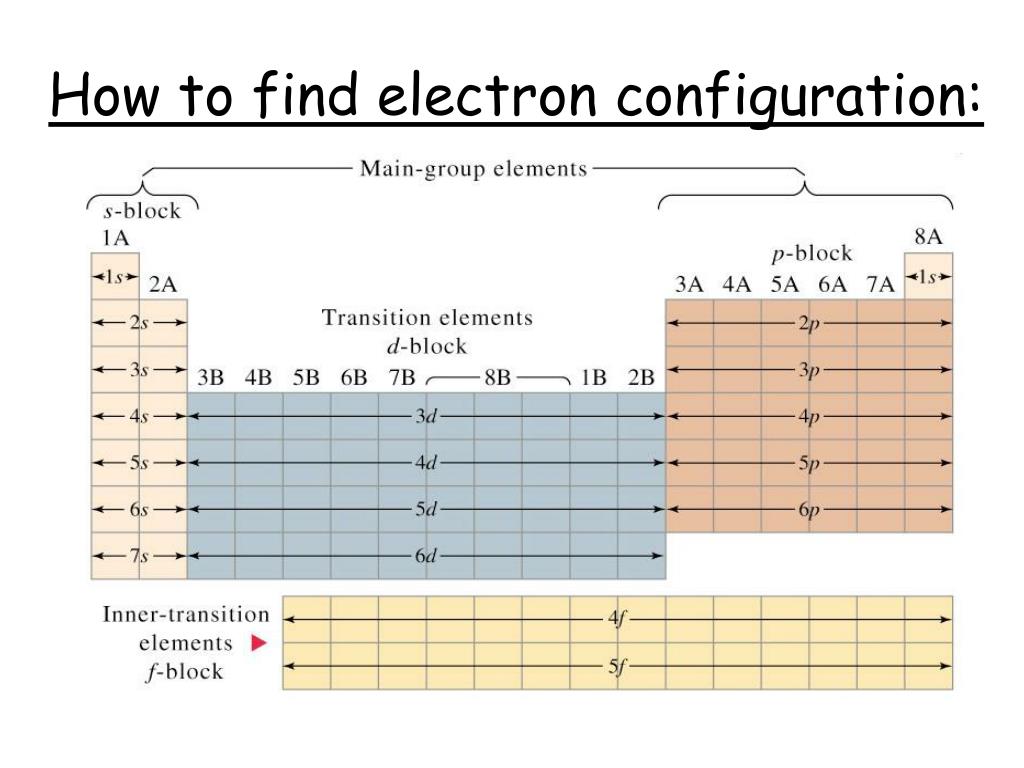

7. How to find electron configuration:

9. Subshells

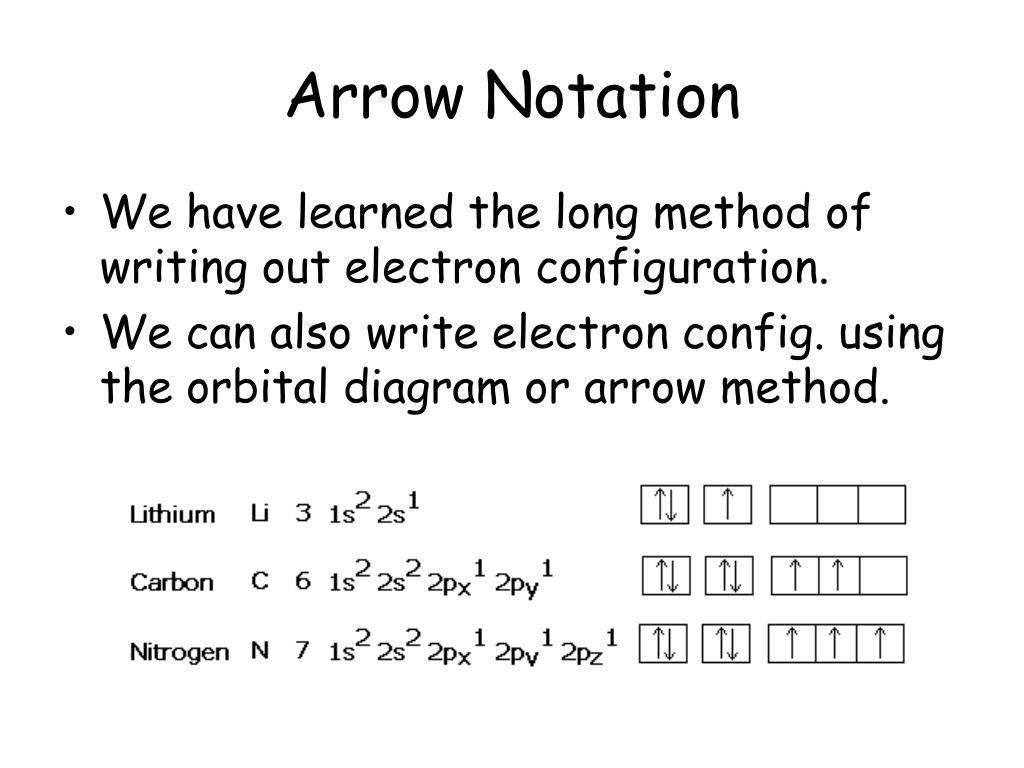

10. Arrow Notation • We have learned the long method of writing out electron configuration. • We can also write electron config. using the orbital diagram or arrow method.

11. Hund's rule of maximum multiplicity • When more than one orbital of equal energies are available then the electrons will first occupy these orbitals separately with parallel spins. • The pairing of electrons will start only after all the orbitals of a given sub level are singly occupied.

12. For example, the three electrons that are filled into the three 'p' orbitals can be represented in two different ways:

13. Nobel Gas Notation (Short-Hand)
