Types of Rocks

Types of Rocks. Sedimentary Igneous Metamorphic. Sedimentary Rock. Write the term and what you believe it to mean. Sedimentary. Contains sediments Sediments can include: mud, sand, pebbles, shells, bones, leaves, stems and other remains of living things. Rock pieces!. Rock pieces!.

archie
Download Presentation

Types of Rocks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Types of Rocks Sedimentary Igneous Metamorphic

  2. Sedimentary Rock • Write the term and what you believe it to mean

  3. Sedimentary • Contains sediments • Sediments can include: • mud, sand, pebbles, shells, bones, leaves, stems and other remains of living things

  4. Rock pieces! Rock pieces! Rock pieces! This is breccia, a type of sedimentary rock. See the “pieces” in the rock. These are pieces of broken rocks. These pieces get “cemented” my minerals. http://geology.com/rocks/sedimentary-rocks.shtml

  5. This is sandstone. It is made of small, sand sized weathered rock. http://geology.com/rocks/sedimentary-rocks.shtml

  6. This is coal. This is an “organic” sedimentary rock. It is made from dead plants. Thick layers of dead plants form, and the pressure compacts it into a rock. http://geology.com/rocks/sedimentary-rocks.shtml

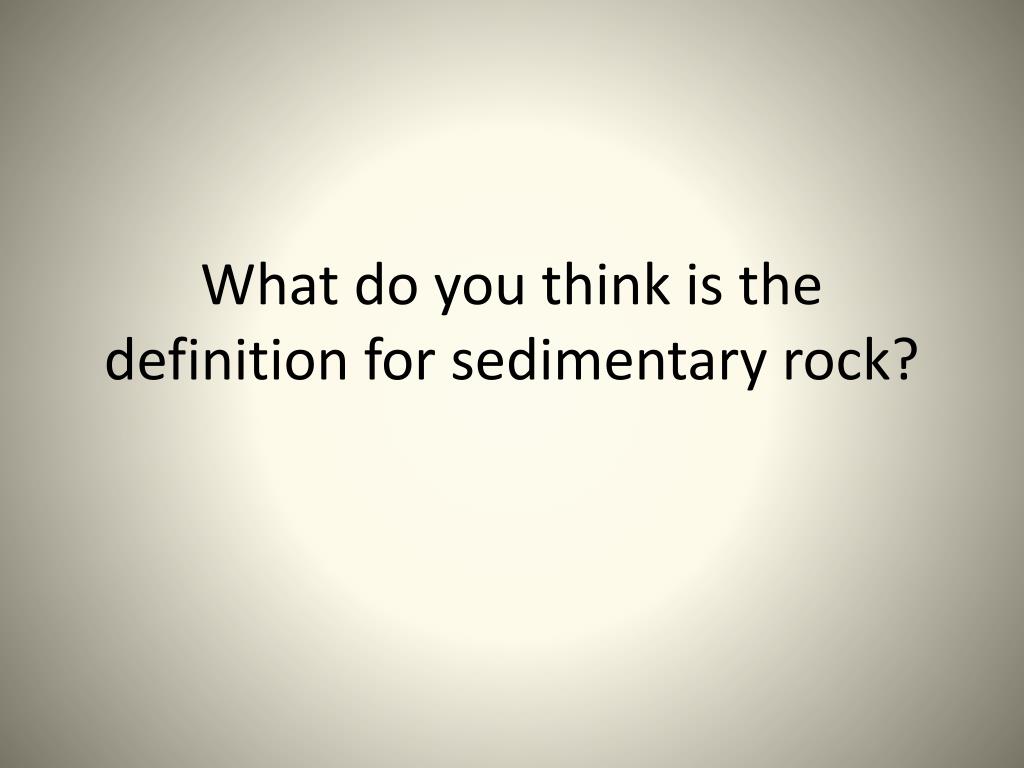

  7. What do you think is the definition for sedimentary rock?

  8. Sedimentary RockDefinition • Type of rock formed by compacting and cementing of sediments • Draw a picture to help you remember the definition and rate your level of understanding

  9. Igneous Rock • Write the term and what you believe it to mean

  10. Igneous • These are made from molten rock • Some form underground and are called “intrusive igneous rocks” • Some form above ground and are called “extrusive igneous rocks”

  11. This is basalt. It is mostly made of the minerals plagioclase and pyroxene. It commonly forms as an extrusive rock such as a lava flow. http://geology.com/rocks/igneous-rocks.shtml

  12. This is pumice. It forms after a very fast solidification of the melt (it goes from a liquid to a solid quickly!) It has holes because gas was trapped in the melt when it became a solid. http://geology.com/rocks/igneous-rocks.shtml

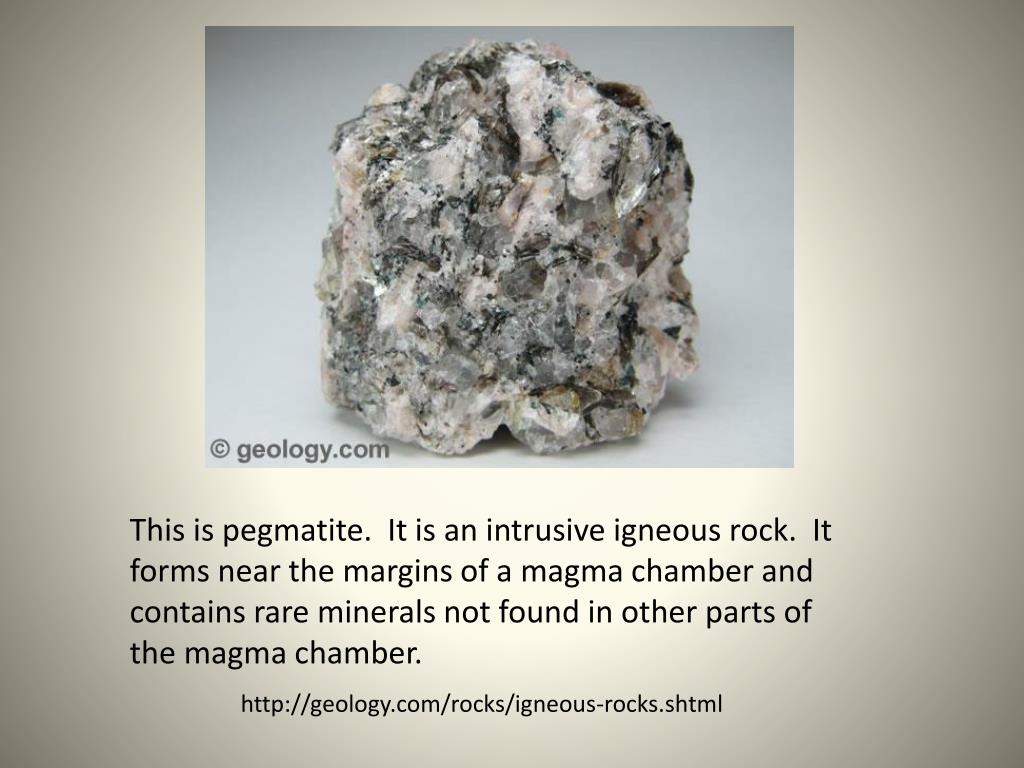

  13. This is pegmatite. It is an intrusive igneous rock. It forms near the margins of a magma chamber and contains rare minerals not found in other parts of the magma chamber. http://geology.com/rocks/igneous-rocks.shtml

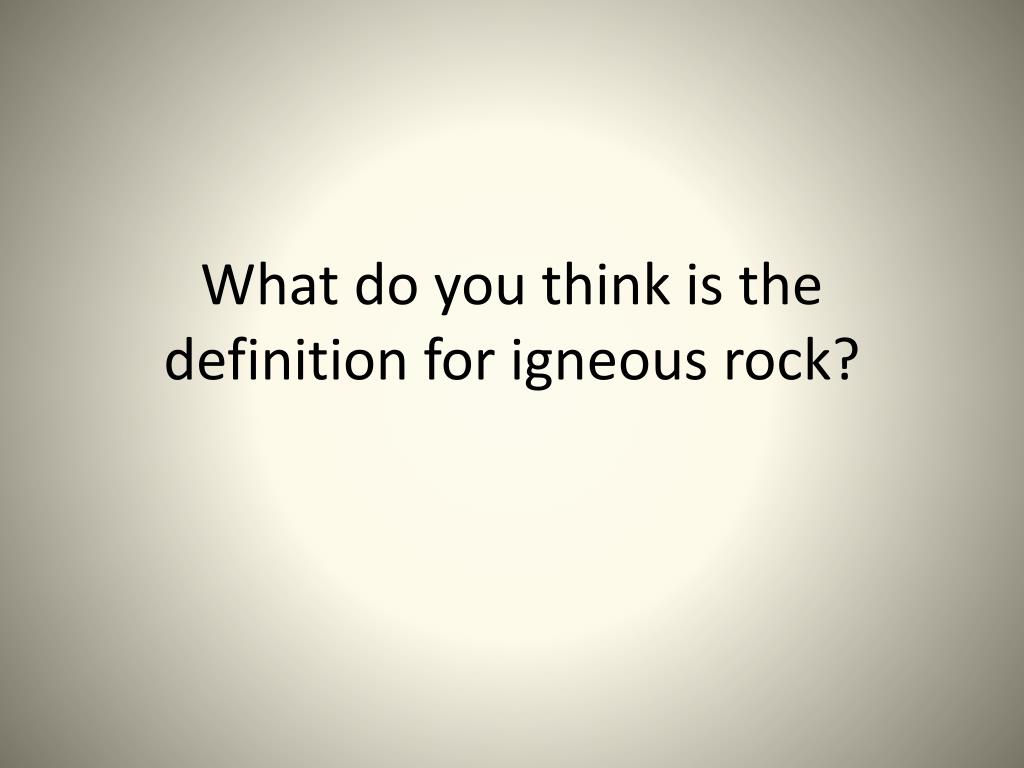

  14. What do you think is the definition for igneous rock?

  15. Igneous RockDefinition • Type of rock made when molten (liquid) rock cools • Draw a picture to help you remember the definition and rate your level of understanding

  16. Metamorphic Rock • Write the term and what you believe it to mean

  17. Metamorphic • Extreme heat, pressure, and chemical process alter the mineralogy, texture, and chemical composition of rocks • There are foliated metamorphic rocks which have a banded appearance and are created by heat and pressure • Non-foliated metamorphic rocks are not banded

  18. See the bands! See the bands! This is gneiss. It is a foliated metamorphic rock that is made up of granular mineral grains. It usually has quartz and feldspar minerals. http://geology.com/rocks/metamorphic-rocks.shtml

  19. This is marble. It is a non-foliated metamorphic rock that is a metamorphism of limestone. http://geology.com/rocks/metamorphic-rocks.shtml

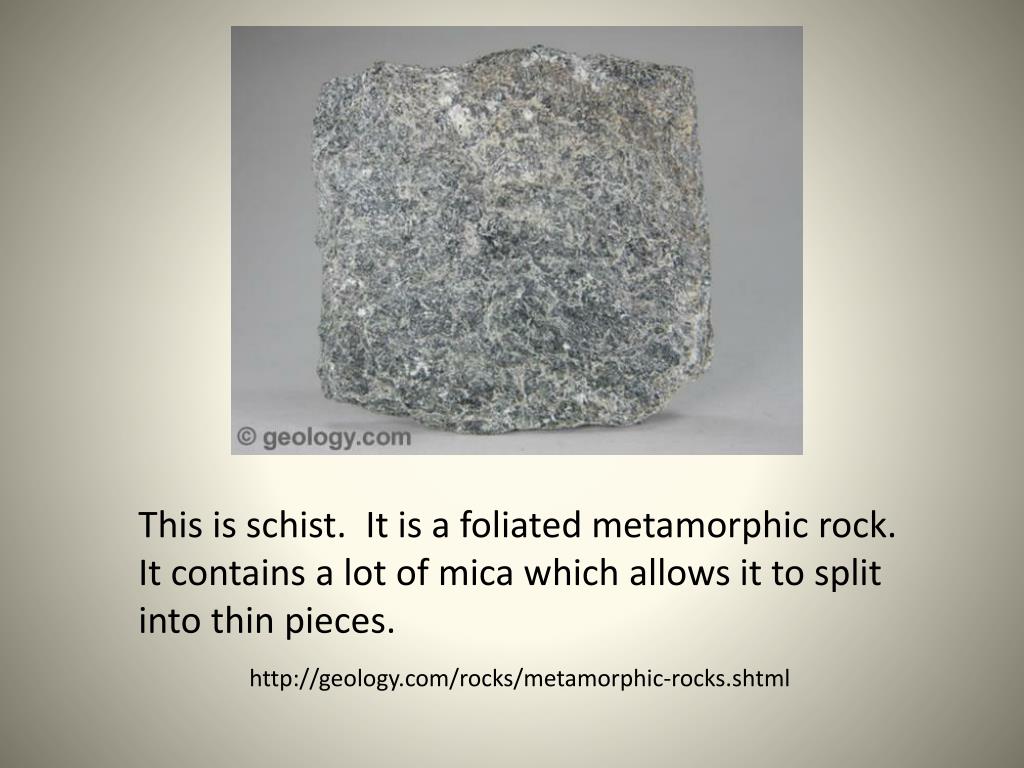

  20. This is schist. It is a foliated metamorphic rock. It contains a lot of mica which allows it to split into thin pieces. http://geology.com/rocks/metamorphic-rocks.shtml

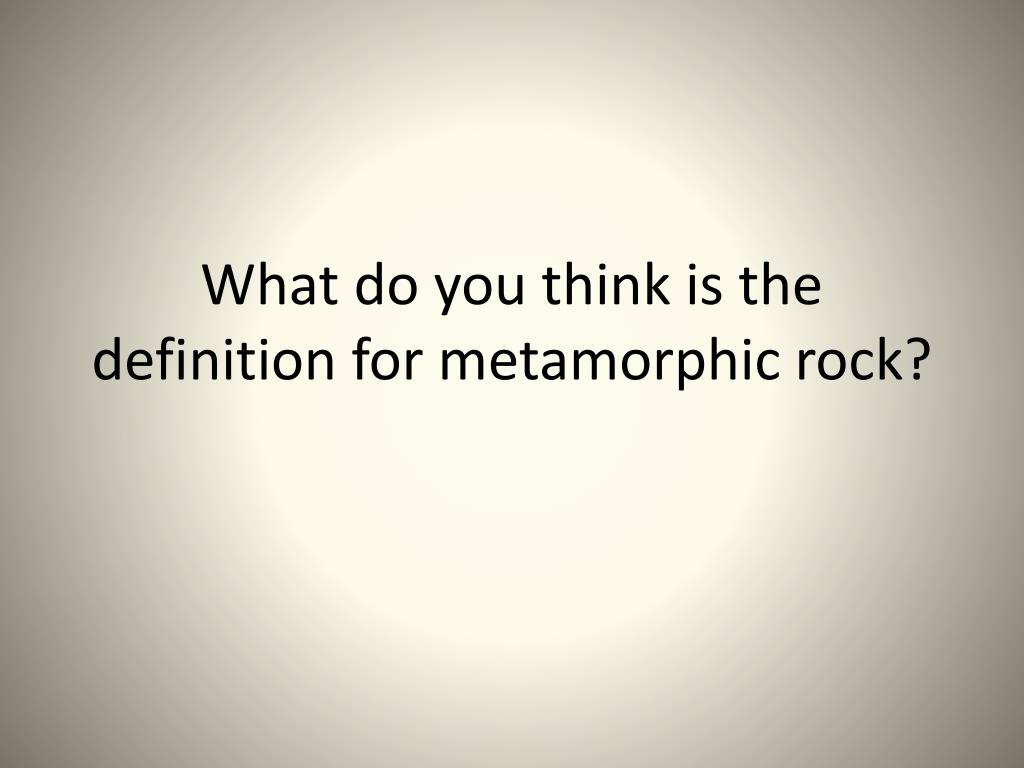

  21. What do you think is the definition for metamorphic rock?

  22. Metamorphic RockDefinition • Type of rock that is changed due to chemical reactions, heat and/or pressure • Draw a picture to help you remember the definition and rate your level of understanding
