Mapping of ab -initio to Tight Binding

Mapping of ab -initio to Tight Binding. Silicon band structure. Motivation: Extract TB parameters from DFT results (DFT energy bands & eigenfunctions ) Approach: Low rank approximation: H DFT  H TB constraint: 1 st NNs Interactions, unity overlap matrix;

aran
Download Presentation

Mapping of ab -initio to Tight Binding

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

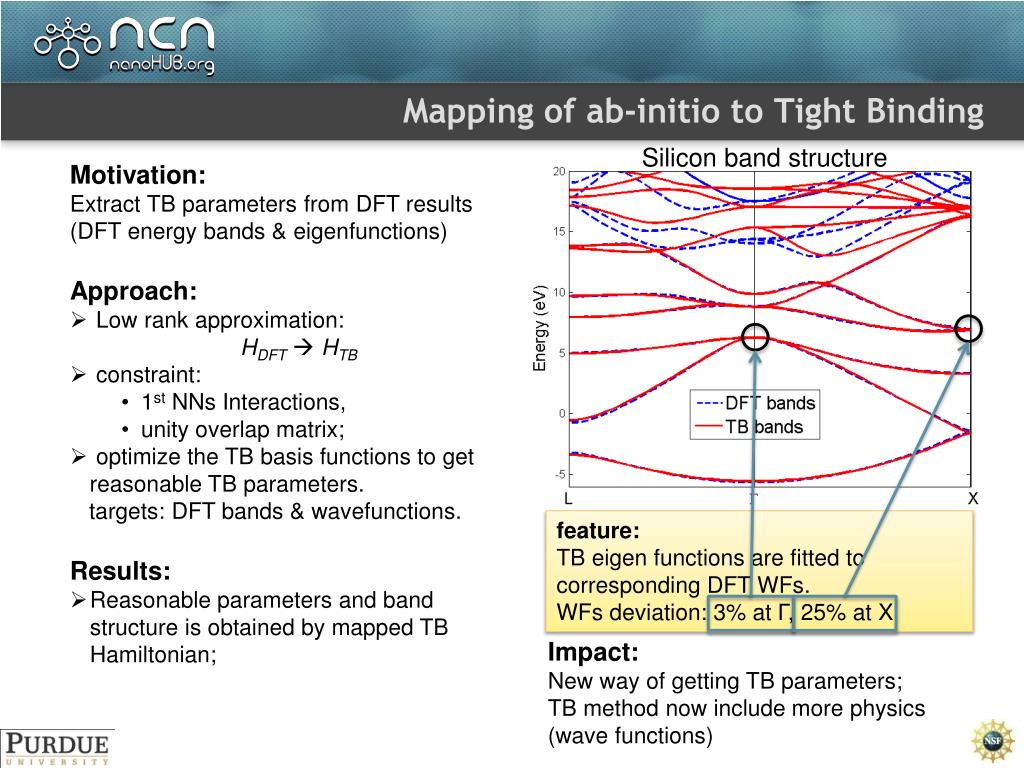

  1. Mapping of ab-initio to Tight Binding Silicon band structure • Motivation: • Extract TB parameters from DFT results (DFT energy bands & eigenfunctions) • Approach: • Low rank approximation: • HDFT HTB • constraint: • 1st NNs Interactions, • unity overlap matrix; • optimize the TB basis functions to get reasonable TB parameters. • targets: DFT bands & wavefunctions. • Results: • Reasonable parameters and band structure is obtained by mapped TB Hamiltonian; feature: TB eigen functions are fitted to corresponding DFT WFs. WFs deviation: 3% at Γ, 25% at X Impact: New way of getting TB parameters; TB method now include more physics (wave functions)
