Presentation Transcript
slide1

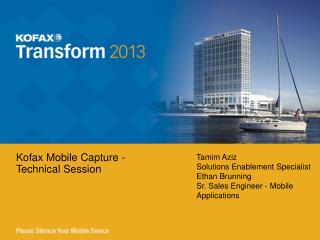

Kofax Mobile Capture -Technical Session

Tamim Aziz

Solutions Enablement Specialist

Ethan Brunning

Sr. Sales Engineer - Mobile Applications

agenda
Agenda
  • Demonstration Considerations
  • Mobile Demonstration
  • Kofax Front Office Server Overview
  • Kofax Mobile Capture Overview
  • Creating a Mobile Capture Demo
kofax value
Kofax Value
  • Kofax Front Office Server extends existing business processes to customer-facing employees. By simply dropping documents into an MFP feeder, they can initiate transactions, workflows and capture processes at the earliest point of contact.
  • Kofax Mobile Capture turns a smart phone or tablet into a sophisticated scanning device which not only captures a document, but also cleans it. With this, field representatives or customers themselves can capture documents, photos and data to initiate critical business processes at the earliest point in the process.
kofax front office server overview
Kofax Front Office Server Overview

Branch Office

Front

Office

Server

Data Center

Email

BPM

ECM

Fax

SharePoint

Folder

Kofax Capture

KTM

kofax mobile capture overview
Kofax Mobile Capture Overview

Field

http/https

Front

Office

Server

Email

BPM

ECM

Fax

SharePoint

Folder

Kofax Capture

KTM

Data Center

who are you presenting to
Who are you presenting to
  • Know your Audience
  • Speak their Language
what works what doesn t
What Works, What Doesn’t
  • Be aware of the Pitfalls
  • Image Quality is Key
    • Lighting
    • Flash
    • Backgrounds
    • Borders
what to consider
What to Consider
  • Number of Document to Scan
  • When to have Manual Data Entry
  • OCR and Data Extraction Accuracy
  • Predictable Environments
competitive advantages
Competitive Advantages
  • VRS
  • KTM
  • Seamless integration into the business process
  • Secure transfer of images with no trace on the device
  • Email Notifications
device application configuration
Device Application Configuration
  • Simplified Account Settings
  • No longer need to type the full URL
    • Server Hostname to KFS Server
    • SSL toggle
    • Port
    • Provide Kofax Capture Credentials for the device user
    • Provide email address for user defined messages.
      • In Kofax Capture, create a document or batch field “MobileDeviceEmail”
device application configuration1
Device Application Configuration
  • Image Processing Settings
    • Stability Delay
      • Delays the shutter until the device is stable
    • Auto Processing
      • Perform image processing immediately after taking the picture
    • Image Quality Feedback
      • Only is used if Auto Processing is off
      • Gives feedback as to the image quality.
device application features
Kofax Mobile 1.0Device Application Features
  • Main Screen
    • Create a New Case
      • A Case is a KFS shortcut
      • Application retrieves shortcuts from KFS
      • Visible shortcuts are controlled by user’s permissions
    • Displays the pending cases that have not yet been submitted
      • A user can modify a pending case as long as it is not submitted.
device application features1
Kofax Mobile 1.0Device Application Features
  • Capture a Document Image
    • Brackets are displayed for easier framing of the document
    • Ability to turn the flash to Auto,On or Off
      • Now defaults to Auto
    • Stability Sensitivity setting is used to assist in capturing a readable document image
    • Performs Image processing if the auto processing is enabled
    • Can re-capture or save the document image
  • Take a photograph
device application features2
Kofax Mobile 1.0Device Application Features
  • Case Management
    • Can multi-select images to modify the case
    • Can re-order images by dragging and dropping them into place
    • Ability to manually execute image processing on multiple images simultaneously
      • Upon processing images a progress indicator is first displayed following a check mark noting that is has been completed (As displayed in screen shot)
    • Can easily delete document or photo images
  • Can select a single image to modify
device application features3
Kofax Mobile 1.0Device Application Features

Image Edit

  • Re-Capture: Replaces previously captured image with new one
  • Process Image: Execute image processing features assigned to case type
  • Crop: Can manually crop image according to user
  • Rotate Clockwise
  • Rotate Counter Clockwise
  • Reset to Original: Resets the image to the original captured document image
  • Delete: Deletes image from case
device application features4
Kofax Mobile 1.0Device Application Features

Enter Case

  • Can enter case field information
    • Fields for case information are obtained from KFS shortcut
    • KMC is able to accept the different data types available within Kofax Capture
      • There is no data type validation performed within KMC
device application features5
Device Application Features

Submitting a Case

  • Can submit a case into Kofax Front Office Server
    • Upon submitting a case a message will be displayed warning the user not to switch the application until the task completes
    • User is notified if the case submission was successful or there was a delivery failure
  • Displays case type with the number of images attached including the case size and the index fields that are not empty
  • Case kept on phone until submission is complete
kc user profiles
KC User Profiles
  • Kofax Capture User Profiles must be enabled before you can use KFS and KMC.
  • Active Directory linked profiles can also be used
devices
Devices
  • Mobile Devices will show up here as they self register
  • Check here if a device is activated and change as needed
shortcuts case types
Shortcuts| Case Types
  • Links to Kofax batch classes and form types
  • Shortcuts are Case Types on the Mobile device
  • Shortcuts can be configured to hide or show existing index fields
  • Scan settings are configured in the shortcut
scan settings
Scan Settings
  • DPI settings used to scale down the image
  • VRS Image Cleanup Settings
notifications
Notifications
  • Notifications can be configured to send an email to a user or a group in the event one of the following conditions:
    • Successful Completion (Sent when KC Exports the batch)
    • Successful Cancellation (Sent when a batch is deleted from KC)
    • In-Process Status (Sent after a batch passes between queues in KC) (An email is sent after every in-process queue)
    • In-Process Error (Sent when a batch is sent to QC in error)
configuration settings
Configuration Settings
  • This is where the global preferences are setup
  • MFP Self Registration must be enabled
kofax front office server configuration
Kofax Front Office Server Configuration
  • KFS must have “Enable MFP Self registration” selected
  • Images from mobile devices will not be processed by VRS on the KFS server.
  • KFS Shortcuts (called “Case Types” on mobile) are obtained by the mobile application.
  • KFS “Scan Time Image Process” setting will be sent to the phone.
auto launch with custom url
Auto Launch with Custom URL
  • Auto Launch feature allows KMC to automatically open and pre-fill index fields for an existing case
  • The custom URL begins with kmc://? (there is no domain, port or path after the slashes)
  • Use Case: Trailing Documents
auto launch with custom url continued
Auto Launch with Custom URL continued
  • The custom path can contain the following three names

Note

The case type with the correct fields must exist on the device to launch with a URL. So, the user must have logged in to KFS and that user must have access to the case type.

auto launch with custom url examples
Auto Launch with Custom URL Examples
  • kmc://?case_name=Insurance%20Claim
    • This will just open a new case with case type of “Insurance Claim”
  • kmc://?do_capture_and_process_images=false&case_name=Insurance%20Claim&case_field=PolicyNum|12345&case_field=Insuree|John%20Smith
    • This will open the “enter case information” screen for the Insurance Claim case since the do_capture_and_process_images is false.
  • kmc://?case_name=Insurance%20Claim&case_field=PolicyNum|12345&case_field=Insuree|John%20Smith
    • This behavior is similar to the previous example but it will use the default application settings since none was defined
kfs requirements
KFS Requirements
  • Kofax Capture 9 or 10
  • Windows 2008
  • User Profiles needs to be enabled in Kofax Capture
  • Ports Available on KFS Server
    • 80 (Incoming) for Admin, Thin Client and Browser based applications
    • 443 (Incoming) for SSL
    • 1434 (Outgoing) if using SQL Server
    • 1521 (Outgoing) if using Oracle
    • 5353 (Outgoing) for Bonjour (discovering devices)
    • 8888 (Outgoing) Network connection to certain MFP’s
slide32

For further information, please contact:

Tamim Haziz

Solutions Enablement Specialist

Email: tamim.haziz@Kofax.com

Ethan Brunning

Sr. Sales Engineer - Mobile Applications

Email: ethan.brunning@Kofax.com
