  1. New training simulator for operating Gas systems, based on SIMONE 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  2. Background / Introduction What should be improved ? How got it realised ? Features Experience and Prospects 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  3. DUtrain GmbH Dr.-Alfred-Herrhausen-Allee 16 47228 Duisburg Germany Tel. ++49-2065-689995 Fax. ++49-2065-689998 Internet: www.dutrain.de E-Mail: reiner.huels@dutrain.de • Established in 1996 • 1996 - 5 trainingcourseswith 50 Dispatchers • 2008 - 86 trainingcourseswithmorethan 800 Dispatchers • PSH - PowerSystemHandler – Simulator foroperating power systems • since 1996 • Simulator foroperating gas systemssince 2007 • 14 workstationsforelectricitynetworkcourses • 3 workstationsfor 6 Dispatchers of gas networkcourses 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  4. Our Trainingcenter in Duisburg / Germany 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  5. What should be improved ? 1. Topologically arranged main overview 2. Operational names 3. Measured values in the overview 4. Facility images incl. operational control possibilities 5. Facility images with all units inked in pressure stages 6. Breached limit values in the facility images 7. Overviews and facility images with interactiv control possibilities 8. Value recorder for desired measurements 9. Graphical diagram for current supply, forecast and critical values 10. Special overview for supply and demand 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

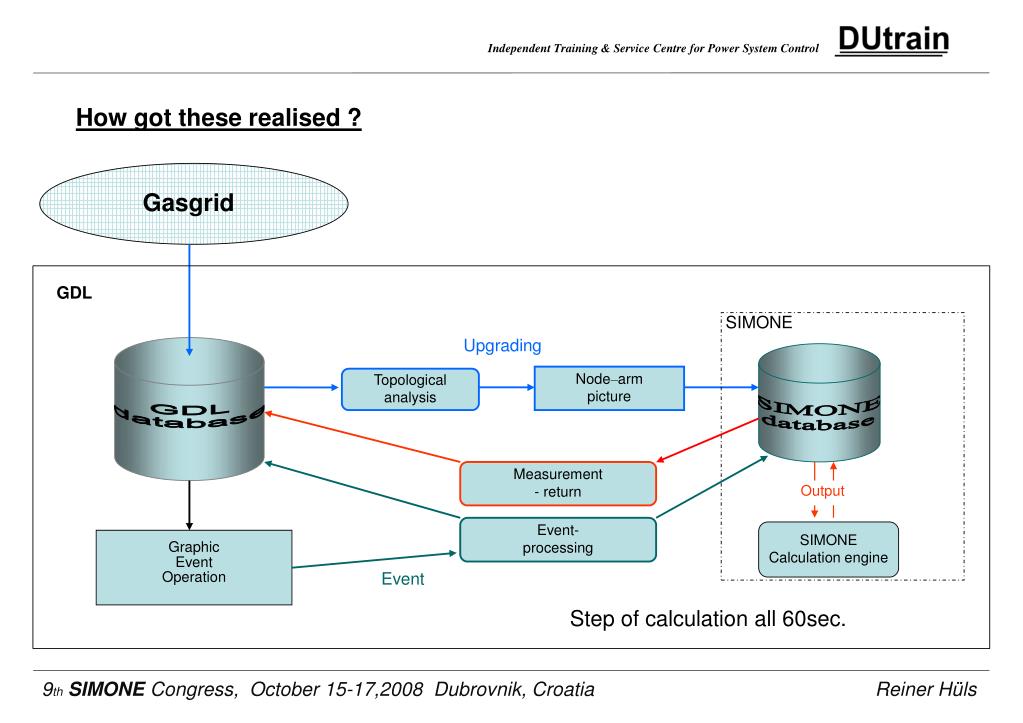

  6. Gasgrid GDL SIMONE Upgrading • Node–arm picture • Topological analysis GDL database SIMONE database • Measurement - return Output • Event- processing • SIMONE Calculation engine GraphicEventOperation Event Step of calculation all 60sec. How got these realised ? 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  7. Overview screen – north detail 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  8. Overview screen – middle detail 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

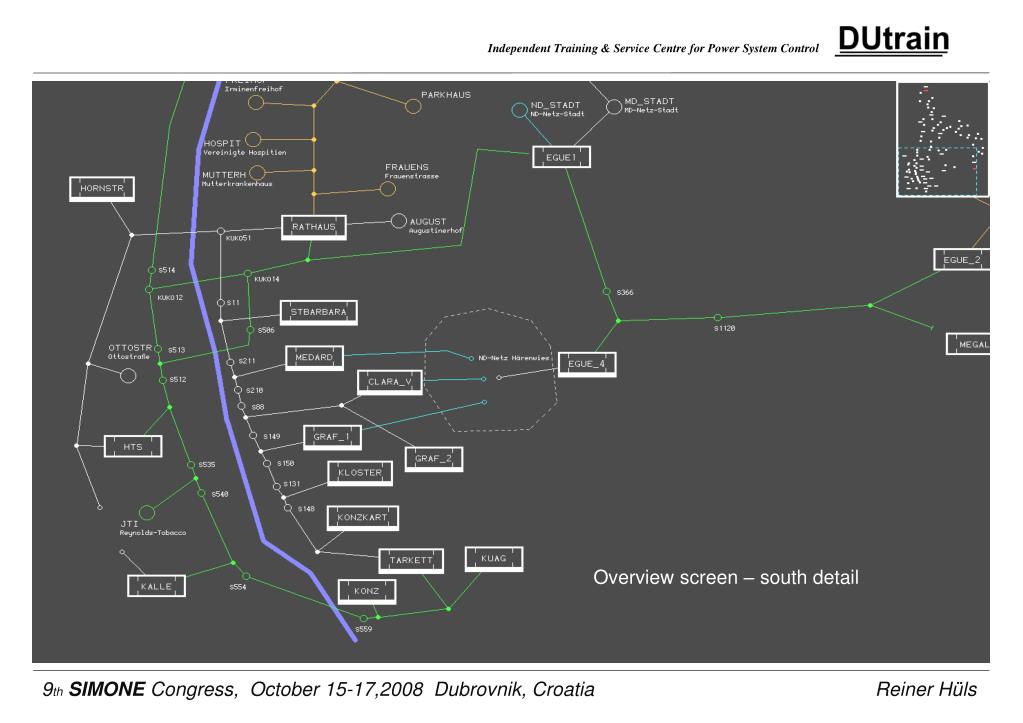

  9. Overview screen – south detail 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  10. Messurement indication in the overview 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  11. Overview of a gas facility 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  12. 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  13. Overview of a gas facility 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  14. Limit deviation in the overview 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

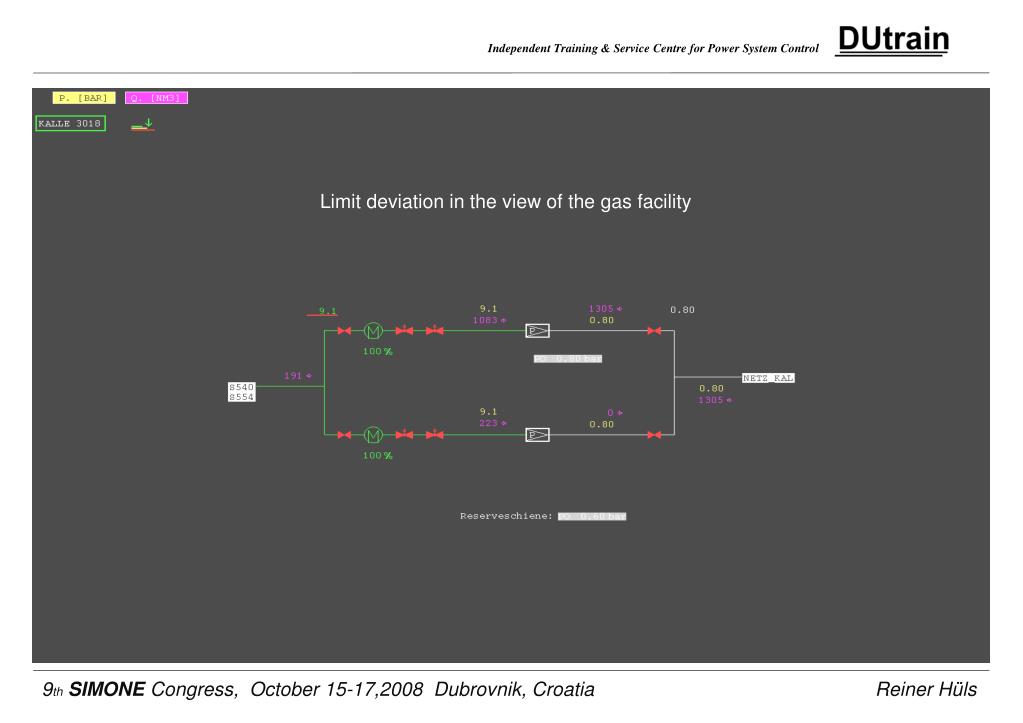

  15. Limit deviation in the view of the gas facility 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

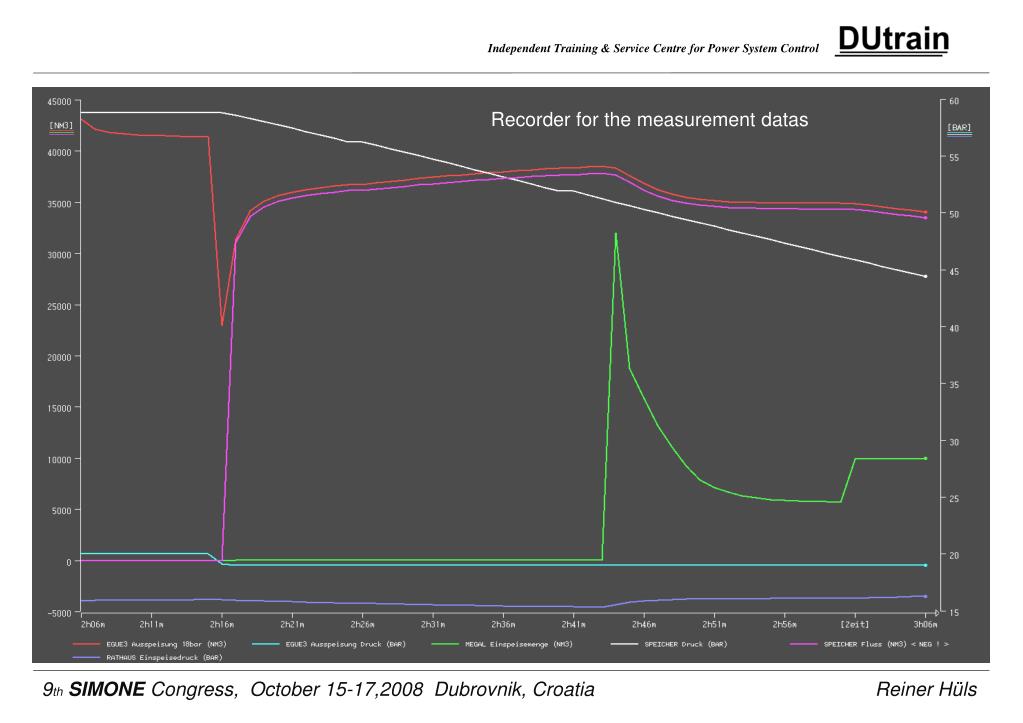

  16. Recorder for the measurement datas 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  17. Measurement curves of: actual purchase, prognose and limit 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  18. Selection of measurements 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  19. Monitoring overview of the customers 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls

  20. Experience Realized projects: Public utility company of Trier Public utility company of Düsseldorf Public utility company of Duisburg Projects in progress: Public utility company of Köln Public utility company of Braunschweig Prospects: The next step should be, to reproduce a gas network with compressor stations and gas storages of a regional transmission operator or a national transmission operator. 9thSIMONECongress, October 15-17,2008 Dubrovnik, Croatia Reiner Hüls
