  1. Advanced CompilersCMPSCI 710Spring 2003Interprocedural Analysis Emery Berger University of Massachusetts, Amherst

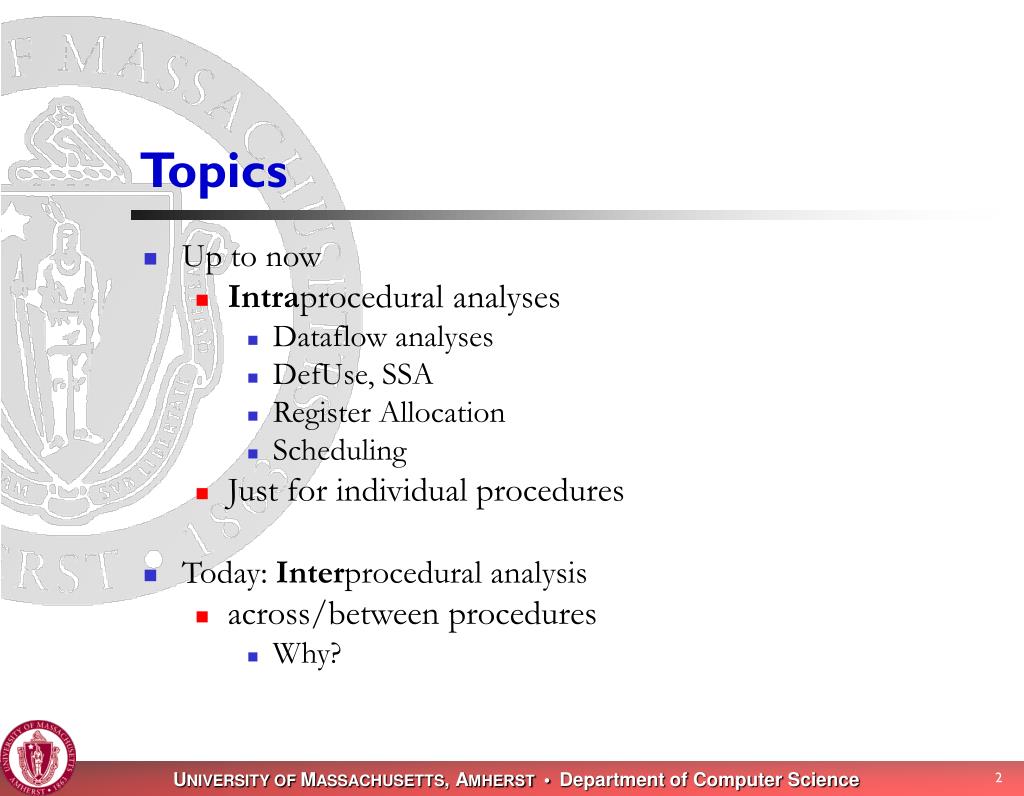

  2. Topics • Up to now • Intraprocedural analyses • Dataflow analyses • DefUse, SSA • Register Allocation • Scheduling • Just for individual procedures • Today: Interprocedural analysis • across/between procedures • Why?

  3. Aliasing • Formals and/or globals may be aliased • Two names point to same location • Only form of aliasing for Java, Fortran • At procedure call • Globals may be modified or used • Actual args may be modified or used

  4. Aliasing Examples, I • Need alias analysis to do: • Instruction scheduling • Register allocation

  5. Aliasing Examples, II • Need alias analysis to do: • Dead code elimination • Code motion

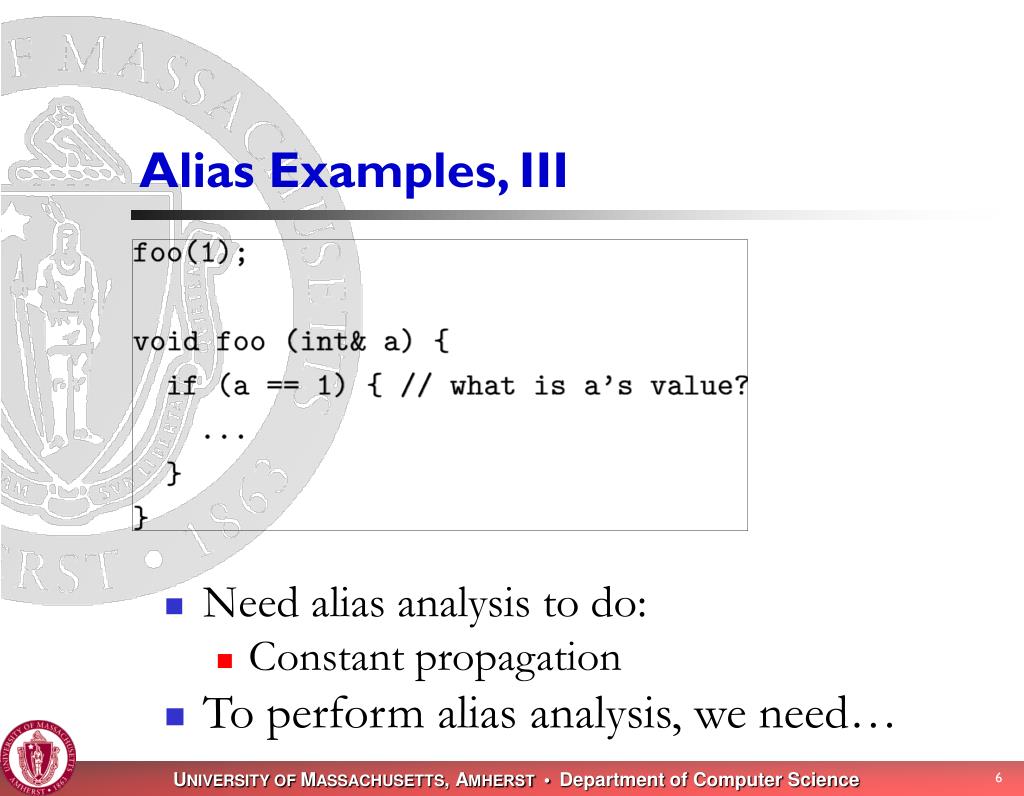

  6. Alias Examples, III • Need alias analysis to do: • Constant propagation • To perform alias analysis, we need…

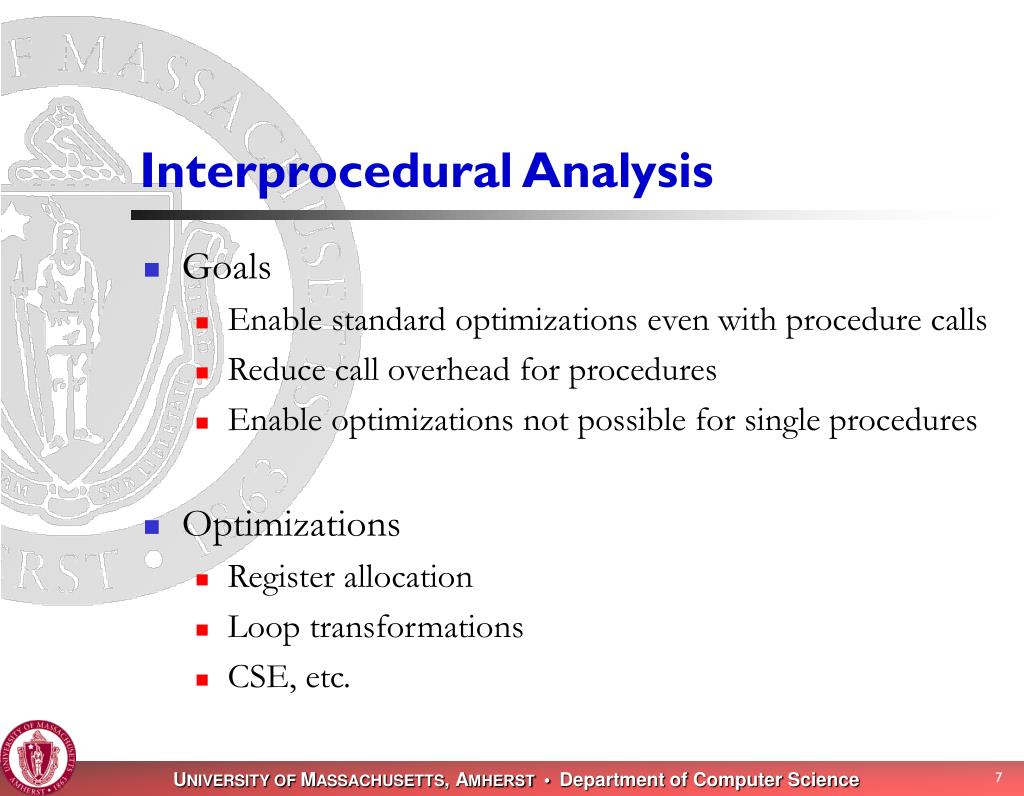

  7. Interprocedural Analysis • Goals • Enable standard optimizations even with procedure calls • Reduce call overhead for procedures • Enable optimizations not possible for single procedures • Optimizations • Register allocation • Loop transformations • CSE, etc.

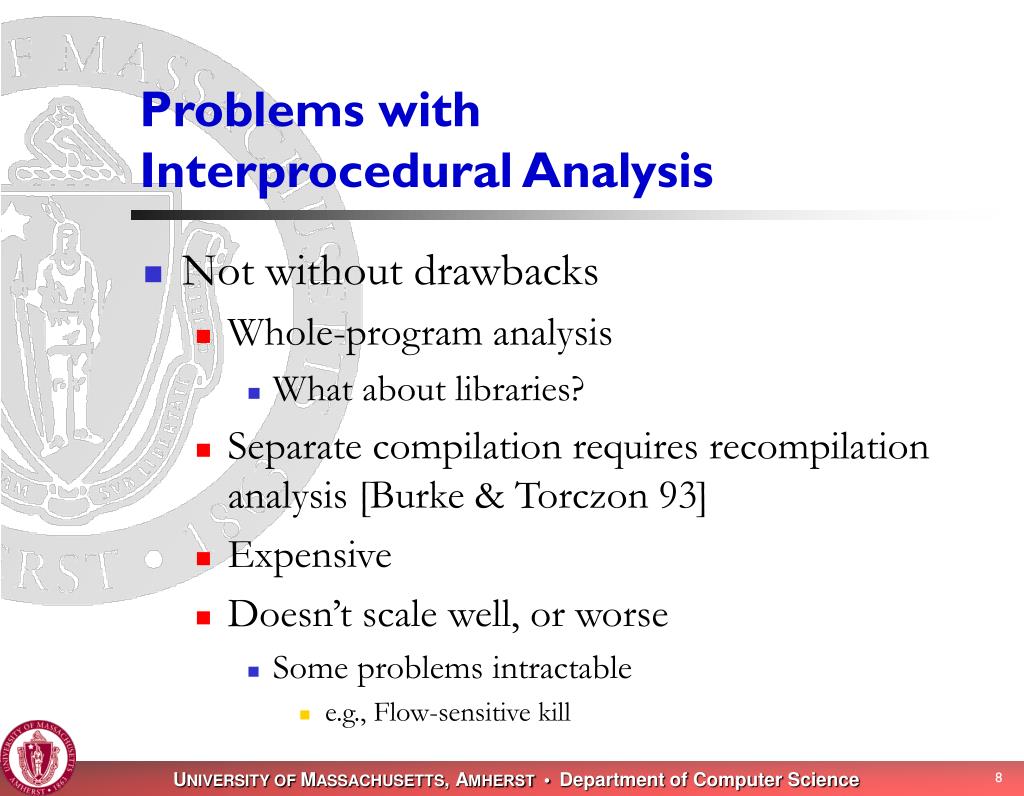

  8. Problems withInterprocedural Analysis • Not without drawbacks • Whole-program analysis • What about libraries? • Separate compilation requires recompilation analysis [Burke & Torczon 93] • Expensive • Doesn’t scale well, or worse • Some problems intractable • e.g., Flow-sensitive kill

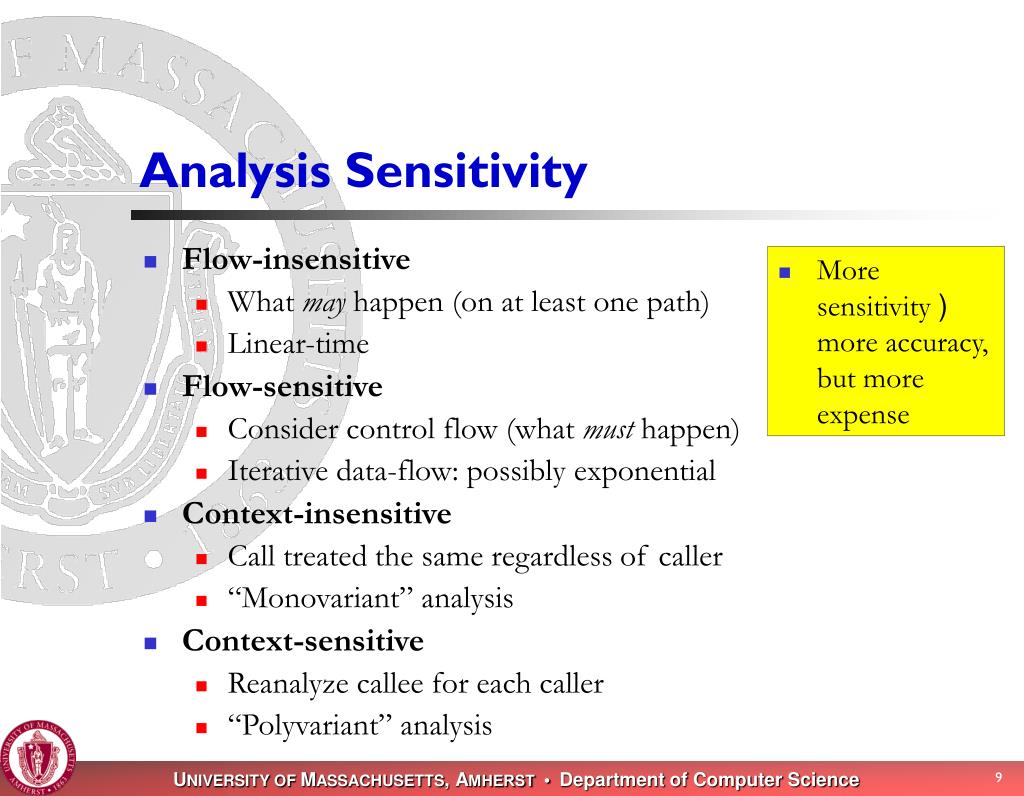

  9. Analysis Sensitivity • Flow-insensitive • What may happen (on at least one path) • Linear-time • Flow-sensitive • Consider control flow (what must happen) • Iterative data-flow: possibly exponential • Context-insensitive • Call treated the same regardless of caller • “Monovariant” analysis • Context-sensitive • Reanalyze callee for each caller • “Polyvariant” analysis • More sensitivity ) more accuracy, but more expense

  10. Context Sensitivity • Reanalyze callee as if procedure was inlined • Too expensive in space & time • Recursion? • Approximate context sensitivity: • Reanalyze callee for k levels of calling context

  11. Summary Information • Another approach: summarize each procedure • Effect/result of called procedure for callers • Effect/input of callers for called procedure • Store in database for use by later optimization pass • Pros: • Concise • Fast • Practical: separate compilation • Cons: • Imprecise

  12. Two Types of Information • Track info that flows into procedures • “Propagation problems”, e.g.: • which formals are constant? • which formals are aliased to globals? • Track info that flows out of procedures • “Side effect problems”, e.g.: • which globals defined/used by procedure? • which locals defined/used by procedure? • Which actual parameters defined by procedure?

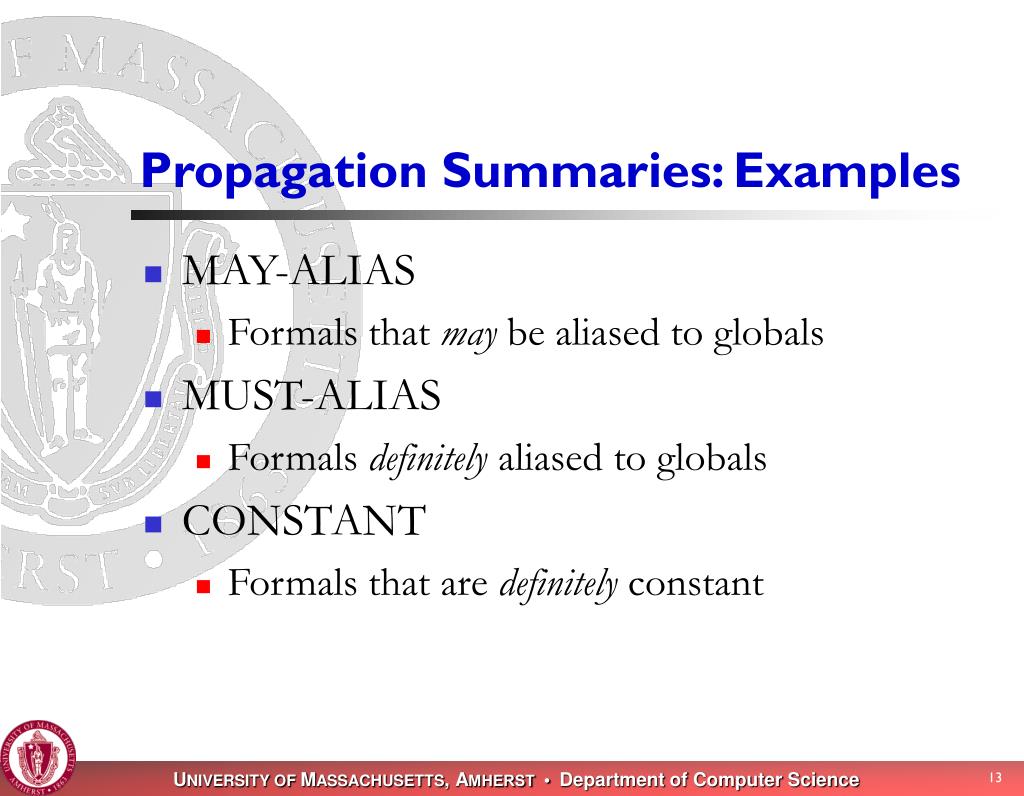

  13. Propagation Summaries: Examples • MAY-ALIAS • Formals that may be aliased to globals • MUST-ALIAS • Formals definitely aliased to globals • CONSTANT • Formals that are definitely constant

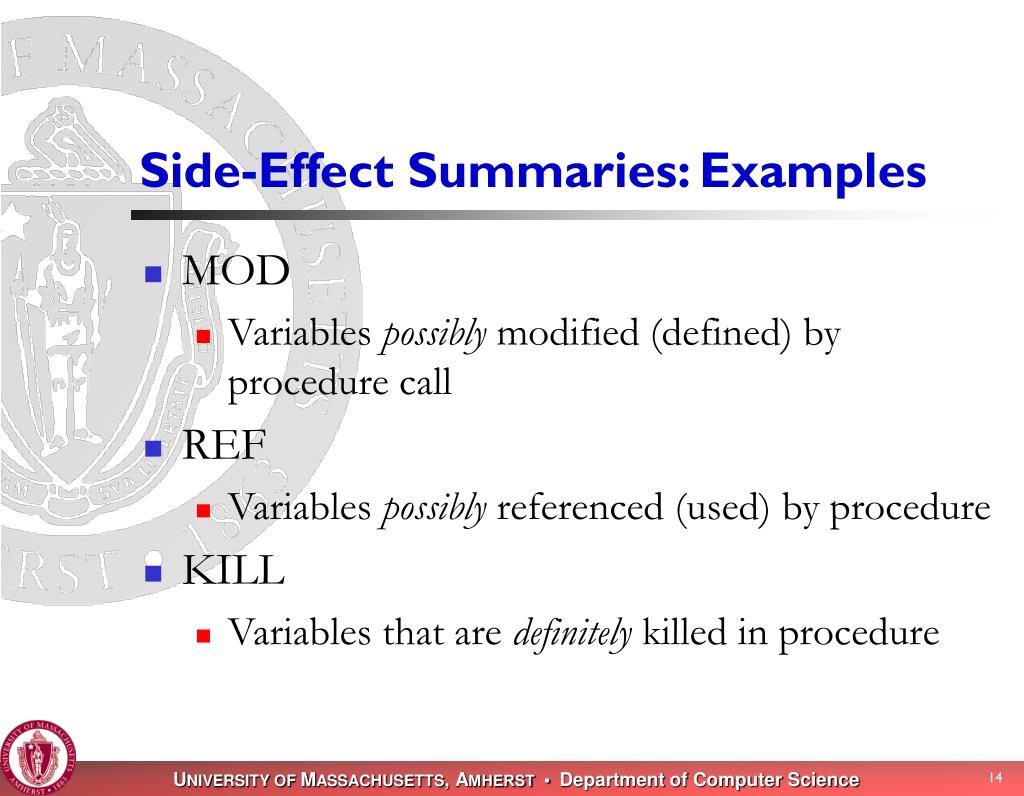

  14. Side-Effect Summaries: Examples • MOD • Variables possibly modified (defined) by procedure call • REF • Variables possibly referenced (used) by procedure • KILL • Variables that are definitely killed in procedure

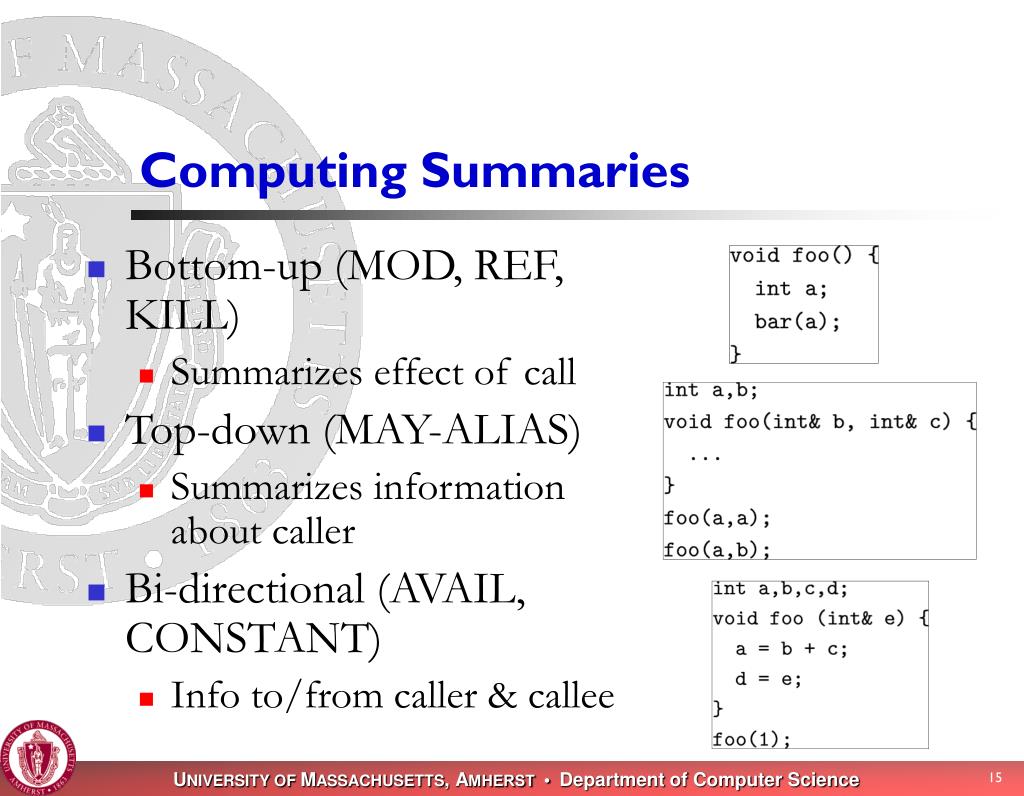

  15. Computing Summaries • Bottom-up (MOD, REF, KILL) • Summarizes effect of call • Top-down (MAY-ALIAS) • Summarizes information about caller • Bi-directional (AVAIL, CONSTANT) • Info to/from caller & callee

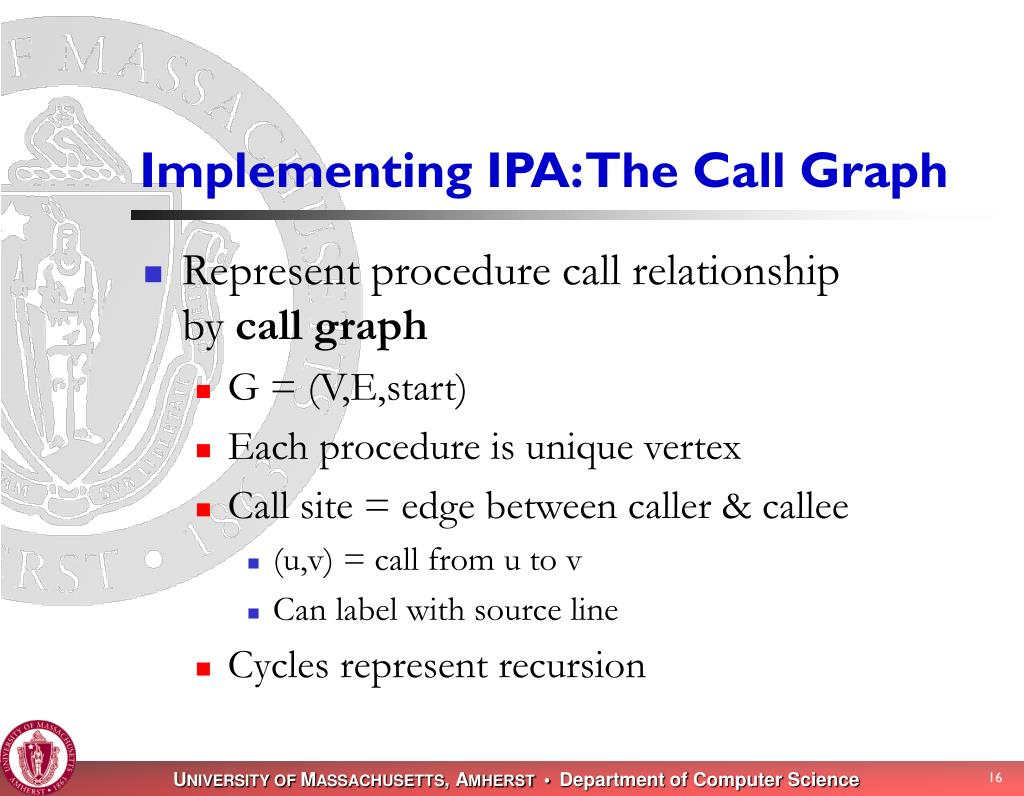

  16. Implementing IPA: The Call Graph • Represent procedure call relationshipby call graph • G = (V,E,start) • Each procedure is unique vertex • Call site = edge between caller & callee • (u,v) = call from u to v • Can label with source line • Cycles represent recursion

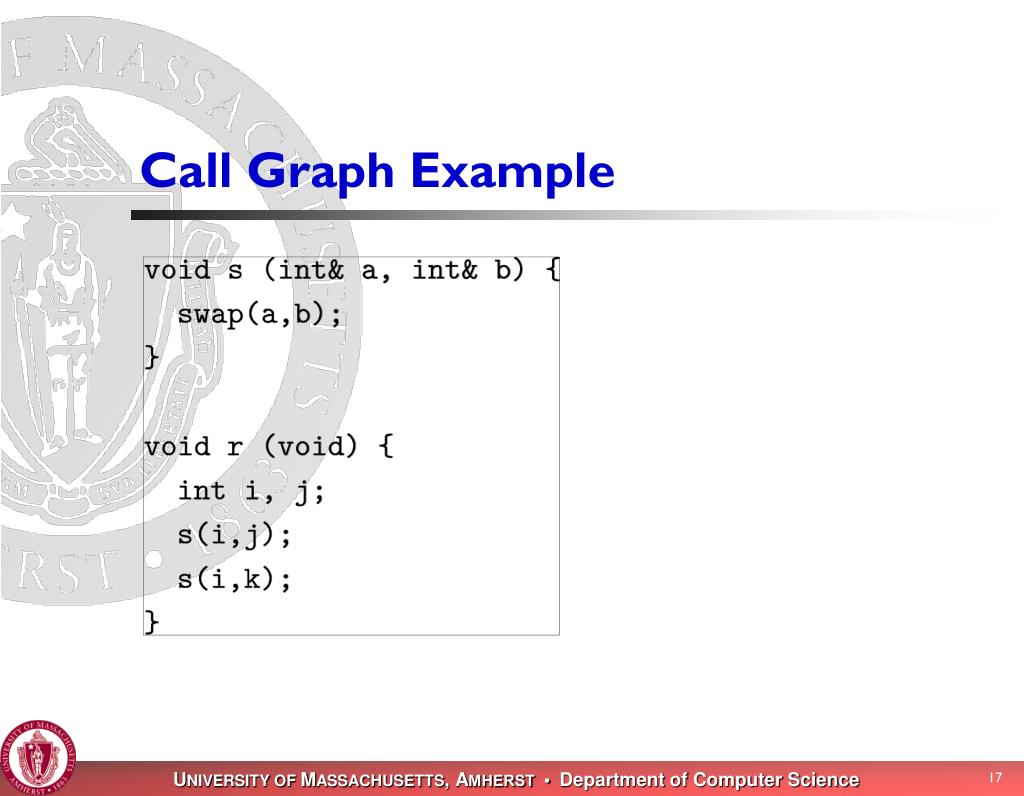

  17. Call Graph Example

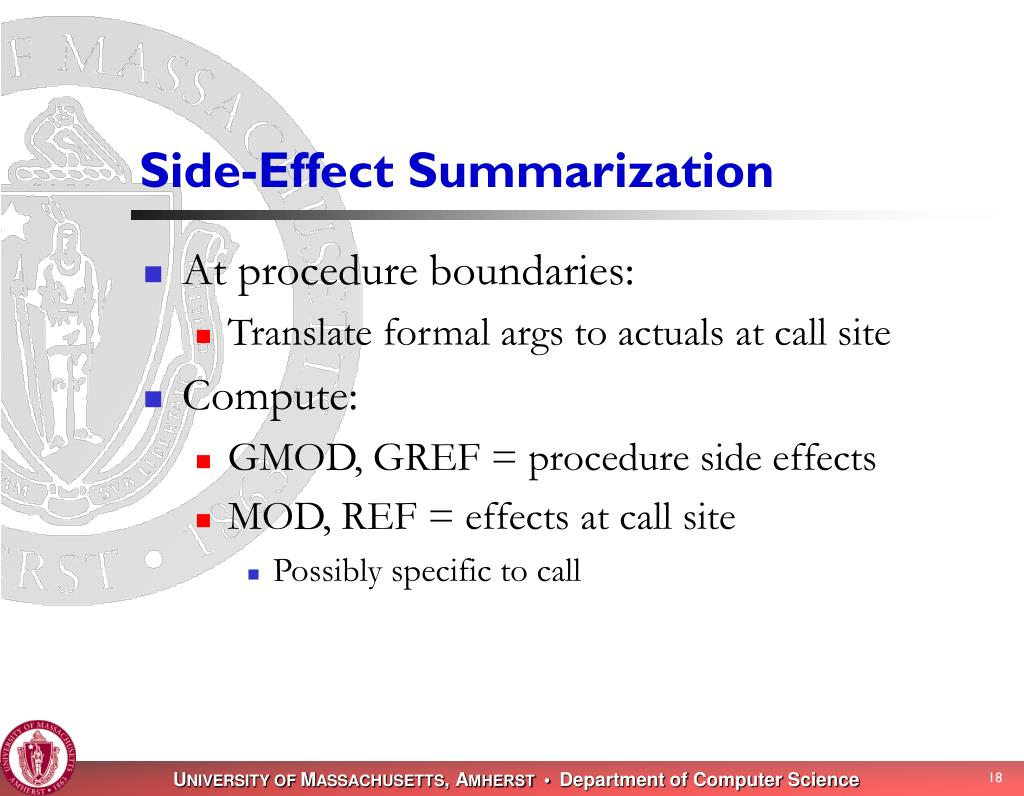

  18. Side-Effect Summarization • At procedure boundaries: • Translate formal args to actuals at call site • Compute: • GMOD, GREF = procedure side effects • MOD, REF = effects at call site • Possibly specific to call

  19. Side-Effect Summary Example

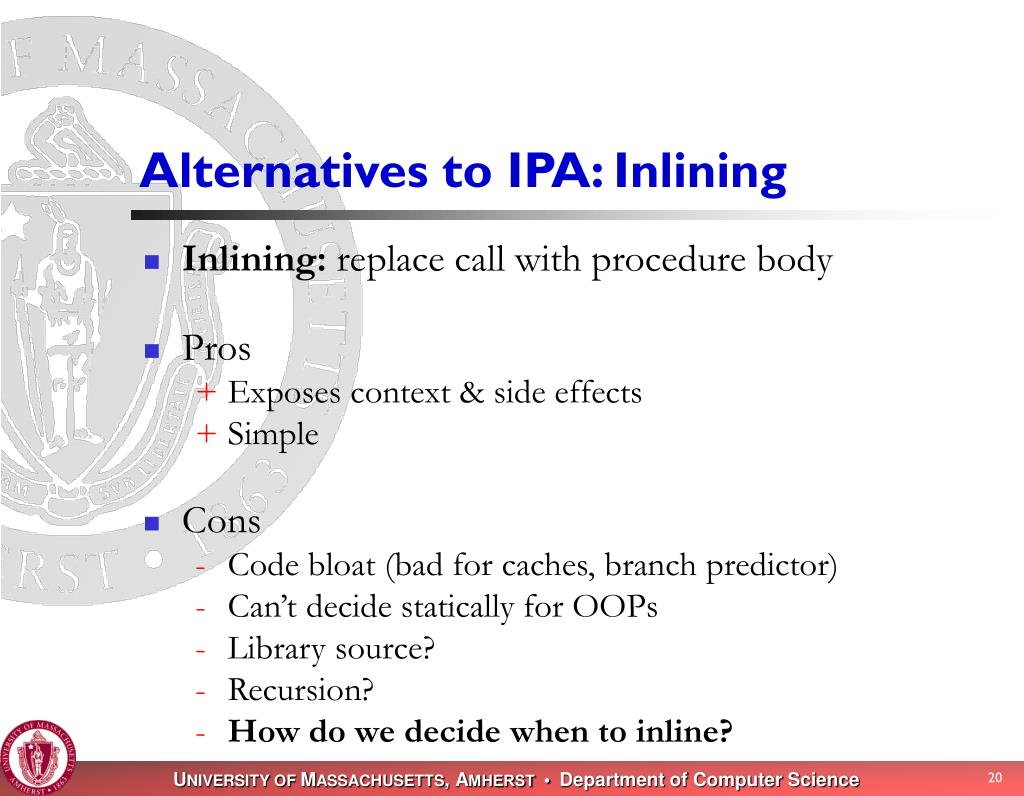

  20. Alternatives to IPA: Inlining • Inlining: replace call with procedure body • Pros • Exposes context & side effects • Simple • Cons • Code bloat (bad for caches, branch predictor) • Can’t decide statically for OOPs • Library source? • Recursion? • How do we decide when to inline?

  21. Alternatives to IPA: Cloning • Cloning: customize procedure for certain call sites • Partition call sites to procedure p into equivalence classes • e.g., {{call3, call1}, {call4}} • Equivalence based on optimization • Constant propagation: partition based on parameter value

  22. Cloning • Pros • Compromise between inlining & IPA • Less code bloat compared to inlining • No problem with recursion • Improves optimization potential (compared to IPA) • Cons • Some code bloat (compared to IPA) • Doesn’t eliminate need for IPA • How do we partition call sites?

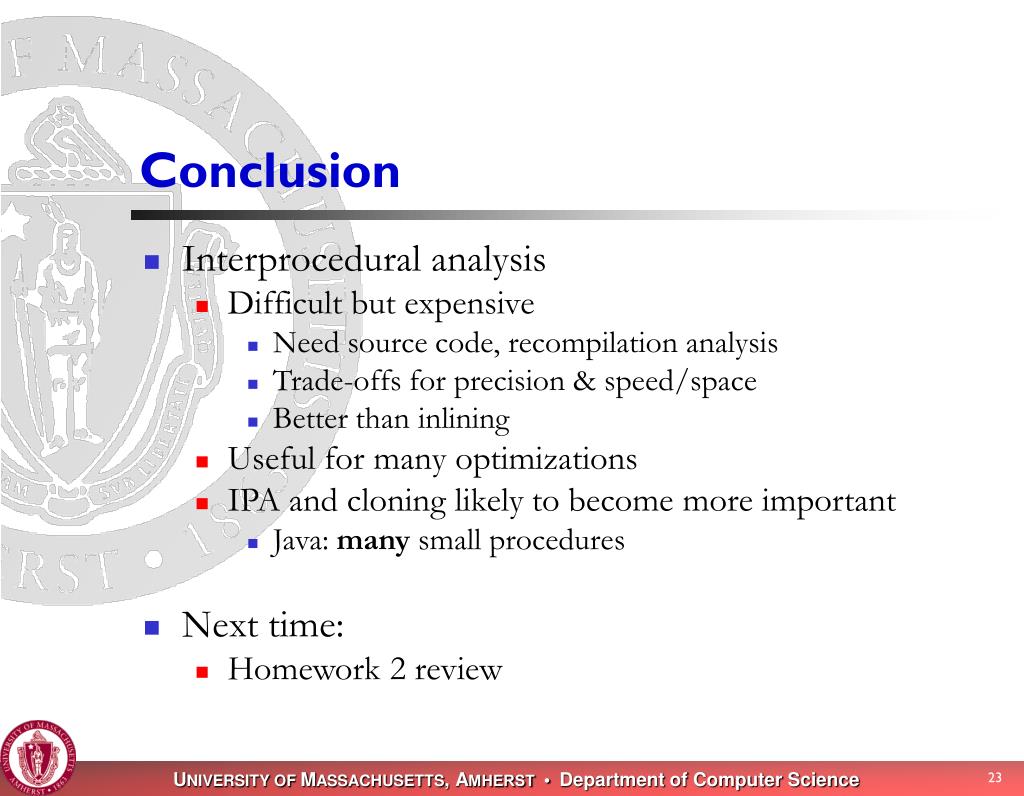

  23. Conclusion • Interprocedural analysis • Difficult but expensive • Need source code, recompilation analysis • Trade-offs for precision & speed/space • Better than inlining • Useful for many optimizations • IPA and cloning likely to become more important • Java: many small procedures • Next time: • Homework 2 review
