radiation oncology

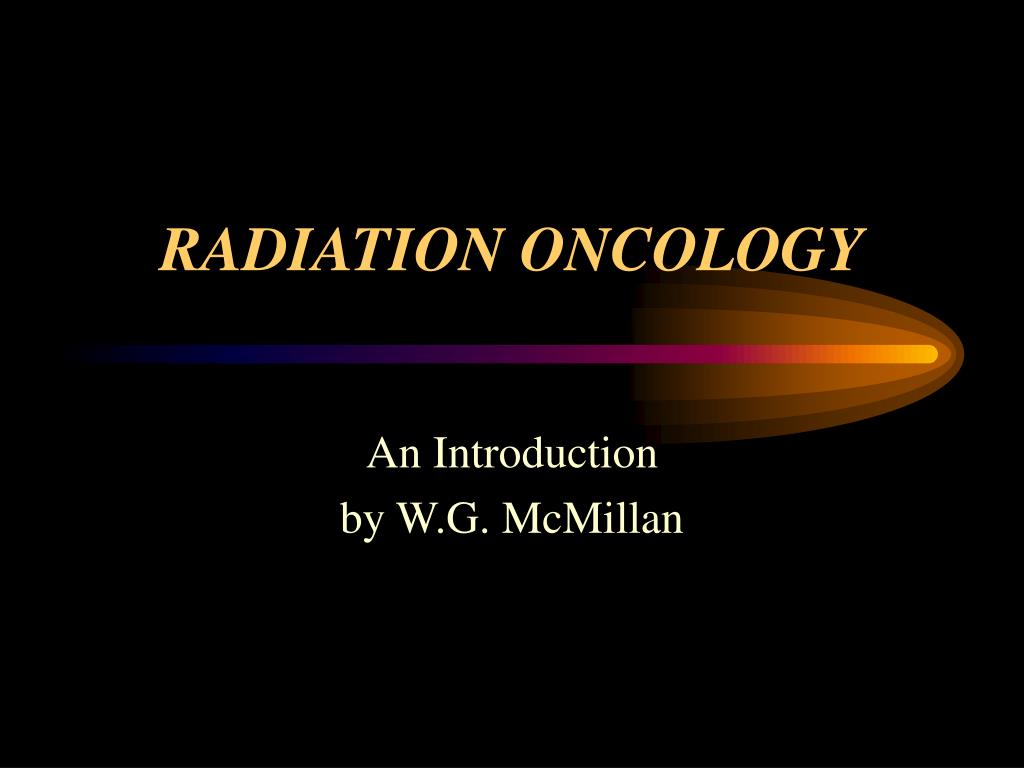

RADIATION ONCOLOGY

An Introduction

by W.G. McMillan

radiation
Radiation
  • What is it?
  • How does it work?
  • Why do it?
  • How do we measure it?
  • How do we deliver it?
  • How is it different from getting an X-ray?
physical considerations
Physical Considerations
  • Excitation
      • an electron in an atom or molecule is raised to a higher energy level without being ejected
  • Ionization
      • an electron in an atom or molecule is given enough energy to be ejected.
      • in living material, this releases enough energy locally to break biological bonds.
          • C=C requires 4.9 eV and 1 ionization event provides ~ 33 eV.
ionizing radiation
Ionizing Radiation
  • Electromagnetic
      • waves of wavelength , frequency v, velocity c
          • where  v = c and c = 3 x 1010 cm/sec
      • -rays: radioactive decay of unstable nucleus
      • x-rays: produced by electrical device
      • photons: packets of energy
          • where E = hv where h = Planck’s constant
      • using both equations
          • if  is long, then v is small and E is small
ionizing radiation1
Ionizing Radiation
  • Particulate
      • electrons: small negatively charged particles can be accelerated to almost the speed of light.
      • protons: positively charged particles , mass ~ 2000 times greater than electron
      •  particle: nucleus of helium atom = 2 protons + 2 neutrons ( ie decay of radium-226 to radon-222)
      • heavy charged ions: nuclei of elements C, Ne, Argon, etc.
biological considerations
Biological Considerations
  • Radiation Interaction with biological materials
  • Cell Survival Curves
  • Repair of Radiation Damage
  • Effect of oxygenation on radiation damage
  • Cell cycle considerations
  • Pharmacological modification of radiation effects
radiation interaction with dna

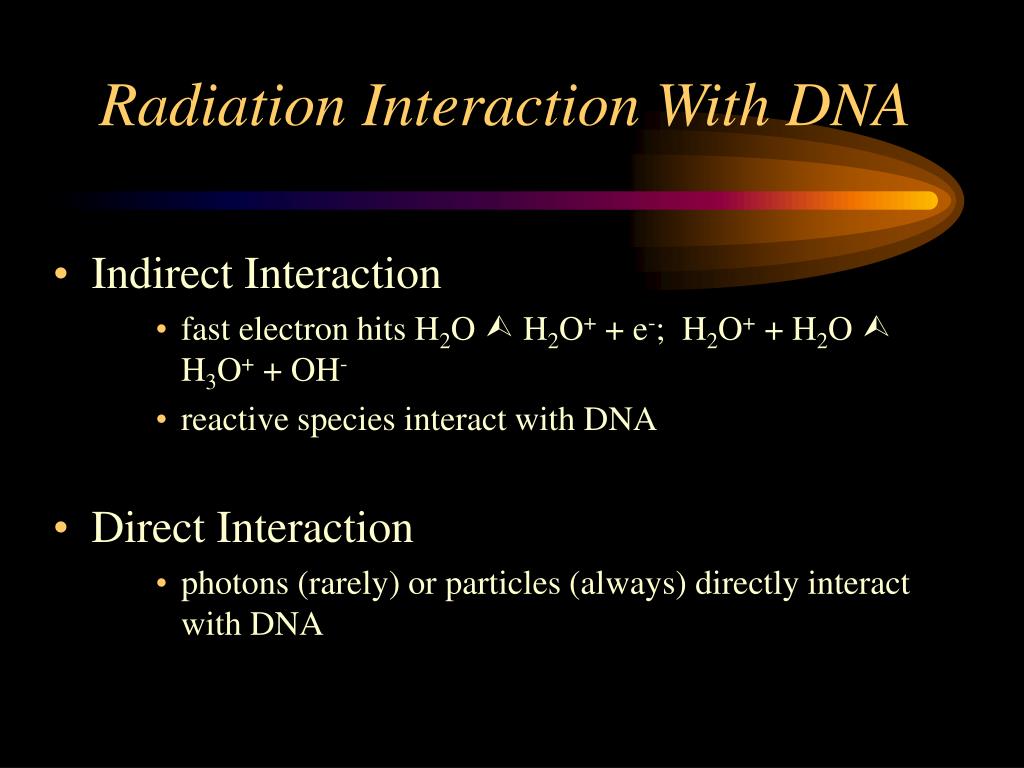

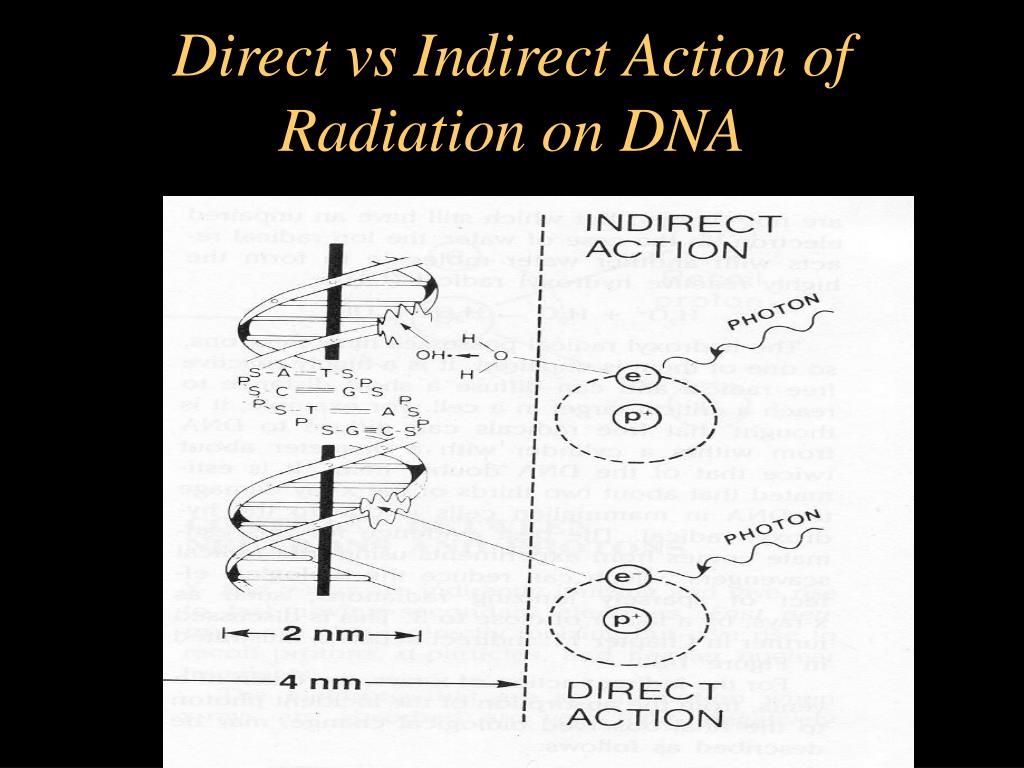

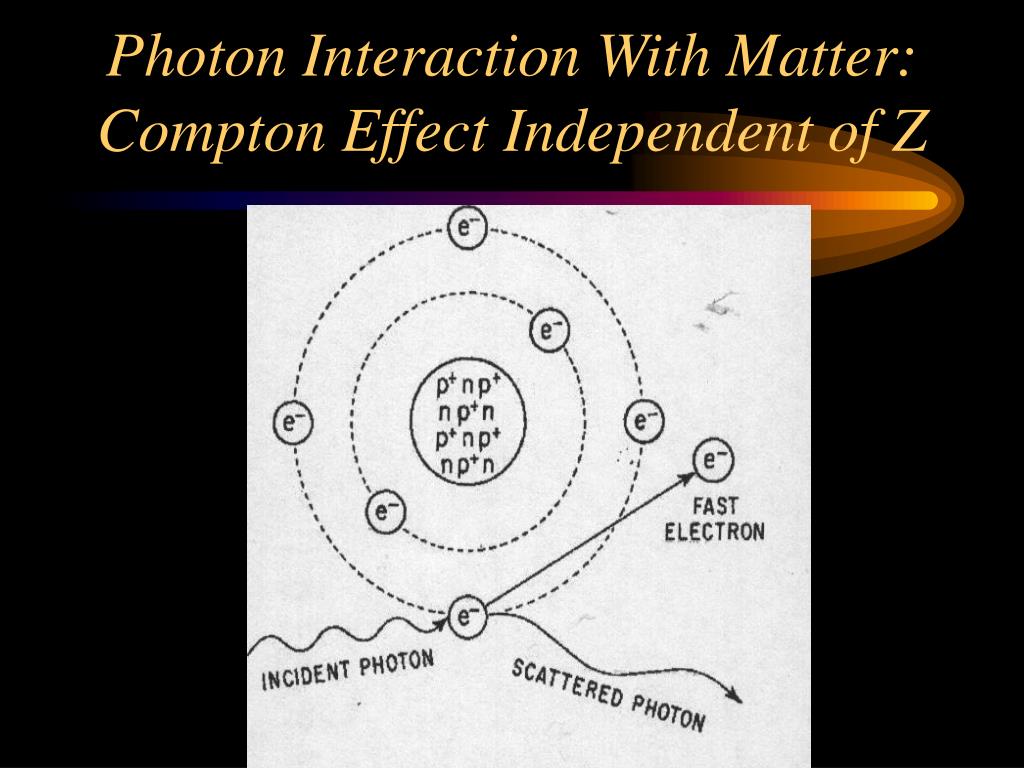

Radiation Interaction With DNA
  • Indirect Interaction
      • fast electron hits H2O  H2O+ + e-; H2O+ + H2O  H3O+ + OH-
      • reactive species interact with DNA
  • Direct Interaction
      • photons (rarely) or particles (always) directly interact with DNA
radiation damage

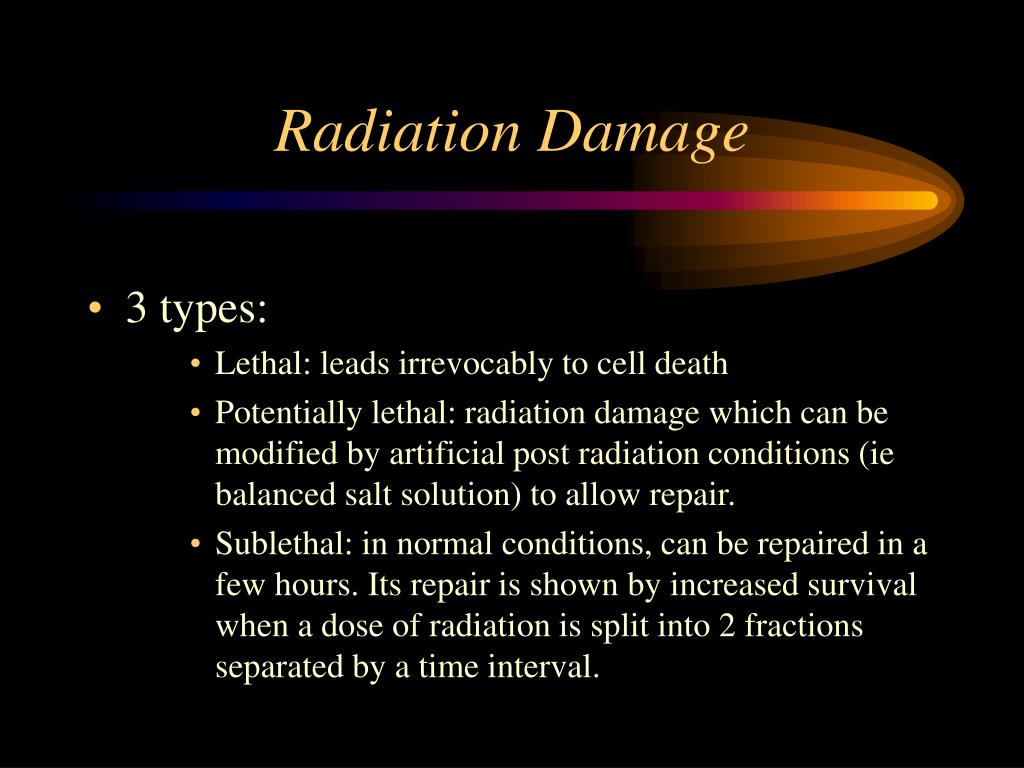

Radiation Damage
  • 3 types:
      • Lethal: leads irrevocably to cell death
      • Potentially lethal: radiation damage which can be modified by artificial post radiation conditions (ie balanced salt solution) to allow repair.
      • Sublethal: in normal conditions, can be repaired in a few hours. Its repair is shown by increased survival when a dose of radiation is split into 2 fractions separated by a time interval.
radiation damage repair
Radiation Damage Repair

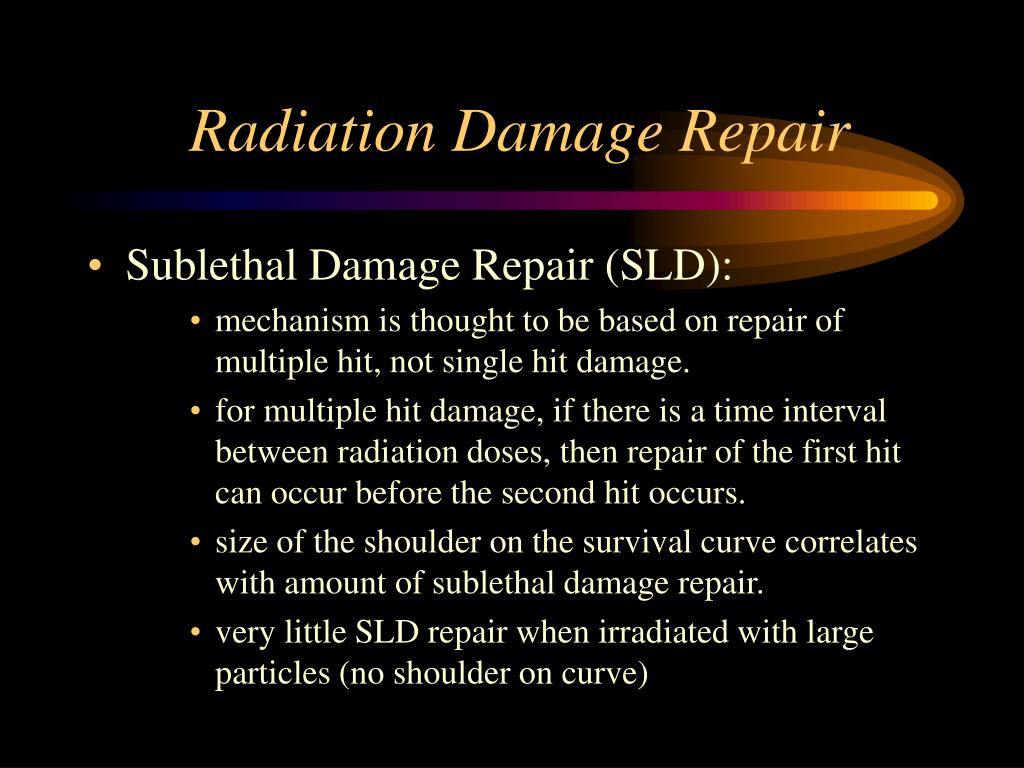

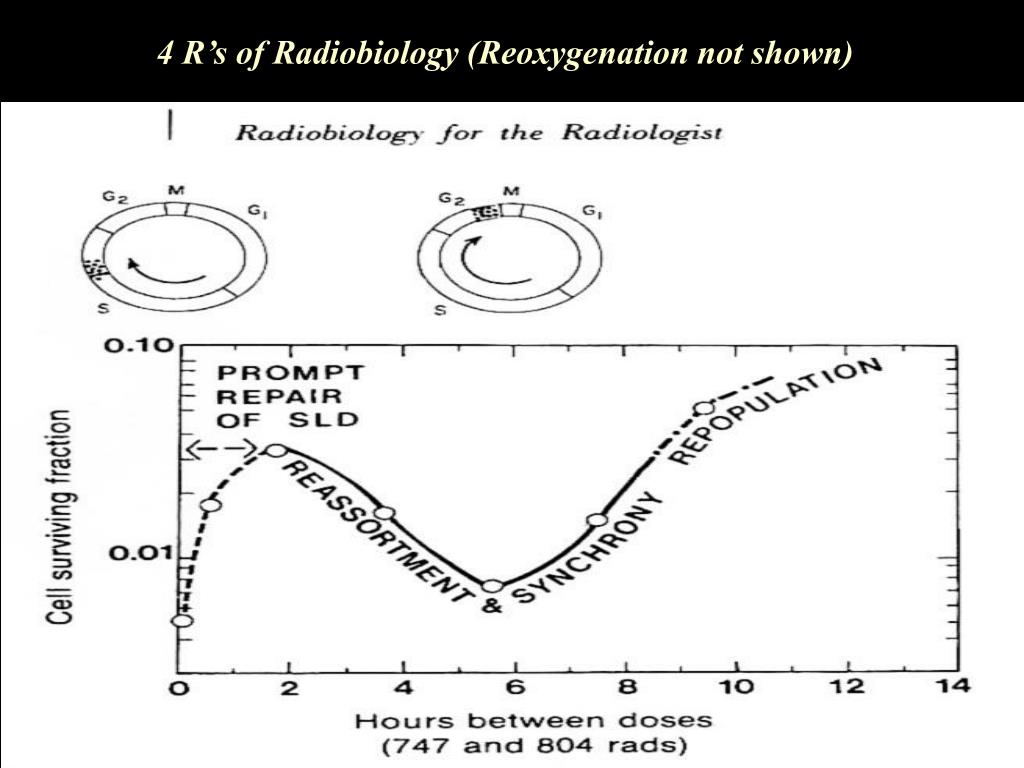

  • Sublethal Damage Repair (SLD):

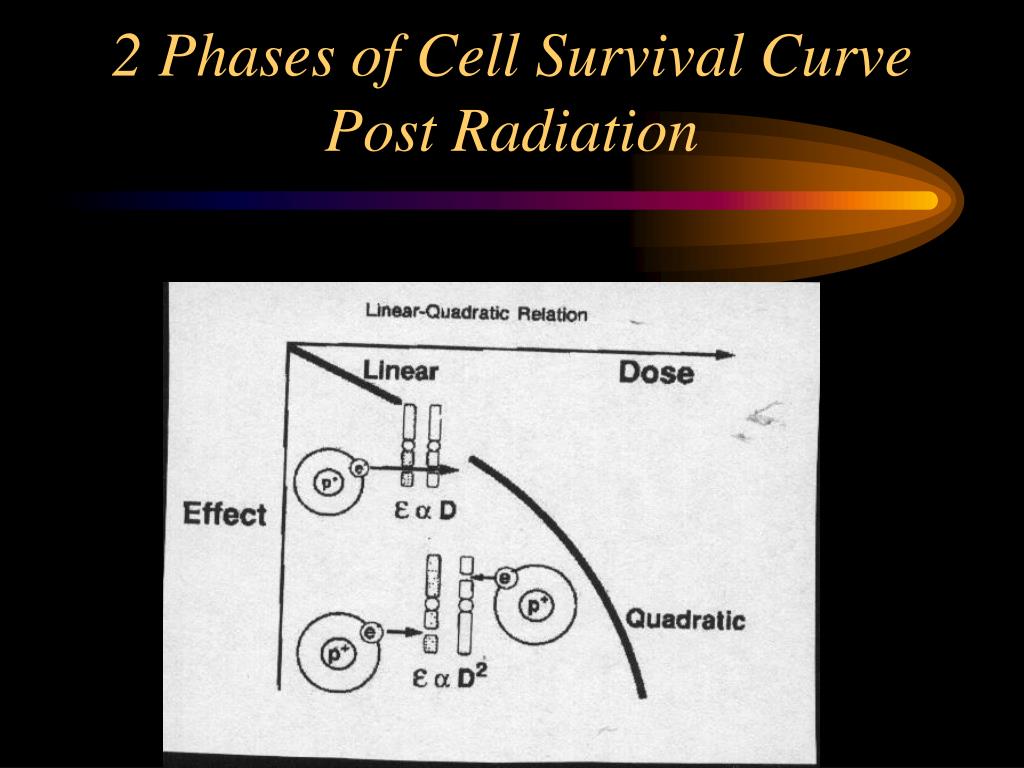

      • mechanism is thought to be based on repair of multiple hit, not single hit damage.
      • for multiple hit damage, if there is a time interval between radiation doses, then repair of the first hit can occur before the second hit occurs.

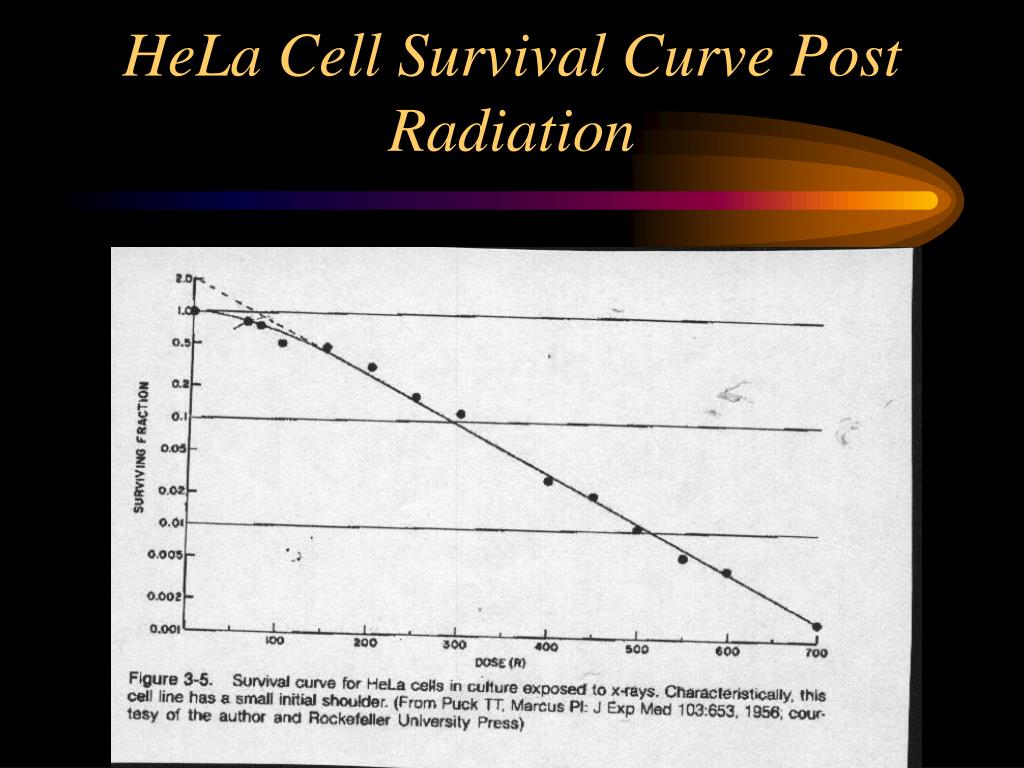

      • size of the shoulder on the survival curve correlates with amount of sublethal damage repair.
      • very little SLD repair when irradiated with large particles (no shoulder on curve)
oxygen effect on radiation damage

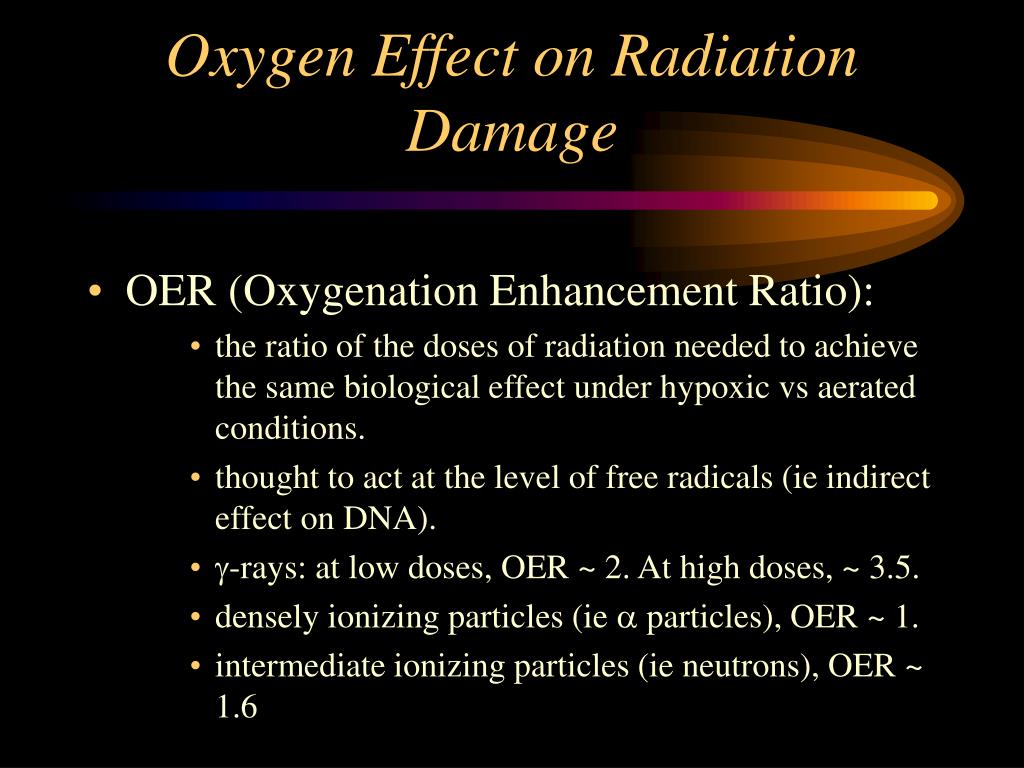

Oxygen Effect on Radiation Damage
  • OER (Oxygenation Enhancement Ratio):
      • the ratio of the doses of radiation needed to achieve the same biological effect under hypoxic vs aerated conditions.
      • thought to act at the level of free radicals (ie indirect effect on DNA).
      • -rays: at low doses, OER ~ 2. At high doses, ~ 3.5.
      • densely ionizing particles (ie  particles), OER ~ 1.
      • intermediate ionizing particles (ie neutrons), OER ~ 1.6
pharmacologic modification of radiation effect
Pharmacologic Modification of Radiation Effect
  • Radiosensitizers:
      • many substances will sensitize cancer cells to radiation, but most also sensitize normal cells to the same degree. 2 types of substances show differential effect between tumours and normal tissues:
        • Halogenated Pyrimidines (BUdR, IUdR):
          • substituted for thymidine in DNA, weakening it and making it more sensitive to x-rays and UV light.
          • quickly cycling cells take up more than normal cells.
        • Hypoxic Cell Sensitizers:
          • misonidazole, etanidazole
pharmalogical modification of radiation damage
Pharmalogical Modification of Radiation Damage
  • Radioprotectors:
      • effective vs sparsely ionizing radiation ( x and -rays). Work by scavenging free radicals.
          • amifostine (WR2721) is carried by astronauts
          • d-Con (WR1607) is more potent, but cardiotoxic.
          • cystaphos (WR638) is carried by Russian infantry.
      • Clinical trials:
          • amifostine: RC trial in China in rectal cancer showed protection to skin, mucous membrane, bladder and pelvic structures.
normal tissue radiation biology

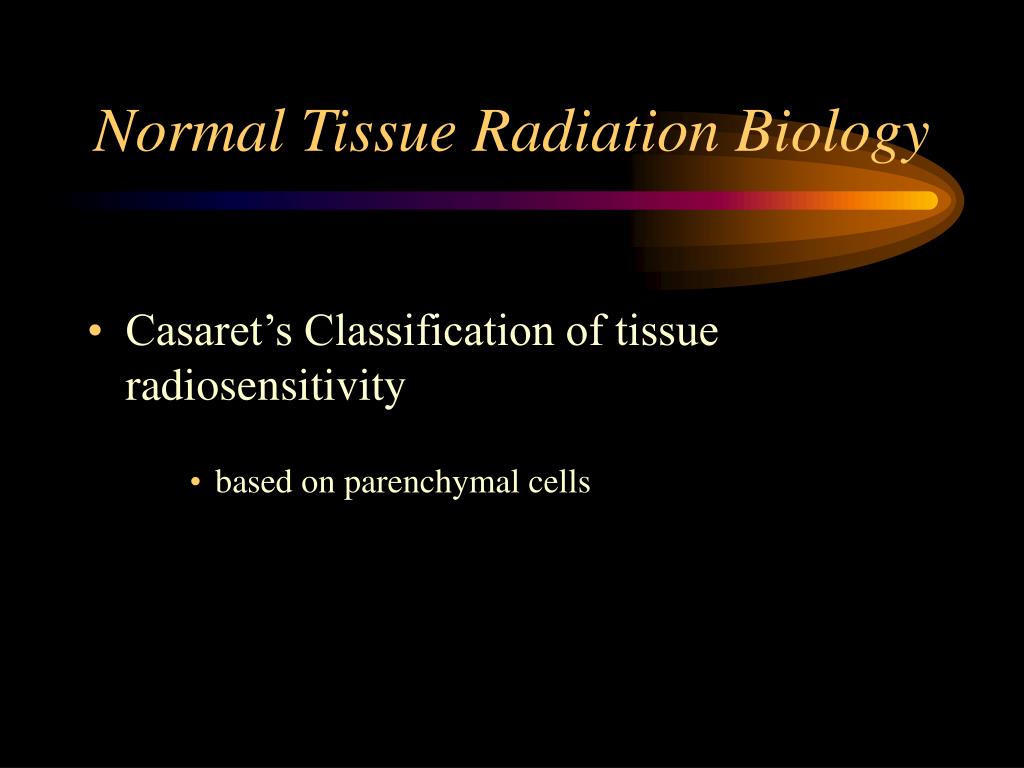

Normal Tissue Radiation Biology
  • Casaret’s Classification of tissue radiosensitivity
      • based on parenchymal cells
normal tissue adverse effects
Normal Tissue Adverse Effects
  • Normal tissues do not all respond in the same way to radiation:
      • early responding tissues (skin, mucosa, intestinal epithelium.
      • late responding tissues (spinal cord)
  • How do we influence normal tissue reaction?
      • early responding tissue: fraction size, total dose and treatment time all affect early responding tissue.
      • fraction size and total dose affect late responding tissue.
fractionation

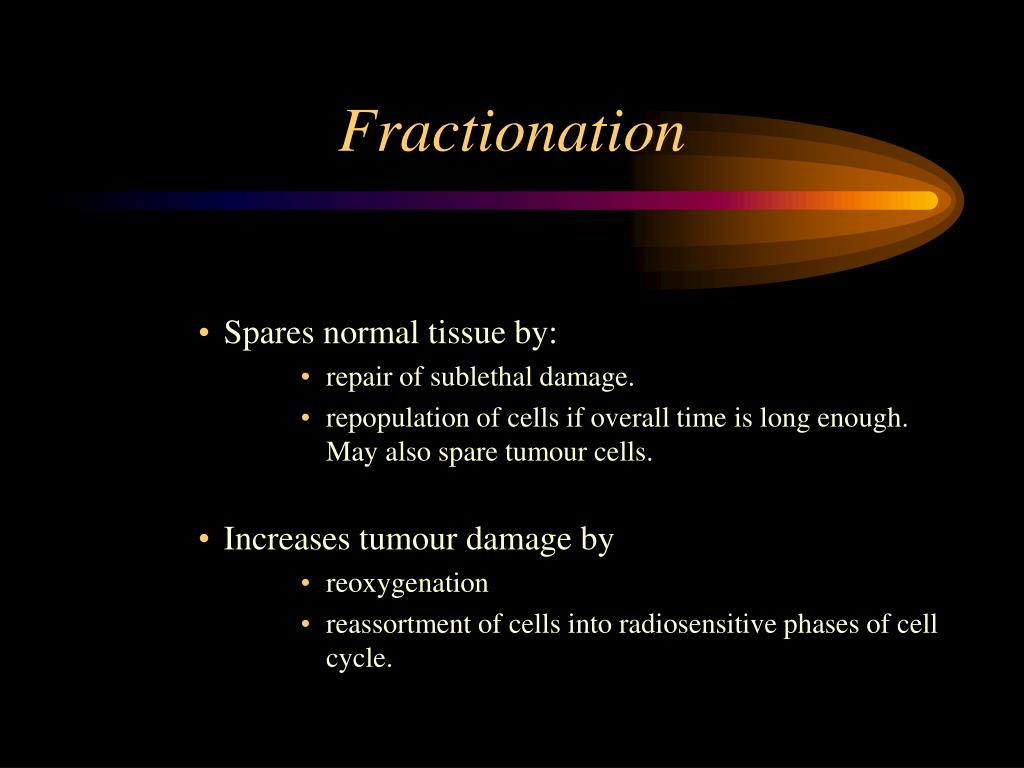

Fractionation
  • Spares normal tissue by:
      • repair of sublethal damage.
      • repopulation of cells if overall time is long enough. May also spare tumour cells.
  • Increases tumour damage by
      • reoxygenation
      • reassortment of cells into radiosensitive phases of cell cycle.
hyperfractionation

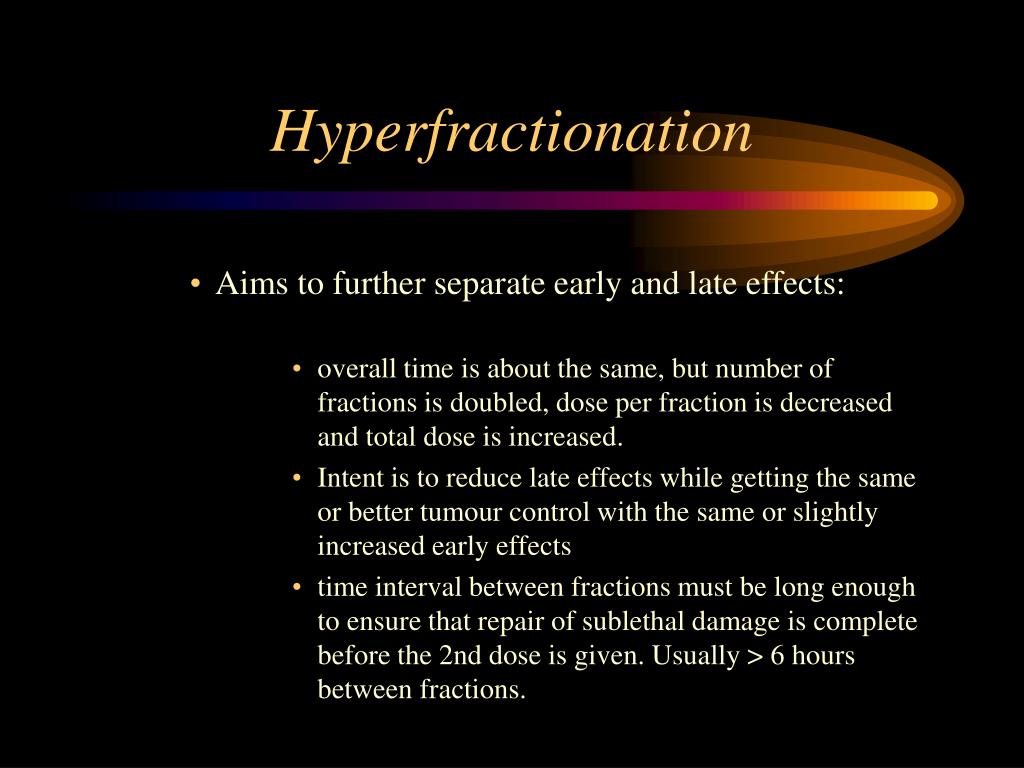

Hyperfractionation
  • Aims to further separate early and late effects:
      • overall time is about the same, but number of fractions is doubled, dose per fraction is decreased and total dose is increased.
      • Intent is to reduce late effects while getting the same or better tumour control with the same or slightly increased early effects
      • time interval between fractions must be long enough to ensure that repair of sublethal damage is complete before the 2nd dose is given. Usually > 6 hours between fractions.
accelerated fractionation

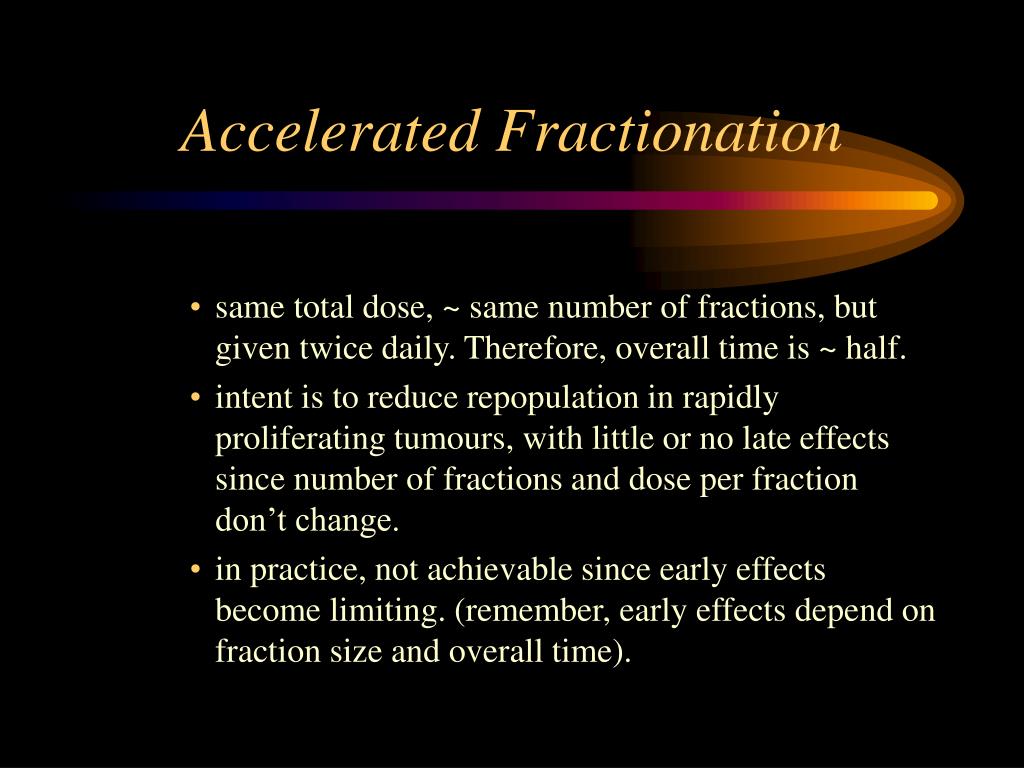

Accelerated Fractionation
  • same total dose, ~ same number of fractions, but given twice daily. Therefore, overall time is ~ half.
  • intent is to reduce repopulation in rapidly proliferating tumours, with little or no late effects since number of fractions and dose per fraction don’t change.
  • in practice, not achievable since early effects become limiting. (remember, early effects depend on fraction size and overall time).
chemotherapy

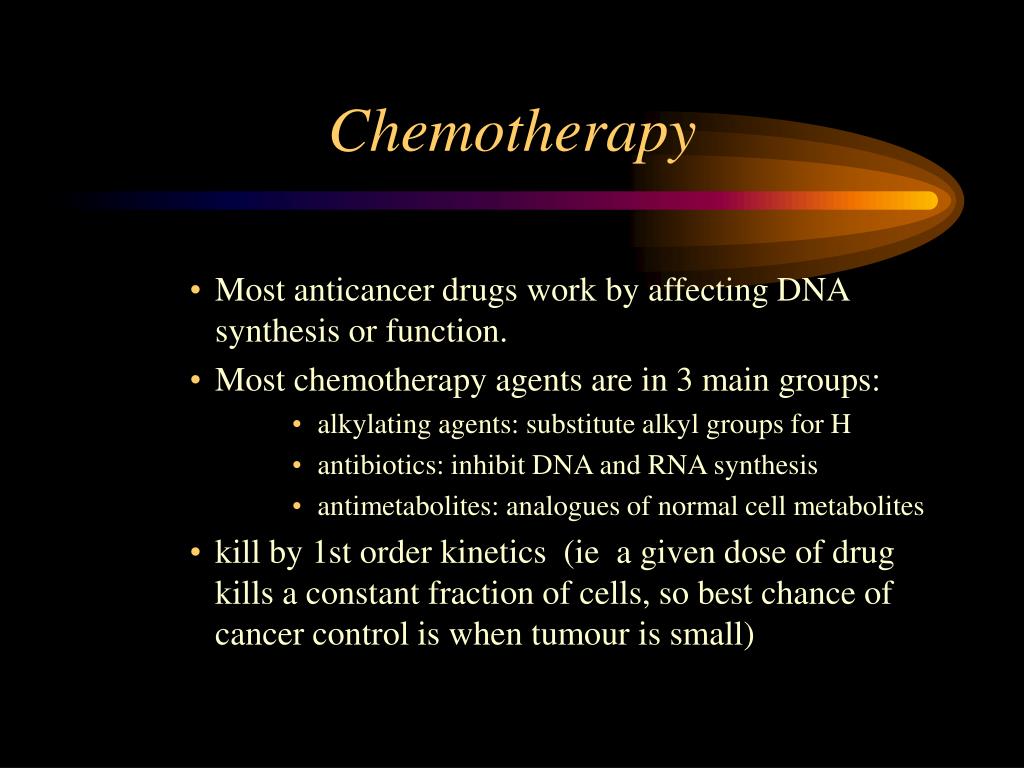

Chemotherapy
  • Most anticancer drugs work by affecting DNA synthesis or function.
  • Most chemotherapy agents are in 3 main groups:
      • alkylating agents: substitute alkyl groups for H
      • antibiotics: inhibit DNA and RNA synthesis
      • antimetabolites: analogues of normal cell metabolites
  • kill by 1st order kinetics (ie a given dose of drug kills a constant fraction of cells, so best chance of cancer control is when tumour is small)
radiation and chemotherapy
Radiation and Chemotherapy
  • Oxygen effect more complex than for radiation.
  • some drugs more toxic to hypoxic cells, some to aerated cells and some show no difference.
  • drug resistance is a huge problem:
      • decreased drug accumulation (molecular pumps)
      • elevated levels of glutathione.
      • increase in DNA repair
  • radiation resistance and chemotherapy resistance may develop together, but are rarely caused by one another.
radiation and chemotherapy1
Radiation and Chemotherapy
  • often used together.
  • idea of “spatial cooperation”:
      • radiation is likely to be effective against a localized primary tumour, but it is ineffective against disseminated disease. Chemotherapy can cope with micrometastases, but not a large primary tumour (ie rectal cancer).
      • Chemotherapy may be the primary treatment modality, and radiation is used to treat “sanctuary” sites ( ie small cell lung cancer).
  • combination of toxicities can be limiting
radiation and surgery
Radiation and Surgery
  • radiation often used as adjuvant to surgery:
      • breast
      • colorectal
      • lung
  • radiation is frequently used in the neoadjuvant setting, to make an unresectable tumour resectable:
      • colorectal
      • head and neck
  • both can be used in the palliative setting:
      • bone mets
      • brain mets
radiation and surgery1
Radiation and Surgery
  • Multiple issues when combining two modalities:
      • timing (ie colorectal cancer)
      • fibrosis (ie breast cancer)
      • functional result (ie anal canal cancer)
      • cosmesis (ie breast or head and neck cancer)
      • wound healing (any)
      • pathology (ie colorectal cancer)
      • radiation dose limitation (ie bone mets)
      • delay in radiation treatment or surgery
how is radiation delivered

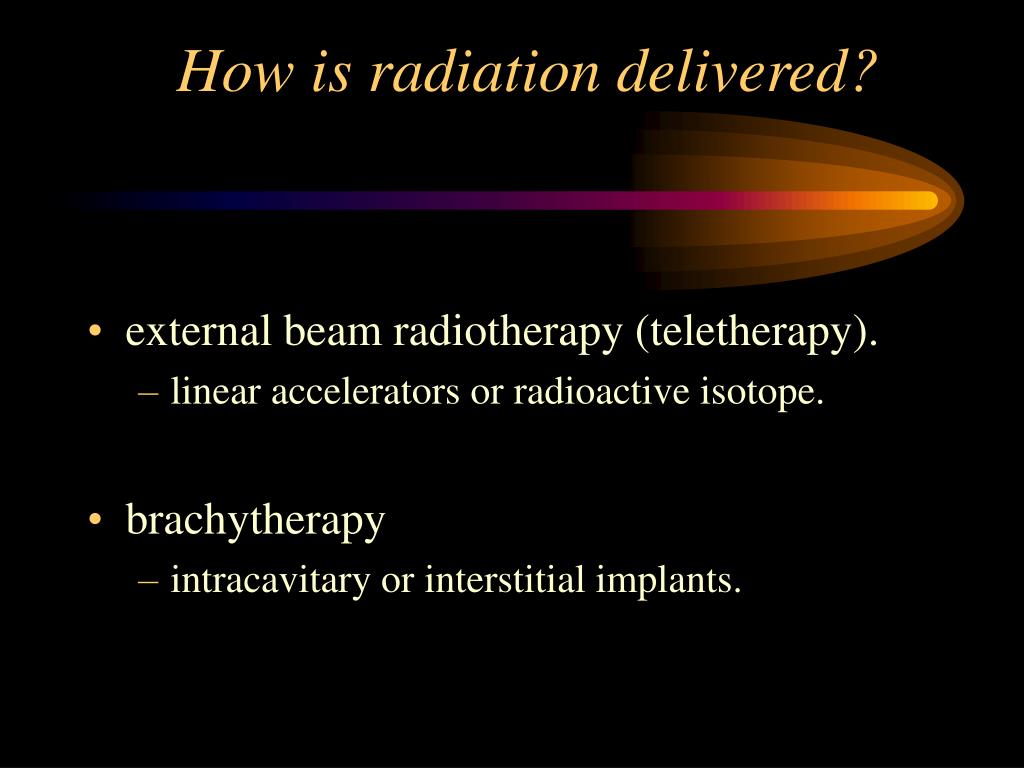

How is radiation delivered?
  • external beam radiotherapy (teletherapy).
    • linear accelerators or radioactive isotope.
  • brachytherapy
    • intracavitary or interstitial implants.
how do we measure it
How do we measure it?
  • before high energy, used SED (skin erythema dose).
  • 1928, unit of radiation exposure used was the Roentgen (R).
  • now we use absorbed dose = d/dm where d is mean energy imparted to a material of mass dm. Unit is Gy (1 Gy = 1 Joule / kg).
case 1 59 yr old female postmenopausal
Case 1: 59 yr old female, postmenopausal
  • Presented with lump in left breast, found in shower.
  • Mammogram showed stellate lesion
  • lumpectomy and AND
  • pathology: 2.5 cm Grade 2 infiltrating duct carcinoma, 1 margin positive, 0/10 nodes positive, no lymphovascular invasion, ER/PR positive
  • referred back for re-resection: no residual disease
case 1 continued
Case 1 continued...
  • referred to medical oncologist and put on TAM
  • referred to radiation oncologist and offered radical radiation to breast:
      • risk of local recurrence without it is > 30 %
      • radiation decreases local recurrence to 6-7 %.
      • Lumpectomy + radiation = mastectomy.
  • 4250 cGy / 16 fractions / 3 weeks + 1 day
      • can start 8-12 weeks after surgery
      • radiation planning session
      • daily in the building for ~ 1 hr.
ct planning

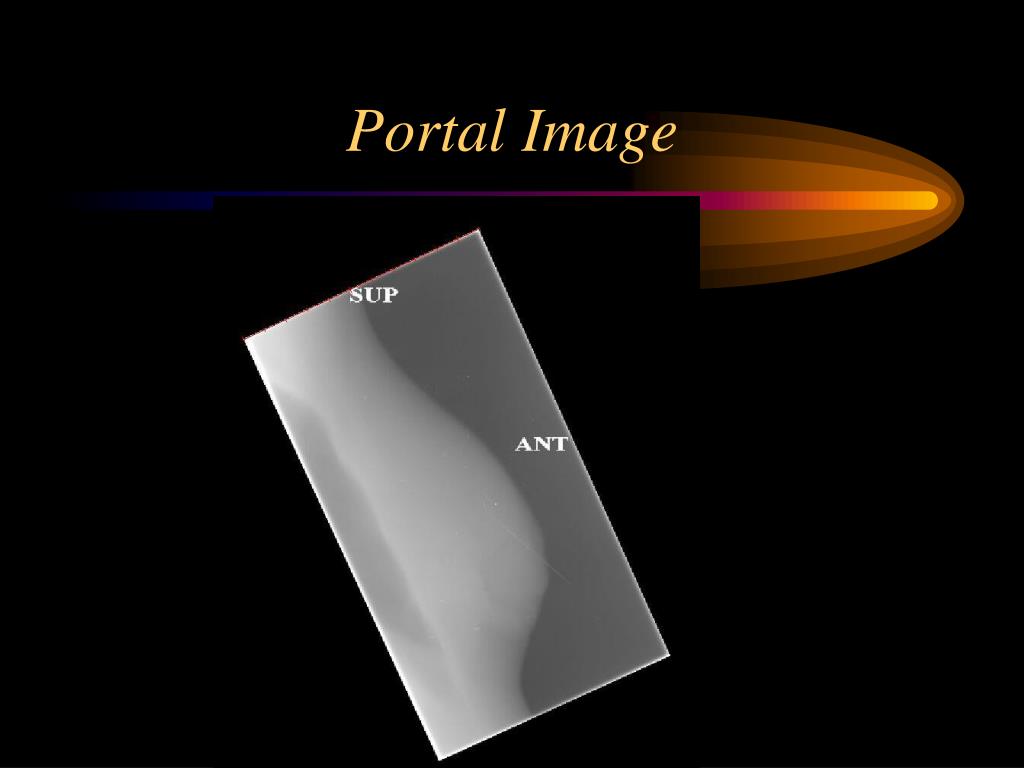

CT Planning

Xxxxxxxxxxxxx

xxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxx

case 1 continued1
Case 1 continued...
  • Acute toxicity:
      • fatigue
      • skin changes: erythema, moist and dry desquamation
  • Chronic toxicity:
      • skin: hyperpigmentation, telangiectasia, sun sensitivity
      • breast parenchyma: firm texture, “radiation breast” (erythema, swelling, tenderness  rare mastectomy)
      • rib brittleness
      • pulmonary fibrosis
      • cardiac events
case 2 68 yr old male
Case 2: 68 yr old male
  • Presented with 6 months of rectal bleeding and 2 months of diminished calibre stool. DRE showed barely palpable lesion, fixed.
  • Colonoscopy showed lesion at 11 cm. Bx adenoca
  • CXR -, CT abd/pelvis -, CEA  at 12.
  • Referred for neoadjuvant chemoradiation:
      • to make it resectable!!!
  • 5FU for 1 cycle, then combined with radiation:
  • 4500 cGy / 25 fractions / 5 weeks to pelvis.
ct plan
CT Plan

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

case 2 continued
Case 2 continued...
  • 4 weeks after completing neoadjuvant therapy, lesion was decreased and mobile.
  • CT showed smaller lesion.
  • LAR at 7 weeks
  • pathology: 3 cm moderately differentiated adenocarcinoma, margins -, 0/10 lymph nodes +, no lymphovascular invasion
references
References
  • Slides 5, 27, 42, 44, 48-53, from “Radiation Oncology”, Kasey Etreni MRT(T), Radiation Therapist, Northwestern Ontario Regional Cancer Centre, http://rope.nworcc.on.ca/What.pdf
  • slides 6, 8-10, 14-19, 22-24, 26, 31, 32, 35, from “Radiobiology for the Radiologist”, Fourth Edition, Eric J. Hall, 1994
  • slides 11, 57-59, 62-66, from Chris deFrancesco, Radiation Therapist, Juravinski Cancer Centre
