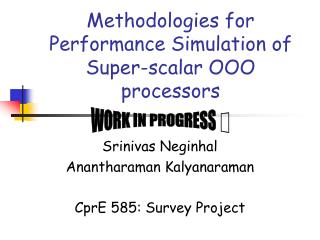

  1. Methodologies for Performance Simulation of Super-scalar OOO processors WORK IN PROGRESS  Srinivas Neginhal Anantharaman Kalyanaraman CprE 585: Survey Project

  2. Introduction Modeling Simulation ProcessorDesign Performance Study

  3. Architectural Simulators • Explore Design Space • Evaluate existing hardware, or Predict performance of proposed hardware • Designer has control Functional Simulators: Model architecture (programmers’ focus) Eg., sim-fast, sim-safe Performance Simulators: Model microarchitecture (designer’s focus) Eg., cycle-by-cycle (sim-outoforder)

  4. Simulation Issues • Real-applications take too long for a cycle-by-cycle simulation • Vast design space: • Design Parameters: • code properties, value prediction, dynamic instruction distance, basic block size, instruction fetch mechanisms, etc. • Architectural metrics: • IPC/ILP, cache miss rate, branch prediction accuracy, etc. • Find design flaws + Provide design improvements • Need a “robust” simulation methodology !!

  5. Two Methodologies • HLS • Hybrid: Statistical + Symbolic • REF: • HLS: Combining Statistical and Symbolic Simulation to Guide Microprocessor Designs. M. Oskin, F. T. Chong and M. Farrens. Proc. ISCA. 71-82. 2000. • BBDA • Basic block distribution analysis • REF: • Basic Block Distribution Analysis to Find Periodic Behavior and Simulation Points in Applications. T. Sherwood, E. Perelman and B. Calder. Proc. PACT. 2001.

  6. HLS: An Overview • A hybrid processor simulator Statistical Model HLS Performance Contours spanned by design space parameters Symbolic Execution What can be achieved? Explore design changes in architectures and compilers that would be impractical to simulate using conventional simulators

  7. HLS: Main Idea Synthetically generated code Application code Statistical Profiling Instruction stream, data stream Structural Simulation of FU, issue pipeline units • Machine independent characteristics: • basic block size • Dynamic instruction distance • Instruction mix • Architecture metrics: • Cache behavior • Branch prediction accuracy

  8. Statistical Code Generation • Each “synthetic instruction” contains the following parameters based on the statistical profile: • Functional unit requirements • Dynamic instruction distances • Cache behavior

  9. Validation of HLS against SimpleScalar • For varying combinations of design parameters: • Run original benchmark code on SimpleScalar (use sim-outoforder) • Run statistically generated code on HLS • Compare SimpleScalar IPC vs. HLS IPC

  10. Validation: Single- and Multi-value correlations IPC vs. L1-cache hit rate For SPECint95: HLS Errors are within 5-7% of the cycle-by-cycle results !!

  11. Validation: L1 Instruction Cache Miss Penalty vs. Hit Rate • Correlation suggests that: • Cache hit rate should be at least 88% to dominate

  12. HLS: Code PropertiesBasic Block Size vs. L1-Cache Hit Rate • Correlation suggests that: • Increasing block size helps only when L1 cache hit rate is >96% or <82%

  13. HLS: Code PropertiesDynamic Instruction Distance vs. Basic Block Size Correlation suggests that: Moderate DID values suffice for IPC, and high values of basic block size (>8) does not help without an increase in DID

  14. HLS: Value Prediction GOAL: Break True Dependency Stall Penalty for mispredict vs. Value Prediction Knowledge DID vs. Value predictability

  15. HLS: More Multi-value Correlations L1-cache hit rate vs. Value Predictability DID vs. Superscalar issue width

  16. HLS: Discussion • Low error rate only on SPECint95 benchmark suite. High error rates on SPECfp95 and STREAM benchmarks • Findings: by R. H. Bell et. Al, 2004 • Reason: • Instruction-level granularity for workload • Recommended Improvement: • Basic block-level granularity

  17. Goals • The end of the initialization • The period of the program • Ideal place to simulate given a specific number of instructions one has to simulate • Accurate confidence estimation of the simulation point. • <Note> Revamp this slide.

  18. Program Behavior • Program behavior has ramification on architectural techniques. • Program behavior is different in different parts of execution. • Initialization • Cyclic behavior (Periodic)

  19. Basic Block Distribution Analysis • Each basic block gets executed a certain number of times. • Number of times each basic block executes gives a fingerprint. • Use the fingerprints to find representative areas to simulate. • <Note> How does fingerprinting help?

  20. Cyclic Behavior of Programs • Cyclic Behavior is not representative of all programs. • Common case for compute bound applications. • SPEC95 wave program executes 7 billion instructions before it reaches the code that amounts to the bulk of execution.

  21. Basic Block Vectors • Fast profiling to determine the number of times a basic block executes. • Behavior of the program is directly related to the code that it is executing. • Profiling gives a basic block fingerprint for that particular interval of time. • Full execution of the program and the interval we choose spends proportionally the same amount of time in the same code. • Collected in intervals of 100 million instructions.

  22. Basic Block Vector - BBV • BBV is a single dimensional array. • There is an element for each basic block in the program. • Each element is the count of how many times a given basic block was entered during an interval. • Varying size intervals • A BBV collected over an interval of N times 100 million instructions is a BBV of duration N.

  23. Basic Block Vectors • BBV is normalized • Each element divided by the sum of all elements. • Target BBV • BBV for the entire execution of the program. • Objective • Find a BBV of small duration similar to Target BBV.

  24. Basic Block Vector Difference • Difference between BBVs • Element wise subtraction, sum of absolute values. • A number between 0 and 2. • Manhattan and Euclidean Distance.

  25. Basic Block Difference Graph • Plot of how well each individual sample in the program compares to the target BBV. • For each interval of 100 million instructions, we create a BBV and calculate its difference from target BBV. • Used to • Find the initialization phase • Find the period for the program.

  26. Basic Block Difference Graph • Diagram and explain

  27. Initialization • Initialization is not trivial. • Important to simulate representative sections of code. • Detection of the end of the initialization phase is important. • Initialization Difference Graph • Initial Representative Signal - First quarter of BB Difference graph. • Slide it across BB difference graph. • Difference calculated at each point for first half of BBDG. • When IRS reaches the end of the initialization stage on the BB difference graph, the difference is maximized.

  28. Initialization • Diagram and explain

  29. Period • Period Difference Graph • Period Representative Signal • Part of BBDG, starting from the end of initialization to ¼th the length of program execution. • Slide across half the BBDG. • Distance between the minimum Y-axis points is the period. • Using larger durations of a BBV creates a BBDG that emphasizes the larger periods.

  30. Period • Diagram and explain

  31. Method • SimpleScalar modified. • Output and clear statistics counters every 100 million instructions committed. • Graphed data: • IPC, % RUU Occupancy, Cache Miss Rate etc. • To get the most representative sample of a program at least one full period must be simulated.

  32. Results

  33. Basic Block Similarity Matrix • A phase of a program behavior can be defined as all similar sections of execution regardless of temporal adjacency. • Similarity Matrix • Upper Triangle N X N Matrix, where N is the number of intervals in the program execution. • An entry at (x, y) in the matrix represents Manhattan distance between the BBV at x and BBV at y.

  34. Basic Block Similarity Matrix • IMAGE and explain the image.

  35. Finding Basic Block Similarity • Many intervals of execution are similar to each other. • It makes sense to group them together. • Analogous to clustering.

  36. Clustering • Goal is to divide a set of points into groups such that points within each group are similar to one another by some metric. • This problem arises in other fields such as computer vision, genomics etc. • Two types of clustering algorithms exist • Partitioning • Choose an initial solution then iteratively update to find better solution • Linear Time Complexity • Hierarchical • Divisive or Agglomerative • Quadratic Time Complexity

  37. Phase Finding Algorithm • Generate BBVs with a duration of 1. • Reduce the dimension of the BBVs to 15. • Apply clustering algorithm on the BBVs. • Score the clustering and choose the most suitable.

  38. Random Projection • Curse of Dimensionality • BBV dimensions • Number of executed Basic Blocks. • Could grow to millions. • Dimension Selection • Dimension Reduction • Random Linear Projection.

  39. Clustering Algorithm • K-means algorithm • Iterative optimizing algorithm. • Two repetitive phases that converge. • WORK IN PROGRESS 
