Plantar fasciitis algorithm

Plantar Fasciitis Algorithm

Katie Barta Shannon Lynch

Michael DeDonder Kelci McFarland

Brenda Hozie


  • Plantar fascia

    • The plantar fascia is a thick band of connective tissue that supports the arches of the foot. It absorbs the ground reaction forces from weight-bearing activities and distributes them throughout the foot.

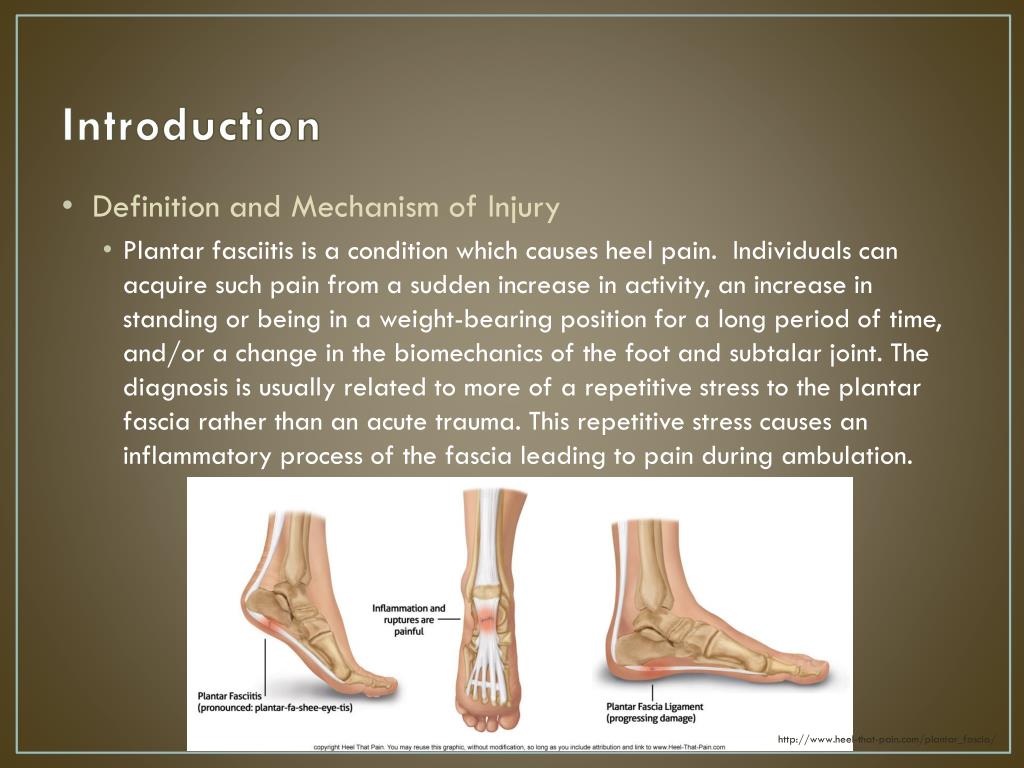

  • Definition and Mechanism of Injury

    • Plantar fasciitis is a condition which causes heel pain. Individuals can acquire such pain from a sudden increase in activity, an increase in standing or being in a weight-bearing position for a long period of time, and/or a change in the biomechanics of the foot and subtalar joint. The diagnosis is usually related to more of a repetitive stress to the plantar fascia rather than an acute trauma. This repetitive stress causes an inflammatory process of the fascia leading to pain during ambulation.


  • Biomechanics/Anatomy

    • Rearfoot valgus

    • High plantar arches

    • Increased longitudinal medial plantar arches

    • Ankle equinous – leads to pronation of rearfoot and midfoot; straining of the plantar fascia

    • Forefoot varus – leads to pronation of rearfoot and midfoot; straining of the plantar fascia

    • Rearfootvarus – leads to rapid and excessive pronation of STJ right after initial contact; causes strain on plantar fascia

    • Pes Plano Valgus– leads to rapid and excessive pronation of STJ right after initial contact; causes strain on plantar fascia

    • Pescavus – leads to each foot striking ground more often; limited pronation of STJ limits pescavus from absorbing GRF

Risk factors who is at risk
Risk Factors – Who is at risk?

  • Age (over 40 yrs)

  • Injury to the plantar fascia from cumulative stress overload

  • Occupational

    • teachers

    • construction workers

    • cooks

    • nursing

    • military

  • Sports Related

    • repetitive strain injury (long distance runners)

    • beginning new running program

    • rapid increase in length or levels of activity

  • Obese (BMI greater than 30)

  • Sedentary

  • Limited ankle dorsiflexion or decreased calf muscle flexibility

  • Flat foot (over pronation)

  • High plantar arches

  • Poor biomechanics (previously discussed) or structural abnormalities

  • Improper shoe selection

Risk factors
Risk Factors

  • How do these reflect which path we choose to take?

    • When considering different causes of heel pain activity level, type of activity and in some cases age will be a factor. Biomechanics can also be a contributing factor to plantar fasciitis, but should also be considered for other diagnoses such as Achilles tendinopathy, bursitis, or nerve pathologies.

Signs and symptoms
Signs and Symptoms

  • Pain on medial undersurface of the heel

  • Pain in the morning when stepping out of bed and taking first steps of the day

  • Stabbing pain

  • Sensation of tightness and/or tenderness along arch of foot

  • Pain with prolonged standing

  • Pain when standing up after sitting for a long period of time

  • Pain after an intense weight-bearing activity such as running

  • Pain when climbing stairs

  • Pain when walking barefoot or in shoes with poor support

  • Symptoms may decrease during the day as the body warms up, but will worsen again at the end of the day due to extended walking.

Tests positive and negative signs
Tests – Positive and Negative Signs

  • Plantar fasciitis does not have a specific test that can rule in the diagnosis. The following list, along with signs, symptoms, and mechanism of injury, can lead to the conclusion of plantar fasciitis diagnosis versus some other diagnosis.

  • Positive tender to palpation

  • Positive dorsiflexion, toe extension PROM reproduction of pain

  • Potential change in navicular drop test – biomechanical change

  • Negative radiographs

  • Negative Morton’s neuroma test

  • Negative Thomas test

  • Negative neural test

  • Limited ankle ROM

  • Abnormal foot 4 points of normalcy

Plantar fasciitis algorithm1

Heel Pain

Plantar Fasciitis Algorithm


No Not plantar fasciitis

Neural PainNot Plantar fasciitis

Sharp ache

Nerve Entrapment

Location of pain


CalcanealNot plantar fasciitis


Achilles tendinopathy



MidfootNot plantar fasciitis

No increased pain with weight-bearing

Tarsal tunnel

Peroneal teninopathy

Increased pain with weight-bearing

Cancer – Refer outNot plantar fasciitis

Pain with prolonged weight-bearing

Pain at initial weight-bearing

Calcaneal stress fracture

Plantar fasciitis: Including pain with passive toe extension, limited ankle dorsiflexion

Take home message
Take home message

  • The best way to diagnosis plantar fasciitis is to determine the location and type of pain the patient is experiencing. Once those are considered the algorithm can be used to rule in/out plantar fasciitis. Remember, however, to use all of the subjective and objective findings to aid in the diagnosis of plantar fasciitis versus other foot/ankle pathologies.


  • Aldridge, T. (2004). Diagnosing Heel Pain in Adults Title, 70(2).

  • American Physical Therapy Association. (2013). Physical Therapist's Guide to Plantar Fasciitis. Retrieved April 2013, from Move Forward:

  • Cole, C., Seto, C., & Gazewood, J. (2005). Plantar fasciitis: evidence-based review of diagnosis and therapy. American family physician, 72(11), 2237–42. Retrieved from

  • Dubin, J. (2007). Evidence Based Treatment for Plantar Fasciitis. Retrieved April 2013, from

  • Dutton, M. (2004). Orthopaedic: Examination, evaluation, & intervention. New York, NY: McGraw-Hill.

  • Mayo Clinic. (2013). Risk Factors. Retrieved April 2013, from Plantar Fasciitis:

  • Orchard, J. (2012). Plantar fasciitis. Bmj, 345(oct10 1), e6603–e6603. doi:10.1136/bmj.e6603

  • Ribeiro, A. P., Trombini-Souza, F., Tessutti, V., Rodrigues Lima, F., Sacco, I. D. C. N., & João, S. M. A. (2011). Rearfoot alignment and medial longitudinal arch configurations of runners with symptoms and histories of plantar fasciitis. Clinics, 66(6), 1027–1033. doi:10.1590/S1807-59322011000600018

  • Tu, P., & Bytomski, J. R. (2011). Diagnosis of heel pain. American family physician, 84(8), 909–16. Retrieved from
