1 / 5

제 목

Technical Report. 정비교육팀. 제 목. 차 종. 디젤엔진 진공회로도. 디젤 터보 엔진. ▶ 진공회로 : HUBER EGR, BTRA(A/T, M/T) 사양. ▶ 진공회로 : EGR, BTRA(A/T, M/T) 사양. ▶ 진공회로 : EGR, MB A/T 사양. ▶ 렉스턴 K 2004 EGR 장착차량 진공회로. ▶ 코란도 / 무쏘 / 무쏘스포츠 K 2004 EGR 장착차량 진공회로.

annora
Download Presentation

제 목

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

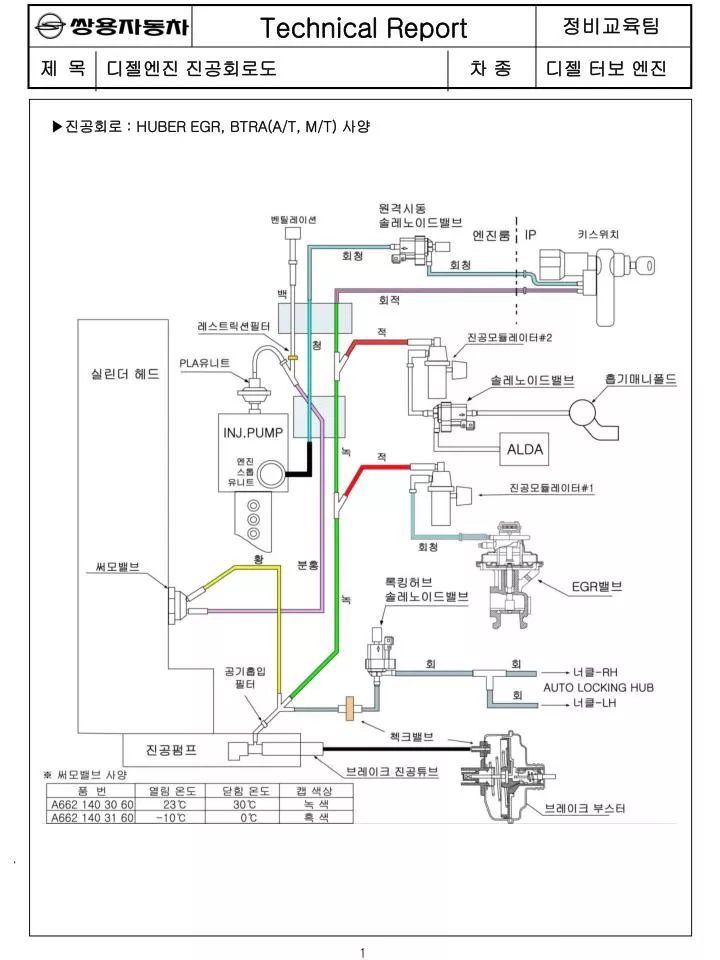

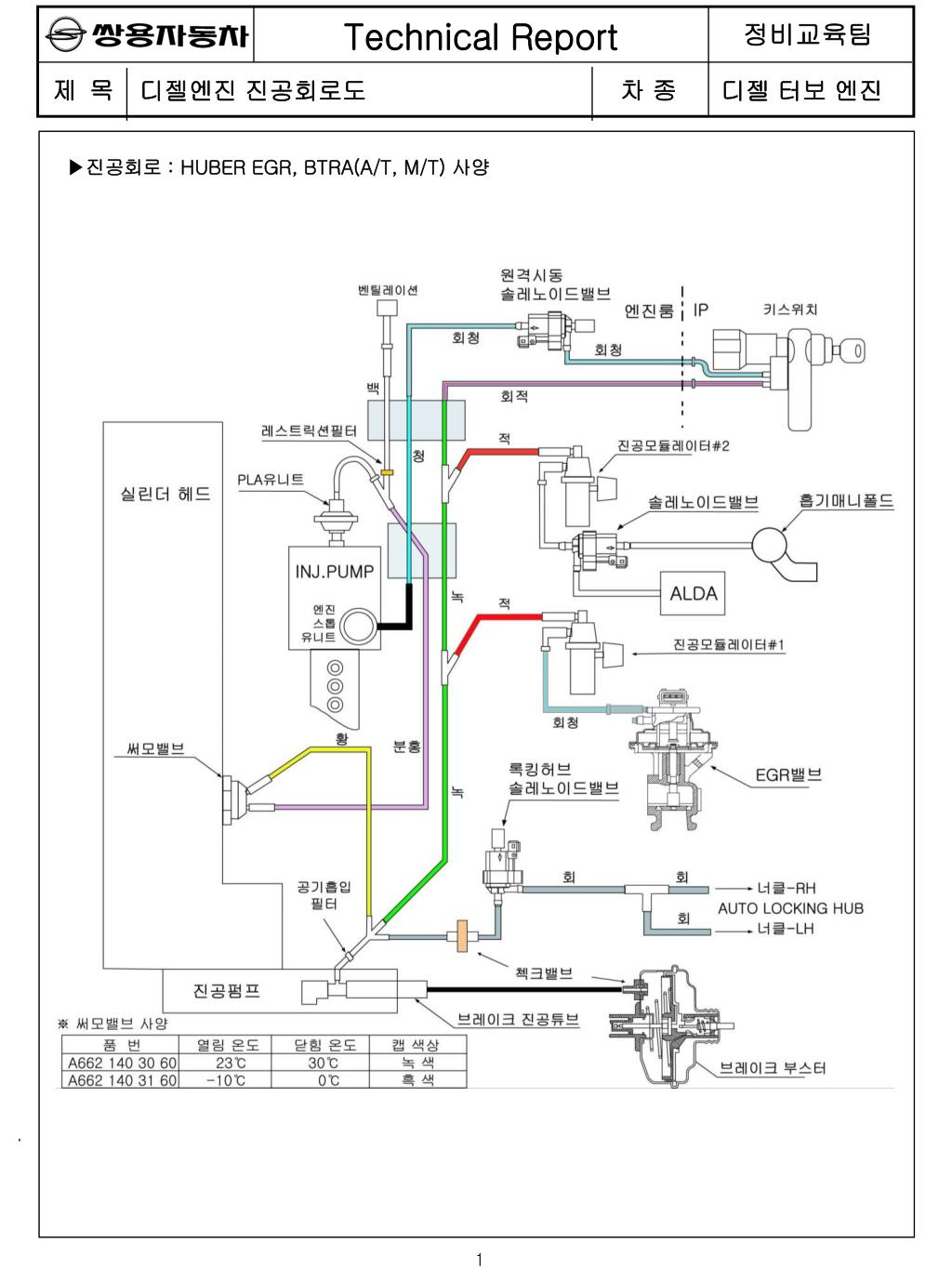

  1. Technical Report 정비교육팀 제 목 차 종 디젤엔진 진공회로도 디젤 터보 엔진 ▶진공회로 : HUBER EGR, BTRA(A/T, M/T) 사양

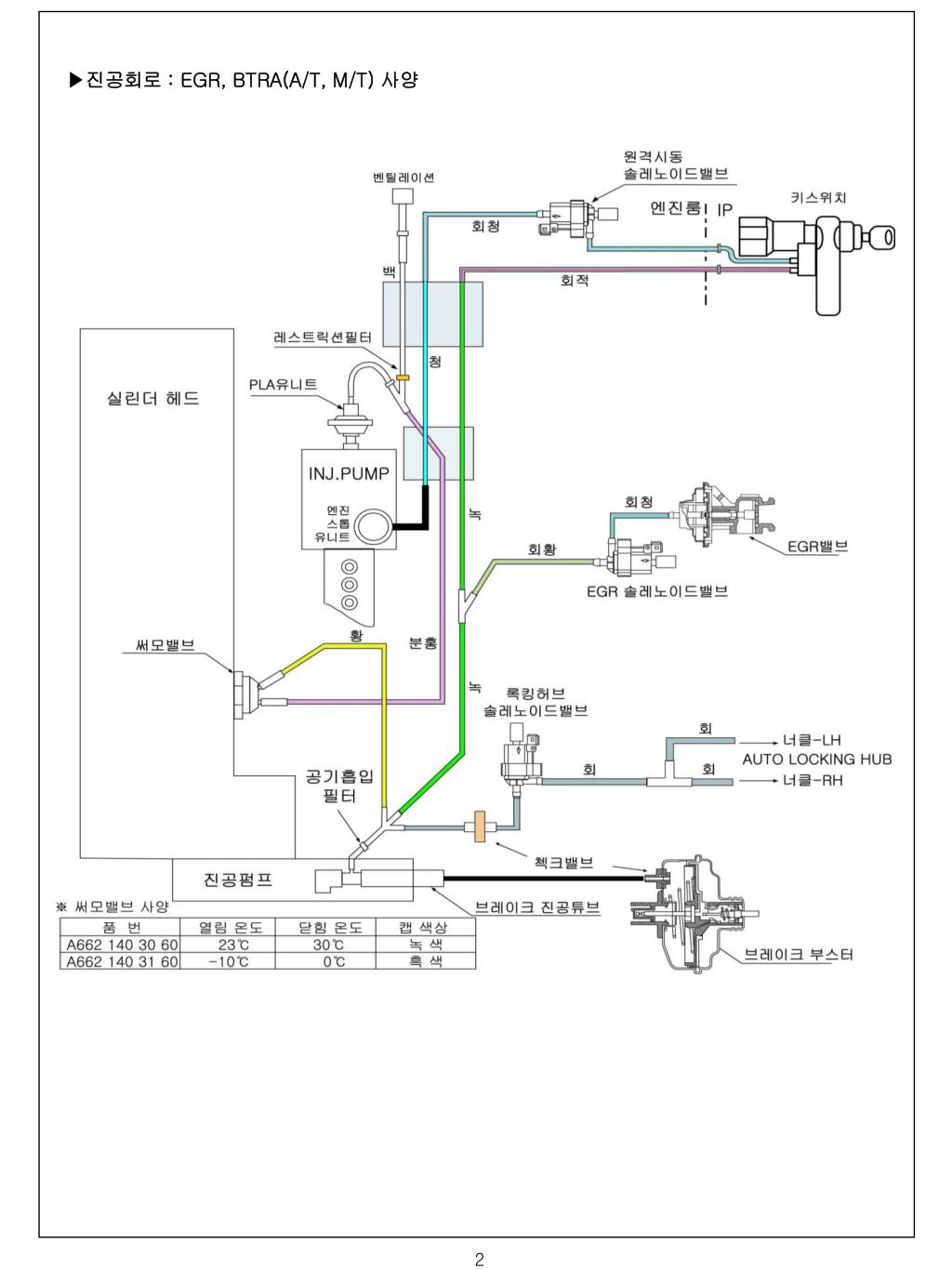

  2. ▶진공회로 : EGR, BTRA(A/T, M/T) 사양

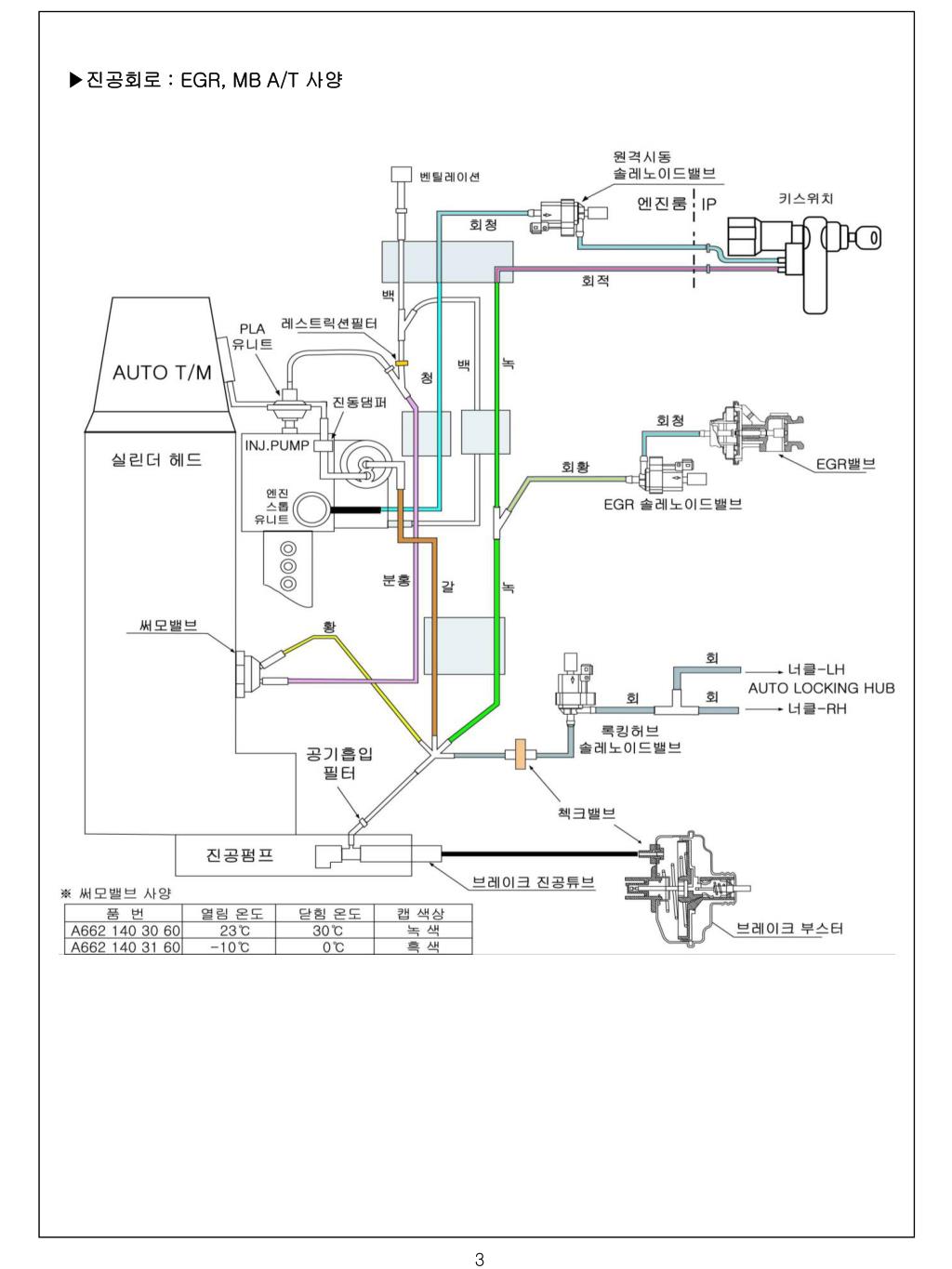

  3. ▶진공회로 : EGR, MB A/T 사양

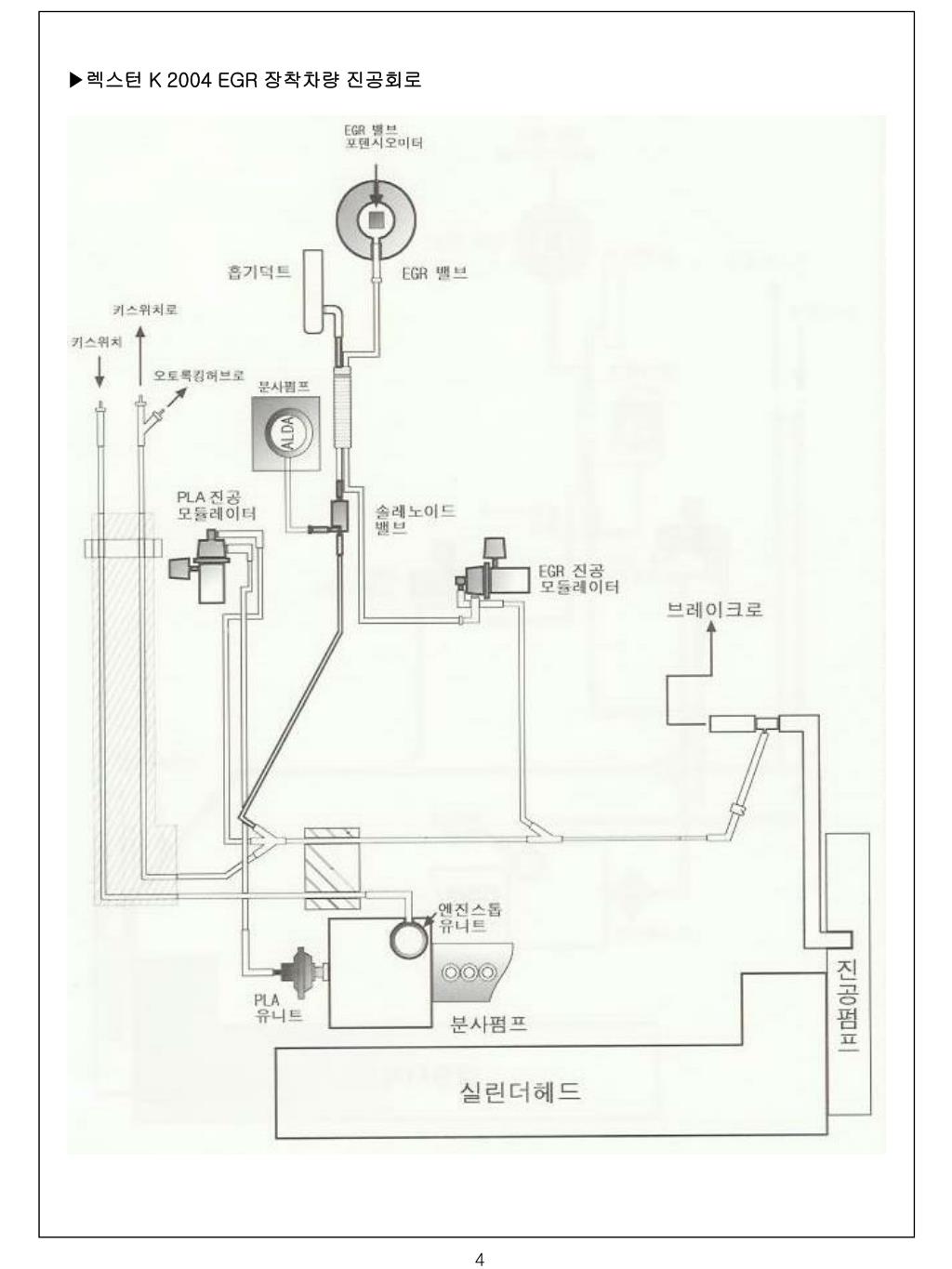

  4. ▶렉스턴 K 2004 EGR 장착차량 진공회로

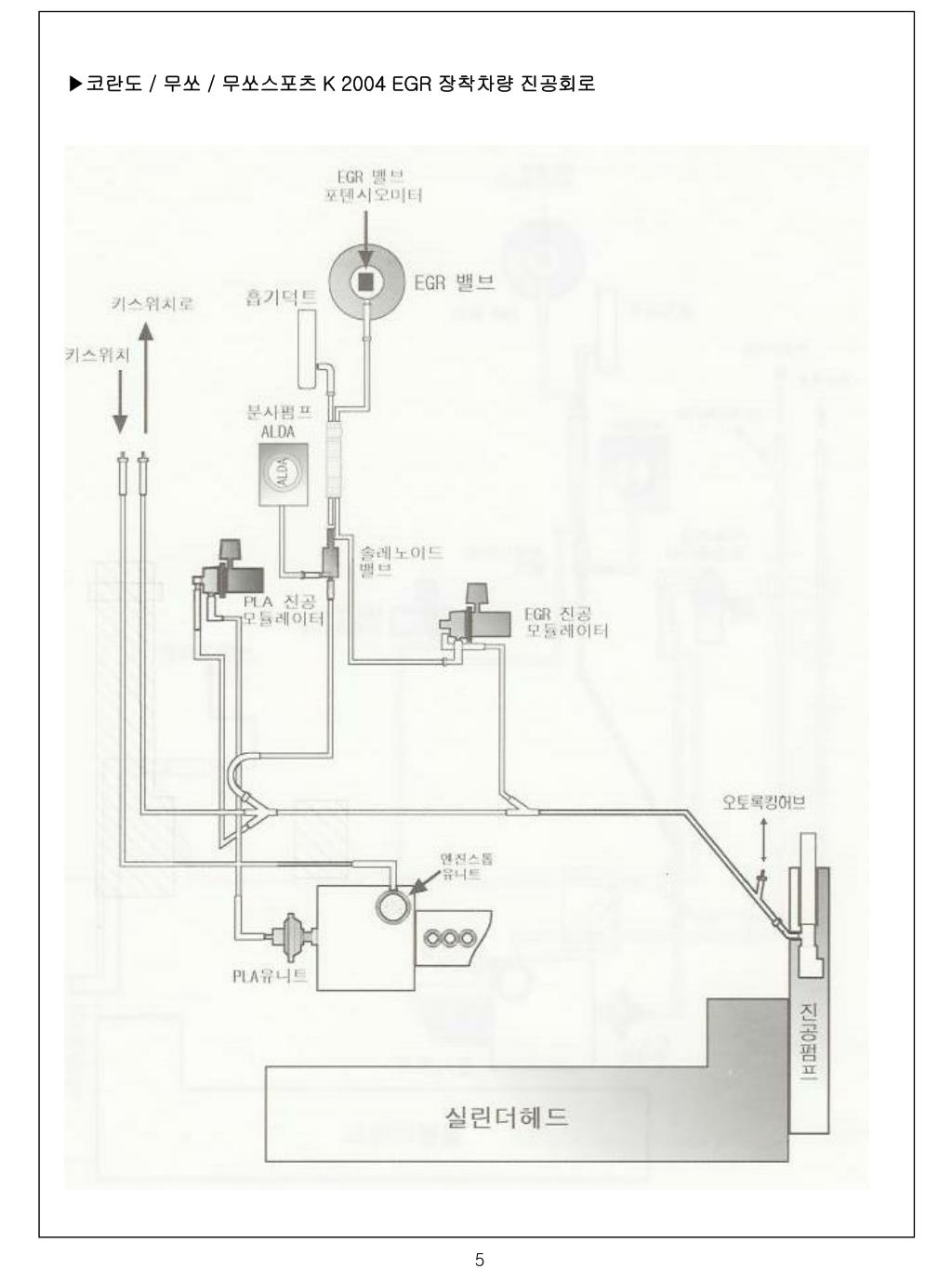

  5. ▶코란도 / 무쏘 / 무쏘스포츠 K 2004 EGR 장착차량 진공회로
