  1. VS-606 V7 COMPACT VECTOR - CONTROLLED INVERTER FOR GENERAL USE 230V (Single-Phase) .1Kw ~ 3.7Kw (.13HP ~ 5HP) 230V (Three-Phase) .1Kw ~ 7.5Kw (.13HP ~ 10HP) 460V (Three-Phase) .2Kw ~ 7.5Kw (.25HP ~ 10HP)

  2. VS-606 V7 Objective • Define the IDEAL Characteristics of a Drive • Define Features and Functions • Cost Comparison • Benefits and Advantages • Target Application

  3. VS-606 V7 Customer Requirements • Full Feature • Cost Reduction • Price • Space Savings • Optimum Motor/Drive Operation • Optimum Global Enclosure Design • “World Class” Quality

  4. VS-606 V7 Customer Requirements • Global Construction • Customization • Wide HP Range • Full Line of Network Options

  5. VS-606 V7 Design Features • HP Range • 230V, 1 Ph, 1/8 to 5HP • 230V, 3 Ph, 1/8 to 20 HP • 460V, 3 Ph, 1/4 to 20HP • Output Frequency - 400Hz • Speed Regulation: • V/Hz w/Slip Compensation - +/- 0.5% to 1% • Open Loop Vector Control - +/-0.2%

  6. VS-606 V7 Design Features • Digital Operator with analog speed pot • 4 Character 7 Segment LED Display • Copy Keypad Function • RJ-11 Style Connector for Remote Mounting • Digital Inputs - Qty. 7 • 7 multi-function logic inputs • 24 Vdc Control Logic compatible with sourcing or sinking outputs (PNP or NPN)

  7. VS-606 V7 Design Features • Digital Pulse Train Input • Analog Inputs - Qty. 2 • Digital Operator Speed Pot • 0-10v, 4-20mA, or 0-20mA input terminal • Digital Outputs - Qty. 2 • 1 multi-function relay - Form C • 2 programmable open collector outputs

  8. VS-606 V7 Design Features • Analog/Pulse Output Monitor • Analog Output: 0-10vdc • Frequency Output: 1f, 6f, 12f, 24f, 36f selectable • Monitor Functions: • Output Frequency • Output Current • Torque • Built-in Braking Transistor

  9. VS-606 V7 Design Features • RS-485/422 Serial Communication Port Standard - Control up to 32 Drives • Future Available Networks: • DeviceNet • Profibus-DP • Interbus-S • Modbus Plus • SDS • Others

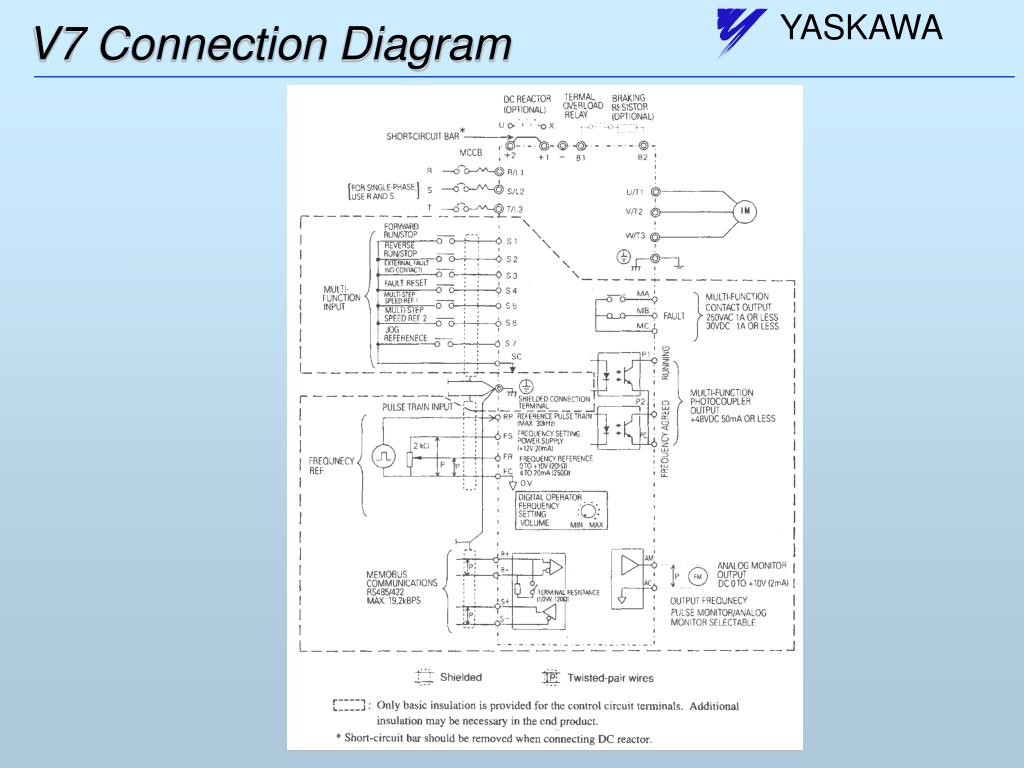

  10. V7 Connection Diagram

  11. VS-606 V7 Program Features • Approx. 200 Programming Parameters • V/Hz or Open Loop Vector Control • 16 Preset Speeds plus Jog • Energy Savings • PID Control with Loss of Feedback

  12. VS-606 V7 Program Features • Cooling fan controlled by • Power ON • Run/Stop Command • Momentary Power Loss Ride-Thru • 3 Skip Frequencies • Elapse Timer Function • Auto Tuning of Primary Resistance

  13. VS-606 V7 Protective Features • UL Recognized Electronic Motor Overload • Current limit • Stall prevention during; • accel, • decel, • and run • DC Bus Charge Indicator

  14. VS-606 V7 Protective Features • Motor and Drive overload • Instantaneous Overcurrent • Short Circuit • Undervoltage and Overvoltage • Heatsink Overtemperature • Ground Fault Protection • Over/Under torque

  15. VS-606 V7 Options • Enclosures • NEMA 1 • NEMA 12 & NEMA 4 (Planned) • Dynamic Braking Resistor • External DC Link Reactor • Future Serial Communications

  16. VS-606 V7 Cost Comparison • VS-606 V7 comparison versus; • VS mini • VS-606 PC3

  17. VS-606 V7 Cost Comparison

  18. VS-606 V7 Cost Comparison

  19. VS-606 V7 Our Strengths

  20. VS-606 V7 Our Strengths

  21. VS-606 V7 Our Strengths

  22. VS-606 V7 Our Strengths

  23. VS-606 V7 Key Benefits • Globally Designed AC Drive • Global package/construction • CE Mark and UL/cUL Recognized • Compact Size • Small package w/o sacrificing noise • Smaller than previous generations • Space Saving Design

  24. V7-606 V7 Key Benefits • Cost Savings • Quality • Proven Power Section Design (Mature) • Mean Time Between Failure (MBTF) exceeds 28 years

  25. VS-606 V7 Key Benefits • Custom Capabilities • Custom Programming Area* • Special Application Area* • Customer Specified Drive* • Keep Customer Current w/ latest software via fast download program * Available in the future

  26. VS-606 V7 Key Benefits • Network-ability • Open Architecture support • Network Interfaces • Full Line of Network cards (in the near future) • Efficient Control Method • Open Loop Vector • Optimized Current Control

  27. VS-606 V7 Target Applications • Textile Machines • Conveyors • Machine Tool • Grinders • Material Handling Equipment • Fans and Pumps • Mixers
