Models of Security

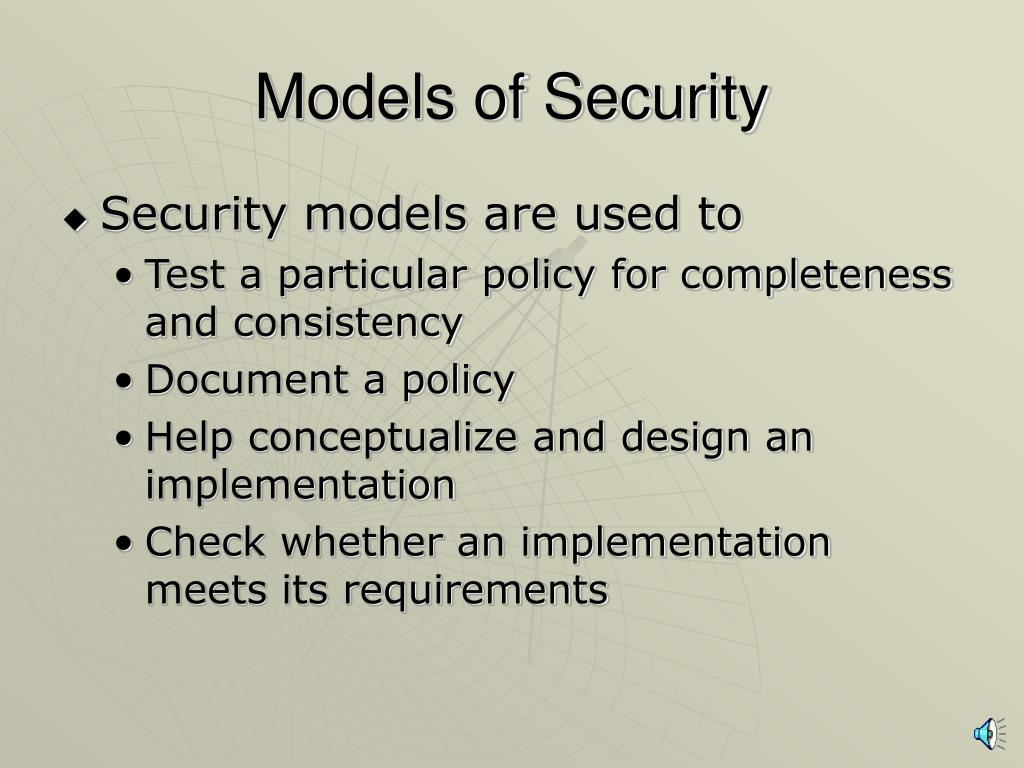

1. Models of Security • Security models are used to • Test a particular policy for completeness and consistency • Document a policy • Help conceptualize and design an implementation • Check whether an implementation meets its requirements

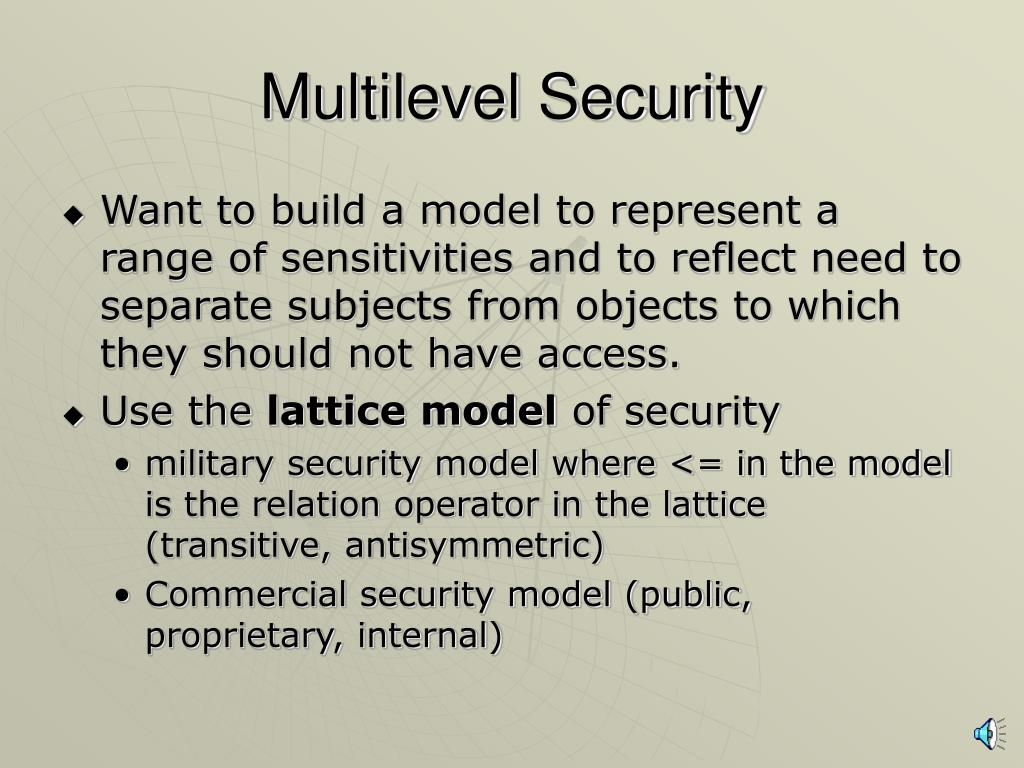

2. Multilevel Security • Want to build a model to represent a range of sensitivities and to reflect need to separate subjects from objects to which they should not have access. • Use the lattice model of security • military security model where <= in the model is the relation operator in the lattice (transitive, antisymmetric) • Commercial security model (public, proprietary, internal)

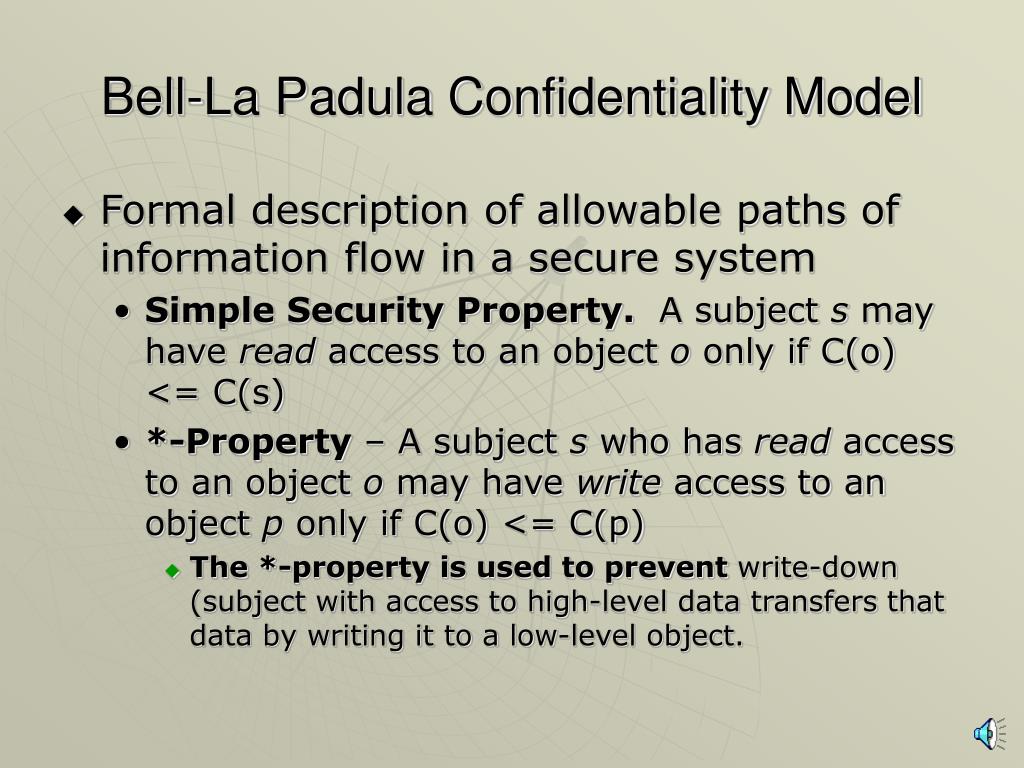

3. Bell-La Padula Confidentiality Model • Formal description of allowable paths of information flow in a secure system • Simple Security Property. A subject s may have read access to an object o only if C(o) <= C(s) • *-Property – A subject s who has read access to an object o may have write access to an object p only if C(o) <= C(p) • The *-property is used to prevent write-down (subject with access to high-level data transfers that data by writing it to a low-level object.

4. Bibb Integrity Model • Simple Integrity Property. Subject s can modify (have write access to) object o only if I(s) >= I(o) • Integrity *-Property. If subject s has read access to object o with integrity level I(o), s can have write access to object p only if I(o) >= I(p)

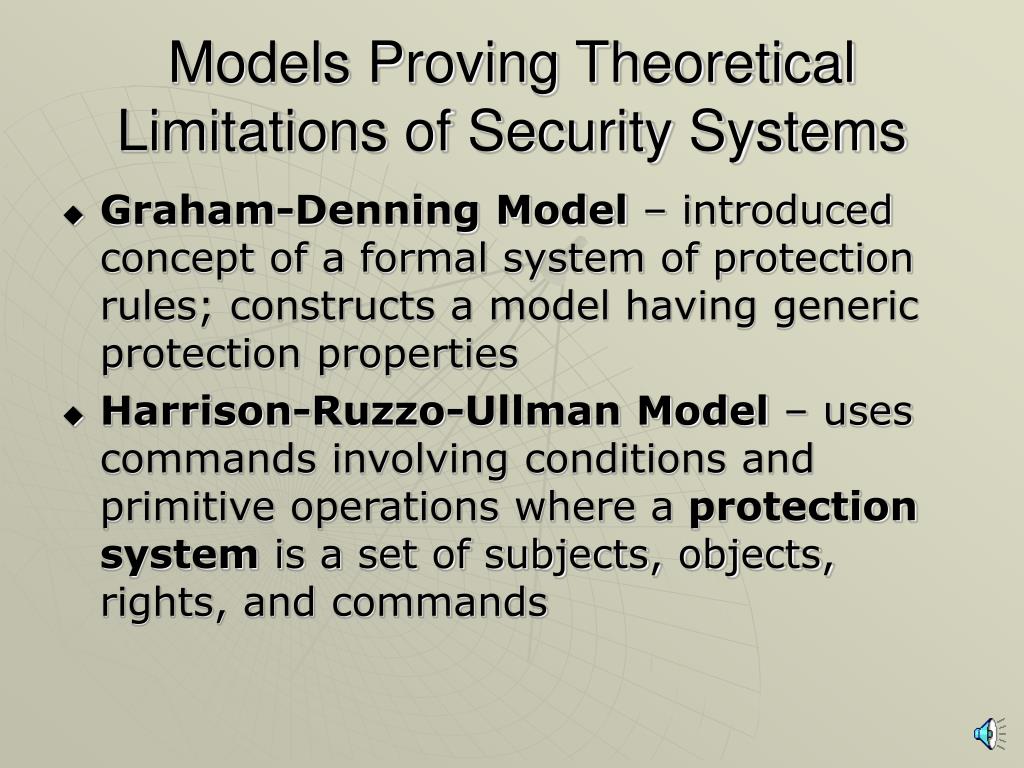

5. Models Proving Theoretical Limitations of Security Systems • Graham-Denning Model – introduced concept of a formal system of protection rules; constructs a model having generic protection properties • Harrison-Ruzzo-Ullman Model – uses commands involving conditions and primitive operations where a protection system is a set of subjects, objects, rights, and commands

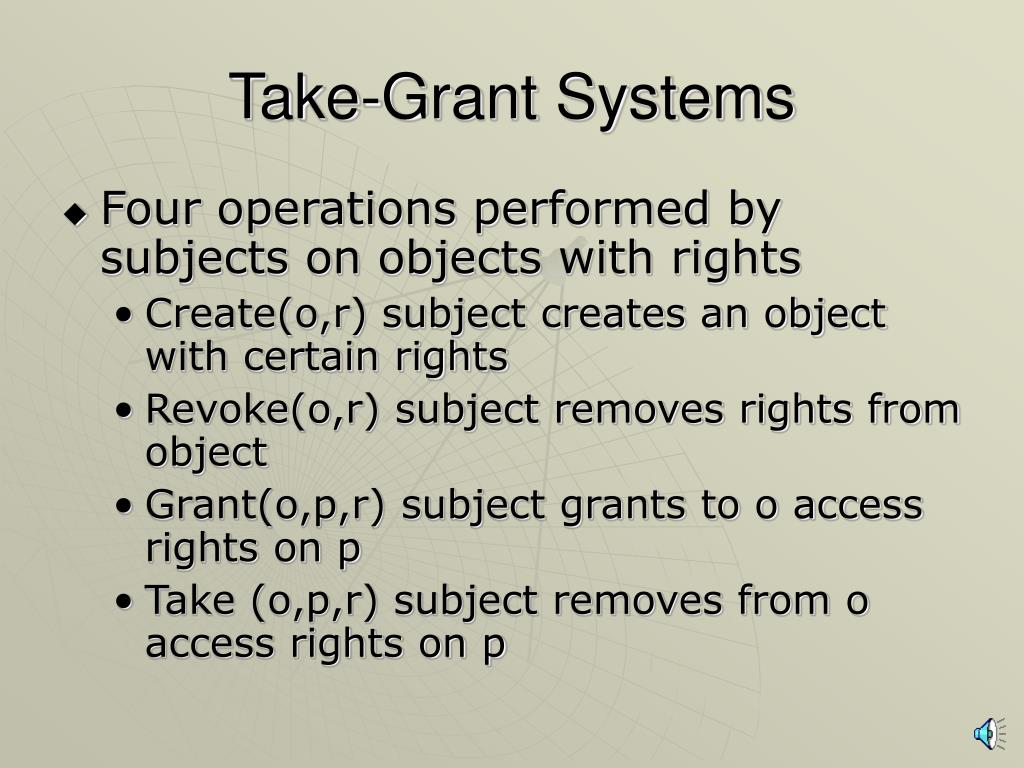

6. Take-Grant Systems • Four operations performed by subjects on objects with rights • Create(o,r) subject creates an object with certain rights • Revoke(o,r) subject removes rights from object • Grant(o,p,r) subject grants to o access rights on p • Take (o,p,r) subject removes from o access rights on p

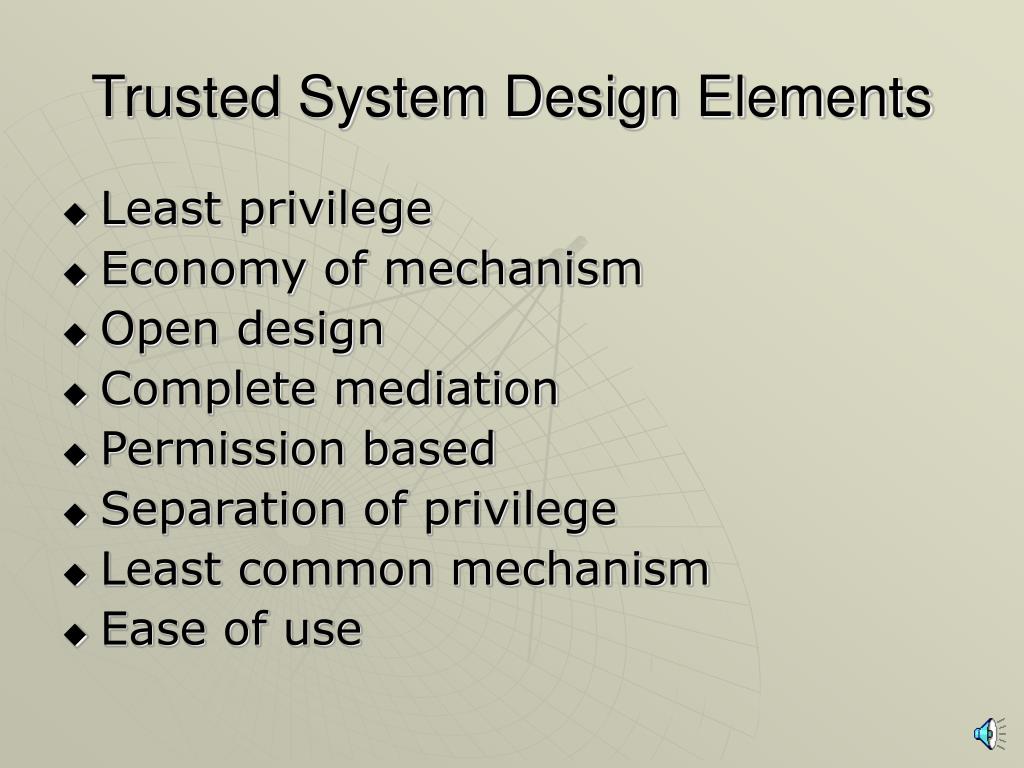

7. Trusted System Design Elements • Least privilege • Economy of mechanism • Open design • Complete mediation • Permission based • Separation of privilege • Least common mechanism • Ease of use

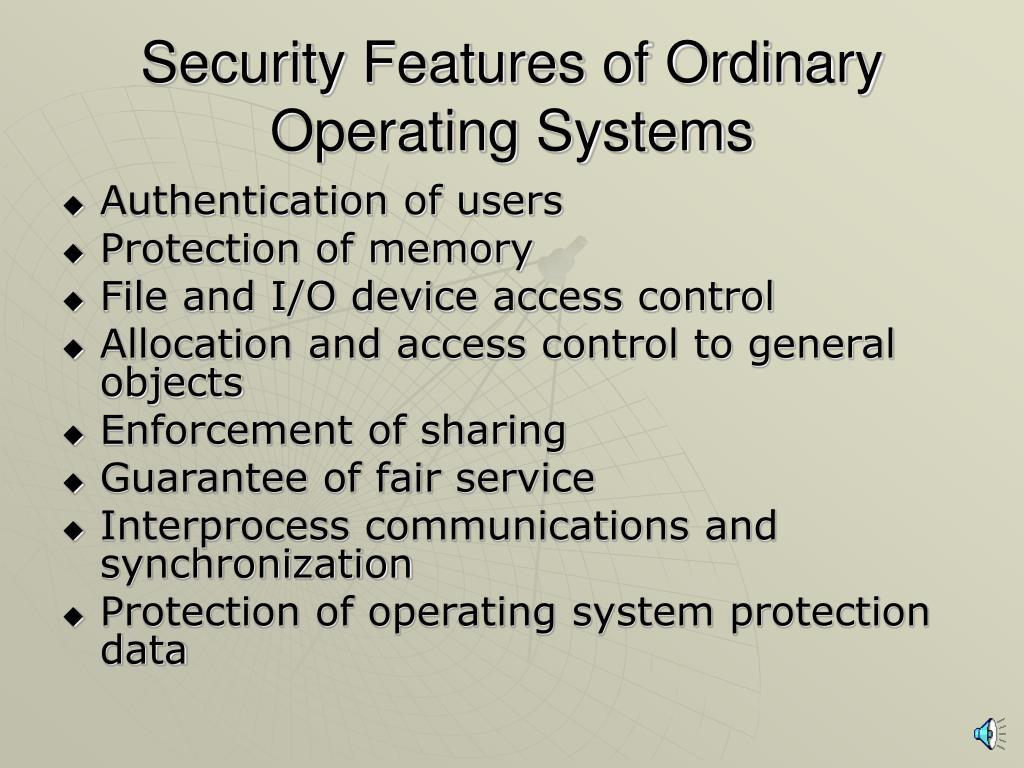

8. Security Features of Ordinary Operating Systems • Authentication of users • Protection of memory • File and I/O device access control • Allocation and access control to general objects • Enforcement of sharing • Guarantee of fair service • Interprocess communications and synchronization • Protection of operating system protection data

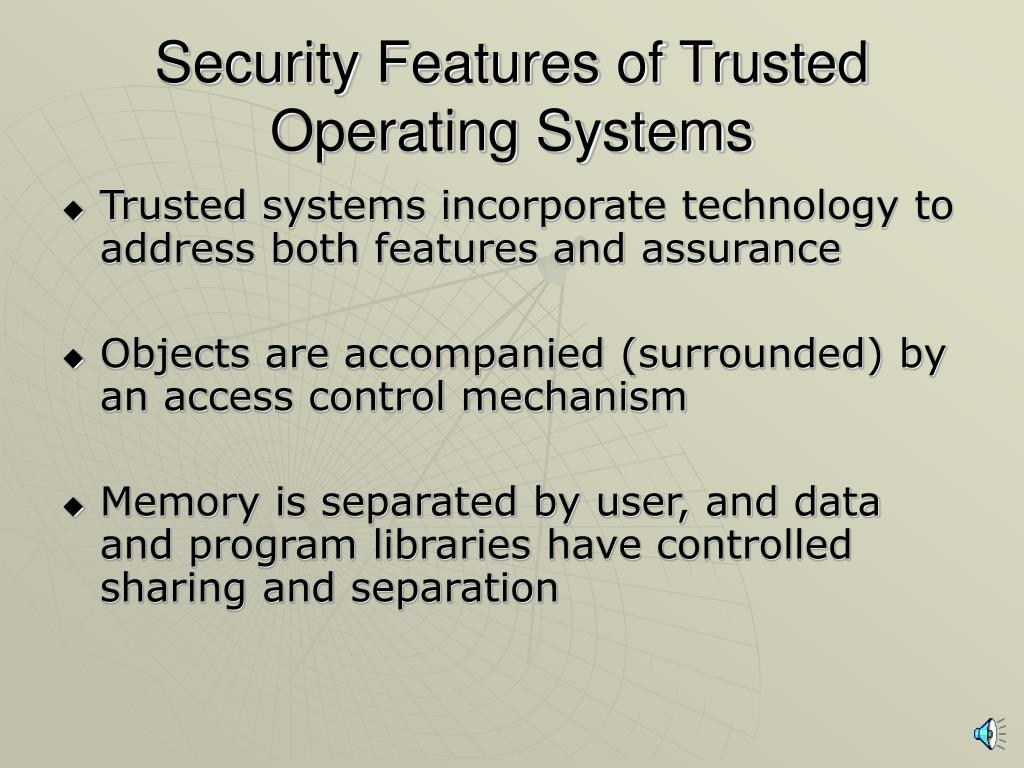

9. Security Features of Trusted Operating Systems • Trusted systems incorporate technology to address both features and assurance • Objects are accompanied (surrounded) by an access control mechanism • Memory is separated by user, and data and program libraries have controlled sharing and separation

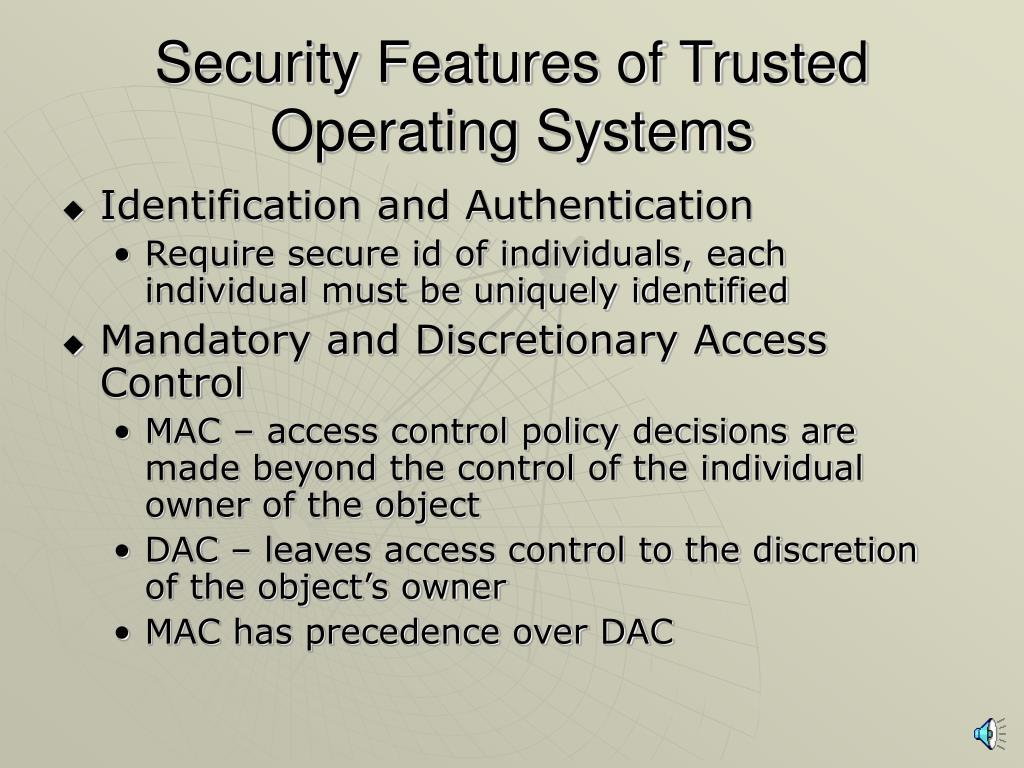

10. Security Features of Trusted Operating Systems • Identification and Authentication • Require secure id of individuals, each individual must be uniquely identified • Mandatory and Discretionary Access Control • MAC – access control policy decisions are made beyond the control of the individual owner of the object • DAC – leaves access control to the discretion of the object’s owner • MAC has precedence over DAC

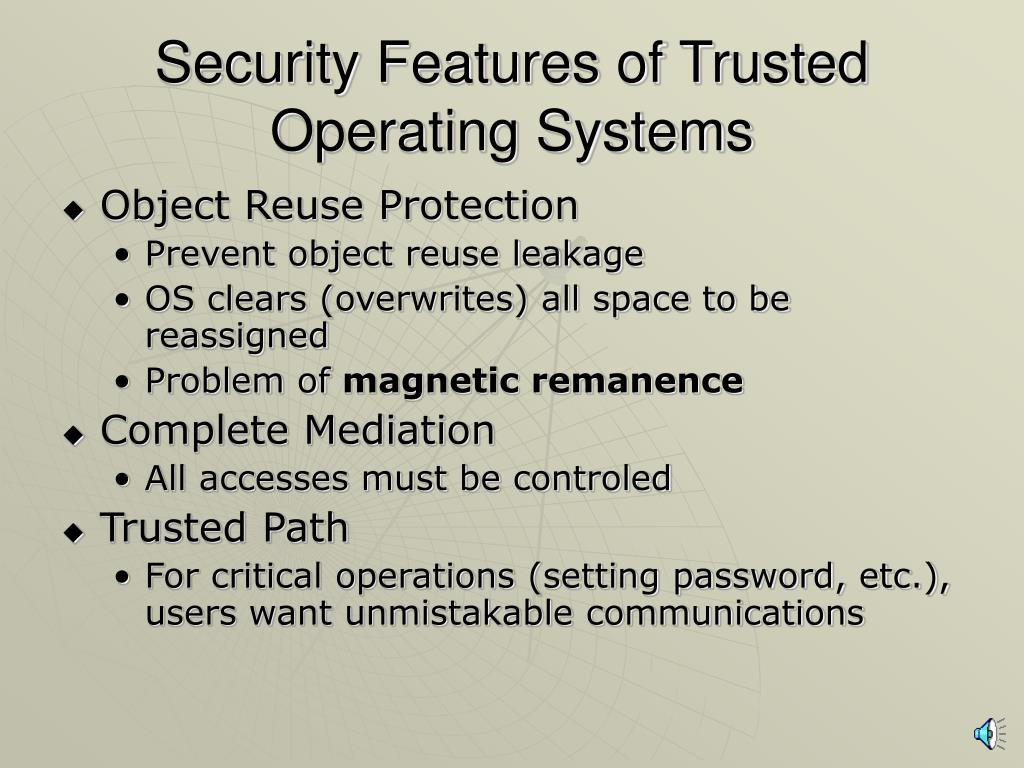

11. Security Features of Trusted Operating Systems • Object Reuse Protection • Prevent object reuse leakage • OS clears (overwrites) all space to be reassigned • Problem of magnetic remanence • Complete Mediation • All accesses must be controled • Trusted Path • For critical operations (setting password, etc.), users want unmistakable communications

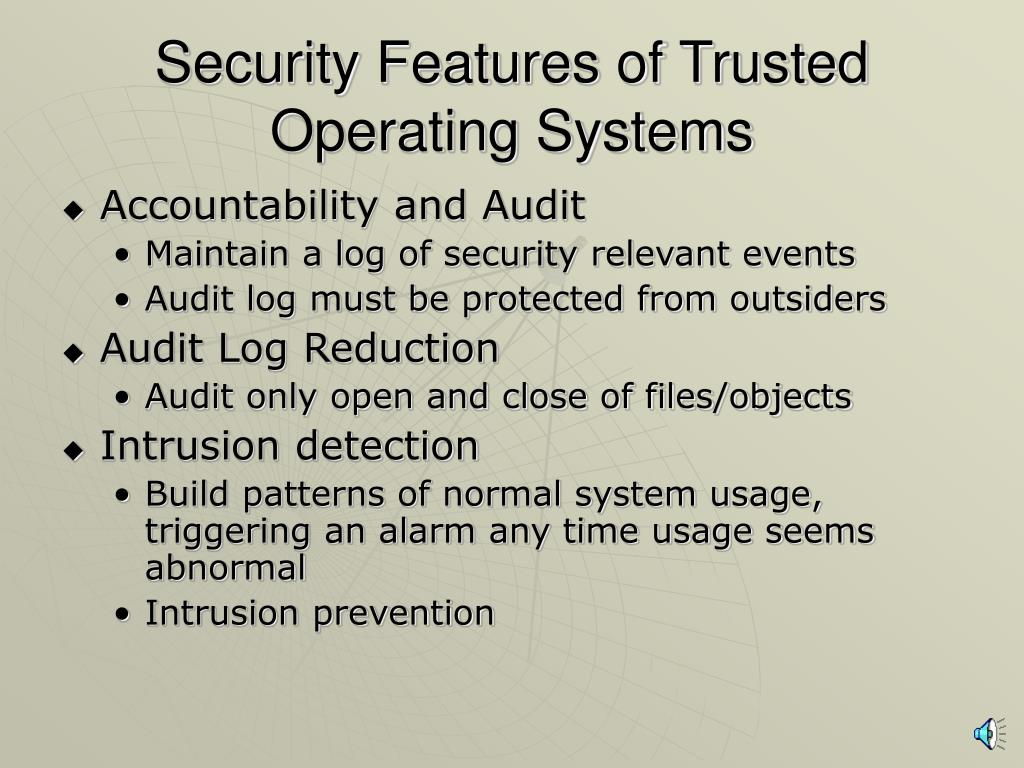

12. Security Features of Trusted Operating Systems • Accountability and Audit • Maintain a log of security relevant events • Audit log must be protected from outsiders • Audit Log Reduction • Audit only open and close of files/objects • Intrusion detection • Build patterns of normal system usage, triggering an alarm any time usage seems abnormal • Intrusion prevention

13. Kernelized Design • Kernel – part of OS that performs lowest-level functions • Synchronization, interprocess communications, message passing, interrupt handling • Security kernel – responsible for enforcing security mechanism for entire OS; provides interface among the hardware, OS, and other parts of computer system
