  1. The Space Density of Compton Thick AGN Erin Bonning (Yale) On behalf of Ezequiel Treister (ESO) Meg Urry (Yale) Shanil Virani (Yale) and others

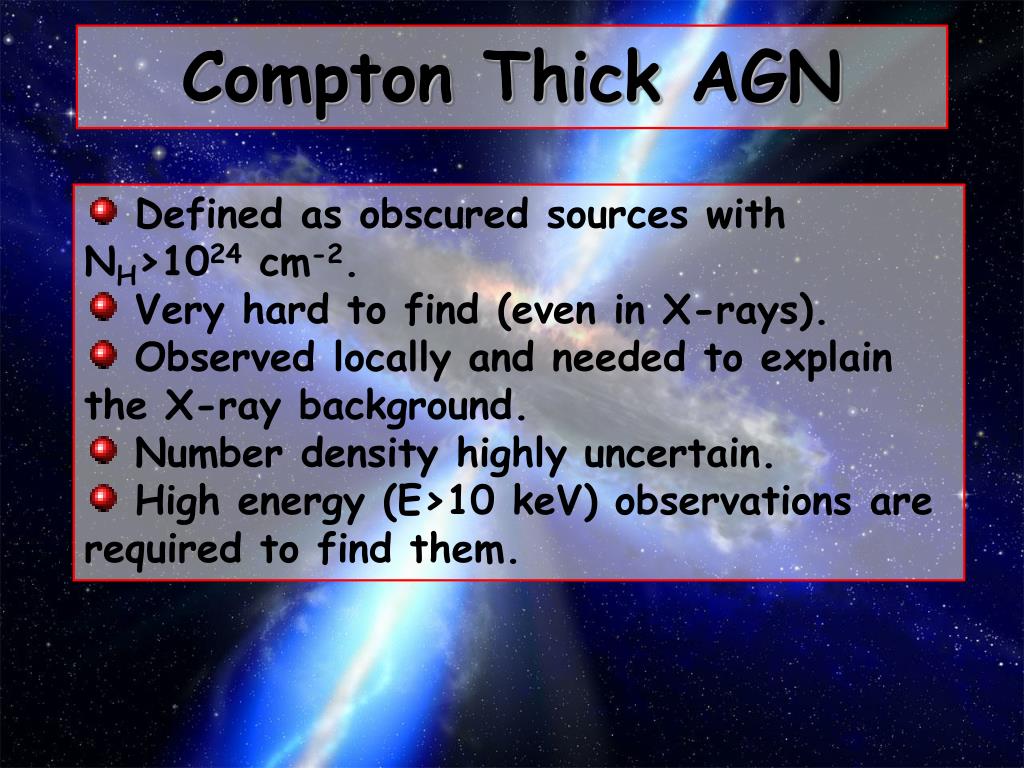

  2. Compton Thick AGN • Defined as obscured sources with NH>1024 cm-2. • Very hard to find (even in X-rays). • Observed locally and needed to explain the X-ray background. • Number density highly uncertain. • High energy (E>10 keV) observations are required to find them.

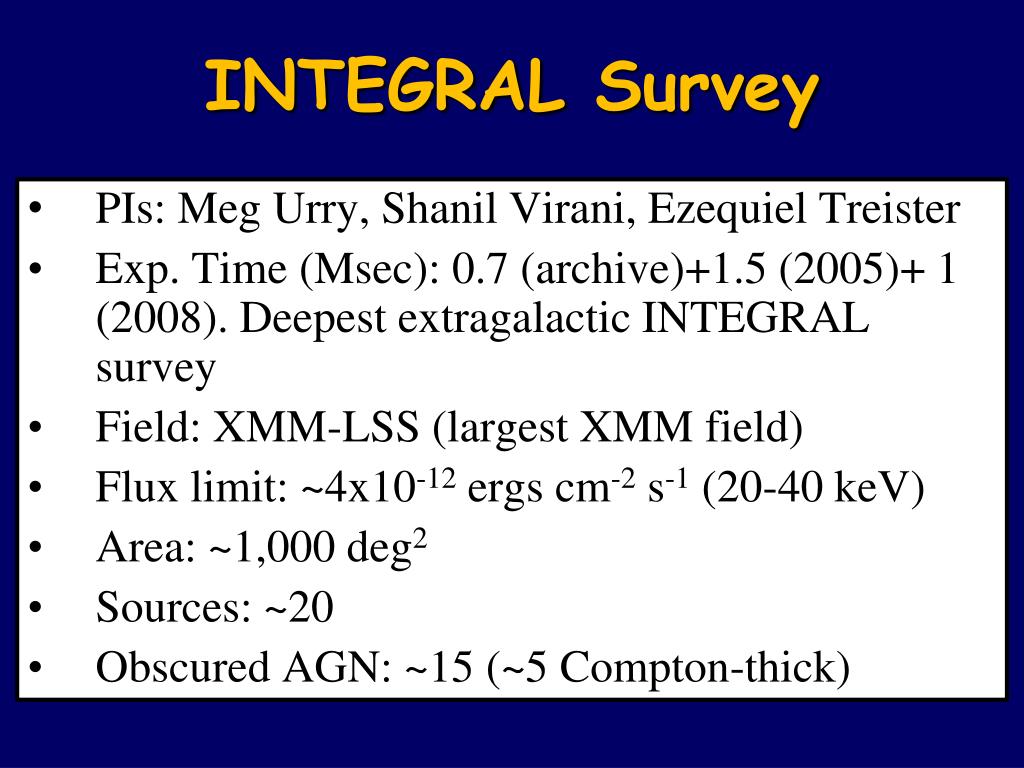

  3. INTEGRAL Survey • PIs: MegUrry, ShanilVirani, Ezequiel Treister • Exp. Time (Msec): 0.7 (archive)+1.5 (2005)+ 1 (2008). Deepestextragalactic INTEGRAL survey • Field: XMM-LSS (largestXMM field) • Flux limit: ~4x10-12ergs cm-2 s-1(20-40 keV) • Area: ~1,000 deg2 • Sources: ~20 • Obscured AGN: ~15 (~5 Compton-thick)

  4. INTEGRAL Mosaic (2.2 Ms) Significance Image, 20-50 keV

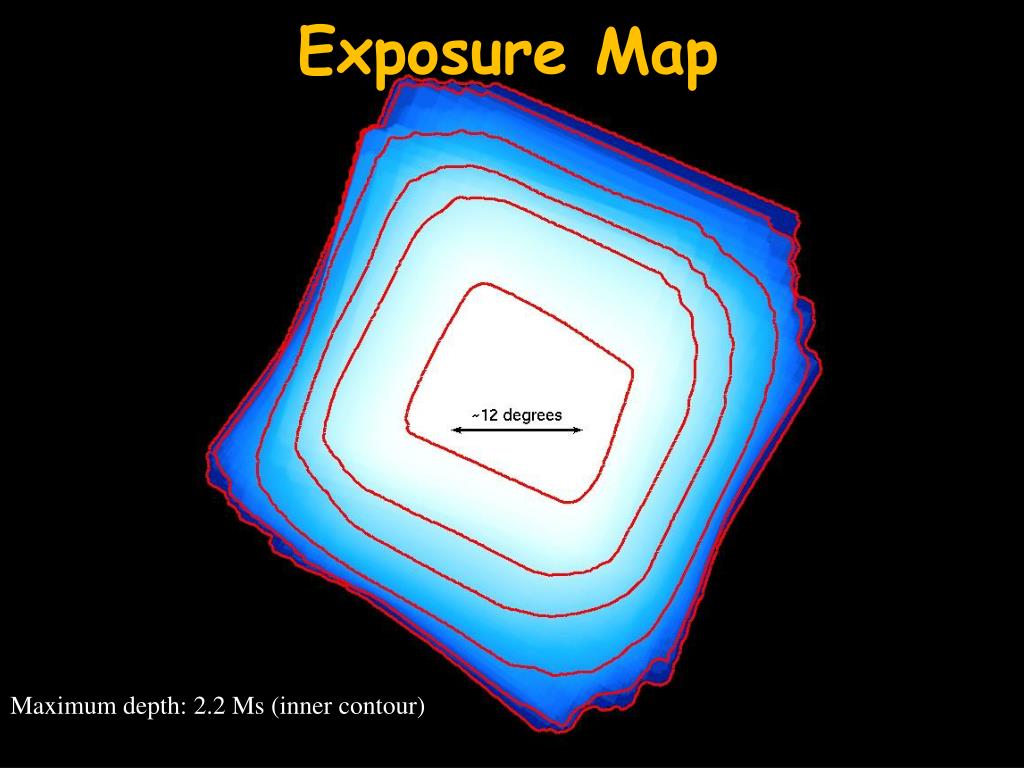

  5. Exposure Map Maximum depth: 2.2 Ms (inner contour)

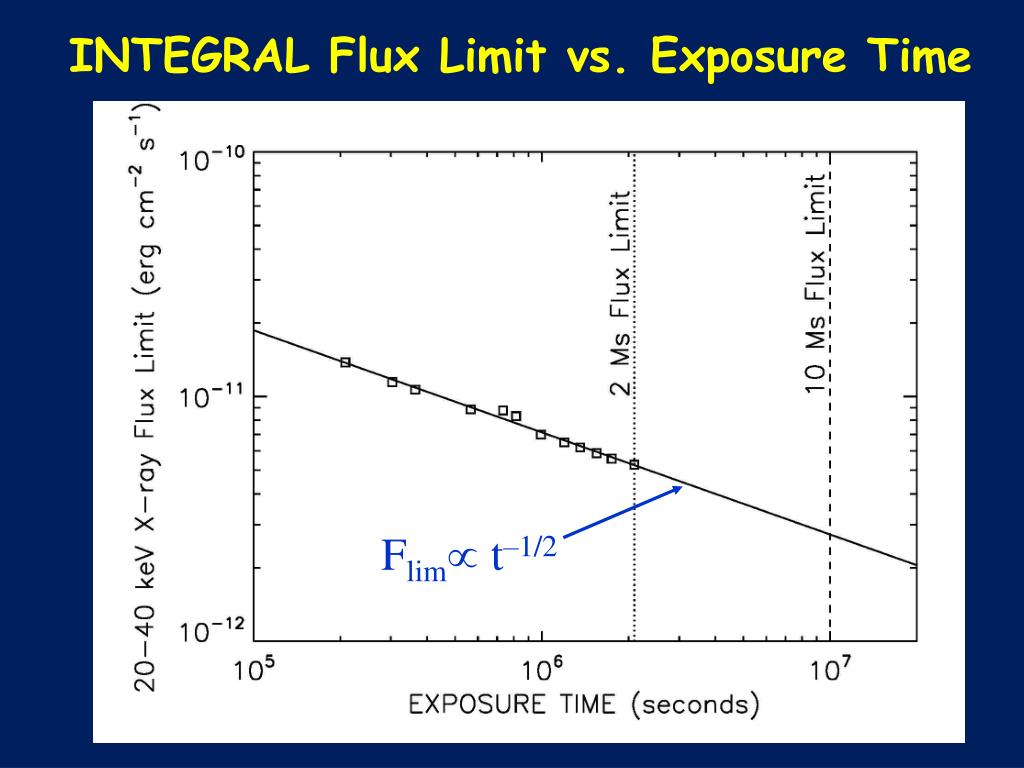

  6. INTEGRAL Flux Limit vs. Exposure Time Flim t–1/2

  7. MCG-02-08-014 INTEGRAL Mosaic (2.2 Ms) Significance Image, 20-50 keV

  8. MCG-02-08-014 • z=0.0168 • Optical class: Galaxy • IR source (IRAS) • Radio source (NVSS) • Narrow line AGN • (based on OIII emission) • No soft X-rays (ROSAT) • Good CT AGN candidate

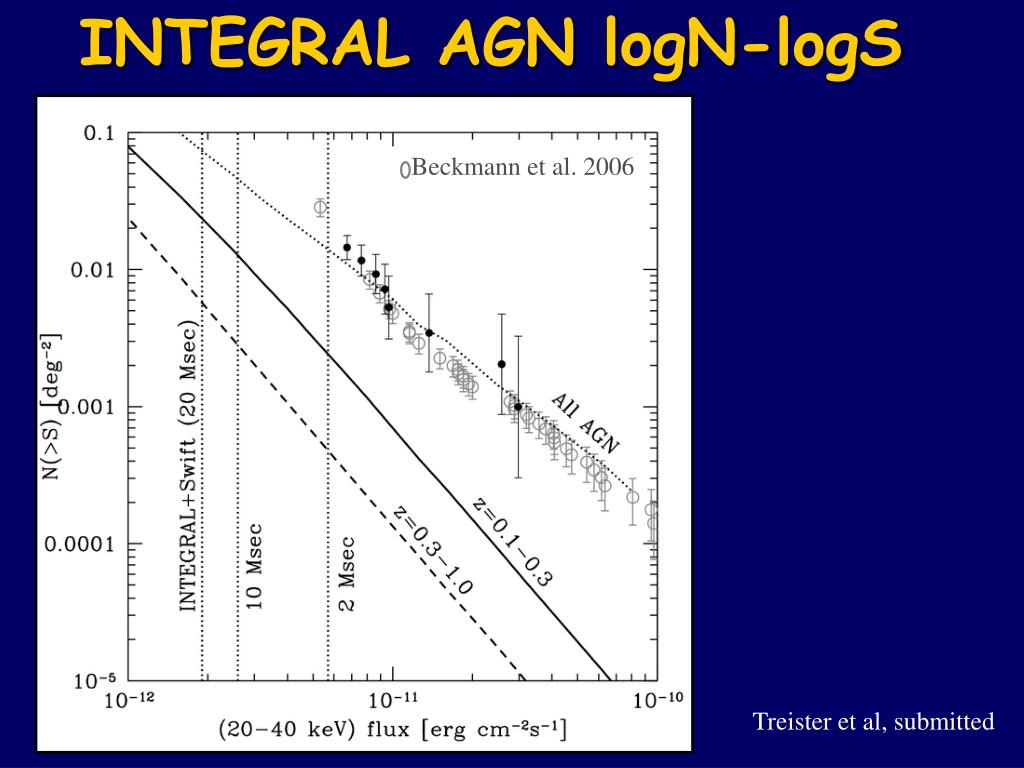

  9. INTEGRAL AGN logN-logS Beckmann et al. 2006 Treister et al, submitted

  10. Space Density of CT AGN X-ray background does not constrain density of CT AGN Treister et al, submitted

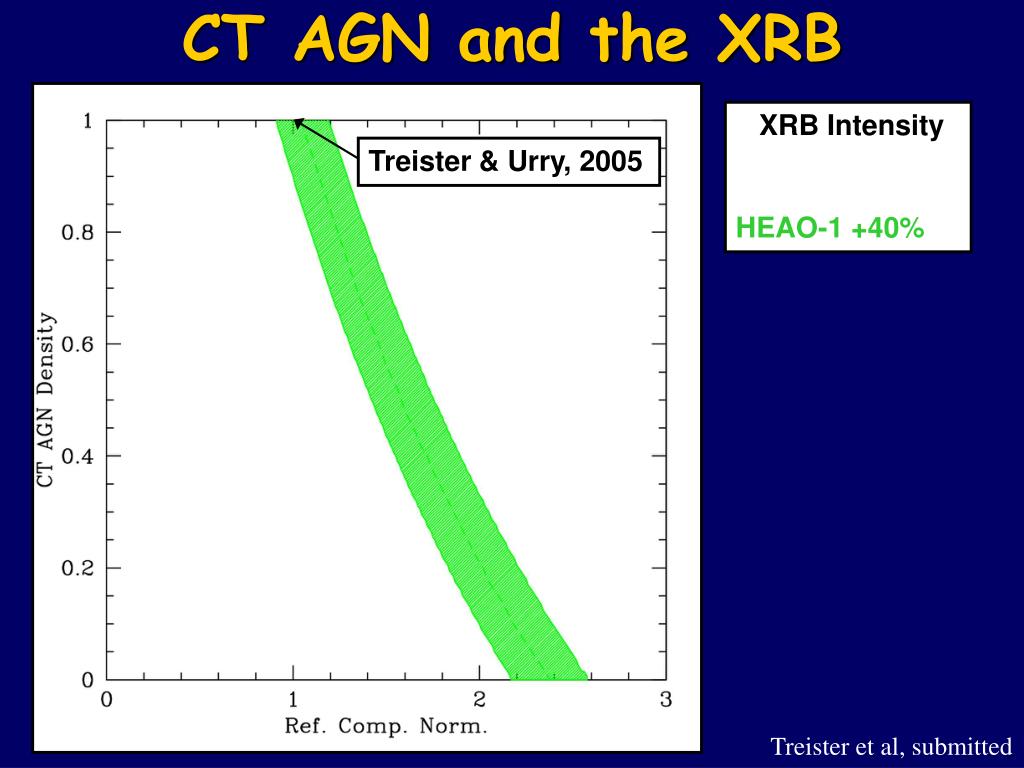

  11. Treister & Urry, 2005 CT AGN and the XRB XRB Intensity HEAO-1 +40% Treister et al, submitted

  12. Treister & Urry, 2005 Gilli et al. 2007 CT AGN and the XRB XRB Intensity HEAO-1 Original HEAO-1 +10% HEAO-1 +40% Treister et al, submitted

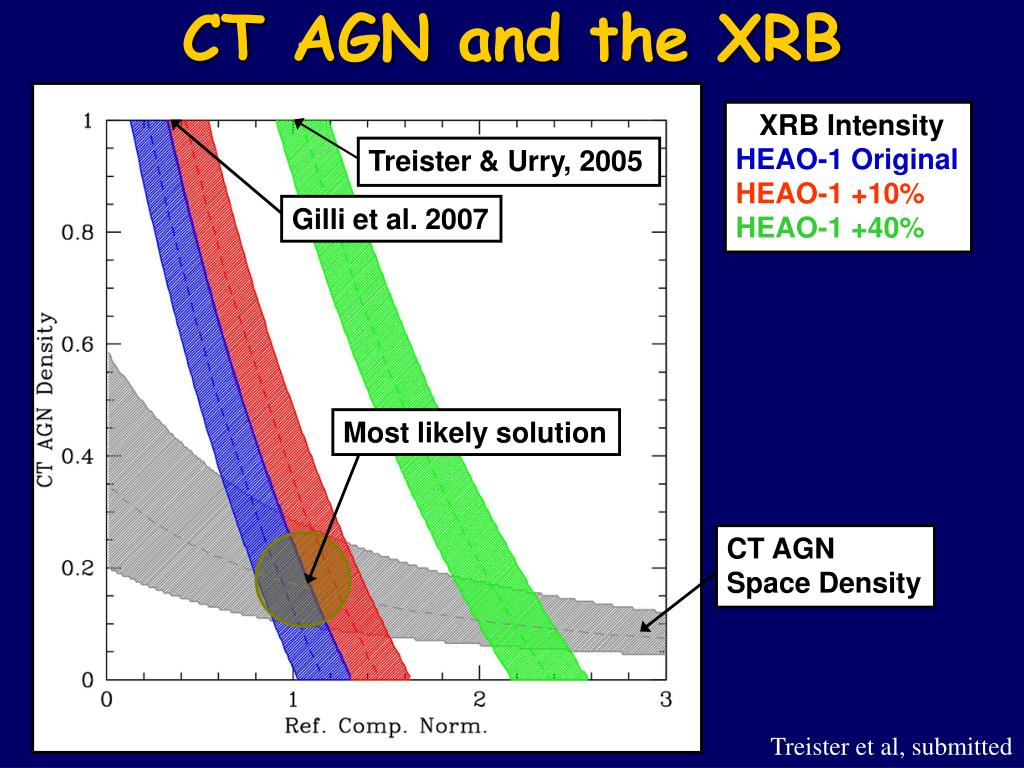

  13. Treister & Urry, 2005 Gilli et al. 2007 Most likely solution CT AGN Space Density CT AGN and the XRB XRB Intensity HEAO-1 Original HEAO-1 +10% HEAO-1 +40% Treister et al, submitted

  14. X-ray Background Synthesis

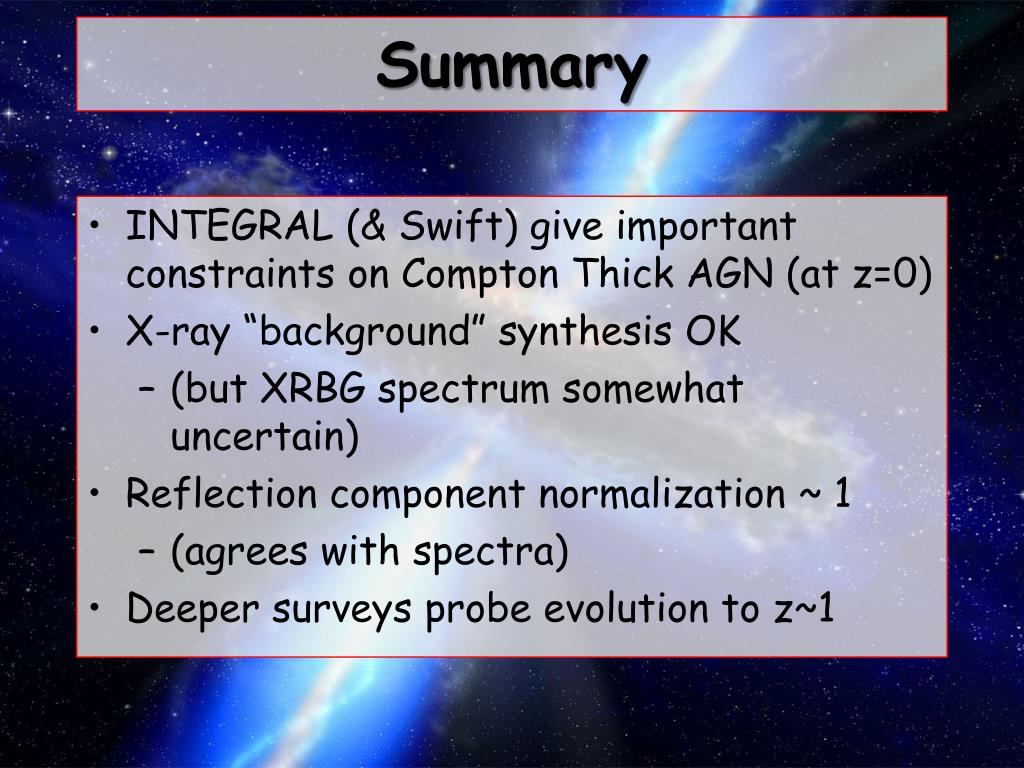

  15. Summary • INTEGRAL (& Swift) give important constraints on Compton Thick AGN (at z=0) • X-ray “background” synthesis OK • (but XRBG spectrum somewhat uncertain) • Reflection component normalization ~ 1 • (agrees with spectra) • Deeper surveys probe evolution to z~1
