slide1

DEPARTMENT OF COMPUTER SCIENCE AND SOFTWARE ENGINEERING

CONCORDIA UNIVERSITY

Windows GUI Programming

with Win32 and MFC

by Emil Vassev

Win32 & MFC

Feb 6, 2008

windows programming model
Windows Programming Model

:: Win32 API & MFC

Windows application? Examples?

Win32 API ?

  • Application Programming Interface - the Windows programming interface;
  • Includes hundreds (over 2000) of functions that an application can call to perform various tasks such as creating a window, drawing a line, and performing file input and output.

MFC ?

  • Microsoft Foundation Classes – a class library to work with Win32 API.

Win32 & MFC

windows programming model1
Windows Programming Model

:: Introduction

  • Windows programming isevent-driven. Windows and its device drivers capture hardware events generated by user interaction and translates these events into messages that Windows programs can understand - Windows messages.
  • Windows stores these messages in data structures called message queues.
  • In a multitasking environment, messages are stored for each process in separate queues called application queues. Applications wait for messages related to user input.

Win32 & MFC

slide4

WndProc

Win32API Model

  • Win apps respond to events by processing messages sent by the OS.
  • Event - a keystroke, a mouse click, or a command for a window to repaint itself, etc.
  • The entry point for a Windows program is a function named WinMain() (not main()).
  • WndProc - the most important function (known as window procedure). Processes messages for the main window.

Win32 & MFC

win32
Win32

:: Window Procedure

  • A function that receives and processes all messages sent to the main window.
  • Every window object in Windows has a window procedure to respond to messages.
  • The system sends a message to a window procedure by passing the message data as arguments to the procedure.
  • WndProc() is the window procedure function we write to receive all input directed to our window.
  • Messages that we do not handle in WndProc() should be handled in a default way, i.e. we must call DefWindowProc() for them.

Win32 & MFC

win321
Win32
  • CALLBACK function can be called by the OS.
  • Proc params:
  • hWnd - unique handle of the window;
  • message – unique ID;
  • wParam – data carried by the message;
  • lParam – more data;
  • Windows messages:
  • WM_COMMAND.
  • WM_PAINT.
  • WM_KEYDOWN.
  • WM_DESTROY

Win32 & MFC

win322
Win32

:: Windows Messages - I

Over 140 predefined messages.

  • WM_DESTROY - sent if the user has closed the window. You should post a message telling windows to destroy the window as it is shown.
  • WM_COMMAND - sent when a menu item or an accelerator key is pressed.
  • WM_PAINT – sent when the window needs redrawing – i.e. when it’s created, maximized, brought to front etc.
  • WM_KEYDOWN – sent when a key is pressed. There is also a WM_KEYUP message. The wParam contains a virtual key code.

Win32 & MFC

win323
Win32

:: Windows Messages - II

WM_MOUSEMOVE

  • Sent to the window when the mouse is moved over its surface area.
  • wParam indicates if a specific key or mouse button is held down.
  • The low word of lParam is the x position of the mouse and the high word is the y position. So to retrieve the position and button states:

Win32 & MFC

win324
Win32

:: WinMain – The Application Entry Point

  • Like main() in C/C++.
  • In this function:
    • we set up our application;
    • enter a loop that will continue until the application is closed.
  • Signatures:
  • hInstance - the instance handle that uniquely identifies the application running in Windows;
  • hPrevInstance - always NULL, so we can ignore it.
  • lpCmdLine – the command-line arguments.
  • nCmdShow – how the window should be shown to start with.
  • For example, SW_SHOWMAXIMIZED and SW_SHOWMINIMIZED.

Win32 & MFC

win325
Win32

:: WinMain – Creating the Window

  • WinMain() calls the InitInstance() function to create the main window:

Win32 & MFC

win326
Win32

:: Create your First WIn32 Application

  • Use the Win32 App wizard:

Win32 & MFC

win327
Win32

:: Additional Reading Material and Code Samples

  • http://www.tenouk.com/cplusplusnmfc.html
  • theForger’s Win32 API Programming Tutorial

http://www.winprog.org/tutorial/

Win32 & MFC

mfc microsoft foundation classes
MFC – Microsoft Foundation Classes

:: Visual C++ Application Build Process

Win32 & MFC

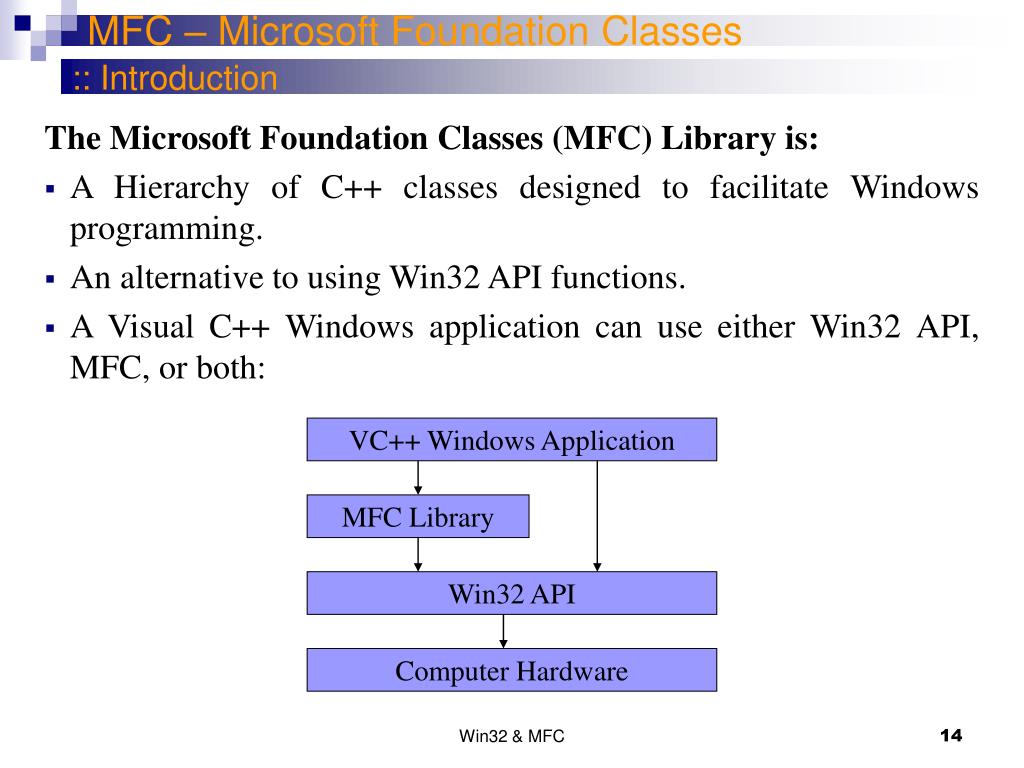

mfc microsoft foundation classes1
MFC – Microsoft Foundation Classes

VC++ Windows Application

MFC Library

Win32 API

Computer Hardware

:: Introduction

The Microsoft Foundation Classes (MFC)Library is:

  • A Hierarchy of C++ classes designedto facilitate Windows programming.
  • An alternative to using Win32API functions.
  • A Visual C++ Windows application can useeither Win32 API, MFC, or both:

Win32 & MFC

mfc microsoft foundation classes2
MFC – Microsoft Foundation Classes

:: Characteristics

MFC Library:

  • Comprises about 200 MFC classes (versus more than 2000APIfunctions). MFC Hierarchy Chart.
  • Provides a framework upon which to buildWindows applications.
  • Is object oriented (arguably) - encapsulates most of the Win32 API in a setof logically organized classes.
  • Has the convenience of code reuse:
    • Many tasks common to all Windows apps areprovided by MFC.
    • Our programs can inherit and modify thisfunctionality as needed.
    • We don't need to recreate these tasks.
    • MFC handles many clerical details in Windowsprograms.

Win32 & MFC

mfc microsoft foundation classes3
MFC – Microsoft Foundation Classes

:: Creating an MFC Application

  • The first task to be done in any MFC application is to create a window and the MFC application running that window.
  • MFC provides two important classes -CWinAppand CFrameWnd, which can be used to create a window & the application.
  • CWinAppprovides the application level functionalities.
  • CFrameWnd provides the functionalities related to GUI.
  • Both classes have their own message handling mechanisms, screen-drawing functions etc.,
  • Both classes are derived from CCmdTarget which in turn is derived from CObject.
  • CCmdTarget is created with the capability to handle windows messages, which is referred as Message Maps.

Win32 & MFC

mfc microsoft foundation classes4
MFC – Microsoft Foundation Classes

:: The Window

  • To create a useful frame window we create a class that derivesthe MFC class CFrameWnd.
  • We create the window by using the CFrameWnd::Create() function.

Win32 & MFC

mfc microsoft foundation classes5
MFC – Microsoft Foundation Classes

:: The Application

  • A MFC Windows application starts at the WinMain() function.
  • This function is hidden by MFC, i.e. it is implemented by MFC for you.
  • The MFC program entry point is the member functionCWinApp::InitInstance()– compare to Win32 InitInstance().

Win32 & MFC

mfc microsoft foundation classes6
MFC – Microsoft Foundation Classes

:: Message Maps

  • Message Maps are the way by which MFC handles the application messages.
  • Any class which is derived from CCmdTarget is a candidate for handling messages.
  • A Message Map is a table that associates messages with functions.
  • When an application receives a message, MFC will go through its Message Map and search for a corresponding message handler.
  • MFC has many predefined macros, which associate messages with your member function.

Example:

  • The ON_WM_CLOSE macro associates the WM_CLOSE message with the OnClose() member function.

Win32 & MFC

mfc microsoft foundation classes7
MFC – Microsoft Foundation Classes

:: Sample - The Modified Window Class

Win32 & MFC

mfc microsoft foundation classes8
MFC – Microsoft Foundation Classes

:: Implementing the Message Map - I

We use only 5 additional macros for defining the Message Map.

DECLARE_MESSAGE_MAP()

  • This tells the application that the class in which this is called is going to have a message map and handle messages.
  • A class can have only one message map.
  • A class will be eligible to execute a message map if it is derived from CCmdTarget or a class which is derived from CCmdTarget.

Win32 & MFC

mfc microsoft foundation classes9
MFC – Microsoft Foundation Classes

:: Implementing the Message Map - II

BEGIN_MESSAGE_MAP & END_MESSAGE_MAP

  • The first macro takes two parameters - the class name which implements the message map and the base class for it.
  • It then is followed by the macros which represent messages - ON_WM_LBUTTONDOWNandON_WM_LBUTTONDOWN.
  • It is closed byEND_MESSAGE_MAP.

Win32 & MFC

mfc microsoft foundation classes10
MFC – Microsoft Foundation Classes

:: Implementing the Message Map - III

ON_WM_LBUTTONDOWN & ON_WM_RBUTTONDOWN

  • Theseare the macros which declares that the MFCTutorialWindow is going to handle left and right button clicks messages.
  • The functionsthat will handle those messages are OnLButtonDown() and OnRButtonDown().
  • When there is any related click, the mentioned functions will be called automatically with the specific parameters.

Win32 & MFC

mfc microsoft foundation classes11
MFC – Microsoft Foundation Classes

The relationship between a document and its view

:: Documents and Views

Usually, the MFC applications are far more complex.

  • They contain application and frame classes plus two other classes that represent the document (CDocument) and the view (CView).
  • The document-view architecture is the core of the MFC application framework and is based on the Model-View-Controller design pattern.

Win32 & MFC

mfc microsoft foundation classes12
MFC – Microsoft Foundation Classes

:: SDI and MDI

  • Single Document Interface (SDI) applications support just one open document at a time.
  • Multiple Document Interface (MDI) applications permit two or more documents to be open concurrently and also support multiple views of a given document.
  • Dialog-Based MFC applications.

Win32 & MFC

mfc microsoft foundation classes13
MFC – Microsoft Foundation Classes

:: MFC Paint Brush Application - I

Win32 & MFC

mfc microsoft foundation classes14
MFC – Microsoft Foundation Classes

:: MFC Paint Brush Application - II

  • When the left mouse button is pressed down, the application stores the mouse pointer’s coordinates in the variable called m_StartPoint of type CPoint.
  • When the mouse button is released the mouse pointer’s coordinates are stored in the variable m_EndPoint of the same CPoint type.
  • The function CClientDC::MoveTo()is used for moving to a particular co-ordinate and CClientDC::LineTo() is used for drawing the line.
  • CClientDCis the device context that directs the outputs to the screen. There is a concept in windows programming, called Device Context in windows. This is used in conjunction with the outputs.

Win32 & MFC

slide28

Next Lecture

  • Creating MFC Applications;
  • Dialogs;
  • Drawing - a sample application how to draw hexagons.

Win32 & MFC

slide29

References

  • C++ & MFC, http://www.tenouk.com/cplusplusnmfc.html
  • CoderSource.net, “MFC Tutorial”,http://www.codersource.net/codersource_mfc_prog.html
