  1. Part IIProposition of locations of cable trays

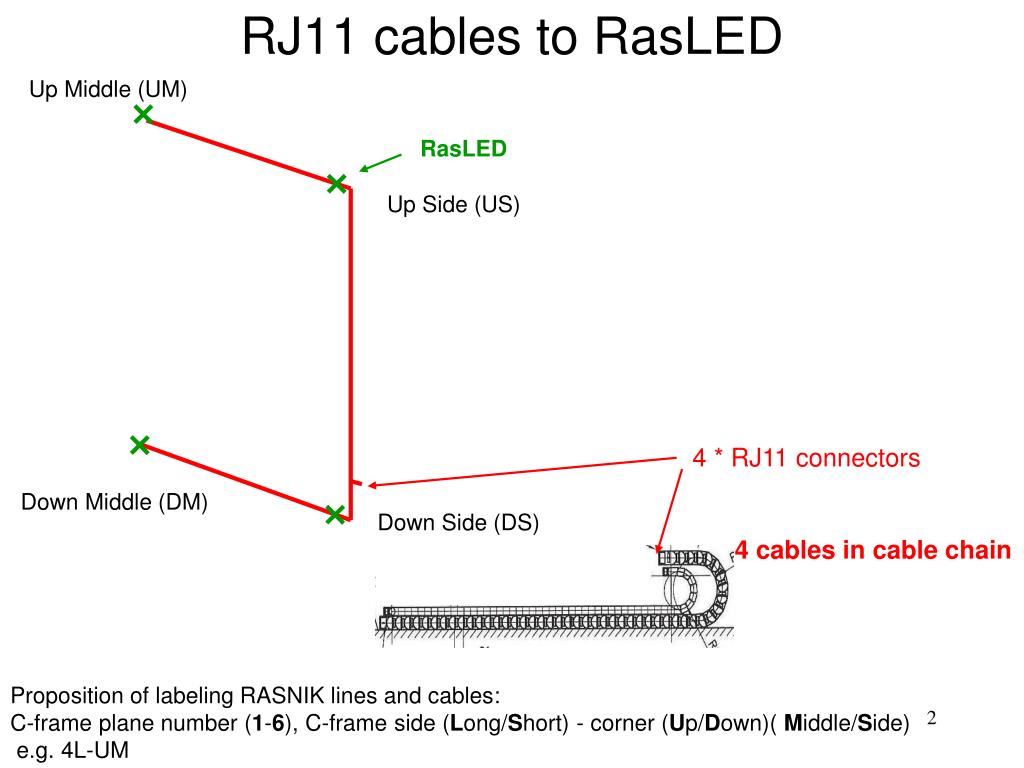

  2. RJ11 cables to RasLED Up Middle (UM) RasLED Up Side (US) 4 * RJ11 connectors Down Middle (DM) Down Side (DS) 4 cables in cable chain Proposition of labeling RASNIK lines and cables: C-frame plane number (1-6), C-frame side (Long/Short) - corner (Up/Down)( Middle/Side) e.g.4L-UM

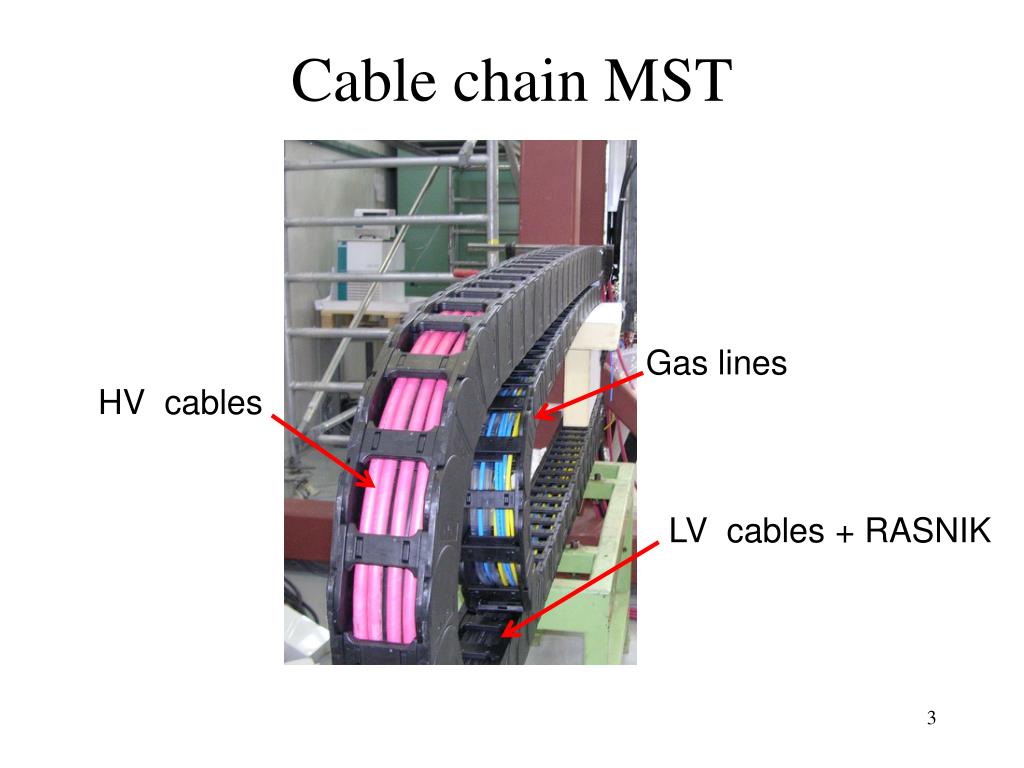

  3. Cable chain MST Gas lines HV cables LV cables + RASNIK

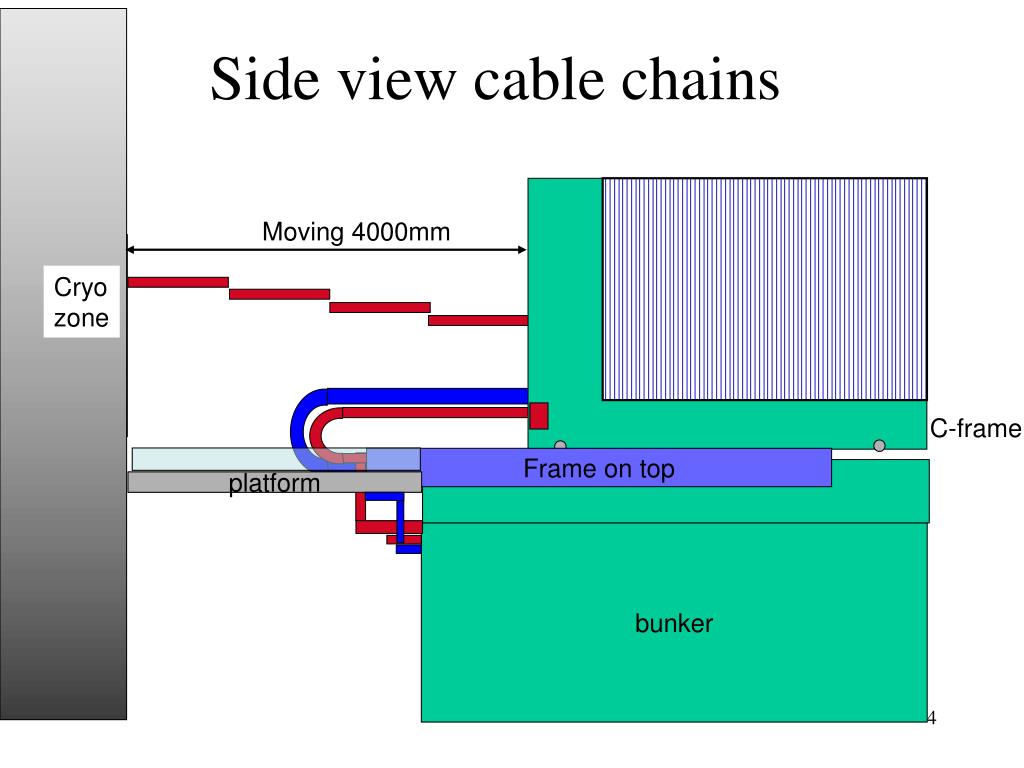

  4. Side view cable chains Moving 4000mm Cryo zone C-frame Frame on top platform bunker

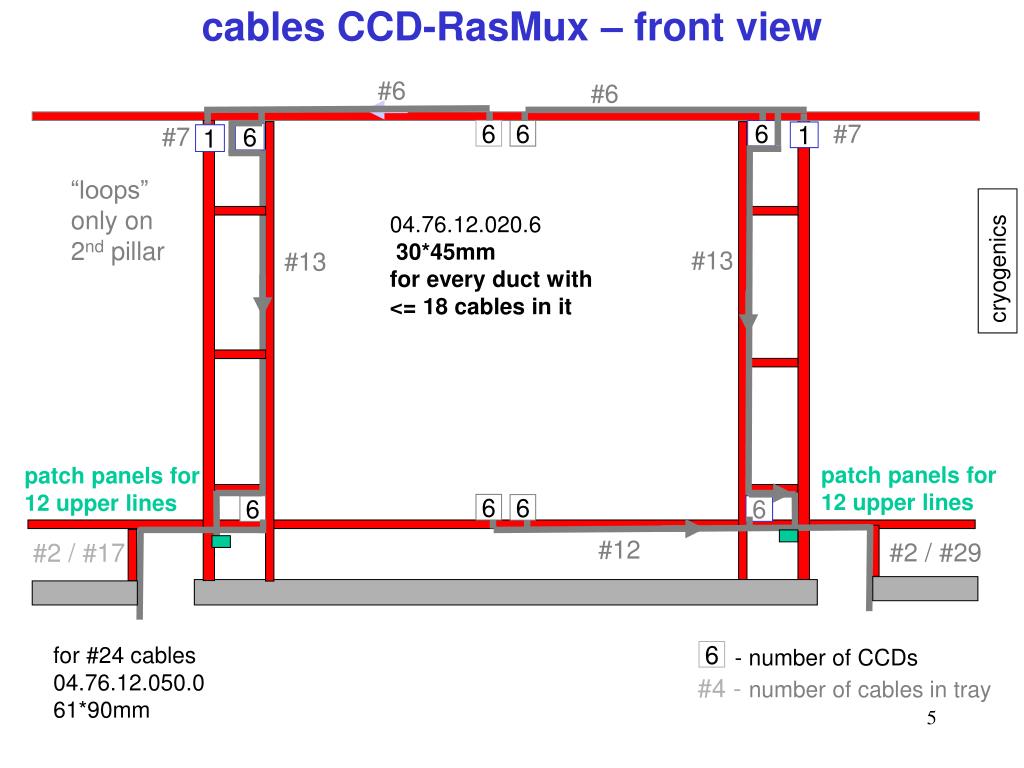

  5. cables CCD-RasMux – front view #6 #6 #7 #7 6 6 6 1 6 1 “loops” only on 2nd pillar 04.76.12.020.6 30*45mm for every duct with <= 18 cables in it #13 #13 cryogenics patch panels for 12 upper lines patch panels for 12 upper lines 6 6 6 6 #12 #2 / #29 #2 / #17 for #24 cables 04.76.12.050.0 61*90mm - number of CCDs 6 #4 - number of cables in tray

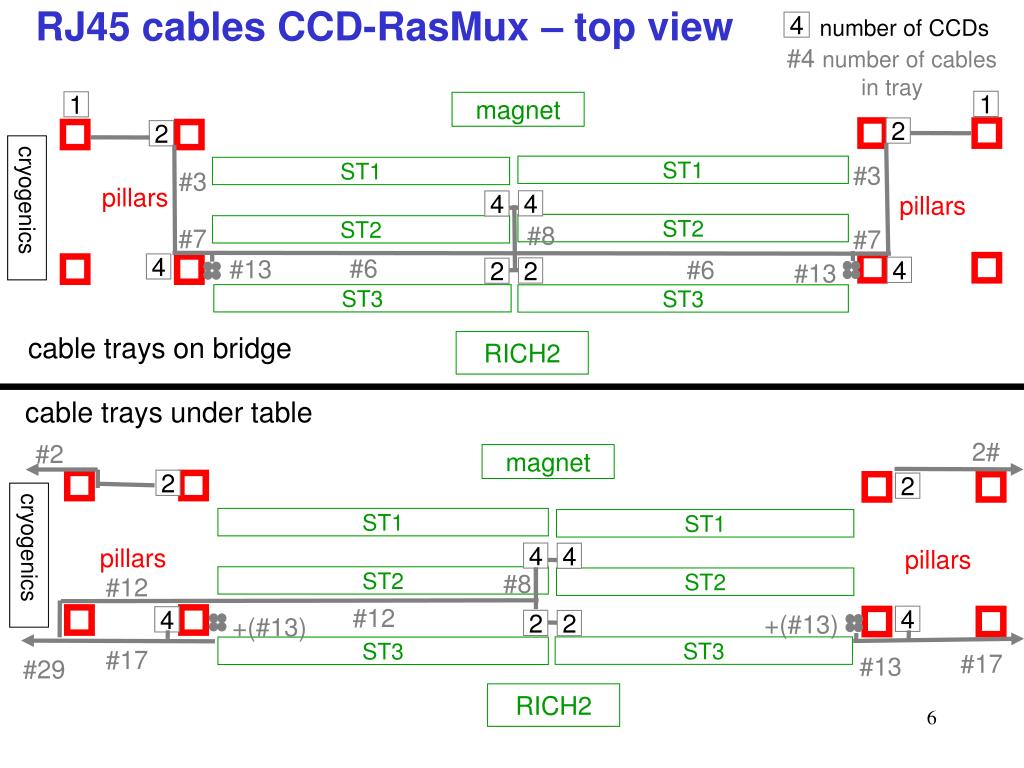

  6. pillars pillars pillars number of CCDs 4 #4 number of cables in tray RJ45 cables CCD-RasMux – top view 1 1 magnet 2 2 #3 ST1 ST1 #3 cryogenics 4 4 ST2 #8 ST2 #7 #7 #6 #13 #6 #13 4 4 2 2 ST3 ST3 cable trays on bridge RICH2 cable trays under table 2# #2 magnet 2 2 ST1 ST1 cryogenics pillars 4 4 #8 #12 ST2 ST2 #12 +(#13) +(#13) 4 4 2 2 ST3 ST3 #17 #17 #13 #29 RICH2

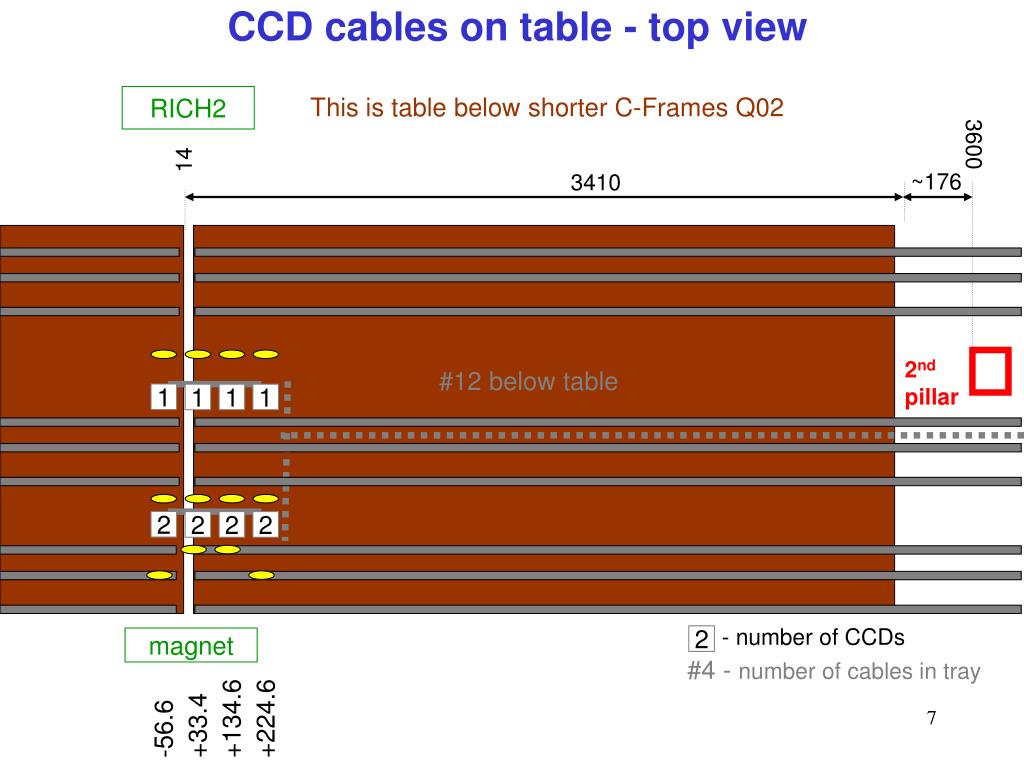

  7. 2 1 2 1 2 1 2 1 CCD cables on table - top view This is table below shorter C-Frames Q02 RICH2 3600 14 ~176 3410 2nd pillar #12 below table - number of CCDs 2 magnet #4 - number of cables in tray -56.6 +224.6 +134.6 +33.4

  8. Station 1 Bridge Station 3 Station 2 ~483mm RasMux 80*225*~45mm ~266mm 8 LED cables and 8 CCD cables from two Q02 C-frames or else two Q13 C-frames 3 + 4 RasMuxes & MasterMux panel with RasMuxes on both sides ~266mm MasterMux to MMX ~483mm

  9. Location of 7 RasMuxes & MasterMux in “Racks” D3D05rack in counting room ~3m ~7m screen 4 MMX 3 MMX framegrabber in PC up to 100m cable 04.21.48.324.9 TopMux 4730 OTrack A4 OTrack A14 MMX in OT rack is closer to 2nd pillar then to 1st pillar, so most of cables on 2nd pillar tunnel - top view 2nd #25 LED cable #19 CCD cable #25 LED #31 CCD 1st to MMX tunnel front view 2m 1.3m tunnel - side view 10m
