f a 18 interactive electronic technical manual ietm verification lessons learned

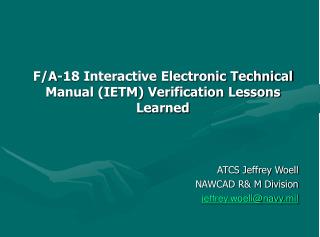

F/A-18 Interactive Electronic Technical Manual (IETM) Verification Lessons Learned

ATCS Jeffrey Woell

NAWCAD R& M Division

jeffrey.woell@navy.mil

ietm verification lessons learned
IETM Verification Lessons Learned
  • Why Verification is needed?
    • The configuration sensitivity and enhanced capabilities of a Type II IETM vice traditional paper technical manuals introduces new potential data errors:
      • Task Linking Errors (referential issues)
      • Missing/Incorrect Configuration sensitivities
      • Graphics associations
      • Step Sequencing
    • Increased performance expectations from the Fleet of the IETM raises the quality bar
      • Every data error is taken as proof that IETMs are worse then paper
    • Provides an opportunity to assess the Integrated IETM product (data, presentation system, business rules, and software infrastructure)
ietm verification lessons learned1
IETM Verification Lessons Learned
  • Performing a Type II IETM Verification
    • Government must take the responsibility for performing an independent verification of the IETM product
      • Verification team should include IETM Author representation in an integrated/supporting role
    • Verification plan should be modeled after Systems Engineering based Test Plans and not after the traditional paper Verification plans
      • Formal system documentation should be developed and utilized throughout project life-cycle
      • Detailed formal MOAs, MOUs, Contracts/SOWs, and other interagency documents should be negotiated and signed between all involved team elements and the government team lead
    • Verifiers need significant personal experience with maintenance practices on the platform(s) being supported
      • Or at a minimum with the closest fit existing platforms were direct experience is not achievable (previous versions, similar platforms)
ietm verification lessons learned2
IETM Verification Lessons Learned
  • Performing a Type II IETM Verification
    • All elements of the Verification Team should receive robust training in the process and use of the IETM product to be verified
      • Critical to differentiating between system, data, and user errors
    • Fleet involvement from an operational and/or test squadron is a significant enabler
      • Creates a sense of product ownership by Fleet community
      • Provides pre-implementation opportunity to assess Fleet interaction with IETM product
      • Verifies IETM data and software functionality in ‘real-world’ environment
    • Anomalies should be addressed in parallel to the IETM Verification effort
      • Ensures IETM Authoring community has access to verifier
      • Aids in identification of systemic, training, software, and other errors not typically evaluated in the context of paper verifications
      • Allows taking full advantage of the decreased time to revise an IETM product vice paper
