Presentation Transcript
csi 3104 winter 2006 introduction to formal languages chapter 17 context free languages

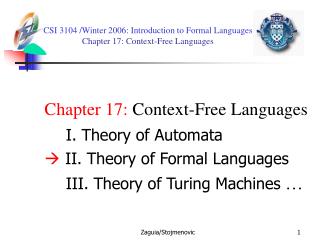

CSI 3104 /Winter 2006: Introduction to Formal Languages Chapter 17: Context-Free Languages

Chapter 17: Context-Free Languages

I. Theory of Automata

II. Theory of Formal Languages

III. Theory of Turing Machines …

Zaguia/Stojmenovic

chapter 17 context free languages
Chapter 17: Context-Free Languages
  • Theorem. The set of context-free languages is closed under union, concatenation, and Kleene closure.
  • Union. L1+L2

L1 and L2 are generated by two context-free grammars G1 and G2. We replace each nonterminal X in G1 by X1, and each nonterminal X in G2 by X2. We add the productions:

S  S1 S  S2

L1+L2 is the language generated by this new CFG.

Zaguia/Stojmenovic

chapter 17 context free languages3
Chapter 17: Context-Free Languages

Example: L1 = PALINDROME: S  aSa | bSb | a | b | Λ

L2 = anbn: S  aSb | Λ

L1+L2 :S  S1 | S2

S1 aS1a | bS1b | a | b | Λ

S2 aS2b | Λ

Example:L1 = {aa,bb}: S  aA | bB A  a B  b

L2 = {Λ}: S Λ

L1+L2 :S  S1 | S2

S1 aA1 | bB1 A1 a B1 b

S2Λ

Zaguia/Stojmenovic

chapter 17 context free languages4

START

START

START

ACCEPT

ACCEPT

ACCEPT

Chapter 17: Context-Free Languages

Proof by machines

Zaguia/Stojmenovic

chapter 17 context free languages5

START

a

START

READ

READ

POP

ACCEPT

a

a

a

PUSH a

ACCEPT

b

PUSH b

Chapter 17: Context-Free Languages

(begin with a)

(contain aa)

Zaguia/Stojmenovic

chapter 17 context free languages6

READ

READ

POP

START

a

a

PUSH a

a

a

ACCEPT

b

PUSH b

Chapter 17: Context-Free Languages

L1 + L2

Zaguia/Stojmenovic

chapter 17 context free languages7
Chapter 17: Context-Free Languages
  • Concatenation. L1L2

Similar to union except we add:

S  S1S2

Example:

L1= palindrome: S  aSa | bSb | a | b | 

L2= {anbn}: S  aSb | 

L1L2: S  S1S2

S1 aS1a | bS1b | a | b | 

S2 aS2b |  proof by PDAs?

Zaguia/Stojmenovic

slide8
L*
  • Kleene star. L*

We replace S by S1 and add:

S  S1S | Λ

S  S1S  S1S1S  S1S1S1S  …

Example: L: S  aSa | bSb | a | b | 

  • L*: S S1S | 
  • S1 aS1a | bS1b | a | b | 

Zaguia/Stojmenovic

chapter 17 context free languages9
Chapter 17: Context-Free Languages
  • Theorem. The intersection of two context-free languages may or may not be context-free.
  • L1 = anbnam

S  XA

X  aXb / ab

A  aA / a

  • L2 = anbmam

S  AX

X  bXa / ba

A  aA / a

  • L1 ∩ L2 = anbnan (is not a context-free language )

Zaguia/Stojmenovic

chapter 17 context free languages10
Chapter 17: Context-Free Languages
  • Theorem. The intersection of a context-free language and a regular language is always context-free.

Proof: By constructive algorithm using pushdown automata, similar to the intersection algorithm for two finite automata.

(details not covered)

Zaguia/Stojmenovic

example use the theorem
Example: use the theorem
  • L= doubleword = {ww} = {abbabb,…}
  • Assume L is CFL
  • L ∩ {a+b+a+b+} = {anbmanbm}
  • is then context free (∩ regular lang.)
  • But we have proven that {anbmanbm} is not CFL
  •  contradiction.

Zaguia/Stojmenovic

chapter 17 context free languages12
Chapter 17: Context-Free Languages
  • Theorem. The complement of a context-free language may or may not be context-free.

When the PDA is deterministic with other properties, we could use for the complement a similar technique as for FA

Zaguia/Stojmenovic

chapter 17 context free languages13

START

a

a

X

a

READ

READ

POP

POP

POP

PUSH a

X

b

b,L

D

D

PUSH b

REJECT

a,b

REJECT

a,L

b

b

D

ACCEPT

Chapter 17: Context-Free Languages

PALINDROME-X

Zaguia/Stojmenovic

chapter 17 context free languages14

START

a

a

X

a

PUSH a

READ

READ

POP

POP

POP

X

b

b,L

D

D

PUSH b

ACCEPT

a,b

ACCEPT

a,L

b

b

D

REJECT

Chapter 17: Context-Free Languages

For the complement:

We interchange the states

ACCEPT and REJECT.

It does not work all the time.

Zaguia/Stojmenovic

complement of a cfl may not be a cfl
Complement of a CFL may not be a CFL
  • Proof by indirect arguments
  • Suppose complement of every CFL is a CFL.
  • L1 and L2 CFLs  L1’ and L2’ CFLs  L1’+L2’ CFLs  (L1’+L2’)’ = L1  L2 is CFL
  • Contradicts intersection theorem.

Zaguia/Stojmenovic

nondeterminism
Nondeterminism
  • L accepts w if some paths lead to accept (some paths may lead to reject)
  • L rejects w if all paths lead to reject
  • Exchange accept and reject states:
  • L’ rejects w if some paths lead to reject ??
  • L’ accepts w if all paths lead to accept ??
  • Nondeterminism does not support complement

Zaguia/Stojmenovic

example
Example
  • L’={anbnan} is not CFL but L is CFL
  • L=Mpq+Mqp+Mpr+Mrp+Mqr+Mrq+M
  • Mpq={apbqar | p>q} = a+anbna+ CFL
  • Mqp={apbqar | q>p} = anbnb+a+ CFL
  • Mpr={apbqar | p>r} = a+anb+an CFL
  • Mqr, Mrq, Mrp similarly CFL
  • M={a+b+c+}’ complement of a regular language

Zaguia/Stojmenovic

deterministic pda nondeterministic pda
Deterministic PDA < Nondeterministic PDA
  • Proof: Complement of {anbncn} is CFL and cannot have deterministic PDA since otherwise its complement has deterministic PDA and would be CFL (accept reject )

Zaguia/Stojmenovic
