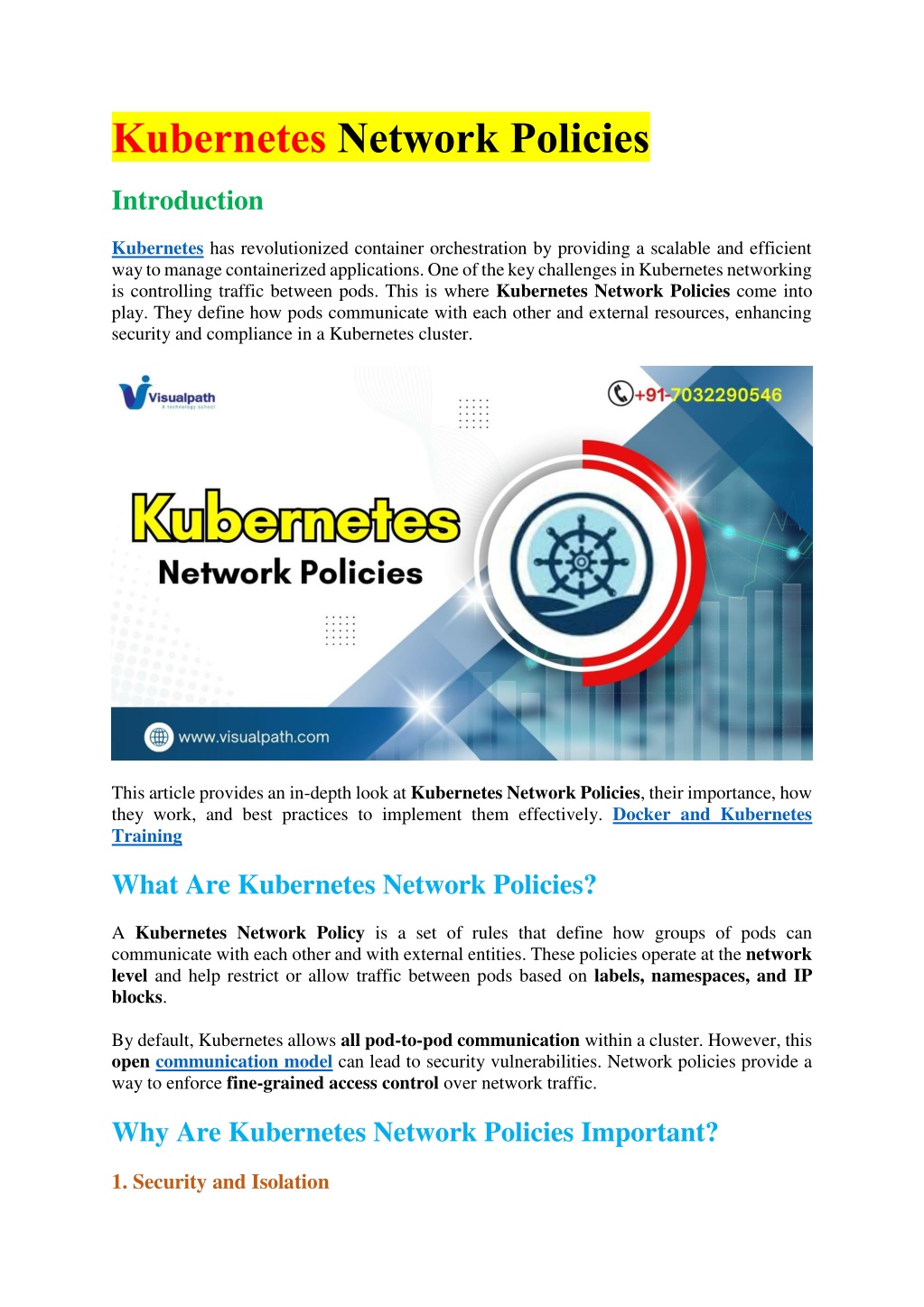

1. Kubernetes Network Policies Introduction Kubernetes has revolutionized container orchestration by providing a scalable and efficient way to manage containerized applications. One of the key challenges in Kubernetes networking is controlling traffic between pods. This is where Kubernetes Network Policies come into play. They define how pods communicate with each other and external resources, enhancing security and compliance in a Kubernetes cluster. This article provides an in-depth look at Kubernetes Network Policies, their importance, how they work, and best practices to implement them effectively. Docker and Kubernetes Training What Are Kubernetes Network Policies? A Kubernetes Network Policy is a set of rules that define how groups of pods can communicate with each other and with external entities. These policies operate at the network level and help restrict or allow traffic between pods based on labels, namespaces, and IP blocks. By default, Kubernetes allows all pod-to-pod communication within a cluster. However, this open communication model can lead to security vulnerabilities. Network policies provide a way to enforce fine-grained access control over network traffic. Why Are Kubernetes Network Policies Important? 1. Security and Isolation

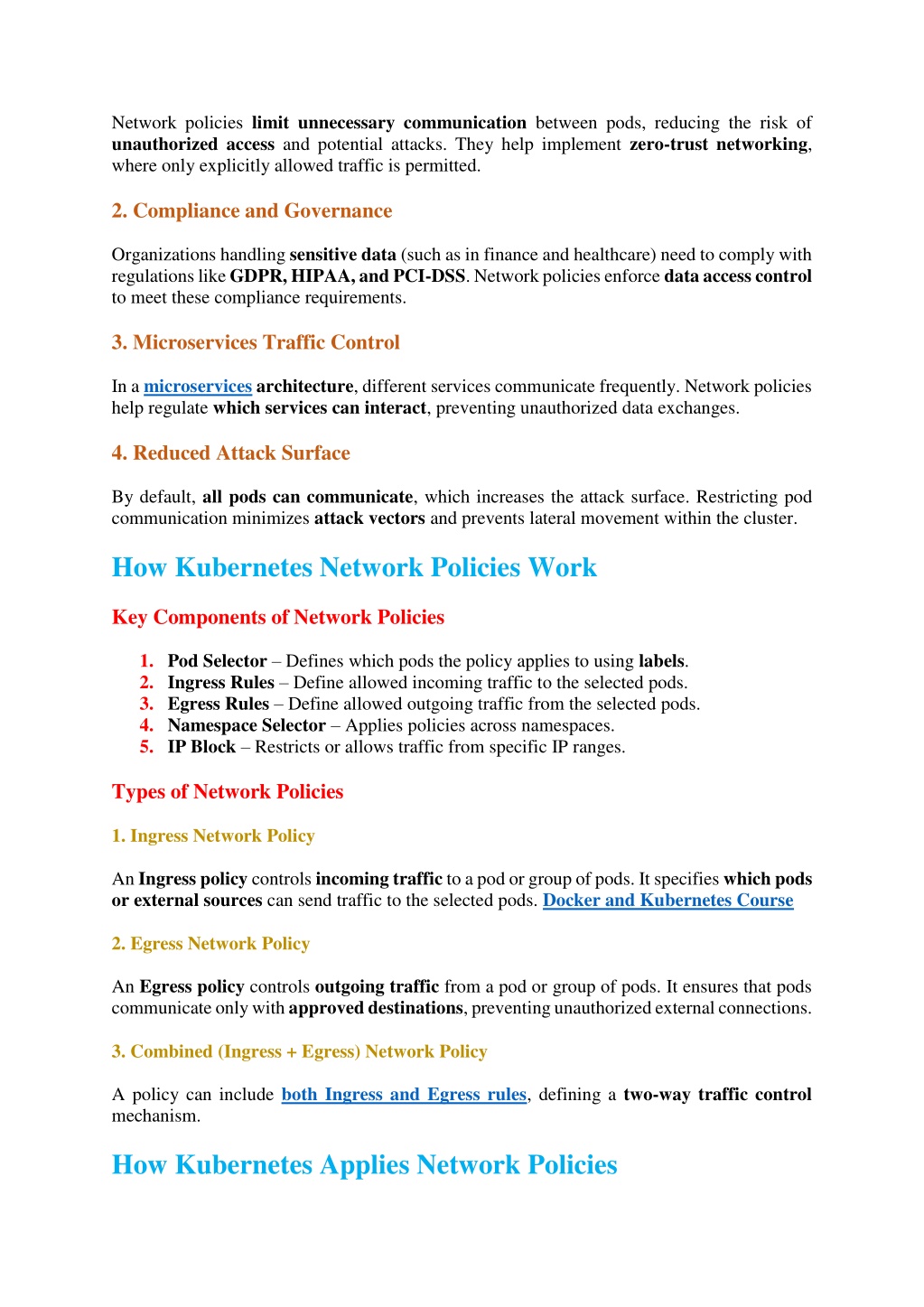

2. Network policies limit unnecessary communication between pods, reducing the risk of unauthorized access and potential attacks. They help implement zero-trust networking, where only explicitly allowed traffic is permitted. 2. Compliance and Governance Organizations handling sensitive data (such as in finance and healthcare) need to comply with regulations like GDPR, HIPAA, and PCI-DSS. Network policies enforce data access control to meet these compliance requirements. 3. Microservices Traffic Control In a microservices architecture, different services communicate frequently. Network policies help regulate which services can interact, preventing unauthorized data exchanges. 4. Reduced Attack Surface By default, all pods can communicate, which increases the attack surface. Restricting pod communication minimizes attack vectors and prevents lateral movement within the cluster. How Kubernetes Network Policies Work Key Components of Network Policies 1.Pod Selector– Defines which pods the policy applies to using labels. 2.Ingress Rules– Define allowed incoming traffic to the selected pods. 3.Egress Rules– Define allowed outgoing traffic from the selected pods. 4.Namespace Selector– Applies policies across namespaces. 5.IP Block– Restricts or allows traffic from specific IP ranges. Types of Network Policies 1. Ingress Network Policy An Ingress policy controls incoming traffic to a pod or group of pods. It specifies which pods or external sources can send traffic to the selected pods. Docker and Kubernetes Course 2. Egress Network Policy An Egress policy controls outgoing traffic from a pod or group of pods. It ensures that pods communicate only with approved destinations, preventing unauthorized external connections. 3. Combined (Ingress + Egress) Network Policy A policy can include both Ingress and Egress rules, defining a two-way traffic control mechanism. How Kubernetes Applies Network Policies

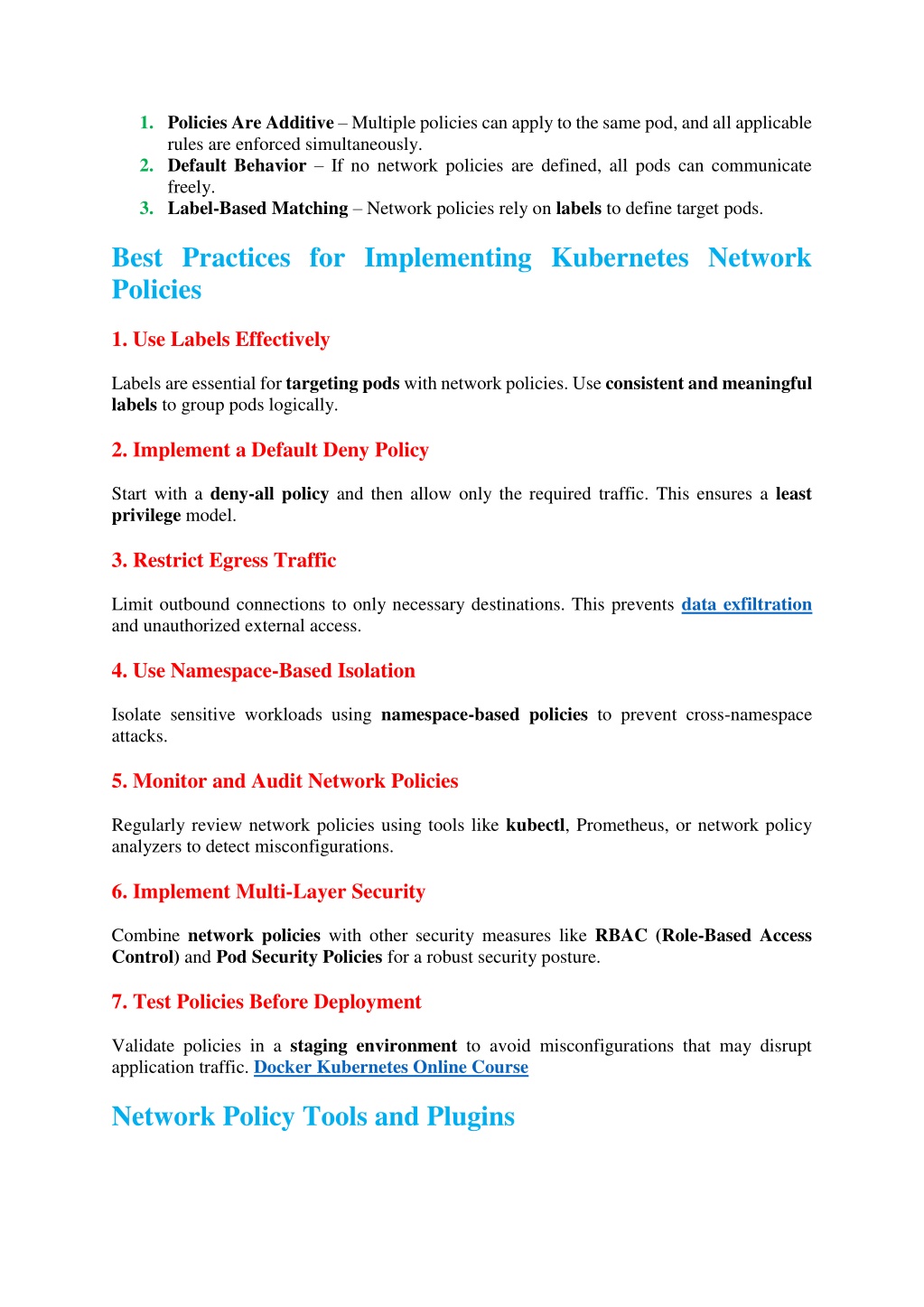

3. 1.Policies Are Additive– Multiple policies can apply to the same pod, and all applicable rules are enforced simultaneously. 2.Default Behavior– If no network policies are defined, all pods can communicate freely. 3.Label-Based Matching– Network policies rely on labels to define target pods. Best Practices for Implementing Kubernetes Network Policies 1. Use Labels Effectively Labels are essential for targeting pods with network policies. Use consistent and meaningful labels to group pods logically. 2. Implement a Default Deny Policy Start with a deny-all policy and then allow only the required traffic. This ensures a least privilege model. 3. Restrict Egress Traffic Limit outbound connections to only necessary destinations. This prevents data exfiltration and unauthorized external access. 4. Use Namespace-Based Isolation Isolate sensitive workloads using namespace-based policies to prevent cross-namespace attacks. 5. Monitor and Audit Network Policies Regularly review network policies using tools like kubectl, Prometheus, or network policy analyzers to detect misconfigurations. 6. Implement Multi-Layer Security Combine network policies with other security measures like RBAC (Role-Based Access Control) and Pod Security Policies for a robust security posture. 7. Test Policies Before Deployment Validate policies in a staging environment to avoid misconfigurations that may disrupt application traffic. Docker Kubernetes Online Course Network Policy Tools and Plugins

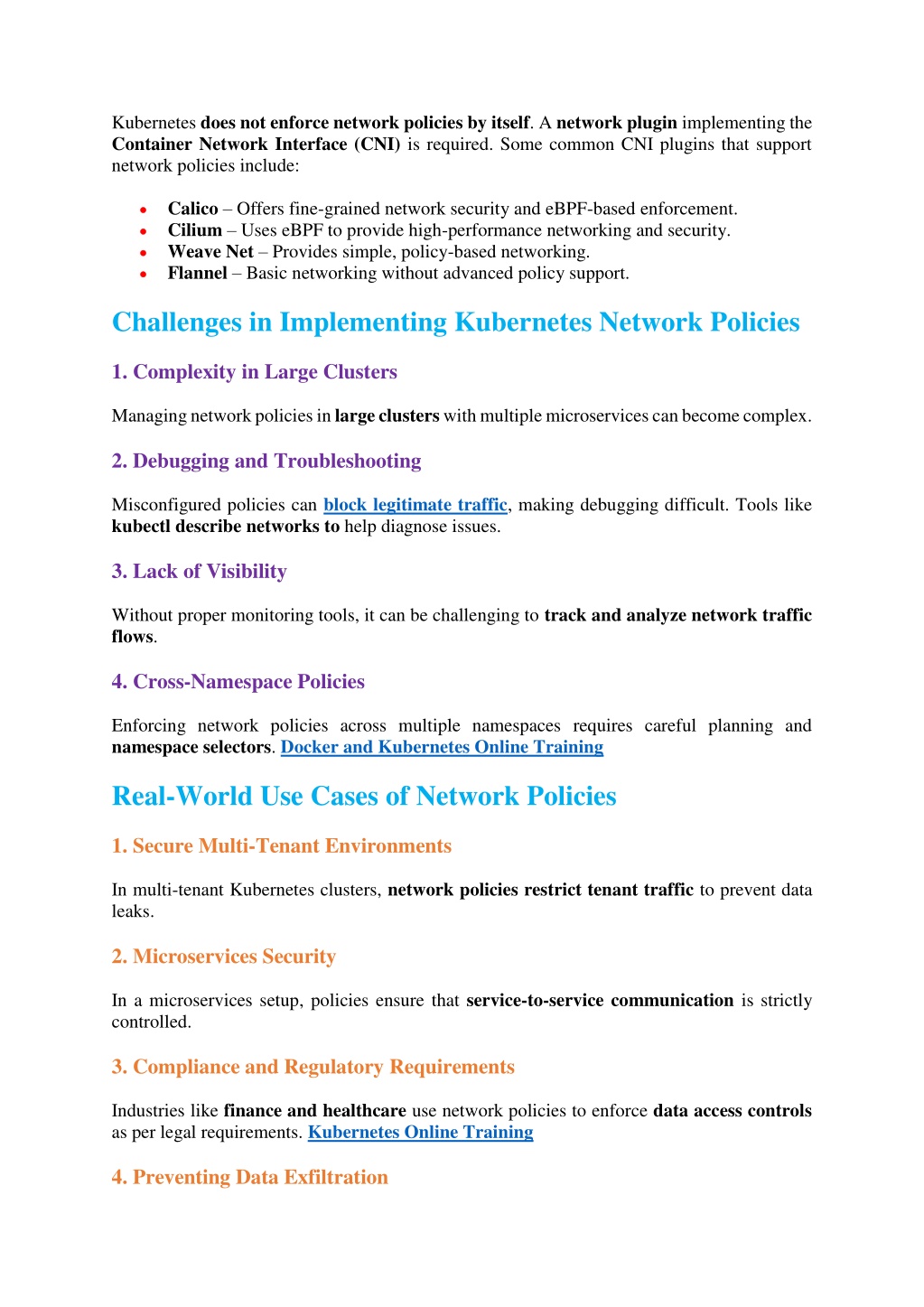

4. Kubernetes does not enforce network policies by itself. A network plugin implementing the Container Network Interface (CNI) is required. Some common CNI plugins that support network policies include:  Calico– Offers fine-grained network security and eBPF-based enforcement.  Cilium– Uses eBPF to provide high-performance networking and security.  Weave Net– Provides simple, policy-based networking.  Flannel– Basic networking without advanced policy support. Challenges in Implementing Kubernetes Network Policies 1. Complexity in Large Clusters Managing network policies in large clusters with multiple microservices can become complex. 2. Debugging and Troubleshooting Misconfigured policies can block legitimate traffic, making debugging difficult. Tools like kubectl describe networks to help diagnose issues. 3. Lack of Visibility Without proper monitoring tools, it can be challenging to track and analyze network traffic flows. 4. Cross-Namespace Policies Enforcing network policies across multiple namespaces requires careful planning and namespace selectors. Docker and Kubernetes Online Training Real-World Use Cases of Network Policies 1. Secure Multi-Tenant Environments In multi-tenant Kubernetes clusters, network policies restrict tenant traffic to prevent data leaks. 2. Microservices Security In a microservices setup, policies ensure that service-to-service communication is strictly controlled. 3. Compliance and Regulatory Requirements Industries like finance and healthcare use network policies to enforce data access controls as per legal requirements. Kubernetes Online Training 4. Preventing Data Exfiltration

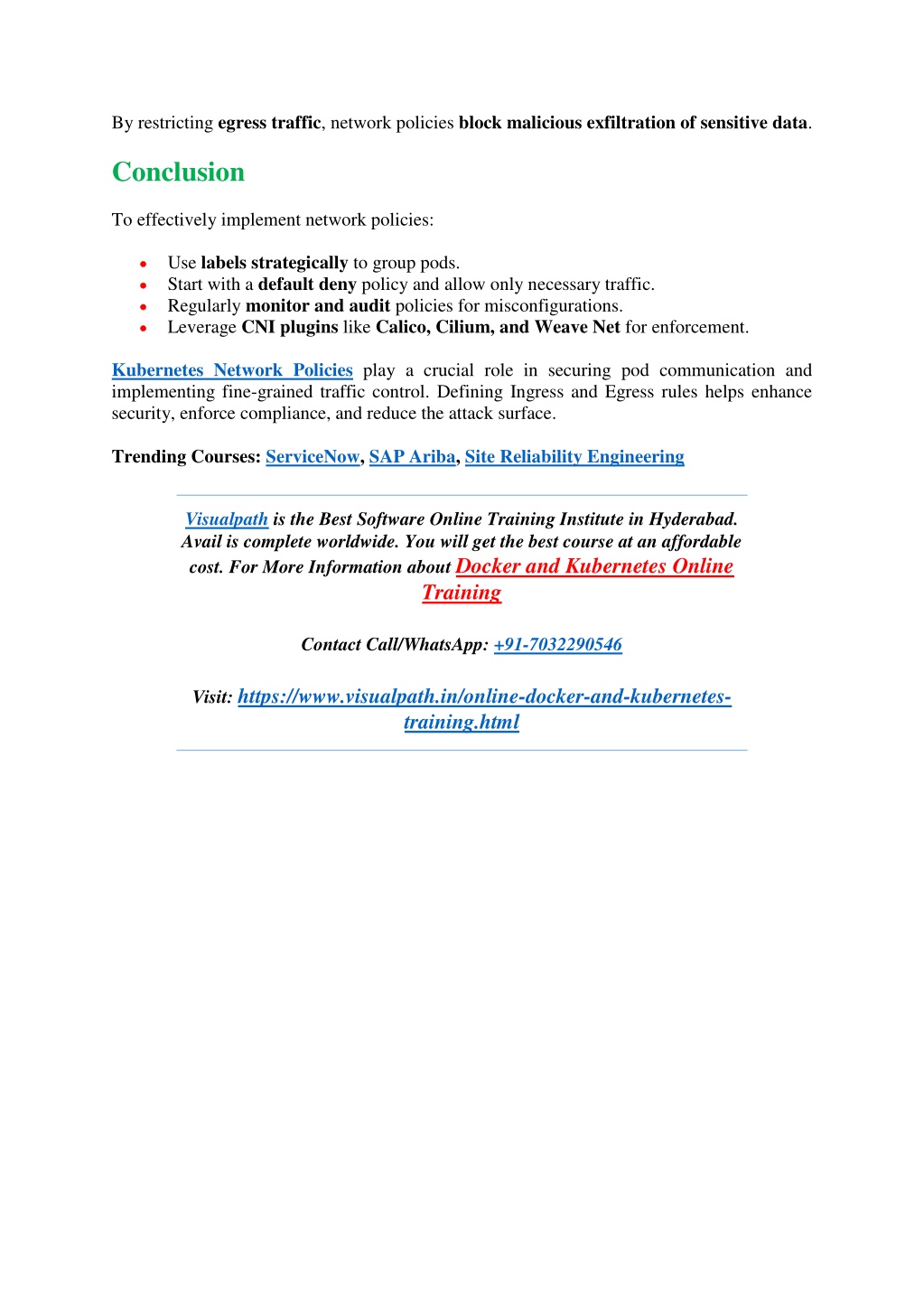

5. By restricting egress traffic, network policies block malicious exfiltration of sensitive data. Conclusion To effectively implement network policies:  Use labels strategically to group pods.  Start with a default deny policy and allow only necessary traffic.  Regularly monitor and audit policies for misconfigurations.  Leverage CNI plugins like Calico, Cilium, and Weave Net for enforcement. Kubernetes Network Policies play a crucial role in securing pod communication and implementing fine-grained traffic control. Defining Ingress and Egress rules helps enhance security, enforce compliance, and reduce the attack surface. Trending Courses: ServiceNow, SAP Ariba, Site Reliability Engineering Visualpath is the Best Software Online Training Institute in Hyderabad. Avail is complete worldwide. You will get the best course at an affordable cost. For More Information about Docker and Kubernetes Online Training Contact Call/WhatsApp: +91-7032290546 Visit: https://www.visualpath.in/online-docker-and-kubernetes- training.html
