analysis and detection of access violations in componentised systems

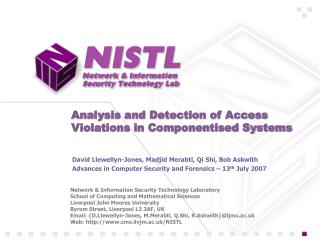

Analysis and Detection of Access Violations in Componentised Systems

David Llewellyn-Jones, Madjid Merabti, Qi Shi, Bob Askwith

Advances in Computer Security and Forensics – 13th July 2007

Network & Information Security Technology LaboratorySchool of Computing and Mathematical SciencesLiverpool John Moores UniversityByrom Street, Liverpool L3 3AF, UKEmail: {D.Llewellyn-Jones, M.Merabti, Q.Shi, R.Askwith}@ljmu.ac.uk

Web: http://www.cms.livjm.ac.uk/NISTL

contents
Contents
  • Introduction
    • Access control
    • Ubiquitous computing
    • Network elevation of privileges
  • Composition access control check
    • Process
    • Implementation
  • Experiments and results
  • Conclusion
access control
In theory

User can access data only if their access level satisfies the access requirements of the data

In practice

A user can only access data via a program

User

Access level

Data

Access req.

User

Access level

Access req.

Program

Access level

Data

Access req.

Access Control
distributed access control
Distributed Access Control
  • Taos, local access control
    • Centralised access control
  • DSS DACS, DSI, CORBASec
    • Atomic
    • Enforced between pairs of components
  • An alternative approach
    • Consider wider composition structure
ubiquitous computing
Ubiquitous Computing
  • Networking is wireless and pervasive
  • Devices are mobile and plentiful
  • Data flows unimpeded
    • Easy access to data from anywhere
    • Access control remains important
network elevation of privileges

System A

System B

Alice’s file

read

Alice’s program

send

SU’s program

File

write

File with access by Bob

write

Bob’s program

Bob’s program

read

send

Network Elevation of Privileges
  • Data sent across a network may be vulnerable
    • Inconsistent access requirements
    • Each system individually satisfies access requirements
    • Combined, incorrect access may occur
solution overview
Solution Overview
  • Analyse possible data flow through a network
    • Based on topology and component properties
    • Analysis takes place when topology changes
    • Access control requirements are checked
    • Composition only allowed if requirements met
  • Need to know
    • Connections (data flow) between components
    • Data flow within each component
formalisation
Formalisation
  • Each component defined 4 data structures
    • uR, uWU,effective user ID for read, write
    • dR, dWD, access of files read, written by component
  • Access mappings
    • fR, fW : U × D → {0, 1}, determines if read, write access should be granted
  • Example: read access control lists
connections between components

1

3

2

4

5

Connections Between Components
  • Follow data flow through components
    • For example, simple depth first traversal
  • Match data access requirements with component access levels
    • Maintain dR, dWof data accessed, compare with uR, uW for each component using fR, fW.

1

2

3

4

5

component slicing
Component Slicing
  • Data flow within each component
    • Use Slicing to follow data
    • Applied using pre and post conditions
structure projection

1

3

2

4

3

5

Structure Projection
  • Follow data flow through components
    • Take internal data flow into account
    • Use slicing to determine this
  • Project the structure
    • Project connections onto points
    • Join points if pairs of connections coincide

1

2

3

4

5

current implementation
Current Implementation
  • Use MATTS component analysis tool
    • Based on agent components
    • Performs automatic slicing and topology check
    • Currently must input connections manually
future implementation
Future Implementation
  • To exist as a service in the network
    • Properties determined using instrumentation
  • Recheck whenever topology changes
    • Failure means composition would be refused
    • Success means access control requirements are guaranteed to be fulfilled
    • Properties cached to reduce overhead
timing results
Chain of components

Analysed as a single application

Analysed using composition analysis

600 MHz Intel X-Scale80321 Processor

Timing Results
conclusion
Conclusion
  • Provides useful distributed access control checking technique
  • Implementation suggests practical solution
    • Intend to implement in a Networked Appliance setting
  • Highlights how composition analysis can reduce impact of state explosion
